Coords 演示

如何通过连接到移动和单击事件来与绘图画布交互的示例

import sys
import matplotlib.pyplot as plt
import numpy as np

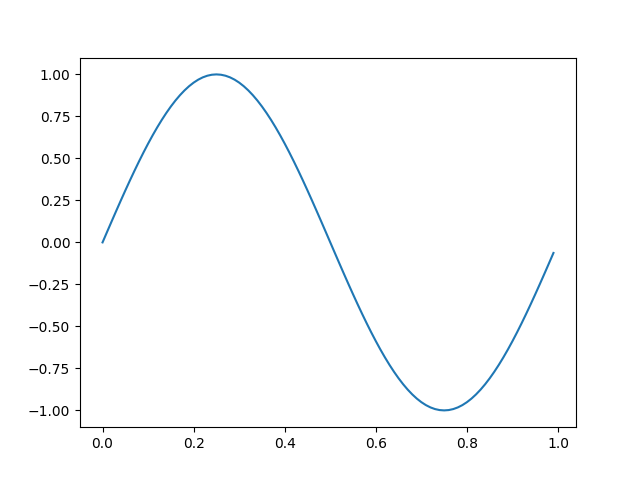

t = np.arange(0.0, 1.0, 0.01)
s = np.sin(2 * np.pi * t)
fig, ax = plt.subplots()
ax.plot(t, s)
def on_move(event):
    # get the x and y pixel coords
    x, y = event.x, event.y
    if event.inaxes:
        ax = event.inaxes  # the axes instance
        print('data coords %f %f' % (event.xdata, event.ydata))
def on_click(event):
    # get the x and y coords, flip y from top to bottom
    x, y = event.x, event.y
    if event.button == 1:
        if event.inaxes is not None:
            print('data coords %f %f' % (event.xdata, event.ydata))
binding_id = plt.connect('motion_notify_event', on_move)
plt.connect('button_press_event', on_click)
if "test_disconnect" in sys.argv:
    print("disconnecting console coordinate printout...")
    plt.disconnect(binding_id)
plt.show()

下载这个示例

• 下载python源码: coords_demo.py
• 下载Jupyter notebook: coords_demo.ipynb
