Composite AOV Output

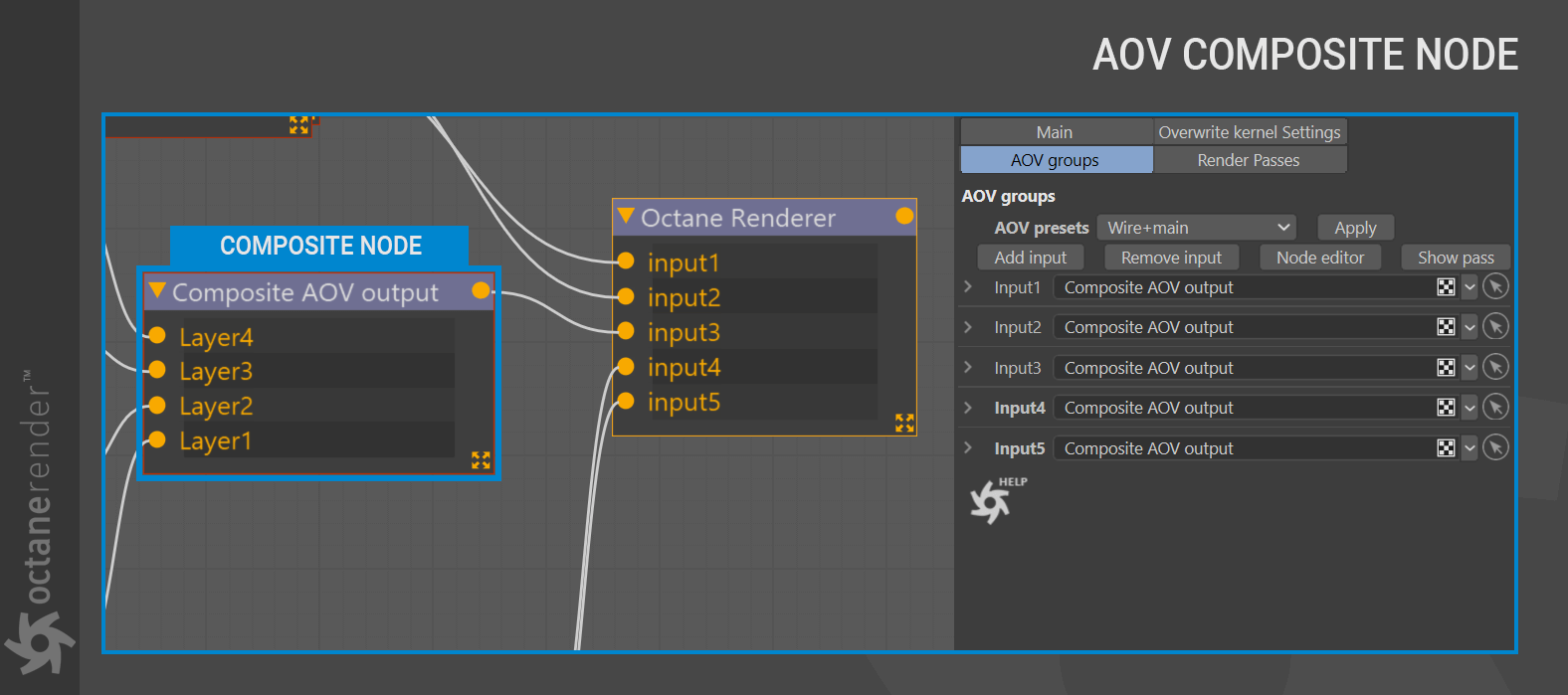

The Composite AOV node connects to the Octane Renderer node. Each Octane Renderer node can accept multiple Composite AOV node inputs. The Composite AOV node is used to assemble result of the AOV composite network that you build within the node itself, using layers. Each node can add multiple layers via the Add Layer button. Layers can be removed with the Remove Layer button. Note that layers are removed starting at the top of the layer list. When a layer is added to the Composite AOV node, a new input pin will appear to the left of the node, and a Composite AOV Output Layer node (discussed here) will be created, with a corresponding input node as determined by the popup menu that appears when the button is clicked.
The Add Layer button presents a popup menu when clicked. This menu configures the resulting node network preset per the choice made:
RENDER AOV INPUT
MAIN
This is the standard render output, fully realized.
Beauty Passes
All of the sub-passes used to build up a final image, minus post process, motion blur, DOF, reflection and refraction, lighting direction passes, and more.
Post Processing Passes
This is a single post process AOV that contain all of the effects enabled in the Post Processing tab in the Octane Camera tag or Live Viewer > Settings > Post tab.
Info Passes
Info passes are used to drive a variety of post render effects in a composting application. These passes contain such attributes as motion vectors, light pass IDs, UV coordinates, etc.
INFO PASSES NORMALIZED
A subset of the Info passes that have been normalized (into a value range of zero to one.)
Denoised Passes
These passes are denoised versions of several of the available beauty passes.
Material Passes
These passes offer basic materials information for Opacity, IOR, transmission and so on.
Lighting Passes
The Lighting Passes section contains passes for each of the 8 light IDs, along with the Sun and ambient lighting in the scene.
Render Layer Passes
There are three Render Layer passes available: Layer Shadows; Black Layer Shadows; and Layer Reflections.
Crypto Passes
Crypto Passes generate cryptomattes grouped by the name of the passes available.
COMPOSITE AOV OUTPUT
This option will create a Composite AOV Output node in the AOV node editor.
COMPOSITE AOV OUTPUT LAYER
This option will create a Composite AOV Output Layer node in the AOV node editor.
IMAGE AOV OUTPUT
This option will create an Image AOV Output node in the AOV node editor.
COLOR AOV OUTPUT
The Color AOV Output node can be used for blending, background tinting, and so on. The Color AOV Output can be used as an input to a Composite AOV node, as a mask to the Composite AOV node or directly connected to the AOV Output Group.
RENDER AOV OUTPUT
This option will create a Render AOV Output node in the AOV node editor.
