Make a Spotlight

Unlike current versions of OctaneRender®, older versions of Octane did not include a spotlight by default — but there were ways to make your own. This technique is useful both for spotlights and other things, and so it is included for reference purposes. Download the example scene from here.

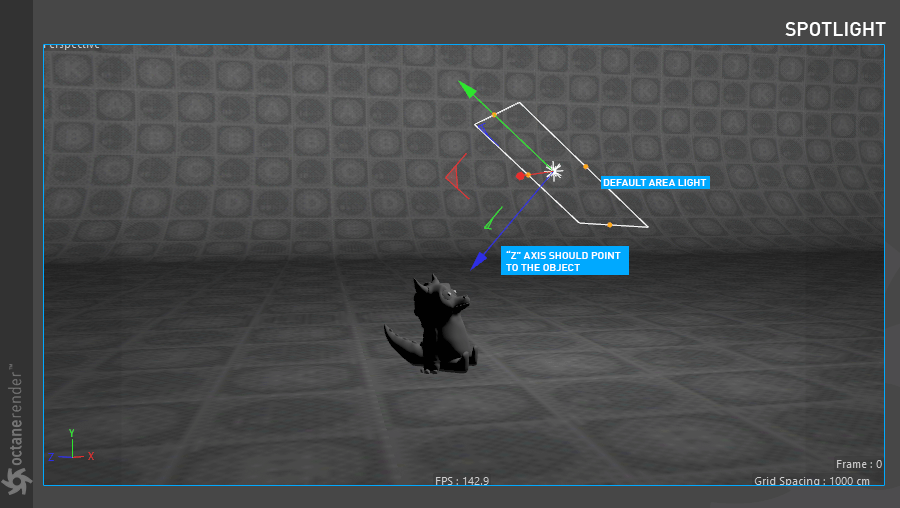

1- Open the scene from the link provided. Create a light by selecting Lights > Octane Area Light from the Live Viewer menu. Place this light somewhere on top of your subject and rotate the “Z” axis towards the object.

2- With the light selected in the Object manager, choose Cinema4D Tags > Target with the right mouse button. Then go to the “Target” tag and drag and drop the desired object into the “Target Object” field. This option will lock the orientation of the light to a fixed point when it is moved.

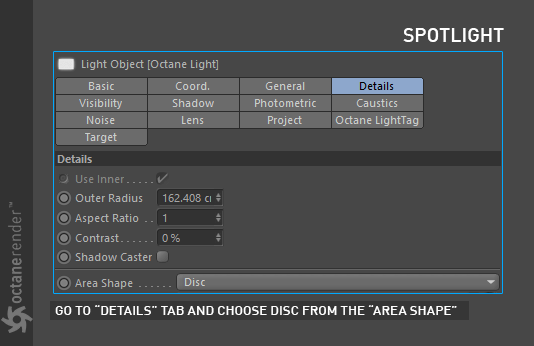

3- From the Object Manager, select the light and go to the “Details” tab. Change “Area Shape” to Disc.

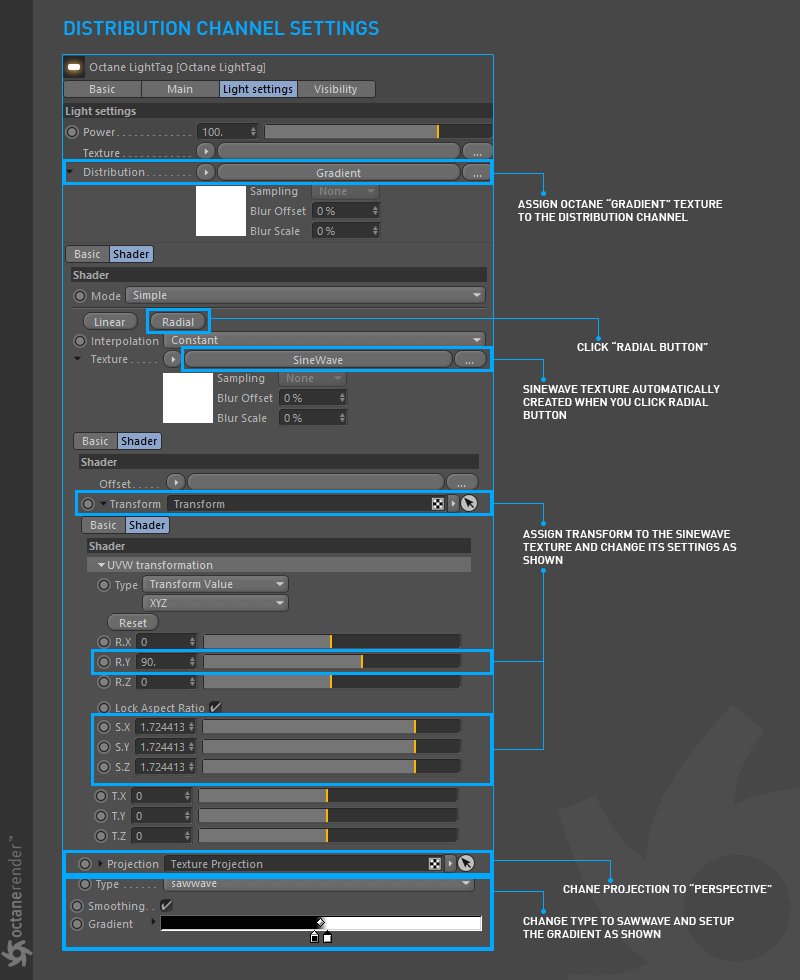

4- Now select Octane Light tag. We will create a spotlight by defining a procedural texture in the “Distribution” section. For this, assign an Octane “Gradient” or a Cinema 4D gradient to the Distribution channel. Change the options as you see in the image below.

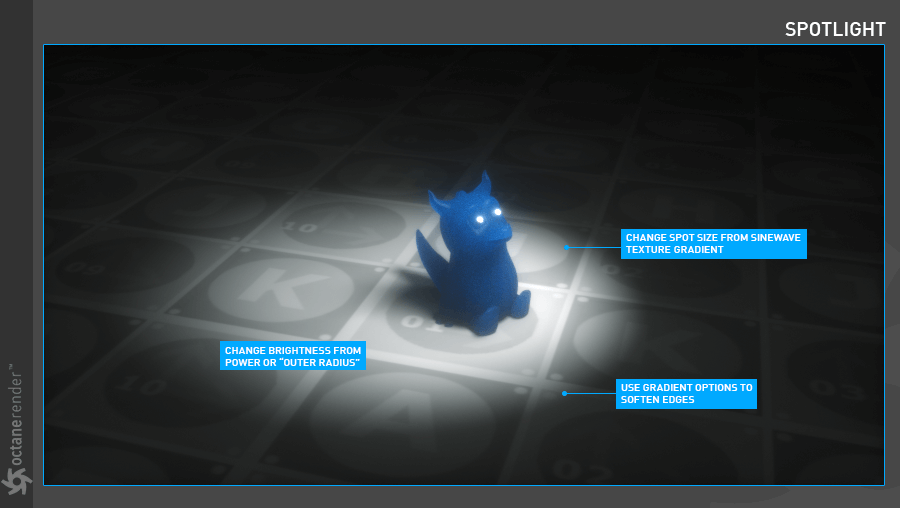

5- The custom-made Octane spotlight is now ready. The spotlight was easily created with the gradient texture defined in Distribution channel (a grayscale image in the Image Texture node can be used instead of the gradient, though at a loss of some control.) The brightness of the spotlight can be adjusted by using the Power attribute from Light settings. The same can be done by selecting the light from the object manager and adjusting the “Outer Radius” from the details tab. Adjust the edge softness of the spot by playing with the position of the gradient colors.
