Camera Imager

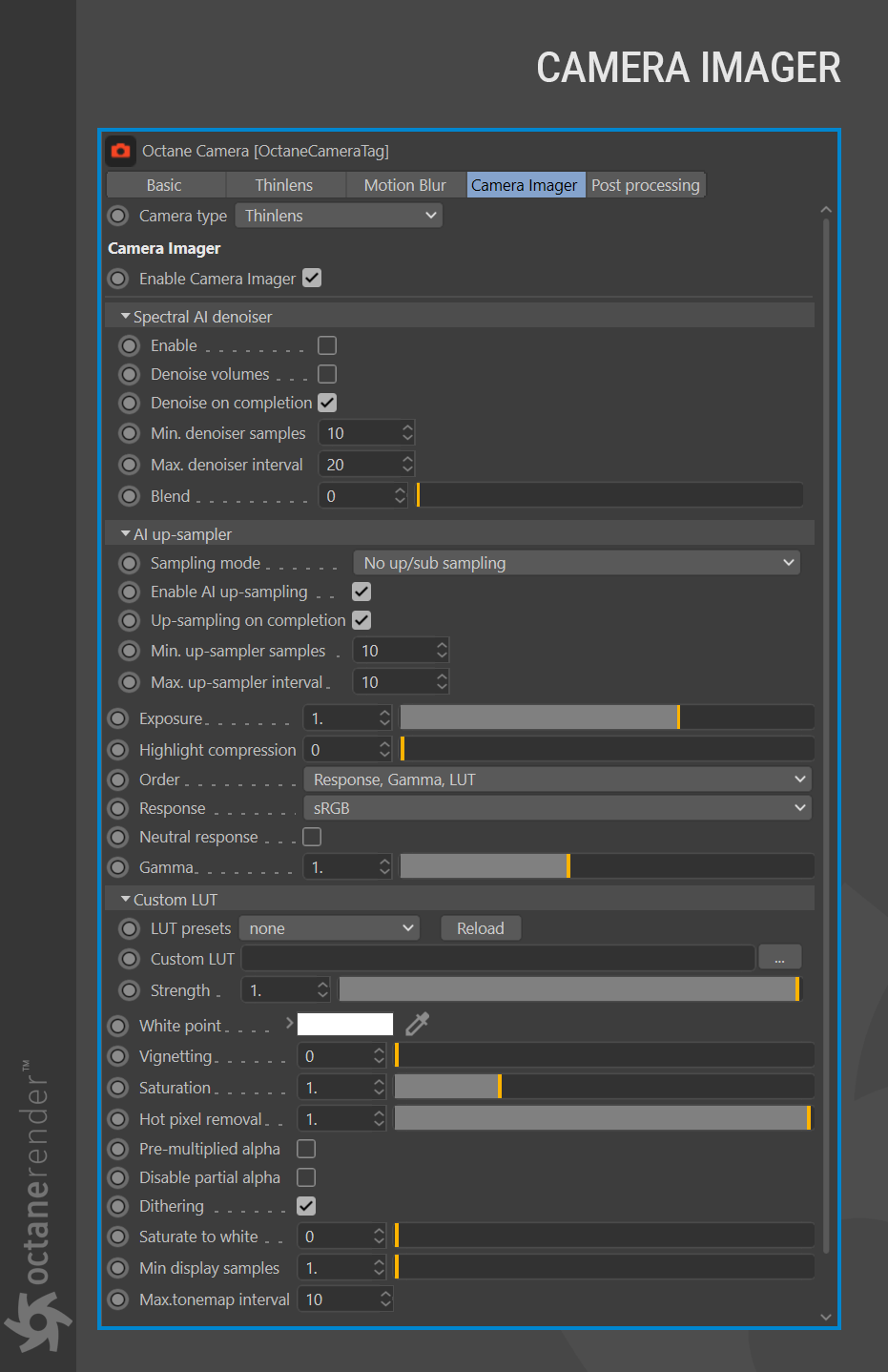

The Camera Imager tab is used to control the output behavior of the Octane Camera when rendering frames (exposure, camera response curve, gamma, LUT, white point and so on) as well as choosing the camera type.

Camera Imager-摄像机成像 - 图1

ENABLE CAMERA IMAGER

Used to enable or disable the camera imager. If the camera imager is disabled, the settings from Live Viewer are used instead.

SPECTRAL AI DENOISER

The Spectral AI Denoiser lets you render noise-free images with the Path Tracing kernel in short amount of the time. The denoiser is not trained for the PMC kernel. With the denoiser’s tiling and multi-GPU support, the OctaneRender® engine can denoise any resolution up to OctaneRender’s maximum while consuming about 450 MB per device.

The denoiser is trained to denoise volumes and volume passes. Volumetric passes have very low frequency details, so don’t use the Volumetric AI Denoiser with less than 1000 samples if you want to preserve details for final render quality that would resemble a 2K to 10K sample render of the scene.

ENABLE

Enables the Spectral AI Denoiser, which denoises some beauty passes - including the main beauty pass - and writes the outputs into separate render passes.

DENOISE VOLUMES

If enabled, the Spectral AI Denoiser denoises volumes in the scene. Otherwise, volumes are not denoised by default.

DENOISE ON COMPLETION

If Enabled, beauty passes are denoised once at the end of a render. Disable this option if you’re rendering with an interactive region.

MIN. DENOISER SAMPLES

The minimum number of samples per pixel until the denoiser kicks in. This is only valid when Denoise On Completion is disabled.

MAX. DENOISER INTERVAL

Maximum interval between denoiser runs in seconds. This is only valid when Denoise On Completion is disabled. The Denoiser Interval tells the denoiser to run when OctaneRender® reaches this value. It is used for Interactive Render Region, which renders up to 1 million or until stopped. For this reason, OctaneRender® provides the option to denoise periodically.

BLEND

A value between 0.f - 1.f blends the original image into the denoiser output. 0.f results in a fully-denoised image, and 1.f results in an unaltered image. Intermediate values produce a blend of the denoised image and the original image.

AI UP-SAMPLER

OctaneRender® includes a built-in AI upsampler in the Camera Imager. When specifying an Upsampler Mode, the AI upsampler performs a faster render at a lower resolution, then upscales to the final resolution. The AI Upsampler also has progressive and one-stop upsampling modes, similar to the AI denoiser.

SAMPLING MODE

Selects the upsampler mode for rendering. The image renders at a lower resolution divided by the sampling mode, then it upscales to the final resolution.

ENABLE AI UP-SAMPLING

When you have an Upsampler Mode selection made and you have this option enabled, the render scales using AI upsampling. Otherwise, scaling is done using traditional methods.

UP-SAMPLING ON COMPLETION

Beauty passes upsample once at the end of a render.

MIN. UP-SAMPLER SAMPLES

The minimum number of samples per pixel until the upsampler activates. This parameter doesn’t apply if you select No Upsampling in Upsampler Mode.

MAX. UP-SAMPLER INTERVAL

The maximum interval between upsampler runs in seconds. This parameter doesn’t apply if you select No Upsampling in Upsampler Mode.

EXPOSURE

Controls the exposure of the scene. Smaller values will create a dark scene while higher values will brighten the scene. Exposure has no effect on any of the render layer passes.

HIGHLIGHT COMPRESSION

This reduces burned out highlights by compressing them and reducing their contrast. If some scenes have more exposure, this option can compensate for excessive brightness.

Camera Imager-摄像机成像 - 图2

ORDER

This defines the order in which the Response curve, the Gamma and the Custom LUT is applied on the scene. Typically, 3D LUTs are defined for sRGB input values, i.e., you usually want to apply the custom LUT last, but there might also be 3D look-up tables for linear input data in which case you might want to apply the custom LUT first.

RESPONSE CURVE

Measured camera response curves can be selected from here. You can take advantage of a number of response options for the render output and see them instantly in the Live Viewer. In fact, you “may” not even need to use the 3rd party compositing tool. Octane also has response curves that reproduces the rendering neutrally on a normal display. The “sRGB”, “Gamma 2.2” and “Gamma 1.8” are applicable for most displays that either use sRGB or simply apply a gamma of 2.2 or 1.8. To see examples of response curves, go to this link. There is always an option available to you based on the quality of your Render output.

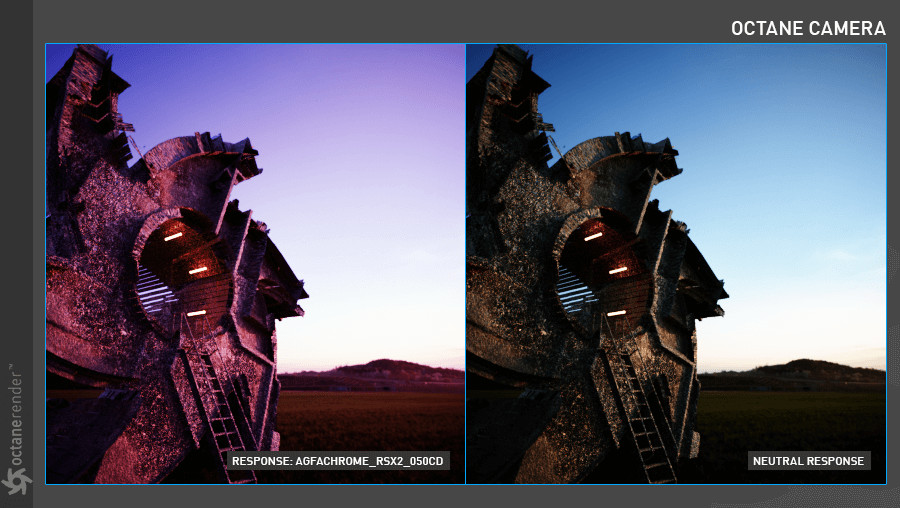

NEUTRAL RESPONSE

If enabled, the camera response curve doesn’t tint the render result anymore. But the dark and bright balance of the response curve does not change. Only the tint color will be canceled if you make it active.

Camera Imager-摄像机成像 - 图3

GAMMA

This adjusts the gamma of the render and controls the overall brightness of an image. Images which are not properly corrected can look either bleached out, or too dark. Varying the amount of gamma correction changes not only the brightness, but also the ratios of red to green to blue.

CUSTOM LUT

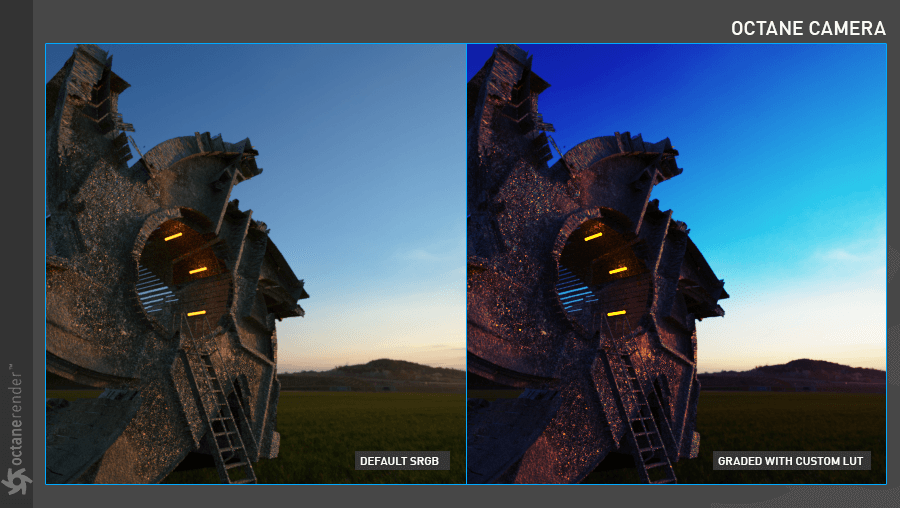

This allows you to specify any standard or user-defined 3D Lookup Table (.cube file) for Octane to map one color space to another. If this attribute is set, the custom LUT is applied in the order specified through the Order attribute. You can create and use Custom LUT or find them on the web. To get started, go to this site and download the free LUTs. After downloading, Choose the LUT file you want from the File section, you can play with the Strength or change the ordering from the Order section. This is all about how you want a “Grading” and a Final Look.

Camera Imager-摄像机成像 - 图4

WHITE POINT

Specifies the color used to adjust the tint to produce and simulate the relative temperature cast throughout the image by different light sources. The white point is white by default, acting as a white balance which helps achieve the most accurate colors possible.

VIGNETTING

Adjusting this parameter increases the amount of darkening in the corners of the render. Used sparingly, it can greatly increase the realism of the render.

Camera Imager-摄像机成像 - 图5

SATURATION

Adjusts the amount of color saturation of the render.

HOT PIXEL REMOVAL

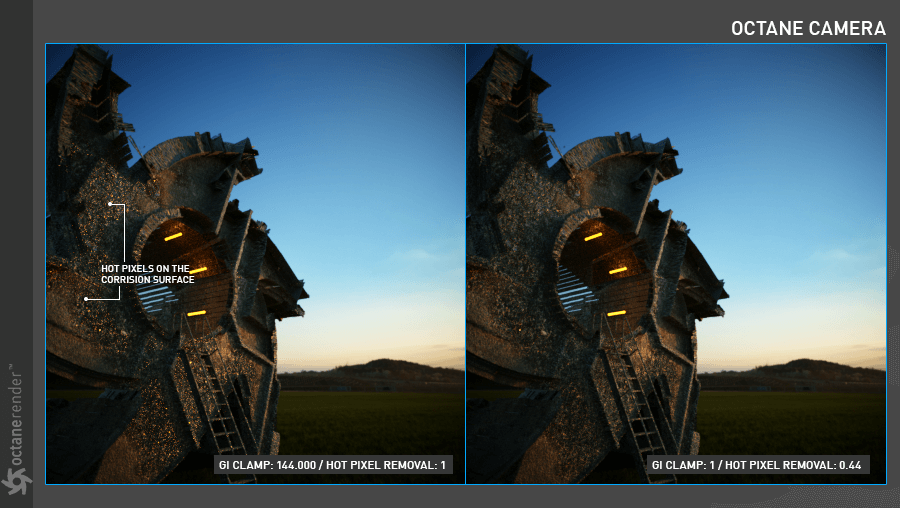

The Hot Pixel Removal slider is used to remove over-bright pixels (fireflies) during the rendering process. While many of the pixels can disappear if the render is allowed to progress, the Hot Pixel Removal feature allows the over-bright pixels to be removed at a much lower Sample per Pixel. Try not to lower the value too much when using this option because your render may look strange and reduce image quality. Hot pixels can also be minimized by lowering the “GI Clamp” value (e.g., 1 or 2) by going to the kernel settings from the octane render settings.

Camera Imager-摄像机成像 - 图6

PRE-MULTIPLIED ALPHA

Checking the Pre-multiplied Alpha button multiplies any transparency value of the output pixel by the pixels color.

DISABLE PARTIAL ALPHA

Option to make pixels that are partially transparent (alpha > 0) fully opaque.

DITHERING

Adds random noise which removes banding in very clean images.

SATURATE TO WHITE

When the sun is too bright it can create multicolored reflections. Increasing this value will change the colors to white. This is also applicable to all sources of light. Fully saturated parts of the render can be pushed towards pure white with this option. This helps avoid large patches of fully saturated colors caused by over-bright light sources such as very bright colored emitters or reflected sunlight off colored surfaces.

MINIMUM DISPLAY SAMPLES

This is minimum number of samples that is calculated before the image is displayed. This feature can significantly reduce the noise when navigating and is useful for real-time walkthroughs. When using multiple GPUs, it’s recommended to set this value as a multiple of the number of available GPUs for rendering, e.g., if you’re rendering with 4 GPUs, set this value at 4 or 8.

MAXIMUM TONE MAP INTERVAL

Maximum interval between tone maps in seconds
