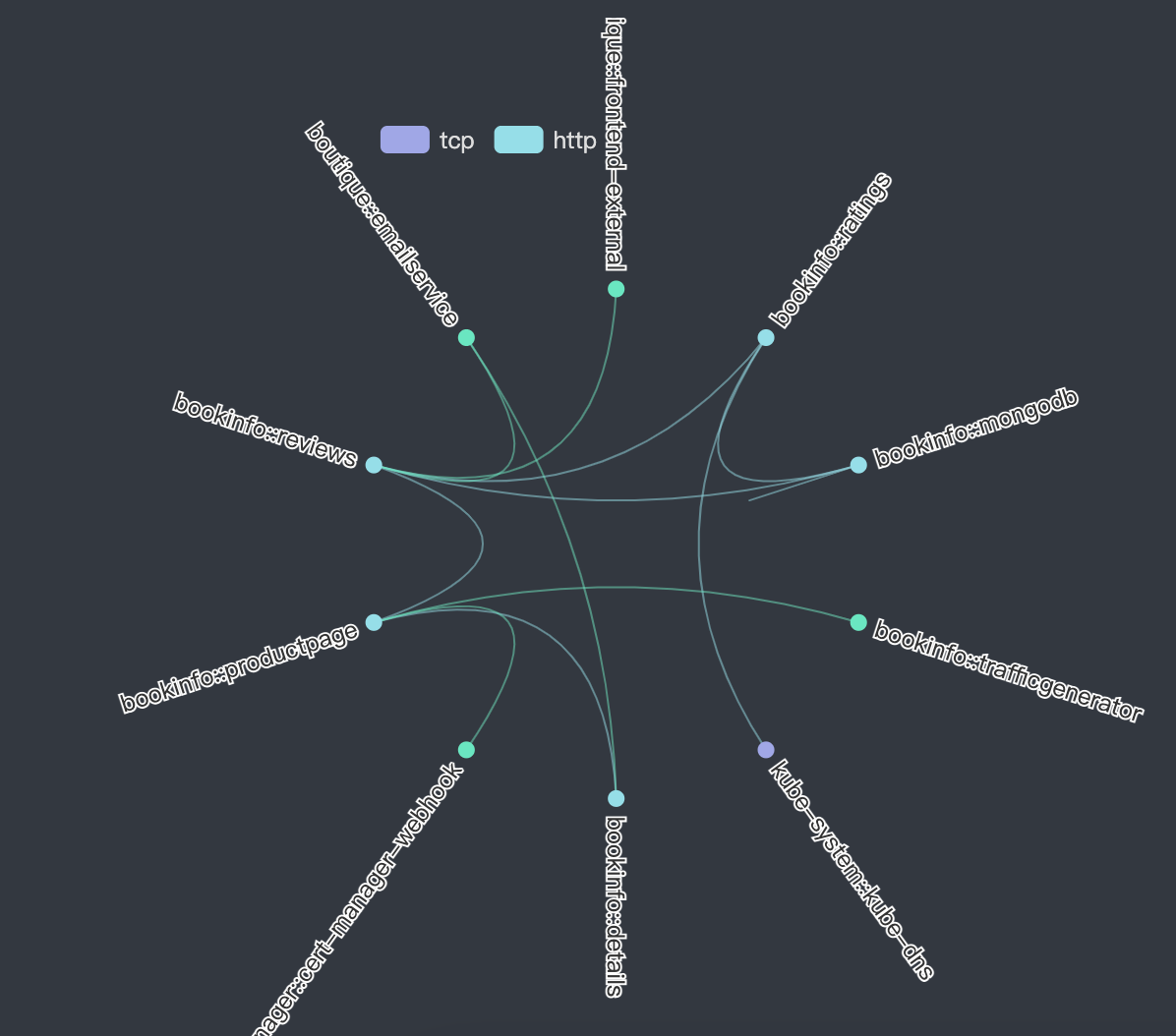

echarts Graph关系图

echarts关系图参考 https://echarts.apache.org/examples/zh/editor.html?c=graph-circular-layout

import React, { useEffect, useState } from 'react';
import { array, bool, number } from 'prop-types';
import { TooltipComponent, LegendComponent } from 'echarts/components';
import { GraphChart } from 'echarts/charts';
import Echarts, { chartHeight, sanKeyColor } from '@/components/Echarts';
import nodeObj from './nodes.json';
function nodeSource({ nodes, calls }) {
  const nodeTypes = nodes.map(it => it.type);
  // [{name: "tcp"}, {name: "http"}]
  const legendData = [...new Set(nodeTypes)].map(name => ({ name }));
  const links = (calls || []).reduce((prev, next, index) => {
    const { source, target } = next;
    const item = { index, source: source.id, target: target.id };
    prev.push(item);
    return prev;
  }, []);
  const _nodes = (nodes || []).reduce((prev, next, index) => {
    const { id, name, type } = next;
    const item = { id, name, category: type, label: { show: true } };
    prev.push(item);
    return prev;
  }, []);
  return { nodes: _nodes, links, legendData };
}
Chart.propTypes = {
  dataSource: array,
  height: number,
  loading: bool,
};
Chart.defaultProps = {
  dataSource: [],
  height: chartHeight,
  loading: false,
};
function Chart({ dataSource, height, loading }) {
  const [options, setOptions] = useState({});
  useEffect(update, [dataSource]);
  function update() {
    const OPTIONS = getOptions();
    setOptions(OPTIONS);
  }
  function getOptions() {
    const { nodes, links, legendData } = nodeSource(nodeObj);
    return {
      'tooltip': {},
      'color': [
        '#6be6c1',
        '#a0a7e6',
        '#96dee8',
        '#3f96e3',
        '#3fb1e3',
        '#6be6c1',
        '#626c91',
        '#a0a7e6',
        '#c4ebad',
        '#96dee8',
      ],
      'legend': {
        'top': 24,
        'textStyle': {
          'color': '#ddd',
        },
        'data': legendData,
      },
      'series': [
        {
          'top': '20%',
          'height': '60%',
          'name': '服务',
          'type': 'graph',
          'layout': 'circular',
          'circular': {
            'rotateLabel': true,
          },
          data: nodes,
          links,
          'categories': legendData,
          'roam': true,
          'label': {
            'position': 'right',
            'formatter': '{b}',
          },
          'lineStyle': {
            'color': 'source',
            'curveness': 0.3,
          },
        },
      ],
    };
  }
  const attrs = {
    options,
    height: 640,
    loading,
    components: [
      TooltipComponent,
      LegendComponent,
      GraphChart,
    ],
    renderType: 'svg'
  };
  return (
    <Echarts {...attrs} />
  );
}
export default Chart;

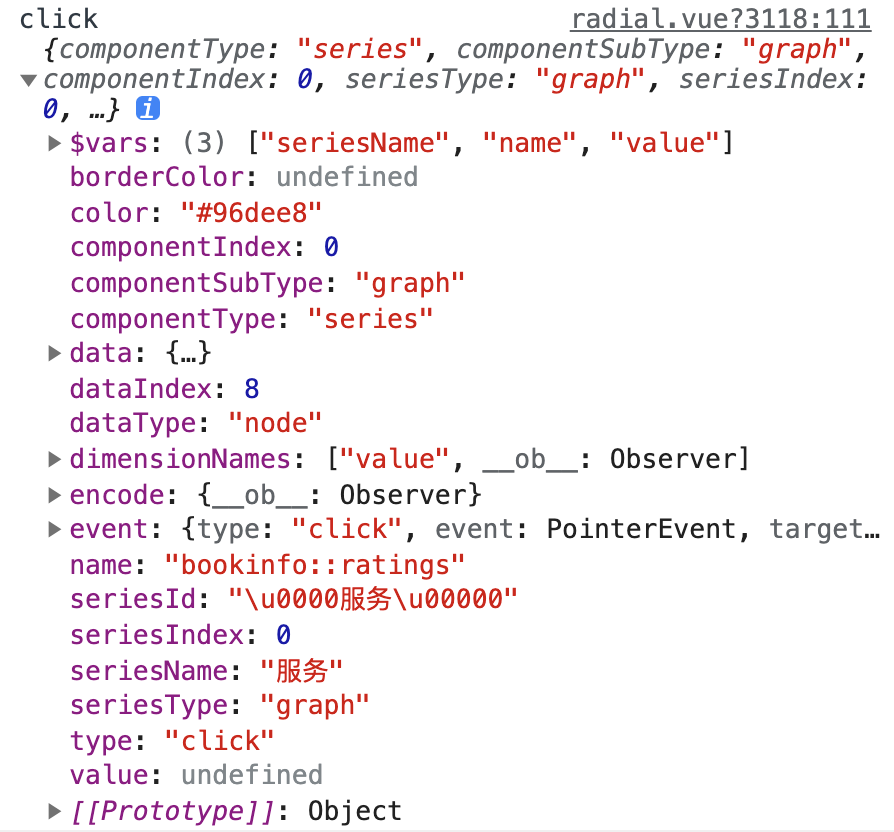

click

function onClick() {
  const myChart = this.$refs.radial.myChart;
  myChart.on('click', (params) => {
    const currentNode = nodes.find(it => it.id === params.data.id);
    const payload = currentNode || {};
    this.$store.commit('rocketTopo/SET_NODE', payload);
  });
}

关系图数据

const links = [
  {
    'index': 0,
    'source': 'Ym9va2luZm86OnByb2R1Y3RwYWdl.1',
    'target': 'Ym9va2luZm86OmRldGFpbHM=.1',
  },
  {
    'index': 1,
    'source': 'Ym9va2luZm86OnByb2R1Y3RwYWdl.1',
    'target': 'Ym9va2luZm86OnJldmlld3M=.1',
  },
  {
    'index': 2,
    'source': 'Ym9va2luZm86OnJhdGluZ3M=.1',
    'target': 'Ym9va2luZm86Om1vbmdvZGI=.1',
  },
  {
    'index': 3,
    'source': 'Ym9va2luZm86OnJldmlld3M=.1',
    'target': 'Ym9va2luZm86OnJhdGluZ3M=.1',
  },
  {
    'index': 4,
    'source': 'Ym9va2luZm86Om1vbmdvZGI=.1',
    'target': 'Ym9va2luZm86Om1vbmdvZGI=.1',
  },
  {
    'index': 5,
    'source': 'Ym9va2luZm86OnJldmlld3M=.1',
    'target': 'Ym9va2luZm86Om1vbmdvZGI=.1',
  },
  {
    'index': 6,
    'source': 'Ym9va2luZm86OnJhdGluZ3M=.1',
    'target': 'a3ViZS1zeXN0ZW06Omt1YmUtZG5z.1',
  },
  {
    'index': 7,
    'source': 'Ym9va2luZm86OnRyYWZmaWNnZW5lcmF0b3I=.1',
    'target': 'Ym9va2luZm86OnByb2R1Y3RwYWdl.1',
  },
  {
    'index': 8,
    'source': 'Ym91dGlxdWU6OmVtYWlsc2VydmljZQ==.1',
    'target': 'Ym9va2luZm86OmRldGFpbHM=.1',
  },
  {
    'index': 9,
    'source': 'Ym91dGlxdWU6OmVtYWlsc2VydmljZQ==.1',
    'target': 'Ym9va2luZm86OnJldmlld3M=.1',
  },
  {
    'index': 10,
    'source': 'Ym91dGlxdWU6OmZyb250ZW5kLWV4dGVybmFs.1',
    'target': 'Ym9va2luZm86OnJldmlld3M=.1',
  },
  {
    'index': 11,
    'source': 'Y2VydC1tYW5hZ2VyOjpjZXJ0LW1hbmFnZXItd2ViaG9vaw==.1',
    'target': 'Ym9va2luZm86OnByb2R1Y3RwYWdl.1',
  },
]
const nodes = [
  {
    'id': 'Ym9va2luZm86OnRyYWZmaWNnZW5lcmF0b3I=.1',
    'name': 'bookinfo::trafficgenerator',
    'label': {
      'show': true,
    },
  },
  {
    'id': 'a3ViZS1zeXN0ZW06Omt1YmUtZG5z.1',
    'name': 'kube-system::kube-dns',
    'label': {
      'show': true,
    },
    'category': 'tcp',
  },
  {
    'id': 'Ym9va2luZm86OmRldGFpbHM=.1',
    'name': 'bookinfo::details',
    'label': {
      'show': true,
    },
    'category': 'http',
  },
  {
    'id': 'Y2VydC1tYW5hZ2VyOjpjZXJ0LW1hbmFnZXItd2ViaG9vaw==.1',
    'name': 'cert-manager::cert-manager-webhook',
    'label': {
      'show': true,
    },
  },
  {
    'id': 'Ym9va2luZm86OnByb2R1Y3RwYWdl.1',
    'name': 'bookinfo::productpage',
    'label': {
      'show': true,
    },
    'category': 'http',
  },
  {
    'id': 'Ym9va2luZm86OnJldmlld3M=.1',
    'name': 'bookinfo::reviews',
    'label': {
      'show': true,
    },
    'category': 'http',
  },
  {
    'id': 'Ym91dGlxdWU6OmVtYWlsc2VydmljZQ==.1',
    'name': 'boutique::emailservice',
    'label': {
      'show': true,
    },
  },
  {
    'id': 'Ym91dGlxdWU6OmZyb250ZW5kLWV4dGVybmFs.1',
    'name': 'boutique::frontend-external',
    'label': {
      'show': true,
    },
  },
  {
    'id': 'Ym9va2luZm86OnJhdGluZ3M=.1',
    'name': 'bookinfo::ratings',
    'label': {
      'show': true,
    },
    'category': 'http',
  },
  {
    'id': 'Ym9va2luZm86Om1vbmdvZGI=.1',
    'name': 'bookinfo::mongodb',
    'label': {
      'show': true,
    },
    'category': 'http',
  },
]
