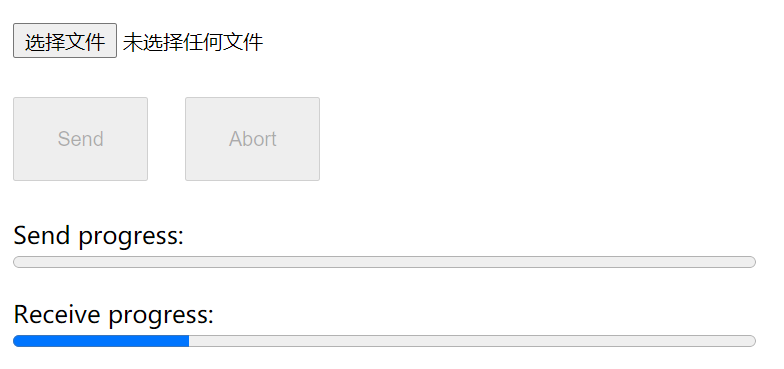

本章带大家基于WebRTC实现多端非音视频数据传输，其中包括：1.文本聊天，2.传输文件，通过本章的学习大家可以掌握好如何用WebRTC的数据通道，传输非音视频数据。

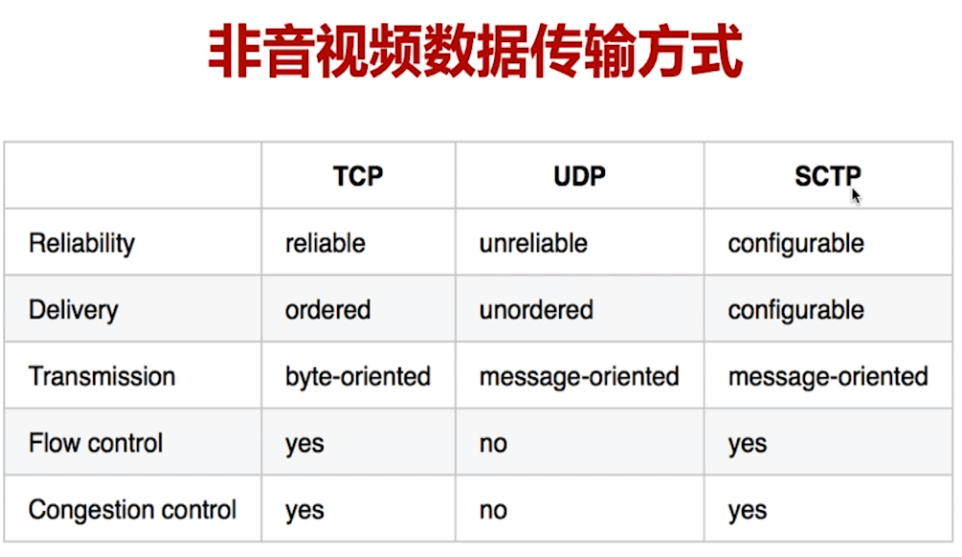

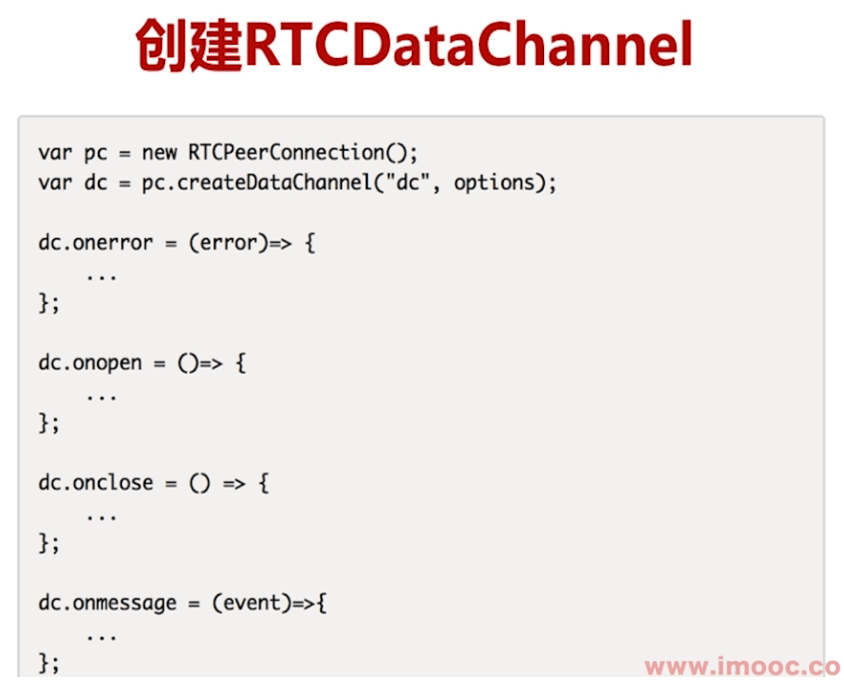

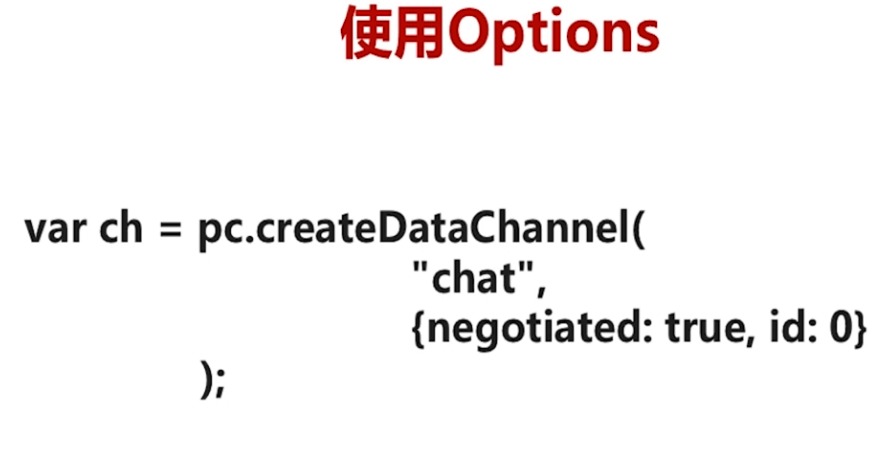

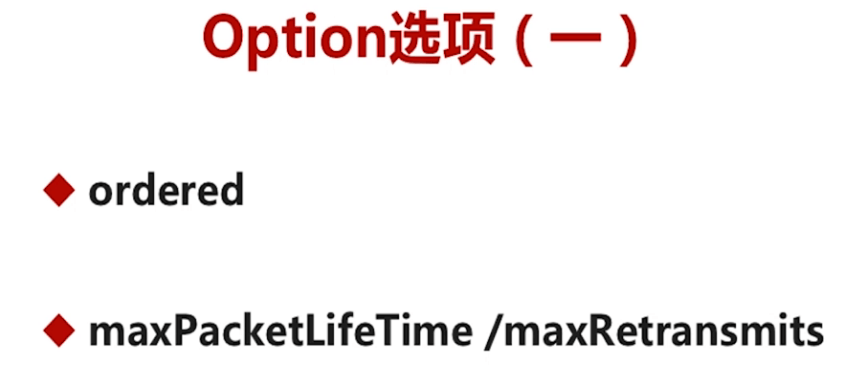

14-1 【基础铺垫，学前有概念】传输非音视频数据基础知识

14-2 【来点实战】端到端文本聊天

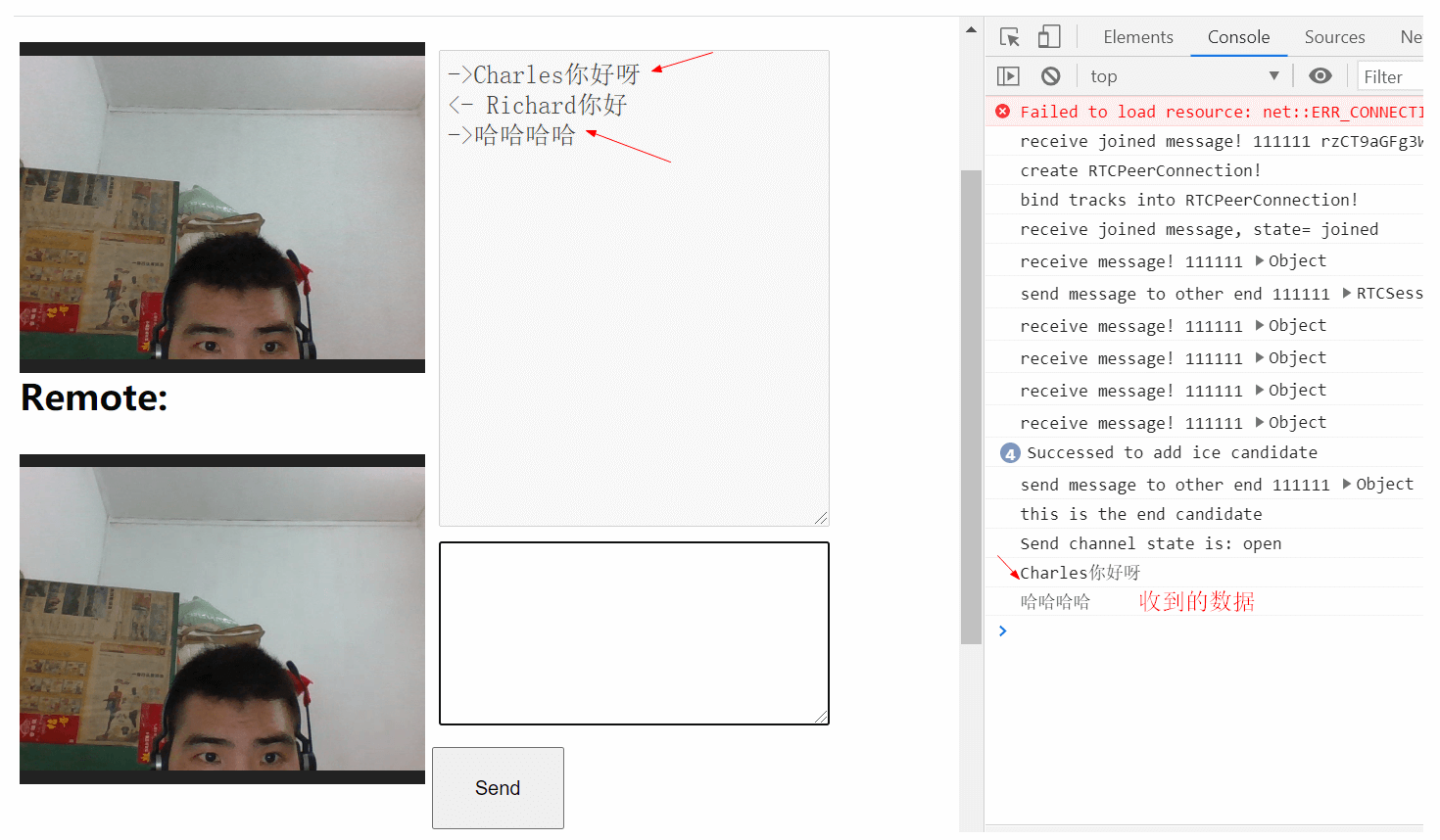

1、效果

两人连接后，即可以互相发送数据。

2、index.html

<html>
    <head>
        <title>WebRTC PeerConnection</title>
        <link href="./css/main.css" rel="stylesheet" />
    </head>
    <body>
        <div>
            <div>
                <button id="connserver">Connect Sig Server</button>
                <button id="leave" disabled>Leave</button>
            </div>
            <div>
                <label>BandWidth:</label>
                <select id="bandwidth" disabled>
                    <option value="unlimited" selected>unlimited</option>
                    <option value="2000">2000</option>
                    <option value="1000">1000</option>
                    <option value="500">500</option>
                    <option value="250">250</option>
                    <option value="125">125</option>
                </select>
                kbps
            </div>
            <div class="preview">
                <div>
                    <h2>Local:</h2>
                    <video id="localvideo" autoplay playsinline muted></video>
                    <h2>Remote:</h2>
                    <video id="remotevideo" autoplay playsinline></video>
                </div>
                <div>
                    <h2>Chat:<h2>
                    <textarea id="chat" disabled></textarea>
                    <textarea id="sendtxt" disabled></textarea>
                    <button id="send" disabled>Send</button>
                </div>
            </div>
            <div class="preview">
                <div class="graph-container" id="bitrateGraph">
                    <div>Bitrate</div>
                    <canvas id="bitrateCanvas"></canvas>
                </div>
                <div class="graph-container" id="packetGraph">
                    <div>Packets sent per second</div>
                    <canvas id="packetCanvas"></canvas>
                </div>
            </div>
        </div>
        <script src="https://cdnjs.cloudflare.com/ajax/libs/socket.io/2.0.3/socket.io.js"></script>
        <script src="https://webrtc.github.io/adapter/adapter-latest.js"></script>
        <script src="js/main_bw.js"></script>
        <script src="js/third_party/graph.js"></script>
    </body>
</html>

3、main_bw.js

等第二个人来的时候，才创建DataChannel。
主要是实现

    //create data channel for transporting non-audio/video data
        dc = pc.createDataChannel('chatchannel');
        dc.onmessage = receivemsg;
        dc.onopen = dataChannelStateChange;
        dc.onclose = dataChannelStateChange;

要实现receivemsg，dataChannelStateChange，dataChannelStateChange函数。

完整代码如下：

'use strict'
var localVideo = document.querySelector('video#localvideo');
var remoteVideo = document.querySelector('video#remotevideo');
var btnConn =  document.querySelector('button#connserver');
var btnLeave = document.querySelector('button#leave');
var optBw = document.querySelector('select#bandwidth');
var chat = document.querySelector('textarea#chat');
var send_txt = document.querySelector('textarea#sendtxt');
var btnSend = document.querySelector('button#send');
var bitrateGraph;
var bitrateSeries;
var packetGraph;
var packetSeries;
var lastResult;
var pcConfig = {
  'iceServers': [{
    'urls': 'turn:stun.al.learningrtc.cn:3478',
    'credential': "mypasswd",
    'username': "garrylea"
  }]
};
var localStream = null;
var remoteStream = null;
var pc = null;
var dc = null;
var roomid;
var socket = null;
var offerdesc = null;
var state = 'init';
function sendMessage(roomid, data){
    console.log('send message to other end', roomid, data);
    if(!socket){
        console.log('socket is null');
    }
    socket.emit('message', roomid, data);
}
function dataChannelStateChange() {
  var readyState = dc.readyState;
  console.log('Send channel state is: ' + readyState);
  if (readyState === 'open') {
    send_txt.disabled = false;
    send.disabled = false;
  } else {
    send_txt.disabled = true;
    send.disabled = true;
  }
}
function conn(){
    socket = io.connect();
    socket.on('joined', (roomid, id) => {
        console.log('receive joined message!', roomid, id);
        state = 'joined'
        //如果是多人的话，第一个人不该在这里创建peerConnection
        //都等到收到一个otherjoin时再创建
        //所以，在这个消息里应该带当前房间的用户数
        //
        //create conn and bind media track
        createPeerConnection();
        bindTracks();
        btnConn.disabled = true;
        btnLeave.disabled = false;
        console.log('receive joined message, state=', state);
    });
    socket.on('otherjoin', (roomid) => {
        console.log('receive joined message:', roomid, state);
        //如果是多人的话，每上来一个人都要创建一个新的 peerConnection
        //
        if(state === 'joined_unbind'){
            createPeerConnection();
            bindTracks();
        }
        //create data channel for transporting non-audio/video data
        dc = pc.createDataChannel('chatchannel');
        dc.onmessage = receivemsg;
        dc.onopen = dataChannelStateChange;
        dc.onclose = dataChannelStateChange;
        state = 'joined_conn';
        call();
        console.log('receive other_join message, state=', state);
    });
    socket.on('full', (roomid, id) => {
        console.log('receive full message', roomid, id);
        socket.disconnect();
        hangup();
        closeLocalMedia();
        state = 'leaved';
        console.log('receive full message, state=', state);
        alert('the room is full!');
    });
    socket.on('leaved', (roomid, id) => {
        console.log('receive leaved message', roomid, id);
        state='leaved'
        socket.disconnect();
        console.log('receive leaved message, state=', state);
        btnConn.disabled = false;
        btnLeave.disabled = true;
        optBw.disabled = true;
    });
    socket.on('bye', (room, id) => {
        console.log('receive bye message', roomid, id);
        //state = 'created';
        //当是多人通话时，应该带上当前房间的用户数
        //如果当前房间用户不小于 2, 则不用修改状态
        //并且，关闭的应该是对应用户的peerconnection
        //在客户端应该维护一张peerconnection表，它是
        //一个key:value的格式，key=userid, value=peerconnection
        state = 'joined_unbind';
        hangup();
        console.log('receive bye message, state=', state);
    });
    socket.on('disconnect', (socket) => {
        console.log('receive disconnect message!', roomid);
        if(!(state === 'leaved')){
            hangup();
            closeLocalMedia();
        }
        state = 'leaved';
        btnConn.disabled = false;
        btnLeave.disabled = true;
        optBw.disabled = true;
    });
    socket.on('message', (roomid, data) => {
        console.log('receive message!', roomid, data);
        if(data === null || data === undefined){
            console.error('the message is invalid!');
            return;
        }
        if(data.hasOwnProperty('type') && data.type === 'offer') {
            pc.setRemoteDescription(new RTCSessionDescription(data));
            //create answer
            pc.createAnswer()
                .then(getAnswer)
                .catch(handleAnswerError);
        }else if(data.hasOwnProperty('type') && data.type === 'answer'){
            optBw.disabled = false
            pc.setRemoteDescription(new RTCSessionDescription(data));
        }else if (data.hasOwnProperty('type') && data.type === 'candidate'){
            var candidate = new RTCIceCandidate({
                sdpMLineIndex: data.label,
                candidate: data.candidate
            });
            pc.addIceCandidate(candidate)
                .then(()=>{
                    console.log('Successed to add ice candidate');
                })
                .catch(err=>{
                    console.error(err);
                });
        }else{
            console.log('the message is invalid!', data);
        }
    });
    roomid = '111111';
    socket.emit('join', roomid);
    return true;
}
function connSignalServer(){
    //开启本地视频
    start();
    return true;
}
function getMediaStream(stream){
    localStream = stream;
    localVideo.srcObject = localStream;
    //这个函数的位置特别重要，
    //一定要放到getMediaStream之后再调用
    //否则就会出现绑定失败的情况
    //setup connection
    conn();
    bitrateSeries = new TimelineDataSeries();
    bitrateGraph = new TimelineGraphView('bitrateGraph', 'bitrateCanvas');
    bitrateGraph.updateEndDate();
    packetSeries = new TimelineDataSeries();
    packetGraph = new TimelineGraphView('packetGraph', 'packetCanvas');
    packetGraph.updateEndDate();
}
function getDeskStream(stream){
    localStream = stream;
}
function handleError(err){
    console.error('Failed to get Media Stream!', err);
}
function shareDesk(){
    if(IsPC()){
        navigator.mediaDevices.getDisplayMedia({video: true})
            .then(getDeskStream)
            .catch(handleError);
        return true;
    }
    return false;
}
function start(){
    if(!navigator.mediaDevices ||
        !navigator.mediaDevices.getUserMedia){
        console.error('the getUserMedia is not supported!');
        return;
    }else {
        var constraints = {
            video: true,
            audio: false
        }
        navigator.mediaDevices.getUserMedia(constraints)
                    .then(getMediaStream)
                    .catch(handleError);
    }
}
function getRemoteStream(e){
    remoteStream = e.streams[0];
    remoteVideo.srcObject = e.streams[0];
}
function handleOfferError(err){
    console.error('Failed to create offer:', err);
}
function handleAnswerError(err){
    console.error('Failed to create answer:', err);
}
function getAnswer(desc){
    pc.setLocalDescription(desc);
    optBw.disabled = false;
    //send answer sdp
    sendMessage(roomid, desc);
}
function getOffer(desc){
    pc.setLocalDescription(desc);
    offerdesc = desc;
    //send offer sdp
    sendMessage(roomid, offerdesc);
}
function receivemsg(e){
    var msg = e.data;
    if(msg){
        console.log(msg);
        chat.value += "->" + msg + "\r\n";
    }else{
        console.error('received msg is null');
    }
}
function createPeerConnection(){
    //如果是多人的话，在这里要创建一个新的连接.
    //新创建好的要放到一个map表中。
    //key=userid, value=peerconnection
    console.log('create RTCPeerConnection!');
    if(!pc){
        pc = new RTCPeerConnection(pcConfig);
        pc.onicecandidate = (e)=>{
            if(e.candidate) {
                sendMessage(roomid, {
                    type: 'candidate',
                    label:event.candidate.sdpMLineIndex,
                    id:event.candidate.sdpMid,
                    candidate: event.candidate.candidate
                });
            }else{
                console.log('this is the end candidate');
            }
        }
        pc.ondatachannel = e=> {
            if(!dc){
                dc = e.channel;
                dc.onmessage = receivemsg;
                dc.onopen = dataChannelStateChange;
                dc.onclose = dataChannelStateChange;
            }
        }
        pc.ontrack = getRemoteStream;
    }else {
        console.log('the pc have be created!');
    }
    return;
}
//绑定永远与 peerconnection在一起，
//所以没必要再单独做成一个函数
function bindTracks(){
    console.log('bind tracks into RTCPeerConnection!');
    if( pc === null && localStream === undefined) {
        console.error('pc is null or undefined!');
        return;
    }
    if(localStream === null && localStream === undefined) {
        console.error('localstream is null or undefined!');
        return;
    }
    //add all track into peer connection
    localStream.getTracks().forEach((track)=>{
        pc.addTrack(track, localStream);
    });
}
function call(){
    if(state === 'joined_conn'){
        var offerOptions = {
            offerToRecieveAudio: 1,
            offerToRecieveVideo: 1
        }
        pc.createOffer(offerOptions)
            .then(getOffer)
            .catch(handleOfferError);
    }
}
function hangup(){
    if(!pc) {
        return;
    }
    offerdesc = null;
    pc.close();
    pc = null;
}
function closeLocalMedia(){
    if(!(localStream === null || localStream === undefined)){
        localStream.getTracks().forEach((track)=>{
            track.stop();
        });
    }
    localStream = null;
}
function leave() {
    socket.emit('leave', roomid); //notify server
    dc.close();
    dc = null;
    hangup();
    closeLocalMedia();
    btnConn.disabled = false;
    btnLeave.disabled = true;
    optBw.disabled = true;
    send_txt.disabled = true;
    send.disabled = true;
}
function chang_bw()
{
    optBw.disabled = true;
    var bw = optBw.options[optBw.selectedIndex].value;
    var vsender = null;
    var senders = pc.getSenders();
    senders.forEach( sender => {
        if(sender && sender.track.kind === 'video'){
            vsender = sender;
        }
    });
    var parameters = vsender.getParameters();
    if(!parameters.encodings){
        return;
    }
    if(bw === 'unlimited'){
        return;
    }
    parameters.encodings[0].maxBitrate = bw * 1000;
    vsender.setParameters(parameters)
        .then(()=>{
            optBw.disabled = false;
            console.log('Successed to set parameters!');
        })
        .catch(err => {
            console.error(err);
        })
}
// query getStats every second
window.setInterval(() => {
  if (!pc) {
    return;
  }
  const sender = pc.getSenders()[0];
  if (!sender) {
    return;
  }
  sender.getStats().then(res => {
    res.forEach(report => {
      let bytes;
      let packets;
      if (report.type === 'outbound-rtp') {
        if (report.isRemote) {
          return;
        }
        const now = report.timestamp;
        bytes = report.bytesSent;
        packets = report.packetsSent;
        if (lastResult && lastResult.has(report.id)) {
          // calculate bitrate
          const bitrate = 8 * (bytes - lastResult.get(report.id).bytesSent) /
            (now - lastResult.get(report.id).timestamp);
          // append to chart
          bitrateSeries.addPoint(now, bitrate);
          bitrateGraph.setDataSeries([bitrateSeries]);
          bitrateGraph.updateEndDate();
          // calculate number of packets and append to chart
          packetSeries.addPoint(now, packets -
            lastResult.get(report.id).packetsSent);
          packetGraph.setDataSeries([packetSeries]);
          packetGraph.updateEndDate();
        }
      }
    });
    lastResult = res;
  });
}, 1000);
function sendText(){
    var data = send_txt.value;
    if(data != null){
        dc.send(data);
    }
    //更好的展示
    send_txt.value = "";
    chat.value += '<- ' + data + '\r\n';
}
btnConn.onclick = connSignalServer
btnLeave.onclick = leave;
optBw.onchange = chang_bw;
btnSend.onclick = sendText;

4、运行

npm install socket.io@2.0.4 log4js express serve-index
sudo node server.js

14-3 【练手的机会来了】文件实时传输

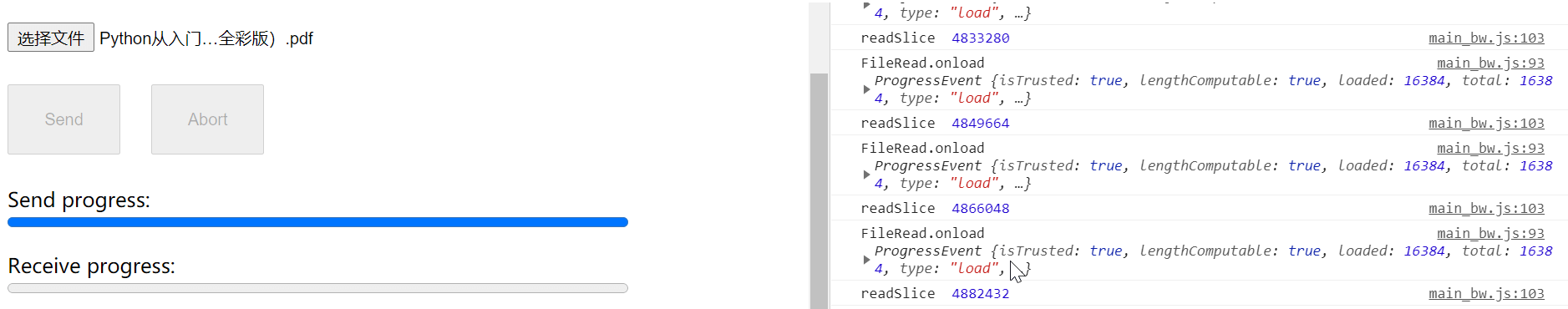

效果
发送方

接收方

14-4 相关资料

14chapter.zip

李超WebRTC音视频-听课笔记

第14章 WebRTC非音视频数据传输
