前言

上一节的打断点

SdpOfferAnswerHandler::ApplyLocalDescription {
     SdpOfferAnswerHandler::PushdownTransportDescription
     SdpOfferAnswerHandler::UpdateTransceiversAndDataChannels
     SdpOfferAnswerHandler::UpdateSessionState
}

代码分析

都打上断点后，开始调试。

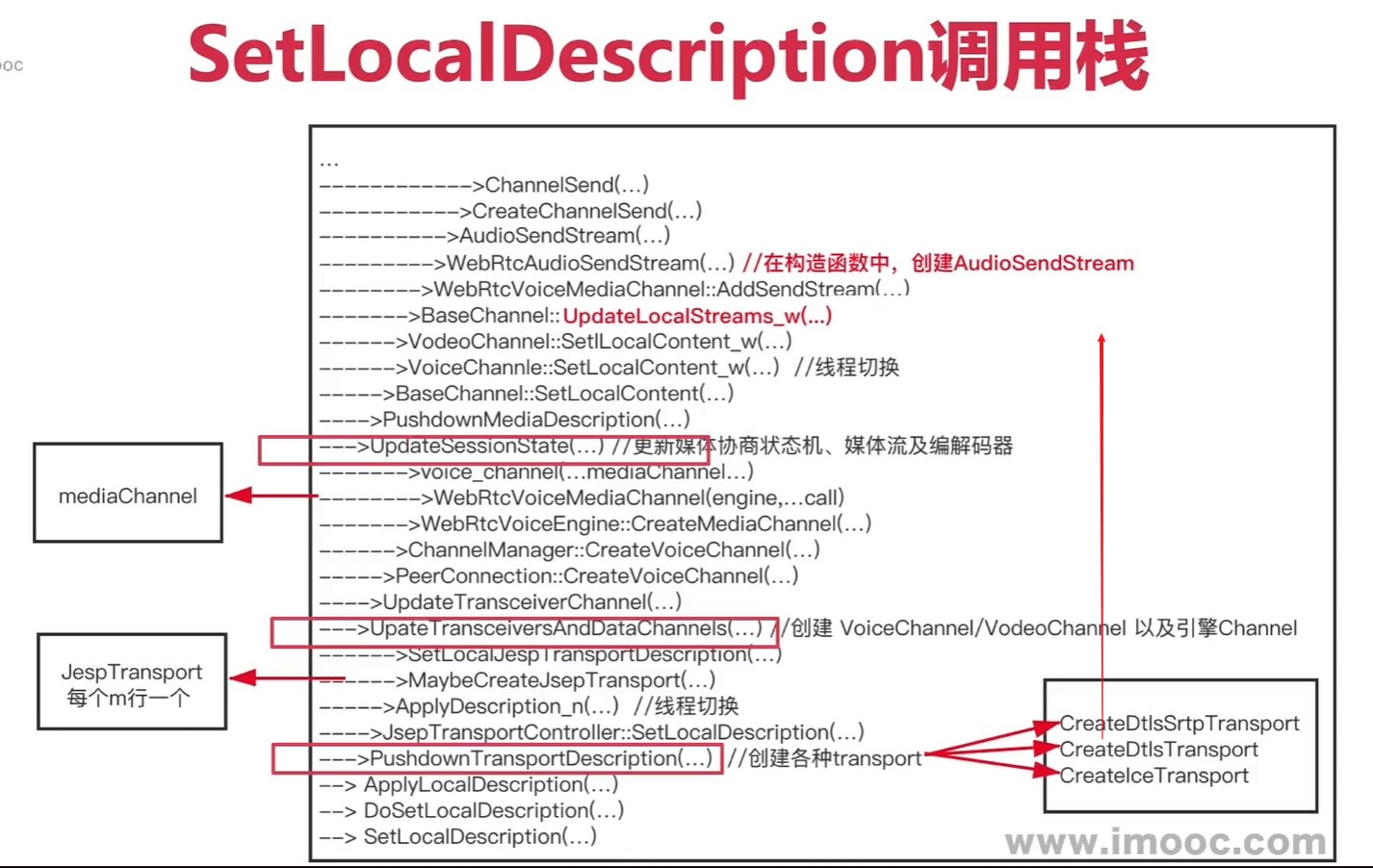

SdpOfferAnswerHandler::ApplyLocalDescription

SdpOfferAnswerHandler::ApplyLocalDescription {
    // 创建各种Transport，里面根据是否是cricket::CS_LOCAL或CS_REMOTE来处理
     SdpOfferAnswerHandler::PushdownTransportDescription
      // 更新Transceivers 和 DataChannels
     SdpOfferAnswerHandler::UpdateTransceiversAndDataChannels
     SdpOfferAnswerHandler::UpdateSessionState
}

SdpOfferAnswerHandler::PushdownTransportDescription

SdpOfferAnswerHandler::PushdownTransportDescription
->
JsepTransportController::SetLocalDescription
->
JsepTransportController::ApplyDescription_n
->
JsepTransportController::MaybeCreateJsepTransport
JsepTransport::SetLocalJsepTransportDescription

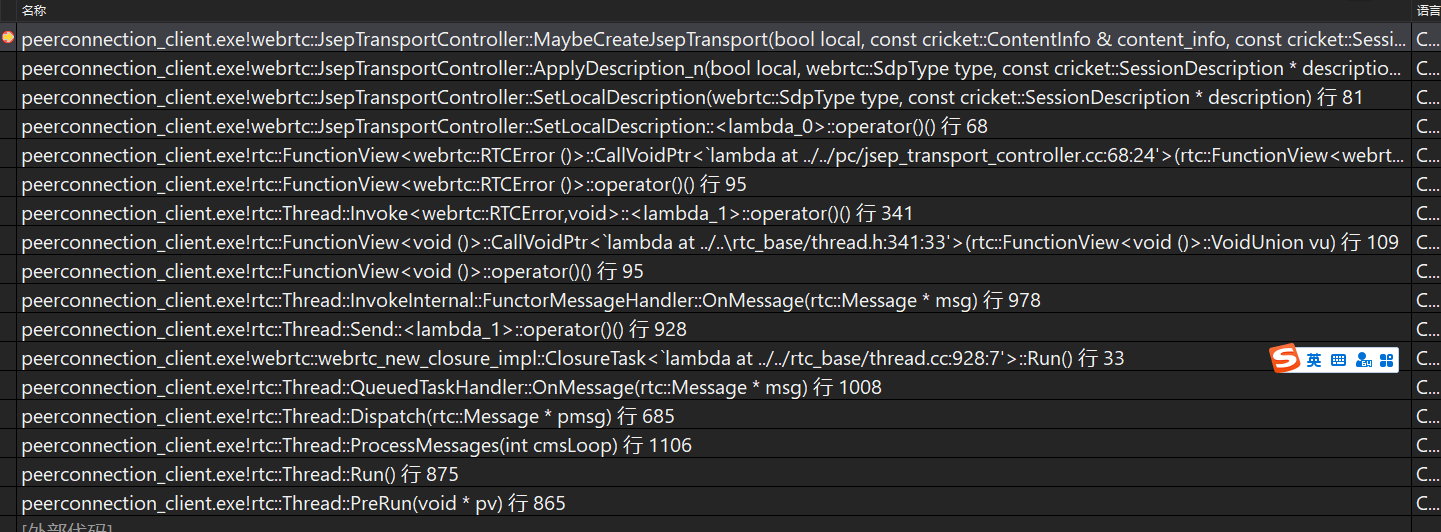

JsepTransportController::MaybeCreateJsepTransport

创建各种transport，并且打包在一起

RTCError JsepTransportController::MaybeCreateJsepTransport(
    bool local,
    const cricket::ContentInfo& content_info,
    const cricket::SessionDescription& description) {
  cricket::JsepTransport* transport = GetJsepTransportByName(content_info.name);
  if (transport) {
    return RTCError::OK();
  }
  const cricket::MediaContentDescription* content_desc =
      content_info.media_description();
  if (certificate_ && !content_desc->cryptos().empty()) {
    return RTCError(RTCErrorType::INVALID_PARAMETER,
                    "SDES and DTLS-SRTP cannot be enabled at the same time.");
  }
 创建IceTransport
  rtc::scoped_refptr<webrtc::IceTransportInterface> ice =
      CreateIceTransport(content_info.name, /*rtcp=*/false);
  RTC_DCHECK(ice);
    创建DtlsTransport
  std::unique_ptr<cricket::DtlsTransportInternal> rtp_dtls_transport =
      CreateDtlsTransport(content_info, ice->internal());
  std::unique_ptr<cricket::DtlsTransportInternal> rtcp_dtls_transport;
  std::unique_ptr<RtpTransport> unencrypted_rtp_transport;
  std::unique_ptr<SrtpTransport> sdes_transport;
  std::unique_ptr<DtlsSrtpTransport> dtls_srtp_transport;
  rtc::scoped_refptr<webrtc::IceTransportInterface> rtcp_ice;
  if (config_.rtcp_mux_policy !=
          PeerConnectionInterface::kRtcpMuxPolicyRequire &&
      content_info.type == cricket::MediaProtocolType::kRtp) {
    rtcp_ice = CreateIceTransport(content_info.name, /*rtcp=*/true);
    rtcp_dtls_transport =
        CreateDtlsTransport(content_info, rtcp_ice->internal());
  }
  if (config_.disable_encryption) {
    RTC_LOG(LS_INFO)
        << "Creating UnencryptedRtpTransport, becayse encryption is disabled.";
    unencrypted_rtp_transport = CreateUnencryptedRtpTransport(
        content_info.name, rtp_dtls_transport.get(), rtcp_dtls_transport.get());
  } else if (!content_desc->cryptos().empty()) {
    sdes_transport = CreateSdesTransport(
        content_info.name, rtp_dtls_transport.get(), rtcp_dtls_transport.get());
    RTC_LOG(LS_INFO) << "Creating SdesTransport.";
  } else {
    RTC_LOG(LS_INFO) << "Creating DtlsSrtpTransport.";
    dtls_srtp_transport = CreateDtlsSrtpTransport(
        content_info.name, rtp_dtls_transport.get(), rtcp_dtls_transport.get());
  }
  std::unique_ptr<cricket::SctpTransportInternal> sctp_transport;
  if (config_.sctp_factory) {
    sctp_transport =
        config_.sctp_factory->CreateSctpTransport(rtp_dtls_transport.get());
  }
    // 将前面创建好的transport打包在一起
  std::unique_ptr<cricket::JsepTransport> jsep_transport =
      std::make_unique<cricket::JsepTransport>(
          content_info.name, certificate_, std::move(ice), std::move(rtcp_ice),
          std::move(unencrypted_rtp_transport), std::move(sdes_transport),
          std::move(dtls_srtp_transport), std::move(rtp_dtls_transport),
          std::move(rtcp_dtls_transport), std::move(sctp_transport));
  jsep_transport->rtp_transport()->SignalRtcpPacketReceived.connect(
      this, &JsepTransportController::OnRtcpPacketReceived_n);
  jsep_transport->SignalRtcpMuxActive.connect(
      this, &JsepTransportController::UpdateAggregateStates_n);
  SetTransportForMid(content_info.name, jsep_transport.get());
  jsep_transports_by_name_[content_info.name] = std::move(jsep_transport);
  UpdateAggregateStates_n();
  return RTCError::OK();
}

SdpOfferAnswerHandler::UpdateTransceiversAndDataChannels

SdpOfferAnswerHandler::UpdateTransceiversAndDataChannels
->
SdpOfferAnswerHandler::UpdateTransceiverChannel
->
if (transceiver->media_type() == cricket::MEDIA_TYPE_AUDIO) {
SdpOfferAnswerHandler::CreateVoiceChannel(content.name);
} else {
SdpOfferAnswerHandler::CreateVideoChannel(content.name);
}
->
SdpOfferAnswerHandler::CreateVoiceChannel
->
ChannelManager::CreateVoiceChannel
->
WebRtcVoiceEngine::CreateMediaChannel(
webrtc::Call* call,
const MediaConfig& config,
const AudioOptions& options,
const webrtc::CryptoOptions& crypto_options)
->
new WebRtcVoiceMediaChannel::WebRtcVoiceMediaChannel

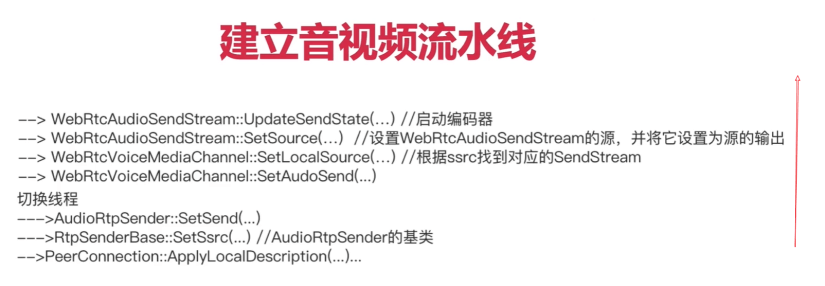

SdpOfferAnswerHandler::UpdateSessionState

BaseChannel::SetLocalContent

bool BaseChannel::SetLocalContent(const MediaContentDescription* content,
                                  SdpType type,
                                  std::string* error_desc) {
  TRACE_EVENT0("webrtc", "BaseChannel::SetLocalContent");
  return InvokeOnWorker<bool>(RTC_FROM_HERE, [this, content, type, error_desc] {
    RTC_DCHECK_RUN_ON(worker_thread());
    return SetLocalContent_w(content, type, error_desc);
  });
}

BaseChannel::SetLocalContent中使用了InvokeOnWorker，最后会根据SdpType类型，是调用
VideoChannel::SetLocalContent_w 还是 VoiceChannel::SetLocalContent_w 。
