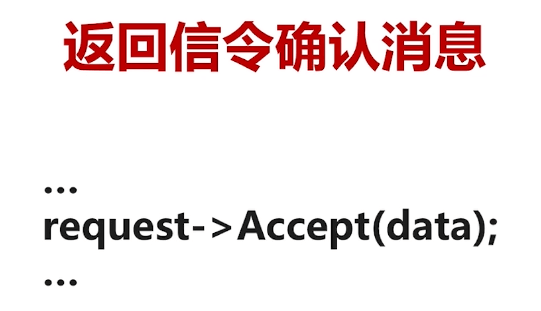

1）返回信令确认消息

inline void Worker::OnChannelRequest(Channel::ChannelSocket* /*channel*/, Channel::ChannelRequest* request)
{
    /*****************************省略代码***************************************/
        case Channel::ChannelRequest::MethodId::WORKER_DUMP:
        {
            json data = json::object();
            FillJson(data);
            request->Accept(data);
            break;
        }
    /*****************************省略代码***************************************/
            case Channel::ChannelRequest::MethodId::WORKER_GET_RESOURCE_USAGE:
        {
            json data = json::object();
            FillJsonResourceUsage(data);
            request->Accept(data);
            break;
        }
    /*****************************省略代码***************************************/
            case Channel::ChannelRequest::MethodId::WORKER_CREATE_ROUTER:
        {
            std::string routerId;
            // This may throw.
            SetNewRouterIdFromInternal(request->internal, routerId);
            auto* router = new RTC::Router(routerId);
            this->mapRouters[routerId] = router;
            MS_DEBUG_DEV("Router created [routerId:%s]", routerId.c_str());
            request->Accept();
            break;
        }
        case Channel::ChannelRequest::MethodId::ROUTER_CLOSE:
        {
            // This may throw.
            RTC::Router* router = GetRouterFromInternal(request->internal);
            // Remove it from the map and delete it.
            this->mapRouters.erase(router->id);
            delete router;
            MS_DEBUG_DEV("Router closed [id:%s]", router->id.c_str());
            request->Accept();
            break;
        }
    /*****************************省略代码***************************************/
}

应答流程

//没有传入参数
void ChannelRequest::Accept()
    {
        MS_TRACE();
        MS_ASSERT(!this->replied, "request already replied");
        this->replied = true;
        json jsonResponse = json::object();
        jsonResponse["id"]       = this->id;
        jsonResponse["accepted"] = true; //
     //ChannelSocket::Send
        this->channel->Send(jsonResponse);
    }
//有传入参数
    void ChannelRequest::Accept(json& data)
    {
        MS_TRACE();
        MS_ASSERT(!this->replied, "request already replied");
        this->replied = true;
        json jsonResponse = json::object();
        jsonResponse["id"]       = this->id;
        jsonResponse["accepted"] = true;
        if (data.is_structured())
            jsonResponse["data"] = data;
        //ChannelSocket::Send
        this->channel->Send(jsonResponse);
    }

发送消息

void ChannelSocket::Send(json& jsonMessage)
    {
        MS_TRACE_STD();
        if (this->closed)
            return;
        std::string message = jsonMessage.dump();
        if (message.length() > NsPayloadMaxLen)
        {
            MS_ERROR_STD("mesage too big");
            return;
        }
        SendImpl(message.c_str(), message.length());
    }

调用的SendImpl(message.c_str(), message.length());函数原型如下：

inline void ChannelSocket::SendImpl(const void* nsPayload, size_t nsPayloadLen)
    {
        MS_TRACE_STD();
        size_t nsNumLen;
        if (nsPayloadLen == 0)
        {
            nsNumLen             = 1;
            this->writeBuffer[0] = '0';
            this->writeBuffer[1] = ':';
            this->writeBuffer[2] = ',';
        }
        else
        {
            nsNumLen = static_cast<size_t>(std::ceil(std::log10(static_cast<double>(nsPayloadLen) + 1)));
            std::sprintf(reinterpret_cast<char*>(this->writeBuffer), "%zu:", nsPayloadLen);
            std::memcpy(this->writeBuffer + nsNumLen + 1, nsPayload, nsPayloadLen);
            this->writeBuffer[nsNumLen + nsPayloadLen + 1] = ',';
        }
        size_t nsLen = nsNumLen + nsPayloadLen + 2;
        this->producerSocket.Write(this->writeBuffer, nsLen);
    }

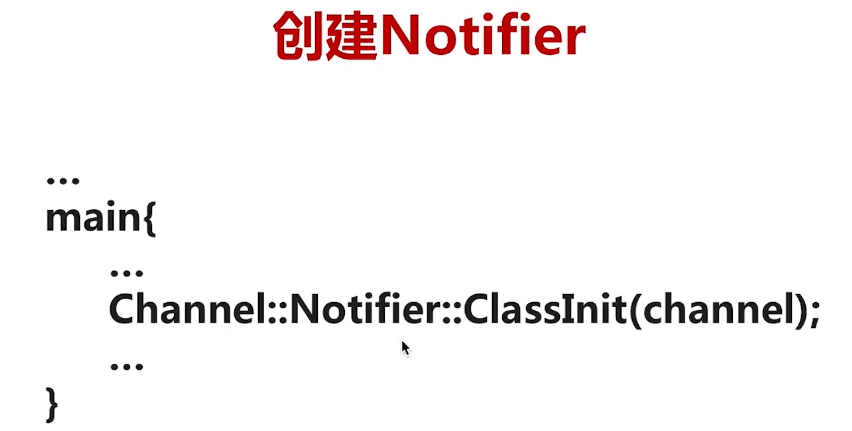

2）创建Notifier

上面的是旧版本，新版本在mediasoup\worker\src\lib.cpp

extern "C" int run_worker(
  int argc,
  char* argv[],
  const char* version,
  int consumerChannelFd,
  int producerChannelFd,
  int payloadConsumeChannelFd,
  int payloadProduceChannelFd)
{
   /*****************************省略代码***************************************/
    Channel::ChannelNotifier::ClassInit(channel.get());
   /*****************************省略代码***************************************/
   // Run the Worker.
   Worker worker(channel.get(), payloadChannel.get());
  /*****************************省略代码***************************************/
}

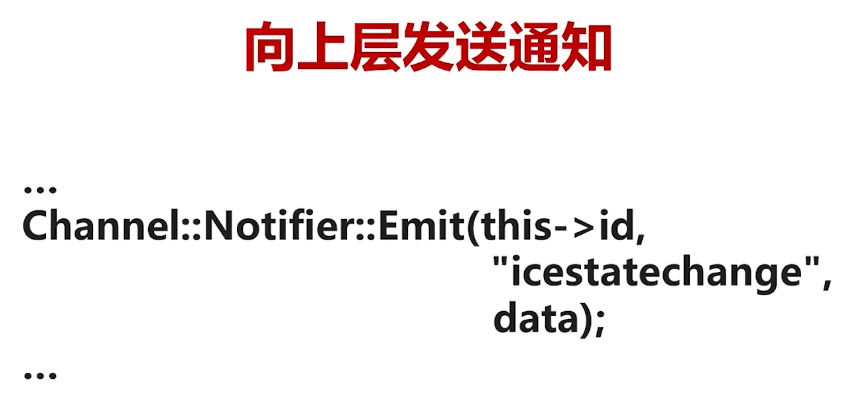

3）向上层发送通知

某些操作成功后，会向上层发送通知。

以上是旧版本，新版本是在新版本在mediasoup\worker\src\Worker.cpp

Worker::Worker(::Channel::ChannelSocket* channel, PayloadChannel::PayloadChannelSocket* payloadChannel)
  : channel(channel), payloadChannel(payloadChannel)
{
 MS_TRACE();
    // Set us as Channel's listener.
    this->channel->SetListener(this);
    // Set us as PayloadChannel's listener.
    this->payloadChannel->SetListener(this);
    // Set the signals handler.
    this->signalsHandler = new SignalsHandler(this);
#ifdef MS_EXECUTABLE
    {
        // Add signals to handle.
        this->signalsHandler->AddSignal(SIGINT, "INT");
        this->signalsHandler->AddSignal(SIGTERM, "TERM");
    }
#endif
    // Create the Checker instance in DepUsrSCTP.
    DepUsrSCTP::CreateChecker();
    // Tell the Node process that we are running.
    //去上层发送通知
    Channel::ChannelNotifier::Emit(std::to_string(Logger::pid), "running");
    MS_DEBUG_DEV("starting libuv loop");
    DepLibUV::RunLoop();
    MS_DEBUG_DEV("libuv loop ended");
}

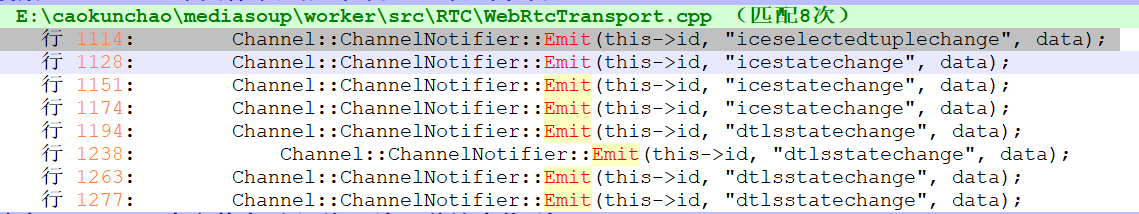

在WebRtcTransport类中，很多函数都调用了
Channel::ChannelNotifier::Emit

例如其中一个

inline void WebRtcTransport::OnIceServerCompleted(const RTC::IceServer* /*iceServer*/)
    {
        MS_TRACE();
        MS_DEBUG_TAG(ice, "ICE completed");
        // Notify the Node WebRtcTransport.
        json data = json::object();
        data["iceState"] = "completed";
        Channel::ChannelNotifier::Emit(this->id, "icestatechange", data);
        // If ready, run the DTLS handler.
        MayRunDtlsTransport();
        // If DTLS was already connected, notify the parent class.
        if (this->dtlsTransport->GetState() == RTC::DtlsTransport::DtlsState::CONNECTED)
        {
            RTC::Transport::Connected();
        }
    }
