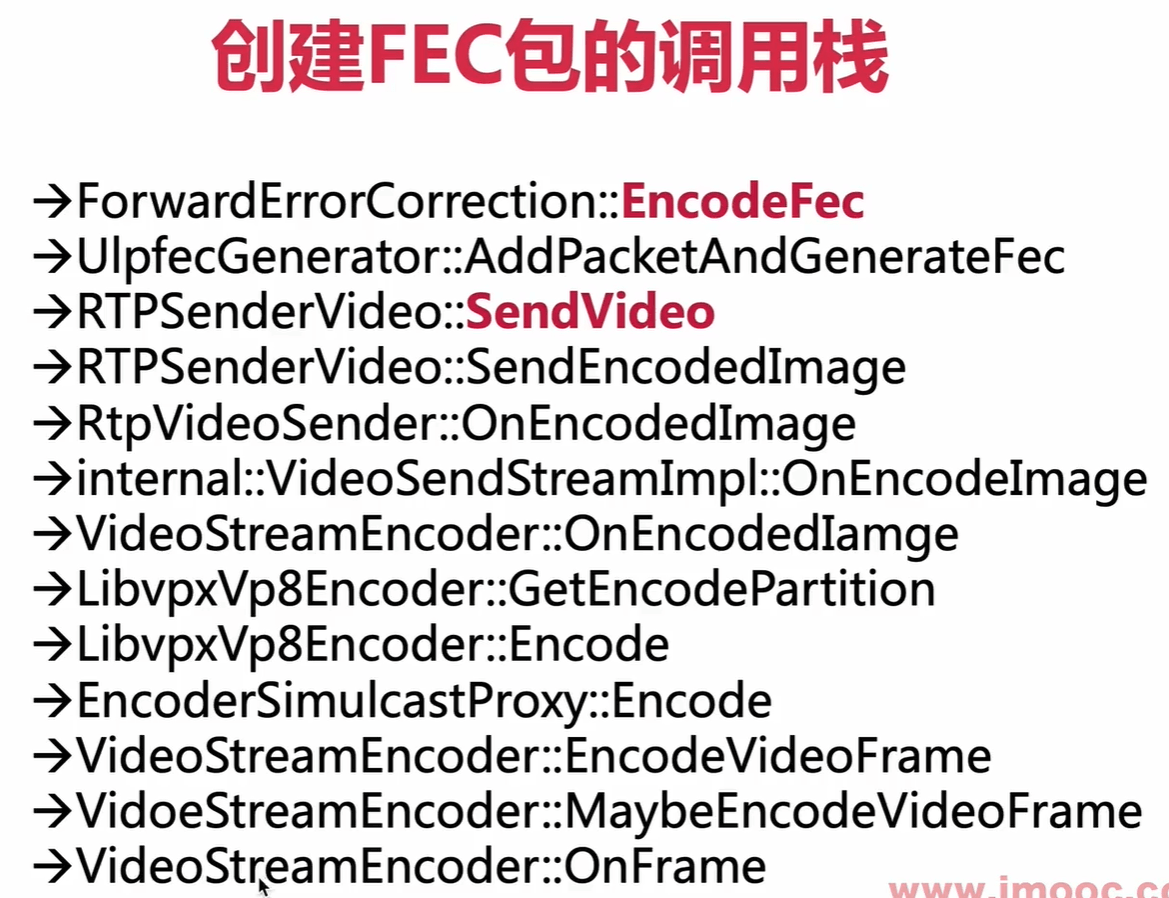

1、拿到采集后的视频帧，交给编码器进行编码
2、编码后的数据交给On开头的函数回调传过去
3、然后来到RtpSenderVideo::SendVideo生成打包器，对拆包数据进行冗余计算打包
4、最后将原始数据和冗余数据一起打包发送出去。

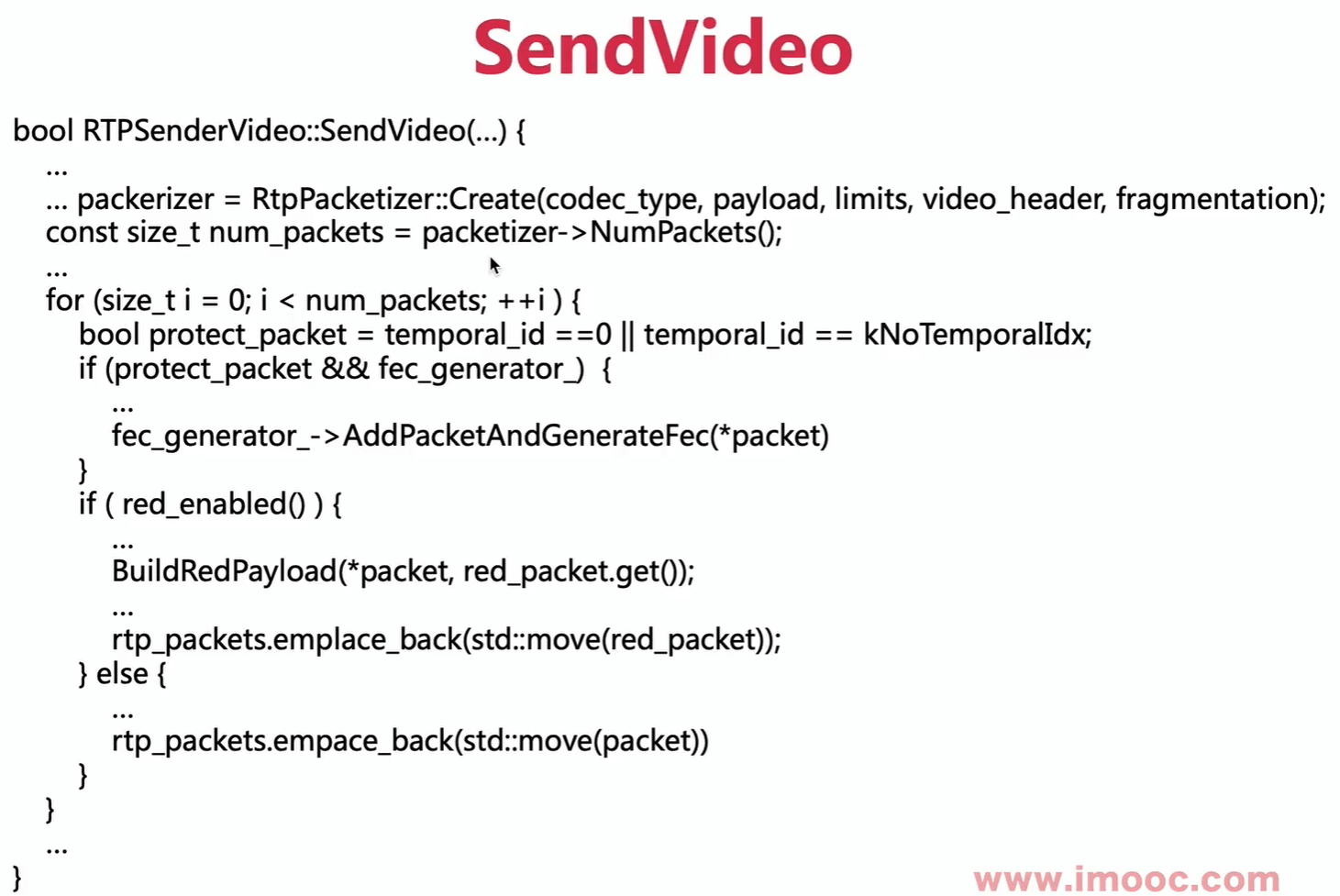

SendVideo

num_packets 该帧数据可以打包为多少个包。
red_enabled() 默认返回0，因为webrtc默认开始redfec

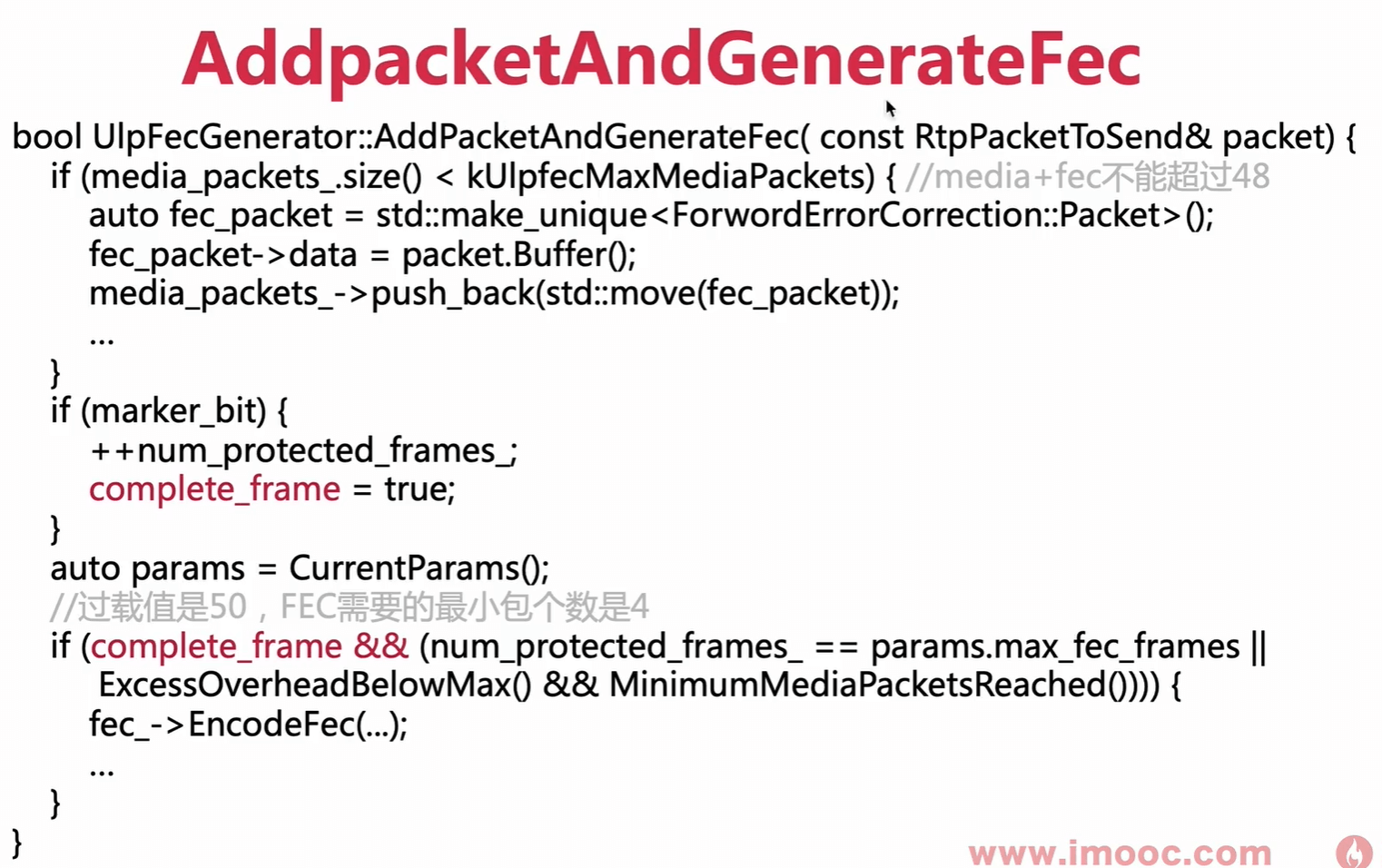

AddpacketAndGenerateFec

// Maximum number of media packets that can be protected
// by these packet masks.
constexpr sizet kUlpfecMaxMediaPackets = 48;
fec冗余包生成好后，添加到ForwardErrorCorrection::PacketList media_packets;容器中。
marker_bit ：rtp包的m位是否已经值1.

void UlpfecGenerator::AddPacketAndGenerateFec(const RtpPacketToSend& packet) {
  RTC_DCHECK_RUNS_SERIALIZED(&race_checker_);
  RTC_DCHECK(generated_fec_packets_.empty());
  {
    MutexLock lock(&mutex_);
    if (pending_params_) {
      current_params_ = *pending_params_;
      pending_params_.reset();
      if (CurrentParams().fec_rate > kHighProtectionThreshold) {
        min_num_media_packets_ = kMinMediaPackets;
      } else {
        min_num_media_packets_ = 1;
      }
    }
  }
  if (packet.is_key_frame()) {
    media_contains_keyframe_ = true;
  }
  const bool complete_frame = packet.Marker();
  if (media_packets_.size() < kUlpfecMaxMediaPackets) {
    // Our packet masks can only protect up to |kUlpfecMaxMediaPackets| packets.
    auto fec_packet = std::make_unique<ForwardErrorCorrection::Packet>();
    fec_packet->data = packet.Buffer();
    media_packets_.push_back(std::move(fec_packet));
    // Keep a copy of the last RTP packet, so we can copy the RTP header
    // from it when creating newly generated ULPFEC+RED packets.
    RTC_DCHECK_GE(packet.headers_size(), kRtpHeaderSize);
    last_media_packet_ = packet;
  }
  if (complete_frame) {
    ++num_protected_frames_;
  }
  auto params = CurrentParams();
  // Produce FEC over at most |params_.max_fec_frames| frames, or as soon as:
  // (1) the excess overhead (actual overhead - requested/target overhead) is
  // less than |kMaxExcessOverhead|, and
  // (2) at least |min_num_media_packets_| media packets is reached.
  if (complete_frame &&
      (num_protected_frames_ >= params.max_fec_frames ||
       (ExcessOverheadBelowMax() && MinimumMediaPacketsReached()))) {
    // We are not using Unequal Protection feature of the parity erasure code.
    constexpr int kNumImportantPackets = 0;
    constexpr bool kUseUnequalProtection = false;
    fec_->EncodeFec(media_packets_, params.fec_rate, kNumImportantPackets,
                    kUseUnequalProtection, params.fec_mask_type,
                    &generated_fec_packets_);
    if (generated_fec_packets_.empty()) {
      ResetState();
    }
  }
}

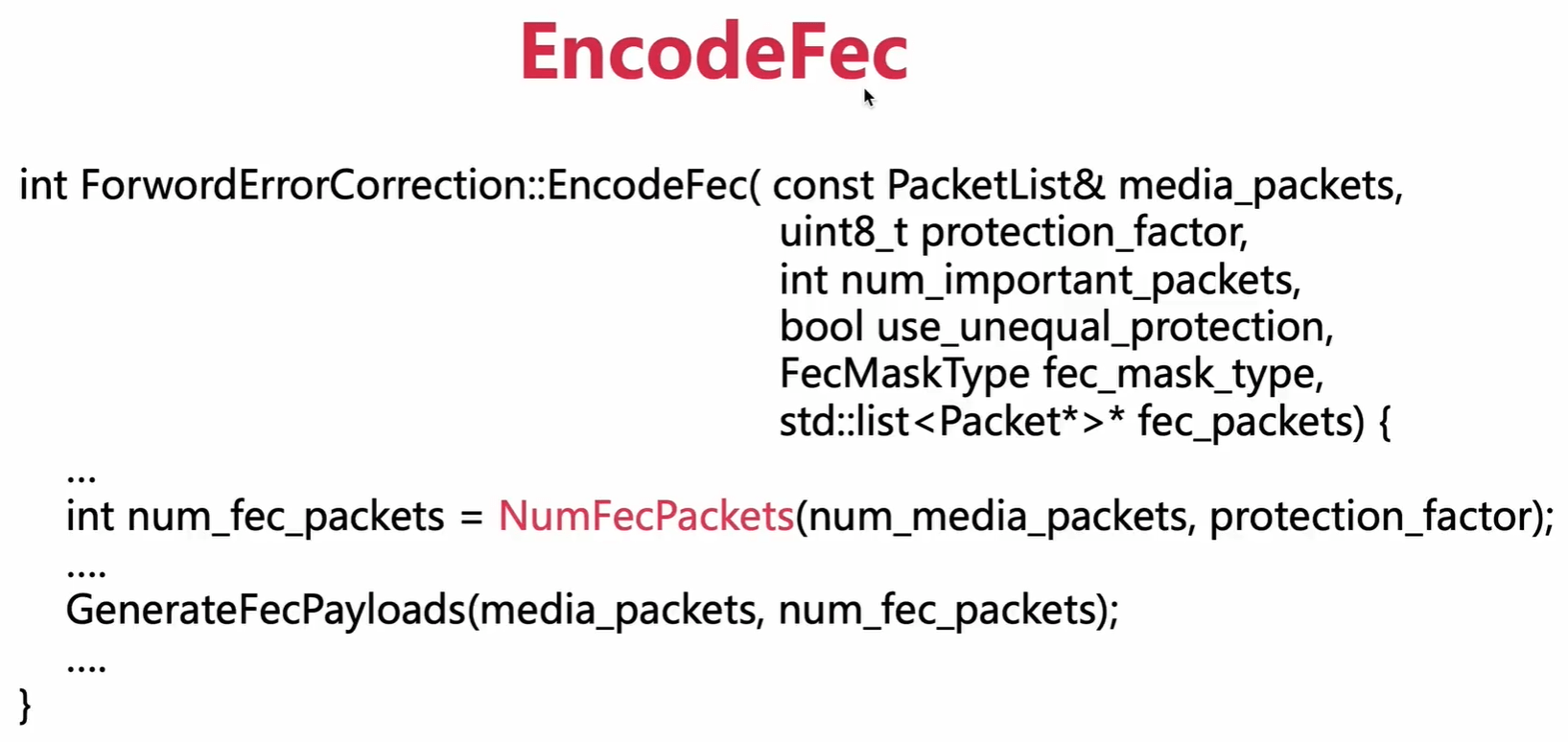

EncodeFec

ForwardErrorCorrection::GenerateFecPayloads

void ForwardErrorCorrection::GenerateFecPayloads(
    const PacketList& media_packets,
    size_t num_fec_packets) {
  RTC_DCHECK(!media_packets.empty());
  for (size_t i = 0; i < num_fec_packets; ++i) {
    Packet* const fec_packet = &generated_fec_packets_[i];
    size_t pkt_mask_idx = i * packet_mask_size_;
    const size_t min_packet_mask_size = fec_header_writer_->MinPacketMaskSize(
        &packet_masks_[pkt_mask_idx], packet_mask_size_);
    const size_t fec_header_size =
        fec_header_writer_->FecHeaderSize(min_packet_mask_size);
    size_t media_pkt_idx = 0;
    auto media_packets_it = media_packets.cbegin();
    uint16_t prev_seq_num =
        ParseSequenceNumber((*media_packets_it)->data.data());
    while (media_packets_it != media_packets.end()) {
      Packet* const media_packet = media_packets_it->get();
      const uint8_t* media_packet_data = media_packet->data.cdata();
      // Should |media_packet| be protected by |fec_packet|?
      if (packet_masks_[pkt_mask_idx] & (1 << (7 - media_pkt_idx))) {
        size_t media_payload_length =
            media_packet->data.size() - kRtpHeaderSize;
        bool first_protected_packet = (fec_packet->data.size() == 0);
        size_t fec_packet_length = fec_header_size + media_payload_length;
        if (fec_packet_length > fec_packet->data.size()) {
          // Recall that XORing with zero (which the FEC packets are prefilled
          // with) is the identity operator, thus all prior XORs are
          // still correct even though we expand the packet length here.
          fec_packet->data.SetSize(fec_packet_length);
        }
        if (first_protected_packet) {
          uint8_t* data = fec_packet->data.MutableData();
          // Write P, X, CC, M, and PT recovery fields.
          // Note that bits 0, 1, and 16 are overwritten in FinalizeFecHeaders.
          memcpy(&data[0], &media_packet_data[0], 2);
          // Write length recovery field. (This is a temporary location for
          // ULPFEC.)
          ByteWriter<uint16_t>::WriteBigEndian(&data[2], media_payload_length);
          // Write timestamp recovery field.
          memcpy(&data[4], &media_packet_data[4], 4);
          // Write payload.
          if (media_payload_length > 0) {
            memcpy(&data[fec_header_size], &media_packet_data[kRtpHeaderSize],
                   media_payload_length);
          }
        } else {
          XorHeaders(*media_packet, fec_packet);
          XorPayloads(*media_packet, media_payload_length, fec_header_size,
                      fec_packet);
        }
      }
      media_packets_it++;
      if (media_packets_it != media_packets.end()) {
        uint16_t seq_num =
            ParseSequenceNumber((*media_packets_it)->data.data());
        media_pkt_idx += static_cast<uint16_t>(seq_num - prev_seq_num);
        prev_seq_num = seq_num;
      }
      pkt_mask_idx += media_pkt_idx / 8;
      media_pkt_idx %= 8;
    }
    RTC_DCHECK_GT(fec_packet->data.size(), 0)
        << "Packet mask is wrong or poorly designed.";
  }
}
