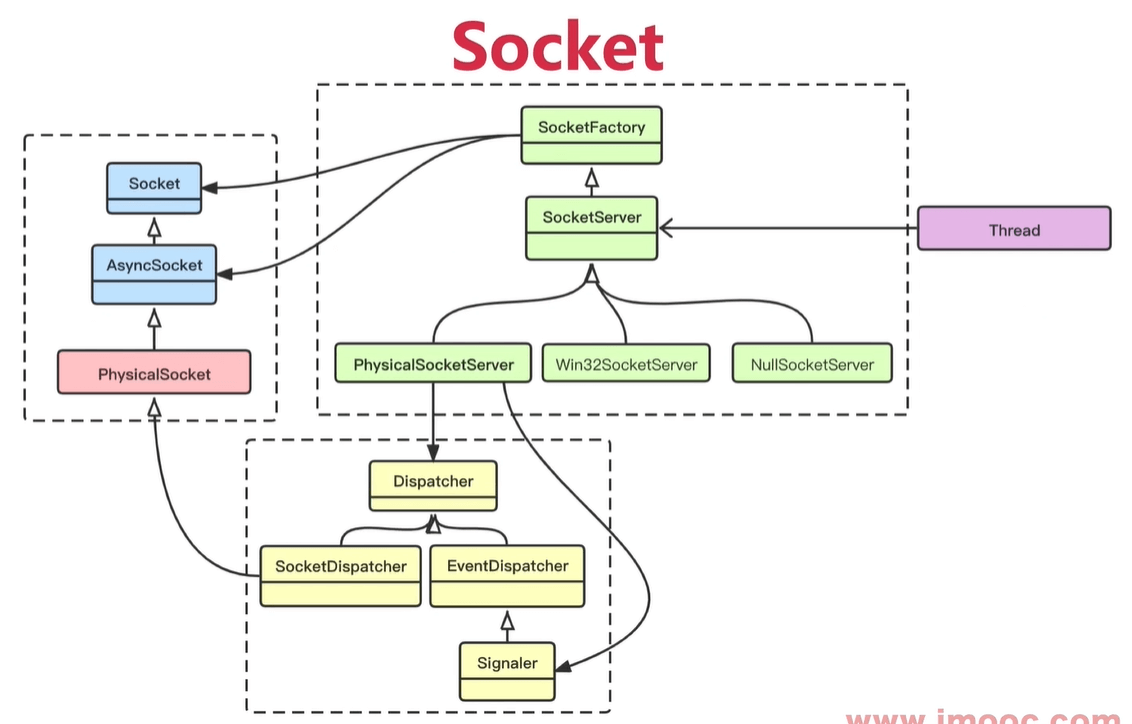

Socket

PhysicalSocketServer 真正物理网络连接的socket工厂类，多平台使用。
Win32SocketServer Windows下的处理socket事件工厂类，只能在Windows下。
NullSocketServer 只有基础事件处理功能，没有socket功能，不能处理网络事件。

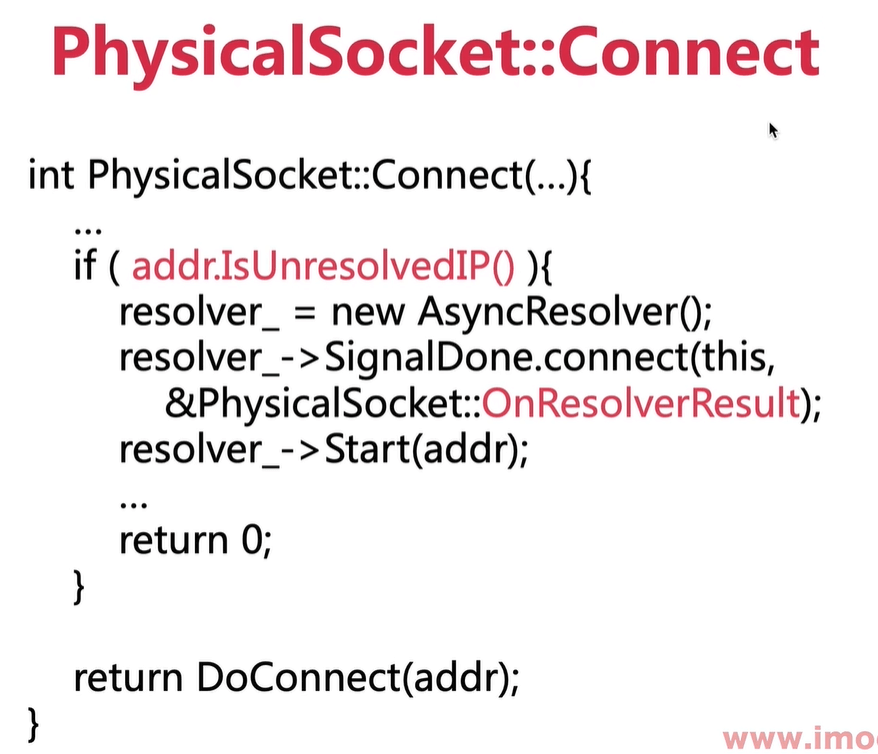

PhysicalSocket::Connect

支持域名和ip连接。

判断是否还没解析成ip，没有则创建一个线程AsncResolver来异步解析，解析成功后调用OnResolverResult，里面也会调用DonConnect来连接服务器。
AsyncResolver继承了AsyncResolverInterface，主要使用了 sigslot::signal1信号槽机制。

代码分析

BasicNetworkManager::UpdateNetworksOnce

在这里调用QueryDefaultLocalAddress获取本地默认的ip地址和端口，然后set_default_local_addresses来设置本地默认的ip地址和端口。

void BasicNetworkManager::UpdateNetworksOnce() {
  if (!start_count_)
    return;
  NetworkList list;
  if (!CreateNetworks(false, &list)) {
    SignalError();
  } else {
    bool changed;
    NetworkManager::Stats stats;
    MergeNetworkList(list, &changed, &stats);
    set_default_local_addresses(QueryDefaultLocalAddress(AF_INET),
                                QueryDefaultLocalAddress(AF_INET6));
    if (changed || !sent_first_update_) {
      SignalNetworksChanged();
      sent_first_update_ = true;
    }
  }
}

—》QueryDefaultLocalAddress

BasicNetworkManager::QueryDefaultLocalAddress

IPAddress BasicNetworkManager::QueryDefaultLocalAddress(int family) const {
  RTC_DCHECK(thread_->socketserver() != nullptr);
  RTC_DCHECK(family == AF_INET || family == AF_INET6);
    // 创建AsyncSocket对象
  std::unique_ptr<AsyncSocket> socket(
      thread_->socketserver()->CreateAsyncSocket(family, SOCK_DGRAM));
  if (!socket) {
    RTC_LOG_ERR(LERROR) << "Socket creation failed";
    return IPAddress();
  }
    // 连接服务器
    /* 宏定义是
    const char kPublicIPv4Host[] = "8.8.8.8";
    const char kPublicIPv6Host[] = "2001:4860:4860::8888";
    const int kPublicPort = 53;  // DNS port.
    */
  if (socket->Connect(SocketAddress(
          family == AF_INET ? kPublicIPv4Host : kPublicIPv6Host, kPublicPort)) <
      0) {
    if (socket->GetError() != ENETUNREACH &&
        socket->GetError() != EHOSTUNREACH) {
      // Ignore the expected case of "host/net unreachable" - which happens if
      // the network is V4- or V6-only.
      RTC_LOG(LS_INFO) << "Connect failed with " << socket->GetError();
    }
    return IPAddress();
  }
  return socket->GetLocalAddress().ipaddr();
}

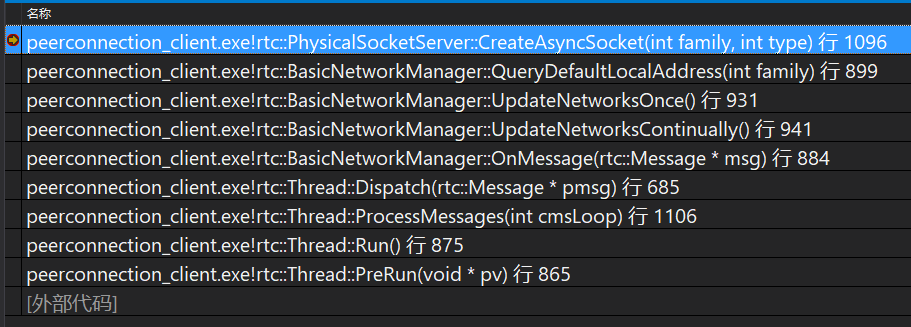

PhysicalSocketServer::CreateAsyncSocket

H:\webrtc-20210315\webrtc-20210315\webrtc\webrtc-checkout\src\rtc_base\physical_socket_server.cc

// 这里创建了socket分发器
AsyncSocket* PhysicalSocketServer::CreateAsyncSocket(int family, int type) {
  SocketDispatcher* dispatcher = new SocketDispatcher(this);
  if (dispatcher->Create(family, type)) {
    return dispatcher;
  } else {
    delete dispatcher;
    return nullptr;
  }
}
--》
bool SocketDispatcher::Create(int family, int type) {
  // Change the socket to be non-blocking.
  if (!PhysicalSocket::Create(family, type))
    return false;
// 里面将socket弄成非阻塞
  if (!Initialize())
    return false;
#if defined(WEBRTC_WIN)
  do {
    id_ = ++next_id_;
  } while (id_ == 0);
#endif
  return true;
}
-》
bool PhysicalSocket::Create(int family, int type) {
  Close();
  s_ = ::socket(family, type, 0);
  udp_ = (SOCK_DGRAM == type);
  family_ = family;
  UpdateLastError();
  if (udp_) { // 这里如果是udp类型，则允许读写事件
    SetEnabledEvents(DE_READ | DE_WRITE);
  }
  return s_ != INVALID_SOCKET;
}
bool SocketDispatcher::Initialize() {
  RTC_DCHECK(s_ != INVALID_SOCKET);
// Must be a non-blocking
#if defined(WEBRTC_WIN)
  u_long argp = 1;
  ioctlsocket(s_, FIONBIO, &argp);
#elif defined(WEBRTC_POSIX)
  fcntl(s_, F_SETFL, fcntl(s_, F_GETFL, 0) | O_NONBLOCK);
#endif
#if defined(WEBRTC_IOS)
  // iOS may kill sockets when the app is moved to the background
  // (specifically, if the app doesn't use the "voip" UIBackgroundMode). When
  // we attempt to write to such a socket, SIGPIPE will be raised, which by
  // default will terminate the process, which we don't want. By specifying
  // this socket option, SIGPIPE will be disabled for the socket.
  int value = 1;
  ::setsockopt(s_, SOL_SOCKET, SO_NOSIGPIPE, &value, sizeof(value));
#endif
  ss_->Add(this);
  return true;
}

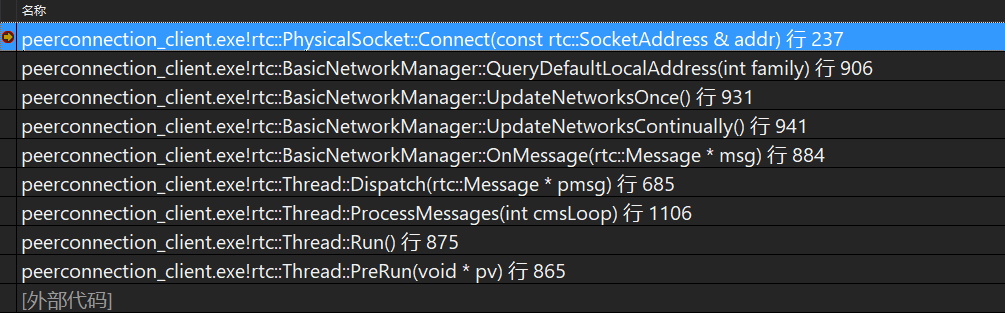

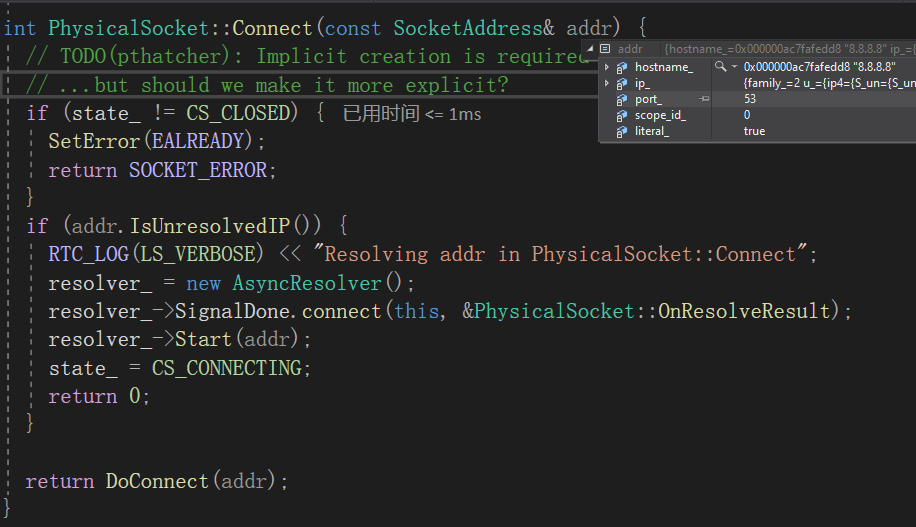

PhysicalSocket::Connect

int PhysicalSocket::Connect(const SocketAddress& addr) {
  // TODO(pthatcher): Implicit creation is required to reconnect...
  // ...but should we make it more explicit?
  if (state_ != CS_CLOSED) {
    SetError(EALREADY);
    return SOCKET_ERROR;
  }
   // 这里已经是ip地址了，就不会执行下面大括号里面的代码
  if (addr.IsUnresolvedIP()) {
    RTC_LOG(LS_VERBOSE) << "Resolving addr in PhysicalSocket::Connect";
    resolver_ = new AsyncResolver();
    resolver_->SignalDone.connect(this, &PhysicalSocket::OnResolveResult);
    resolver_->Start(addr);
    state_ = CS_CONNECTING;
    return 0;
  }
  return DoConnect(addr);
}
void PhysicalSocket::OnResolveResult(AsyncResolverInterface* resolver) {
  if (resolver != resolver_) {
    return;
  }
  int error = resolver_->GetError();
  if (error == 0) {
    error = DoConnect(resolver_->address());
  } else {
    Close();
  }
  if (error) {
    SetError(error);
    SignalCloseEvent(this, error);
  }
}

//

PhysicalSocket::DoConnect

int PhysicalSocket::DoConnect(const SocketAddress& connect_addr) {
  if ((s_ == INVALID_SOCKET) && !Create(connect_addr.family(), SOCK_STREAM)) {
    return SOCKET_ERROR;
  }
  sockaddr_storage addr_storage;
  size_t len = connect_addr.ToSockAddrStorage(&addr_storage);
  sockaddr* addr = reinterpret_cast<sockaddr*>(&addr_storage);
  int err = ::connect(s_, addr, static_cast<int>(len));
  UpdateLastError();
  uint8_t events = DE_READ | DE_WRITE;
  if (err == 0) {
    state_ = CS_CONNECTED;
  } else if (IsBlockingError(GetError())) {
    state_ = CS_CONNECTING;
    events |= DE_CONNECT;
  } else {
    return SOCKET_ERROR;
  }
  EnableEvents(events);
  return 0;
}

这里使用了新的结构sockaddr_storage，但是又强转为sockaddr，然后调用connect函数连接。连接成功后，调用BasicNetworkManager::QueryDefaultLocalAddress里面的socket->GetLocalAddress().ipaddr()返回连接后的ip地址。
