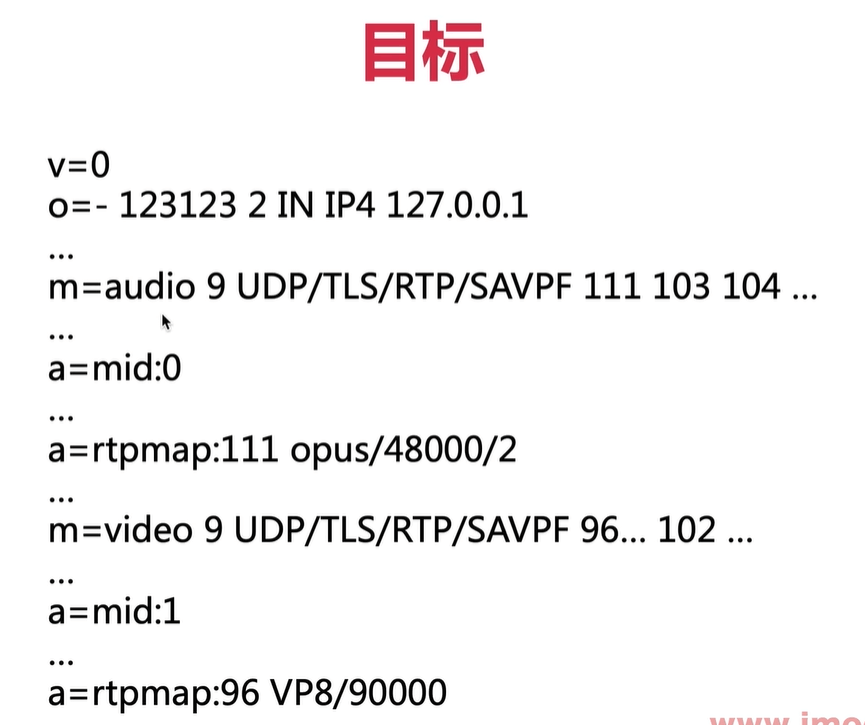

目标

知道下面的sdp信息是在代码里如何生成的。

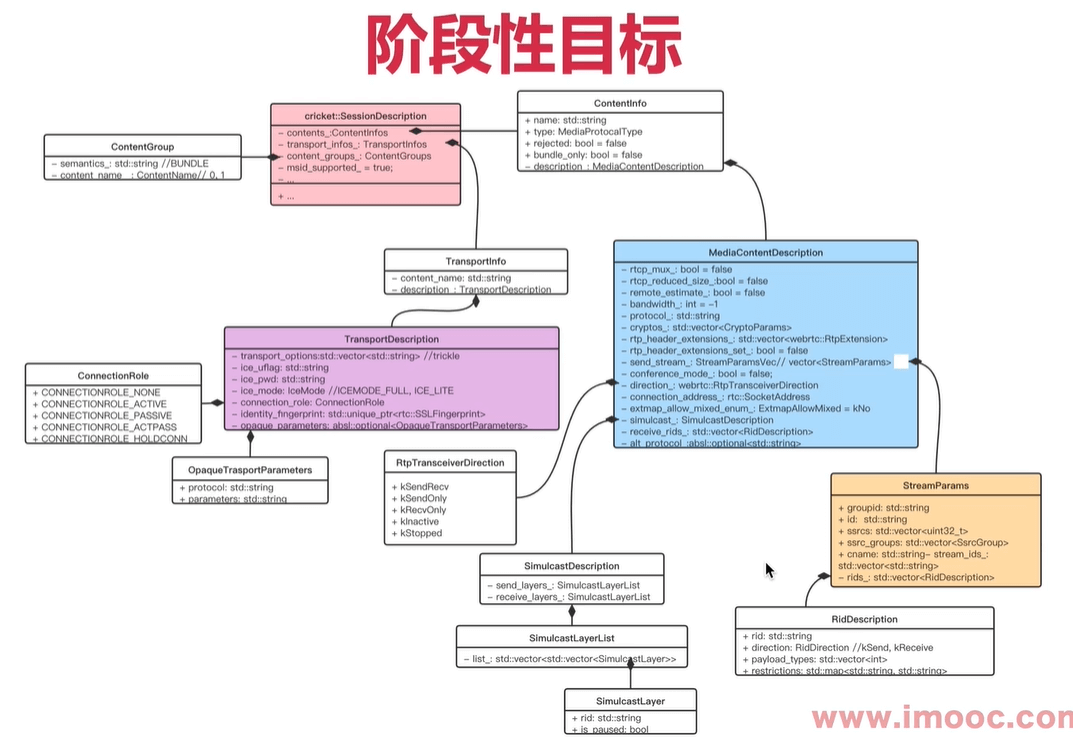

阶段性目标

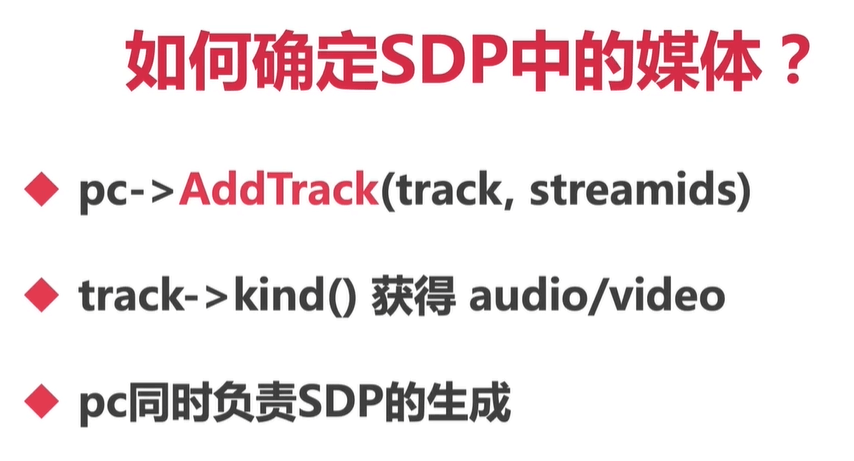

如何确定SDP中的媒体？

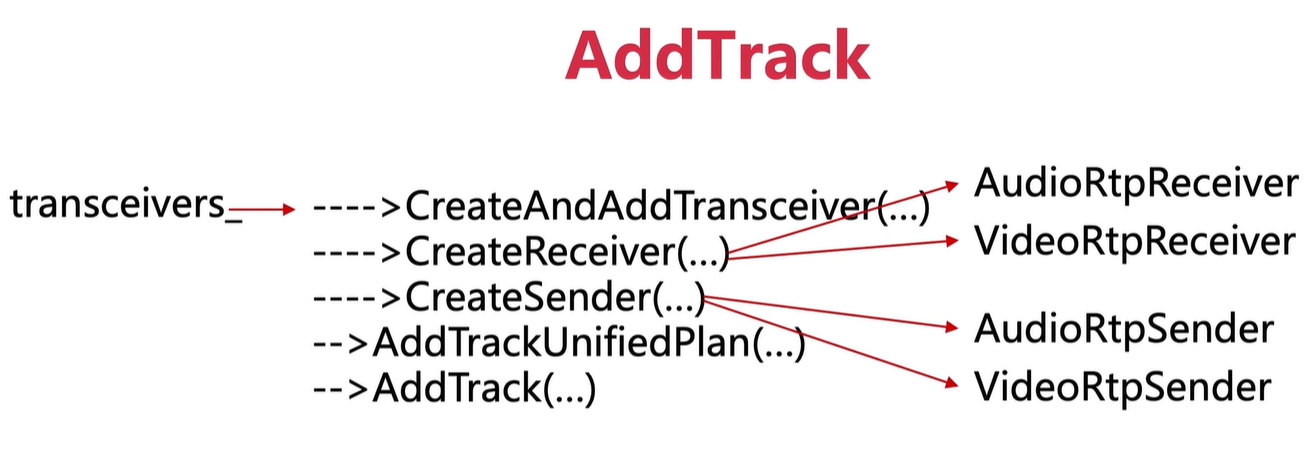

AddTrack

添加媒体轨的SDP信息
RTCErrorOr<rtc::scoped_refptr<RtpSenderInterface>>
RtpTransmissionManager::AddTrackUnifiedPlan(
    rtc::scoped_refptr<MediaStreamTrackInterface> track,
    const std::vector<std::string>& stream_ids) {
  auto transceiver = FindFirstTransceiverForAddedTrack(track);
  if (transceiver) {
    RTC_LOG(LS_INFO) << "Reusing an existing "
                     << cricket::MediaTypeToString(transceiver->media_type())
                     << " transceiver for AddTrack.";
    if (transceiver->stopping()) {
      LOG_AND_RETURN_ERROR(RTCErrorType::INVALID_PARAMETER,
                           "The existing transceiver is stopping.");
    }
    if (transceiver->direction() == RtpTransceiverDirection::kRecvOnly) {
      transceiver->internal()->set_direction(
          RtpTransceiverDirection::kSendRecv);
    } else if (transceiver->direction() == RtpTransceiverDirection::kInactive) {
      transceiver->internal()->set_direction(
          RtpTransceiverDirection::kSendOnly);
    }
    transceiver->sender()->SetTrack(track);
    transceiver->internal()->sender_internal()->set_stream_ids(stream_ids);
    transceiver->internal()->set_reused_for_addtrack(true);
  } else {
    cricket::MediaType media_type =
        (track->kind() == MediaStreamTrackInterface::kAudioKind
             ? cricket::MEDIA_TYPE_AUDIO
             : cricket::MEDIA_TYPE_VIDEO);
    RTC_LOG(LS_INFO) << "Adding " << cricket::MediaTypeToString(media_type)
                     << " transceiver in response to a call to AddTrack.";
    std::string sender_id = track->id();
    // Avoid creating a sender with an existing ID by generating a random ID.
    // This can happen if this is the second time AddTrack has created a sender
    // for this track.
    if (FindSenderById(sender_id)) {
      sender_id = rtc::CreateRandomUuid();
    }
    auto sender = CreateSender(media_type, sender_id, track, stream_ids, {});
    auto receiver = CreateReceiver(media_type, rtc::CreateRandomUuid());
    transceiver = CreateAndAddTransceiver(sender, receiver);
    transceiver->internal()->set_created_by_addtrack(true);
    transceiver->internal()->set_direction(RtpTransceiverDirection::kSendRecv);
  }
  return transceiver->sender();
}

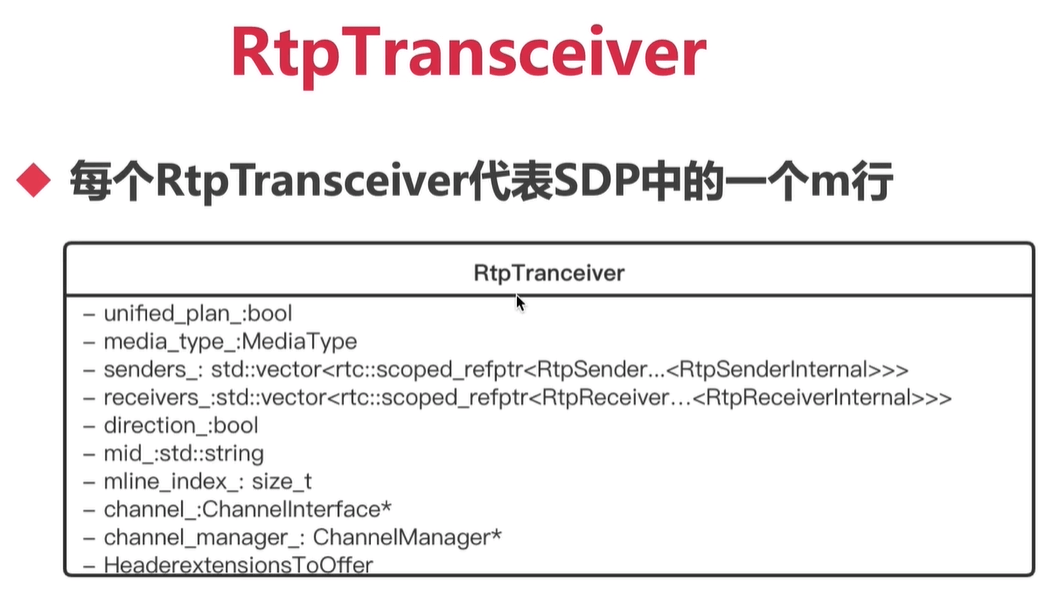

RtpTransceiver

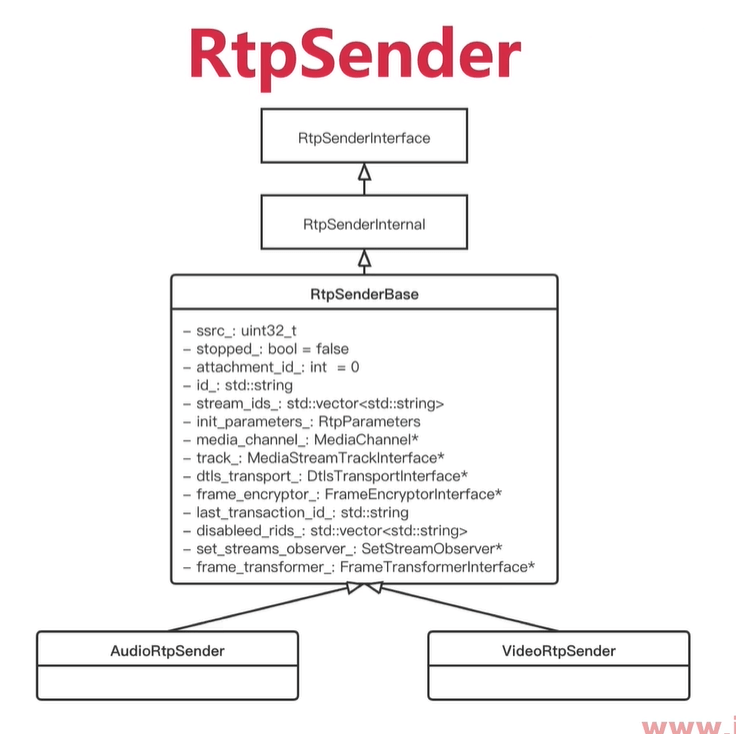

RtpSender

Session层
