前言

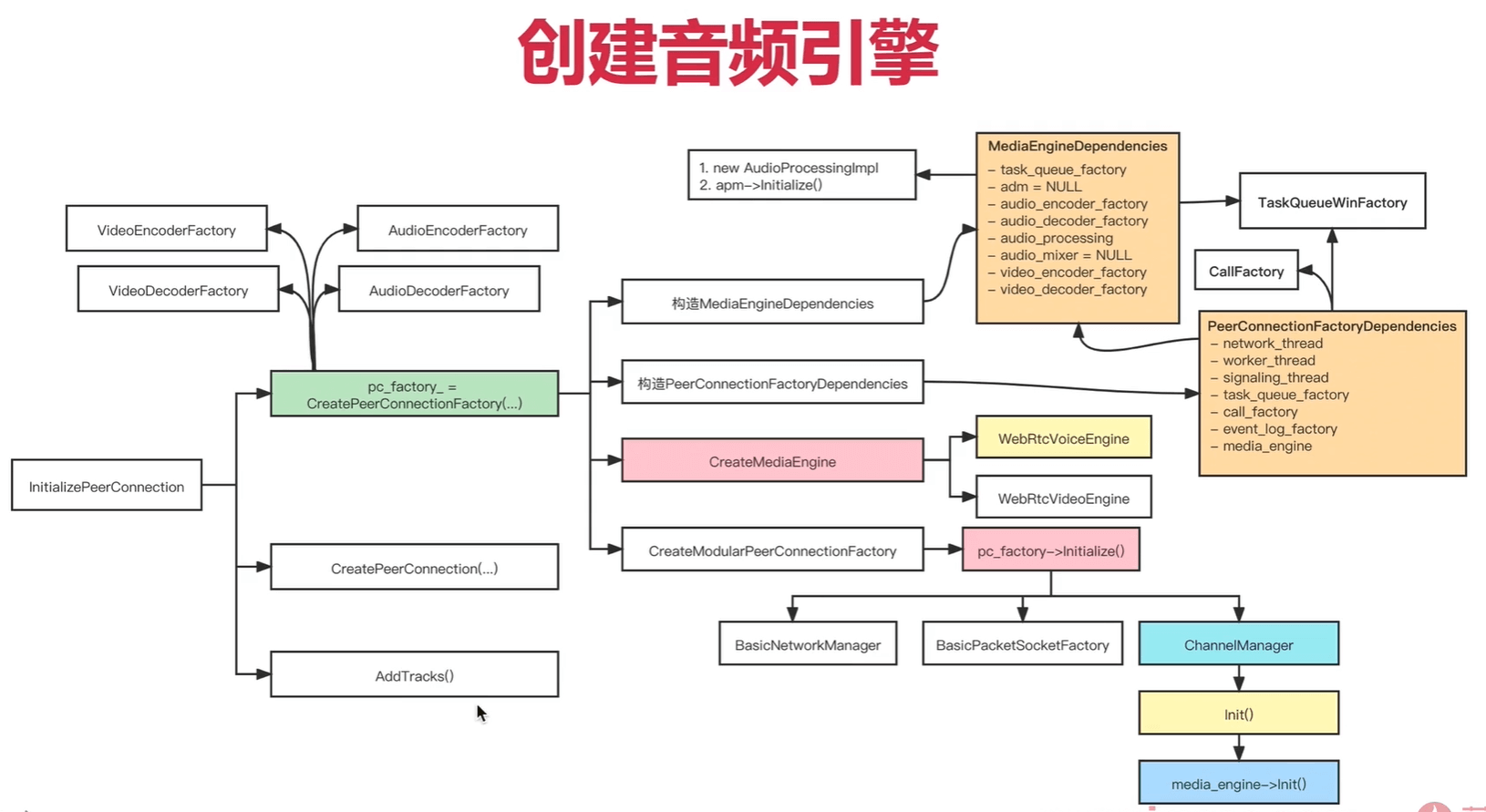

构造MediaEngineDependencies的作用，是将所有创建的参数打包到这里，方便参数的传递和管理。

代码分析

CreatePeerConnectionFactory

H:\webrtc-20210315\webrtc-20210315\webrtc\webrtc-checkout\src\api\create_peerconnection_factory.cc

rtc::scoped_refptr<PeerConnectionFactoryInterface> CreatePeerConnectionFactory(
    rtc::Thread* network_thread,
    rtc::Thread* worker_thread,
    rtc::Thread* signaling_thread,
    rtc::scoped_refptr<AudioDeviceModule> default_adm,
    rtc::scoped_refptr<AudioEncoderFactory> audio_encoder_factory,
    rtc::scoped_refptr<AudioDecoderFactory> audio_decoder_factory,
    std::unique_ptr<VideoEncoderFactory> video_encoder_factory,
    std::unique_ptr<VideoDecoderFactory> video_decoder_factory,
    rtc::scoped_refptr<AudioMixer> audio_mixer,
    rtc::scoped_refptr<AudioProcessing> audio_processing,
    AudioFrameProcessor* audio_frame_processor) {
  PeerConnectionFactoryDependencies dependencies;
  dependencies.network_thread = network_thread;
  dependencies.worker_thread = worker_thread;
  dependencies.signaling_thread = signaling_thread;
  dependencies.task_queue_factory = CreateDefaultTaskQueueFactory();
  dependencies.call_factory = CreateCallFactory();
  dependencies.event_log_factory = std::make_unique<RtcEventLogFactory>(
      dependencies.task_queue_factory.get());
  dependencies.trials = std::make_unique<webrtc::FieldTrialBasedConfig>();
  cricket::MediaEngineDependencies media_dependencies;
  media_dependencies.task_queue_factory = dependencies.task_queue_factory.get();
  media_dependencies.adm = std::move(default_adm);
  media_dependencies.audio_encoder_factory = std::move(audio_encoder_factory);
  media_dependencies.audio_decoder_factory = std::move(audio_decoder_factory);
  media_dependencies.audio_frame_processor = audio_frame_processor;
  if (audio_processing) {
    media_dependencies.audio_processing = std::move(audio_processing);
  } else {
    media_dependencies.audio_processing = AudioProcessingBuilder().Create();
  }
  media_dependencies.audio_mixer = std::move(audio_mixer);
  media_dependencies.video_encoder_factory = std::move(video_encoder_factory);
  media_dependencies.video_decoder_factory = std::move(video_decoder_factory);
  media_dependencies.trials = dependencies.trials.get();
  dependencies.media_engine =
      cricket::CreateMediaEngine(std::move(media_dependencies));
  return CreateModularPeerConnectionFactory(std::move(dependencies));
}

—》1、dependencies.media_engine =
cricket::CreateMediaEngine(std::move(media_dependencies));

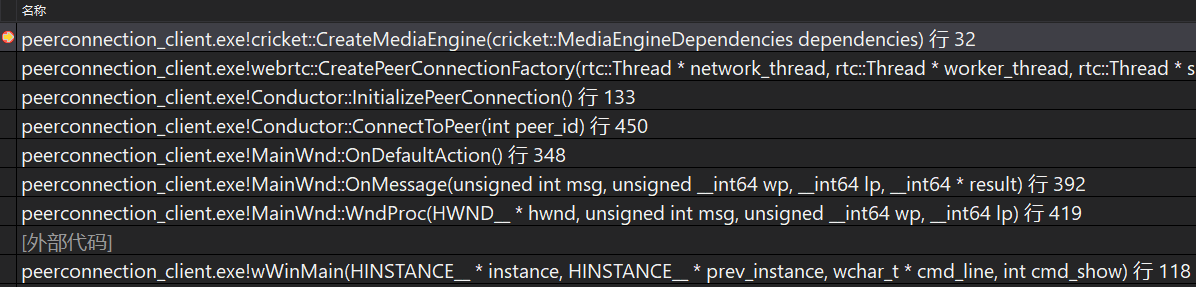

CreateMediaEngine

H:\webrtc-20210315\webrtc-20210315\webrtc\webrtc-checkout\src\media\engine\webrtc_media_engine.cc

std::unique_ptr<MediaEngineInterface> CreateMediaEngine(
    MediaEngineDependencies dependencies) {
  // TODO(sprang): Make populating |dependencies.trials| mandatory and remove
  // these fallbacks.
  std::unique_ptr<webrtc::WebRtcKeyValueConfig> fallback_trials(
      dependencies.trials ? nullptr : new webrtc::FieldTrialBasedConfig());
  const webrtc::WebRtcKeyValueConfig& trials =
      dependencies.trials ? *dependencies.trials : *fallback_trials;
  // 创建音频引擎
  auto audio_engine = std::make_unique<WebRtcVoiceEngine>(
      dependencies.task_queue_factory, std::move(dependencies.adm),
      std::move(dependencies.audio_encoder_factory),
      std::move(dependencies.audio_decoder_factory),
      std::move(dependencies.audio_mixer),
      std::move(dependencies.audio_processing),
      dependencies.audio_frame_processor, trials);
 // 创建视频引擎
#ifdef HAVE_WEBRTC_VIDEO
  auto video_engine = std::make_unique<WebRtcVideoEngine>(
      std::move(dependencies.video_encoder_factory),
      std::move(dependencies.video_decoder_factory), trials);
#else
  auto video_engine = std::make_unique<NullWebRtcVideoEngine>();
#endif
  // 创建音频和视频引擎后，保存到CompositeMediaEngine媒体引擎中
  return std::make_unique<CompositeMediaEngine>(std::move(fallback_trials),
                                                std::move(audio_engine),
                                                std::move(video_engine));
}

—》2、 return CreateModularPeerConnectionFactory(std::move(dependencies));

CreateModularPeerConnectionFactory

rtc::scoped_refptr<PeerConnectionFactoryInterface>
CreateModularPeerConnectionFactory(
    PeerConnectionFactoryDependencies dependencies) {
  // The PeerConnectionFactory must be created on the signaling thread.
  if (dependencies.signaling_thread &&
      !dependencies.signaling_thread->IsCurrent()) {
    return dependencies.signaling_thread
        ->Invoke<rtc::scoped_refptr<PeerConnectionFactoryInterface>>(
            RTC_FROM_HERE, [&dependencies] {
              return CreateModularPeerConnectionFactory(
                  std::move(dependencies));
            });
  }
  auto pc_factory = PeerConnectionFactory::Create(std::move(dependencies));
  if (!pc_factory) {
    return nullptr;
  }
  // Verify that the invocation and the initialization ended up agreeing on the
  // thread.
  RTC_DCHECK_RUN_ON(pc_factory->signaling_thread());
  return PeerConnectionFactoryProxy::Create(pc_factory->signaling_thread(),
                                            pc_factory);
}

—》PeerConnectionFactory::Create(std::move(dependencies));

PeerConnectionFactory::Create

rtc::scoped_refptr<PeerConnectionFactory> PeerConnectionFactory::Create(
    PeerConnectionFactoryDependencies dependencies) {
  auto context = ConnectionContext::Create(&dependencies);
  if (!context) {
    return nullptr;
  }
  return new rtc::RefCountedObject<PeerConnectionFactory>(context,
                                                          &dependencies);
}

—》ConnectionContext::Create(&dependencies);

ConnectionContext::Create

rtc::scoped_refptr<ConnectionContext> ConnectionContext::Create(
    PeerConnectionFactoryDependencies* dependencies) {
  auto context = new rtc::RefCountedObject<ConnectionContext>(dependencies);
  if (!context->channel_manager_->Init()) {
    return nullptr;
  }
  return context;
}

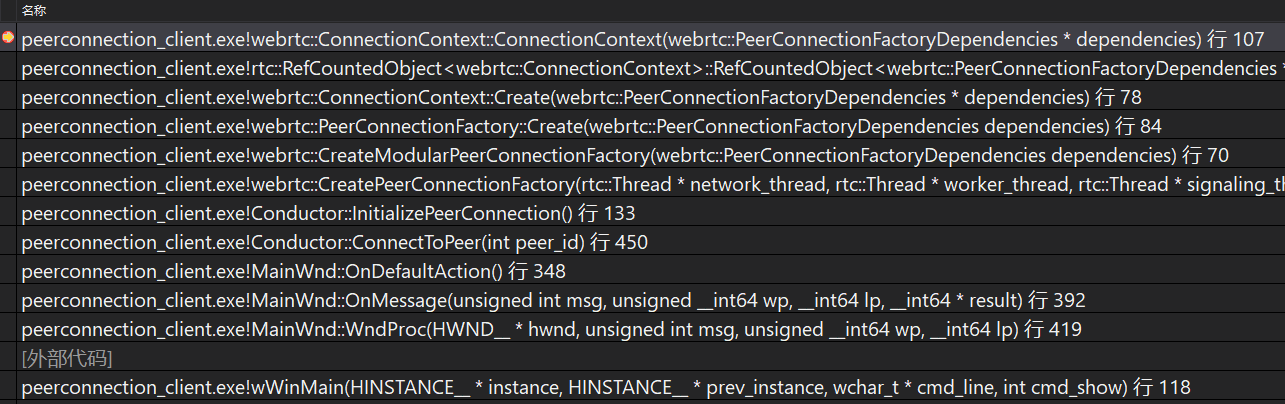

—》ConnectionContext::ConnectionContext
创建好该对象实例后，会调用 ChannelManager::Init，主要是做了
bool ChannelManager::Init() {

if (mediaengine) {
initialized = worker_thread->Invoke(
RTCFROM_HERE, [&] { return media_engine->Init(); });
RTCDCHECK(initialized);

}
就是判断媒体引擎是否已经创建好，如果已经创建好了，则会调用CompositeMediaEngine::Init -》WebRtcVoiceEngine::Init。

ConnectionContext::ConnectionContext

ConnectionContext::ConnectionContext(
    PeerConnectionFactoryDependencies* dependencies)
    : network_thread_(MaybeStartThread(dependencies->network_thread,
                                       "pc_network_thread",
                                       true,
                                       owned_network_thread_)),
      worker_thread_(MaybeStartThread(dependencies->worker_thread,
                                      "pc_worker_thread",
                                      false,
                                      owned_worker_thread_)),
      signaling_thread_(MaybeWrapThread(dependencies->signaling_thread,
                                        wraps_current_thread_)),
      network_monitor_factory_(
          std::move(dependencies->network_monitor_factory)),
      call_factory_(std::move(dependencies->call_factory)),
      media_engine_(std::move(dependencies->media_engine)),
      sctp_factory_(
          MaybeCreateSctpFactory(std::move(dependencies->sctp_factory),
                                 network_thread())),
      trials_(dependencies->trials
                  ? std::move(dependencies->trials)
                  : std::make_unique<FieldTrialBasedConfig>()) {
  signaling_thread_->AllowInvokesToThread(worker_thread_);
  signaling_thread_->AllowInvokesToThread(network_thread_);
  worker_thread_->AllowInvokesToThread(network_thread_);
  network_thread_->DisallowAllInvokes();
  RTC_DCHECK_RUN_ON(signaling_thread_);
  rtc::InitRandom(rtc::Time32());
  // If network_monitor_factory_ is non-null, it will be used to create a
  // network monitor while on the network thread.
  default_network_manager_ = std::make_unique<rtc::BasicNetworkManager>(
      network_monitor_factory_.get());
  default_socket_factory_ =
      std::make_unique<rtc::BasicPacketSocketFactory>(network_thread());
  channel_manager_ = std::make_unique<cricket::ChannelManager>(
      std::move(media_engine_), std::make_unique<cricket::RtpDataEngine>(),
      worker_thread(), network_thread());
  channel_manager_->SetVideoRtxEnabled(true);
  // Set warning levels on the threads, to give warnings when response
  // may be slower than is expected of the thread.
  // Since some of the threads may be the same, start with the least
  // restrictive limits and end with the least permissive ones.
  // This will give warnings for all cases.
  signaling_thread_->SetDispatchWarningMs(100);
  worker_thread_->SetDispatchWarningMs(30);
  network_thread_->SetDispatchWarningMs(10);
}
