前言

代码分析

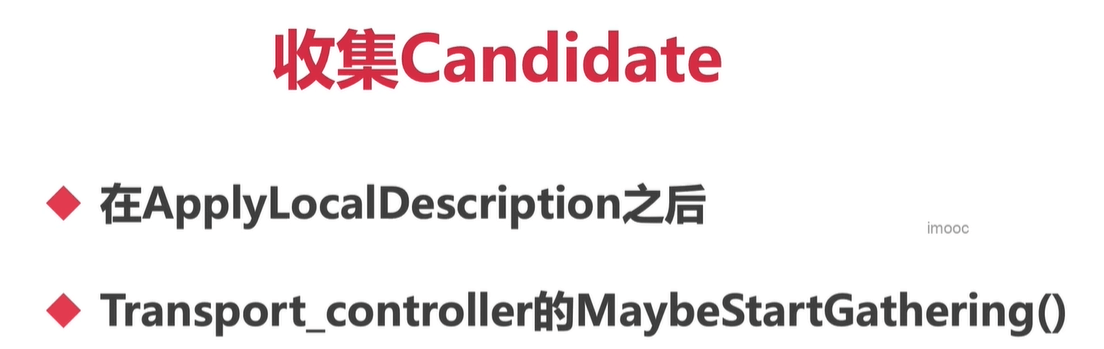

SdpOfferAnswerHandler::DoSetLocalDescription
->
JsepTransportController::MaybeStartGathering

 SdpOfferAnswerHandler::DoSetLocalDescription {
 ***
   // MaybeStartGathering needs to be called after informing the observer so that
  // we don't signal any candidates before signaling that SetLocalDescription
  // completed.
  transport_controller()->MaybeStartGathering();
 }

JsepTransportController::MaybeStartGathering

void JsepTransportController::MaybeStartGathering() {
  if (!network_thread_->IsCurrent()) {
    network_thread_->Invoke<void>(RTC_FROM_HERE,
                                  [&] { MaybeStartGathering(); });
    return;
  }
  for (auto& dtls : GetDtlsTransports()) {
    dtls->ice_transport()->MaybeStartGathering();
  }
}

P2PTransportChannel::MaybeStartGathering

void P2PTransportChannel::MaybeStartGathering() {
  RTC_DCHECK_RUN_ON(network_thread_);
    // 首先会判断ufrag和pwd是否为空
  if (ice_parameters_.ufrag.empty() || ice_parameters_.pwd.empty()) {
    RTC_LOG(LS_ERROR)
        << "Cannot gather candidates because ICE parameters are empty"
           " ufrag: "
        << ice_parameters_.ufrag << " pwd: " << ice_parameters_.pwd;
    return;
  }
  // Start gathering if we never started before, or if an ICE restart occurred.
    // 新启动一个收集。或者重启收集
  if (allocator_sessions_.empty() ||
      IceCredentialsChanged(allocator_sessions_.back()->ice_ufrag(),
                            allocator_sessions_.back()->ice_pwd(),
                            ice_parameters_.ufrag, ice_parameters_.pwd)) {
 ***
    // Time for a new allocator.
      // 获取一个pooled_session ，连接池
    std::unique_ptr<PortAllocatorSession> pooled_session =
        allocator_->TakePooledSession(transport_name(), component(),
                                      ice_parameters_.ufrag,
                                      ice_parameters_.pwd);
    if (pooled_session) {
      AddAllocatorSession(std::move(pooled_session));
      PortAllocatorSession* raw_pooled_session =
          allocator_sessions_.back().get();
      // Process the pooled session's existing candidates/ports, if they exist.
      OnCandidatesReady(raw_pooled_session,
                        raw_pooled_session->ReadyCandidates());
      for (PortInterface* port : allocator_sessions_.back()->ReadyPorts()) {
        OnPortReady(raw_pooled_session, port);
      }
      if (allocator_sessions_.back()->CandidatesAllocationDone()) {
        OnCandidatesAllocationDone(raw_pooled_session);
      }
    } else {
        // 添加一个收集器
      AddAllocatorSession(allocator_->CreateSession(
          transport_name(), component(), ice_parameters_.ufrag,
          ice_parameters_.pwd));
      allocator_sessions_.back()->StartGettingPorts();
    }
  }
}

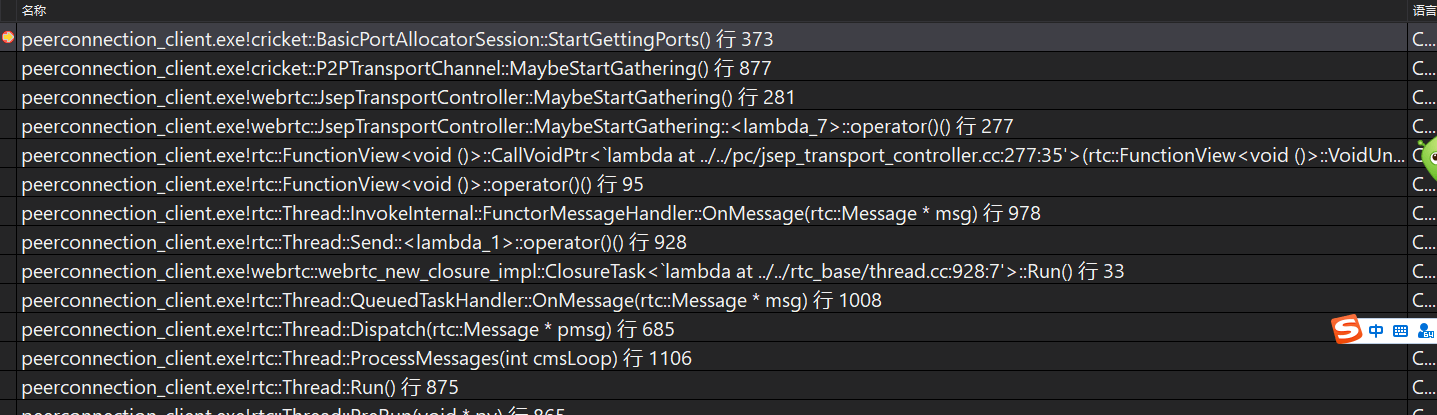

BasicPortAllocatorSession::StartGettingPorts

void BasicPortAllocatorSession::StartGettingPorts() {
  RTC_DCHECK_RUN_ON(network_thread_);
  state_ = SessionState::GATHERING;
  if (!socket_factory_) {
    owned_socket_factory_.reset(
        new rtc::BasicPacketSocketFactory(network_thread_));
    socket_factory_ = owned_socket_factory_.get();
  }
    // 向网络线程发送一个任务，根据参数，此时当前类的OnMessage会收到MSG_CONFIG_START
  network_thread_->Post(RTC_FROM_HERE, this, MSG_CONFIG_START);
***
}

OnMessage处理线程消息

void BasicPortAllocatorSession::OnMessage(rtc::Message* message) {
  switch (message->message_id) {
    case MSG_CONFIG_START:
      GetPortConfigurations();
      break;
    case MSG_CONFIG_READY:
      OnConfigReady(static_cast<PortConfiguration*>(message->pdata));
      break;
    case MSG_ALLOCATE:
      OnAllocate();
      break;
    case MSG_SEQUENCEOBJECTS_CREATED:
      OnAllocationSequenceObjectsCreated();
      break;
    case MSG_CONFIG_STOP:
      OnConfigStop();
      break;
    default:
      RTC_NOTREACHED();
  }
}

BasicPortAllocatorSession::GetPortConfiguration

void BasicPortAllocatorSession::GetPortConfigurations() {
  RTC_DCHECK_RUN_ON(network_thread_);
  PortConfiguration* config =
      new PortConfiguration(allocator_->stun_servers(), username(), password());
  for (const RelayServerConfig& turn_server : allocator_->turn_servers()) {
    config->AddRelay(turn_server);
  }
  ConfigReady(config);
}
void BasicPortAllocatorSession::ConfigReady(PortConfiguration* config) {
  RTC_DCHECK_RUN_ON(network_thread_);
    // 向网络线程发送MSG_CONFIG_READY信息
  network_thread_->Post(RTC_FROM_HERE, this, MSG_CONFIG_READY, config);
}
void BasicPortAllocatorSession::OnMessage(rtc::Message* message) {
  switch (message->message_id) {
***
    case MSG_CONFIG_READY:
      OnConfigReady(static_cast<PortConfiguration*>(message->pdata));
      break;
***
  }
}
// Adds a configuration to the list.
void BasicPortAllocatorSession::OnConfigReady(PortConfiguration* config) {
  RTC_DCHECK_RUN_ON(network_thread_);
  if (config) {
    configs_.push_back(config);
  }
  AllocatePorts();
}
