前言

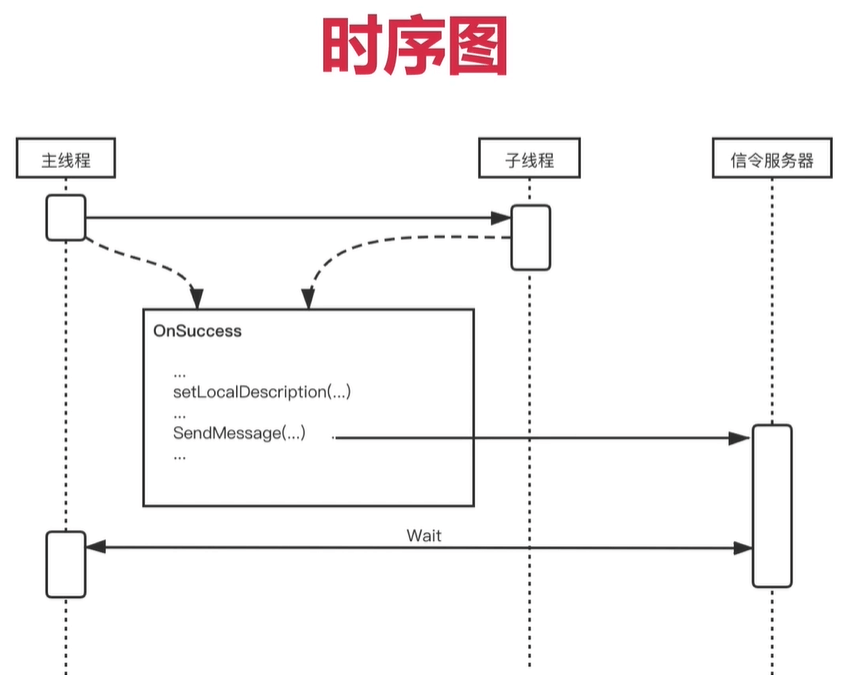

时序图

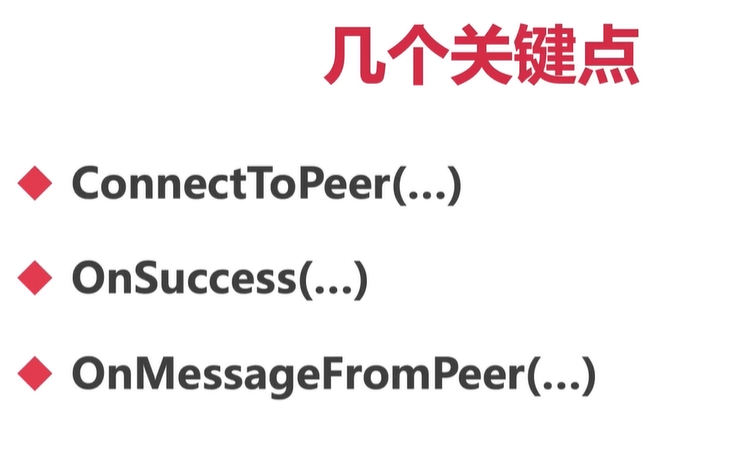

几个关键点

源码分析

Conductor::ConnectToPeer

void Conductor::ConnectToPeer(int peer_id) {
***
  if (InitializePeerConnection()) {
    peer_id_ = peer_id;
    peer_connection_->CreateOffer(
        this, webrtc::PeerConnectionInterface::RTCOfferAnswerOptions());
 ***
}

这里主要是CreateOffer，通过看该函数定义。

PeerConnection::CreateOffer

void PeerConnection::CreateOffer(CreateSessionDescriptionObserver* observer,
                                 const RTCOfferAnswerOptions& options) {
  RTC_DCHECK_RUN_ON(signaling_thread());
  sdp_handler_->CreateOffer(observer, options);
}

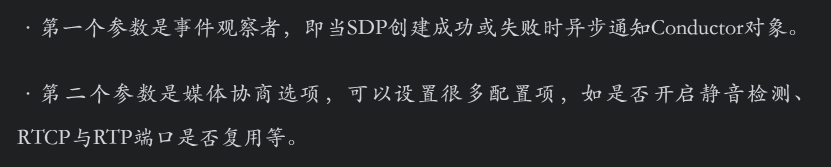

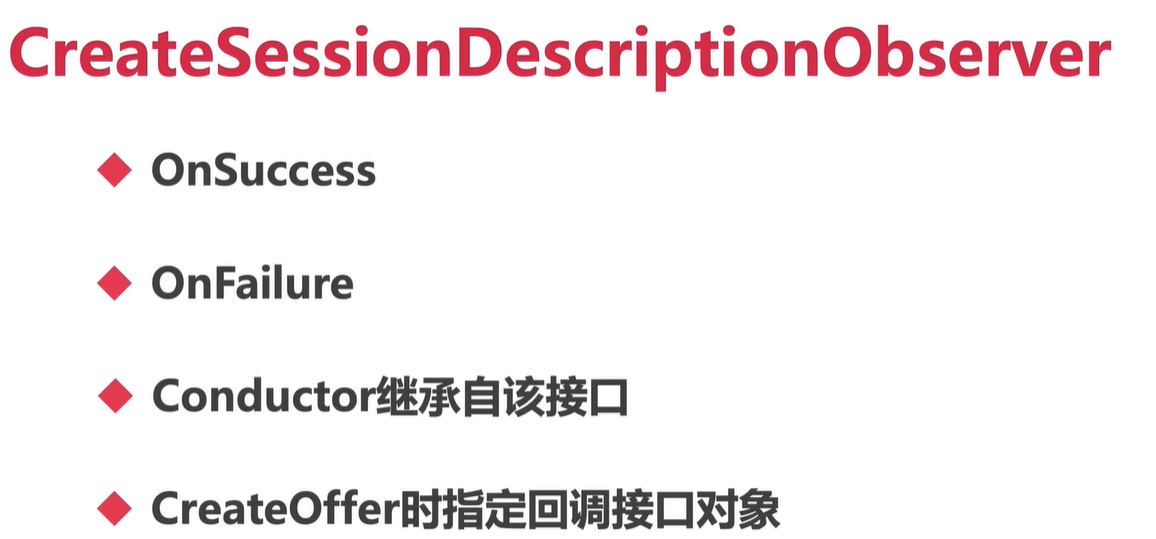

可以看到，第一个参数是CreateSessionDescriptionObserver观察者回调，这里输入的是this，说明Conductor也继承了webrtc::CreateSessionDescriptionObserver。
如果调用CreateOffer()方法成功创建了SDP，则WebRTC会回调Conductor对象的OnSuccess()方法，最终通过信令处理模块将创建好的SDP发送给对端；如果创建SDP失败，则会回调Conductor的OnFailure()方法。

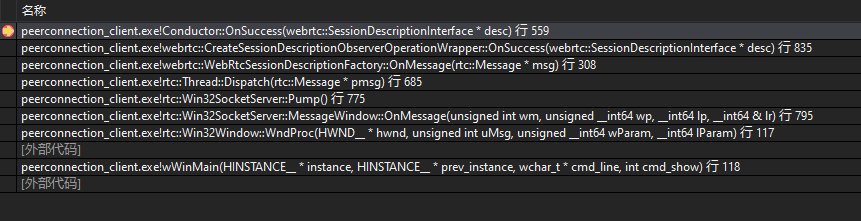

Conductor::OnSuccess

void Conductor::OnSuccess(webrtc::SessionDescriptionInterface* desc) {
  // 创建offer成功后的信息添加到本地 Description内存中
  peer_connection_->SetLocalDescription(
      DummySetSessionDescriptionObserver::Create(), desc);
  // 将创建offer成功后的信息转换为json数据，发送出去到对端
  std::string sdp;
  desc->ToString(&sdp);
  // For loopback test. To save some connecting delay.
  if (loopback_) {
    // Replace message type from "offer" to "answer"
    std::unique_ptr<webrtc::SessionDescriptionInterface> session_description =
        webrtc::CreateSessionDescription(webrtc::SdpType::kAnswer, sdp);
    peer_connection_->SetRemoteDescription(
        DummySetSessionDescriptionObserver::Create(),
        session_description.release());
    return;
  }

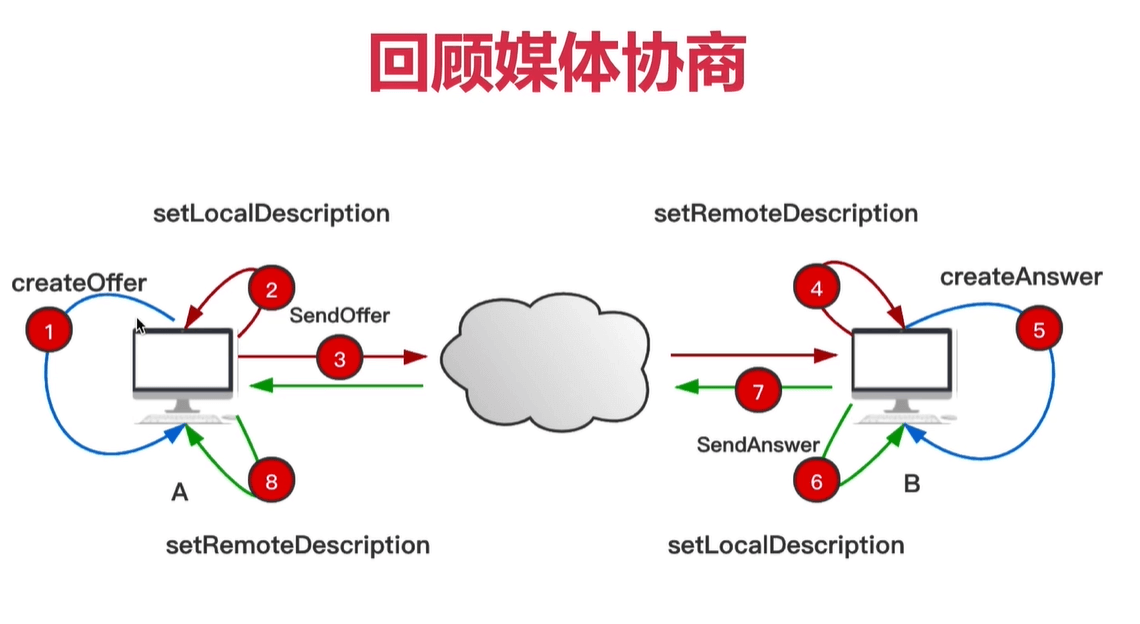

连接完成后，将发送创建成功的offer消息到对端。对端收到offer后，创建answer消息，并发回到本端，此时本地将调用Conductor::OnMessageFromPeer处理对端消息。

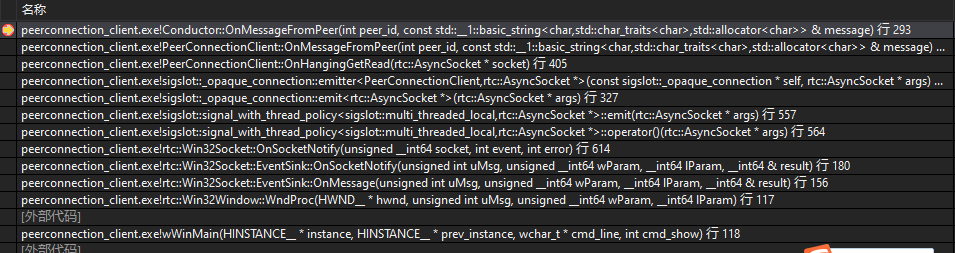

Conductor::OnMessageFromPeer

这里是收到对端消息，然后json解析，判断sdp类型是kOffer则代表是对端发起通信，需要PeerConnection::CreateAnswer 创建answer发回到对端。否则就是自己发起通信，收到的是answer，

void Conductor::OnMessageFromPeer(int peer_id, const std::string& message) {
  RTC_DCHECK(peer_id_ == peer_id || peer_id_ == -1);
  RTC_DCHECK(!message.empty());
  if (!peer_connection_.get()) {
    RTC_DCHECK(peer_id_ == -1);
    peer_id_ = peer_id;
    if (!InitializePeerConnection()) {
      RTC_LOG(LS_ERROR) << "Failed to initialize our PeerConnection instance";
      client_->SignOut();
      return;
    }
  } else if (peer_id != peer_id_) {
    RTC_DCHECK(peer_id_ != -1);
    RTC_LOG(WARNING)
        << "Received a message from unknown peer while already in a "
           "conversation with a different peer.";
    return;
  }
  // json解析接收到的对端消息
  Json::Reader reader;
  Json::Value jmessage;
  if (!reader.parse(message, jmessage)) {
    RTC_LOG(WARNING) << "Received unknown message. " << message;
    return;
  }
  std::string type_str;
  std::string json_object;
  // 获取信令类型，type_str为answer或者offer,
  // 如果是本端发起通信，第一次会收到answer类型，后面收到的就是空类型
  rtc::GetStringFromJsonObject(jmessage, kSessionDescriptionTypeName,
                               &type_str);
  if (!type_str.empty()) { // 类型不为空
    if (type_str == "offer-loopback") {
      // This is a loopback call.
      // Recreate the peerconnection with DTLS disabled.
      if (!ReinitializePeerConnectionForLoopback()) {
        RTC_LOG(LS_ERROR) << "Failed to initialize our PeerConnection instance";
        DeletePeerConnection();
        client_->SignOut();
      }
      return;
    }
    // 获取sdp类型
    absl::optional<webrtc::SdpType> type_maybe =
        webrtc::SdpTypeFromString(type_str);
    if (!type_maybe) {
      RTC_LOG(LS_ERROR) << "Unknown SDP type: " << type_str;
      return;
    }
    webrtc::SdpType type = *type_maybe;
    // 从json中获取sdp消息
    std::string sdp;
    if (!rtc::GetStringFromJsonObject(jmessage, kSessionDescriptionSdpName,
                                      &sdp)) {
      RTC_LOG(WARNING) << "Can't parse received session description message.";
      return;
    }
    // 根据sdp创建SessionDescriptionInterface实例
    webrtc::SdpParseError error;
    std::unique_ptr<webrtc::SessionDescriptionInterface> session_description =
        webrtc::CreateSessionDescription(type, sdp, &error);
    if (!session_description) {
      RTC_LOG(WARNING) << "Can't parse received session description message. "
                          "SdpParseError was: "
                       << error.description;
      return;
    }
    RTC_LOG(INFO) << " Received session description :" << message;
    // 通过SetRemoteDescription设置对端的sdp消息保存到内存
    peer_connection_->SetRemoteDescription(
        DummySetSessionDescriptionObserver::Create(),
        session_description.release());
    // 如果是offer消息，则代表是对端发起通信，需要发给对端answer
    if (type == webrtc::SdpType::kOffer) {
      peer_connection_->CreateAnswer(
          this, webrtc::PeerConnectionInterface::RTCOfferAnswerOptions());
    }
  } else {
    std::string sdp_mid;
    int sdp_mlineindex = 0;
    // 获取sdp信息
    std::string sdp;
    if (!rtc::GetStringFromJsonObject(jmessage, kCandidateSdpMidName,
                                      &sdp_mid) ||
        !rtc::GetIntFromJsonObject(jmessage, kCandidateSdpMlineIndexName,
                                   &sdp_mlineindex) ||
        !rtc::GetStringFromJsonObject(jmessage, kCandidateSdpName, &sdp)) {
      RTC_LOG(WARNING) << "Can't parse received message.";
      return;
    }
    // 根据sdp，创建candidate
    webrtc::SdpParseError error;
    std::unique_ptr<webrtc::IceCandidateInterface> candidate(
        webrtc::CreateIceCandidate(sdp_mid, sdp_mlineindex, sdp, &error));
    if (!candidate.get()) {
      RTC_LOG(WARNING) << "Can't parse received candidate message. "
                          "SdpParseError was: "
                       << error.description;
      return;
    }
    // 添加AddIceCandidate
    if (!peer_connection_->AddIceCandidate(candidate.get())) {
      RTC_LOG(WARNING) << "Failed to apply the received candidate";
      return;
    }
    RTC_LOG(INFO) << " Received candidate :" << message;
  }
}
