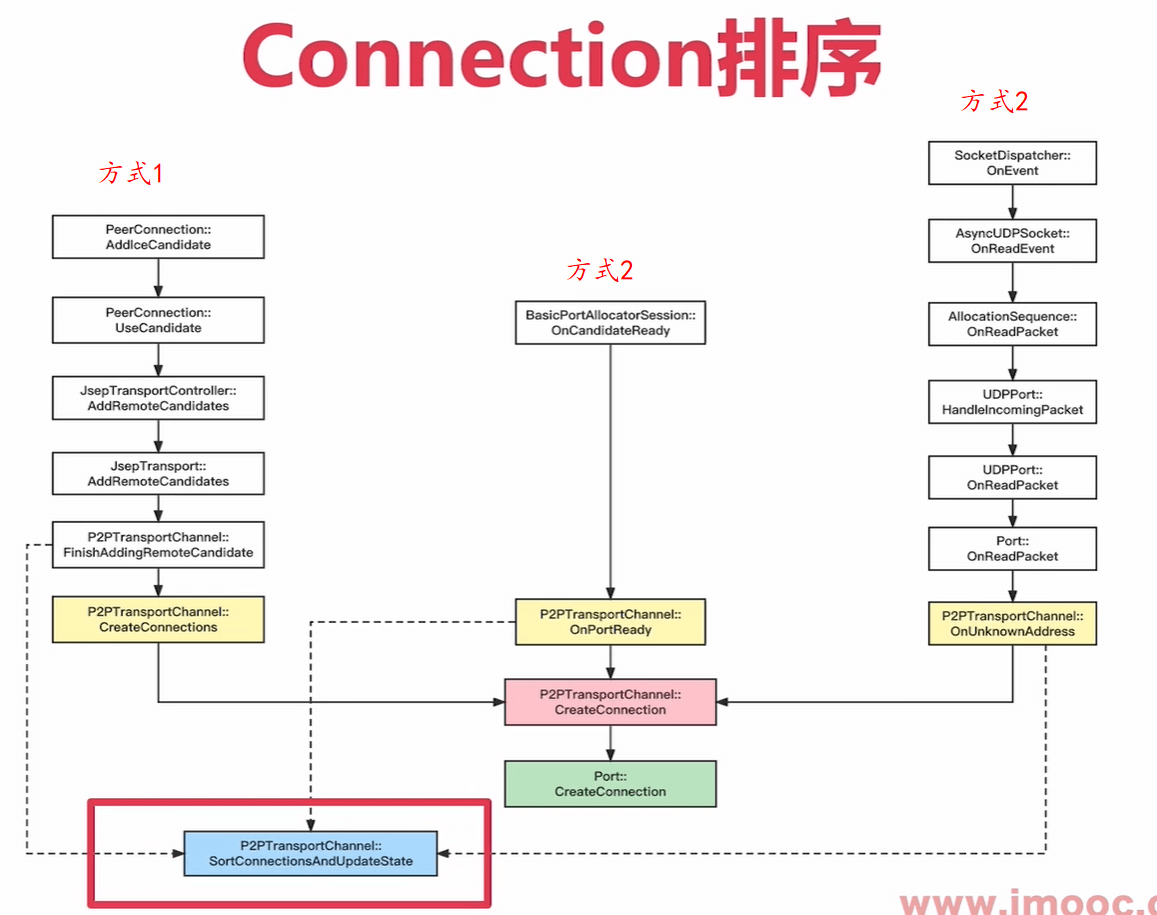

代码框图

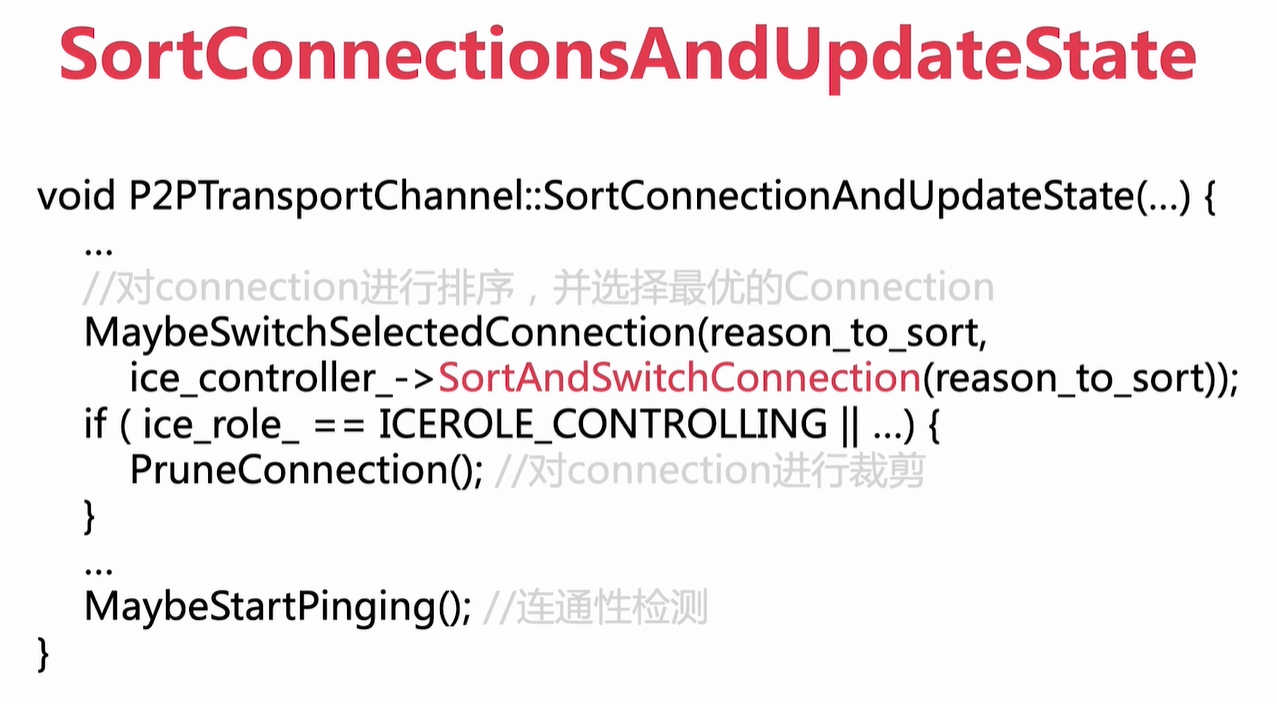

SortConnectionsAndUpdateState

H:\webrtc-20210315\webrtc-20210315\webrtc\webrtc-checkout\src\p2p\base\p2p_transport_channel.cc
P2PTransportChannel::SortConnectionsAndUpdateState

// Sort the available connections to find the best one.  We also monitor
// the number of available connections and the current state.
void P2PTransportChannel::SortConnectionsAndUpdateState(
    IceControllerEvent reason_to_sort) {
  RTC_DCHECK_RUN_ON(network_thread_);
  // Make sure the connection states are up-to-date since this affects how they
  // will be sorted.
  UpdateConnectionStates();
  // Any changes after this point will require a re-sort.
  sort_dirty_ = false;
  // If necessary, switch to the new choice. Note that |top_connection| doesn't
  // have to be writable to become the selected connection although it will
  // have higher priority if it is writable.
  MaybeSwitchSelectedConnection(
      reason_to_sort, ice_controller_->SortAndSwitchConnection(reason_to_sort));
  // The controlled side can prune only if the selected connection has been
  // nominated because otherwise it may prune the connection that will be
  // selected by the controlling side.
  // TODO(honghaiz): This is not enough to prevent a connection from being
  // pruned too early because with aggressive nomination, the controlling side
  // will nominate every connection until it becomes writable.
  if (ice_role_ == ICEROLE_CONTROLLING ||
      (selected_connection_ && selected_connection_->nominated())) {
    PruneConnections();
  }
  // Check if all connections are timedout.
  bool all_connections_timedout = true;
  for (const Connection* conn : connections()) {
    if (conn->write_state() != Connection::STATE_WRITE_TIMEOUT) {
      all_connections_timedout = false;
      break;
    }
  }
  // Now update the writable state of the channel with the information we have
  // so far.
  if (all_connections_timedout) {
    HandleAllTimedOut();
  }
  // Update the state of this channel.
  UpdateState();
  // Also possibly start pinging.
  // We could start pinging if:
  // * The first connection was created.
  // * ICE credentials were provided.
  // * A TCP connection became connected.
  MaybeStartPinging();
}

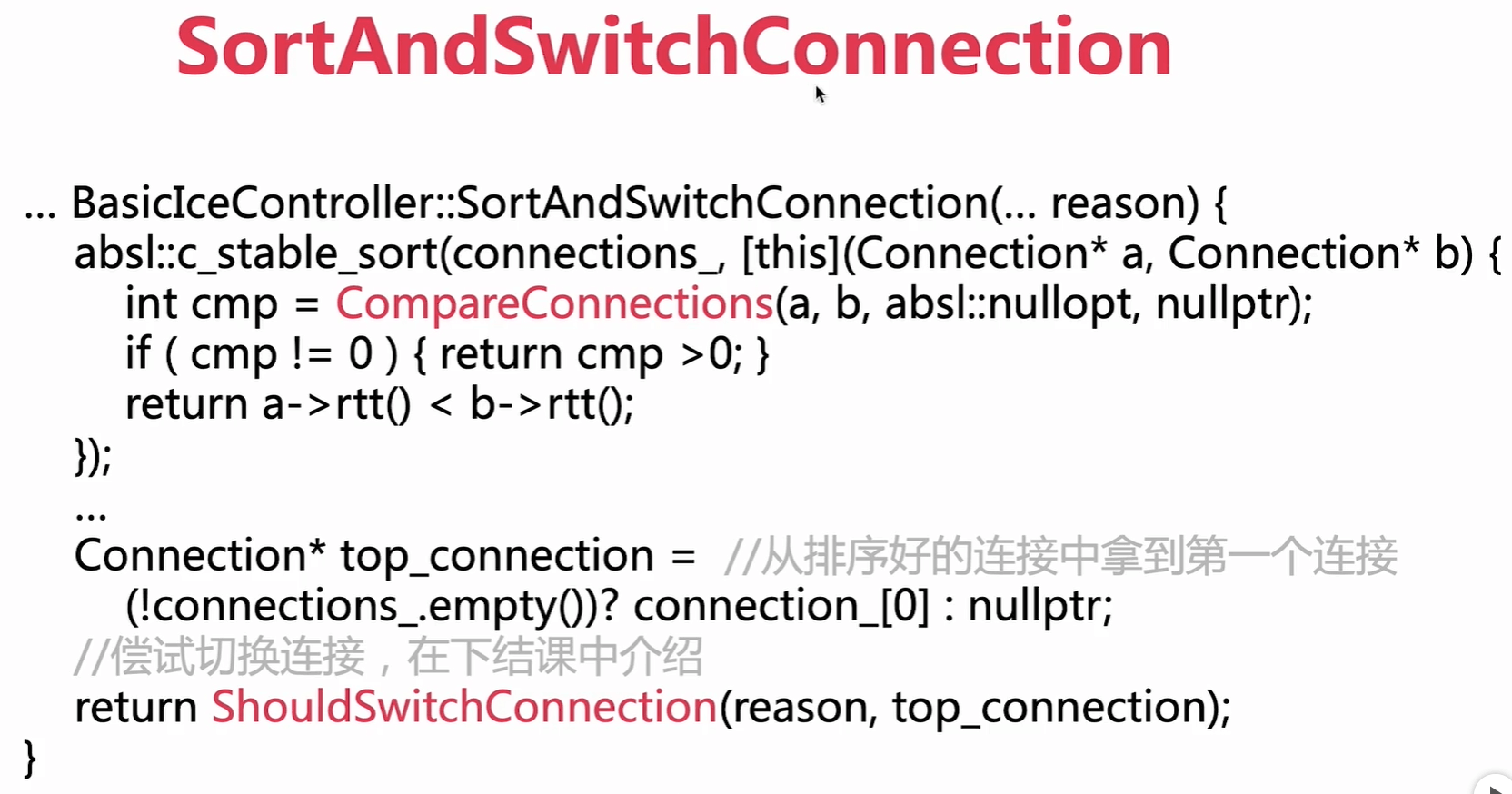

BasicIceController::SortAndSwitchConnection

IceControllerInterface::SwitchResult
BasicIceController::SortAndSwitchConnection(IceControllerEvent reason) {
  // Find the best alternative connection by sorting.  It is important to note
  // that amongst equal preference, writable connections, this will choose the
  // one whose estimated latency is lowest.  So it is the only one that we
  // need to consider switching to.
  // TODO(honghaiz): Don't sort;  Just use std::max_element in the right places.
  absl::c_stable_sort(
      connections_, [this](const Connection* a, const Connection* b) {
        int cmp = CompareConnections(a, b, absl::nullopt, nullptr);
        if (cmp != 0) {
          return cmp > 0;
        }
        // Otherwise, sort based on latency estimate.
        return a->rtt() < b->rtt();
      });
  RTC_LOG(LS_VERBOSE) << "Sorting " << connections_.size()
                      << " available connections";
  for (size_t i = 0; i < connections_.size(); ++i) {
    RTC_LOG(LS_VERBOSE) << connections_[i]->ToString();
  }
  const Connection* top_connection =
      (!connections_.empty()) ? connections_[0] : nullptr;
  return ShouldSwitchConnection(reason, top_connection);
}

依次比较，a b c d e , a和b比较，将结果b和c 比较，c和d比较。。。

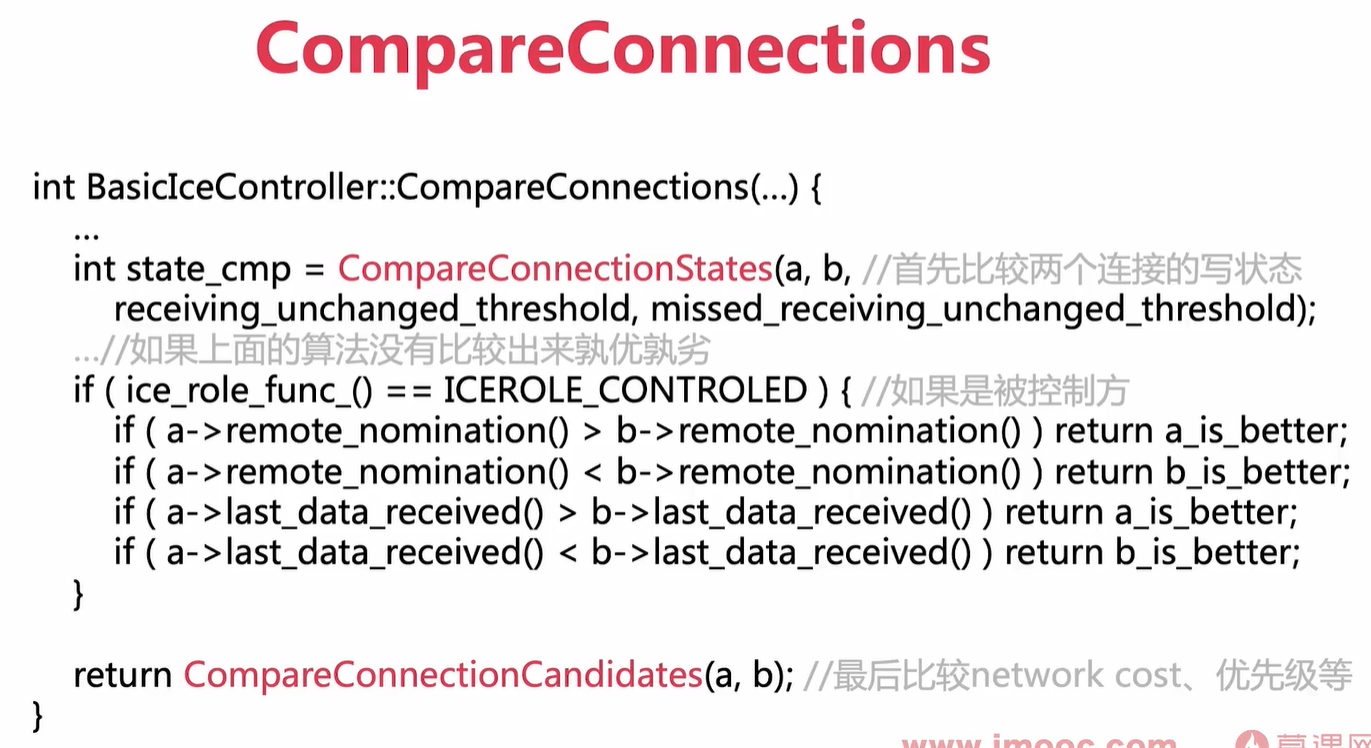

BasicIceController::CompareConnections

remote_nomination提名

int BasicIceController::CompareConnections(
    const Connection* a,
    const Connection* b,
    absl::optional<int64_t> receiving_unchanged_threshold,
    bool* missed_receiving_unchanged_threshold) const {
  RTC_CHECK(a != nullptr);
  RTC_CHECK(b != nullptr);
  // We prefer to switch to a writable and receiving connection over a
  // non-writable or non-receiving connection, even if the latter has
  // been nominated by the controlling side.
  int state_cmp = CompareConnectionStates(a, b, receiving_unchanged_threshold,
                                          missed_receiving_unchanged_threshold);
  if (state_cmp != 0) {
    return state_cmp;
  }
  if (ice_role_func_() == ICEROLE_CONTROLLED) {
    // Compare the connections based on the nomination states and the last data
    // received time if this is on the controlled side.
    if (a->remote_nomination() > b->remote_nomination()) {
      return a_is_better;
    }
    if (a->remote_nomination() < b->remote_nomination()) {
      return b_is_better;
    }
    if (a->last_data_received() > b->last_data_received()) {
      return a_is_better;
    }
    if (a->last_data_received() < b->last_data_received()) {
      return b_is_better;
    }
  }
  // Compare the network cost and priority.
  return CompareConnectionCandidates(a, b);
}

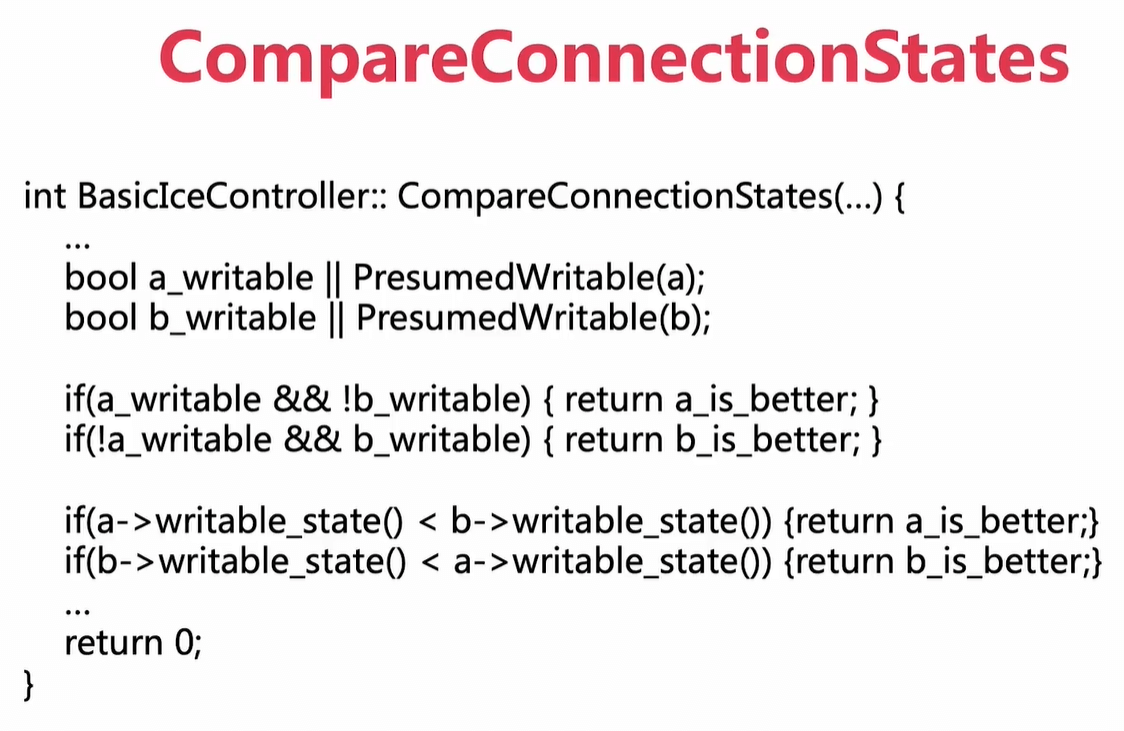

BasicIceController::CompareConnectionStates

// Compare two connections based on their writing, receiving, and connected
// states.
int BasicIceController::CompareConnectionStates(
    const Connection* a,
    const Connection* b,
    absl::optional<int64_t> receiving_unchanged_threshold,
    bool* missed_receiving_unchanged_threshold) const {
  // First, prefer a connection that's writable or presumed writable over
  // one that's not writable.
  bool a_writable = a->writable() || PresumedWritable(a);
  bool b_writable = b->writable() || PresumedWritable(b);
  if (a_writable && !b_writable) {
    return a_is_better;
  }
  if (!a_writable && b_writable) {
    return b_is_better;
  }
  // Sort based on write-state. Better states have lower values.
  if (a->write_state() < b->write_state()) {
    return a_is_better;
  }
  if (b->write_state() < a->write_state()) {
    return b_is_better;
  }
  // We prefer a receiving connection to a non-receiving, higher-priority
  // connection when sorting connections and choosing which connection to
  // switch to.
  if (a->receiving() && !b->receiving()) {
    return a_is_better;
  }
  if (!a->receiving() && b->receiving()) {
    if (!receiving_unchanged_threshold ||
        (a->receiving_unchanged_since() <= *receiving_unchanged_threshold &&
         b->receiving_unchanged_since() <= *receiving_unchanged_threshold)) {
      return b_is_better;
    }
    *missed_receiving_unchanged_threshold = true;
  }
  // WARNING: Some complexity here about TCP reconnecting.
  // When a TCP connection fails because of a TCP socket disconnecting, the
  // active side of the connection will attempt to reconnect for 5 seconds while
  // pretending to be writable (the connection is not set to the unwritable
  // state).  On the passive side, the connection also remains writable even
  // though it is disconnected, and a new connection is created when the active
  // side connects.  At that point, there are two TCP connections on the passive
  // side: 1. the old, disconnected one that is pretending to be writable, and
  // 2.  the new, connected one that is maybe not yet writable.  For purposes of
  // pruning, pinging, and selecting the selected connection, we want to treat
  // the new connection as "better" than the old one. We could add a method
  // called something like Connection::ImReallyBadEvenThoughImWritable, but that
  // is equivalent to the existing Connection::connected(), which we already
  // have. So, in code throughout this file, we'll check whether the connection
  // is connected() or not, and if it is not, treat it as "worse" than a
  // connected one, even though it's writable.  In the code below, we're doing
  // so to make sure we treat a new writable connection as better than an old
  // disconnected connection.
  // In the case where we reconnect TCP connections, the original best
  // connection is disconnected without changing to WRITE_TIMEOUT. In this case,
  // the new connection, when it becomes writable, should have higher priority.
  if (a->write_state() == Connection::STATE_WRITABLE &&
      b->write_state() == Connection::STATE_WRITABLE) {
    if (a->connected() && !b->connected()) {
      return a_is_better;
    }
    if (!a->connected() && b->connected()) {
      return b_is_better;
    }
  }
  return 0;
}

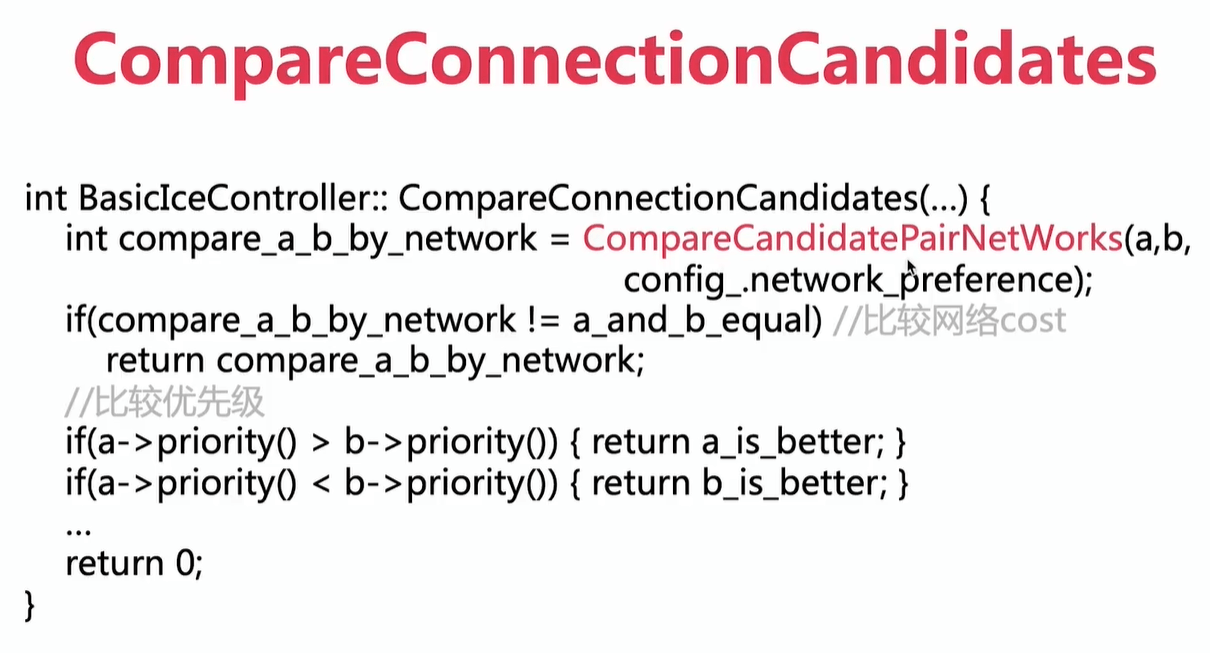

BasicIceController::CompareConnectionCandidates

// Compares two connections based only on the candidate and network information.
// Returns positive if |a| is better than |b|.
int BasicIceController::CompareConnectionCandidates(const Connection* a,
                                                    const Connection* b) const {
  int compare_a_b_by_networks =
      CompareCandidatePairNetworks(a, b, config_.network_preference);
  if (compare_a_b_by_networks != a_and_b_equal) {
    return compare_a_b_by_networks;
  }
  // Compare connection priority. Lower values get sorted last.
  if (a->priority() > b->priority()) {
    return a_is_better;
  }
  if (a->priority() < b->priority()) {
    return b_is_better;
  }
  // If we're still tied at this point, prefer a younger generation.
  // (Younger generation means a larger generation number).
  int cmp = (a->remote_candidate().generation() + a->generation()) -
            (b->remote_candidate().generation() + b->generation());
  if (cmp != 0) {
    return cmp;
  }
  // A periodic regather (triggered by the regather_all_networks_interval_range)
  // will produce candidates that appear the same but would use a new port. We
  // want to use the new candidates and purge the old candidates as they come
  // in, so use the fact that the old ports get pruned immediately to rank the
  // candidates with an active port/remote candidate higher.
  bool a_pruned = is_connection_pruned_func_(a);
  bool b_pruned = is_connection_pruned_func_(b);
  if (!a_pruned && b_pruned) {
    return a_is_better;
  }
  if (a_pruned && !b_pruned) {
    return b_is_better;
  }
  // Otherwise, must be equal
  return 0;
}

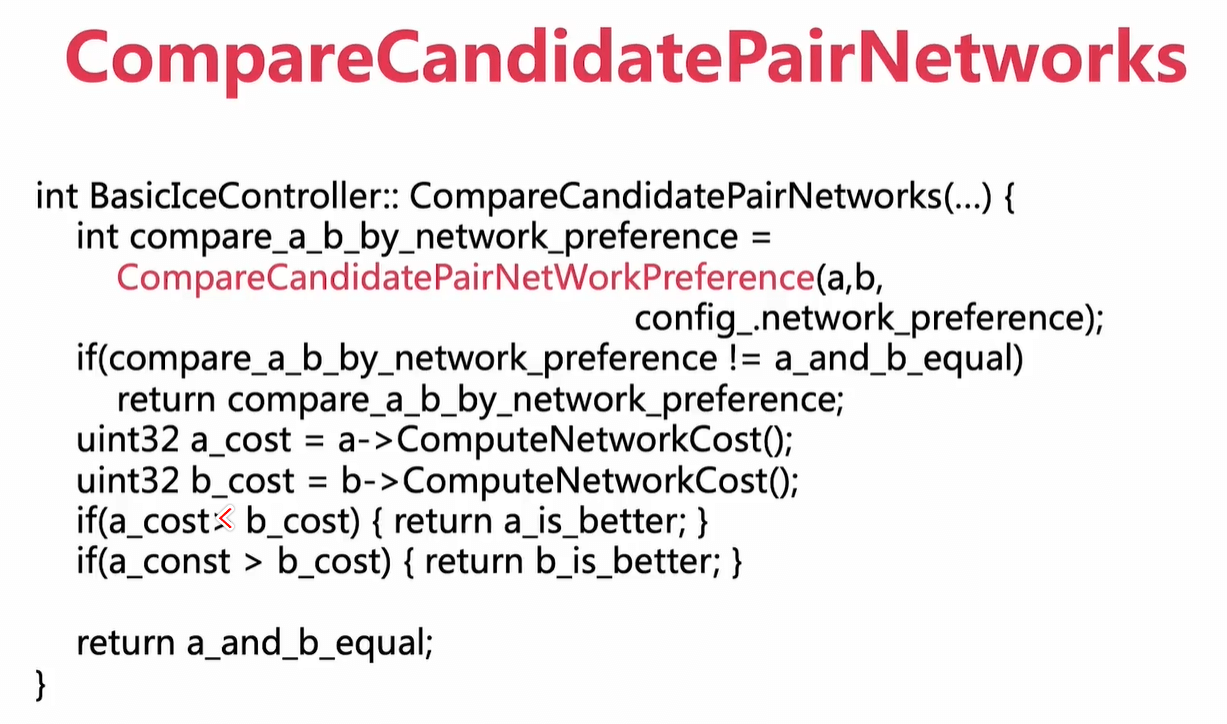

BasicIceController::CompareCandidatePairNetworks

int BasicIceController::CompareCandidatePairNetworks(
    const Connection* a,
    const Connection* b,
    absl::optional<rtc::AdapterType> network_preference) const {
  int compare_a_b_by_network_preference =
      CompareCandidatePairsByNetworkPreference(a, b,
                                               config_.network_preference);
  // The network preference has a higher precedence than the network cost.
  if (compare_a_b_by_network_preference != a_and_b_equal) {
    return compare_a_b_by_network_preference;
  }
  uint32_t a_cost = a->ComputeNetworkCost();
  uint32_t b_cost = b->ComputeNetworkCost();
  // Prefer lower network cost.
  if (a_cost < b_cost) {
    return a_is_better;
  }
  if (a_cost > b_cost) {
    return b_is_better;
  }
  return a_and_b_equal;
}

CompareCandidatePairsByNetworkPreference

int CompareCandidatePairsByNetworkPreference(
    const cricket::Connection* a,
    const cricket::Connection* b,
    absl::optional<rtc::AdapterType> network_preference) {
  bool a_uses_preferred_network =
      LocalCandidateUsesPreferredNetwork(a, network_preference);
  bool b_uses_preferred_network =
      LocalCandidateUsesPreferredNetwork(b, network_preference);
  if (a_uses_preferred_network && !b_uses_preferred_network) {
    return a_is_better;
  } else if (!a_uses_preferred_network && b_uses_preferred_network) {
    return b_is_better;
  }
  return a_and_b_equal;
}
