前言

CLSCTX_INPROC_SERVER 导入的COM组件，跟当前逻辑共用同一个进程。

代码分析

8-5 源码分析-视频处理流程的建立

CapturerTrackSource::Create

H:\webrtc-20210315\webrtc-20210315\webrtc\webrtc-checkout\src\examples\peerconnection\client\conductor.cc

 static rtc::scoped_refptr<CapturerTrackSource> Create() {
    const size_t kWidth = 640;
    const size_t kHeight = 480;
    const size_t kFps = 30;
    std::unique_ptr<webrtc::test::VcmCapturer> capturer;
    std::unique_ptr<webrtc::VideoCaptureModule::DeviceInfo> info(
        webrtc::VideoCaptureFactory::CreateDeviceInfo());
    if (!info) {
      return nullptr;
    }
    int num_devices = info->NumberOfDevices();
    for (int i = 0; i < num_devices; ++i) {
      capturer = absl::WrapUnique(
          webrtc::test::VcmCapturer::Create(kWidth, kHeight, kFps, i));
      if (capturer) {
        return new rtc::RefCountedObject<CapturerTrackSource>(
            std::move(capturer));
      }
    }
    return nullptr;
  }

—-》 capturer = absl::WrapUnique(
webrtc::test::VcmCapturer::Create(kWidth, kHeight, kFps, i));

VcmCapturer::Create

VcmCapturer* VcmCapturer::Create(size_t width,
                                 size_t height,
                                 size_t target_fps,
                                 size_t capture_device_index) {
  std::unique_ptr<VcmCapturer> vcm_capturer(new VcmCapturer());
  if (!vcm_capturer->Init(width, height, target_fps, capture_device_index)) {
    RTC_LOG(LS_WARNING) << "Failed to create VcmCapturer(w = " << width
                        << ", h = " << height << ", fps = " << target_fps
                        << ")";
    return nullptr;
  }
  return vcm_capturer.release();
}

—》vcm_capturer->Init(width, height, target_fps, capture_device_index)

VcmCapturer::Init

bool VcmCapturer::Init(size_t width,
                       size_t height,
                       size_t target_fps,
                       size_t capture_device_index) {
  std::unique_ptr<VideoCaptureModule::DeviceInfo> device_info(
      VideoCaptureFactory::CreateDeviceInfo());
   // 获取设备名称
  char device_name[256];
  char unique_name[256];
  if (device_info->GetDeviceName(static_cast<uint32_t>(capture_device_index),
                                 device_name, sizeof(device_name), unique_name,
                                 sizeof(unique_name)) != 0) {
    Destroy();
    return false;
  }
  //根据设备名称，创建VideoCaptureModule实例
  vcm_ = webrtc::VideoCaptureFactory::Create(unique_name);
  if (!vcm_) {
    return false;
  }
   // 创建成功，则传入采集数据回调，当采集到视频数据就会调用回调
  vcm_->RegisterCaptureDataCallback(this);
    // 获取设备的能力
  device_info->GetCapability(vcm_->CurrentDeviceName(), 0, capability_);
   // 根据传入参数传入到capability_变量中
  capability_.width = static_cast<int32_t>(width);
  capability_.height = static_cast<int32_t>(height);
  capability_.maxFPS = static_cast<int32_t>(target_fps);
  capability_.videoType = VideoType::kI420;
   // vcm实例以capability_的值开始采集，此时，设备已经开始工作了。
  if (vcm_->StartCapture(capability_) != 0) {
    Destroy();
    return false;
  }
  RTC_CHECK(vcm_->CaptureStarted());
  return true;
}

—》 vcm_ = webrtc::VideoCaptureFactory::Create(unique_name);

VideoCaptureFactory::Create

rtc::scoped_refptr<VideoCaptureModule> VideoCaptureFactory::Create(
    const char* deviceUniqueIdUTF8) {
#if defined(WEBRTC_ANDROID) || defined(WEBRTC_MAC)
  return nullptr;
#else
  return videocapturemodule::VideoCaptureImpl::Create(deviceUniqueIdUTF8);
#endif

—》videocapturemodule::VideoCaptureImpl::Create(deviceUniqueIdUTF8);

VideoCaptureImpl::Create

rtc::scoped_refptr<VideoCaptureModule> VideoCaptureImpl::Create(
    const char* device_id) {
  if (device_id == nullptr)
    return nullptr;
  // TODO(tommi): Use Media Foundation implementation for Vista and up.
  rtc::scoped_refptr<VideoCaptureDS> capture(
      new rtc::RefCountedObject<VideoCaptureDS>());
  if (capture->Init(device_id) != 0) {
    return nullptr;
  }
  return capture;
}

—》

VideoCaptureDS::Init

int32_t VideoCaptureDS::Init(const char* deviceUniqueIdUTF8) {
  const int32_t nameLength = (int32_t)strlen((char*)deviceUniqueIdUTF8);
  if (nameLength > kVideoCaptureUniqueNameLength)
    return -1;
  // Store the device name
  _deviceUniqueId = new (std::nothrow) char[nameLength + 1];
  memcpy(_deviceUniqueId, deviceUniqueIdUTF8, nameLength + 1);
  if (_dsInfo.Init() != 0)
    return -1;
  _captureFilter = _dsInfo.GetDeviceFilter(deviceUniqueIdUTF8);
  if (!_captureFilter) {
    RTC_LOG(LS_INFO) << "Failed to create capture filter.";
    return -1;
  }

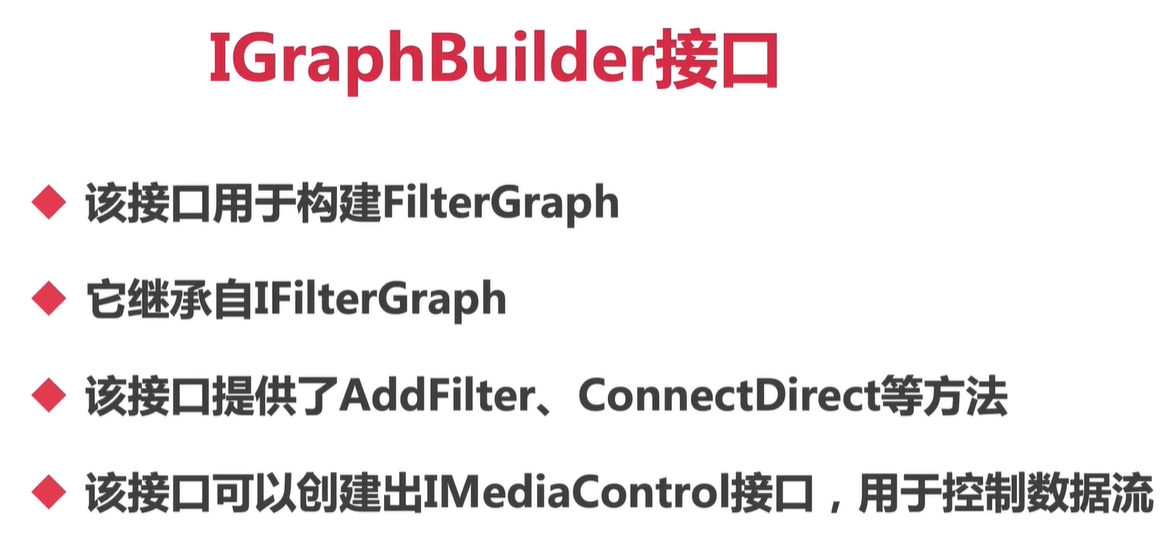

  // Get the interface for DirectShow's GraphBuilder

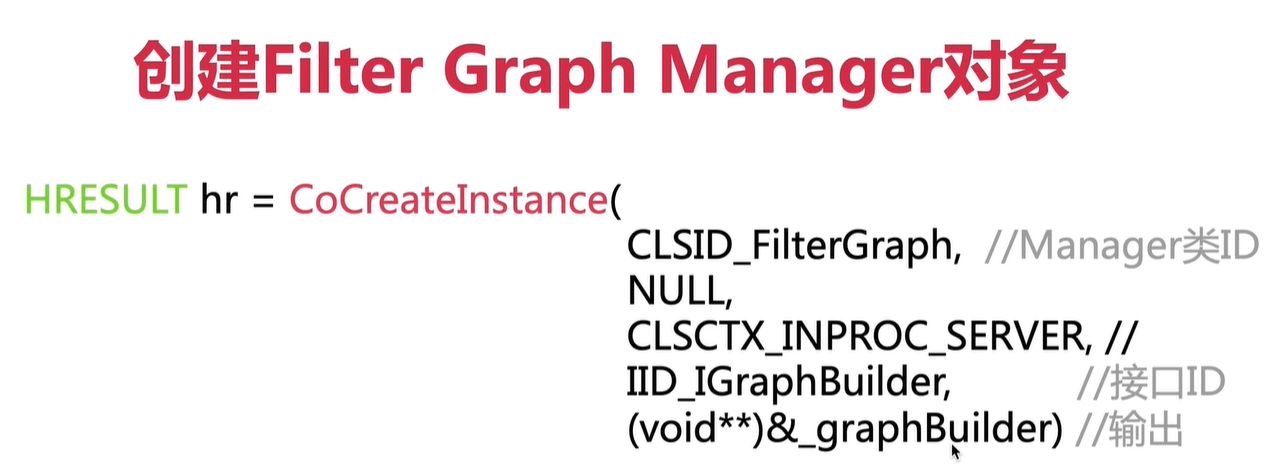

  HRESULT hr = CoCreateInstance(CLSID_FilterGraph, NULL, CLSCTX_INPROC_SERVER,
                                IID_IGraphBuilder, (void**)&_graphBuilder);
  if (FAILED(hr)) {
    RTC_LOG(LS_INFO) << "Failed to create graph builder.";
    return -1;
  }
    // 获取IID_IMediaControl接口
  hr = _graphBuilder->QueryInterface(IID_IMediaControl, (void**)&_mediaControl);
  if (FAILED(hr)) {
    RTC_LOG(LS_INFO) << "Failed to create media control builder.";
    return -1;
  }

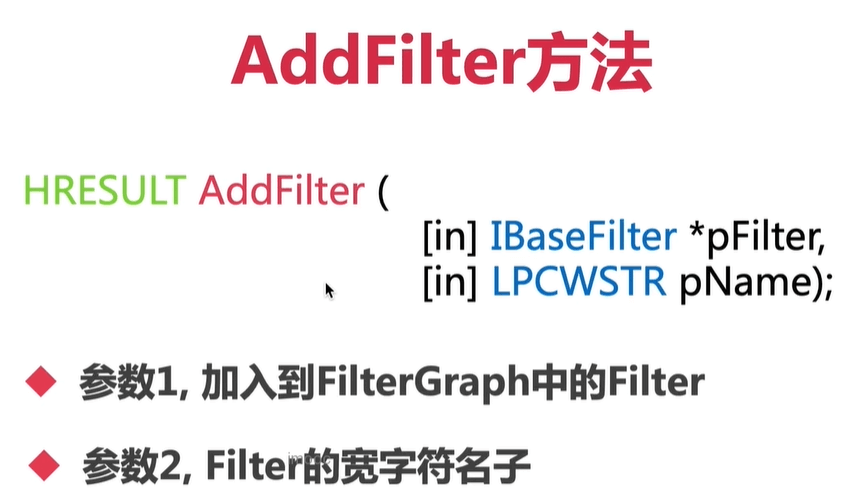

  hr = _graphBuilder->AddFilter(_captureFilter, CAPTURE_FILTER_NAME);
  if (FAILED(hr)) {
    RTC_LOG(LS_INFO) << "Failed to add the capture device to the graph.";
    return -1;
  }
  _outputCapturePin = GetOutputPin(_captureFilter, PIN_CATEGORY_CAPTURE);
  if (!_outputCapturePin) {
    RTC_LOG(LS_INFO) << "Failed to get output capture pin";
    return -1;
  }
  // Create the sink filte used for receiving Captured frames.
  sink_filter_ = new ComRefCount<CaptureSinkFilter>(this);
  hr = _graphBuilder->AddFilter(sink_filter_, SINK_FILTER_NAME);
  if (FAILED(hr)) {
    RTC_LOG(LS_INFO) << "Failed to add the send filter to the graph.";
    return -1;
  }
  _inputSendPin = GetInputPin(sink_filter_);
  if (!_inputSendPin) {
    RTC_LOG(LS_INFO) << "Failed to get input send pin";
    return -1;
  }
  // Temporary connect here.
  // This is done so that no one else can use the capture device.
  if (SetCameraOutput(_requestedCapability) != 0) {
    return -1;
  }
  // 在后面VcmCapturer::Init()中调用vcm_->StartCapture(capability_)的时候，才开始采集。
  // H:\webrtc-20210315\webrtc-20210315\webrtc\webrtc-checkout\src\test\vcm_capturer.cc
  hr = _mediaControl->Pause();
  if (FAILED(hr)) {
    RTC_LOG(LS_INFO)
        << "Failed to Pause the Capture device. Is it already occupied? " << hr;
    return -1;
  }
  RTC_LOG(LS_INFO) << "Capture device '" << deviceUniqueIdUTF8
                   << "' initialized.";
  return 0;
}
