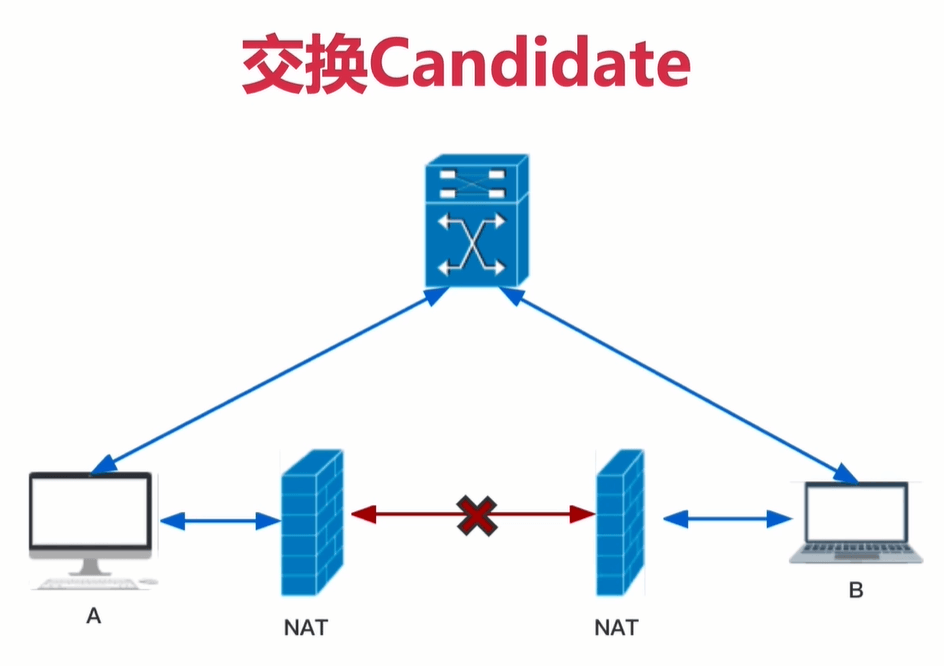

将获得的Candidate上抛给应用层，就是为了通信双方交换Candidate，然后获取到对端的candidate，然后建立连接。

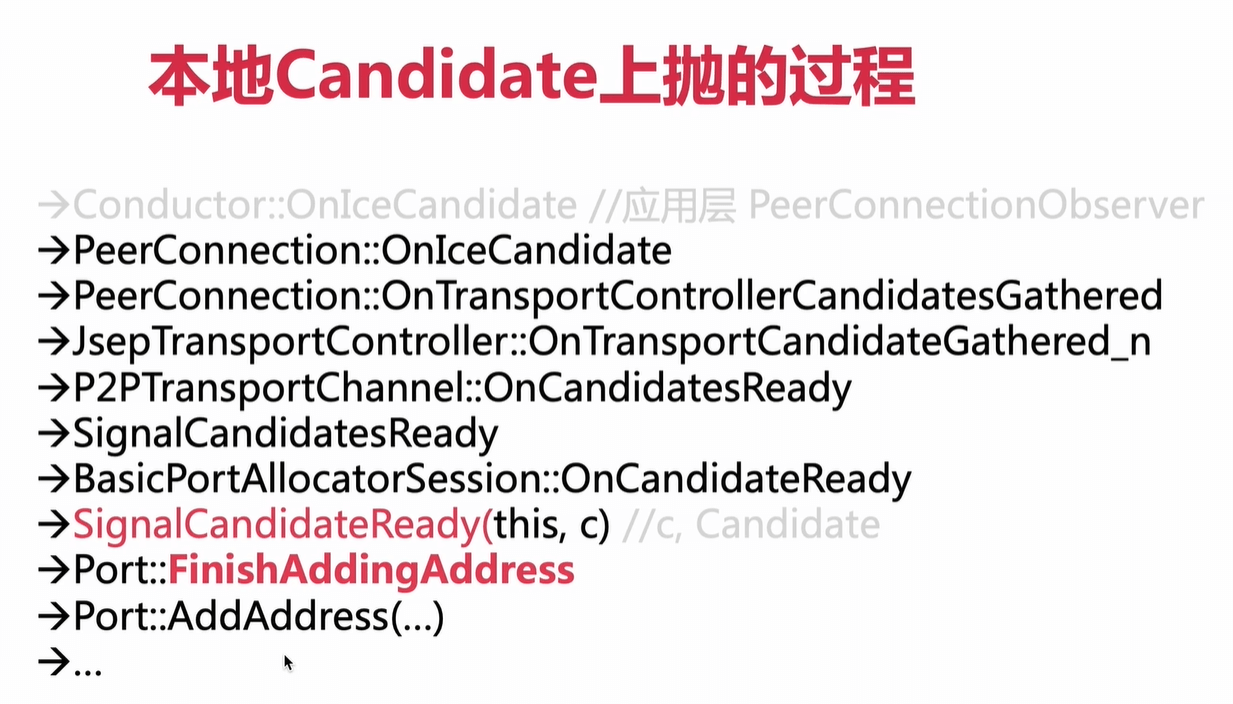

本地Candidate上抛的过程

需要应用层继承实现回调PeerConnectionObserver，然后后面在PeerConnection::OnIceCandidata的时候会调用observer。

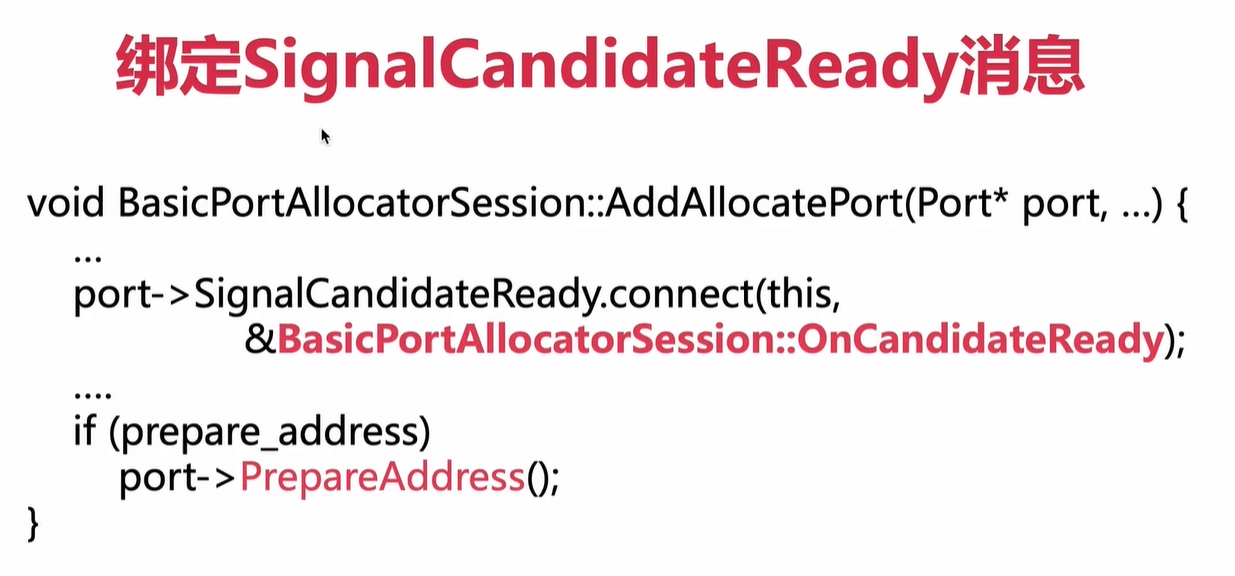

绑定SignalCandidateReady消息

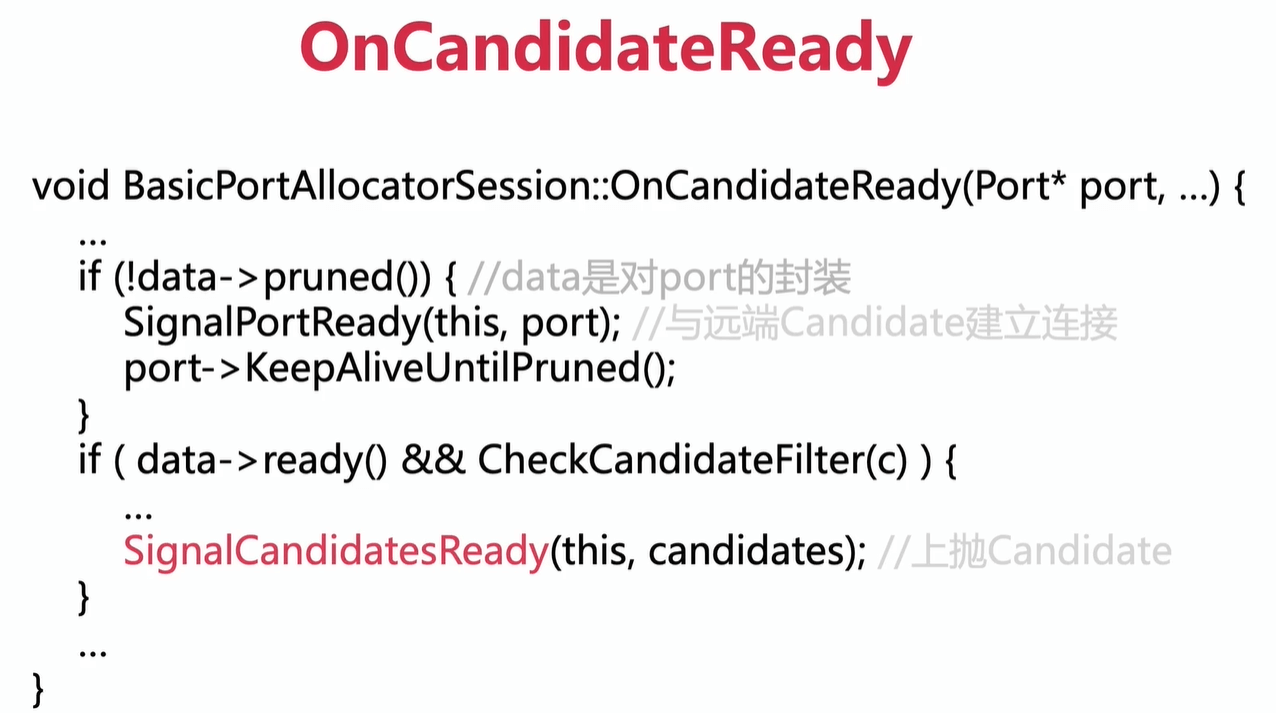

BasicPortAllocatorSession::OnCandidateReady

sigslot::signal2&> SignalCandidatesReady;

P2PTransportChannel::AddAllocatorSession(std::unique_ptr session) {

session->SignalCandidatesReady.connect(
this, &P2PTransportChannel::OnCandidatesReady);

}

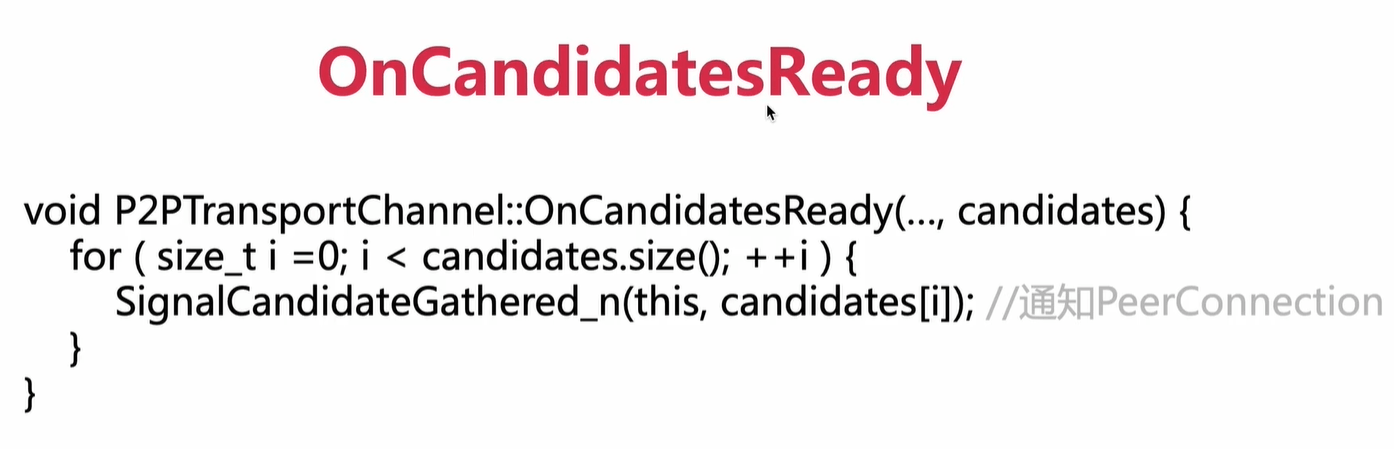

P2PTransportChannel::OnCandidatesReady

// A new candidate is available, let listeners know
void P2PTransportChannel::OnCandidatesReady(
    PortAllocatorSession* session,
    const std::vector<Candidate>& candidates) {
  RTC_DCHECK_RUN_ON(network_thread_);
  for (size_t i = 0; i < candidates.size(); ++i) {
    SignalCandidateGathered(this, candidates[i]);
  }
}

// Handles sending and receiving of candidates.
sigslot::signal2 SignalCandidateGathered;

JsepTransportController::CreateDtlsTransport(
const cricket::ContentInfo& content_info,
cricket::IceTransportInternal ice) {
**
dtls->ice_transport()->SignalCandidateGathered.connect(
this, &JsepTransportController::OnTransportCandidateGathered_n);
*
}

JsepTransportController::OnTransportCandidateGathered_n

void JsepTransportController::OnTransportCandidateGathered_n(
    cricket::IceTransportInternal* transport,
    const cricket::Candidate& candidate) {
  // We should never signal peer-reflexive candidates.
  if (candidate.type() == cricket::PRFLX_PORT_TYPE) {
    RTC_NOTREACHED();
    return;
  }
  signal_ice_candidates_gathered_.Send(
      transport->transport_name(), std::vector<cricket::Candidate>{candidate});
}

// [mid, candidates]
CallbackList&>
signalice_candidates_gathered RTCGUARDED_BY(network_thread);

// F: void(const std::string&, const std::vector&)
template
void SubscribeIceCandidateGathered(F&& callback) {
RTCDCHECK_RUN_ON(network_thread);
signalice_candidates_gathered.AddReceiver(std::forward(callback));
}

—>
PeerConnection::InitializeTransportControllern{
*
transport_controller->SubscribeIceCandidateGathered(
this {
RTCDCHECK_RUN_ON(network_thread());
signaling_thread()->PostTask(
ToQueuedTask(signaling_thread_safety.flag(),
this, t = transport, c = candidates {
RTC_DCHECK_RUN_ON(signaling_thread());
OnTransportControllerCandidatesGathered(t, c);
}));
});
*
}

PeerConnection::OnTransportControllerCandidatesGathered

void PeerConnection::OnTransportControllerCandidatesGathered(
    const std::string& transport_name,
    const cricket::Candidates& candidates) {
  // TODO(bugs.webrtc.org/12427): Expect this to come in on the network thread
  // (not signaling as it currently does), handle appropriately.
  int sdp_mline_index;
  if (!GetLocalCandidateMediaIndex(transport_name, &sdp_mline_index)) {
    RTC_LOG(LS_ERROR)
        << "OnTransportControllerCandidatesGathered: content name "
        << transport_name << " not found";
    return;
  }
  for (cricket::Candidates::const_iterator citer = candidates.begin();
       citer != candidates.end(); ++citer) {
    // Use transport_name as the candidate media id.
    std::unique_ptr<JsepIceCandidate> candidate(
        new JsepIceCandidate(transport_name, sdp_mline_index, *citer));
    sdp_handler_->AddLocalIceCandidate(candidate.get());
    OnIceCandidate(std::move(candidate));
  }
}

PeerConnection::OnIceCandidate

void PeerConnection::OnIceCandidate(
    std::unique_ptr<IceCandidateInterface> candidate) {
  if (IsClosed()) {
    return;
  }
  ReportIceCandidateCollected(candidate->candidate());
  Observer()->OnIceCandidate(candidate.get());
}

—>

Conductor::OnIceCandidate

void Conductor::OnIceCandidate(const webrtc::IceCandidateInterface* candidate) {
  RTC_LOG(INFO) << __FUNCTION__ << " " << candidate->sdp_mline_index();
  // For loopback test. To save some connecting delay.
  if (loopback_) {
    if (!peer_connection_->AddIceCandidate(candidate)) {
      RTC_LOG(WARNING) << "Failed to apply the received candidate";
    }
    return;
  }
  Json::StyledWriter writer;
  Json::Value jmessage;
  jmessage[kCandidateSdpMidName] = candidate->sdp_mid();
  jmessage[kCandidateSdpMlineIndexName] = candidate->sdp_mline_index();
  std::string sdp;
  if (!candidate->ToString(&sdp)) {
    RTC_LOG(LS_ERROR) << "Failed to serialize candidate";
    return;
  }
  jmessage[kCandidateSdpName] = sdp;
  SendMessage(writer.write(jmessage));
}
