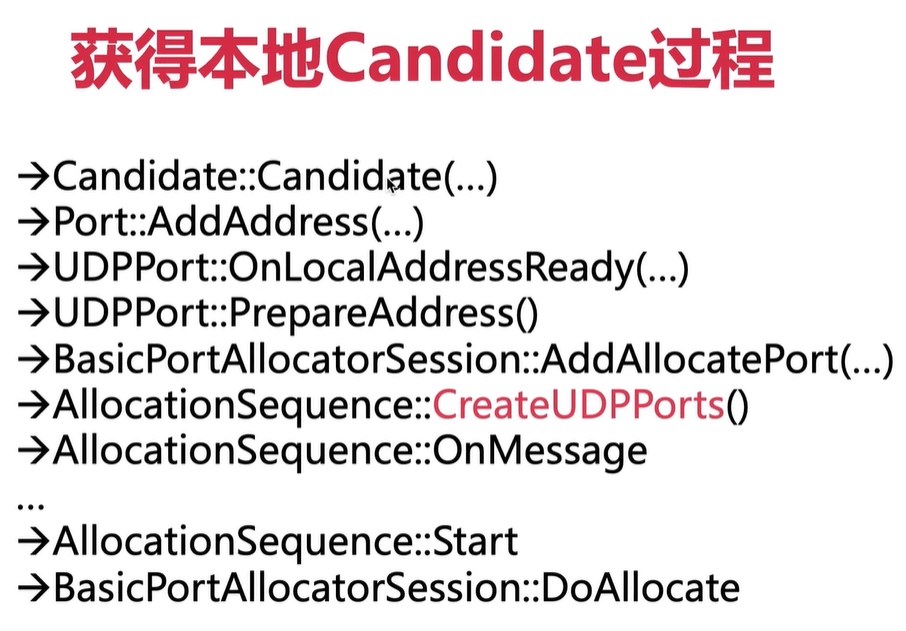

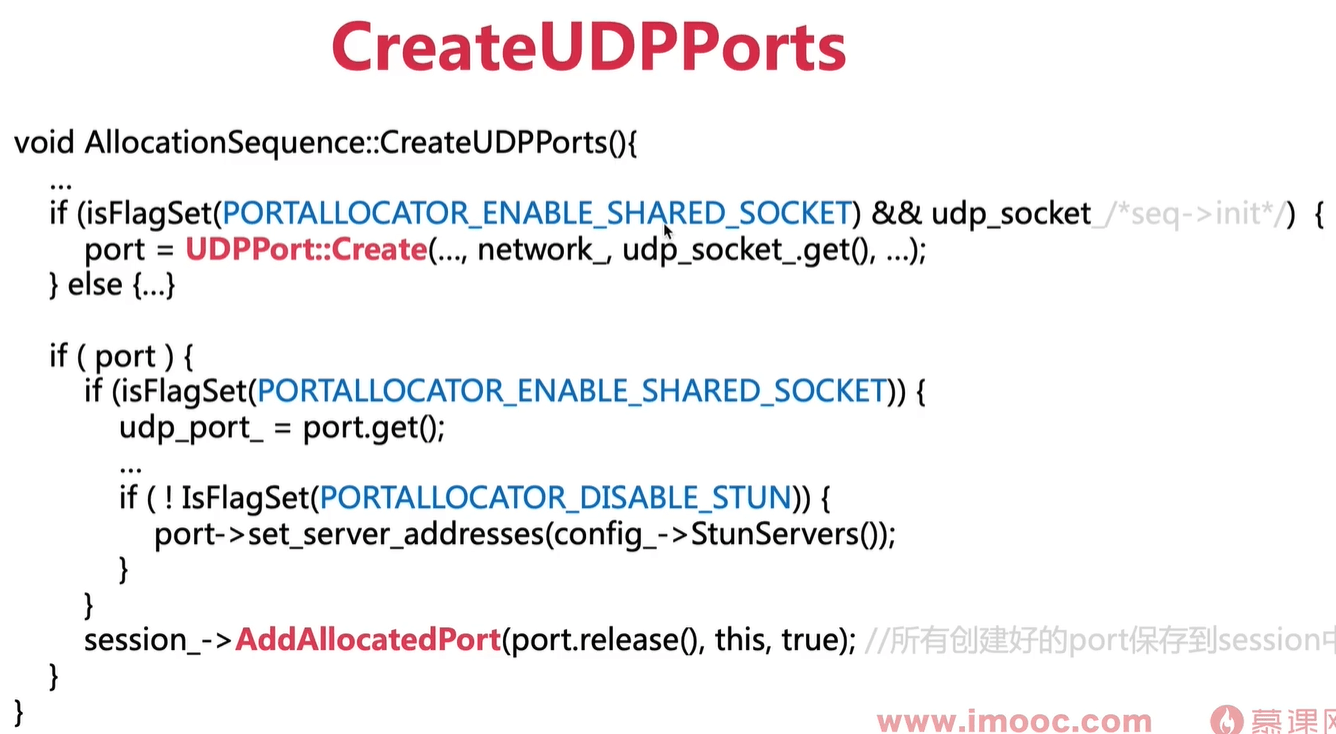

AllocationSequence::CreateUDPPorts

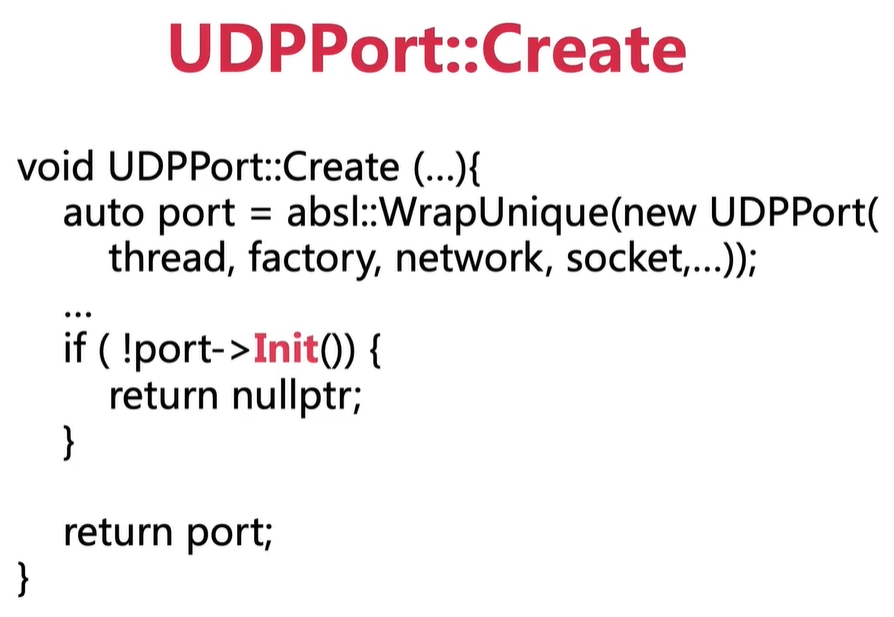

UDPPort::Create

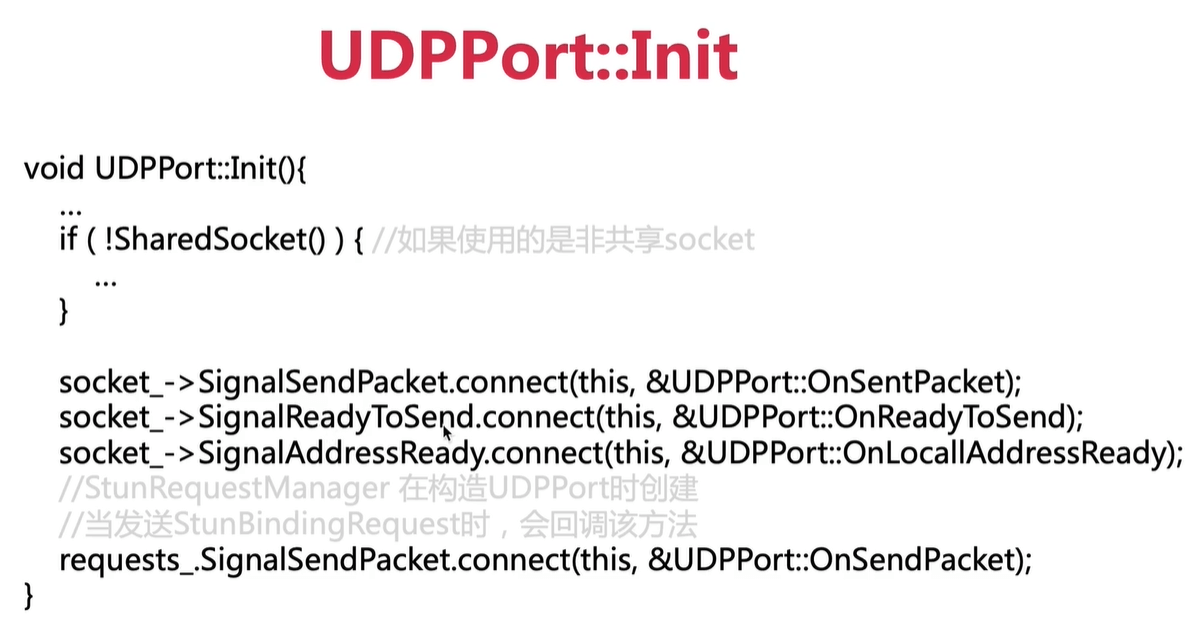

UDPPort::Init

socket绑定信号：发送数据包信号，准备发送的信号，以及candidate准备好后的信号。

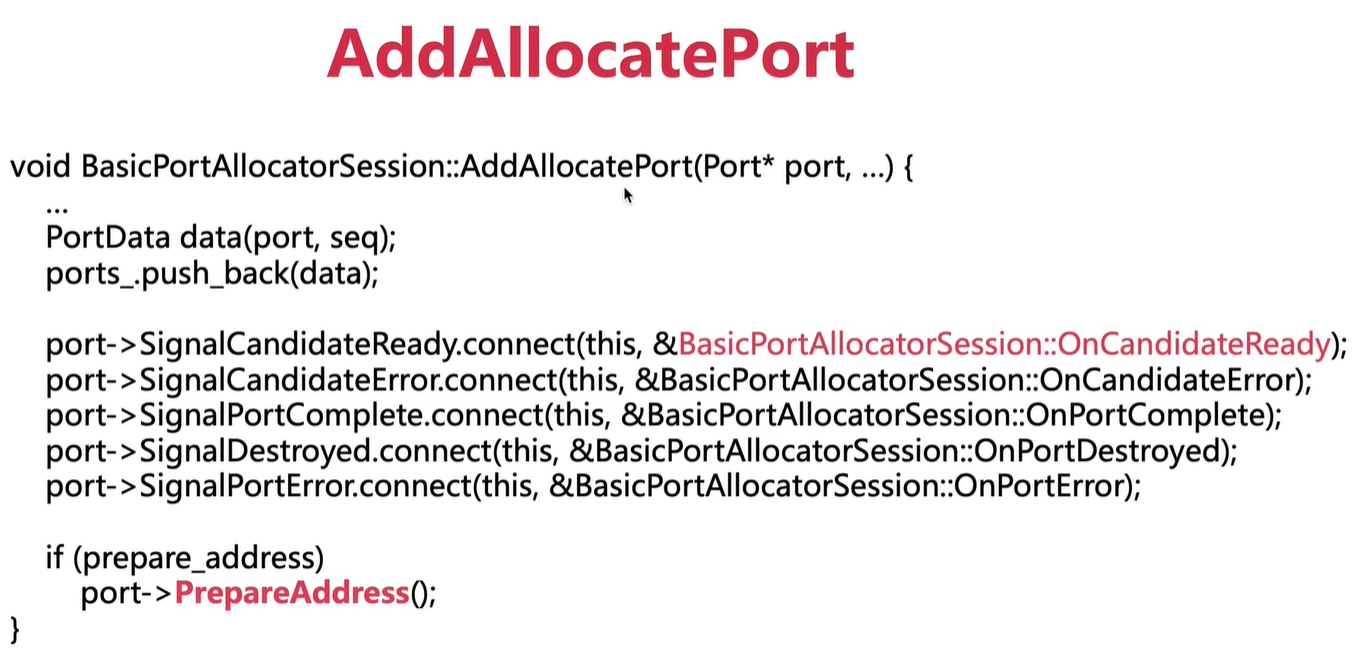

BasicPortAllocatorSession::AddAllocatedPort

H:\webrtc-20210315\webrtc-20210315\webrtc\webrtc-checkout\src\p2p\client\basic_port_allocator.cc

是AddAllocatedPort。

void BasicPortAllocatorSession::AddAllocatedPort(Port* port,
                                                 AllocationSequence* seq,
                                                 bool prepare_address) {
  RTC_DCHECK_RUN_ON(network_thread_);
  if (!port)
    return;
  RTC_LOG(LS_INFO) << "Adding allocated port for " << content_name();
  port->set_content_name(content_name());
  port->set_component(component());
  port->set_generation(generation());
  if (allocator_->proxy().type != rtc::PROXY_NONE)
    port->set_proxy(allocator_->user_agent(), allocator_->proxy());
  port->set_send_retransmit_count_attribute(
      (flags() & PORTALLOCATOR_ENABLE_STUN_RETRANSMIT_ATTRIBUTE) != 0);
  PortData data(port, seq);
  ports_.push_back(data);
  port->SignalCandidateReady.connect(
      this, &BasicPortAllocatorSession::OnCandidateReady);
  port->SignalCandidateError.connect(
      this, &BasicPortAllocatorSession::OnCandidateError);
  port->SignalPortComplete.connect(this,
                                   &BasicPortAllocatorSession::OnPortComplete);
  port->SubscribePortDestroyed(
      [this](PortInterface* port) { OnPortDestroyed(port); });
  port->SignalPortError.connect(this, &BasicPortAllocatorSession::OnPortError);
  RTC_LOG(LS_INFO) << port->ToString() << ": Added port to allocator";
  if (prepare_address)
    port->PrepareAddress();
}

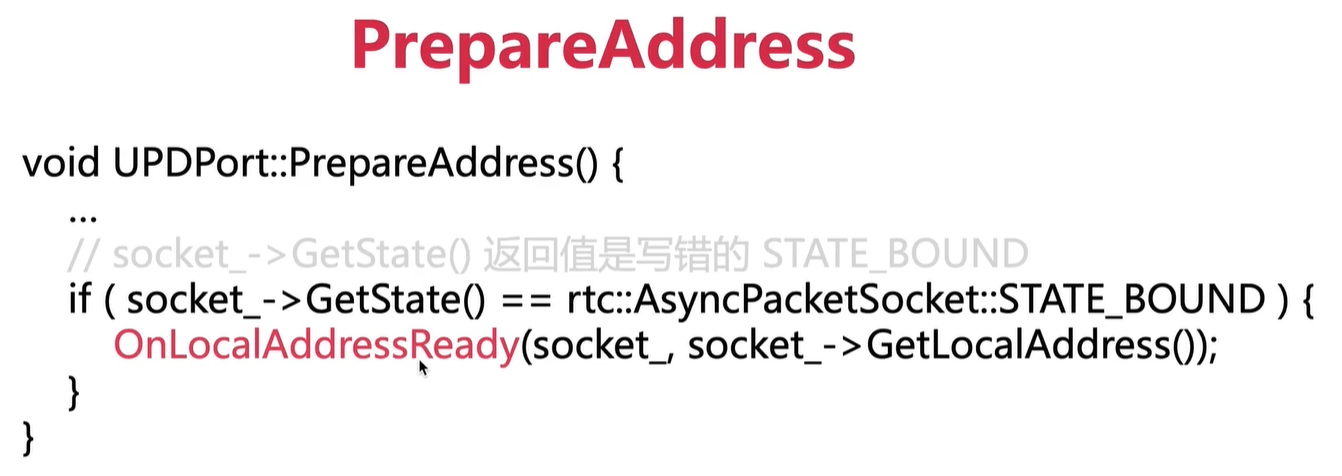

UDPPort::PrepareAddress

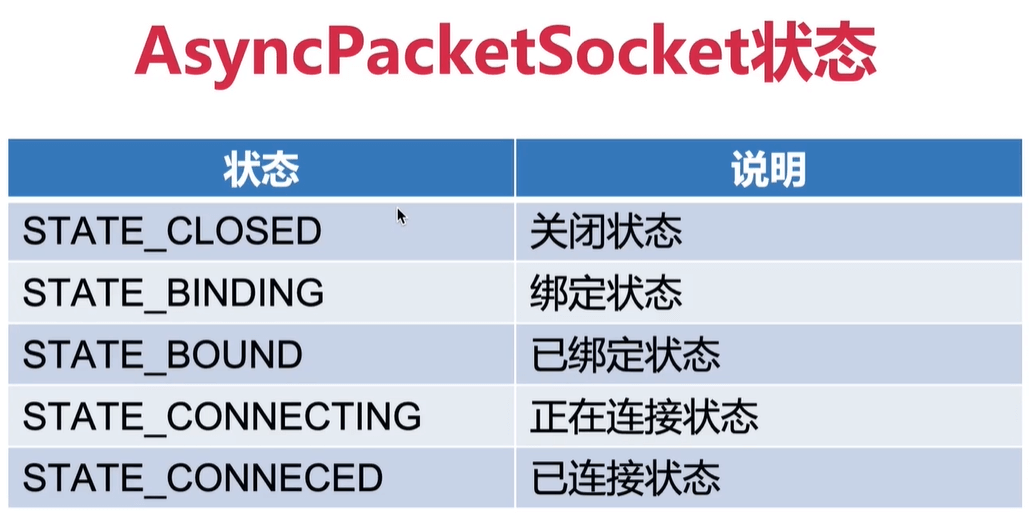

AsyncPacketSocket状态

UDPPort::OnLocalAddressReady

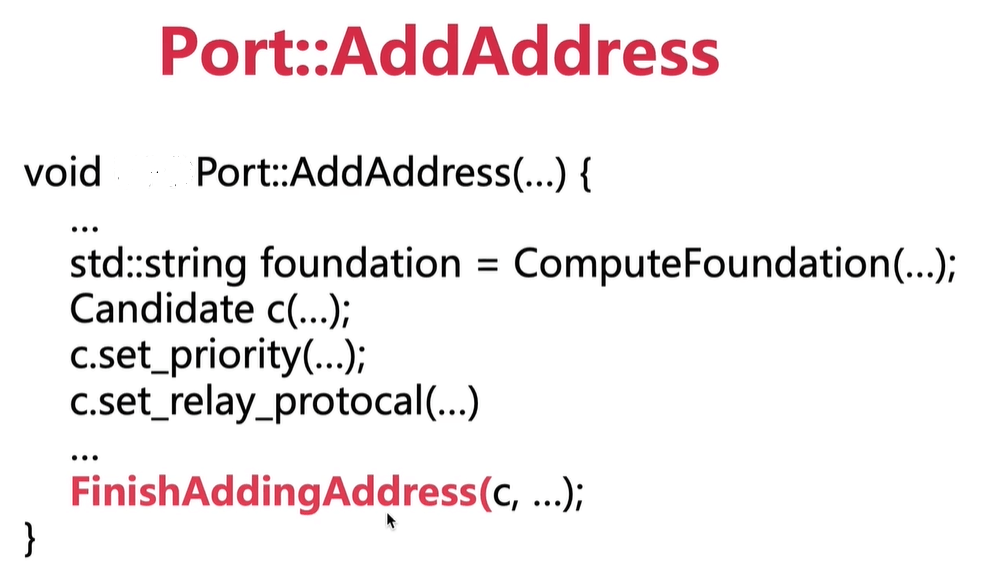

Port::AddAddress

H:\webrtc-20210315\webrtc-20210315\webrtc\webrtc-checkout\src\p2p\base\port.cc

这里面的foundation是给candidate排序使用的，计算公式是在ice规范里面的。

void Port::AddAddress(const rtc::SocketAddress& address,
                      const rtc::SocketAddress& base_address,
                      const rtc::SocketAddress& related_address,
                      const std::string& protocol,
                      const std::string& relay_protocol,
                      const std::string& tcptype,
                      const std::string& type,
                      uint32_t type_preference,
                      uint32_t relay_preference,
                      const std::string& url,
                      bool is_final) {
  if (protocol == TCP_PROTOCOL_NAME && type == LOCAL_PORT_TYPE) {
    RTC_DCHECK(!tcptype.empty());
  }
  std::string foundation =
      ComputeFoundation(type, protocol, relay_protocol, base_address);
  Candidate c(component_, protocol, address, 0U, username_fragment(), password_,
              type, generation_, foundation, network_->id(), network_cost_);
  c.set_priority(
      c.GetPriority(type_preference, network_->preference(), relay_preference));
  c.set_relay_protocol(relay_protocol);
  c.set_tcptype(tcptype);
  c.set_network_name(network_->name());
  c.set_network_type(network_->type());
  c.set_url(url);
  c.set_related_address(related_address);
  bool pending = MaybeObfuscateAddress(&c, type, is_final);
  if (!pending) {
    FinishAddingAddress(c, is_final);
  }
}

调用 FinishAddingAddress(c, is_final); 将创建好的Candidate传给应用层。
