前言

源码分析

自己的是20210315的源码，跟老师的版本不一样。

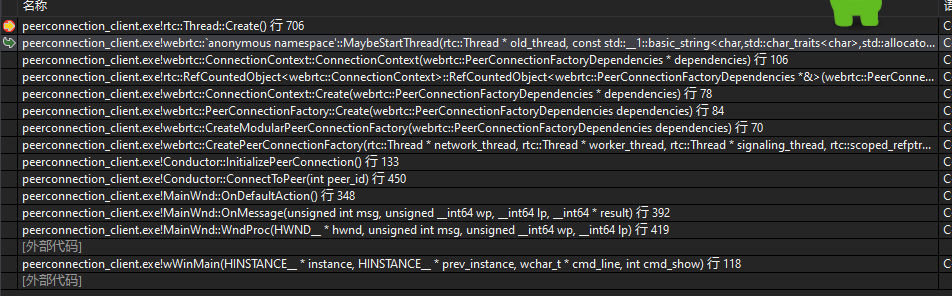

在client单击连接对端的时候，最后是调用MaybeStartThread函数来创建线程的。如果传入自己的线程指针则直接返回，否则创建Thread对象。

Conductor::ConnectToPeer
->
Conductor::InitializePeerConnection
->
webrtc::CreatePeerConnectionFactory
->
CreateModularPeerConnectionFactory(
***
  auto pc_factory = PeerConnectionFactory::Create(std::move(dependencies));
**
->
rtc::scoped_refptr<PeerConnectionFactory> PeerConnectionFactory::Create(
    PeerConnectionFactoryDependencies dependencies) {
  auto context = ConnectionContext::Create(&dependencies);
  if (!context) {
    return nullptr;
  }
  return new rtc::RefCountedObject<PeerConnectionFactory>(context,
                                                          &dependencies);
}
->
rtc::scoped_refptr<ConnectionContext> ConnectionContext::Create(
    PeerConnectionFactoryDependencies* dependencies) {
  auto context = new rtc::RefCountedObject<ConnectionContext>(dependencies);
  if (!context->channel_manager_->Init()) {
    return nullptr;
  }
  return context;
}
->
ConnectionContext::ConnectionContext
->
MaybeStartThread

MaybeStartThread

rtc::Thread* MaybeStartThread(rtc::Thread* old_thread,
                              const std::string& thread_name,
                              bool with_socket_server,
                              std::unique_ptr<rtc::Thread>& thread_holder) {
  if (old_thread) {
    return old_thread;
  }
  if (with_socket_server) {
    thread_holder = rtc::Thread::CreateWithSocketServer();
  } else {
    thread_holder = rtc::Thread::Create();
  }
  thread_holder->SetName(thread_name, nullptr);
  thread_holder->Start();
  return thread_holder.get();
}

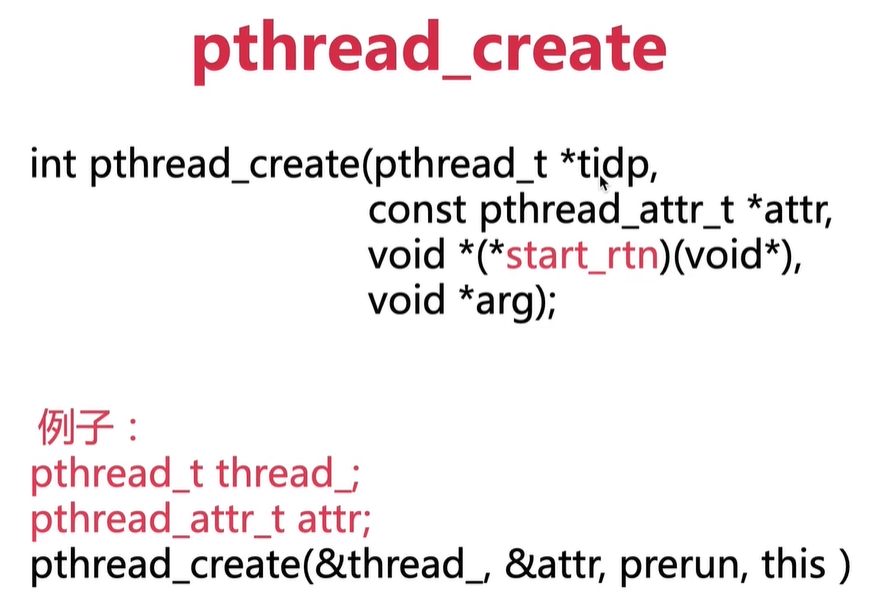

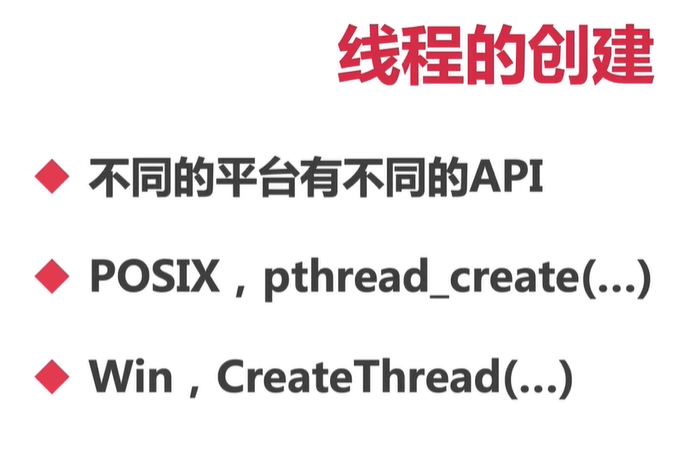

在里面的Thread::Start函数里面创建了线程，Windows则调用CreateThread，Linux调用pthread_create

Thread::Start

bool Thread::Start() {
  RTC_DCHECK(!IsRunning());
  if (IsRunning())
    return false;
  Restart();  // reset IsQuitting() if the thread is being restarted
  // Make sure that ThreadManager is created on the main thread before
  // we start a new thread.
  ThreadManager::Instance();
  owned_ = true;
#if defined(WEBRTC_WIN)
  thread_ = CreateThread(nullptr, 0, PreRun, this, 0, &thread_id_);
  if (!thread_) {
    return false;
  }
#elif defined(WEBRTC_POSIX)
  pthread_attr_t attr;
  pthread_attr_init(&attr);
  int error_code = pthread_create(&thread_, &attr, PreRun, this);
  if (0 != error_code) {
    RTC_LOG(LS_ERROR) << "Unable to create pthread, error " << error_code;
    thread_ = 0;
    return false;
  }
  RTC_DCHECK(thread_);
#endif
  return true;
}

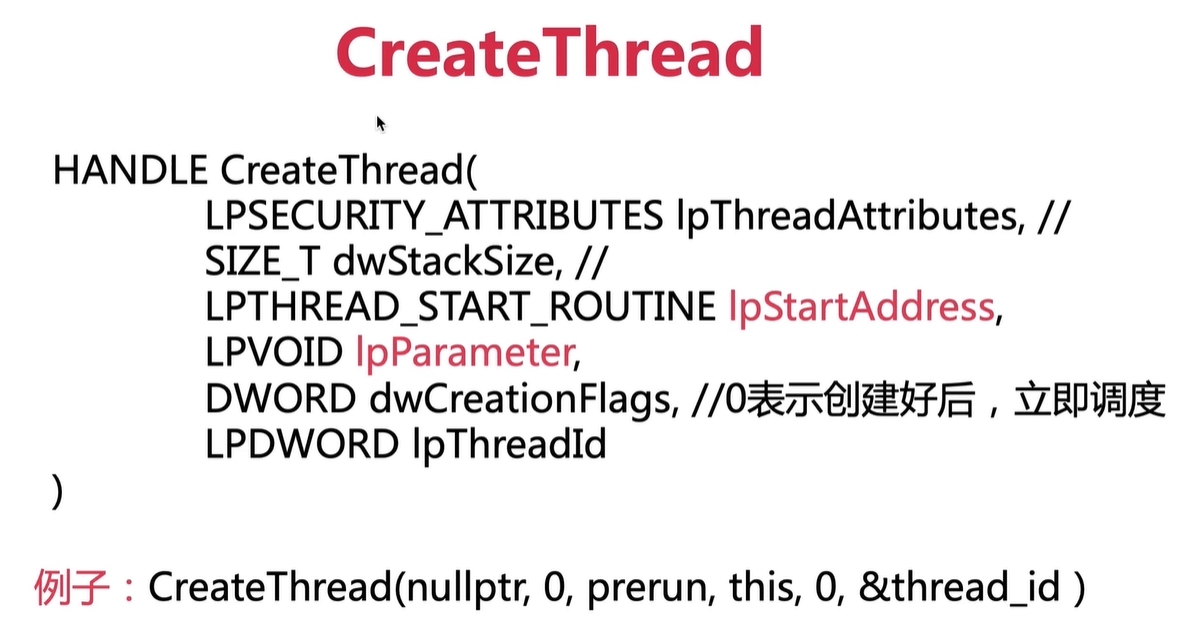

这里主要是说 CreateThread(nullptr, 0, PreRun, this, 0, &threadid);
线程创建完，则会调用PreRun

Thread::PreRun

#if defined(WEBRTC_WIN)
DWORD WINAPI Thread::PreRun(LPVOID pv) {
#else
void* Thread::PreRun(void* pv) {
#endif
  Thread* thread = static_cast<Thread*>(pv);
  ThreadManager::Instance()->SetCurrentThread(thread);
  rtc::SetCurrentThreadName(thread->name_.c_str());
#if defined(WEBRTC_MAC)
  ScopedAutoReleasePool pool;
#endif
  thread->Run();
  ThreadManager::Instance()->SetCurrentThread(nullptr);
#ifdef WEBRTC_WIN
  return 0;
#else
  return nullptr;
#endif
}  // namespace rtc

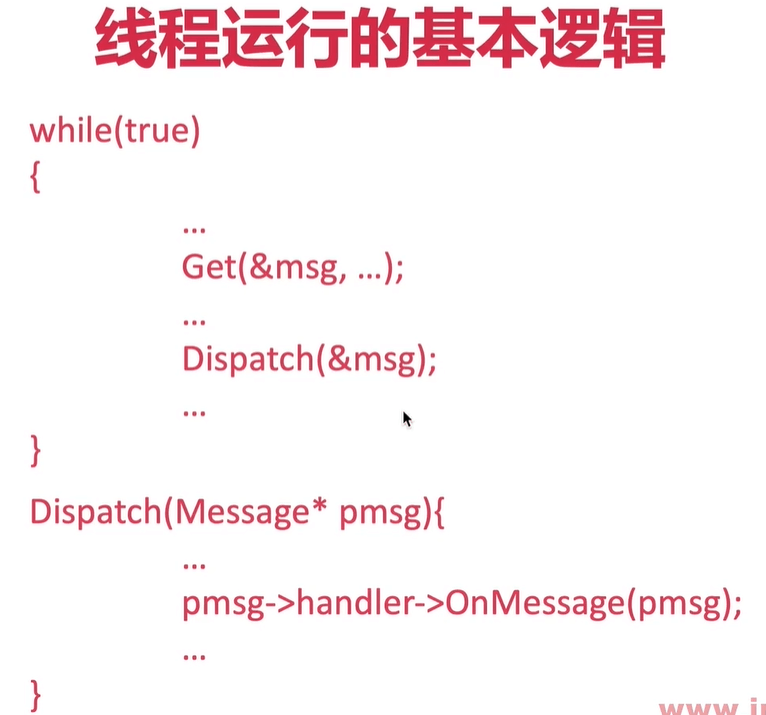

Thread::Run

void Thread::Run() {
  ProcessMessages(kForever);
}
-》 主要是 Dispatch(&msg);
bool Thread::ProcessMessages(int cmsLoop) {
  // Using ProcessMessages with a custom clock for testing and a time greater
  // than 0 doesn't work, since it's not guaranteed to advance the custom
  // clock's time, and may get stuck in an infinite loop.
  RTC_DCHECK(GetClockForTesting() == nullptr || cmsLoop == 0 ||
             cmsLoop == kForever);
  int64_t msEnd = (kForever == cmsLoop) ? 0 : TimeAfter(cmsLoop);
  int cmsNext = cmsLoop;
  while (true) {
#if defined(WEBRTC_MAC)
    ScopedAutoReleasePool pool;
#endif
    Message msg;
    if (!Get(&msg, cmsNext))
      return !IsQuitting();
    Dispatch(&msg);
    if (cmsLoop != kForever) {
      cmsNext = static_cast<int>(TimeUntil(msEnd));
      if (cmsNext < 0)
        return true;
    }
  }
}
-》 主要是 pmsg->phandler->OnMessage
void Thread::Dispatch(Message* pmsg) {
  TRACE_EVENT2("webrtc", "Thread::Dispatch", "src_file",
               pmsg->posted_from.file_name(), "src_func",
               pmsg->posted_from.function_name());
  RTC_DCHECK_RUN_ON(this);
  int64_t start_time = TimeMillis();
  pmsg->phandler->OnMessage(pmsg);
  int64_t end_time = TimeMillis();
  int64_t diff = TimeDiff(end_time, start_time);
  if (diff >= dispatch_warning_ms_) {
    RTC_LOG(LS_INFO) << "Message to " << name() << " took " << diff
                     << "ms to dispatch. Posted from: "
                     << pmsg->posted_from.ToString();
    // To avoid log spew, move the warning limit to only give warning
    // for delays that are larger than the one observed.
    dispatch_warning_ms_ = diff + 1;
  }
}

学习资料

WebRTC源码分析-线程基础之线程基本功能
https://www.jianshu.com/p/32fcf61c48e6
WebRTC源码分析-线程基础之消息循环，消息投递
https://www.jianshu.com/p/a3547ffefbeb
