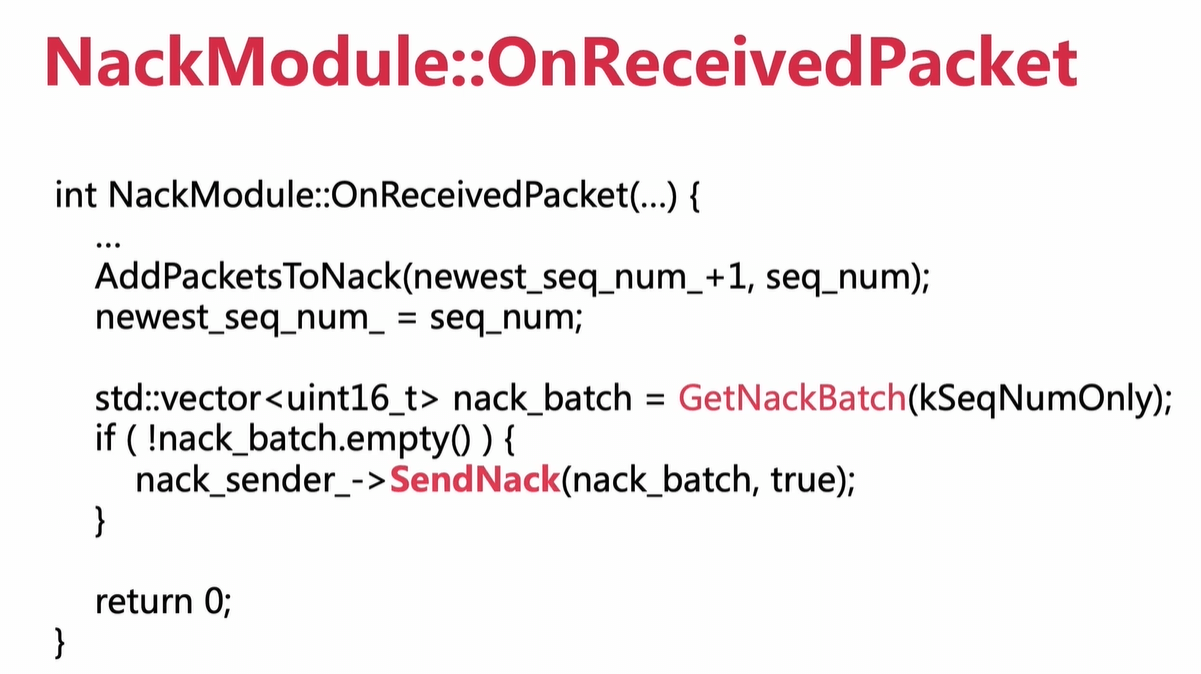

NackModule::OnReceivedPacket


说明

AddPacketsToNack 将一些可疑的丢包插入到NackList nacklist；
GetNackBatch 获取真正的丢包std::vector nack_batch;
RtpVideoStreamReceiver::RtcpFeedbackBuffer::SendNack 处理丢包

源码

  1. int DEPRECATED_NackModule::OnReceivedPacket(uint16_t seq_num,
  2.                                             bool is_keyframe) {
  3.   return OnReceivedPacket(seq_num, is_keyframe, false);
  4. }
  6. int DEPRECATED_NackModule::OnReceivedPacket(uint16_t seq_num,
  7.                                             bool is_keyframe,
  8.                                             bool is_recovered) {
  9.   MutexLock lock(&mutex_);
  10.   // TODO(philipel): When the packet includes information whether it is
  11.   //                 retransmitted or not, use that value instead. For
  12.   //                 now set it to true, which will cause the reordering
  13.   //                 statistics to never be updated.
  14.   bool is_retransmitted = true;
  16.   if (!initialized_) {
  17.     newest_seq_num_ = seq_num;
  18.     if (is_keyframe)
  19.       keyframe_list_.insert(seq_num);
  20.     initialized_ = true;
  21.     return 0;
  22.   }
  24.   // Since the |newest_seq_num_| is a packet we have actually received we know
  25.   // that packet has never been Nacked.
  26.   if (seq_num == newest_seq_num_)
  27.     return 0;
  29.   if (AheadOf(newest_seq_num_, seq_num)) {
  30.     // An out of order packet has been received.
  31.     auto nack_list_it = nack_list_.find(seq_num);
  32.     int nacks_sent_for_packet = 0;
  33.     if (nack_list_it != nack_list_.end()) {
  34.       nacks_sent_for_packet = nack_list_it->second.retries;
  35.       nack_list_.erase(nack_list_it);
  36.     }
  37.     if (!is_retransmitted)
  38.       UpdateReorderingStatistics(seq_num);
  39.     return nacks_sent_for_packet;
  40.   }
  42.   // Keep track of new keyframes.
  43.   if (is_keyframe)
  44.     keyframe_list_.insert(seq_num);
  46.   // And remove old ones so we don't accumulate keyframes.
  47.   auto it = keyframe_list_.lower_bound(seq_num - kMaxPacketAge);
  48.   if (it != keyframe_list_.begin())
  49.     keyframe_list_.erase(keyframe_list_.begin(), it);
  51.   if (is_recovered) {
  52.     recovered_list_.insert(seq_num);
  54.     // Remove old ones so we don't accumulate recovered packets.
  55.     auto it = recovered_list_.lower_bound(seq_num - kMaxPacketAge);
  56.     if (it != recovered_list_.begin())
  57.       recovered_list_.erase(recovered_list_.begin(), it);
  59.     // Do not send nack for packets recovered by FEC or RTX.
  60.     return 0;
  61.   }
  63.   AddPacketsToNack(newest_seq_num_ + 1, seq_num);
  64.   newest_seq_num_ = seq_num;
  66.   // Are there any nacks that are waiting for this seq_num.
  67.   std::vector<uint16_t> nack_batch = GetNackBatch(kSeqNumOnly);
  68.   if (!nack_batch.empty()) {
  69.     // This batch of NACKs is triggered externally; the initiator can
  70.     // batch them with other feedback messages.
  71.     nack_sender_->SendNack(nack_batch, /*buffering_allowed=*/true);
  72.   }
  74.   return 0;
  75. }

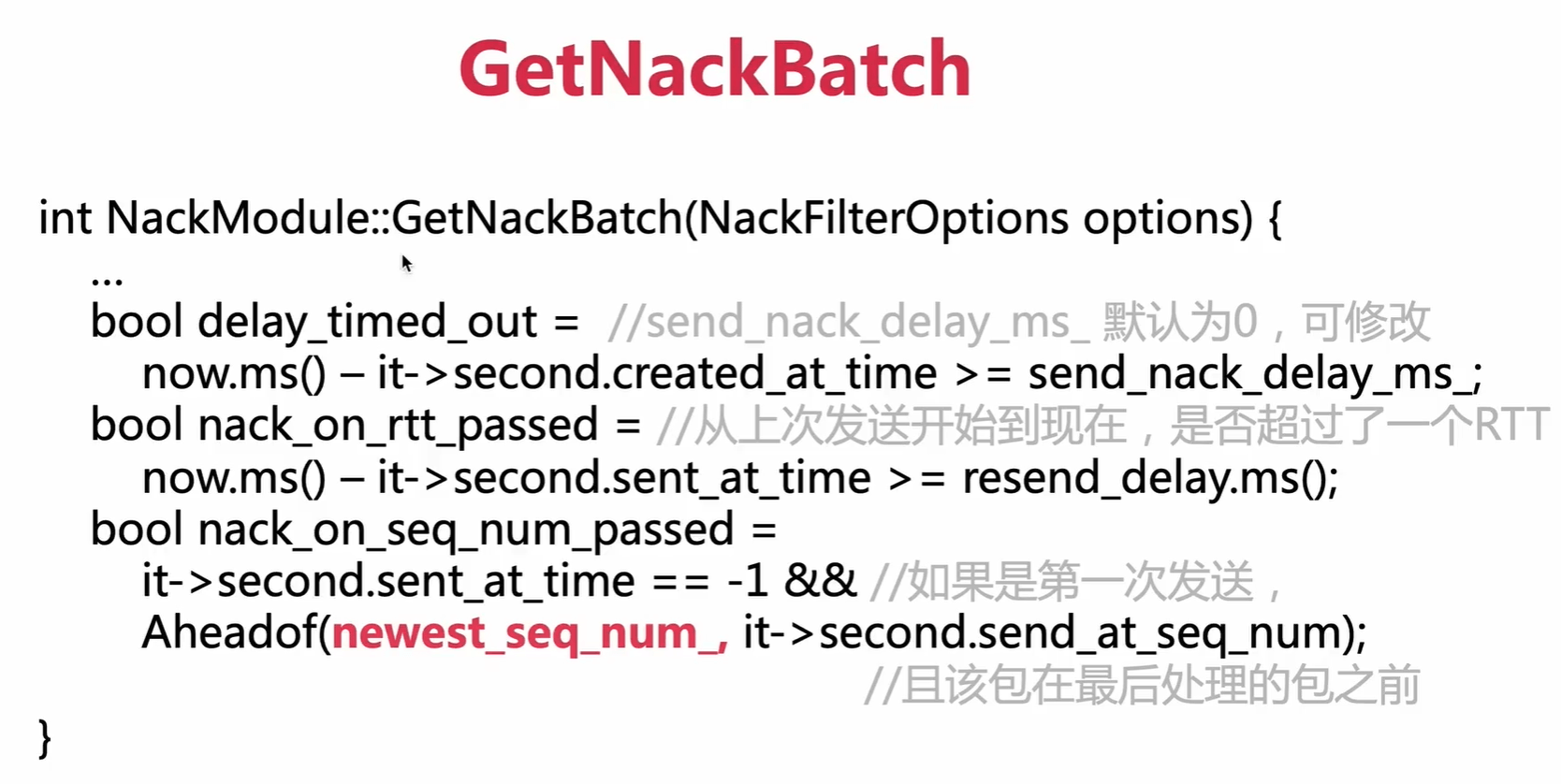

NackModule::GetNackBatch


说明

const int kMaxNackRetries = 10;
如果最大尝试次数大于等于10，说明这个包不会过来了，需要将该包从nacklist移除掉。
多次循环，然后最后返回真正的丢包std::vector nack_batch;

源码

  1. std::vector<uint16_t> DEPRECATED_NackModule::GetNackBatch(
  2.     NackFilterOptions options) {
  3.   bool consider_seq_num = options != kTimeOnly;
  4.   bool consider_timestamp = options != kSeqNumOnly;
  5.   Timestamp now = clock_->CurrentTime();
  6.   std::vector<uint16_t> nack_batch;
  7.   auto it = nack_list_.begin();
  8.   while (it != nack_list_.end()) {
  9.     TimeDelta resend_delay = TimeDelta::Millis(rtt_ms_);
  10.     if (backoff_settings_) {
  11.       resend_delay =
  12.           std::max(resend_delay, backoff_settings_->min_retry_interval);
  13.       if (it->second.retries > 1) {
  14.         TimeDelta exponential_backoff =
  15.             std::min(TimeDelta::Millis(rtt_ms_), backoff_settings_->max_rtt) *
  16.             std::pow(backoff_settings_->base, it->second.retries - 1);
  17.         resend_delay = std::max(resend_delay, exponential_backoff);
  18.       }
  19.     }
  21.     bool delay_timed_out =
  22.         now.ms() - it->second.created_at_time >= send_nack_delay_ms_;
  23.     bool nack_on_rtt_passed =
  24.         now.ms() - it->second.sent_at_time >= resend_delay.ms();
  25.     bool nack_on_seq_num_passed =
  26.         it->second.sent_at_time == -1 &&
  27.         AheadOrAt(newest_seq_num_, it->second.send_at_seq_num);
  28.     if (delay_timed_out && ((consider_seq_num && nack_on_seq_num_passed) ||
  29.                             (consider_timestamp && nack_on_rtt_passed))) {
  30.       nack_batch.emplace_back(it->second.seq_num);
  31.       ++it->second.retries;
  32.       it->second.sent_at_time = now.ms();
  33.       if (it->second.retries >= kMaxNackRetries) {
  34.         RTC_LOG(LS_WARNING) << "Sequence number " << it->second.seq_num
  35.                             << " removed from NACK list due to max retries.";
  36.         it = nack_list_.erase(it);
  37.       } else {
  38.         ++it;
  39.       }
  40.       continue;
  41.     }
  42.     ++it;
  43.   }
  44.   return nack_batch;
  45. }

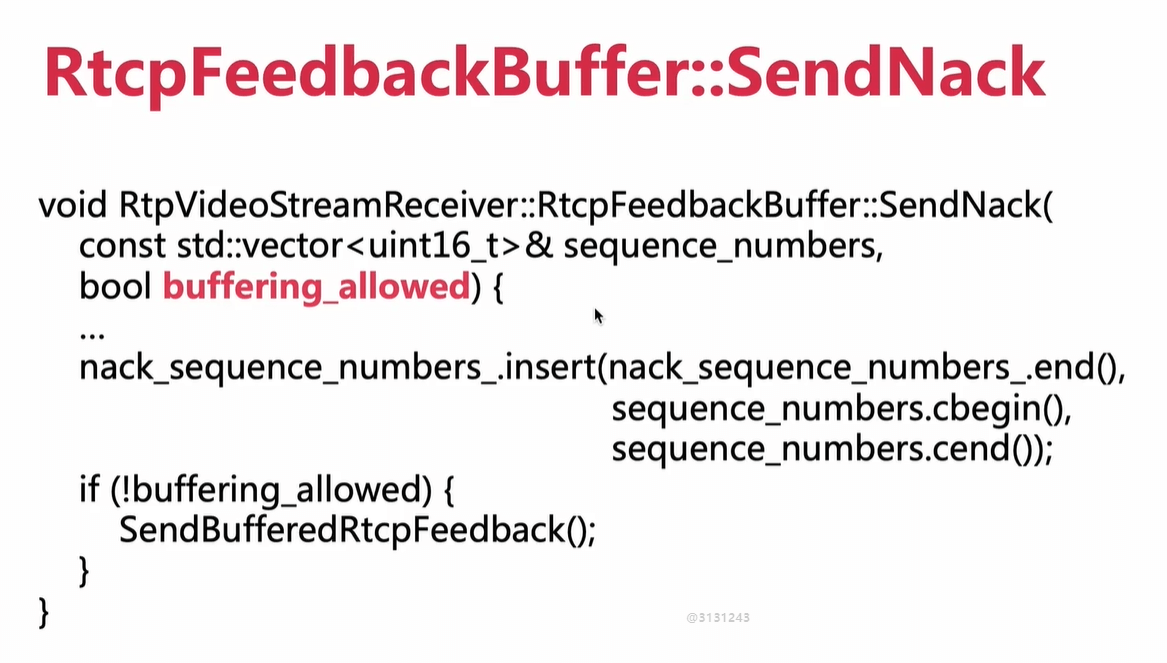

RtcpFeedbackBuffer::SendNack


说明

处理丢包，根据第二个参数buffering_allowed来决定丢包处理。
true 缓存起来不发送。
false 直接发送到对端不缓存，然后等对端重传丢失的包。

源码

  1. void RtpVideoStreamReceiver::RtcpFeedbackBuffer::SendNack(
  2.     const std::vector<uint16_t>& sequence_numbers,
  3.     bool buffering_allowed) {
  4.   RTC_DCHECK(!sequence_numbers.empty());
  5.   MutexLock lock(&mutex_);
  6.   nack_sequence_numbers_.insert(nack_sequence_numbers_.end(),
  7.                                 sequence_numbers.cbegin(),
  8.                                 sequence_numbers.cend());
  9.   if (!buffering_allowed) {
  10.     // Note that while *buffering* is not allowed, *batching* is, meaning that
  11.     // previously buffered messages may be sent along with the current message.
  12.     SendRtcpFeedback(ConsumeRtcpFeedbackLocked());
  13.   }
  14. }

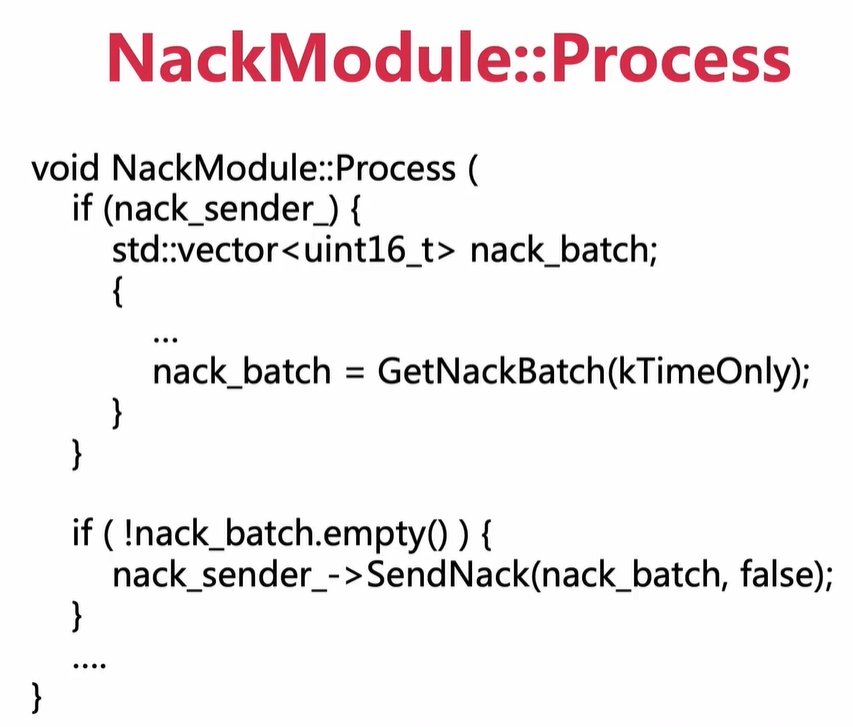

NackModule::Process


说明

webrtc每隔20ms来调用这个方法，这个20毫秒是动态变化的。
等待一段时间来获取真正的丢包，然后调用RtcpFeedbackBuffer::SendNack直接发送出去。

源码

  1. void DEPRECATED_NackModule::Process() {
  2.   if (nack_sender_) {
  3.     std::vector<uint16_t> nack_batch;
  4.     {
  5.       MutexLock lock(&mutex_);
  6.       nack_batch = GetNackBatch(kTimeOnly);
  7.     }
  9.     if (!nack_batch.empty()) {
  10.       // This batch of NACKs is triggered externally; there is no external
  11.       // initiator who can batch them with other feedback messages.
  12.       nack_sender_->SendNack(nack_batch, /*buffering_allowed=*/false);
  13.     }
  14.   }
  16.   // Update the next_process_time_ms_ in intervals to achieve
  17.   // the targeted frequency over time. Also add multiple intervals
  18.   // in case of a skip in time as to not make uneccessary
  19.   // calls to Process in order to catch up.
  20.   int64_t now_ms = clock_->TimeInMilliseconds();
  21.   if (next_process_time_ms_ == -1) {
  22.     next_process_time_ms_ = now_ms + kProcessIntervalMs;
  23.   } else {
  24.     next_process_time_ms_ = next_process_time_ms_ + kProcessIntervalMs +
  25.                             (now_ms - next_process_time_ms_) /
  26.                                 kProcessIntervalMs * kProcessIntervalMs;
  27.   }
  28. }
