1 启动流程

• 创建SpringApplication对象。

public class SpringApplication {
    //SpringBoot应用启动，调用此方法
    public static ConfigurableApplicationContext run(Object source, String... args) {
        return run(new Object[] { source }, args);
    }
    public static ConfigurableApplicationContext run(Object[] sources, String[] args) {
        return new SpringApplication(sources).run(args);
    }
    public SpringApplication(Object... sources) {
        //初始化
        initialize(sources);
    }
    private void initialize(Object[] sources) {
        //保存主配置类
        if (sources != null && sources.length > 0) {
            this.sources.addAll(Arrays.asList(sources));
        }
        //当前应用是否是web应用
        this.webEnvironment = deduceWebEnvironment();

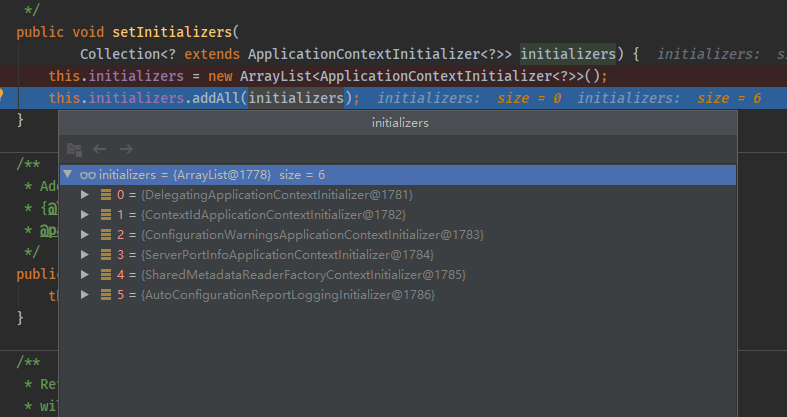

        //从类路径下找到META-INF/spring.factories配置的所有ApplicationContextInitializer，然后保存起来
        setInitializers((Collection) getSpringFactoriesInstances(
                ApplicationContextInitializer.class));

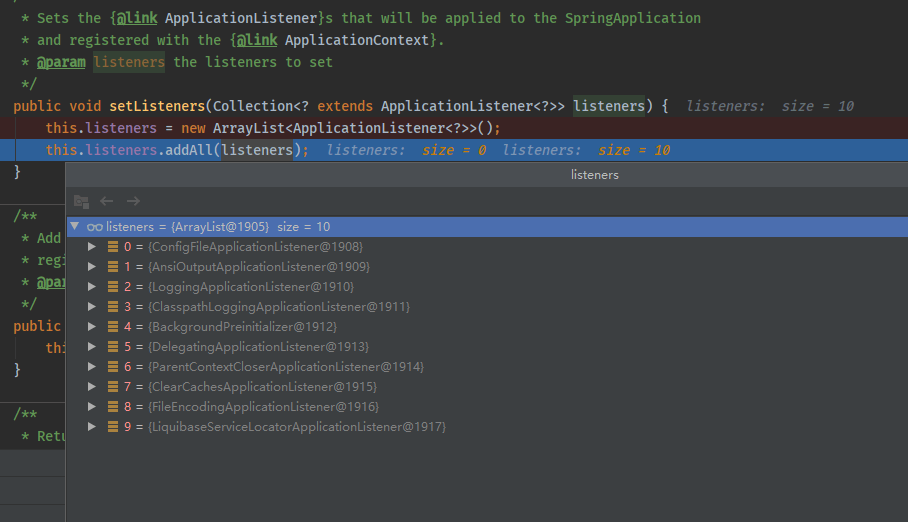

        //从类路径下找到META-INF/spring.factories配置的所有ApplicationListener，然后保存起来
        setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
        //从多个配置类中找到有main方法的主配置类
        this.mainApplicationClass = deduceMainApplicationClass();
    }
    //其他略
}

• 通过SpringApplication对象调用run()方法。

public class SpringApplication {
     /**
     * Run the Spring application, creating and refreshing a new
     * {@link ApplicationContext}.
     * @param args the application arguments (usually passed from a Java main method)
     * @return a running {@link ApplicationContext}
     */
    public ConfigurableApplicationContext run(String... args) {
        StopWatch stopWatch = new StopWatch();
        stopWatch.start();
        ConfigurableApplicationContext context = null;
        FailureAnalyzers analyzers = null;
        configureHeadlessProperty();
         //获取SpringApplicationRunListeners，从类路径下的找到META-INF/spring.factories配置的所有SpringApplicationRunListener
        SpringApplicationRunListeners listeners = getRunListeners(args);
        //回调所有SpringApplicationRunListener的starting方法
        listeners.starting();
        try {
             //封装命令行参数
            ApplicationArguments applicationArguments = new DefaultApplicationArguments(
                    args);
             /*
             * 准备环境：
             *  - 创建环境完成后回调所有SpringApplicationRunListener的environmentPrepared方法；表示环境准备完成
             */
            ConfigurableEnvironment environment = prepareEnvironment(listeners,
                    applicationArguments);
             //打印Banner
            Banner printedBanner = printBanner(environment);
             //创建ApplicationContext。决定创建Web的IOC容器还是普通的IOC容器
            context = createApplicationContext();
            analyzers = new FailureAnalyzers(context);
             //准备上下文环境，将environment保存到IOC容器中，applyInitializers(context);回到之前保存的所有的ApplicationContextInitializer的initialize()方法,回调listeners.contextPrepared(context);
            prepareContext(context, environment, listeners, applicationArguments,
                    printedBanner);
            //prepareContext完成后，回调listeners.contextLoaded(context);
            //刷新容器。IOC容器初始化
            refreshContext(context);
             //从IOC容器中获取所有的ApplicationRunner和CommandLineRunner进行回调
            afterRefresh(context, applicationArguments);
             //所有的SpringApplicationRunListener回调finished方法
            listeners.finished(context, null);
            stopWatch.stop();
            if (this.logStartupInfo) {
                new StartupInfoLogger(this.mainApplicationClass)
                        .logStarted(getApplicationLog(), stopWatch);
            }
             //整个SpringBoot启动完成以后，返回启动的IOC容器
            return context;
        }
        catch (Throwable ex) {
            handleRunFailure(context, listeners, analyzers, ex);
            throw new IllegalStateException(ex);
        }
    }
}

2 总结事件回调机制

• 需要配置在META-INF/spring.factories的事件是：
  • ApplicationContextInitializer。
  • ApplicationListener。
• 不需要配置在META-INF/spring.factories，只需要加入到IOC容器的事件是：
  • ApplicationRunner。
  • CommandLineRunner。
