超卖现象举例2
- 产生原因
- 图解
  - 方法1（抛出异常+synchronized）：
  - 方法2：加锁 synchronized

数据库

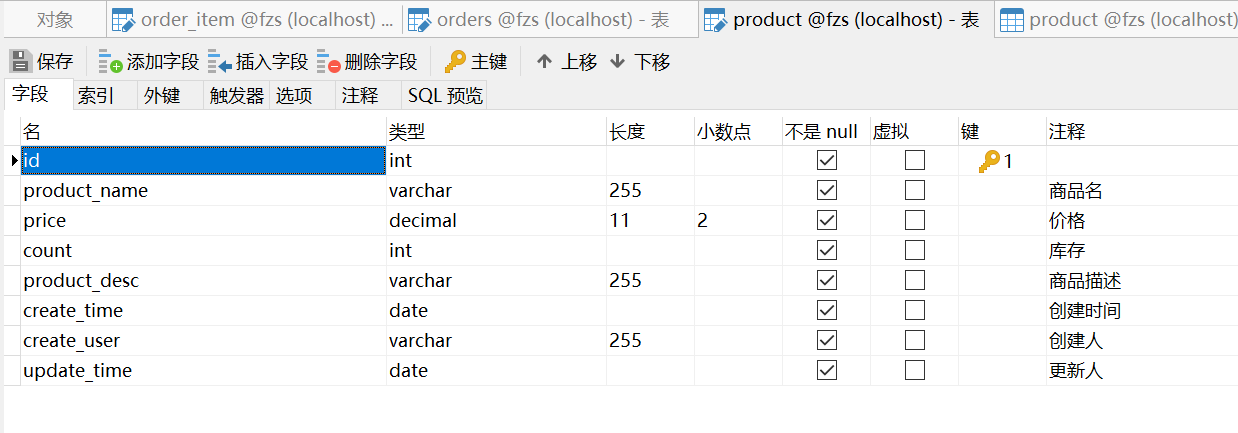

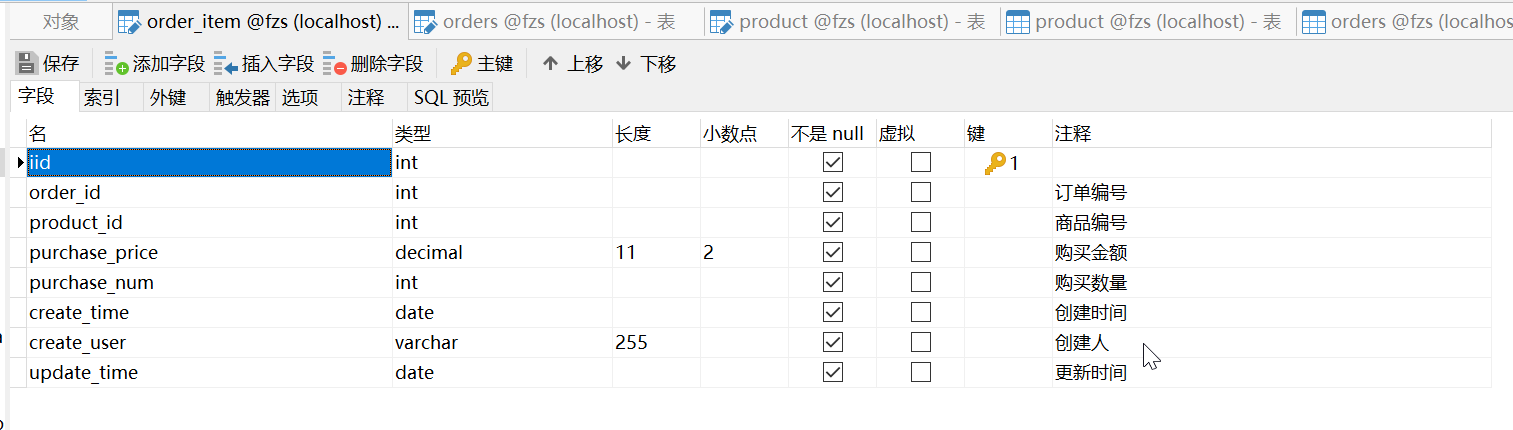

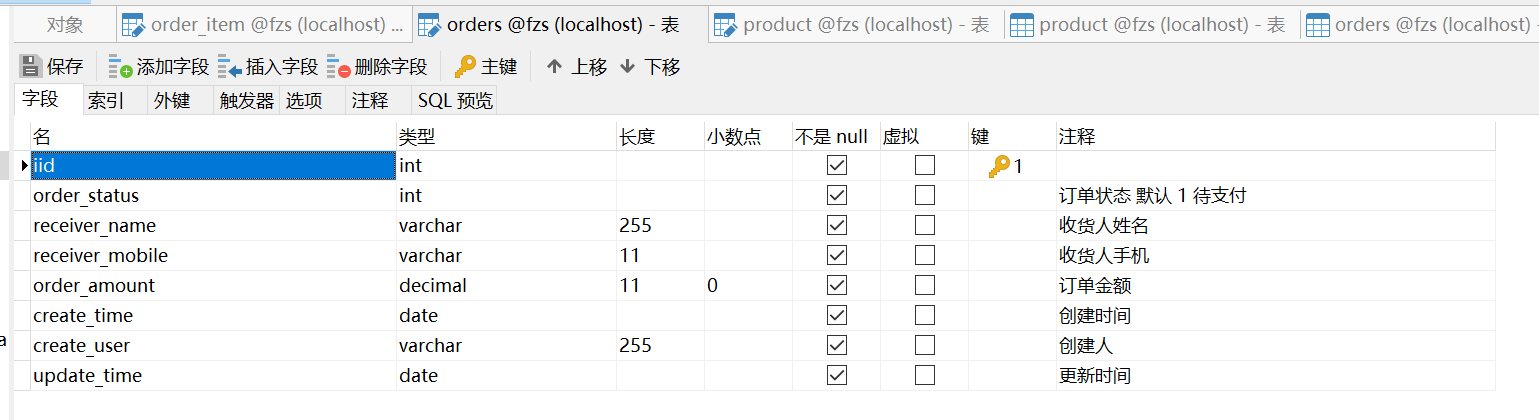

orders、order_item、product

<parent>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-parent</artifactId>
  <version>2.1.3.RELEASE</version>
  <relativePath/> <!-- lookup parent from repository -->
</parent>
<dependencies>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-jpa</artifactId>
  </dependency>
  <dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
  </dependency>
  <dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <scope>provided</scope>
  </dependency>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-test</artifactId>
    <scope>test</scope>
  </dependency>
</dependencies>

@Data
@NoArgsConstructor
@AllArgsConstructor
@Entity
@Table(name = "orders", schema = "fzs")
public class OrdersEntity {
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Id
    @Column(name = "iid")
    private int iid;
    @Basic
    @Column(name = "order_status")
    private int orderStatus;
    @Basic
    @Column(name = "receiver_name")
    private String receiverName;
    @Basic
    @Column(name = "receiver_mobile")
    private String receiverMobile;
    @Basic
    @Column(name = "order_amount")
    private BigDecimal orderAmount;
    @Basic
    @Column(name = "create_time")
    private Date createTime;
    @Basic
    @Column(name = "create_user")
    private String createUser;
    @Basic
    @Column(name = "update_time")
    private Date updateTime;
}

@Data
@NoArgsConstructor
@AllArgsConstructor
@Entity
@Table(name = "order_item")
public class OrderItemEntity {
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Id
    @Column(name = "iid")
    private int iid;
    @Basic
    @Column(name = "order_id")
    private int orderId;
    @Basic
    @Column(name = "product_id")
    private int productId;
    @Basic
    @Column(name = "purchase_price")
    private BigDecimal purchasePrice;
    @Basic
    @Column(name = "purchase_num")
    private int purchaseNum;
    @Basic
    @Column(name = "create_time")
    private Date createTime;
    @Basic
    @Column(name = "create_user")
    private String createUser;
    @Basic
    @Column(name = "update_time")
    private Date updateTime;
}

@Data
@NoArgsConstructor
@AllArgsConstructor
@Entity
@Table(name = "product")
public class ProductEntity {
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Id
    @Column(name = "id")
    private int id;
    @Basic
    @Column(name = "product_name")
    private String productName;
    @Basic
    @Column(name = "price")
    private BigDecimal price;
    @Basic
    @Column(name = "count")
    private int count;
    @Basic
    @Column(name = "product_desc")
    private String productDesc;
    @Basic
    @Column(name = "create_time")
    private Date createTime;
    @Basic
    @Column(name = "create_user")
    private String createUser;
    @Basic
    @Column(name = "update_time")
    private Date updateTime;
}

@Repository
public interface OrderItemRepository extends JpaRepository<OrderItemEntity, Integer> {
}

@Repository
public interface OrderRepository extends JpaRepository<OrdersEntity, Integer> {
}

@Repository
public interface ProductRepository extends JpaRepository<ProductEntity, Integer> {
    /**
     * 总数减去orderCount
     * @param orderCount
     * @param orderId
     */
    @Modifying
    @Query(value = "update product set count = count - :orderCount, update_time =:update_time where id = :orderId", nativeQuery = true)
    void updateProductCount(@Param("orderCount") Integer orderCount,
                            @Param("update_time") Date updateTime,
                            @Param("orderId") Integer orderId);
}

模拟实现

public interface OrderService {
    int orderCreate();
}

@Service
public class OrderServiceImpl implements OrderService {
    @Autowired
    private ProductRepository productRepository;
    @Resource
    private OrderRepository orderRepository;
    @Resource
    private OrderItemRepository orderItemRepository;
    private int purchaseProductId = 100100;
    private int purchaseProductNum = 1;
    @Override
    @Transactional(rollbackOn = Exception.class)
    public int orderCreate() {
        ProductEntity productEntity = productRepository.findById(purchaseProductId).orElseGet(ProductEntity::new);
        if (productEntity == null) {
            throw new RuntimeException("购买商品：" + purchaseProductId + "不存在");
        }
        //商品库存
        int count = productEntity.getCount();
        if (purchaseProductNum > count) {
            throw new RuntimeException("商品" + purchaseProductId + "库存不足，当前库存：" + count);
        }
        // 计算剩余库存
        Integer leftCount = count - purchaseProductNum;
        // 更新商品库存
        productEntity.setCount(leftCount);
        productEntity.setUpdateTime(new Date());
        productRepository.save(productEntity);
        // 下单
        //productRepository.updateProductCount(purchaseProductNum, new Date(), productEntity.getId());
        //创建订单
        BigDecimal multiply = productEntity.getPrice().multiply(new BigDecimal(purchaseProductNum));
        OrdersEntity orderEntity = new OrdersEntity();
        // 待处理 订单状态
        orderEntity.setOrderStatus(1);
        orderEntity.setReceiverName("测试收货人");
        orderEntity.setReceiverMobile("13888888888");
        orderEntity.setOrderAmount(multiply);
        orderEntity.setCreateTime(new Date());
        orderEntity.setCreateUser("测试用户1");
        orderEntity.setUpdateTime(new Date());
        orderRepository.save(orderEntity);
        // 创建订单明细
        OrderItemEntity orderItemEntity = new OrderItemEntity();
        orderItemEntity.setOrderId(orderEntity.getIid());
        orderItemEntity.setProductId(productEntity.getId());
        orderItemEntity.setPurchasePrice(new BigDecimal("0"));
        orderItemEntity.setPurchaseNum(purchaseProductNum);
        orderItemEntity.setCreateTime(new Date());
        orderItemEntity.setCreateUser("测试用户1");
        orderItemEntity.setUpdateTime(new Date());
        orderItemRepository.save(orderItemEntity);
        System.out.println("订单创建成功");
        return orderEntity.getIid();
    }
}

测试

@RunWith(SpringRunner.class)
@SpringBootTest
public class JpaTest {
    @Autowired
    private ProductRepository productRepository;
    @Resource
    private OrderService orderService;
    @Autowired
    private OrderRepository orderRepository;
    private int purchaseProductId = 100100;
    private int purchaseProductNum = 1;
    @Test
    public void testOrderAdd() {
        ProductEntity productEntity = new ProductEntity();
        productEntity.setId(purchaseProductId);
        productEntity.setProductName("测试商品");
        productEntity.setPrice(new BigDecimal(100));
        productEntity.setCount(purchaseProductNum);
        productEntity.setProductDesc("测试商品描述");
        productEntity.setCreateTime(new Date());
        productEntity.setCreateUser("测试用户");
        productEntity.setUpdateTime(new Date());
        productRepository.save(productEntity);
    }
    @Test
    public void testOrder(){
        OrdersEntity orderEntity = new OrdersEntity();
        // 待处理 订单状态
        orderEntity.setOrderStatus(1);
        orderEntity.setReceiverName("测试收货人");
        orderEntity.setReceiverMobile("13888888888");
        orderEntity.setOrderAmount(new BigDecimal(purchaseProductNum));
        orderEntity.setCreateTime(new Date());
        orderEntity.setCreateUser("测试用户1");
        orderEntity.setUpdateTime(new Date());
        orderRepository.save(orderEntity);
    }
    @Test
    public void concurrentOrder() {
        CountDownLatch count = new CountDownLatch(5);
        CyclicBarrier barrier = new CyclicBarrier(5);
        ExecutorService pool = Executors.newFixedThreadPool(5);
        for (int i = 0; i < 5; i++) {
            pool.execute(() -> {
                try {
                    barrier.await();
                    System.out.println("线程" + Thread.currentThread().getName() + "开始执行");
                    int orderId = orderService.orderCreate();
                    System.out.println("订单生成成功，订单号：" + orderId);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } catch (BrokenBarrierException e) {
                    e.printStackTrace();
                }finally {
                    count.countDown();
                }
            });
        }
        try {
            count.await();
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        pool.shutdown();
    }
}

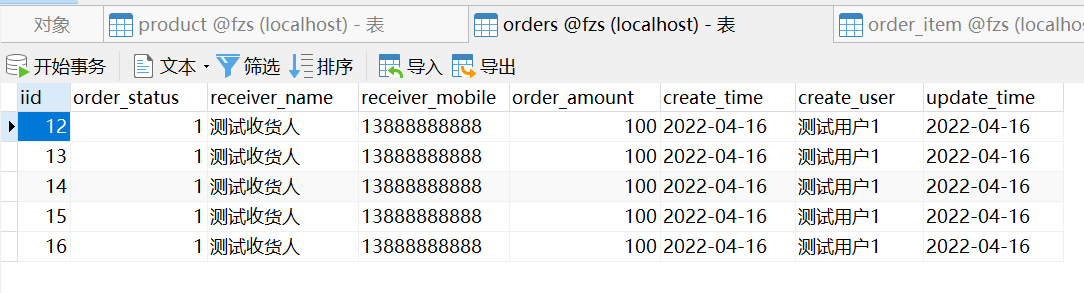

在多线程情况下，产生了超卖问题。

改用这个下面update 库存减一
但还是出现了库存变为负数。

这个方法还不能解决问题，同时下5个单，商品会变成负数。

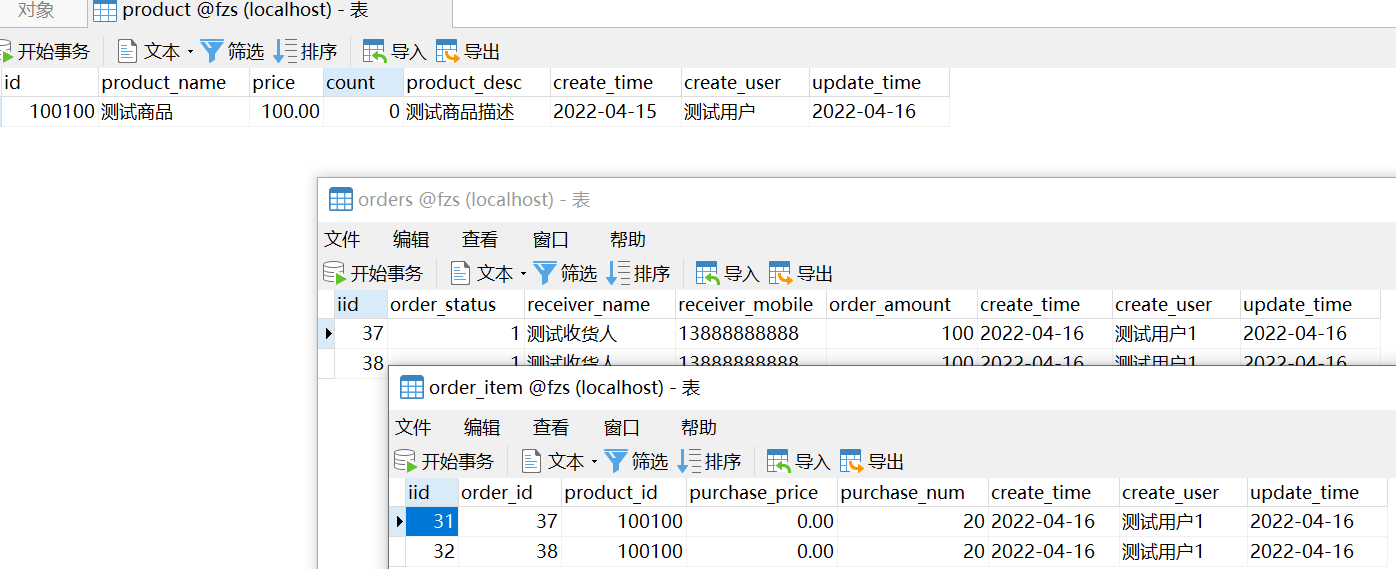

超卖现象举例2

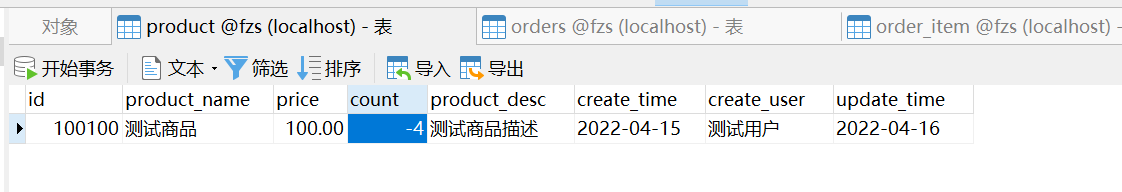

商品变成负数

产生原因

并发监测库存，造成库存充足的假象。
update更新库存，导致库存变成负数。

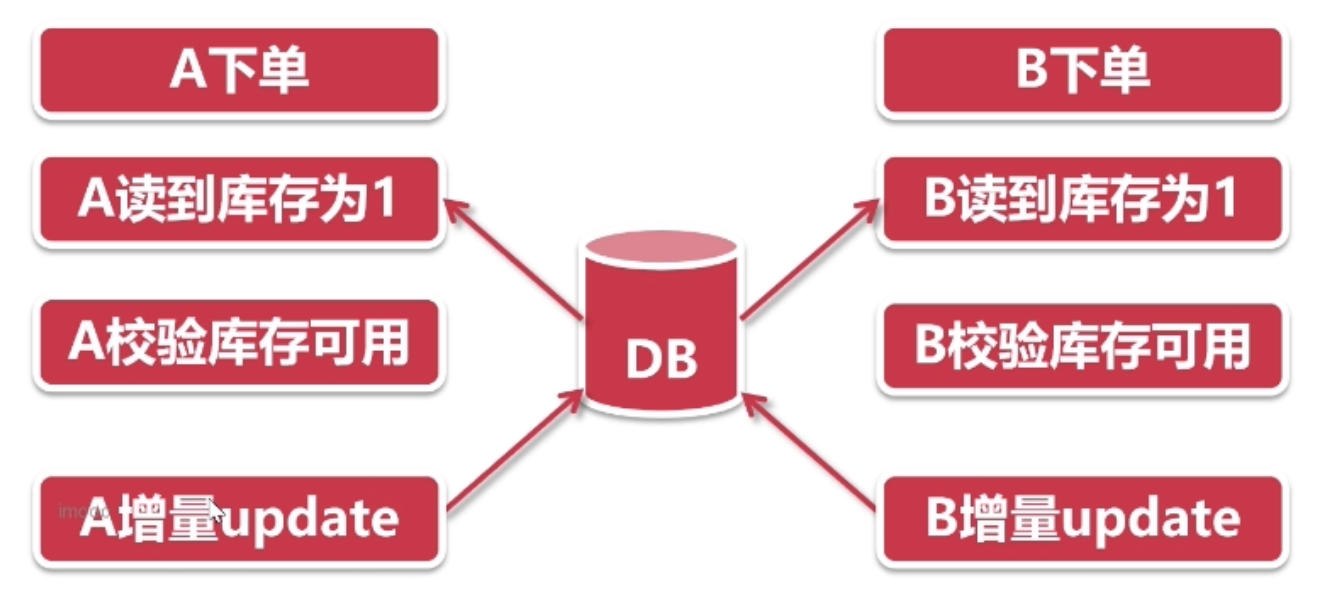

图解

方法1（抛出异常+synchronized）：

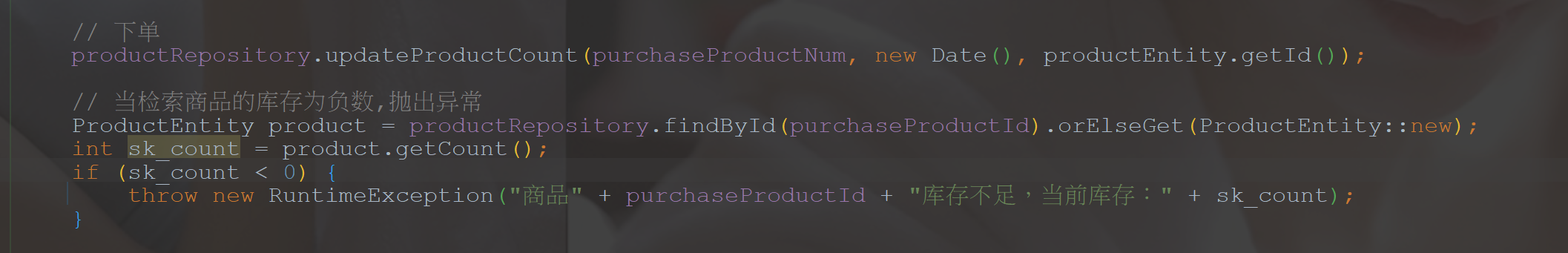

可以先使用最简单的方法，在更新商品数量后，再校验商品的库存，如果是负数，抛出异常。

但是在多线程中，还是没用。

方法2：加锁 synchronized

在校验库存和扣减库存统一加锁，使之成为原子性操作，并发的时候，只有获取到锁的线程才能校验扣减库存。
在扣减库存结束后释放锁，确保库存不会变成负数。

可以使用synchronized关键字解决超卖问题，这是最原始的锁哦。

如果在创建订单的方法上加synchronized关键字，这样能够解决问题吗？

答案是不能的，因为锁住的是当前方法，但是事务没有被锁住，线程1的锁释放后，线程2进入该方法，事务可能还没提交，这就导致了查询库存的时候，还是原来的库存

那么如何控制事务呢？ ```java @Service public class OrderServiceImpl implements OrderService {

@Resource private ProductRepository productRepository; @Resource private OrderRepository orderRepository; @Resource private OrderItemRepository orderItemRepository; @Autowired private PlatformTransactionManager transactionManager; @Autowired private TransactionDefinition definition;

private int purchaseProductId = 100100; private int purchaseProductNum = 1;

@Override //@Transactional(rollbackOn = Exception.class) public synchronized int orderCreate() {

 TransactionStatus transaction = transactionManager.getTransaction(definition);
 ProductEntity productEntity = productRepository.findById(purchaseProductId).orElseGet(ProductEntity::new);
 if (productEntity == null) {
     transactionManager.rollback(transaction);
     throw new RuntimeException("购买商品：" + purchaseProductId + "不存在");
 }
 //商品库存
 int count = productEntity.getCount();
 if (purchaseProductNum > count) {
     transactionManager.rollback(transaction);
     throw new RuntimeException("商品" + purchaseProductId + "库存不足，当前库存：" + count);
 }
 // 计算剩余库存
 //Integer leftCount = count - purchaseProductNum;
 //// 更新商品库存
 //productEntity.setCount(leftCount);
 //productEntity.setUpdateTime(new Date());
 //productRepository.save(productEntity);
 // 下单
 productRepository.updateProductCount(purchaseProductNum, new Date(), productEntity.getId());
 // 当检索商品的库存为负数,抛出异常
 //ProductEntity product = productRepository.findById(purchaseProductId).orElseGet(ProductEntity::new);
 //int sk_count = product.getCount();
 //if (sk_count < 0) {
 //    throw new RuntimeException("商品" + purchaseProductId + "库存不足，当前库存：" + sk_count);
 //}

    //创建订单
    BigDecimal multiply = productEntity.getPrice().multiply(new BigDecimal(purchaseProductNum));
    OrdersEntity orderEntity = new OrdersEntity();
    // 待处理 订单状态
    orderEntity.setOrderStatus(1);
    orderEntity.setReceiverName("测试收货人");
    orderEntity.setReceiverMobile("13888888888");
    orderEntity.setOrderAmount(multiply);
    orderEntity.setCreateTime(new Date());
    orderEntity.setCreateUser("测试用户1");
    orderEntity.setUpdateTime(new Date());
    orderRepository.save(orderEntity);
    // 创建订单明细
    OrderItemEntity orderItemEntity = new OrderItemEntity();
    orderItemEntity.setOrderId(orderEntity.getIid());
    orderItemEntity.setProductId(productEntity.getId());
    orderItemEntity.setPurchasePrice(new BigDecimal("0"));
    orderItemEntity.setPurchaseNum(20);
    orderItemEntity.setCreateTime(new Date());
    orderItemEntity.setCreateUser("测试用户1");
    orderItemEntity.setUpdateTime(new Date());
    orderItemRepository.save(orderItemEntity);
    System.out.println("订单创建成功");
    transactionManager.commit(transaction);
    return orderEntity.getIid();
}

}

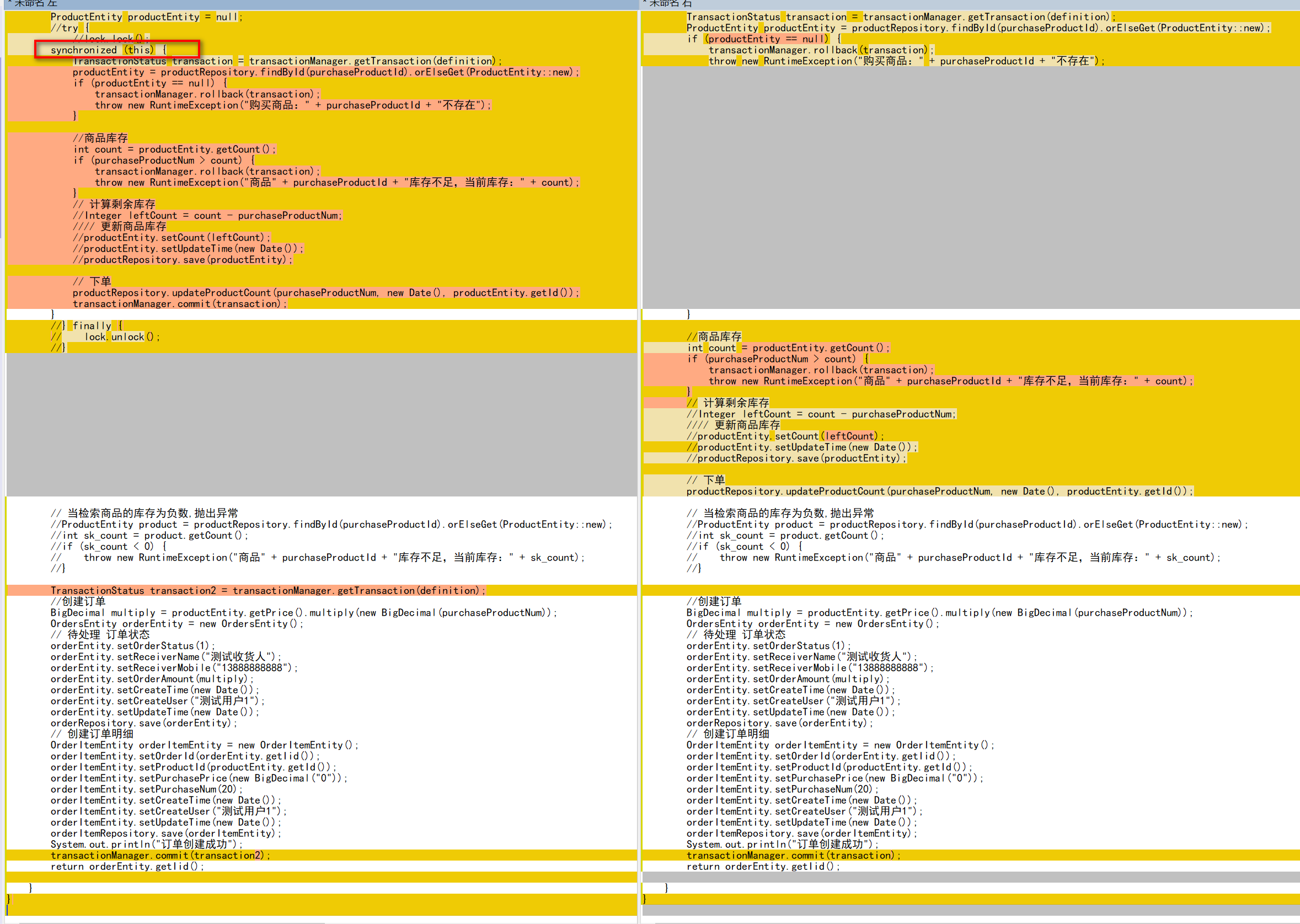

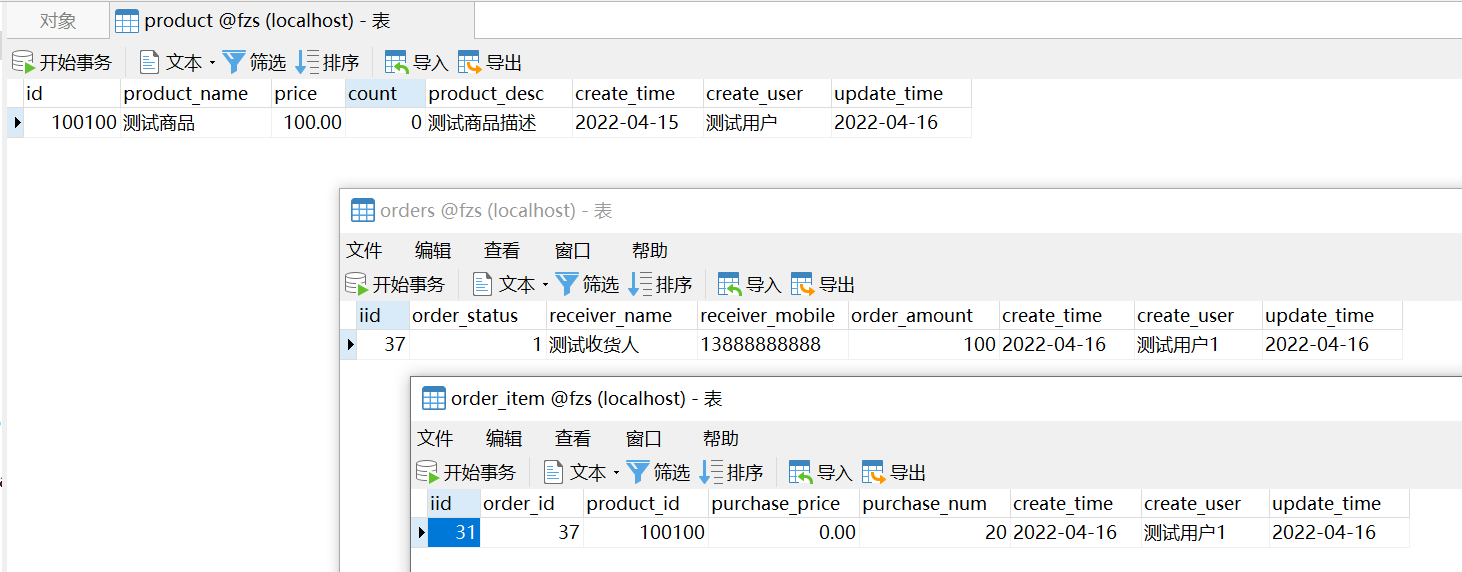

![image.png](https://cdn.nlark.com/yuque/0/2022/png/22478710/1650118912014-6910cf9f-3bbb-45ff-b7bc-26e6c88325c6.png#clientId=u8656b4c4-9032-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=363&id=ud4dfe313&margin=%5Bobject%20Object%5D&name=image.png&originHeight=572&originWidth=1462&originalType=binary&ratio=1&rotation=0&showTitle=false&size=75315&status=done&style=none&taskId=ud8e72f35-275a-49f1-bcf5-102566d8892&title=&width=928.2540104088258)<br />synchronized不同的写法<br />![image.png](https://cdn.nlark.com/yuque/0/2022/png/22478710/1650120015838-d9caf186-e2be-426e-abad-787c3e79d302.png#clientId=u8656b4c4-9032-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=1063&id=u303d36b4&margin=%5Bobject%20Object%5D&name=image.png&originHeight=1675&originWidth=2357&originalType=binary&ratio=1&rotation=0&showTitle=false&size=365582&status=done&style=none&taskId=uf5e7ab60-7c52-45d2-8e47-289c2d0e417&title=&width=1496.5080044689482)
<a name="GtYy4"></a>
### 方法3： 加锁 reentrantlock

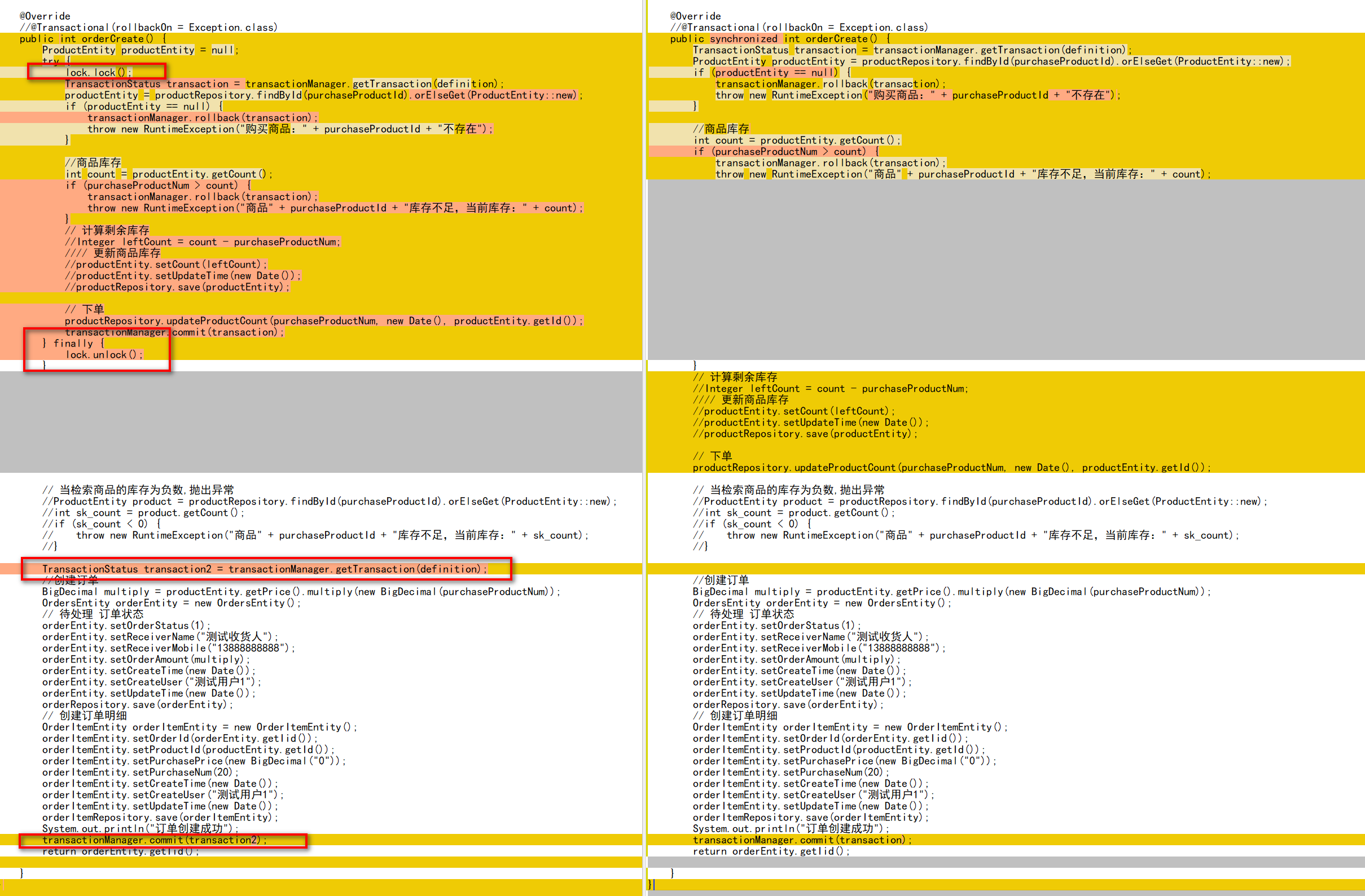

![image.png](https://cdn.nlark.com/yuque/0/2022/png/22478710/1650119874442-88424b01-50fa-48b5-aa90-4dc76ca0a003.png#clientId=u8656b4c4-9032-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=1008&id=uc236e639&margin=%5Bobject%20Object%5D&name=image.png&originHeight=1588&originWidth=2419&originalType=binary&ratio=1&rotation=0&showTitle=false&size=386535&status=done&style=none&taskId=u37d9a221-2146-4dd8-89d0-74dd98740d6&title=&width=1535.8730856217167)
```java
@Service
public class OrderServiceImpl implements OrderService {
    @Resource
    private ProductRepository productRepository;
    @Resource
    private OrderRepository orderRepository;
    @Resource
    private OrderItemRepository orderItemRepository;
    @Autowired
    private PlatformTransactionManager transactionManager;
    @Autowired
    private TransactionDefinition definition;
    //private Lock lock = new ReentrantLock();
    private int purchaseProductId = 100100;
    private int purchaseProductNum = 1;
    @Override
    //@Transactional(rollbackOn = Exception.class)
    public int orderCreate() {
        ProductEntity productEntity = null;
        //try {
            //lock.lock();
        synchronized (this) {
            TransactionStatus transaction = transactionManager.getTransaction(definition);
            productEntity = productRepository.findById(purchaseProductId).orElseGet(ProductEntity::new);
            if (productEntity == null) {
                transactionManager.rollback(transaction);
                throw new RuntimeException("购买商品：" + purchaseProductId + "不存在");
            }
            //商品库存
            int count = productEntity.getCount();
            if (purchaseProductNum > count) {
                transactionManager.rollback(transaction);
                throw new RuntimeException("商品" + purchaseProductId + "库存不足，当前库存：" + count);
            }
            // 计算剩余库存
            //Integer leftCount = count - purchaseProductNum;
            //// 更新商品库存
            //productEntity.setCount(leftCount);
            //productEntity.setUpdateTime(new Date());
            //productRepository.save(productEntity);
            // 下单
            productRepository.updateProductCount(purchaseProductNum, new Date(), productEntity.getId());
            transactionManager.commit(transaction);
        }
        //} finally {
        //    lock.unlock();
        //}
        // 当检索商品的库存为负数,抛出异常
        //ProductEntity product = productRepository.findById(purchaseProductId).orElseGet(ProductEntity::new);
        //int sk_count = product.getCount();
        //if (sk_count < 0) {
        //    throw new RuntimeException("商品" + purchaseProductId + "库存不足，当前库存：" + sk_count);
        //}
        TransactionStatus transaction2 = transactionManager.getTransaction(definition);
        //创建订单
        BigDecimal multiply = productEntity.getPrice().multiply(new BigDecimal(purchaseProductNum));
        OrdersEntity orderEntity = new OrdersEntity();
        // 待处理 订单状态
        orderEntity.setOrderStatus(1);
        orderEntity.setReceiverName("测试收货人");
        orderEntity.setReceiverMobile("13888888888");
        orderEntity.setOrderAmount(multiply);
        orderEntity.setCreateTime(new Date());
        orderEntity.setCreateUser("测试用户1");
        orderEntity.setUpdateTime(new Date());
        orderRepository.save(orderEntity);
        // 创建订单明细
        OrderItemEntity orderItemEntity = new OrderItemEntity();
        orderItemEntity.setOrderId(orderEntity.getIid());
        orderItemEntity.setProductId(productEntity.getId());
        orderItemEntity.setPurchasePrice(new BigDecimal("0"));
        orderItemEntity.setPurchaseNum(20);
        orderItemEntity.setCreateTime(new Date());
        orderItemEntity.setCreateUser("测试用户1");
        orderItemEntity.setUpdateTime(new Date());
        orderItemRepository.save(orderItemEntity);
        System.out.println("订单创建成功");
        transactionManager.commit(transaction2);
        return orderEntity.getIid();
    }
}

结果

超卖现象

超卖现象举例2

产生原因

图解

方法1（抛出异常+synchronized）：

方法2： 加锁 synchronized

方法2：加锁 synchronized
