绿斑

本文Python代码针对绿斑文件窃取器PE中的C2通过异或解密提取。
样本来源：
从绿斑APT组织的文件窃取器理解加密流量，生产流量规则以及密文还原

代码

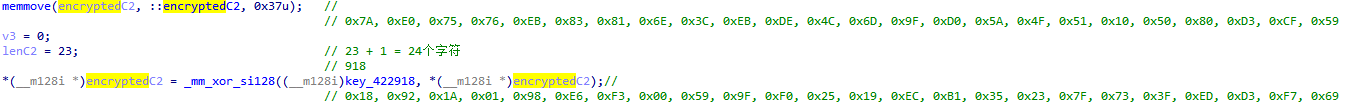

反汇编

IDA

.text:00402B89                 lea     eax, [esp+900h+encryptedC2]
.text:00402B90                 push    37h ; '7'       ; Size
.text:00402B92                 push    offset encryptedC2 ; Src
.text:00402B97                 push    eax             ; void *
.text:00402B98                 call    _memmove
.text:00402B9D                 movups  xmm0, xmmword ptr [esp+90Ch+encryptedC2]
.text:00402BA5                 add     esp, 0Ch
.text:00402BA8                 xor     ecx, ecx
.text:00402BAA                 movups  xmm1, key_422918
.text:00402BB1                 mov     edx, 17h
.text:00402BB6                 pxor    xmm1, xmm0
.text:00402BBA                 movups  xmm0, xmmword ptr [esp+900h+var_848]
.text:00402BC2                 movups  xmmword ptr [esp+900h+encryptedC2], xmm1
.text:00402BCA                 movups  xmm1, xmmword_422928
.text:00402BD1                 pxor    xmm1, xmm0
.text:00402BD5                 movups  xmmword ptr [esp+900h+var_848], xmm1
.text:00402BDD                 nop     dword ptr [eax]
.text:00402BE0
.text:00402BE0 loc_402BE0:                             ; CODE XREF: _main+F3↓j
.text:00402BE0                 mov     al, key_422938[ecx]
.text:00402BE6                 lea     ecx, [ecx+1]
.text:00402BE9                 xor     byte ptr [esp+ecx+900h+var_848+0Fh], al
.text:00402BF0                 sub     edx, 1
.text:00402BF3                 jnz     short loc_402BE0

参数inHEX

密文

密钥

密文长度

C2解密脚本

半自动-离线无文件版（手动输入数据，适配性高）

key = [ 0x18, 0x92, 0x1A, 0x01, 0x98, 0xE6, 0xF3, 0x00, 0x59, 0x9F, 0xF0, 0x25, 0x19, 0xEC, 0xB1, 0x35, 0x23, 0x7F, 0x73, 0x3F, 0xED, 0xD3, 0xF7, 0x69 ]
lenKey = len(key)
C2Encrypted = [ 0x7A, 0xE0, 0x75, 0x76, 0xEB, 0x83, 0x81, 0x6E, 0x3C, 0xEB, 0xDE, 0x4C, 0x6D, 0x9F, 0xD0, 0x5A, 0x4F, 0x51, 0x10, 0x50, 0x80, 0xD3, 0xCF, 0x59 ]
lenEncrypted = len(C2Encrypted)
C2 = ''
n0 = 0
for i in range(lenEncrypted):
    xor = C2Encrypted[i] ^ key[i % lenKey]
    if (xor == 0):
        C2 += "\r\n"
        n0 += 1
        if (n0 == 2):
            break
        C2 += "端口："
    else:
        C2 += chr(xor)
print("域名：", C2)

全自动-读取PE文件（PE适配性差）

好麻烦啊，眼泪流下来，ImageBase打出来不对——更新：数据是十进制的，又忘了转十六进制，永远健忘，永远热泪盈眶😡😡😡

🙇‍♀️🙇‍♀️🙇‍♀️特别感谢杰哥帮我对数据进行转换🙇‍♀️🙇‍♀️🙇‍♀️

import binascii
import pefile
import re
# 小端序转大端序
def Little2Big(strLittle):
    strBig = (int(strLittle, 16).to_bytes(4, 'little')).hex()[:6].upper()
    return strBig
# 十六进制字符串处理为list
def hexstr2list(strHex):
    time = int(len(strHex)/2)
    j = 0
    listHex = []
    for i in range(time):
        strHex2 = strHex[j : j+2]
        j += 2
        listHex.append(strHex2)
    return listHex
# 1. 以十六进制读取PE样本
def File2Read():
    filePE = open(pathFile, "rb")
    if(filePE):
        print("文件：\t\t\t成功读取文件")
    else:
        print("文件：\t\t无文件 / 文件无数据")
        exit(0)
    dataPE = filePE.read()
    global hexPE
    hexPE = binascii.b2a_hex(dataPE).decode('utf-8').upper()
# 2. 正则匹配
def HexRegVA():
    # 2.1 正则匹配：密文，密钥,长度
    '''
    # 原（compile + pattern），后（findall+转数据格式）更简洁点
    pattern = re.compile(r'A80000006A[0-9A-F]{2}68([0-9A-F]{6})0050E8[0-9A-F]+0F100D[0-9A-F]{6}00BA[0-9A-F]{2}000000660FEFC8')
    '''
    #findall写在一个表达式里返回的是tuple
    regData = list(re.findall(r'A80000006A[0-9A-F]{2}68([0-9A-F]{6})0050E8[0-9A-F]+0F100D([0-9A-F]{6})00BA([0-9A-F]{2})000000660FEFC8', hexPE)[0])
    # 2.1.1 密文
    addEncryptedString_Little = regData[0]
    print("密文inHex：\t\t", addEncryptedString_Little, type(addEncryptedString_Little))
    # 2.1.1 密钥
    addKey_Little = regData[1]
    print("密钥inHex：\t\t", addKey_Little, type(addKey_Little))
    # 2.1.2 长度
    global lenC2
    lenC2 = int(regData[2], 16) + 1
    print("C2明文长度：\t\t", lenC2, type(lenC2))
    # 2.2 VA
    # 2.2.1 密文
    encrypted_Big = Little2Big(addEncryptedString_Little)
    encryptedVA = int(encrypted_Big, 16)
    print("密文inVA：\t\t", hex(encryptedVA).upper(), type(encryptedVA))
    # 2.2.1 密钥
    key_Big = Little2Big(addKey_Little)
    keyVA = int(key_Big, 16)
    print("密钥inVA：\t\t", hex(keyVA).upper(), type(keyVA))
    # 2.3 PE数据
    filePE = pefile.PE(pathFile)
    # RAV = VA - ImageBase
    # FileOffset = RVA - VRk
    # 得：FileOffset = VA - ImageBase - VRk
    # 2.3.1 ImageBase
    intImageBase = filePE.OPTIONAL_HEADER.ImageBase
    ImageBase = int((hex(intImageBase))[2:], 16)
    print("ImageBase：\t\t", hex(ImageBase), type(ImageBase))
    # 2.3.2 RVA
    # 2.3.2.1 密文RVA
    encryptedRVA = (int(encryptedVA) - ImageBase)
    print("密文RVA：\t\t", hex(encryptedRVA).upper(), type(encryptedRVA))
    # 2.3.2.2 密钥RVA
    keyRVA = (int(keyVA) - ImageBase)
    print("密钥RVA：\t\t", hex(keyRVA).upper(), type(keyRVA))
    # 2.3.3 FileOffset
    # 2.3.3.1 密文FileOffset
    encryptedFileOffset = filePE.get_offset_from_rva(encryptedRVA)
    print("密文FileOffset：\t", hex(encryptedFileOffset).upper(), type(encryptedFileOffset))
    # 2.3.3.2 密钥FileOffset
    keyFileOffset = filePE.get_offset_from_rva(keyRVA)
    print("密钥FileOffset：\t", hex(keyFileOffset).upper(), type(keyFileOffset))
    # 2.4 从PE中取数据
    # 2.4.1 密文
    global encrypted
    encrypted = hexstr2list((hex(int(hexPE[2 * encryptedFileOffset : 2 * (encryptedFileOffset + lenC2)], 16))[2:].upper()))
    print("密文为：\t\t\t", encrypted)
    # 2.4.2 密钥
    global key
    key = hexstr2list((hex(int(hexPE[2 * keyFileOffset : 2 * (keyFileOffset + lenC2)], 16))[2:].upper()))
    print("密钥为：\t\t\t", key)
# 3. 异或解密
def Encrypted():
    C2 = ''
    n0 = 0
    for i in range(lenC2):
        xor = int(encrypted[i], 16) ^ int(key[i], 16)
        i += 2
        if (xor == 0):
            C2 += "\r\n"
            n0 += 1
            if (n0 == 2):
                break
            C2 += "端口：\t"
        else:
            C2 += chr(xor)
    print("域名：", C2)
if __name__ == '__main__':
    pathFile = ".\\GreenSpot2020"
    File2Read()
    HexRegVA()
    Encrypted()
    # 【长度都是24，考虑通过第两次0x00后break】
