    public static void main(String[] args) {
        XmlBeanFactory xmlBeanFactory = new XmlBeanFactory(new ClassPathResource("spring.xml"));
    }

配置文件封装

new ClassPathResource("spring.xml")

Spring对于不同来源的资源文件都有响应的Resource实现

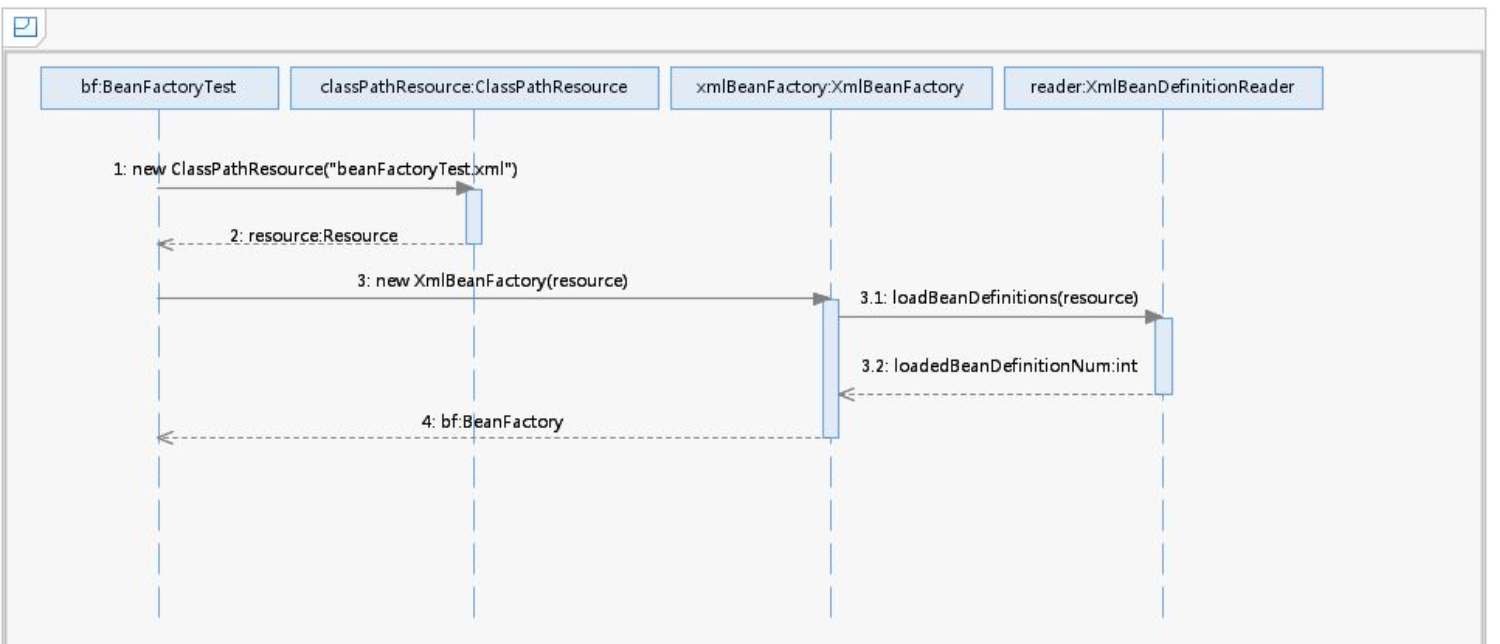

XmlBeanFactory构造

    public XmlBeanFactory(Resource resource, BeanFactory parentBeanFactory) throws BeansException {
        super(parentBeanFactory);
        this.reader.loadBeanDefinitions(resource);
    }

super方法

 /**
  * Create a new AbstractAutowireCapableBeanFactory.
  */
 public AbstractAutowireCapableBeanFactory() {
     super();
     ignoreDependencyInterface(BeanNameAware.class);
     ignoreDependencyInterface(BeanFactoryAware.class);
     ignoreDependencyInterface(BeanClassLoaderAware.class);
     if (NativeDetector.inNativeImage()) {
         this.instantiationStrategy = new SimpleInstantiationStrategy();
     }
     else {
         this.instantiationStrategy = new CglibSubclassingInstantiationStrategy();
     }
 }

ignoreDependencyInterface(接口.clsss)：会忽略指定接口的类型的依赖项

reader.loadBeanDefinitions(resource)

重点内容，reader的实现类就是XmlBeanFactoryReader

loadBeanDefinitions(resource)

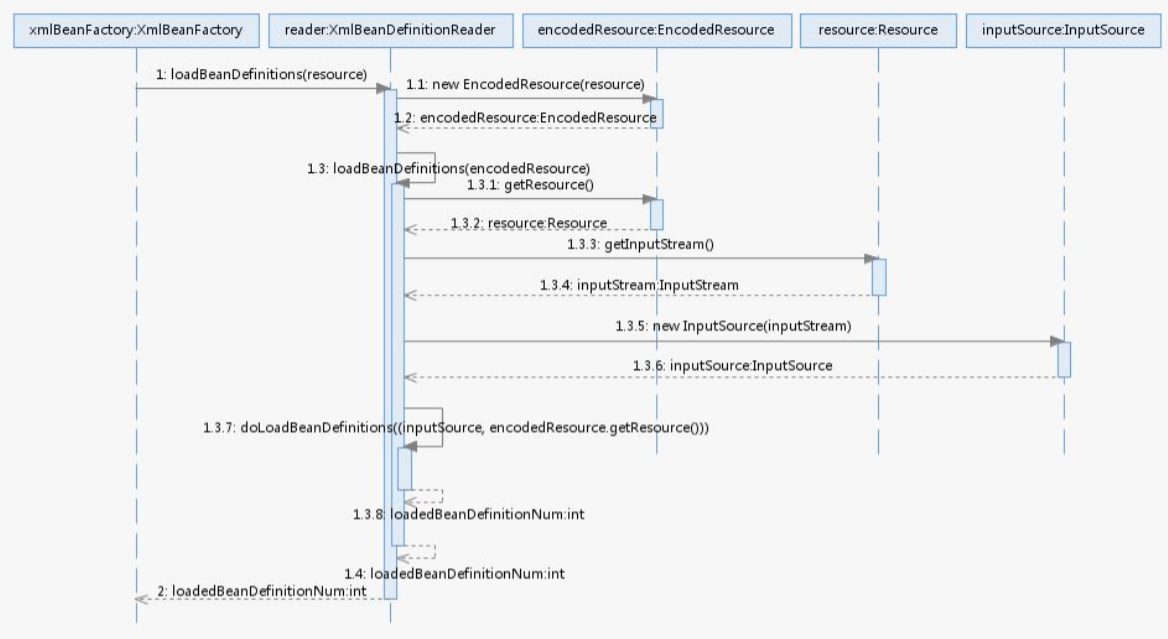

处理流程

将Resource封装成EncodedResource
从Resource获取InputSource
最后将Resource和InputSource共同传入doLoadBeanDefinitions方法中

doLoadBeanDefinitions
这段代码里异常处理很多，不看异常处理，重要的代码是2句
加载xml文件为Document

根据Document注册Bean信息

protected int doLoadBeanDefinitions(InputSource inputSource, Resource resource)
         throws BeanDefinitionStoreException {
     try {
         Document doc = doLoadDocument(inputSource, resource);
         int count = registerBeanDefinitions(doc, resource);
         return count;
     }
     catch ....
 }

获取Document流程

获取Document流程交给了DocumentLoader的唯一一个实现类DefaultDocumentLoader来处理,
具体的处理逻辑也是通过Java提供的SAX对XML进行解析

解析及注册BeanDefinitions

流程描述

获取一个BeanDefinitionDocumentRader类，这里的具体实现类是DefaultBeanDefinitionDocumentReader
调用DefaultBeanDefinitionDocumentReader解析前，封装XmlReaderContext
调用DefaultBeanDefinitionDocumentReader的registerBeanDefinitions执行注册

返回注册BeanDefinition数量

`doRegisterBeanDefinitions`

DefaultBeanDefinitionDocumentReader的registerBeanDefinitions最终会进入，这个
doRegisterBeanDefinitions方法。

 @SuppressWarnings("deprecation")  // for Environment.acceptsProfiles(String...)
 protected void doRegisterBeanDefinitions(Element root) {
     BeanDefinitionParserDelegate parent = this.delegate;
     this.delegate = createDelegate(getReaderContext(), root, parent);
     if (this.delegate.isDefaultNamespace(root)) {
         String profileSpec = root.getAttribute(PROFILE_ATTRIBUTE);
         if (StringUtils.hasText(profileSpec)) {
             String[] specifiedProfiles = StringUtils.tokenizeToStringArray(
                     profileSpec, BeanDefinitionParserDelegate.MULTI_VALUE_ATTRIBUTE_DELIMITERS);
             // We cannot use Profiles.of(...) since profile expressions are not supported
             // in XML config. See SPR-12458 for details.
             if (!getReaderContext().getEnvironment().acceptsProfiles(specifiedProfiles)) {
                 if (logger.isDebugEnabled()) {
                     logger.debug("Skipped XML bean definition file due to specified profiles [" + profileSpec +
                             "] not matching: " + getReaderContext().getResource());
                 }
                 return;
             }
         }
     }
     preProcessXml(root);
     parseBeanDefinitions(root, this.delegate);
     postProcessXml(root);
     this.delegate = parent;
 }

创建委托对象
解析profile
preProcessXml：未实现的方法
执行解析
postProcessXml：未实现的方法
parseBeanDefinitions(root, this.delegate);
解析”import”, “alias”, “bean”等元素

    protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
        if (delegate.isDefaultNamespace(root)) {
            NodeList nl = root.getChildNodes();
            for (int i = 0; i < nl.getLength(); i++) {
                Node node = nl.item(i);
                if (node instanceof Element) {
                    Element ele = (Element) node;
                    if (delegate.isDefaultNamespace(ele)) {
                        parseDefaultElement(ele, delegate);
                    }
                    else {
                        delegate.parseCustomElement(ele);
                    }
                }
            }
        }
        else {
            delegate.parseCustomElement(root);
        }
    }

若是默认元素标签：bean、import、alias等，走parseDefaultElement(ele, delegate);

 private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
     if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
         //import标签
         importBeanDefinitionResource(ele);
     }
     else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
         //alias标签
         processAliasRegistration(ele);
     }
     else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
         //bean标签
         processBeanDefinition(ele, delegate);
     }
     else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
         // recurse
         doRegisterBeanDefinitions(ele);
     }
 }

若是自定义标签：走delegate.parseCustomElement(ele);

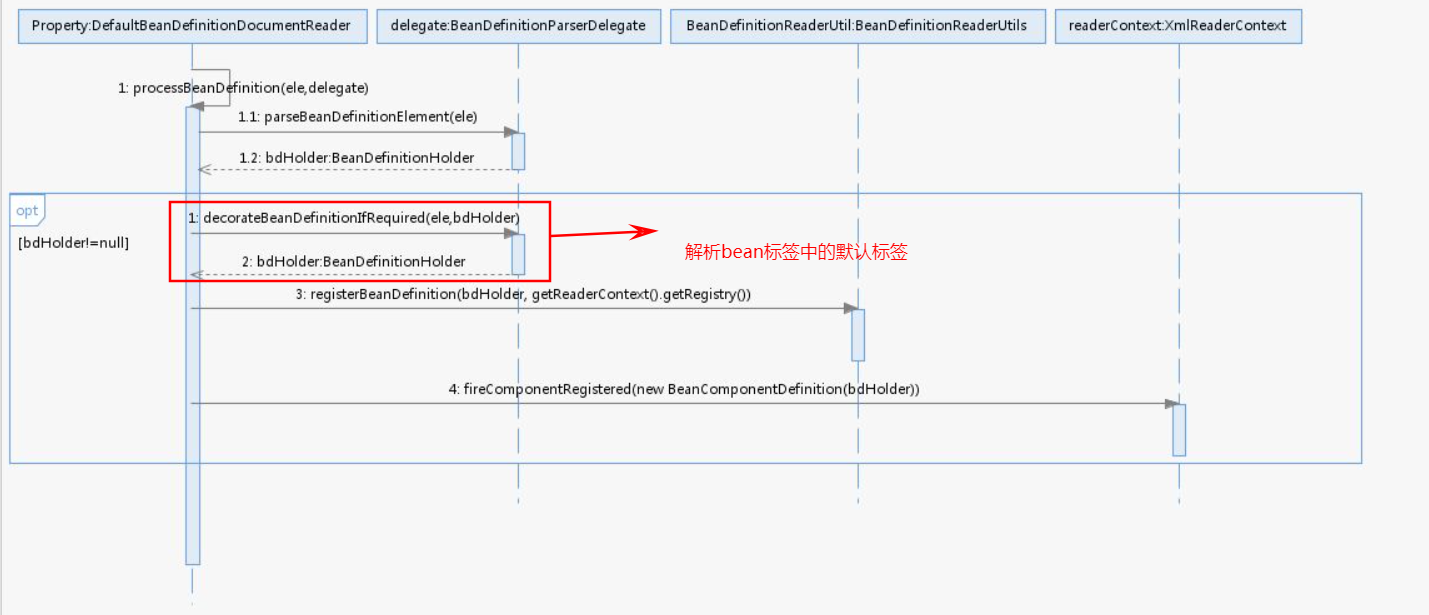

Bean标签的解析

方法：DefaultBeanDefinitionDocumentReader#processBeanDefinition

委托BeanDefinitionDelegate类的parseBeanDefinitionElement方法进行元素解析,返回BeanDefinitionHodler
若默认标签的子标签下有自定义标签，会执行BeanDefinitionParserDelegate#decorateBeanDefinitionIfRequired()方法
将BeanDefinition注册，通过BeanDefinitionReaderUtils
发送通知

步骤1解析为BeanDefinitionHodler
判断beanName和name属性
生成GenericBeanDefinition
若无beanName，自动生成

@Nullable
    public BeanDefinitionHolder parseBeanDefinitionElement(Element ele, @Nullable BeanDefinition containingBean) {
        //提取 id 和 name属性
        String id = ele.getAttribute(ID_ATTRIBUTE);
        String nameAttr = ele.getAttribute(NAME_ATTRIBUTE);
        //所有的name属性通过分词作为别名
        List<String> aliases = new ArrayList<>();
        if (StringUtils.hasLength(nameAttr)) {
            String[] nameArr = StringUtils.tokenizeToStringArray(nameAttr, MULTI_VALUE_ATTRIBUTE_DELIMITERS);
            aliases.addAll(Arrays.asList(nameArr));
        }
        String beanName = id;
        //若未指定id则使用 name的 第一个元素作为 beanName
        if (!StringUtils.hasText(beanName) && !aliases.isEmpty()) {
            beanName = aliases.remove(0);
            if (logger.isTraceEnabled()) {
                logger.trace("No XML 'id' specified - using '" + beanName +
                        "' as bean name and " + aliases + " as aliases");
            }
        }
        //检查所有的别名和beanName的唯一性
        if (containingBean == null) {
            checkNameUniqueness(beanName, aliases, ele);
        }
        //将元素解析未  BeanDefiniton
        AbstractBeanDefinition beanDefinition = parseBeanDefinitionElement(ele, beanName, containingBean);
        if (beanDefinition != null) {
            if (!StringUtils.hasText(beanName)) {
                try {
                    if (containingBean != null) {
                        beanName = BeanDefinitionReaderUtils.generateBeanName(
                                beanDefinition, this.readerContext.getRegistry(), true);
                    }
                    else {
                        beanName = this.readerContext.generateBeanName(beanDefinition);
                        // Register an alias for the plain bean class name, if still possible,
                        // if the generator returned the class name plus a suffix.
                        // This is expected for Spring 1.2/2.0 backwards compatibility.
                        String beanClassName = beanDefinition.getBeanClassName();
                        if (beanClassName != null &&
                                beanName.startsWith(beanClassName) && beanName.length() > beanClassName.length() &&
                                !this.readerContext.getRegistry().isBeanNameInUse(beanClassName)) {
                            aliases.add(beanClassName);
                        }
                    }
                    if (logger.isTraceEnabled()) {
                        logger.trace("Neither XML 'id' nor 'name' specified - " +
                                "using generated bean name [" + beanName + "]");
                    }
                }
                catch (Exception ex) {
                    error(ex.getMessage(), ele);
                    return null;
                }
            }
            String[] aliasesArray = StringUtils.toStringArray(aliases);
            return new BeanDefinitionHolder(beanDefinition, beanName, aliasesArray);
        }
        return null;
    }

根据指定字符串中任一字符串分词的工具类 String[] nameArr = StringUtils.tokenizeToStringArray(nameAttr, MULTI_VALUE_ATTRIBUTE_DELIMITERS);

生成GenericBeanDefinition

解析中的calss和parent
生生成BeanDefinition
解析的各种属性

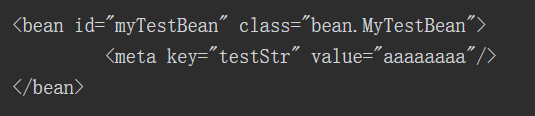

解析子元素meta

解析子元素lookup-method

解析子元素replaced-method
解析子元素constructor-arg
解析子元素property
解析子元素qualifier
```
@Nullable
 public AbstractBeanDefinition parseBeanDefinitionElement(
         Element ele, String beanName, @Nullable BeanDefinition containingBean) {
     this.parseState.push(new BeanEntry(beanName));
     String className = null;
     if (ele.hasAttribute(CLASS_ATTRIBUTE)) {
         className = ele.getAttribute(CLASS_ATTRIBUTE).trim();
     }
     String parent = null;
     if (ele.hasAttribute(PARENT_ATTRIBUTE)) {
         parent = ele.getAttribute(PARENT_ATTRIBUTE);
     }
     try {
         AbstractBeanDefinition bd = createBeanDefinition(className, parent);
         //解析 parent scope/lazy-init等属性
         parseBeanDefinitionAttributes(ele, beanName, containingBean, bd);
         bd.setDescription(DomUtils.getChildElementValueByTagName(ele, DESCRIPTION_ELEMENT));
         //
         parseMetaElements(ele, bd);
         //解析lookup
         parseLookupOverrideSubElements(ele, bd.getMethodOverrides());
         parseReplacedMethodSubElements(ele, bd.getMethodOverrides());
         //解析构造函数参数
         parseConstructorArgElements(ele, bd);
         //解析属性
         parsePropertyElements(ele, bd);
         parseQualifierElements(ele, bd);
         bd.setResource(this.readerContext.getResource());
         bd.setSource(extractSource(ele));
         return bd;
     }
     catch (ClassNotFoundException ex) {
         error("Bean class [" + className + "] not found", ele, ex);
     }
     catch (NoClassDefFoundError err) {
         error("Class that bean class [" + className + "] depends on not found", ele, err);
     }
     catch (Throwable ex) {
         error("Unexpected failure during bean definition parsing", ele, ex);
     }
     finally {
         this.parseState.pop();
     }
     return null;
 }
```
AbstractBeanDefinition
```java

/**
- Constant for the default scope name: {@code “”}, equivalent to singleton
- status unless overridden from a parent bean definition (if applicable). */ public static final String SCOPE_DEFAULT = “”;

  /**
- s自动装配模式
- Constant that indicates no external autowiring at all.
- @see #setAutowireMode */ public static final int AUTOWIRE_NO = AutowireCapableBeanFactory.AUTOWIRE_NO;

  /**
- Constant that indicates autowiring bean properties by name.
- @see #setAutowireMode */ public static final int AUTOWIRE_BY_NAME = AutowireCapableBeanFactory.AUTOWIRE_BY_NAME;

  /**
- Constant that indicates autowiring bean properties by type.
- @see #setAutowireMode */ public static final int AUTOWIRE_BY_TYPE = AutowireCapableBeanFactory.AUTOWIRE_BY_TYPE;

  /**
- Constant that indicates autowiring a constructor.
- @see #setAutowireMode */ public static final int AUTOWIRE_CONSTRUCTOR = AutowireCapableBeanFactory.AUTOWIRE_CONSTRUCTOR;

  /**
- Constant that indicates determining an appropriate autowire strategy
- through introspection of the bean class.
- @see #setAutowireMode
- @deprecated as of Spring 3.0: If you are using mixed autowiring strategies,
- use annotation-based autowiring for clearer demarcation of autowiring needs. */ @Deprecated public static final int AUTOWIRE_AUTODETECT = AutowireCapableBeanFactory.AUTOWIRE_AUTODETECT;

  /**
- Constant that indicates no dependency check at all.
- @see #setDependencyCheck */ public static final int DEPENDENCY_CHECK_NONE = 0;

  /**
- Constant that indicates dependency checking for object references.
- @see #setDependencyCheck */ public static final int DEPENDENCY_CHECK_OBJECTS = 1;

  /**
- Constant that indicates dependency checking for “simple” properties.
- @see #setDependencyCheck
- @see org.springframework.beans.BeanUtils#isSimpleProperty */ public static final int DEPENDENCY_CHECK_SIMPLE = 2;

  /**
- Constant that indicates dependency checking for all properties
- (object references as well as “simple” properties).
- @see #setDependencyCheck */ public static final int DEPENDENCY_CHECK_ALL = 3;

  /**
- Constant that indicates the container should attempt to infer the
- {@link #setDestroyMethodName destroy method name} for a bean as opposed to
- explicit specification of a method name. The value {@value} is specifically
- designed to include characters otherwise illegal in a method name, ensuring
- no possibility of collisions with legitimately named methods having the same
- name.
- Currently, the method names detected during destroy method inference
- are “close” and “shutdown”, if present on the specific bean class. */ public static final String INFER_METHOD = “(inferred)”;

  // beanClass @Nullable private volatile Object beanClass; //作用域 @Nullable private String scope = SCOPE_DEFAULT;

  private boolean abstractFlag = false;

  //懒加载 @Nullable private Boolean lazyInit; //自动装配方式 private int autowireMode = AUTOWIRE_NO;

  private int dependencyCheck = DEPENDENCY_CHECK_NONE; //dependon @Nullable private String[] dependsOn; //装配候选人 private boolean autowireCandidate = true; // 是否主要 private boolean primary = false; // private final Map qualifiers = new LinkedHashMap<>();

  @Nullable private Supplier<?> instanceSupplier;

  private boolean nonPublicAccessAllowed = true;

  private boolean lenientConstructorResolution = true;

  @Nullable private String factoryBeanName;

  @Nullable private String factoryMethodName;

  @Nullable private ConstructorArgumentValues constructorArgumentValues;

  @Nullable private MutablePropertyValues propertyValues;

  private MethodOverrides methodOverrides = new MethodOverrides();

  @Nullable private String initMethodName;

  @Nullable private String destroyMethodName;

  private boolean enforceInitMethod = true;

  private boolean enforceDestroyMethod = true;

  private boolean synthetic = false;

  private int role = BeanDefinition.ROLE_APPLICATION;

  @Nullable private String description;

  @Nullable private Resource resource;


<a name="PMzub"></a>
## 步骤2解析自定义标签
过
<a name="WL1Fm"></a>
## 步骤3注册成为BeanDefinition
通过`BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder,getReaderContext().getRegistry())`进行注册
```java
    public static void registerBeanDefinition(
            BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry)
            throws BeanDefinitionStoreException {
        // Register bean definition under primary name.
        String beanName = definitionHolder.getBeanName();
        registry.registerBeanDefinition(beanName, definitionHolder.getBeanDefinition());
        // Register aliases for bean name, if any. beanName的别名
        String[] aliases = definitionHolder.getAliases();
        if (aliases != null) {
            for (String alias : aliases) {
                registry.registerAlias(beanName, alias);
            }
        }
    }

注册beanName->BeanDefinition

@Override
    public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)
            throws BeanDefinitionStoreException {
        //校验
        if (beanDefinition instanceof AbstractBeanDefinition) {
            try {
                ((AbstractBeanDefinition) beanDefinition).validate();
            }
            catch (BeanDefinitionValidationException ex) {
                throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
                        "Validation of bean definition failed", ex);
            }
        }
        //若存在，需要判断是否允许覆盖
        BeanDefinition existingDefinition = this.beanDefinitionMap.get(beanName);
        if (existingDefinition != null) {
            if (!isAllowBeanDefinitionOverriding()) {
                throw new BeanDefinitionOverrideException(beanName, beanDefinition, existingDefinition);
            }
            else if (existingDefinition.getRole() < beanDefinition.getRole()) {
                // e.g. was ROLE_APPLICATION, now overriding with ROLE_SUPPORT or ROLE_INFRASTRUCTURE
                if (logger.isInfoEnabled()) {
                    logger.info("Overriding user-defined bean definition for bean '" + beanName +
                            "' with a framework-generated bean definition: replacing [" +
                            existingDefinition + "] with [" + beanDefinition + "]");
                }
            }
            else if (!beanDefinition.equals(existingDefinition)) {
                if (logger.isDebugEnabled()) {
                    logger.debug("Overriding bean definition for bean '" + beanName +
                            "' with a different definition: replacing [" + existingDefinition +
                            "] with [" + beanDefinition + "]");
                }
            }
            else {
                if (logger.isTraceEnabled()) {
                    logger.trace("Overriding bean definition for bean '" + beanName +
                            "' with an equivalent definition: replacing [" + existingDefinition +
                            "] with [" + beanDefinition + "]");
                }
            }
            this.beanDefinitionMap.put(beanName, beanDefinition);
        }
        else {
            //r若已经又Bean创建了
            if (hasBeanCreationStarted()) {
                // Cannot modify startup-time collection elements anymore (for stable iteration)
                synchronized (this.beanDefinitionMap) {
                    this.beanDefinitionMap.put(beanName, beanDefinition);
                    List<String> updatedDefinitions = new ArrayList<>(this.beanDefinitionNames.size() + 1);
                    updatedDefinitions.addAll(this.beanDefinitionNames);
                    updatedDefinitions.add(beanName);
                    this.beanDefinitionNames = updatedDefinitions;
                    removeManualSingletonName(beanName);
                }
            }
            else {
                // Still in startup registration phase
                this.beanDefinitionMap.put(beanName, beanDefinition);
                this.beanDefinitionNames.add(beanName);
                removeManualSingletonName(beanName);
            }
            this.frozenBeanDefinitionNames = null;
        }
        if (existingDefinition != null || containsSingleton(beanName)) {
            resetBeanDefinition(beanName);
        }
        else if (isConfigurationFrozen()) {
            clearByTypeCache();
        }
    }

注册alia->beanName

@Override
    public void registerAlias(String name, String alias) {
        Assert.hasText(name, "'name' must not be empty");
        Assert.hasText(alias, "'alias' must not be empty");
        synchronized (this.aliasMap) {
            if (alias.equals(name)) {
                this.aliasMap.remove(alias);
                if (logger.isDebugEnabled()) {
                    logger.debug("Alias definition '" + alias + "' ignored since it points to same name");
                }
            }
            else {
                String registeredName = this.aliasMap.get(alias);
                if (registeredName != null) {
                    if (registeredName.equals(name)) {
                        // An existing alias - no need to re-register
                        return;
                    }
                    if (!allowAliasOverriding()) {
                        throw new IllegalStateException("Cannot define alias '" + alias + "' for name '" +
                                name + "': It is already registered for name '" + registeredName + "'.");
                    }
                    if (logger.isDebugEnabled()) {
                        logger.debug("Overriding alias '" + alias + "' definition for registered name '" +
                                registeredName + "' with new target name '" + name + "'");
                    }
                }
                checkForAliasCircle(name, alias);
                this.aliasMap.put(alias, name);
                if (logger.isTraceEnabled()) {
                    logger.trace("Alias definition '" + alias + "' registered for name '" + name + "'");
                }
            }
        }
    }

会检查循环的问题 A->B->A

步骤4通知注册完成

过

雨润工作笔记

XmlBeanFactory
