DefaultListableBeanFactory

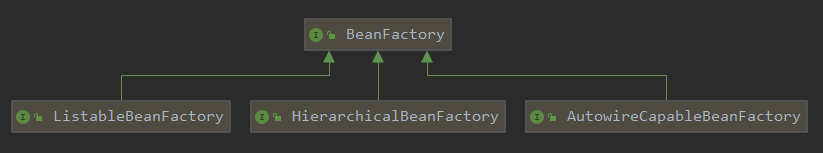

1.BeanFactory的三个亲子接口

上图展示的是BeanFactory的三个儿子，这三个接口分别对BeanFactory进行了功能上的扩展

ListableBeanFactory：对Bean信息、Bean定义信息进行查询操作
1. 涉及一个工具类：_BeanFactoryUtils_
HierarchicalBeanFactory：增加BeanFactory的父子关系的支持
AutowireCapableBeanFactory：提供创建Bean、应用后置处理器、自动注入等方法定义

2.SingletonBeanRegistry
此类需要被BeanFactory的类实现，其作用是为单例Bean的获取和注册提供统一的操作行为

3.AliasRegistry
提供别名的增删改操作

3.1BeanDefinitionRegistry
继承AliasRegistry，定义了一系列关于BeanDefinition的CRUD

3.1SimpleAliasRegistry (实现类)
这是一个实现类，纯纯的就是对AliasRegistry定义的行为进行实现 ```java public class SimpleAliasRegistry implements AliasRegistry {

/* Logger available to subclasses. / protected final Log logger = LogFactory.getLog(getClass());

/* 存放的是别名->规范的名 / private final Map aliasMap = new ConcurrentHashMap<>(16);

@Override
public void registerAlias(String name, String alias) {
    Assert.hasText(name, "'name' must not be empty");
    Assert.hasText(alias, "'alias' must not be empty");
    synchronized (this.aliasMap) {
        if (alias.equals(name)) {
            //name和alias相同时直接remove
            this.aliasMap.remove(alias);
        }
        else {
            String registeredName = this.aliasMap.get(alias);
            if (registeredName != null) {
                //若已经有相关的 alias啦
                if (registeredName.equals(name)) {
                    // An existing alias - no need to re-register
                    return;
                }
                if (!allowAliasOverriding()) {
                    //不允许重复Alias
                    throw new IllegalStateException();
                }
                //日志
            }
            //别名循环  A->B->A
            checkForAliasCircle(name, alias);
            this.aliasMap.put(alias, name);
            //日志
        }
    }
}
/**
 * Determine whether alias overriding is allowed.
 * <p>Default is {@code true}.
 */
protected boolean allowAliasOverriding() {
    return true;
}
/**
 * Determine whether the given name has the given alias registered.
 * @param name the name to check
 * @param alias the alias to look for
 * @since 4.2.1
 */
public boolean hasAlias(String name, String alias) {
    String registeredName = this.aliasMap.get(alias);
    return ObjectUtils.nullSafeEquals(registeredName, name) || (registeredName != null
            && hasAlias(name, registeredName));
}
@Override
public void removeAlias(String alias) {
    synchronized (this.aliasMap) {
        String name = this.aliasMap.remove(alias);
        //日志
    }
}
@Override
public boolean isAlias(String name) {
    return this.aliasMap.containsKey(name);
}
@Override
public String[] getAliases(String name) {
    List<String> result = new ArrayList<>();
    synchronized (this.aliasMap) {
        retrieveAliases(name, result);
    }
    return StringUtils.toStringArray(result);
}
/**
 * Transitively retrieve all aliases for the given name.
 * @param name the target name to find aliases for
 * @param result the resulting aliases list
 */
private void retrieveAliases(String name, List<String> result) {
    this.aliasMap.forEach((alias, registeredName) -> {
        if (registeredName.equals(name)) {
            result.add(alias);
            retrieveAliases(alias, result);
        }
    });
}
/**
 * Resolve all alias target names and aliases registered in this
 * registry, applying the given {@link StringValueResolver} to them.
 * <p>The value resolver may for example resolve placeholders
 * in target bean names and even in alias names.
 * @param valueResolver the StringValueResolver to apply
 */
public void resolveAliases(StringValueResolver valueResolver) {
    Assert.notNull(valueResolver, "StringValueResolver must not be null");
    synchronized (this.aliasMap) {
        Map<String, String> aliasCopy = new HashMap<>(this.aliasMap);
        aliasCopy.forEach((alias, registeredName) -> {
            String resolvedAlias = valueResolver.resolveStringValue(alias);
            String resolvedName = valueResolver.resolveStringValue(registeredName);
            if (resolvedAlias == null || resolvedName == null || resolvedAlias.equals(resolvedName)) {
                this.aliasMap.remove(alias);
            }
            else if (!resolvedAlias.equals(alias)) {
                String existingName = this.aliasMap.get(resolvedAlias);
                if (existingName != null) {
                    if (existingName.equals(resolvedName)) {
                        // Pointing to existing alias - just remove placeholder
                        this.aliasMap.remove(alias);
                        return;
                    }
                    throw new IllegalStateException(
                            "Cannot register resolved alias '" + resolvedAlias + "' (original: '" + alias +
                            "') for name '" + resolvedName + "': It is already registered for name '" +
                            registeredName + "'.");
                }
                checkForAliasCircle(resolvedName, resolvedAlias);
                this.aliasMap.remove(alias);
                this.aliasMap.put(resolvedAlias, resolvedName);
            }
            else if (!registeredName.equals(resolvedName)) {
                this.aliasMap.put(alias, resolvedName);
            }
        });
    }
}
/**
 * Check whether the given name points back to the given alias as an alias
 * in the other direction already, catching a circular reference upfront
 * and throwing a corresponding IllegalStateException.
 * @param name the candidate name
 * @param alias the candidate alias
 * @see #registerAlias
 * @see #hasAlias
 */
protected void checkForAliasCircle(String name, String alias) {
    if (hasAlias(alias, name)) {
        throw new IllegalStateException(");
    }
}
/**
 * Determine the raw name, resolving aliases to canonical names.
 * @param name the user-specified name
 * @return the transformed name
 */
public String canonicalName(String name) {
    String canonicalName = name;
    // Handle aliasing...
    String resolvedName;
    do {
        resolvedName = this.aliasMap.get(canonicalName);
        if (resolvedName != null) {
            canonicalName = resolvedName;
        }
    }
    while (resolvedName != null);
    return canonicalName;
}

}

<a name="Fr2Mc"></a>
## 4.DefaultSingletonBeanRegistry（实现类）
![image.png](https://cdn.nlark.com/yuque/0/2022/png/1609516/1655253809785-d6e9ec63-e45f-42c6-9236-c3ba203bebf5.png#clientId=u81e1cd3f-1762-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=321&id=u4c6ef407&margin=%5Bobject%20Object%5D&name=image.png&originHeight=214&originWidth=495&originalType=binary&ratio=1&rotation=0&showTitle=false&size=9245&status=done&style=none&taskId=ubf52d602-c776-437a-8687-282509bb146&title=&width=743)<br />作用：是对`SingletonBeanRegistry`的实现，对单例Bean进行管理
```java
    /** Cache of singleton objects: bean name --> bean instance  缓存单例对象 */
    private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);
    /** Cache of singleton factories: bean name --> ObjectFactory 缓存单例对象工厂 */
    private final Map<String, ObjectFactory<?>> singletonFactories = new HashMap<>(16);
    /** Cache of early singleton objects: bean name --> bean instance 缓存早期Bean */
    private final Map<String, Object> earlySingletonObjects = new HashMap<>(16);
    /**   BeanNames集合（顺序按照注册顺序）*/
    private final Set<String> registeredSingletons = new LinkedHashSet<>(256);
    /** 正在创建的BeanName */
    private final Set<String> singletonsCurrentlyInCreation =
            Collections.newSetFromMap(new ConcurrentHashMap<>(16));
    /** Names of beans currently excluded from in creation checks */
    private final Set<String> inCreationCheckExclusions =
            Collections.newSetFromMap(new ConcurrentHashMap<>(16));
    /** List of suppressed Exceptions, available for associating related causes */
    @Nullable
    private Set<Exception> suppressedExceptions;
    /** Flag that indicates whether we're currently within destroySingletons */
    private boolean singletonsCurrentlyInDestruction = false;
    /** Disposable 类型的 bean instances: bean name --> disposable instance */
    private final Map<String, Object> disposableBeans = new LinkedHashMap<>();
    /** Map between containing bean names: bean name --> 依赖的beanName集合 Set of bean names that the bean contains */
    private final Map<String, Set<String>> containedBeanMap = new ConcurrentHashMap<>(16);
    /** Map between dependent bean names: bean name --> Set of dependent bean names */
    private final Map<String, Set<String>> dependentBeanMap = new ConcurrentHashMap<>(64);
    /** Map between depending bean names: bean name --> Set of bean names for the bean's dependencies */
    private final Map<String, Set<String>> dependenciesForBeanMap = new ConcurrentHashMap<>(64);

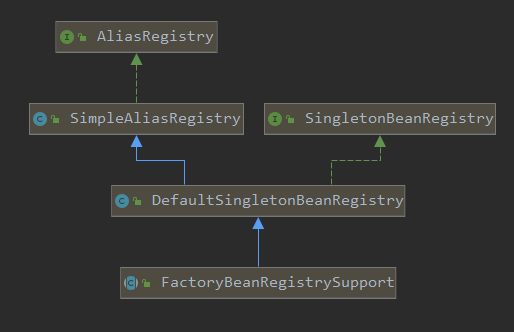

4.1FactoryBeanRegistrySupport（抽象类）

FactoryBean直接基础DefaultSingletonBeanRegistry,增加了对FactoryBean的特殊处理功能

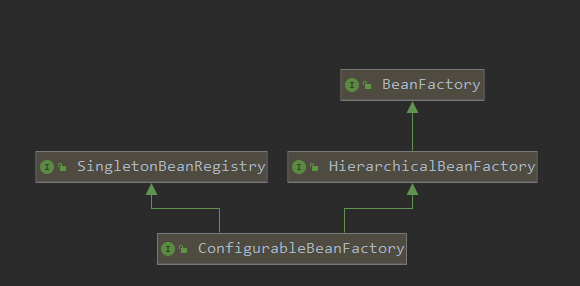

5.ConfigurableBeanFactory

提供了配置bean的方法

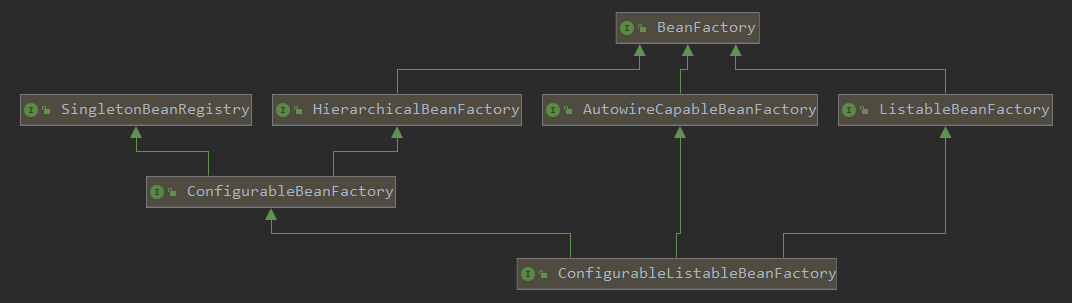

5.1ConfigurableListableBeanFactory
在ConfigurableBeanFactory的基础上把ListableBeanFactory和AutowireCapableBeanFactory进行了继承，新增了忽略类型及接口的方法定义

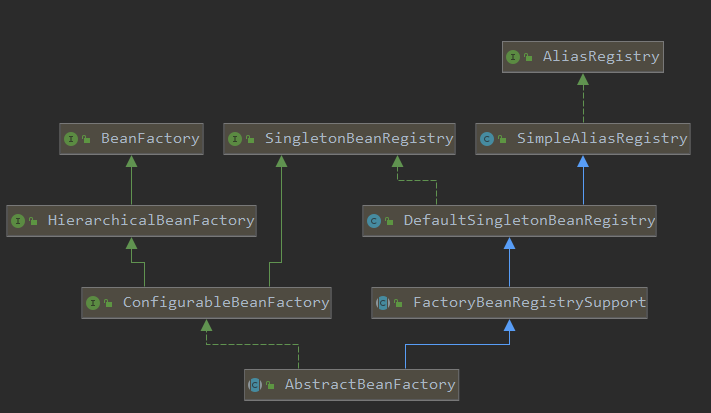

6.AbstractBeanFactory（抽象类）
抽象类，实现了ConfigurableBeanFactory和继承FactoryBeanRegistrySupport对子类公共的功能进行了实现

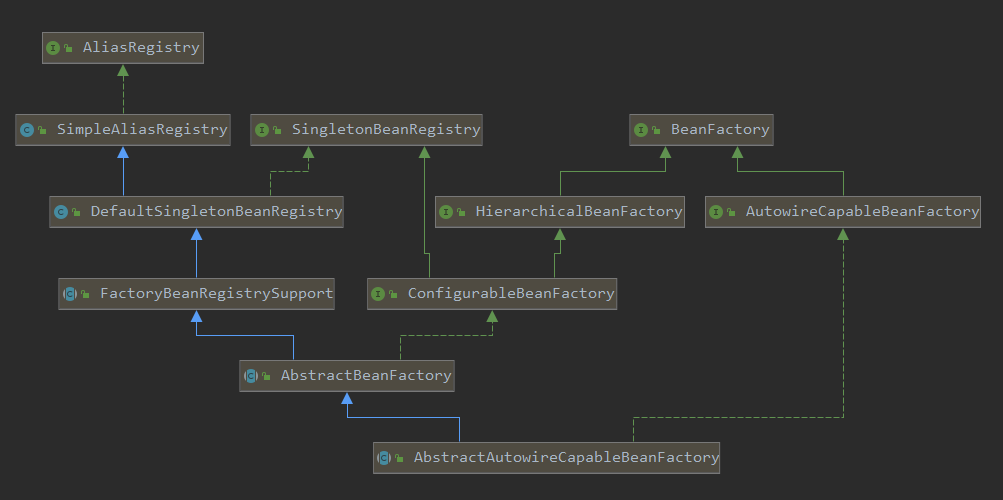

6.1AbstractAutowireCapableBeanFactory（抽象类）
抽象类，继承AbstractBeanFactory同时实现了AutowireCapableBeanFactory

小结

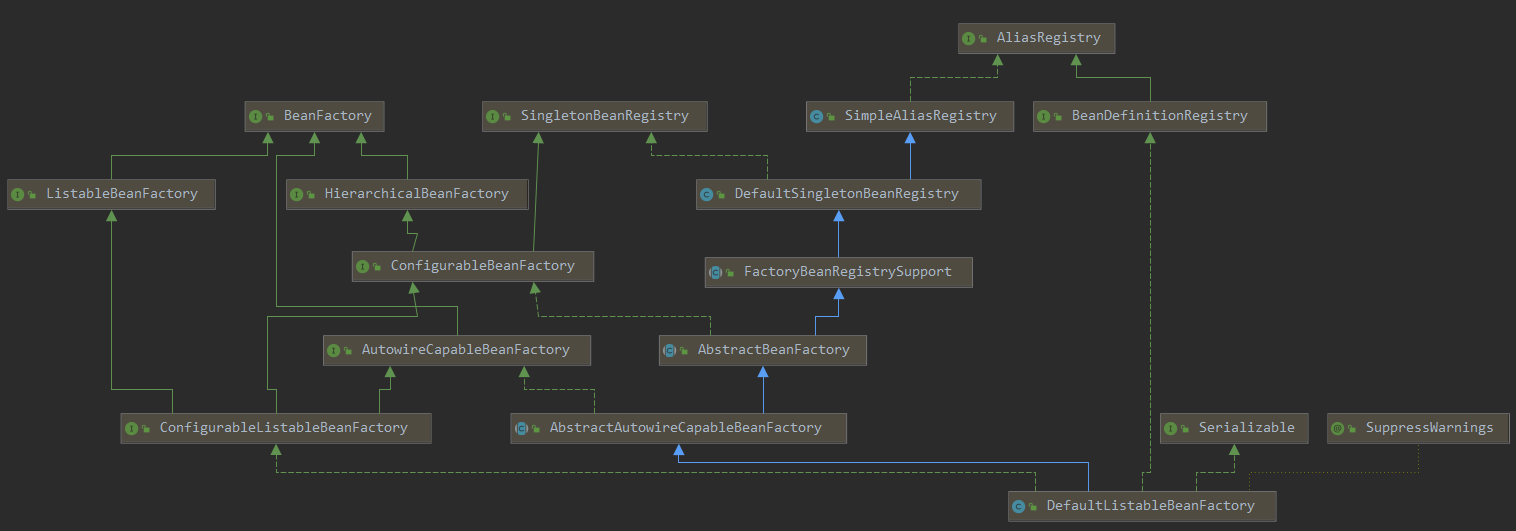

DefaultListableBeanFactory实现了ConfigurableListableBeanFactory(这个接口拥有三个主要接口功能)和BeanDefinition接口并继承了AbstractAutowireCapableBeanFactory。

XmlBeanFactory是对DefaultListableBeanFactory的扩展，添加了能够从XML文件中读取BeanDefinition的功能，其实现类是XmlBeanDefinitionReader

@Deprecated
@SuppressWarnings({"serial", "all"})
public class XmlBeanFactory extends DefaultListableBeanFactory {
    private final XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(this);
    //....................
}

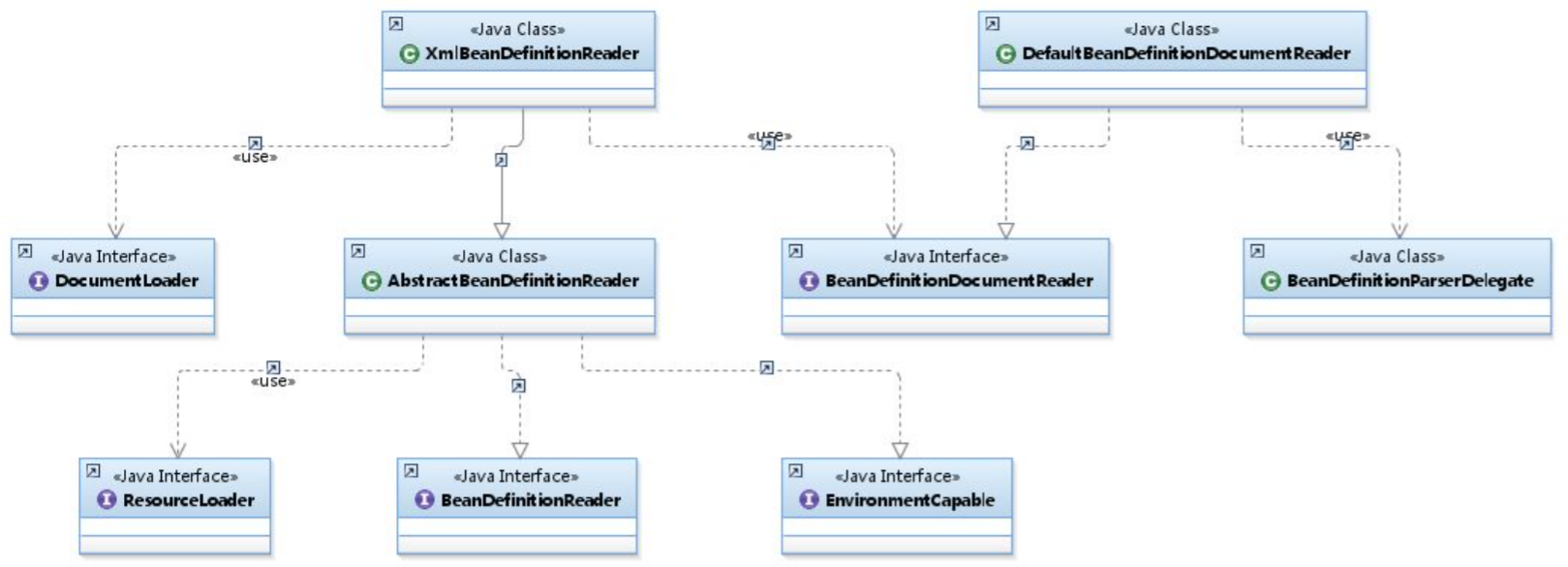

XmlBeanDefinitionReader

BeanDefinitionReader

定义BeanDefinition读取的动作

EnvironmentCapable

获取Environment

ResourceLoader

类资源加载器，在AbstractBeanDefinitionReader中引用

DocumentLoader

定义文件转换为Document的功能，如将XML文件转换为Document对象

BeanDefinitionDocumentReader

读取Document对象中BenaDefinition,是在方法中创建获取的

DefaultBeanDefinitionDocumentReader

实现了BeanDefinitionDocumentReader

BeanDefinitionParserDelegate

定义解析各种Element的各种方法

步骤描述

通过ResourceLoader将资源文件读取成为Resource
通过DocumentLoader将Resource转换为Document对象
通过DefaultBeanDefinitionDocumentReader对Document对象进行解析，并使用BeanDefinitionParserDelegate对Element进行解析
