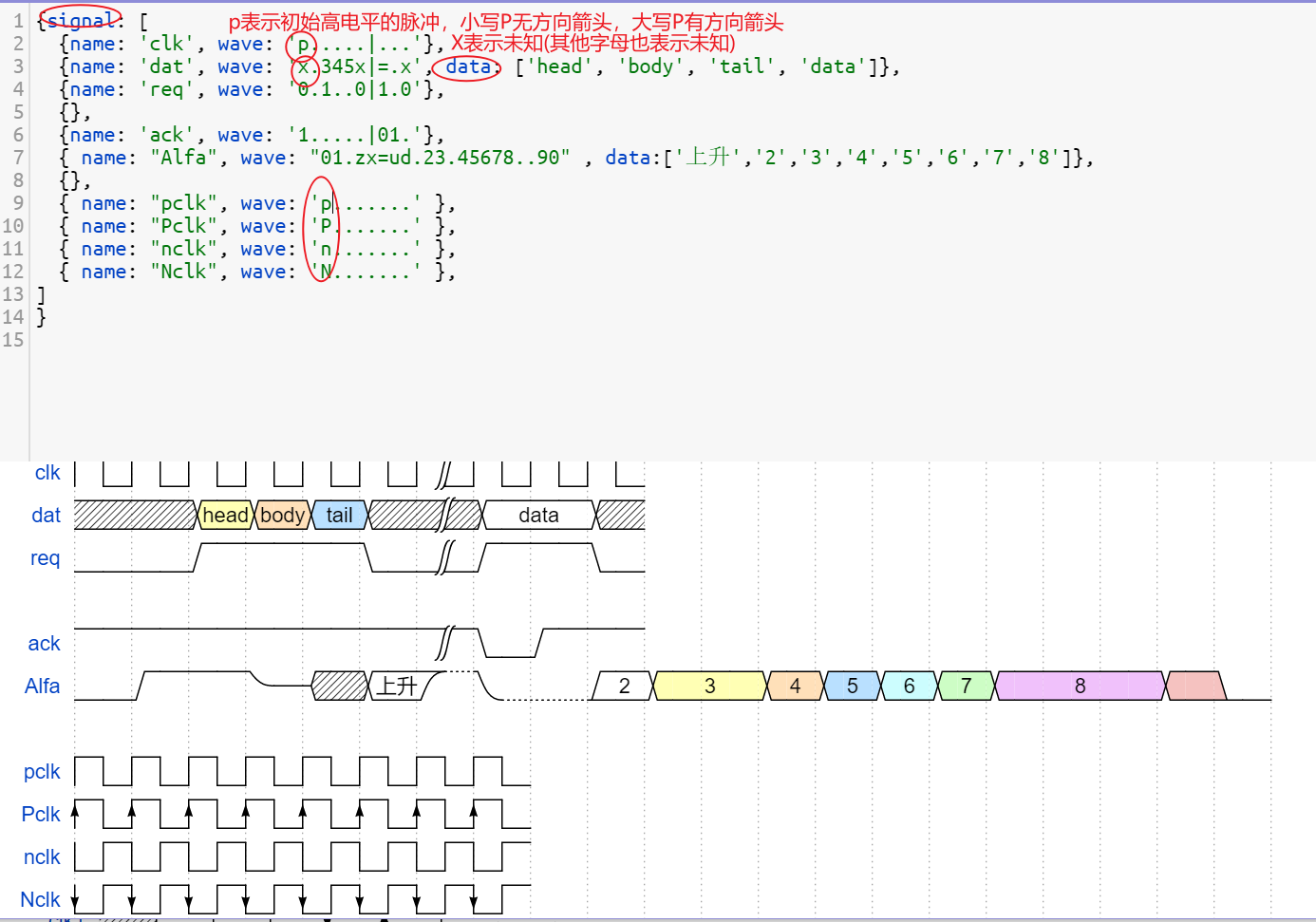

    1. {signal: [
    2.   {name: 'clk', wave: 'p.....|...'},
    3.   {name: 'dat', wave: 'x.345x|=.x', data: ['head', 'body', 'tail', 'data']},
    4.   {name: 'req', wave: '0.1..0|1.0'},
    5.   {},
    6.   {name: 'ack', wave: '1.....|01.'},
    7.   { name: "Alfa", wave: "01.zx=ud.23.45678..90" , data:['上升','2','3','4','5','6','7','8']},
    8.   {},
    9.   { name: "pclk", wave: 'p.......' },
    10.   { name: "Pclk", wave: 'P.......' },
    11.   { name: "nclk", wave: 'n.......' },
    12.   { name: "Nclk", wave: 'N.......' },
    13. ]
    14. }


    {signal: [
  {wave: '01010101010101'},    //toggling
  {wave: '0.1.0.hl'},        //dot(.) holds a value, h/l for high and low
  {wave: '222xxx345.6789'},    //multi-bit, x, 345 = colors, 6789 == x
  {wave: ''},                //blank line

  //text
  {wave: '2.2.2.2.2.2.2.',
   data: ["abcdefg", "hijk", "lmnop", "qrs", "tuv", "wx", "yx"]},
  {wave: ""},

  //name and clocks
  {name: "posclk", wave: 'pPp...........'},    //capital letters for arrows
  {name: "negclk", wave: 'n.N..n........'},    //
  {name: "divclk", wave: 'lplpl.h.l.h.pl'},
  {wave: ''},

  //fun
  {name: "barak", wave: '01.zx=ud.23.45'},

  //gapa
  {name: "gapa", wave: '01|022|0|x|.22'},

  //arrows with nodes and edges
  {name: "arrows",     wave: '0n0....2..x2..',
                       node: '.a........d'},
  {                      wave: '1.0.10..x0....',
                       node: '....b...c'},
  ],
  edge:[
  'c<~>d I found the bug!',
  ],
}
