一.核心代码
二.全部代码

这里有个单位圆。

当你拖拽蓝色圆点的时候 X 和 Y 会改变，它们是那一点在圆上的坐标，在最上方时 Y 是 1 并且 X 是 0 ，在最右边的时候 X 是 1 并且 Y 是 0 。
数字和 1 相乘结果不变。例如 123 * 1 = 123 。非常基础，对吧？那么，单位圆，半径为 1.0 的圆也是 1 的一种形式，它是旋转的 1 。所以你可以把一些东西和单位圆相乘，除了发生一些魔法和旋转之外，某种程度上和乘以 1 相似。

一.核心代码

<canvas id="canvas"></canvas>
<div id="uiContainer">
  <div id="ui">
    <div id="x"></div>
    <div id="y"></div>
    <div id="rotation"></div>
  </div>
</div>
<!-- vertex shader -->
<script  id="vertex-shader-2d" type="x-shader/x-vertex">
attribute vec2 a_position;
uniform vec2 u_resolution;
uniform vec2 u_translation;
uniform vec2 u_rotation;
void main() {
  // Rotate the position
  vec2 rotatedPosition = vec2(
     a_position.x * u_rotation.y + a_position.y * u_rotation.x,
     a_position.y * u_rotation.y - a_position.x * u_rotation.x);
  // Add in the translation.
  vec2 position = rotatedPosition + u_translation;
  // convert the position from pixels to 0.0 to 1.0
  vec2 zeroToOne = position / u_resolution;
  // convert from 0->1 to 0->2
  vec2 zeroToTwo = zeroToOne * 2.0;
  // convert from 0->2 to -1->+1 (clipspace)
  vec2 clipSpace = zeroToTwo - 1.0;
  gl_Position = vec4(clipSpace * vec2(1, -1), 0, 1);
}
</script>
<!-- fragment shader -->
<script  id="fragment-shader-2d" type="x-shader/x-fragment">
precision mediump float;
uniform vec4 u_color;
void main() {
   gl_FragColor = u_color;
}
</script><script src="https://webglfundamentals.org/webgl/resources/jquery-1.7.1.min.js"></script>
<script src="https://webglfundamentals.org/webgl/resources/jquery-ui-1.8.16.custom.min.js"></script>
<script src="https://webglfundamentals.org/webgl/resources/jquery.mousecapture.js"></script>
<script src="https://webglfundamentals.org/webgl/resources/jquery.gman.ui.js"></script>
<script src="https://webglfundamentals.org/webgl/resources/jquery-gman-circle.js"></script>
<script src="https://webglfundamentals.org/webgl/resources/webgl-utils.js"></script>
<script src="https://webglfundamentals.org/webgl/resources/webgl-lessons-ui.js"></script>

核心代码块
a_position.x u_rotation.y + a_position.y u_rotation.x,
a_position.y u_rotation.y - a_position.x u_rotation.x

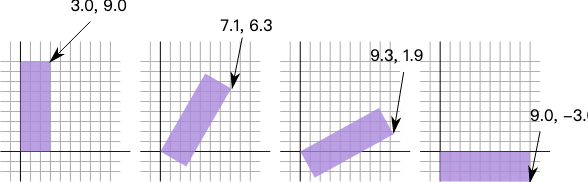

假如你想旋转一个矩形，在开始旋转之前矩形右上角坐标是 3.0, 9.0 ，让我们在单位圆上以十二点方向为起点顺时针旋转30度后取一个点。

圆上该点的位置是 0.50 和 0.87
3.0 0.87 + 9.0 0.50 = 7.1
9.0 0.87 - 3.0 0.50 = 6.3
这个结果正好是我们需要的结果

你会发现在我们顺时针旋转到右边的过程中，X 变大 Y 变小。如果我们继续旋转超过90 度后，X 变小 Y 变大，这种形式形成了旋转。
单位圆上的点还有一个名字，叫做正弦和余弦。所以对于任意给定角，我们只需要求出正弦和余弦，像这样

function printSineAndCosineForAnAngle(angleInDegrees) {
  var angleInRadians = angleInDegrees * Math.PI / 180;
  var s = Math.sin(angleInRadians);
  var c = Math.cos(angleInRadians);
  console.log("s = " + s + " c = " + c);
}

二.全部代码

"use strict";
function main() {
  // Get A WebGL context
  /** @type {HTMLCanvasElement} */
  var canvas = document.querySelector("#canvas");
  var gl = canvas.getContext("webgl");
  if (!gl) {
    return;
  }
  // setup GLSL program
  var program = webglUtils.createProgramFromScripts(gl, ["vertex-shader-2d", "fragment-shader-2d"]);
  // look up where the vertex data needs to go.
  var positionLocation = gl.getAttribLocation(program, "a_position");
  // lookup uniforms
  var resolutionLocation = gl.getUniformLocation(program, "u_resolution");
  var colorLocation = gl.getUniformLocation(program, "u_color");
  var translationLocation = gl.getUniformLocation(program, "u_translation");
  var rotationLocation = gl.getUniformLocation(program, "u_rotation");
  // Create a buffer to put positions in
  var positionBuffer = gl.createBuffer();
  // Bind it to ARRAY_BUFFER (think of it as ARRAY_BUFFER = positionBuffer)
  gl.bindBuffer(gl.ARRAY_BUFFER, positionBuffer);
  // Put geometry data into buffer
  setGeometry(gl);
  var translation = [100, 150];
  var rotation = [0, 1];
  var color = [Math.random(), Math.random(), Math.random(), 1];
  drawScene();
  // Setup a ui.
  webglLessonsUI.setupSlider("#x", {value: translation[0], slide: updatePosition(0), max: gl.canvas.width });
  webglLessonsUI.setupSlider("#y", {value: translation[1], slide: updatePosition(1), max: gl.canvas.height});
  webglLessonsUI.setupSlider("#angle", {slide: updateAngle, max: 360});
  function updatePosition(index) {
    return function(event, ui) {
      translation[index] = ui.value;
      drawScene();
    };
  }
  function updateAngle(event, ui) {
    var angleInDegrees = 360 - ui.value;
    var angleInRadians = angleInDegrees * Math.PI / 180;
    rotation[0] = Math.sin(angleInRadians);
    rotation[1] = Math.cos(angleInRadians);
    drawScene();
  }
  // Draw the scene.
  function drawScene() {
    webglUtils.resizeCanvasToDisplaySize(gl.canvas);
    // Tell WebGL how to convert from clip space to pixels
    gl.viewport(0, 0, gl.canvas.width, gl.canvas.height);
    // Clear the canvas.
    gl.clear(gl.COLOR_BUFFER_BIT);
    // Tell it to use our program (pair of shaders)
    gl.useProgram(program);
    // Turn on the attribute
    gl.enableVertexAttribArray(positionLocation);
    // Bind the position buffer.
    gl.bindBuffer(gl.ARRAY_BUFFER, positionBuffer);
    // Tell the attribute how to get data out of positionBuffer (ARRAY_BUFFER)
    var size = 2;          // 2 components per iteration
    var type = gl.FLOAT;   // the data is 32bit floats
    var normalize = false; // don't normalize the data
    var stride = 0;        // 0 = move forward size * sizeof(type) each iteration to get the next position
    var offset = 0;        // start at the beginning of the buffer
    gl.vertexAttribPointer(
        positionLocation, size, type, normalize, stride, offset);
    // set the resolution
    gl.uniform2f(resolutionLocation, gl.canvas.width, gl.canvas.height);
    // set the color
    gl.uniform4fv(colorLocation, color);
    // Set the translation.
    gl.uniform2fv(translationLocation, translation);
    // Set the rotation.
    gl.uniform2fv(rotationLocation, rotation);
    // Draw the geometry.
    var primitiveType = gl.TRIANGLES;
    var offset = 0;
    var count = 18;  // 6 triangles in the 'F', 3 points per triangle
    gl.drawArrays(primitiveType, offset, count);
  }
}
// Fill the buffer with the values that define a letter 'F'.
function setGeometry(gl) {
  gl.bufferData(
      gl.ARRAY_BUFFER,
      new Float32Array([
          // left column
          0, 0,
          30, 0,
          0, 150,
          0, 150,
          30, 0,
          30, 150,
          // top rung
          30, 0,
          100, 0,
          30, 30,
          30, 30,
          100, 0,
          100, 30,
          // middle rung
          30, 60,
          67, 60,
          30, 90,
          30, 90,
          67, 60,
          67, 90,
      ]),
      gl.STATIC_DRAW);
}
main();
// html
<canvas id="canvas"></canvas>
<div id="uiContainer">
  <div id="ui">
    <div id="x"></div>
    <div id="y"></div>
    <div id="angle"></div>
  </div>
</div>
<!-- vertex shader -->
<script  id="vertex-shader-2d" type="x-shader/x-vertex">
attribute vec2 a_position;
uniform vec2 u_resolution;
uniform vec2 u_translation;
uniform vec2 u_rotation;
void main() {
  // Rotate the position
  vec2 rotatedPosition = vec2(
     a_position.x * u_rotation.y + a_position.y * u_rotation.x,
     a_position.y * u_rotation.y - a_position.x * u_rotation.x);
  // Add in the translation.
  vec2 position = rotatedPosition + u_translation;
  // convert the position from pixels to 0.0 to 1.0
  vec2 zeroToOne = position / u_resolution;
  // convert from 0->1 to 0->2
  vec2 zeroToTwo = zeroToOne * 2.0;
  // convert from 0->2 to -1->+1 (clipspace)
  vec2 clipSpace = zeroToTwo - 1.0;
  gl_Position = vec4(clipSpace * vec2(1, -1), 0, 1);
}
</script>
<!-- fragment shader -->
<script  id="fragment-shader-2d" type="x-shader/x-fragment">
precision mediump float;
uniform vec4 u_color;
void main() {
   gl_FragColor = u_color;
}
</script>
<script src="https://webglfundamentals.org/webgl/resources/webgl-utils.js"></script>
<script src="https://webglfundamentals.org/webgl/resources/webgl-lessons-ui.js"></script>
