TVM- ForwardRewriter

ForwardRewriter

ForwardRewriter是ExprMutator的子类，所以直接利用ForwardRewriter来实现Pass，跟我们自己写一个ExprMutator子类来实现Pass本质上没有区别。但ForwardRewriter提供了一套框架，使得我们可以更方便地实现Pass，并写出更简洁的代码。ForwardRewriter主要适用于需要判断不同Op，并做出不同处理的Pass。此处的Forward是向前的意思，该方向和graph计算方向一样，但是跟graph的遍历方向是相反的。graph的遍历方法是：将graph视为一棵树，最后一个节点是根节点，第一个节点是叶子，树的遍历，从根节点到叶子，采用深度优先搜索(DFS)算法，准确的说是post order DFS。<br />![image.png](https://cdn.nlark.com/yuque/0/2020/png/644279/1594482594588-55532841-2508-4d3d-ac02-a4a3ff7a02f1.png#align=left&display=inline&height=294&margin=%5Bobject%20Object%5D&name=image.png&originHeight=294&originWidth=357&size=8851&status=done&style=none&width=357)<br />框架已经实现了graph的遍历，可以自动根据不同的Op调用注册的ForwardRewrite函数，我们可以专注于实现不同Op的rewrite。同时也提供了一些辅助手段供开发者使用，如TempExpr、fcontext上下文和fmulti_ref_trigger。

1 注册ForwardRewrite Pass

第161行，ForwardRewrite是ForwardRewriter的入口函数，如下：

2 注册Op的ForwardRewrite函数

第99行，set_attr的第一个参数（此处为“FTestRewrite”）要与注册Pass时ForwardRewrite函数的rewrite_map_attr_name参数相同。
Conv2dTestRewrite是一个FForwardRewrite类型的函数，FForwardRewrite定义如下图：

参数ref_call是将要被重写的原始call。
参数new_args是TempExpr或其自定义子类，可以携带自定义信息。
参数ctx是ref_call的上下文信息。
最后，TestRealizeExprNode::make(ref_call)返回一个TestRealizeExpr实例。
TestRealizeExpr是TempExpr的子类，TestRealizeExprNode是TempExprNode的子类。
如下所示，TestRealizeExprNode::make()比较简单，仅有一个参数：Expr expr。实际上，如果TestRealizeExprNode含有多个变量（除了expr之外还可以有多个附加成员变量，包含其他的信息），那么TestRealizeExprNode::make()的参数可以多一些（详细见TestRealizeExprNode的定义）。

Conv2d被make为TestRealizeExpr后会携带expr和bTest两个信息，作为relu的new_args[0]时，可以在111行和112行拿到这两个信息。

TestRealizeExpr(Node)的定义

下图是TestRealizeExpr(Node)的定义（详细见）：
TempExprNode**子类可用于向前传递，但是只能传递给下一层**。

第49行Realize是TempExprNode的virtual函数，TestRealizeExprNode是TempExprNode的子类，需要重写该函数。

Realize的调用过程

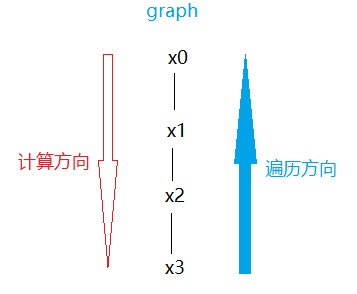

下面尝试说明一下Realize被调用的过程，以如下graph为例：

如果只注册了relu的ForwardRewrite函数，并make为TestRealizeExpr返回，如下图：

根据ExprMutator post-order递归遍历graph的顺序，在遍历conv2d时会查找是否注册了ForwardRewrite函数，若未注册则下图第166行frewrite为nullptr（当前是conv2d算子，没有注册，所以frewrite为nullptr）。For循环遍历其args，args数目为1，args[0]即relu。所以，下图中的arg就是relu, 165行的newarg返回的是relu，由于frewrite为nullptr，所以new_arg就会是relizer.Realize(newarg)返回的结果。

继续看realizer.Realize后续代码，会判断是否继承自TempExprNode再调用其Realize：

所以，TempExprNode子类的Realize函数是否被调用，有两个条件：

1. 遇到未注册**ForwardRewrite函数的Op**

2. 前一个**Op的ForwardRewrite函数make为TempExpr**子类

那么，前一个op注册的**TempExprNode子类的Realize函数就会被调用。最后一个op除外，只要它注册了ForwardRewrite函数，它注册的TempExprNode子类的Realize函数就会被调用。**

举个例子：

|
- [x]

| | 2 | x2 |
- [ ]

|
- [ ]

| | 3 | x3 |
- [x]

|
- [ ]

| | 4 | x4 |
- [x]

|
- [ ]

| | 5 | x5 |
- [x]

|
- [x]

|

|
- [x]

| | 2 | x2 |
- [ ]

|
- [ ]

| | 3 | x3 |
- [x]

|
- [x]

| | 4 | x4 |
- [ ]

|
- [ ]

| | 5 | x5 |
- [x]

|
- [x]

|

**

参数ctx

参数ctx可以传递上下文信息，由ForwardRewrite函数的fcontext参数提供。下图是另一种注册Pass的方法，第345行提供了一个fcontext。

如下图中relu的ForwardRewrite函数中就使用了这个上下文信息：

3 介绍fmulti_ref_trigger

单独截图如下（详见“注册ForwardRewrite Pass”部分）：

如果需要针对an Expr consumed by multiple callers的情况单独处理，在注册ForwardRewrite Pass时，可以提供fmulti_ref_trigger函数，下图代码当ref_count > 1时（第111行），就会调用fmulti_ref_trigger函数。

ForwardRewriter的定义：

/*!
 *
 * \file forward_rewrite.cc
 * \brief Apply rewriting rules in a forward fashion.
 */
#include <tvm/relay/expr_functor.h>
#include <tvm/relay/op_attr_types.h>
#include <tvm/relay/transform.h>
#include "pass_util.h"
namespace tvm {
namespace relay {
// Realizer class that realizes the expression
// Note that we can take benefit of its internal memo
// so that calling realize repeatively won't hurt perf.
class TempRealizer : private ExprMutator {
 public:
  Expr Realize(Expr expr) {
    return VisitExpr(expr);
  }
 private:
  Expr VisitExpr(const Expr& expr) final {
    auto it = memo_.find(expr);
    if (it != memo_.end()) {
      return it->second;
    } else {
      Expr res;
      if (const auto* temp = expr.as<TempExprNode>()) {
        res = temp->Realize();
      } else {
        res = ExprFunctor::VisitExpr(expr);
      }
      memo_[res] = res;
      return res;
    }
  }
};
class ForwardRewriter : private ExprMutator {
 public:
  ForwardRewriter(const OpMap<FForwardRewrite>* rewrite_map,
                  std::function<NodeRef(const Call&)> fcontext,
                  std::function<Expr(const Expr&)> fmulti_ref_trigger)
      : rewrite_map_(rewrite_map),
        fcontext_(fcontext),
        fmulti_ref_trigger_(fmulti_ref_trigger) {}
  ForwardRewriter(const FForwardRewrite* rewrite_func,
                  std::function<NodeRef(const Call&)> fcontext,
                  std::function<Expr(const Expr&)> fmulti_ref_trigger)
      : rewrite_func_(rewrite_func),
        fcontext_(fcontext),
        fmulti_ref_trigger_(fmulti_ref_trigger) {}
  // Transform expression.
  Expr Rewrite(Expr expr) {
    if (fmulti_ref_trigger_ != nullptr) {
      ref_counter_ = GetExprRefCount(expr);
    }
    return this->VisitExpr(expr);
  }
 private:
  // The rewrite rule.
  const OpMap<FForwardRewrite>* rewrite_map_{nullptr};
  const FForwardRewrite* rewrite_func_{nullptr};
  // The context.const
  std::function<NodeRef(const Call&)> fcontext_{nullptr};
  // The multiple reference trigger
  std::function<Expr(const Expr&)> fmulti_ref_trigger_{nullptr};
  // Internal ref counter
  std::unordered_map<const Node*, size_t> ref_counter_;
  // internal realizer
  TempRealizer realizer_;
  Expr VisitExpr(const Expr& expr) final {
    // by default always realize.
    return realizer_.Realize(ExprMutator::VisitExpr(expr));
  }
  // Visit and allow non-realized version.
  Expr GetTempExpr(const Expr& expr)  {
    if (fmulti_ref_trigger_ != nullptr) {
      Expr ret = ExprMutator::VisitExpr(expr);
      auto it = ref_counter_.find(expr.get());
      CHECK(it != ref_counter_.end());
      if (it->second > 1) {
        ret = fmulti_ref_trigger_(ret);
      }
      return ret;
    } else {
      return ExprMutator::VisitExpr(expr);
    }
  }
  // Automatic fold TupleGetItem.
  Expr VisitExpr_(const TupleGetItemNode* op) final {
    Expr tuple = this->GetTempExpr(op->tuple);
    if (const auto* ptuple = tuple.as<TupleNode>()) {
      return ptuple->fields[op->index];
    } else {
      if (tuple.same_as(op->tuple)) {
        return GetRef<Expr>(op);
      } else {
        return TupleGetItemNode::make(tuple, op->index);
      }
    }
  }
  Expr VisitExpr_(const TupleNode* op) final {
    tvm::Array<Expr> fields;
    bool all_fields_unchanged = true;
    for (auto field : op->fields) {
      auto new_field = this->GetTempExpr(field);
      fields.push_back(new_field);
      all_fields_unchanged &= new_field.same_as(field);
    }
    if (all_fields_unchanged) {
      return GetRef<Expr>(op);
    } else {
      return TupleNode::make(fields);
    }
  }
  Expr VisitExpr_(const CallNode* call_node) final {
    const Call& ref_call = GetRef<Call>(call_node);
    PackedFunc frewrite;
    if (rewrite_func_) {
      frewrite = *rewrite_func_;
    } else {
      CHECK(rewrite_map_);
      frewrite = rewrite_map_->get(call_node->op, nullptr);
    }
    auto new_op = this->Mutate(call_node->op);
    bool unchanged = call_node->op.same_as(new_op);
    Array<Expr> call_args;
    for (auto arg : call_node->args) {
      Expr new_arg = this->GetTempExpr(arg);
      if (frewrite == nullptr) {
        //只有当前op没有注册FForwardRewrite函数时，frewrite为nullptr
        //此时，realizer_.Realize(new_arg)才会被调用
        new_arg = realizer_.Realize(new_arg);
      }
      unchanged &= new_arg.same_as(arg);
      call_args.push_back(new_arg);
    }
    // try to rewrite.
    if (frewrite != nullptr) {
      Expr res = frewrite(
          ref_call, call_args,
          fcontext_ != nullptr ? fcontext_(ref_call) : NodeRef(nullptr));
      if (res.defined()) return res;
      // abort, use old rule
      for (size_t i = 0; i < call_args.size(); ++i) {
        Expr arg = call_args[i];
        Expr new_arg = realizer_.Realize(arg);
        if (!arg.same_as(new_arg)) {
          call_args.Set(i, new_arg);
          unchanged = false;
        }
      }
    }
    if (unchanged) return ref_call;
    return CallNode::make(
        new_op, call_args, call_node->attrs, call_node->type_args);
  }
};
Expr ForwardRewrite(const Expr& expr,
                    const std::string& rewrite_map_name,
                    std::function<NodeRef(const Call&)> fcontext,
                    std::function<Expr(const Expr&)> fmulti_ref_trigger) {
  auto rewrite_map = Op::GetAttr<FForwardRewrite>(rewrite_map_name);
  return ForwardRewriter(&rewrite_map, fcontext, fmulti_ref_trigger).Rewrite(expr);
}
Expr ForwardRewrite(const Expr& expr,
                    const FForwardRewrite& rewrite_func,
                    std::function<NodeRef(const Call&)> fcontext,
                    std::function<Expr(const Expr&)> fmulti_ref_trigger) {
  return ForwardRewriter(&rewrite_func, fcontext, fmulti_ref_trigger).Rewrite(expr);
}
}  // namespace relay
}  // namespace tvm

简单实例

#include <tvm/relay/analysis.h>
#include <tvm/relay/attrs/annotation.h>
#include <tvm/relay/transform.h>
#include "../../qnn/util.h"
#include "../pattern_util.h"
#include "util.h"
namespace tvm {
namespace relay {
namespace testrewrite {
class TestRealizeExpr;
class TestRealizeExprNode : public TempExprNode {
 public:
  Expr expr;
  bool bTest;
  void VisitAttrs(tvm::AttrVisitor* v) {
    v->Visit("expr", &expr);
    v->Visit("bTest", &bTest);
  }
  Expr Realize() const final;
  TVM_DLL static TestRealizeExpr make(Expr expr);
  static constexpr const char* _type_key = "relay.transform.TestRealizeExpr";
  TVM_DECLARE_NODE_TYPE_INFO(TestRealizeExprNode, TempExprNode);
};
RELAY_DEFINE_NODE_REF(TestRealizeExpr, TestRealizeExprNode, TempExpr);
Expr TestRealizeExprNode::Realize() const {
  Expr expr = this->expr;
  const CallNode* call_node = expr.as<CallNode>();
  const OpNode* call_op = call_node->op.as<OpNode>();
  LOG(INFO) << "Realize:" << call_op->name;
  return expr;
}
TestRealizeExpr TestRealizeExprNode::make(Expr expr) {
  NodePtr<TestRealizeExprNode> n = make_node<TestRealizeExprNode>();
  n->expr = std::move(expr);
  n->bTest = true;
  return TestRealizeExpr(n);
}
inline Expr ForwardOp(const Call& ref_call, const Array<Expr>& args) {
  return CallNode::make(ref_call->op, args, ref_call->attrs, ref_call->type_args);
}
/* \brief forward the original operator */
Expr IdentityTestRewrite(const Call& ref_call, const Array<Expr>& new_args, const NodeRef& ctx) {
  const CallNode* call_node = ref_call.as<CallNode>();
  const OpNode* call_op = call_node->op.as<OpNode>();
  LOG(INFO) << call_op->name << " has " << new_args.size() << " arg(s)";
  return Expr(nullptr);
}
Expr Conv2dTestRewrite(const Call& ref_call, const Array<Expr>& new_args, const NodeRef& ctx) {
  const CallNode* call_node = ref_call.as<CallNode>();
  const OpNode* call_op = call_node->op.as<OpNode>();
  LOG(INFO) << call_op->name << " has " << new_args.size() << " arg(s)";
  return TestRealizeExprNode::make(ref_call);
}
RELAY_REGISTER_OP("nn.conv2d").set_attr<FForwardRewrite>("FTestRewrite", Conv2dTestRewrite);
Expr ReluTestRewrite(const Call& ref_call, const Array<Expr>& new_args, const NodeRef& ctx) {
  const CallNode* call_node = ref_call.as<CallNode>();
  const OpNode* call_op = call_node->op.as<OpNode>();
  LOG(INFO) << call_op->name << " has " << new_args.size() << " arg(s)";
  if (const auto* n = new_args[0].as<TestRealizeExprNode>()) {
    n->expr;
    n->bTest;
  }
  return TestRealizeExprNode::make(ref_call);
}
RELAY_REGISTER_OP("nn.relu").set_attr<FForwardRewrite>("FTestRewrite", ReluTestRewrite);
Expr MultiplyTestRewrite(const Call& ref_call, const Array<Expr>& new_args, const NodeRef& ctx) {
  const CallNode* call_node = ref_call.as<CallNode>();
  const OpNode* call_op = call_node->op.as<OpNode>();
  LOG(INFO) << call_op->name << " has " << new_args.size() << " arg(s)";
  return TestRealizeExprNode::make(ref_call);
}
RELAY_REGISTER_OP("multiply").set_attr<FForwardRewrite>("FTestRewrite", MultiplyTestRewrite);
Expr AddRealize(const Call& ref_call, const Array<Expr>& new_args, const NodeRef& ctx) {
  CHECK_EQ(new_args.size(), 2);
  const CallNode* call_node = ref_call.as<CallNode>();
  const OpNode* call_op = call_node->op.as<OpNode>();
  LOG(INFO) << call_op->name << " has " << new_args.size() << " arg(s)";
  CHECK_EQ(ref_call->type_args.size(), 2);
  if (IsElewiseShape(ref_call->type_args[0], ref_call->type_args[1])) {
    LOG(INFO) << "same shape";
  }
  const auto* n = new_args[0].as<TestRealizeExprNode>();
  if (!n) {
    // Expr ret = ForwardOp(ref_call, {n->data});
    return TestRealizeExprNode::make(ref_call);
  }
  CHECK(!new_args[0]->is_type<TempExprNode>());
  return Expr(nullptr);
}
RELAY_REGISTER_OP("add").set_attr<FForwardRewrite>("FTestRewrite", AddRealize);
}  // namespace testrewrite
namespace transform {
Pass TestRewritePass() {
  runtime::TypedPackedFunc<Function(Function, Module, PassContext)> pass_func =
      [=](Function f, Module m, PassContext pc) {
        return Downcast<Function>(ForwardRewrite(f, "FTestRewrite", nullptr, nullptr));
      };
  return CreateFunctionPass(pass_func, 1, "TestRewrite", {});
}
TVM_REGISTER_API("relay._transform.TestRewrite").set_body_typed(TestRewritePass);
}  // namespace transform
}  // namespace relay
}  // namespace tvm

复杂点的实例

/*!
 * \file convert_strides.cc
 * \brief Convert existing 2x2-strides conv2d to
 *        1x1 strides conv2d + vacc_dropout.
 */
/*
 * The pass does three things:
 * 1. Add an operator vacc_dropout to implement dropout with strides=2
 * 2. 1x1 kernel size and 2x2 strides conv2d is converted to 1x1 kernel size and 1x1 strides conv2d
 * 3. Move vacc_dropout(which is a PEP op) to the end of SEP unless elementwise add or multiply is encountered.
 */
#include <tvm/relay/transform.h>
#include <tvm/relay/attrs/nn.h>
#include "../util.h"
namespace tvm {
namespace relay {
inline Array<Integer> ConvertToConstants(const Array<IndexExpr>& arr) {
  Array<Integer> convert_result;
  for (size_t i = 0; i < arr.size(); ++i) {
    const IntImm* const_elem = arr[i].as<IntImm>();
    CHECK(const_elem);
    convert_result.push_back(const_elem->value);
  }
  return std::move(convert_result);
}
bool VaccDropoutRel(const Array<Type>& types,
                    int num_inputs,
                    const Attrs& attrs,
                    const TypeReporter& reporter) {
  CHECK_EQ(types.size(), 2);
  const auto* data = types[0].as<TensorTypeNode>();
  if (data == nullptr) return false;
  auto dshape = data->shape;
  auto num_axis = dshape.size();
  std::vector<int64_t> stride_vec;
  for (size_t i = 0; i < num_axis - 2; ++i) {
    stride_vec.push_back(1);
  }
  stride_vec.push_back(2);
  stride_vec.push_back(2);
  std::vector<IndexExpr> oshape(dshape.size());
  for (size_t i = 0; i < num_axis; ++i) {
    int64_t stride_v = stride_vec[i];
    const int64_t* p_dim_size = as_const_int(dshape[i]);
    CHECK(p_dim_size)
        << "vacc_dropout requires dimension to be concrete int";
    int64_t dim_size = p_dim_size[0];
    oshape[i] = make_const(dshape[i].dtype(), (dim_size + stride_v - 1) / stride_v);
  }
  reporter->Assign(types[1], TensorTypeNode::make(oshape, data->dtype));
  return true;
}
Expr MakeVaccDropout(Expr data) {
  static const Op& op = Op::Get("nn.vacc_dropout");
  return CallNode::make(op, {data}, Attrs{}, {});
}
TVM_REGISTER_API("relay.op._make.vacc_dropout")
.set_body_typed(MakeVaccDropout);
RELAY_REGISTER_OP("nn.vacc_dropout")
.describe(R"code(Applies the dropout with H/W stride = 2 to the input array.
Examples::
  x = [[  1.,   4.,   7.,  10.],
       [  2.,   5.,   8.,  11.],
       [  3.,   6.,   9.,  12.]]
  vacc_dropout(x) = [[1., 7.],
                     [3., 9.]]
  x = [[[  1.,  2.,  3.],
        [  4.,  5.,  6.],
        [  7.,  8.,  9.]],
       [[  1.,  2.,  3.],
        [  4.,  5.,  6.],
        [  7.,  8.,  9.]],
       [[  1.,  2.,  3.],
        [  4.,  5.,  6.],
        [  7.,  8.,  9.]]]
  strided_slice(x, begin=[0, 0], end=[2, 2]) = [[[ 1.,  3.],
                                                 [ 7.,  9.]],
                                                [[ 1.,  3.],
                                                 [ 7.,  9.]],
                                                [[ 1.,  3.],
                                                 [ 7.,  9.]]]
)code" TVM_ADD_FILELINE)
.set_num_inputs(1)
.add_argument("data", "Tensor", "The input tensor.")
.set_support_level(4)
.add_type_rel("VaccDropout", VaccDropoutRel)
.set_attr<TOpPattern>("TOpPattern", kInjective);
class VaccDropoutExpr;
class VaccDropoutExprNode : public TempExprNode {
 public:
  /*! \brief The original expression */
  Expr expr;
  void VisitAttrs(tvm::AttrVisitor* v) {
    v->Visit("expr", &expr);
  }
  TVM_DLL static VaccDropoutExpr make(Expr expr);
  Expr Realize() const final;
  static constexpr const char* _type_key = "relay.VaccDropoutExpr";
  TVM_DECLARE_NODE_TYPE_INFO(VaccDropoutExprNode, TempExprNode);
};
RELAY_DEFINE_NODE_REF(VaccDropoutExpr, VaccDropoutExprNode, TempExpr);
Expr VaccDropoutExprNode::Realize() const {
  // insert vacc_dropout
  return MakeVaccDropout(this->expr);
}
VaccDropoutExpr VaccDropoutExprNode::make(Expr expr) {
  auto rnode = make_node<VaccDropoutExprNode>();
  rnode->expr = expr;
  return VaccDropoutExpr(rnode);
}
inline Expr RebuildConv2D(const Call& ref_call, const Array<Expr>& args) {
  const auto* attrs = ref_call->attrs.as<Conv2DAttrs>();
  const auto new_attrs = make_node<Conv2DAttrs>();
  *new_attrs = *attrs;
  Array<IndexExpr> new_strides;
  for (size_t i = 0; i < attrs->strides.size(); ++i) {
    new_strides.push_back(1);
  }
  new_attrs->strides = std::move(new_strides);
  return CallNode::make(Op::Get("nn.conv2d"), args, Attrs(new_attrs), {});
}
Expr VaccDropoutConv2dRewrite(const Call& ref_call, const Array<Expr>& new_args, const NodeRef& ctx) {
  CHECK_EQ(new_args.size(), 2);
  const Conv2DAttrs* attrs = ref_call->attrs.as<Conv2DAttrs>();
  auto const_strides = ConvertToConstants(attrs->strides);
  auto const_kernal = ConvertToConstants(attrs->kernel_size);
  CHECK(const_kernal.size() == 2 && const_strides.size() == 2);
  // only convert 1x1 kernel size and 2x2 strides
  if ((const_kernal[0]->value == 1 && const_kernal[1]->value == 1) &&
      (const_strides[0]->value == 2 && const_strides[1]->value == 2)) {
    Expr new_arg0 = new_args[0];
    if (const auto* n = new_args[0].as<VaccDropoutExprNode>()) {
      // 之前的VaccDropoutExprNode，遇到新的conv2d才Realize，添加dropout
      new_arg0 = n->Realize();
    }
    Expr newConv2d = RebuildConv2D(ref_call, {new_arg0, new_args[1]});
    return VaccDropoutExprNode::make(newConv2d);
  }
  return Expr(nullptr);
}
RELAY_REGISTER_OP("nn.conv2d")
.set_attr<FForwardRewrite>("FVaccConvertStrides", VaccDropoutConv2dRewrite);
Expr VaccDropoutSepBeginRewrite(const Call& ref_call, const Array<Expr>& new_args, const NodeRef& ctx) {
  CHECK(false) << "VaccConvertStrides must be before VaccSepGrouping";
  return Expr(nullptr);
}
RELAY_REGISTER_OP("nn.vacc_sep_begin")
.set_attr<FForwardRewrite>("FVaccConvertStrides", VaccDropoutSepBeginRewrite);
Expr MakeVaccDropoutArgsExpr(const Call& ref_call, const Array<Expr>& new_args) {
if (const auto* n = new_args[0].as<VaccDropoutExprNode>()) {
    Expr new_expr = ForwardOp(ref_call, {n->expr, new_args[1]});
    return VaccDropoutExprNode::make(new_expr);
  }
  return Expr(nullptr);
}
// 前面的分支，到此会停止传递，调用Realize()
// 此类的op有： multiply， add
Expr VaccDropoutElemwiseRewrite(const Call& ref_call, const Array<Expr>& new_args, const NodeRef& ctx) {
  CHECK_EQ(new_args.size(), 2);
  if (IsElemwiseShape(ref_call->args[0], ref_call->args[1])) {
    Expr new_arg0 = new_args[0];
    if (const auto* n = new_args[0].as<VaccDropoutExprNode>()) {
      //前面的左分支到此停止传递
      new_arg0 = n->Realize();
    }
    Expr new_arg1 = new_args[1];
    if (const auto* n = new_args[1].as<VaccDropoutExprNode>()) {
      //前面的右分支到此停止传递
      new_arg1 = n->Realize();
    }
    return ForwardOp(ref_call, {new_arg0, new_arg1});
  }
  return MakeVaccDropoutArgsExpr(ref_call, new_args);
}
RELAY_REGISTER_OP("multiply")
.set_attr<FForwardRewrite>("FVaccConvertStrides", VaccDropoutElemwiseRewrite);
RELAY_REGISTER_OP("add")
.set_attr<FForwardRewrite>("FVaccConvertStrides", VaccDropoutElemwiseRewrite);
// 前面的分支，到此会继续往前传递
Expr VaccDropout2ArgsRewrite(const Call& ref_call, const Array<Expr>& new_args, const NodeRef& ctx) {
  CHECK_EQ(new_args.size(), 2);
  return MakeVaccDropoutArgsExpr(ref_call, new_args);
}
RELAY_REGISTER_OP("nn.bias_add")
.set_attr<FForwardRewrite>("FVaccConvertStrides", VaccDropout2ArgsRewrite);
RELAY_REGISTER_OP("affine")
.set_attr<FForwardRewrite>("FVaccConvertStrides", VaccDropout2ArgsRewrite);
RELAY_REGISTER_OP("nn.prelu")
.set_attr<FForwardRewrite>("FVaccConvertStrides", VaccDropout2ArgsRewrite);
RELAY_REGISTER_OP("vacc_activation")
.set_attr<FForwardRewrite>("FVaccConvertStrides", VaccDropout2ArgsRewrite);
// 前面的分支，到此会继续往前传递
Expr VaccDropout1ArgRewrite(const Call& ref_call, const Array<Expr>& new_args, const NodeRef& ctx) {
  CHECK_EQ(new_args.size(), 1);
  if (const auto* n = new_args[0].as<VaccDropoutExprNode>()) {
    Expr new_expr = ForwardOp(ref_call, {n->expr});
    return VaccDropoutExprNode::make(new_expr);
  }
  return Expr(nullptr);
}
RELAY_REGISTER_OP("nn.relu")
.set_attr<FForwardRewrite>("FVaccConvertStrides", VaccDropout1ArgRewrite);
RELAY_REGISTER_OP("nn.leaky_relu")
.set_attr<FForwardRewrite>("FVaccConvertStrides", VaccDropout1ArgRewrite);
Expr ConvertStrides(const Expr& expr) {
  return ForwardRewrite(expr, "FVaccConvertStrides", nullptr);
}
namespace transform {
Pass VaccConvertStrides() {
  runtime::TypedPackedFunc<Function(Function, Module, PassContext)> pass_func =
    [=](Function f, Module m, PassContext pc) {
      return Downcast<Function>(ConvertStrides(f));
  };
  return CreateFunctionPass(pass_func, 1, "VaccConvertStrides", {});
}
TVM_REGISTER_API("relay._transform.VaccConvertStrides")
.set_body_typed(VaccConvertStrides);
}  // namespace transform
}  // namespace relay
}  // namespace tvm

测试

from tvm import relay
from tvm.relay import transform, analysis
from random import randint
from tvm.relay.testing import run_opt_pass, run_infer_type
def run_convert_strides(expr):
    return run_opt_pass(expr, transform.VaccConvertStrides())
def test_conv2d_1x1_s2():
    n, c, h, w = 4, 3, 224, 224
    x = relay.var("x", relay.ty.TensorType((n, c, h, w), "float32"))
    w1 = relay.var("w1")
    w2 = relay.var("w2")
    def before():
        y = relay.nn.conv2d(x, w1, strides=(2,2), kernel_size=(1, 1), channels=8)
        y = relay.vacc_activation('sigmoid', y, 1.0, 2.0)
        y = relay.nn.conv2d(y, w2, strides=(2,2), kernel_size=(1,1), channels=4)
        y = relay.nn.relu(y)
        return relay.Function([x, w1, w2], y)
    def expect():
        y = relay.nn.conv2d(x, w1, strides=(1,1), kernel_size=(1, 1), channels=8)
        y = relay.vacc_activation('sigmoid', y, 1.0, 2.0)
        y = relay.vacc_dropout(y)
        y = relay.nn.conv2d(y, w2, strides=(1,1), kernel_size=(1,1), channels=4)
        y = relay.nn.relu(y)
        y = relay.vacc_dropout(y)
        return relay.Function([x, w1, w2], y)
    converted = run_convert_strides(before())
    expected = run_infer_type(expect())
    assert analysis.alpha_equal(converted, expected)
def test_conv2d_1x1_s2_elemwise():
    n, c, h, w = 4, 3, 224, 224
    x1 = relay.var("x1", relay.ty.TensorType((n, c, h, w), "float32"))
    x2 = relay.var("x2", relay.ty.TensorType((n, c, 112, 112), "float32"))
    w1 = relay.var("w1")
    w2 = relay.var("w2")
    w3 = relay.var("w3")
    def before():
        y1 = relay.nn.conv2d(x1, w1, strides=(2,2), kernel_size=(1, 1), channels=8)
        y1 = relay.vacc_activation('sigmoid', y1, 1.0, 2.0)
        y2 = relay.nn.conv2d(x2, w2, strides=(1,1), kernel_size=(1, 1), channels=8)
        y2 = relay.add(y2, relay.const(0.5))
        y = relay.add(y1, y2)
        y = relay.nn.conv2d(y, w3, strides=(2,2), kernel_size=(1,1), channels=4)
        y = relay.nn.relu(y)
        return relay.Function([x1, x2, w1, w2], y)
    def expect():
        y1 = relay.nn.conv2d(x1, w1, strides=(1,1), kernel_size=(1, 1), channels=8)
        y1 = relay.vacc_activation('sigmoid', y1, 1.0, 2.0)
        y1 = relay.vacc_dropout(y1)
        y2 = relay.nn.conv2d(x2, w2, strides=(1,1), kernel_size=(1, 1), channels=8)
        y2 = relay.add(y2, relay.const(0.5))
        y = relay.add(y1, y2)
        y = relay.nn.conv2d(y, w3, strides=(1,1), kernel_size=(1,1), channels=4)
        y = relay.nn.relu(y)
        y = relay.vacc_dropout(y)
        return relay.Function([x1, x2, w1, w2], y)
    converted = run_convert_strides(before())
    expected = run_infer_type(expect())
    assert analysis.alpha_equal(converted, expected)
def test_conv2d_non_1x1_s2():
    n, c, h, w = 4, 3, 224, 224
    x = relay.var("x", relay.ty.TensorType((n, c, h, w), "float32"))
    w1 = relay.var("w1")
    w2 = relay.var("w2")
    def before():
        y = relay.nn.conv2d(x, w1, strides=(2,2), kernel_size=(3, 3), channels=8)
        y = relay.vacc_activation('sigmoid', y, 1.0, 2.0)
        y = relay.nn.conv2d(y, w2, strides=(2,2), kernel_size=(5,5), channels=4)
        y = relay.nn.relu(y)
        return relay.Function([x, w1, w2], y)
    def expect():
        y = relay.nn.conv2d(x, w1, strides=(2,2), kernel_size=(3, 3), channels=8)
        y = relay.vacc_activation('sigmoid', y, 1.0, 2.0)
        y = relay.nn.conv2d(y, w2, strides=(2,2), kernel_size=(5,5), channels=4)
        y = relay.nn.relu(y)
        return relay.Function([x, w1, w2], y)
    converted = run_convert_strides(before())
    expected = run_infer_type(expect())
    assert analysis.alpha_equal(converted, expected)
def test_conv2d_1x1_non_s2():
    n, c, h, w = 4, 3, 224, 224
    x = relay.var("x", relay.ty.TensorType((n, c, h, w), "float32"))
    w1 = relay.var("w1")
    w2 = relay.var("w2")
    def before():
        y = relay.nn.conv2d(x, w1, strides=(1,1), kernel_size=(1, 1), channels=8)
        y = relay.vacc_activation('sigmoid', y, 1.0, 2.0)
        y = relay.nn.conv2d(y, w2, strides=(1,1), kernel_size=(1,1), channels=4)
        y = relay.nn.relu(y)
        return relay.Function([x, w1, w2], y)
    def expect():
        y = relay.nn.conv2d(x, w1, strides=(1,1), kernel_size=(1, 1), channels=8)
        y = relay.vacc_activation('sigmoid', y, 1.0, 2.0)
        y = relay.nn.conv2d(y, w2, strides=(1,1), kernel_size=(1,1), channels=4)
        y = relay.nn.relu(y)
        return relay.Function([x, w1, w2], y)
    converted = run_convert_strides(before())
    expected = run_infer_type(expect())
    assert analysis.alpha_equal(converted, expected)
def verify(incoming_func):
    inferred_func = run_infer_type(incoming_func)
    print("inferred_func ---\n", inferred_func)
    converted_func = run_convert_strides(inferred_func)
    print("converted_func ---\n", converted_func)
    assert inferred_func.body.checked_type == converted_func.body.checked_type
def random_strided_conv2d_test():
    n, c, h, w =randint(1, 256), randint(1, 256), randint(1, 256), randint(1, 256)
    k = randint(1, 5)
    kernel_size = (k, k)
    p = randint(1, 3)
    padding = (p, p)
    channels=randint(1, 16)
    x = relay.var("x", relay.ty.TensorType((n, c, h, w), "float32"))
    w = relay.var("w")
    y = relay.nn.conv2d(x, w, strides=(2,2), kernel_size=kernel_size,
                        padding=padding, channels=channels)
    y = relay.nn.relu(y)
    func = relay.Function([x, w], y)
    verify(func)
def test_strided_slice():
    for _ in range(10):
        random_strided_conv2d_test()
def test_identity():
    n, c, h, w =randint(1, 256), randint(1, 256), randint(1, 256), randint(1, 256)
    x = relay.var("x", relay.ty.TensorType((n, c, h, w), "float32"))
    w = relay.var("w")
    y = relay.nn.conv2d(x, w, strides=(1, 1), kernel_size=(1, 1), padding=(0, 0), channels=8)
    func = relay.Function([x, w], y)
    inferred_func = run_infer_type(func)
    converted_func = run_convert_strides(inferred_func)
    assert analysis.alpha_equal(inferred_func, converted_func) and analysis.structural_hash(inferred_func) == analysis.structural_hash(converted_func)
if __name__ == "__main__":
    test_conv2d_1x1_s2()
    test_conv2d_1x1_s2_elemwise()
    test_conv2d_non_1x1_s2()
    test_conv2d_1x1_non_s2()
    test_identity()
