Swagger

在pom.xml中添加依赖

• 原始swagger-ui相关依赖 ```xml

  io.springfox springfox-swagger2 2.9.2 io.springfox springfox-swagger-ui 2.9.2

- swagger优化UI界面
```xml
<!-- 2、swagger优化UI界面1 -->
        <!-- 请求地址为:http://localhost:8080/doc.html -->
        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>swagger-bootstrap-ui</artifactId>
            <version>1.9.6</version>
        </dependency>
        <!-- 3、swagger优化UI界面2 -->
        <!--请求地址为：http://localhost:8080/document.html -->
        <dependency>
            <groupId>com.zyplayer</groupId>
            <artifactId>swagger-mg-ui</artifactId>
            <version>1.0.6</version>
        </dependency>
        <!-- 4、swagger优化UI界面3 -->
        <!--请求地址为：http://localhost:8080/docs.html -->
        <dependency>
            <groupId>com.github.caspar-chen</groupId>
            <artifactId>swagger-ui-layer</artifactId>
            <version>1.1.3</version>
        </dependency>

配置Swagger

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
@Configuration
@EnableSwagger2
public class SwaggerConfig {
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
            .apiInfo(apiInfo())
            .select()
            //为当前包路径,控制器类包
            .apis(RequestHandlerSelectors.basePackage("com.example.demo"))
            .paths(PathSelectors.any())
            .build();
    }
    //构建 api文档的详细信息函数,注意这里的注解引用的是哪个
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
            // 设置页面标题
            .title("Spring Boot集成Swagger2接口总览")
            // 设置接口描述
            .description("Swagger接口学习")
            // 设置联系方式
            .contact(new Contact("测试swagger","http://localhost:8080/","123456@qq.com"))
            //版本号
            .version("1.0")
            //描述
            .description("API 描述")
            .build();
    }
}

启动时候报错

guava版本冲突，dubbo与swagger冲突
在pom.xml中引入依赖
https://www.freesion.com/article/969965181/

            <dependency>
                <groupId>com.google.guava</groupId>
                <artifactId>guava</artifactId>
                <version>26.0-jre</version>
            </dependency>

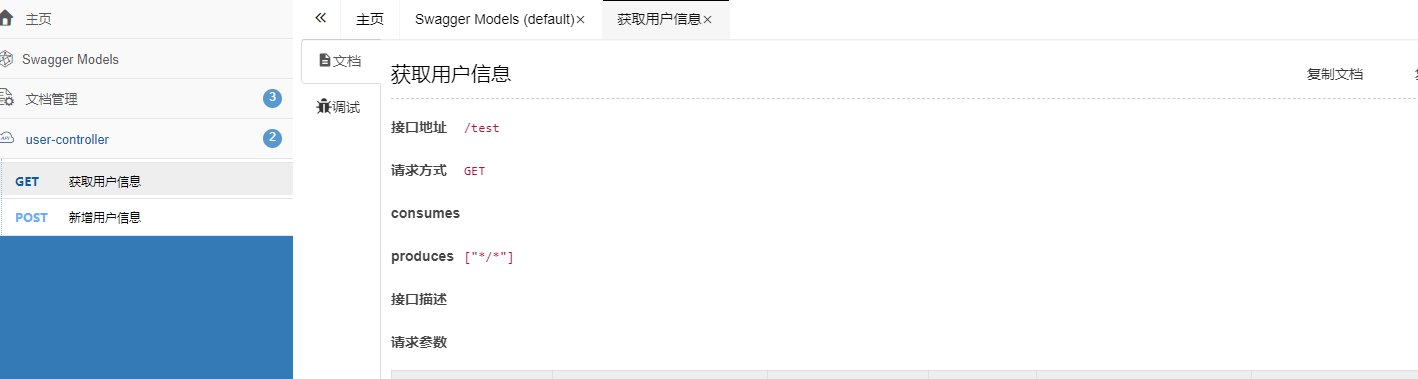

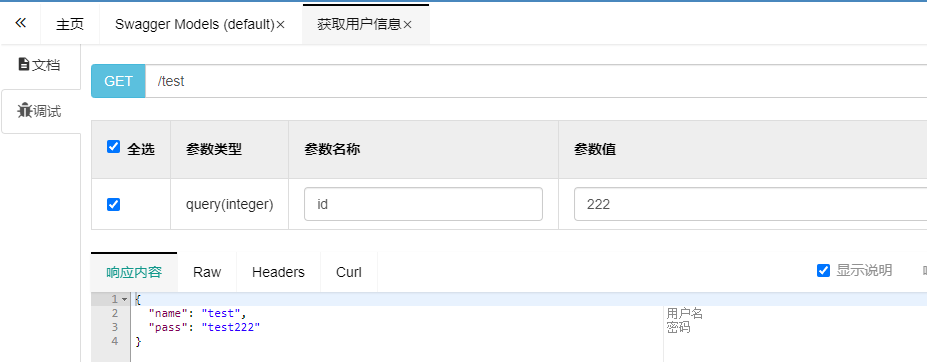

访问swagger-ui

• 打开网页，输入http://localhost:8080/swagger-ui.html

• 打开访问http://localhost:9988/doc.html

使用swagger2

• 创建model ```java import io.swagger.annotations.ApiModel; import io.swagger.annotations.ApiModelProperty; import lombok.AllArgsConstructor; import lombok.Data; import lombok.NoArgsConstructor;

@ApiModel(value=”用户实体接受类”) @Data @AllArgsConstructor @NoArgsConstructor public class UserVo { @ApiModelProperty(value=”用户名”) private String name;

@ApiModelProperty(value="密码")
private String pass;

}

![image.png](https://cdn.nlark.com/yuque/0/2022/png/1416299/1653977696629-01156439-0024-46e4-a77b-614c57a0a7c0.png#clientId=u44488145-64f0-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=207&id=ua21671d6&margin=%5Bobject%20Object%5D&name=image.png&originHeight=207&originWidth=1081&originalType=binary&ratio=1&rotation=0&showTitle=false&size=8781&status=done&style=none&taskId=u40b3751e-3998-48dd-9a80-234583d824a&title=&width=1081)
1. `**@ApiModel**`：注解用于实体类，表示对类进行说明，用于参数用实体类接收。
1. `**@ApiModelProperty**`：注解用于类中属性，表示对 model 属性的说明或者数据操作更改。
- 创建controller
```java
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiParam;
import org.springframework.web.bind.annotation.*;
@RestController
@Api(value = "swagger接口测试")
public class UserController {
    @GetMapping("/test")
    @ApiOperation(value = "获取用户信息")
    public UserVo getUser(@RequestParam("id") @ApiParam(value = "用户唯一ID") Integer id){
        return new UserVo("test","test"+id);
    }
    @PostMapping("/test")
    @ApiOperation(value = "新增用户信息")
    public UserVo insertUser(@RequestBody User vo){
        return new UserVo(vo.getName(),"success");
    }
}

1. **@Api**：注解用于类上，表示这个类是 swagger 的资源。
2. **@ApiOperation**：注解用于方法，表示一个 http 请求的操作。
3. **@ApiParam**：注解用于参数上，用来标明参数信息。
