Spring @Import注解源码解析

文章结构

1. 三种使用方式
2. 加载时机
3. 对不同使用方式的处理方式

简介

Spring 3.0之前，创建Bean可以通过xml配置文件与扫描特定包下面的类来将类注入到Spring IOC容器内。而在Spring 3.0之后提供了JavaConfig的方式，也就是将IOC容器里Bean的元信息以java代码的方式进行描述。我们可以通过@Configuration与@Bean这两个注解配合使用来将原来配置在xml文件里的bean通过java代码的方式进行描述

@Import注解提供了@Bean注解的功能，同时还有xml配置文件里标签组织多个分散的xml文件的功能，当然在这里是组织多个分散的@Configuration

先看一下@Import注解的源码：

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface Import {
    /**
      * {@link Configuration}, {@link ImportSelector}, {@link ImportBeanDefinitionRegistrar}
      * or regular component classes to import.
      */
            Class<?>[] value();
}

从源码里可以看出@Import可以配合 Configuration ,ImportSelector, ImportBeanDefinitionRegistrar 来使用，下面的or表示也可以把Import当成普通的Bean使用
@Import只允许放到类上面，不能放到方法上。下面我们来看具体的使用方式

普通使用方法

这种方式可以直接把类加入到Spring IOC容器

@Configuration
@Import(value={UserServiceImpl.class})
public class Config {
}

但是这种方式有一些问题，那就是只能使用类的无参构造方法来创建bean，对于有参数的构造方法就无能为力了

结合ImportBeanDefinitionRegistrar接口

ImportBeanDefinitionRegistrar接口的源码如下：

public interface ImportBeanDefinitionRegistrar {
    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry);
}

可以看到这个接口唯一的方法是有两个参数的

1. AnnotationMetadata：通过这个参数可以拿到类的元数据信息
2. BeanDefinitionRegistry：通过这个参数可以操作IOC容器

我们可以使用一个类来实现这个接口，这样可以指定注入某些bean

public class UserServiceBeanDefinitionRegistrar implements ImportBeanDefinitionRegistrar {
    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata,BeanDefinitionRegistry registry) {
        BeanDefinitionBuilder userService = BeanDefinitionBuilder.rootBeanDefinition(UserServiceImpl.class);
        registry.registerBeanDefinition("userService", userService.getBeanDefinition());
    }
}
@Configuration
@Import(value={UserServiceBeanDefinitionRegistrar.class})
public class Config {
}

可以看到我们在这个方法里面做一些特殊操作什么的都是可以的，相比较于普通的方式可是灵活了很多

接着我们在@Import注解引入的地方只需要修改为引入UserServiceBeanDefinitionRegistrar就可以了

@Configuration
@Import(value={UserServiceBeanDefinitionRegistrar.class})
public class Config {
}

结合ImportSelector接口

相比较与实现ImportBeanDefinitionRegistrar接口之后直接操作Bean容器来说，使用ImportSelector会更加优雅一些，只需要返回需要注入类的全限定名就可以了

ImportSelector接口的源码如下：

public interface ImportSelector {
    String[] selectImports(AnnotationMetadata importingClassMetadata);
}
public class UserServiceImportSelect implements ImportSelector{
    public String[] selectImports(AnnotationMetadata importingClassMetadata) {
       return new String[]{UserServiceImpl.class.getName()};
    }
}
@Configuration()
@Import(value={UserServiceImportSelect.class})
public class Config {
}

相比较三种方式来说可以看到最后这种才是最优雅的方式

源码解析

首先我们就以第三种比较优雅的方式出发，使用Call Hierarchy看一下ImportSelector接口的selectImports方法调用链关系：

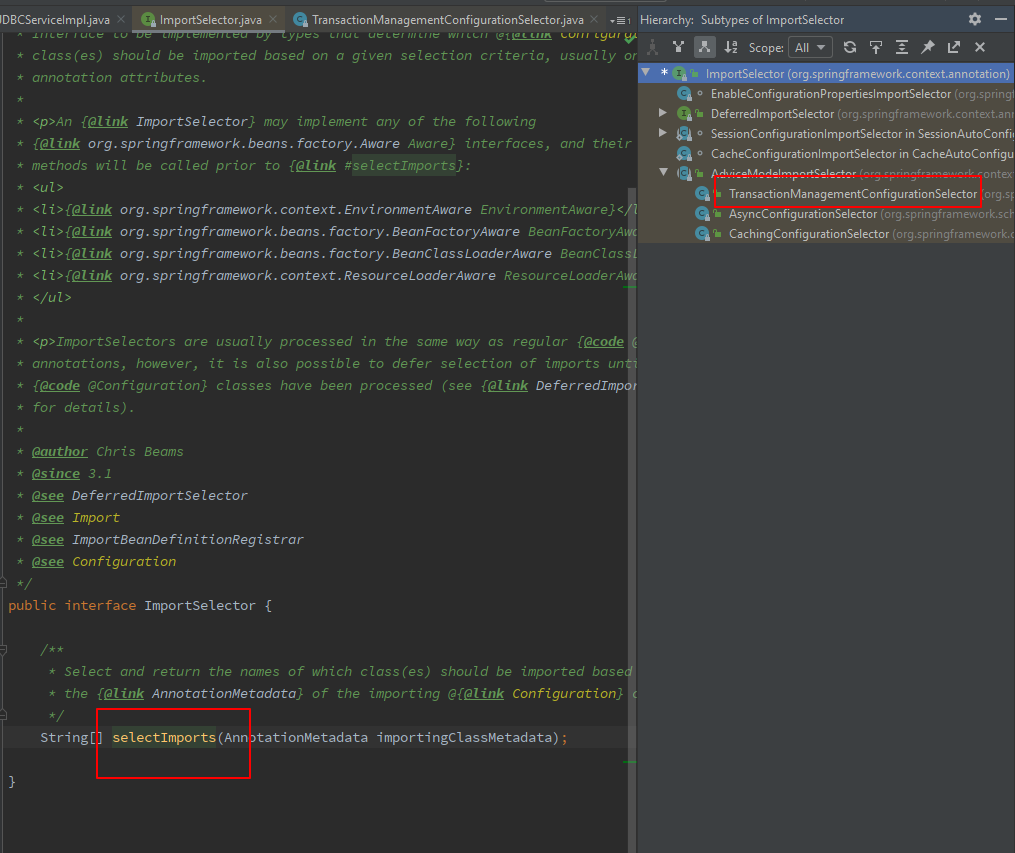

找一个ImportSelector的实现类，Ctrl+H 找继承关系，

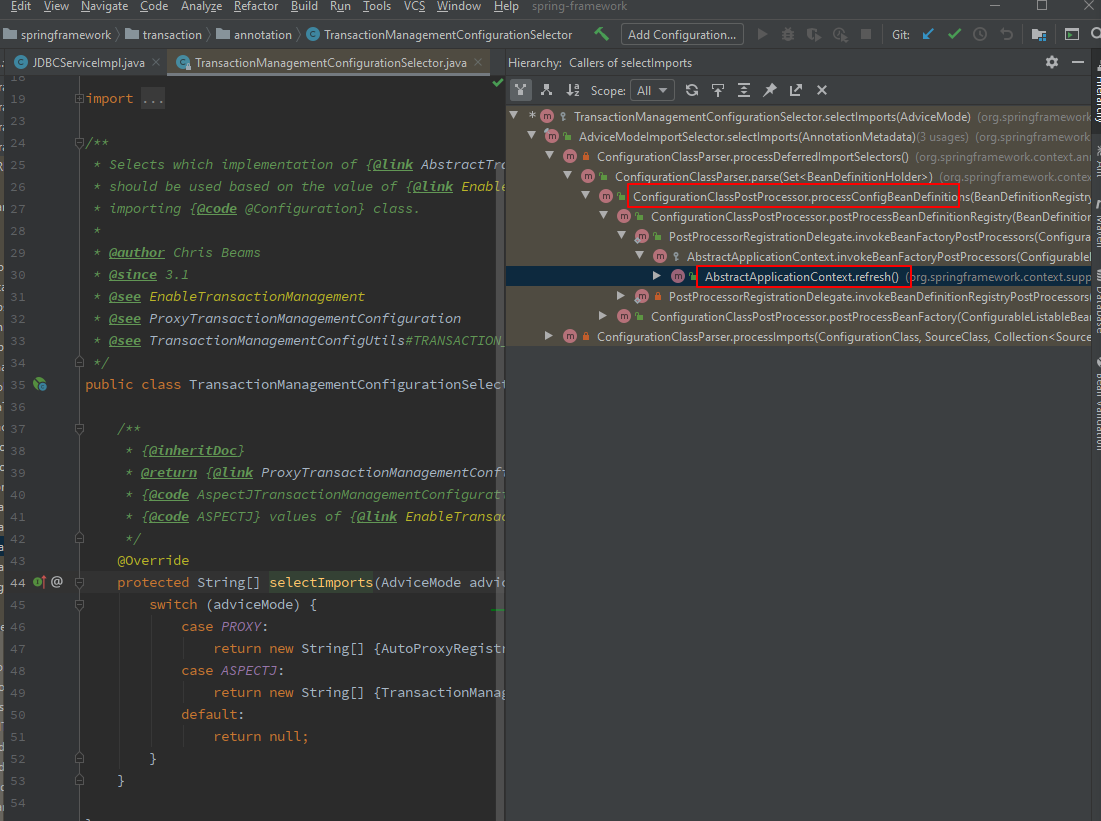

Ctrl + Alt + H 查询方法的调用链 (往下走是爸爸，找谁调用了它)

看过之前Spring源码解析文章的同学都知道，refresh方法是用来初始化容器上下文的。跟着这个调用链走下来到中间有一个类是ConfigurationClassPostProcessor，根据类名我们就可以猜到这个类应该是处理配置类（也就是标注@Configuration）的。那么从这开始看吧

public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
    List<BeanDefinitionHolder> configCandidates = new ArrayList<BeanDefinitionHolder>();
    String[] candidateNames = registry.getBeanDefinitionNames();
    for (String beanName : candidateNames) {
        BeanDefinition beanDef = registry.getBeanDefinition(beanName);
        if (ConfigurationClassUtils.isFullConfigurationClass(beanDef) ||
                ConfigurationClassUtils.isLiteConfigurationClass(beanDef)) {
            if (logger.isDebugEnabled()) {
                logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
            }
        }
       //查看是否是配置类
        else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
            configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
        }
    }
    //如果没有配置类就直接返回
    if (configCandidates.isEmpty()) {
        return;
    }
    //对这些配置类根据Order排序
    Collections.sort(configCandidates, new Comparator<BeanDefinitionHolder>() {
        @Override
        public int compare(BeanDefinitionHolder bd1, BeanDefinitionHolder bd2) {
            int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
            int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
            return (i1 < i2) ? -1 : (i1 > i2) ? 1 : 0;
        }
    });
    SingletonBeanRegistry sbr = null;
    if (registry instanceof SingletonBeanRegistry) {
        sbr = (SingletonBeanRegistry) registry;
        if (!this.localBeanNameGeneratorSet && sbr.containsSingleton(CONFIGURATION_BEAN_NAME_GENERATOR)) {
            BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(CONFIGURATION_BEAN_NAME_GENERATOR);
            this.componentScanBeanNameGenerator = generator;
            this.importBeanNameGenerator = generator;
        }
    }
             //创建配置类的解析类
    ConfigurationClassParser parser = new ConfigurationClassParser(
            this.metadataReaderFactory, this.problemReporter, this.environment,
            this.resourceLoader, this.componentScanBeanNameGenerator, registry);
    Set<BeanDefinitionHolder> candidates = new LinkedHashSet<BeanDefinitionHolder>(configCandidates);
    Set<ConfigurationClass> alreadyParsed = new HashSet<ConfigurationClass>(configCandidates.size());
    do {
ConfigurationClassParser的parse方法进行解析，重点哈
        parser.parse(candidates);
        parser.validate();
        Set<ConfigurationClass> configClasses = new LinkedHashSet<ConfigurationClass>(parser.getConfigurationClasses());
        configClasses.removeAll(alreadyParsed);
        // Read the model and create bean definitions based on its content
        if (this.reader == null) {
            this.reader = new ConfigurationClassBeanDefinitionReader(
                    registry, this.sourceExtractor, this.resourceLoader, this.environment,
                    this.importBeanNameGenerator, parser.getImportRegistry());
        }
        this.reader.loadBeanDefinitions(configClasses);
        alreadyParsed.addAll(configClasses);
        candidates.clear();
        if (registry.getBeanDefinitionCount() > candidateNames.length) {
            String[] newCandidateNames = registry.getBeanDefinitionNames();
            Set<String> oldCandidateNames = new HashSet<String>(Arrays.asList(candidateNames));
            Set<String> alreadyParsedClasses = new HashSet<String>();
            for (ConfigurationClass configurationClass : alreadyParsed) {
                alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
            }
            for (String candidateName : newCandidateNames) {
                if (!oldCandidateNames.contains(candidateName)) {
                    BeanDefinition bd = registry.getBeanDefinition(candidateName);
                    if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
                            !alreadyParsedClasses.contains(bd.getBeanClassName())) {
                        candidates.add(new BeanDefinitionHolder(bd, candidateName));
                    }
                }
            }
            candidateNames = newCandidateNames;
        }
    }
    while (!candidates.isEmpty());
    if (sbr != null) {
        if (!sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
            sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
        }
    }
    if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
        ((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
    }
}

ConfigurationClassParser类

现在该进入ConfigurationClassParser类了

public void parse(Set<BeanDefinitionHolder> configCandidates) {
    this.deferredImportSelectors = new LinkedList<DeferredImportSelectorHolder>();
    for (BeanDefinitionHolder holder : configCandidates) {
        BeanDefinition bd = holder.getBeanDefinition();
        try {
            if (bd instanceof AnnotatedBeanDefinition) {
                parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
            }
            else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
                parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
            }
            else {
                parse(bd.getBeanClassName(), holder.getBeanName());
            }
        }
        catch (BeanDefinitionStoreException ex) {
            throw ex;
        }
        catch (Throwable ex) {
            throw new BeanDefinitionStoreException(
                    "Failed to parse configuration class [" + bd.getBeanClassName() + "]", ex);
        }
    }
    processDeferredImportSelectors();
}
//下面三种方法用于处理不同的BeanDefinition 类型，但最终都是使用的processConfigurationClass方法
protected final void parse(String className, String beanName) throws IOException {
    MetadataReader reader = this.metadataReaderFactory.getMetadataReader(className);
    processConfigurationClass(new ConfigurationClass(reader, beanName));
}
protected final void parse(Class<?> clazz, String beanName) throws IOException {
    processConfigurationClass(new ConfigurationClass(clazz, beanName));
}
protected final void parse(AnnotationMetadata metadata, String beanName) throws IOException {
    processConfigurationClass(new ConfigurationClass(metadata, beanName));
}

可以看到配置类可能会是三种形式的存在，这三种形式的Bean在操作上有着部分不一样，但是大部分又是一样，所以Spring用这种模式来处理。不得不感叹人家设计的真好

接着往下看

protected void processConfigurationClass(ConfigurationClass configClass) throws IOException {
    if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
        return;
    }
    ConfigurationClass existingClass = this.configurationClasses.get(configClass);
    //在这里处理Configuration重复import
      //如果同一个配置类被处理两次，两次都属于被import的则合并导入类，返回。如果配置类不是被导入的，则移除旧使用新的配置类
    if (existingClass != null) {
        if (configClass.isImported()) {
            if (existingClass.isImported()) {
                existingClass.mergeImportedBy(configClass);
            }
            return;
        }
        else {
            this.configurationClasses.remove(configClass);
            for (Iterator<ConfigurationClass> it = this.knownSuperclasses.values().iterator(); it.hasNext();) {
                if (configClass.equals(it.next())) {
                    it.remove();
                }
            }
        }
    }
    SourceClass sourceClass = asSourceClass(configClass);
    do {
      //接着往下看吧
        sourceClass = doProcessConfigurationClass(configClass, sourceClass);
    }
    while (sourceClass != null);
    this.configurationClasses.put(configClass, configClass);
}
protected final SourceClass doProcessConfigurationClass(ConfigurationClass configClass, SourceClass sourceClass)
        throws IOException {
    // 处理递归类
    processMemberClasses(configClass, sourceClass);
    // 处理@PropertySource注解
    for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
            sourceClass.getMetadata(), PropertySources.class,
            org.springframework.context.annotation.PropertySource.class)) {
        if (this.environment instanceof ConfigurableEnvironment) {
            processPropertySource(propertySource);
        }
        else {
            logger.warn("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
                    "]. Reason: Environment must implement ConfigurableEnvironment");
        }
    }
    // 处理 @ComponentScan 注解
    Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
            sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
    if (!componentScans.isEmpty() &&
            !this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
        for (AnnotationAttributes componentScan : componentScans) {
            // The config class is annotated with @ComponentScan -> perform the scan immediately
            Set<BeanDefinitionHolder> scannedBeanDefinitions =
                    this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
            // Check the set of scanned definitions for any further config classes and parse recursively if needed
            for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
                BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
                if (bdCand == null) {
                    bdCand = holder.getBeanDefinition();
                }
                if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
                    parse(bdCand.getBeanClassName(), holder.getBeanName());
                }
            }
        }
    }
    //处理Import注解，这个是咱们的菜
    processImports(configClass, sourceClass, getImports(sourceClass), true);
    // 处理@ImportResource 注解
    if (sourceClass.getMetadata().isAnnotated(ImportResource.class.getName())) {
        AnnotationAttributes importResource =
                AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
        String[] resources = importResource.getStringArray("locations");
        Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
        for (String resource : resources) {
            String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
            configClass.addImportedResource(resolvedResource, readerClass);
        }
    }
    //处理包含@Bean注解的方法
    Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
    for (MethodMetadata methodMetadata : beanMethods) {
        configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
    }
    // 处理普通方法
    processInterfaces(configClass, sourceClass);
    if (sourceClass.getMetadata().hasSuperClass()) {
        String superclass = sourceClass.getMetadata().getSuperClassName();
        if (!superclass.startsWith("java") && !this.knownSuperclasses.containsKey(superclass)) {
            this.knownSuperclasses.put(superclass, configClass);
            // Superclass found, return its annotation metadata and recurse
            return sourceClass.getSuperClass();
        }
    }
    return null;
}

看到这里好像突然发现了新大陆呀，原来我们经常见的@Bean、@ImportResource 、@Import、@ComponentScan、@PropertySource都是在这里处理的呀

咱们的重点还是放在@Import上，对其他几个注解感兴趣的同学可以自行研究一下

private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,
        Collection<SourceClass> importCandidates, boolean checkForCircularImports) {
    if (importCandidates.isEmpty()) {
        return;
    }
    if (checkForCircularImports && isChainedImportOnStack(configClass)) {
        this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
    }
    else {
        this.importStack.push(configClass);
        try {
            for (SourceClass candidate : importCandidates) {
                //如果实现了ImportSelector接口
                if (candidate.isAssignable(ImportSelector.class)) {
                    Class<?> candidateClass = candidate.loadClass();
                    ImportSelector selector = BeanUtils.instantiateClass(candidateClass, ImportSelector.class);
                    ParserStrategyUtils.invokeAwareMethods(
                            selector, this.environment, this.resourceLoader, this.registry);
                    if (this.deferredImportSelectors != null && selector instanceof DeferredImportSelector) {
                        this.deferredImportSelectors.add(
                                new DeferredImportSelectorHolder(configClass, (DeferredImportSelector) selector));
                    }
                    else {
                        //这里调用了ImportSelector接口中的方法
                        String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata());
                        Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames);
                        processImports(configClass, currentSourceClass, importSourceClasses, false);
                    }
                }
                  //如果实现了ImportBeanDefinitionRegistrar接口
                else if (candidate.isAssignable(ImportBeanDefinitionRegistrar.class)) {
                    Class<?> candidateClass = candidate.loadClass();
                    ImportBeanDefinitionRegistrar registrar =
                            BeanUtils.instantiateClass(candidateClass, ImportBeanDefinitionRegistrar.class);
                    ParserStrategyUtils.invokeAwareMethods(
                            registrar, this.environment, this.resourceLoader, this.registry);
                    //这里将ImportBeanDefinitionRegistrar对应的类加入到了注册器，之后这个注册器会进行遍历调用接口中的方法
                    configClass.addImportBeanDefinitionRegistrar(registrar, currentSourceClass.getMetadata());
                }
                else {
                     //将import当成Configuration来使用就是我们的第一种应用的方式
                    this.importStack.registerImport(
                            currentSourceClass.getMetadata(), candidate.getMetadata().getClassName());
                    processConfigurationClass(candidate.asConfigClass(configClass));
                }
            }
        }
        catch (BeanDefinitionStoreException ex) {
            throw ex;
        }
        catch (Throwable ex) {
            throw new BeanDefinitionStoreException(
                    "Failed to process import candidates for configuration class [" +
                    configClass.getMetadata().getClassName() + "]", ex);
        }
        finally {
            this.importStack.pop();
        }
    }
}
