SpringMVC源码解析（二）

文章结构

1. 获取对应的handler
2. 获取对应的handlerAdapter
3. 调用handle
4. 执行拦截器
5. 处理返回结果

类的背景

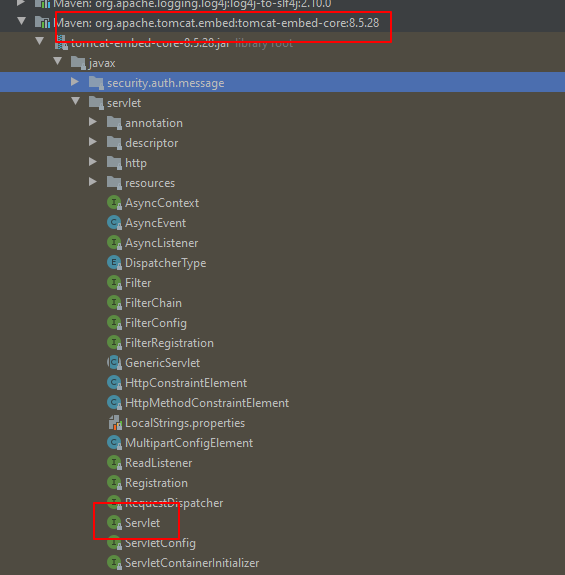

Servlet规范Tomcat做了实现，Tomcat下的javax.servlet包下的类是对Tomcat的Servlet规范的实现，jdk1.8中没有Servlet类

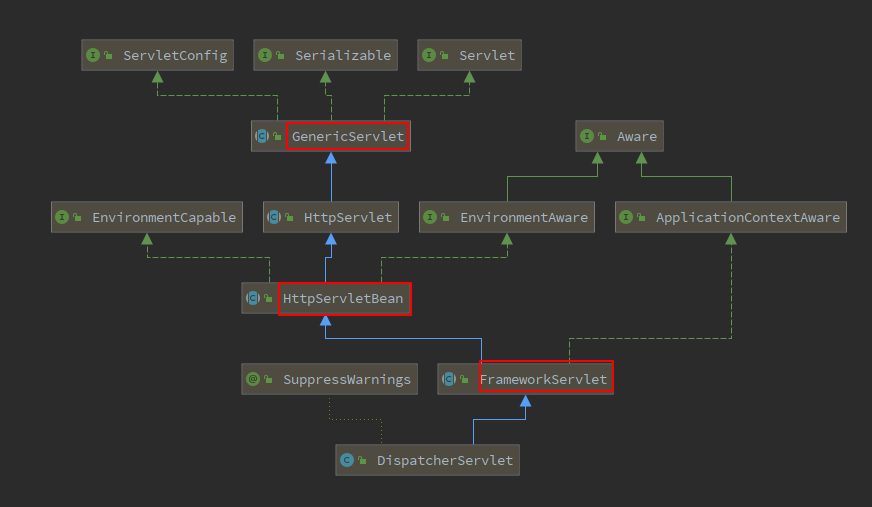

父类的FrameworkServlet重写了HttpServlet的doPost()和doGet()方法

HandlerMapping的继承关系图

DispatchServlet调用关系图：
FrameworkServlet.processRequest()
->DispatcherServlet.doService()
->DispatcherServlet.doDispatch()
->DispatcherServlet.getHandler()
->具体HandlerMapping的.getHandlerInternal() （以AbstractUrlHandlerMapping为例）
->lookupHandler()
->buildPathExposingHandler()
->DispatcherServlet.getHandlerAdapter()
->具体的HandlerAdapter的.supports() （以SimpleControllerHandlerAdapterl为例）
->handle()
->AbstractController.handleRequest()
->DispatcherServlet.processDispatchResult()
->DispatcherServlet.render()
->具体View视图的render()

在上篇文章SpringMVC源码解析（一）中，我们搭建了一个SpringBoot的启动demo，分析了SpringBoot中SpringMVC的自动配置原理以及DispatcherServlet的初始化流程。本篇文章就分析一次请求在SpringMVC中的处理流程

在日常开发中，我们最常用的请求方式大概就是Get和Post了，Tomcat或者Jetty等web服务器在接受到请求后会调用到DispatcherServlet对应的方法

@Override
protected final void doGet(HttpServletRequest request, HttpServletResponse response)
      throws ServletException, IOException {
   processRequest(request, response);
}
@Override
protected final void doPost(HttpServletRequest request, HttpServletResponse response)
      throws ServletException, IOException {
   processRequest(request, response);
}

可以看到其实最终都是调用的同一个方法

protected final void processRequest(HttpServletRequest request, HttpServletResponse response)
      throws ServletException, IOException {
//记录开始时间
   long startTime = System.currentTimeMillis();
   Throwable failureCause = null;
//记录当前线程的信息
   LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
   LocaleContext localeContext = buildLocaleContext(request);
   RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
   ServletRequestAttributes requestAttributes = buildRequestAttributes(request, response, previousAttributes);
   WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
   asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new RequestBindingInterceptor());
   initContextHolders(request, localeContext, requestAttributes);
   try {
//核心处理，往下看
      doService(request, response);
   }
   catch (ServletException | IOException ex) {
      failureCause = ex;
      throw ex;
   }
   catch (Throwable ex) {
      failureCause = ex;
      throw new NestedServletException("Request processing failed", ex);
   }
   finally {//清除线程绑定信息
      resetContextHolders(request, previousLocaleContext, previousAttributes);
      if (requestAttributes != null) {
         requestAttributes.requestCompleted();
      }
      if (logger.isDebugEnabled()) {
         if (failureCause != null) {
            this.logger.debug("Could not complete request", failureCause);
         }
         else {
            if (asyncManager.isConcurrentHandlingStarted()) {
               logger.debug("Leaving response open for concurrent processing");
            }
            else {
               this.logger.debug("Successfully completed request");
            }
         }
      }
//发送事件通知
      publishRequestHandledEvent(request, response, startTime, failureCause);
   }
}
protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
   if (logger.isDebugEnabled()) {
      String resumed = WebAsyncUtils.getAsyncManager(request).hasConcurrentResult() ? " resumed" : "";
      logger.debug("DispatcherServlet with name '" + getServletName() + "'" + resumed +
            " processing " + request.getMethod() + " request for [" + getRequestUri(request) + "]");
   }
   // Keep a snapshot of the request attributes in case of an include,
   // to be able to restore the original attributes after the include.
   Map<String, Object> attributesSnapshot = null;
   if (WebUtils.isIncludeRequest(request)) {
      attributesSnapshot = new HashMap<>();
      Enumeration<?> attrNames = request.getAttributeNames();
      while (attrNames.hasMoreElements()) {
         String attrName = (String) attrNames.nextElement();
         if (this.cleanupAfterInclude || attrName.startsWith(DEFAULT_STRATEGIES_PREFIX)) {
            attributesSnapshot.put(attrName, request.getAttribute(attrName));
         }
      }
   }
   // Make framework objects available to handlers and view objects.
   request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, getWebApplicationContext());
   request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
   request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
   request.setAttribute(THEME_SOURCE_ATTRIBUTE, getThemeSource());
   if (this.flashMapManager != null) {
      FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
      if (inputFlashMap != null) {
         request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
      }
      request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
      request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);
   }
   try {
      doDispatch(request, response);
   }
   finally {
      if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
         // Restore the original attribute snapshot, in case of an include.
         if (attributesSnapshot != null) {
            restoreAttributesAfterInclude(request, attributesSnapshot);
         }
      }
   }
}

可以看到上方的大段代码都是做的一些准备工作，具体的逻辑接着往下看吧，这个核心流程都在下面这个方法里了

doDispatch

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;
        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
        try {
            ModelAndView mv = null;
            Exception dispatchException = null;
            try {
              //如果是文件上传请求则进行特殊处理
                processedRequest = checkMultipart(request);
                multipartRequestParsed = (processedRequest != request);
                 // 1.获取对应的handler
                mappedHandler = getHandler(processedRequest);
                if (mappedHandler == null) {
                    //如果没有获取到对应的handler则往response中写入错误信息
                    noHandlerFound(processedRequest, response);
                    return;
                }
                // 2. 获取对应的handlerAdapter
                HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
                // 处理last-modified情况
                String method = request.getMethod();
                boolean isGet = "GET".equals(method);
                if (isGet || "HEAD".equals(method)) {
                    long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                    if (logger.isDebugEnabled()) {
                        logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
                    }
                    if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
                        return;
                    }
                }
                if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                    return;
                }
                // 3.调用handle
                mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
                if (asyncManager.isConcurrentHandlingStarted()) {
                    return;
                }
                //如果函数调用没有返回视图则使用默认的
                applyDefaultViewName(processedRequest, mv);
                //执行拦截器
                mappedHandler.applyPostHandle(processedRequest, response, mv);
            }
            catch (Exception ex) {
                dispatchException = ex;
            }
            catch (Throwable err) {
                // As of 4.3, we're processing Errors thrown from handler methods as well,
                // making them available for @ExceptionHandler methods and other scenarios.
                dispatchException = new NestedServletException("Handler dispatch failed", err);
            }
              //4. 处理返回结果
            processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
        }
        catch (Exception ex) {
            triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
        }
        catch (Throwable err) {
            triggerAfterCompletion(processedRequest, response, mappedHandler,
                    new NestedServletException("Handler processing failed", err));
        }
        finally {
            if (asyncManager.isConcurrentHandlingStarted()) {
                // Instead of postHandle and afterCompletion
                if (mappedHandler != null) {
                    mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
                }
            }
            else {
                // Clean up any resources used by a multipart request.
                if (multipartRequestParsed) {
                    cleanupMultipart(processedRequest);
                }
            }
        }
    }

1. 获取handler

protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
        if (this.handlerMappings != null) {
          //遍历所有的handlerMapping，这里的handlemapping就是初始化阶段构造的三个
            for (HandlerMapping hm : this.handlerMappings) {
                if (logger.isTraceEnabled()) {
                    logger.trace(
                            "Testing handler map [" + hm + "] in DispatcherServlet with name '" + getServletName() + "'");
                }
              //这里调用具体的handler，哪个handler能够处理就直接返回
                HandlerExecutionChain handler = hm.getHandler(request);
                if (handler != null) {
                    return handler;
                }
            }
        }
        return null;
    }
public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
//1. 调用具体的实现去获取handler
   Object handler = getHandlerInternal(request);
//如果为空使用默认的
   if (handler == null) {
      handler = getDefaultHandler();
   }
//没有默认的返回空
   if (handler == null) {
      return null;
   }
   // 尝试通过BeanName去获取handler
   if (handler instanceof String) {
      String handlerName = (String) handler;
      handler = obtainApplicationContext().getBean(handlerName);
   }
//2. 获取handler执行链
   HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);
   if (CorsUtils.isCorsRequest(request)) {
      CorsConfiguration globalConfig = this.globalCorsConfigSource.getCorsConfiguration(request);
      CorsConfiguration handlerConfig = getCorsConfiguration(handler, request);
      CorsConfiguration config = (globalConfig != null ? globalConfig.combine(handlerConfig) : handlerConfig);
      executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
   }
   return executionChain;
}

1. 获取具体的handler

这里以AbstractUrlHandlerMapping为例解读一下，顾明思议，这个类是根据请求url获取响应的handler的

protected Object getHandlerInternal(HttpServletRequest request) throws Exception {
//截取url
   String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
//根据url寻找handler
   Object handler = lookupHandler(lookupPath, request);
   if (handler == null) {
      // 如果请求路径为/则使用RootHandler
      Object rawHandler = null;
      if ("/".equals(lookupPath)) {
         rawHandler = getRootHandler();
      }
      if (rawHandler == null) {
//使用默认
         rawHandler = getDefaultHandler();
      }
      if (rawHandler != null) {
         // 根据beanName尝试获取Handler
         if (rawHandler instanceof String) {
            String handlerName = (String) rawHandler;
            rawHandler = obtainApplicationContext().getBean(handlerName);
         }//校验
         validateHandler(rawHandler, request);
         handler = buildPathExposingHandler(rawHandler, lookupPath, lookupPath, null);
      }
   }
   if (handler != null && logger.isDebugEnabled()) {
      logger.debug("Mapping [" + lookupPath + "] to " + handler);
   }
   else if (handler == null && logger.isTraceEnabled()) {
      logger.trace("No handler mapping found for [" + lookupPath + "]");
   }
   return handler;
}
protected Object lookupHandler(String urlPath, HttpServletRequest request) throws Exception {
   // 直接根据url匹配
   Object handler = this.handlerMap.get(urlPath);
   if (handler != null) {
      // Bean name or resolved handler?
      if (handler instanceof String) {
         String handlerName = (String) handler;
         handler = obtainApplicationContext().getBean(handlerName);
      }
      validateHandler(handler, request);
//封装执行链
      return buildPathExposingHandler(handler, urlPath, urlPath, null);
   }
   // 正则匹配
   List<String> matchingPatterns = new ArrayList<>();
   for (String registeredPattern : this.handlerMap.keySet()) {
      if (getPathMatcher().match(registeredPattern, urlPath)) {
         matchingPatterns.add(registeredPattern);
      }
      else if (useTrailingSlashMatch()) {
         if (!registeredPattern.endsWith("/") && getPathMatcher().match(registeredPattern + "/", urlPath)) {
            matchingPatterns.add(registeredPattern +"/");
         }
      }
   }
   String bestMatch = null;
   Comparator<String> patternComparator = getPathMatcher().getPatternComparator(urlPath);
   if (!matchingPatterns.isEmpty()) {
      matchingPatterns.sort(patternComparator);
      if (logger.isDebugEnabled()) {
         logger.debug("Matching patterns for request [" + urlPath + "] are " + matchingPatterns);
      }
      bestMatch = matchingPatterns.get(0);
   }
   if (bestMatch != null) {
      handler = this.handlerMap.get(bestMatch);
      if (handler == null) {
         if (bestMatch.endsWith("/")) {
            handler = this.handlerMap.get(bestMatch.substring(0, bestMatch.length() - 1));
         }
         if (handler == null) {
            throw new IllegalStateException(
                  "Could not find handler for best pattern match [" + bestMatch + "]");
         }
      }
      // Bean name or resolved handler?
      if (handler instanceof String) {
         String handlerName = (String) handler;
         handler = obtainApplicationContext().getBean(handlerName);
      }
      validateHandler(handler, request);
      String pathWithinMapping = getPathMatcher().extractPathWithinPattern(bestMatch, urlPath);
      // There might be multiple 'best patterns', let's make sure we have the correct URI template variables
      // for all of them
      Map<String, String> uriTemplateVariables = new LinkedHashMap<>();
      for (String matchingPattern : matchingPatterns) {
         if (patternComparator.compare(bestMatch, matchingPattern) == 0) {
            Map<String, String> vars = getPathMatcher().extractUriTemplateVariables(matchingPattern, urlPath);
            Map<String, String> decodedVars = getUrlPathHelper().decodePathVariables(request, vars);
            uriTemplateVariables.putAll(decodedVars);
         }
      }
      if (logger.isDebugEnabled()) {
         logger.debug("URI Template variables for request [" + urlPath + "] are " + uriTemplateVariables);
      }
      return buildPathExposingHandler(handler, bestMatch, pathWithinMapping, uriTemplateVariables);
   }
   // No handler found...
   return null;
}

2. 封装执行链

当获取到相应的handler后，查看是否存在拦截器，如果存在的话则加入执行链中

protected Object buildPathExposingHandler(Object rawHandler, String bestMatchingPattern,
      String pathWithinMapping, @Nullable Map<String, String> uriTemplateVariables) {
   HandlerExecutionChain chain = new HandlerExecutionChain(rawHandler);
   chain.addInterceptor(new PathExposingHandlerInterceptor(bestMatchingPattern, pathWithinMapping));
   if (!CollectionUtils.isEmpty(uriTemplateVariables)) {
      chain.addInterceptor(new UriTemplateVariablesHandlerInterceptor(uriTemplateVariables));
   }
   return chain;
}

2. 获取handlerAdpter

根据handler获取匹配的handlerAdpter

protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
   if (this.handlerAdapters != null) {
      for (HandlerAdapter ha : this.handlerAdapters) {
         if (logger.isTraceEnabled()) {
            logger.trace("Testing handler adapter [" + ha + "]");
         }
         //不同的handlerAdapter的判断方法不同
         if (ha.supports(handler)) {
            return ha;
         }
      }
   }
   throw new ServletException("No adapter for handler [" + handler +
         "]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
}
以SimpleControllerHandlerAdapter为例，判断是否实现Controller接口
public boolean supports(Object handler) {
   return (handler instanceof Controller);
}

3. 执行请求

public ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
      throws Exception {
   return ((Controller) handler).handleRequest(request, response);
}
public ModelAndView handleRequest(HttpServletRequest request, HttpServletResponse response)
      throws Exception {
   if (HttpMethod.OPTIONS.matches(request.getMethod())) {
      response.setHeader("Allow", getAllowHeader());
      return null;
   }
   // Delegate to WebContentGenerator for checking and preparing.
   checkRequest(request);
   prepareResponse(response);
   // 如果需要同步session
   if (this.synchronizeOnSession) {
      HttpSession session = request.getSession(false);
      if (session != null) {
         Object mutex = WebUtils.getSessionMutex(session);
         synchronized (mutex) {
            return handleRequestInternal(request, response);
         }
      }
   }
调用Controller方法
   return handleRequestInternal(request, response);
}

4.处理返回结果

private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
      @Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
      @Nullable Exception exception) throws Exception {
   boolean errorView = false;
//是否包含异常信息
   if (exception != null) {
      if (exception instanceof ModelAndViewDefiningException) {
         logger.debug("ModelAndViewDefiningException encountered", exception);
         mv = ((ModelAndViewDefiningException) exception).getModelAndView();
      }
      else {//异常视图处理
         Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
         mv = processHandlerException(request, response, handler, exception);
         errorView = (mv != null);
      }
   }
        if (mv != null && !mv.wasCleared()) {
         // 页面跳转处理
            render(mv, request, response);
            if (errorView) {
                WebUtils.clearErrorRequestAttributes(request);
            }
        }
        else {
            if (logger.isDebugEnabled()) {
                logger.debug("Null ModelAndView returned to DispatcherServlet with name '" + getServletName() +
                        "': assuming HandlerAdapter completed request handling");
            }
        }
        if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
            // Concurrent handling started during a forward
            return;
        }
        if (mappedHandler != null) {
            mappedHandler.triggerAfterCompletion(request, response, null);
        }
    }
   if (mv != null && !mv.wasCleared()) {

5. 页面跳转的逻辑

protected void render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response) throws Exception {
   // Determine locale for request and apply it to the response.
   Locale locale =
         (this.localeResolver != null ? this.localeResolver.resolveLocale(request) : request.getLocale());
   response.setLocale(locale);
   View view;
   String viewName = mv.getViewName();
   if (viewName != null) {
      //1.解析视图名
      view = resolveViewName(viewName, mv.getModelInternal(), locale, request);
      if (view == null) {
         throw new ServletException("Could not resolve view with name '" + mv.getViewName() +
               "' in servlet with name '" + getServletName() + "'");
      }
   }
   else {
      // No need to lookup: the ModelAndView object contains the actual View object.
      view = mv.getView();
      if (view == null) {
         throw new ServletException("ModelAndView [" + mv + "] neither contains a view name nor a " +
               "View object in servlet with name '" + getServletName() + "'");
      }
   }
   // Delegate to the View object for rendering.
   if (logger.isDebugEnabled()) {
      logger.debug("Rendering view [" + view + "] in DispatcherServlet with name '" + getServletName() + "'");
   }
   try {
      if (mv.getStatus() != null) {
         response.setStatus(mv.getStatus().value());
      }//2.跳转
      view.render(mv.getModelInternal(), request, response);
   }
   catch (Exception ex) {
      if (logger.isDebugEnabled()) {
         logger.debug("Error rendering view [" + view + "] in DispatcherServlet with name '" +
               getServletName() + "'", ex);
      }
      throw ex;
   }
}

1. 解析视图名称

protected View resolveViewName(String viewName, @Nullable Map<String, Object> model,
      Locale locale, HttpServletRequest request) throws Exception {
   if (this.viewResolvers != null) {
      for (ViewResolver viewResolver : this.viewResolvers) {
         View view = viewResolver.resolveViewName(viewName, locale);
         if (view != null) {
            return view;
         }
      }
   }
   return null;
}

2. 页面跳转

具体的跳转逻辑是根据当前使用的渲染引擎决定的，比如html、jsp、Thymeleaf等，这里简单 列举一个Thymeleaf的逻辑吧

public void render(Map<String, ?> model, HttpServletRequest request, HttpServletResponse response) throws Exception {
       this.renderFragment(this.markupSelectors, model, request, response);
   }
   protected void renderFragment(Set<String> markupSelectorsToRender, Map<String, ?> model, HttpServletRequest request, HttpServletResponse response) throws Exception {
       ServletContext servletContext = this.getServletContext();
       String viewTemplateName = this.getTemplateName();
       ISpringTemplateEngine viewTemplateEngine = this.getTemplateEngine();
       if (viewTemplateName == null) {
           throw new IllegalArgumentException("Property 'templateName' is required");
       } else if (this.getLocale() == null) {
           throw new IllegalArgumentException("Property 'locale' is required");
       } else if (viewTemplateEngine == null) {
           throw new IllegalArgumentException("Property 'templateEngine' is required");
       } else {
           Map<String, Object> mergedModel = new HashMap(30);
           Map<String, Object> templateStaticVariables = this.getStaticVariables();
           if (templateStaticVariables != null) {
               mergedModel.putAll(templateStaticVariables);
           }
           if (pathVariablesSelector != null) {
               Map<String, Object> pathVars = (Map)request.getAttribute(pathVariablesSelector);
               if (pathVars != null) {
                   mergedModel.putAll(pathVars);
               }
           }
           if (model != null) {
               mergedModel.putAll(model);
           }
           ApplicationContext applicationContext = this.getApplicationContext();
           RequestContext requestContext = new RequestContext(request, response, this.getServletContext(), mergedModel);
           SpringWebMvcThymeleafRequestContext thymeleafRequestContext = new SpringWebMvcThymeleafRequestContext(requestContext, request);
           addRequestContextAsVariable(mergedModel, "springRequestContext", requestContext);
           addRequestContextAsVariable(mergedModel, "springMacroRequestContext", requestContext);
           mergedModel.put("thymeleafRequestContext", thymeleafRequestContext);
           ConversionService conversionService = (ConversionService)request.getAttribute(ConversionService.class.getName());
           ThymeleafEvaluationContext evaluationContext = new ThymeleafEvaluationContext(applicationContext, conversionService);
           mergedModel.put("thymeleaf::EvaluationContext", evaluationContext);
           IEngineConfiguration configuration = viewTemplateEngine.getConfiguration();
           WebExpressionContext context = new WebExpressionContext(configuration, request, response, servletContext, this.getLocale(), mergedModel);
           String templateName;
           Set markupSelectors;
           if (!viewTemplateName.contains("::")) {
               templateName = viewTemplateName;
               markupSelectors = null;
           } else {
               IStandardExpressionParser parser = StandardExpressions.getExpressionParser(configuration);
               FragmentExpression fragmentExpression;
               try {
                   fragmentExpression = (FragmentExpression)parser.parseExpression(context, "~{" + viewTemplateName + "}");
               } catch (TemplateProcessingException var24) {
                   throw new IllegalArgumentException("Invalid template name specification: '" + viewTemplateName + "'");
               }
               ExecutedFragmentExpression fragment = FragmentExpression.createExecutedFragmentExpression(context, fragmentExpression);
               templateName = FragmentExpression.resolveTemplateName(fragment);
               markupSelectors = FragmentExpression.resolveFragments(fragment);
               Map<String, Object> nameFragmentParameters = fragment.getFragmentParameters();
               if (nameFragmentParameters != null) {
                   if (fragment.hasSyntheticParameters()) {
                       throw new IllegalArgumentException("Parameters in a view specification must be named (non-synthetic): '" + viewTemplateName + "'");
                   }
                   context.setVariables(nameFragmentParameters);
               }
           }
           String templateContentType = this.getContentType();
           Locale templateLocale = this.getLocale();
           String templateCharacterEncoding = this.getCharacterEncoding();
           Set processMarkupSelectors;
           if (markupSelectors != null && markupSelectors.size() > 0) {
               if (markupSelectorsToRender != null && markupSelectorsToRender.size() > 0) {
                   throw new IllegalArgumentException("A markup selector has been specified (" + Arrays.asList(markupSelectors) + ") for a view that was already being executed as a fragment (" + Arrays.asList(markupSelectorsToRender) + "). Only one fragment selection is allowed.");
               }
               processMarkupSelectors = markupSelectors;
           } else if (markupSelectorsToRender != null && markupSelectorsToRender.size() > 0) {
               processMarkupSelectors = markupSelectorsToRender;
           } else {
               processMarkupSelectors = null;
           }
           response.setLocale(templateLocale);
           if (!this.getForceContentType()) {
               String computedContentType = SpringContentTypeUtils.computeViewContentType(request, templateContentType != null ? templateContentType : "text/html;charset=ISO-8859-1", templateCharacterEncoding != null ? Charset.forName(templateCharacterEncoding) : null);
               response.setContentType(computedContentType);
           } else {
               if (templateContentType != null) {
                   response.setContentType(templateContentType);
               } else {
                   response.setContentType("text/html;charset=ISO-8859-1");
               }
               if (templateCharacterEncoding != null) {
                   response.setCharacterEncoding(templateCharacterEncoding);
               }
           }
           viewTemplateEngine.process(templateName, processMarkupSelectors, context, response.getWriter());
       }
   }
