什么是循环依赖

所谓的循环依赖是指，A 依赖 B，B 又依赖 A，它们之间形成了循环依赖。或者是 A 依赖 B，B 依赖 C，C 又依

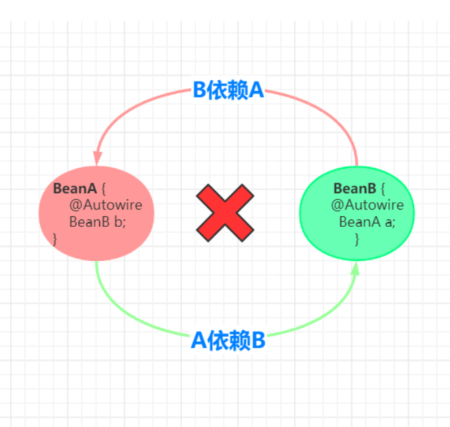

赖 A。它们之间的依赖关系如下
代码示例：

  1. public class MainStart {
  3.     private static Map<String, BeanDefinition> beanDefinitionMap = new ConcurrentHashMap<>(256);
  4.     /**
  5.     * 读取bean定义，当然在spring中肯定是根据配置 动态扫描注册
  6.     */
  7.     public static void loadBeanDefinitions() {
  8.         RootBeanDefinition aBeanDefinition=new RootBeanDefinition(InstanceA.class);
  9.         RootBeanDefinition bBeanDefinition=new RootBeanDefinition(InstanceB.class);
  10.         beanDefinitionMap.put("instanceA",aBeanDefinition);
  11.         beanDefinitionMap.put("instanceB",bBeanDefinition);
  12.     }
  13.     public static void main(String[] args) throws Exception {
  14.         // 加载了BeanDefinition
  15.         loadBeanDefinitions();
  16.         // 注册Bean的后置处理器
  17.         // 循环创建Bean
  18.         for (String key : beanDefinitionMap.keySet()){
  19.             // 先创建A
  20.             getBean(key);
  21.         }
  22.         InstanceA instanceA = (InstanceA) getBean("instanceA");
  23.         instanceA.say();
  24.     }
  25.     // 一级缓存
  26.     public static Map<String,Object> singletonObjects=new ConcurrentHashMap<>();
  27.     // 二级缓存： 为了将 成熟Bean和纯净Bean分离，避免读取到不完整得Bean
  28.     public static Map<String,Object> earlySingletonObjects=new ConcurrentHashMap<>();
  29.     // 三级缓存
  30.     public static Map<String,ObjectFactory> singletonFactories=new ConcurrentHashMap<>();
  31.     // 循环依赖标识
  32.     public  static  Set<String> singletonsCurrennlyInCreation=new HashSet<>();
  33.     // 假设A 使用了Aop @PointCut("execution(* *..InstanceA.*(..))")   要给A创建动态代理
  34.     // 获取Bean
  35.     public  static Object getBean(String beanName) throws Exception {
  36.         Object singleton = getSingleton(beanName);
  37.         if(singleton!=null){
  38.             return singleton;
  39.         }
  40.         // 正在创建
  41.         if(!singletonsCurrennlyInCreation.contains(beanName)){
  42.             singletonsCurrennlyInCreation.add(beanName);
  43.         }
  44.         // createBean
  45.         // 实例化
  46.         RootBeanDefinition beanDefinition = (RootBeanDefinition) beanDefinitionMap.get(beanName);
  47.         Class<?> beanClass = beanDefinition.getBeanClass();
  48.         Object instanceBean = beanClass.newInstance();  // 通过无参构造函数
  49.         // 创建动态代理  （耦合 、BeanPostProcessor)    Spring还是希望正常的Bean 还是再初始化后创建
  50.         // 只在循环依赖的情况下在实例化后创建proxy   判断当前是不是循环依赖
  51.         singletonFactories.put(beanName, () -> new JdkProxyBeanPostProcessor().getEarlyBeanReference(earlySingletonObjects.get(beanName),beanName));
  52.         // 添加到二级缓存
  53.         // earlySingletonObjects.put(beanName,instanceBean);
  54.         // 属性赋值
  55.         Field[] declaredFields = beanClass.getDeclaredFields();
  56.         for (Field declaredField : declaredFields) {
  57.             Autowired annotation = declaredField.getAnnotation(Autowired.class);
  58.             // 说明属性上面有Autowired
  59.             if(annotation!=null){
  60.                 declaredField.setAccessible(true);
  61.                 // byname  bytype  byconstrator
  62.                 // instanceB
  63.                 String name = declaredField.getName();
  64.                 Object fileObject= getBean(name);   //拿到B得Bean
  65.                 declaredField.set(instanceBean,fileObject);
  66.             }
  67.         }
  68.         // 初始化   init-mthod
  69.         // 放在这里创建已经完了  B里面的A 不是proxy
  70.         // 正常情况下会再 初始化之后创建proxy
  71.         // 由于递归完后A 还是原实例，， 所以要从二级缓存中拿到proxy 。
  72.         if(earlySingletonObjects.containsKey(beanName)){
  73.             instanceBean=earlySingletonObjects.get(beanName);
  74.         }
  75.         // 添加到一级缓存   A
  76.         singletonObjects.put(beanName,instanceBean);
  77.         // remove 二级缓存和三级缓存
  78.         return instanceBean;
  79.     }
  80.     public  static Object getSingleton(String beanName){
  81.         // 先从一级缓存中拿
  82.         Object bean = singletonObjects.get(beanName);
  84.         // 说明是循环依赖
  85.         if(bean==null && singletonsCurrennlyInCreation.contains(beanName)){
  86.             bean=earlySingletonObjects.get(beanName);
  87.             // 如果二级缓存没有就从三级缓存中拿
  88.             if(bean==null) {
  89.                 // 从三级缓存中拿
  90.                 ObjectFactory factory = singletonFactories.get(beanName);
  91.                 if (factory != null) {
  92.                     bean=factory.getObject(); // 拿到动态代理
  93.                     earlySingletonObjects.put(beanName, bean);
  94.                 }
  95.             }
  96.         }
  97.         return bean;
  98.     }
  99. }

总结：getBean()核心方法

1：先实例化化，采用反射无参构造
Object beanInstanc = beanClass.newInstance();
2：获取filed 对filed 赋值，递归调用getBean方法
Object fileObject= getBean(name);
3：将bean 放到 一级缓存
singletonObjects.put(beanName,instanceBean);

tip：获取过程判断的各种判断

如何解决循环依赖

引入第三方

三级缓存

一级缓存
保存的是单实例的bean
private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);

二级缓存
缓存的是早期对象，不完整的bean对象
private final Map<String, Object> earlySingletonObjects = new HashMap<>(16);

三级缓存
缓存的是 ObjectFactory
private final Map<String, ObjectFactory<?>> singletonFactories = new HashMap<>(16);

创建的步骤

  1. 创建原始 bean 对象

    1. instanceWrapper = createBeanInstance(beanName, mbd, args);
    2. final Object bean = (instanceWrapper != null ? instanceWrapper.getWrappedInstance() : null);

  2. 暴露早期的引用
    把早期对象包装称ObjectFactory 放在三级缓存

  3. 解析依赖
    populateBean(beanName, mbd, instanceWrapper);对对象A填充属性B，会调用BeanFactory.getBean(方法
  4. 获取早期引用
    this.earlySingletonObjects.get("beanA")

org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#getSingleton(java.lang.String, boolean)

  1. protected Object getSingleton(String beanName, boolean allowEarlyReference) {
  2.         // Quick check for existing instance without full singleton lock
  3.         // 从单例对象缓存中获取beanName对应的单例对象
  4.         Object singletonObject = this.singletonObjects.get(beanName);
  5.         // 如果单例对象缓存中没有，并且该beanName对应的单例bean正在创建中
  6.         if (singletonObject == null && isSingletonCurrentlyInCreation(beanName)) {
  7.             //从早期单例对象缓存中获取单例对象（之所称成为早期单例对象，是因为earlySingletonObjects里
  8.             // 的对象的都是通过提前曝光的ObjectFactory创建出来的，还未进行属性填充等操作）
  9.             singletonObject = this.earlySingletonObjects.get(beanName);
  10.             // 如果在早期单例对象缓存中也没有，并且允许创建早期单例对象引用
  11.             if (singletonObject == null && allowEarlyReference) {
  12.                 // 如果为空，则锁定全局变量并进行处理
  13.                 synchronized (this.singletonObjects) {
  14.                     // Consistent creation of early reference within full singleton lock
  15.                     singletonObject = this.singletonObjects.get(beanName);
  16.                     if (singletonObject == null) {
  17.                         singletonObject = this.earlySingletonObjects.get(beanName);
  18.                         if (singletonObject == null) {
  19.                             // 当某些方法需要提前初始化的时候则会调用addSingletonFactory方法将对应的ObjectFactory初始化策略存储在singletonFactories
  20.                             ObjectFactory<?> singletonFactory = this.singletonFactories.get(beanName);
  21.                             if (singletonFactory != null) {
  22.                                 // 如果存在单例对象工厂，则通过工厂创建一个单例对象
  23.                                 singletonObject = singletonFactory.getObject();
  24.                                 // 记录在缓存中，二级缓存和三级缓存的对象不能同时存在
  25.                                 this.earlySingletonObjects.put(beanName, singletonObject);
  26.                                 // 从三级缓存中移除
  27.                                 this.singletonFactories.remove(beanName);
  28.                             }
  29.                         }
  30.                     }
  31.                 }
  32.             }
  33.         }
  34.         return singletonObject;
  35.     }

对应过程的流程图

https://www.processon.com/view/link/5f1fb2cf1e08533a628a7b4c

三级缓存的原因

二级缓存：分离完整bean和初始化bean，多线程下要保证getBean是完整bean

为什么三级：
bean的aop实在初始化之后，
如果循环依赖Bean使用aop，需要提前创建aop

三级缓存，是一个函数接口，代理对象，普通对象都在BeanPostProcessore，可以解耦，
?我在看看吧

spring不能解决构造器的循环依赖：
实例化之前，缓存没有bean的信息，也就取不到

多例不能解决循环依赖：
如果是原型bean: 每次都有创建对象
如果是构造注入，需要调用构造注入，无法利用缓存

循环依赖的关闭功能

  1. public class Main {
  2.     public static void main(String[] args) {
  3.         AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext();
  4.         applicationContext.setAllowCircularReferences(false);
  5.         applicationContext.register(AppConfig.class);
  6.         applicationContext.refresh();
  7.     }
  8. }

如何扩展

SmartInstantiationAwareBeanPostProcessor 重写 getEarlyBeanReference

  1. protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final Object[] args)throws BeanCreationException {
  2. //省略其他代码，只保留了关键代码
  3. //...
  4. // Eagerly cache singletons to be able to resolve circular references
  5. // even when triggered by lifecycle interfaces like BeanFactoryAware.
  6. boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
  7.          isSingletonCurrentlyInCreation(beanName));
  8.         if (earlySingletonExposure) {
  9.             if (logger.isDebugEnabled()) {
  10.                  logger.debug("Eagerly caching bean '" + beanName +
  11.                             "' to allow for resolving potential circular references");
  12.            }
  13.           //将刚实例化好的bean添加到一级缓存中
  14.           addSingletonFactory(beanName, new ObjectFactory
  15.                 @Override
  16.                 public Object getObject()throws BeansException {
  17.                         //执行拓展的后置处理器
  18.                         return getEarlyBeanReference(beanName, mbd, bean);
  19.                  }
  20.           });
  21.        }
  22. }

getEarlyBeanRerence方法

  1. protected Object getEarlyBeanReference(String beanName, RootBeanDefinition mbd, Object bean) {
  2.    Object exposedObject = bean;
  3.    //判读我们容器中是否有InstantiationAwareBeanPostProcessors类型的后置处理器
  4.    if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
  5.       //获取我们所有的后置处理器
  6.       for (BeanPostProcessor bp : getBeanPostProcessors()) {
  7.          //判断我们的后置处理器是不是实现了SmartInstantiationAwareBeanPostProcessor接口
  8.          if (bp instanceof SmartInstantiationAwareBeanPostProcessor) {
  9.             //进行强制转换
  10.             SmartInstantiationAwareBeanPostProcessor ibp = (SmartInstantiationAwareBeanPostProcessor) bp;
  11.             //挨个调用SmartInstantiationAwareBeanPostProcessor的getEarlyBeanReference
  12.             exposedObject = ibp.getEarlyBeanReference(exposedObject, beanName);
  13.          }
  14.       }
  15.    }
  16.    return exposedObject;
  17. }

扩展实例code

  1. @Component
  2. public class TulingBPP implements SmartInstantiationAwareBeanPostProcessor {
  4.    public Object getEarlyBeanReference(Object bean, String beanName) throws BeansException {
  5.       if(beanName.equals("instanceA") || beanName.equals("instanceB")) {
  6.          JdkDynimcProxy jdkDynimcProxy = new JdkDynimcProxy(bean);
  7.          return  jdkDynimcProxy.getProxy();
  8.       }
  9.       return bean;
  10.    }
  11. }

还得自己多看code
源码入口：
// 初始化剩下的单实例（非懒加载的）
finishBeanFactoryInitialization(beanFactory);
