:::info 分析测试点：

1. WDOGCONTROL寄存器：
   1. INT使能和关闭；
   2. reset使能和关闭；
   3.
      :::

      对寄存器的各种状态进行了配置以后，covergroup什么时候做采样，做的采样是否准确十分重要。

对寄存器进行测试的时候covergroup不应该做采样，只有再做功能测试的时候才应该做采样。

8.1 reset、enable & reload test覆盖率收集

8.1.1 subscriber一侧代码

`ifndef APB_WATCHDOG_SUBSCRIBER_SV
`define APB_WATCHDOG_SUBSCRIBER_SV
`uvm_analysis_imp_decl(_apb)
class apb_watchdog_subscriber extends uvm_component;
  // analysis import
  uvm_analysis_imp_apb #(apb_transfer, apb_watchdog_subscriber) apb_trans_observed_imp;
  // Declare events
  uvm_event wdg_regacc_fd_e;
  uvm_event wdg_regacc_bd_e;
  uvm_event wdg_reg_inten_e;
  uvm_event wdg_reg_resen_e;
  uvm_event wdg_reg_load_e;
  uvm_event wdg_reg_intr_assert_e;
  uvm_event wdg_intrclr_e;
  protected uvm_event_pool _ep;
  apb_watchdog_config cfg;
  apb_watchdog_rgm rgm;
  virtual apb_watchdog_if vif;
  bit enable;
  `uvm_component_utils(apb_watchdog_subscriber)
  function new(string name = "apb_watchdog_subscriber", uvm_component parent);
    super.new(name, parent);
  endfunction
  function void build_phase(uvm_phase phase);
    super.build_phase(phase);
    apb_trans_observed_imp = new("apb_trans_observed_imp", this);
    // Get configuration from test layer
    if(!uvm_config_db#(apb_watchdog_config)::get(this, "", "cfg", cfg)) begin
      `uvm_fatal("GETCFG", "cannot get conifg object from config db")
    end
    vif = cfg.vif;
    rgm = cfg.rgm;
    // Local event pool and events creation
    _ep = new ("_ep");
    wdg_regacc_fd_e = _ep.get("wdg_regacc_fd_e");
    wdg_regacc_bd_e = _ep.get("wdg_regacc_bd_e");
    wdg_reg_inten_e = _ep.get("wdg_reg_inten_e");
    wdg_reg_resen_e = _ep.get("wdg_reg_resen_e");
    wdg_reg_load_e  = _ep.get("wdg_reg_load_e");
    wdg_reg_intr_assert_e = _ep.get("wdg_reg_intr_assert_e");
    wdg_intrclr_e   = _ep.get("wdg_intrclr_e");
  endfunction
  function void end_of_elaboration_phase(uvm_phase phase);
    super.end_of_elaboration_phase(phase);
  endfunction
  task run_phase(uvm_phase phase);
    super.run_phase(phase);
    do_events_trigger();
    do_listen_events();
  endtask
  virtual function void write_apb(apb_transfer tr);
   uvm_reg r;
   r = rgm.map.get_reg_by_offset(tr.addr);
   wdg_regacc_fd_e.trigger(r);
  endfunction
  virtual task do_events_trigger();
    uvm_object tmp;
    uvm_reg r;
    fork
      forever begin
        fork
          wdg_regacc_fd_e.wait_trigger_data(tmp);
          wdg_regacc_bd_e.wait_trigger_data(tmp);
        join_any
        disable fork;
        void'($cast(r, tmp));
        #1ps;
        if(r.get_name() == "WDOGCONTROL") begin
          if(rgm.WDOGCONTROL.INTEN.get() == 1'b1) wdg_reg_inten_e.trigger();
          if(rgm.WDOGCONTROL.RESEN.get() == 1'b1) wdg_reg_resen_e.trigger();
        end
        else if(r.get_name() == "WDOGLOAD") begin
          if(rgm.WDOGLOAD.LOADVAL.get() != 0) wdg_reg_load_e.trigger();
        end
        else if(r.get_name() == "WDOGINTCLR") begin
          if(rgm.WDOGINTCLR.INTCLR.get() == 1) wdg_intrclr_e.trigger();
        end
      end
    join_none
  endtask
  virtual task do_listen_events();
  endtask
endclass
`endif // APB_WATCHDOG_subscriber_SV

cov和scoreboard都继承于subscriber，subscriber的作用就是声明事件，触发，监听事件； 因此可以将监听事件在subscriber中声明，子类只需要继承即可。

8.1.2 cov一侧代码

`ifndef APB_WATCHDOG_COV_SV
`define APB_WATCHDOG_COV_SV
class apb_watchdog_cov extends apb_watchdog_subscriber;
  `uvm_component_utils(apb_watchdog_cov)
  // Covergroup definition below
  // T1 Watchdog overall control
  // T1.1 Interrupt enable & disable(0 -> 1 & 1 -> 0);
  // T1.2 Reset enable & disable( 0-> 1 & 1 -> 0);
  covergroup apb_watchdog_t1_overall_control_cg with function sample (bit [31:0] val, string field);
    option.name = "T1 Watchdog overall control";
    INTEN : coverpoint val iff (field == "INTEN") {
      bins to_enable = (1'b0 => 1'b1);
      bins to_disale = (1'b1 => 1'b0);
    }
  endgroup
  // T2 Watchdog load & reload value
  // T2.1 Initial load (counter 0 -> load value)
  // T2.2 Load value to reload value (laod value -> reload value)
  // T2.3 load value range(min value, max value and others)
  covergroup apb_watchdog_t2_value_reload_value with function sample (bit [31:0] val);
    option.name = "T2 Wathcdog load & reload value";
    INLOAD    : coverpoint val {
      bins iniload = (0 => [1:32'hFFFFFFFF]);
    }
    RELOAD    : coverpoint val {
      bins reload = ([1:32'hFFFFFFFF] => [1:32'hFFFFFFFF]);
    }
    LOADRANGE : coverpoint val {
      bins min = {32'h1};
      bins max = {32'hFFFFFFFF};
      bins others = default;
    }
  endgroup
  function new (string name = "apb_watchdog_cov", uvm_component parent);
    super.new(name, parent);
    apb_watchdog_t1_overall_control_cg = new();
    apb_watchdog_t2_value_reload_value = new();
  endfunction
  function void build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  task do_listen_events();
    uvm_object tmp;
    uvm_reg r;
    fork
      forever begin
        wait(cfg.cov_enable);
        wdg_regacc_e.wait_trigger_data(tmp);
        void'($cast(r, tmp));
        if(r.get_name() == "WDOGCONTROL") begin
          apb_watchdog_t1_overall_control_cg.sample(rgm.WDOGCONTROL.INTEN.get(), "INTEN");
          apb_watchdog_t1_overall_control_cg.sample(rgm.WDOGCONTROL.RESEN.get(), "RESEN");
        end
        else if(r.get_name() == "WDOGLOAD") begin
          apb_watchdog_t2_value_reload_value.sample(rgm.WDOGLOAD.LOADVAL.get());
        end
      end
    join_none
  endtask
endclass
`

8.1.3 更新 Makefile

【调试及结果】

:::info

1. Terminal运行 :::

   make elab COV=1
   make run COV=1 GUI=1 TESTNAME=apb_watchdog_countdown_test seed=100

   运行完测试以后点击Terminate


   可以看到，运行完测试以后的所有数据都在out目录下的db中

:::info

1. 查看覆盖率（DVE自带） :::

   make mergecov
   make dvecov



   搜索apb_watchdog_cov可以查看到我们定义的功能覆盖率，并没有采样到数据，结果发现采样的是一个从0到非0的一个状态变化，但是0这个状态没有采样下来，因此必须在采样的时候添加status。

:::info

1. 查看功能覆盖率（Verdi模式） :::

   make verdicov



   在Verdi中查看发现inten和load值的变化这个事件没有采到，只有采到初始的值以后才能采到发生变化的这个事件，因此需要对cov进行以下修改：

`ifndef APB_WATCHDOG_COV_SV
`define APB_WATCHDOG_COV_SV
class apb_watchdog_cov extends apb_watchdog_subscriber;
  `uvm_component_utils(apb_watchdog_cov)
  // Covergroup definition below
  // T1 Watchdog overall control
  // T1.1 Interrupt enable & disable(0 -> 1 & 1 -> 0);
  // T1.2 Reset enable & disable( 0-> 1 & 1 -> 0);
  covergroup apb_watchdog_t1_overall_control_cg with function sample (bit [31:0] val, string field);
    option.name = "T1 Watchdog overall control";
    INTEN : coverpoint val iff (field == "INTEN") {
      bins stat_en   = {1'b1};
      bins stat_dis  = {1'b0};
      bins to_enable = (1'b0 => 1'b1);
      bins to_disale = (1'b1 => 1'b0);
    }
  endgroup
  // T2 Watchdog load & reload value
  // T2.1 Initial load (counter 0 -> load value)
  // T2.2 Load value to reload value (laod value -> reload value)
  // T2.3 load value range(min value, max value and others)
  covergroup apb_watchdog_t2_value_reload_value with function sample (bit [31:0] val);
    option.name = "T2 Wathcdog load & reload value";
    INLOAD    : coverpoint val {
      bins iniload = (0 => [1:32'hFFFFFFFF]);
    }
    RELOAD    : coverpoint val {
      bins reload = ([1:32'hFFFFFFFF] => [1:32'hFFFFFFFF]);
    }
    LOADRANGE : coverpoint val {
      bins min = {32'h1};
      bins max = {32'hFFFFFFFF};
      bins others = default;
    }
  endgroup
  function new (string name = "apb_watchdog_cov", uvm_component parent);
    super.new(name, parent);
    apb_watchdog_t1_overall_control_cg = new();
    apb_watchdog_t2_value_reload_value = new();
  endfunction
  function void build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  task do_listen_events();
    uvm_object tmp;
    uvm_reg r;
    fork
      forever begin
        wait(cfg.cov_enable);
        wdg_regacc_e.wait_trigger_data(tmp);
        void'($cast(r, tmp));
        if(r.get_name() == "WDOGCONTROL") begin
          apb_watchdog_t1_overall_control_cg.sample(rgm.WDOGCONTROL.INTEN.get(), "INTEN");
          apb_watchdog_t1_overall_control_cg.sample(rgm.WDOGCONTROL.RESEN.get(), "RESEN");
        end
        else if(r.get_name() == "WDOGLOAD") begin
          apb_watchdog_t2_value_reload_value.sample(rgm.WDOGLOAD.LOADVAL.get());
        end
      end
    join_none
  endtask
endclass
`endif

在采样的时候对状态初始状态也进行采样

:::danger 【思考】

1. 之前在事件触发器中，为了保证采样的稳定，添加了1ps以保证每次trigger出来的都是寄存器模型更新以后的值；

2. 所以cov采样的时候采样到的是寄存器模型更新以后的值， ::: ``verilogifndef APB_WATCHDOG_REG_ENABLE_INTR_SV `define APB_WATCHDOG_REG_ENABLE_INTR_SV

   class apb_watchdog_reg_enable_intr extends apb_watchdog_element_base_seq;

   `uvm_object_utils(apb_watchdog_reg_enable_intr)

   function new(string name = “apb_watchdog_reg_enable_intr”); super.new(name); endfunction

   task body(); super.body(); uvm_info("body", "Entered...", UVM_LOW) rgm.WDOGCONTROL.mirror(status); rgm.WDOGCONTROL.INTEN.set(1'b1); rgm.WDOGCONTROL.update(status);uvm_info(“body”, “Exiting…”, UVM_LOW) endtask

   endclass

`endif //APB_WATCHDOG_REG_ENABLE_INTR

![image.png](https://cdn.nlark.com/yuque/0/2022/png/22348254/1654571225058-4500fbe2-ea61-4eca-805c-238c167c76fc.png#clientId=u9e46a4c0-008d-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=1042&id=u77eb9240&margin=%5Bobject%20Object%5D&name=image.png&originHeight=1303&originWidth=2302&originalType=binary&ratio=1&rotation=0&showTitle=false&size=559223&status=done&style=none&taskId=u81fbf11b-3d41-4544-840e-fde28bb1d8b&title=&width=1841.6)
> 当寄存器模型拿到通过mirror更新的值以后，还未进行采样就被set成1，因此采样到的值就是1，但是此时期望采到的是初始的0状态。
> 时刻是115001ps
:::info
解决方法：
1. 修改RGM的adapter，但是当对同一个寄存器进行操作的时候不建议这么做，因为会影响其他功能；
1. 在interface中添加delta cycle；
1. 在两个seq中分别等待这个delta cycle
:::
```verilog
interface apb_watchdog_if;
  logic [3:0] ecorevnum = 4'b1011;
  logic       wdog_int;
  logic       wdog_res;
  logic       apb_clk;
  logic       apb_rstn;
  logic       wdg_clk;
  logic       wdg_rstn;
  task wait_apb(int n);
    repeat(n) @(posedge apb_clk);
  endtask
  task wait_wdg(int n);
    repeat(n) @(posedge wdg_clk);
  endtask
endinterface

`ifndef APB_WATCHDOG_REG_ENABLE_INTR_SV
`define APB_WATCHDOG_REG_ENABLE_INTR_SV
  class apb_watchdog_reg_enable_intr extends apb_watchdog_element_base_seq;
    `uvm_object_utils(apb_watchdog_reg_enable_intr)
    function new(string name = "apb_watchdog_reg_enable_intr");
      super.new(name);
    endfunction
    task body();
     super.body();
     `uvm_info("body", "Entered...", UVM_LOW)
     rgm.WDOGCONTROL.mirror(status);
     vif.wait_apb(1);
     rgm.WDOGCONTROL.INTEN.set(1'b1);
     rgm.WDOGCONTROL.update(status);
     `uvm_info("body", "Exiting...", UVM_LOW)
    endtask
  endclass
`endif //APB_WATCHDOG_REG_ENABLE_INTR

`ifndef APB_WATCHDOG_REG_LOADCOUNT_SV
`define APB_WATCHDOG_REG_LOADCOUNT_SV
  class apb_watchdog_reg_loadcount extends apb_watchdog_element_base_seq;
    rand bit[31:0] load_val;
    constraint load_cstr{
      soft load_val inside {['h1:'hFFFF]};
    }
    `uvm_object_utils(apb_watchdog_reg_loadcount)
    function new(string name = "apb_watchdog_reg_loadcount");
      super.new(name);
    endfunction
    task body();
     super.body();
     `uvm_info("body", "Entered...", UVM_LOW)
     rgm.WDOGLOAD.mirror(status);
     vif.wait_apb(1);
     rgm.WDOGLOAD.write(status, load_val);
     `uvm_info("body", "Exiting...", UVM_LOW)
    endtask
  endclass
`endif //APB_WATCHDOG_REG_LOADCOUNT

分析： subscriber在拿到apb_transfer，1ps以后将事件trigger出来；采样发生在1ps的位置； 而seq中是在1ps+delta cycle的时间以后再对enable或load的值进行改变。

通过sample采样的方式只能采样到静态的值，对于动态变化的值没有办法进行有效采样

8.1.4 采用event来进行动态值的采样

`ifndef APB_WATCHDOG_COV_SV
`define APB_WATCHDOG_COV_SV
class apb_watchdog_cov extends apb_watchdog_subscriber;
  bit [31:0]  reg_field_value;
  event       regacc_sve;
  `uvm_component_utils(apb_watchdog_cov)
  // Covergroup definition below
  // T1 Watchdog overall control
  // T1.1 Interrupt enable & disable(0 -> 1 & 1 -> 0);
  // T1.2 Reset enable & disable( 0-> 1 & 1 -> 0);
  covergroup apb_watchdog_t1_overall_control_cg with function sample (bit [31:0] val, string field);
    option.name = "T1 Watchdog overall control";
    INTEN : coverpoint val iff (field == "INTEN") {
      bins stat_en   = {1'b1};
      bins stat_dis  = {1'b0};
      bins to_enable = (1'b0 => 1'b1);
      bins to_disale = (1'b1 => 1'b0);
    }
    RESEN : coverpoint val iff (field == "RESEN") {
      bins stat_en   = {1'b1};
      bins stat_dis  = {1'b0};
      bins to_enable = (1'b0 => 1'b1);
      bins to_disable= (1'b1 => 1'b0);
    }
  endgroup
  covergroup apb_watchdog_t1_overall_control_clk_cg (ref bit [31:0] val) @(regacc_sve);
    option.name = "T1 Watchdog overall control";
    INTEN : coverpoint val[0]{
      bins stat_en   = {1'b1};
      bins stat_dis  = {1'b0};
      bins to_enable = (1'b0 => 1'b1);
      bins to_disale = (1'b1 => 1'b0);
    }
    RESEN : coverpoint val[1]{
      bins stat_en   = {1'b1};
      bins stat_dis  = {1'b0};
      bins to_enable = (1'b0 => 1'b1);
      bins to_disable= (1'b1 => 1'b0);
    }
  endgroup
  // T2 Watchdog load & reload value
  // T2.1 Initial load (counter 0 -> load value)
  // T2.2 Load value to reload value (laod value -> reload value)
  // T2.3 load value range(min value, max value and others)
 ...
  function new (string name = "apb_watchdog_cov", uvm_component parent);
    super.new(name, parent);
    apb_watchdog_t1_overall_control_cg = new();
    apb_watchdog_t2_value_reload_value = new();
    apb_watchdog_t1_overall_control_clk_cg = new(this.reg_field_value);
  endfunction
  function void build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  task do_listen_events();
    uvm_object tmp;
    uvm_reg r;
    fork
      forever begin
        wait(cfg.cov_enable);
        wdg_regacc_e.wait_trigger_data(tmp);
        void'($cast(r, tmp));
        if(r.get_name() == "WDOGCONTROL") begin
          apb_watchdog_t1_overall_control_cg.sample(rgm.WDOGCONTROL.INTEN.get(), "INTEN");
          apb_watchdog_t1_overall_control_cg.sample(rgm.WDOGCONTROL.RESEN.get(), "RESEN");
          reg_field_value = rgm.WDOGCONTROL.get();
          ->regacc_sve;
        end
        else if(r.get_name() == "WDOGLOAD") begin
          apb_watchdog_t2_value_reload_value.sample(rgm.WDOGLOAD.LOADVAL.get());
        end
      end
    join_none
  endtask
endclass
`endif // APB_WATCHDOG_COV_SV

【调试及结果】

可以发现，对于状态的变化可以正常通过事件采到，注意要从寄存器模型中拿到值以后再进行采样。

8.2 集成测试覆盖率收集

在之前的APB寄存器直接访问中，对四个只读寄存器进行了读操作，这一部分cov的收集已经在RGM中完成，此处重点关注watchdog的功能覆盖率：

`ifndef APB_WATCHDOG_COV_SV
`define APB_WATCHDOG_COV_SV
class apb_watchdog_cov extends apb_watchdog_subscriber;
  bit [31:0]  reg_field_value;
  event       regacc_sve;
  `uvm_component_utils(apb_watchdog_cov)
  ...
  // T3 Watchdog integration
  // T3.1 Initial int & res value;
  // T3.2 Int & res value after intergration mode enable
  covergroup apb_watchdog_t3_itcr_test_mode with function sample (bit [31:0] val, string field);
    option.name = "T3 Watchdog integration test";
    INTR_DISABLE : coverpoint val iff (field == "INTR_DISABLE"){
      bins inival = {1'b0};
    }
    INTR_ENABLE  : coverpoint val iff (field == "INTR_ENABLE"){
      bins newval = {1'b1};
    }
  endgroup
  function new (string name = "apb_watchdog_cov", uvm_component parent);
    super.new(name, parent);
    apb_watchdog_t1_overall_control_cg = new();
    apb_watchdog_t2_value_reload_value = new();
    apb_watchdog_t1_overall_control_clk_cg = new(this.reg_field_value);
    apb_watchdog_t3_itcr_test_mode = new();
  endfunction
  function void build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  task do_listen_events();
    uvm_object tmp;
    uvm_reg r;
    fork
      forever begin
        wait(cfg.cov_enable);
        wdg_regacc_e.wait_trigger_data(tmp);
        void'($cast(r, tmp));
        ...
        else if(r.get_name() == "WDOGITCR") begin
          if(rgm.WDOGITCR.ITME.get() == 1'b0) begin
            apb_watchdog_t3_itcr_test_mode.sample(rgm.WDOGITCR.ITME.get(), "INTR_DISABLE");
            apb_watchdog_t3_itcr_test_mode.sample(vif.wdog_int, "INTR_DISABLE");
            apb_watchdog_t3_itcr_test_mode.sample(vif.wdog_res, "INTR_DISABLE");
          end
        end
        else if(r.get_name() == "WDOGITOP") begin
          apb_watchdog_t3_itcr_test_mode.sample(rgm.WDOGITCR.ITME.get(), "INTR_ENABLE");
          apb_watchdog_t3_itcr_test_mode.sample(vif.wdog_int, "INTR_ENABLE");
          apb_watchdog_t3_itcr_test_mode.sample(vif.wdog_res, "INTR_ENABLE");
        end
      end
    join_none
  endtask
endclass
`endif // APB_WATCHDOG_COV_SV

8.3 中断使能及使能禁止测试覆盖率收集

`ifndef APB_WATCHDOG_COV_SV
`define APB_WATCHDOG_COV_SV
class apb_watchdog_cov extends apb_watchdog_subscriber;
  bit [31:0]  reg_field_value;
  event       regacc_sve;
  `uvm_component_utils(apb_watchdog_cov)
  ...
  // T4 Disable interrupt test
  // T4.1 INT value after enable
  // T4.1 INT value after disable
  covergroup apb_watchdog_t4_intr_disable_test_mode with function sample (bit [31:0] val, string field);
    option.name = "T4 disable interrupt test";
    INT_ENABLE  : coverpoint val iff (field == "INT_ENABLE"){
      bins state_en = {1'b1};
    }
    INT_DISABLE : coverpoint val iff (field == "INT_DISABLE"){
      bins state_dis = {1'b0};
      bins state_raw = {1'b1};
      bins state_msk = {1'b0};
    }
  endgroup
  function new (string name = "apb_watchdog_cov", uvm_component parent);
    super.new(name, parent);
    apb_watchdog_t1_overall_control_cg = new();
    apb_watchdog_t2_value_reload_value = new();
    apb_watchdog_t1_overall_control_clk_cg = new(this.reg_field_value);
    apb_watchdog_t3_itcr_test_mode = new();
    apb_watchdog_t4_intr_disable_test_mode = new();
  endfunction
  function void build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  task do_listen_events();
    uvm_object tmp;
    uvm_reg r;
    fork
      forever begin
        wait(cfg.cov_enable);
        wdg_regacc_e.wait_trigger_data(tmp);
        void'($cast(r, tmp));
        if(r.get_name() == "WDOGCONTROL") begin
          apb_watchdog_t1_overall_control_cg.sample(rgm.WDOGCONTROL.INTEN.get(), "INTEN");
          apb_watchdog_t1_overall_control_cg.sample(rgm.WDOGCONTROL.RESEN.get(), "RESEN");
          reg_field_value = rgm.WDOGCONTROL.get();
          ->regacc_sve;
          apb_watchdog_t4_intr_disable_test_mode.sample(rgm.WDOGCONTROL.INTEN.get(), "INT_ENABLE");
          apb_watchdog_t4_intr_disable_test_mode.sample(rgm.WDOGMIS.INT.get(), "INT_ENABLE");
          apb_watchdog_t4_intr_disable_test_mode.sample(rgm.WDOGRIS.RAWINT.get(), "INT_ENABLE");
          apb_watchdog_t4_intr_disable_test_mode.sample(rgm.WDOGCONTROL.INTEN.get(), "INT_DISABLE");
          apb_watchdog_t4_intr_disable_test_mode.sample(rgm.WDOGMIS.INT.get(), "INT_DISABLE");
          apb_watchdog_t4_intr_disable_test_mode.sample(rgm.WDOGRIS.RAWINT.get(), "INT_DISABLE");
        end
        ...
      end
    join_none
  endtask
endclass
`endif // APB_WATCHDOG_COV_SV

8.4 寄存器上锁功能覆盖率收集

`ifndef APB_WATCHDOG_COV_SV
`define APB_WATCHDOG_COV_SV
class apb_watchdog_cov extends apb_watchdog_subscriber;
  bit [31:0]  reg_field_value;
  event       regacc_sve;
  `uvm_component_utils(apb_watchdog_cov)
  ...
  // T5 Reg lock & unlock function test
  covergroup apb_watchdog_t5_reg_lock_test_mode with function sample (bit [31:0] val, string field);
    option.name = "T5 reg lock test";
    LOCK   : coverpoint val iff (field == "LOCK"){
      bins lock_state = {1'b1};
    }
    UNLOCK : coverpoint val iff (field == "UNLOCK"){
      bins value = {'h1ACCE551};
      bins unlock_state = {1'b0};
    }
  endgroup
  function new (string name = "apb_watchdog_cov", uvm_component parent);
    super.new(name, parent);
    apb_watchdog_t1_overall_control_cg = new();
    apb_watchdog_t2_value_reload_value = new();
    apb_watchdog_t1_overall_control_clk_cg = new(this.reg_field_value);
    apb_watchdog_t3_itcr_test_mode = new();
    apb_watchdog_t4_intr_disable_test_mode = new();
    apb_watchdog_t5_reg_lock_test_mode = new();
  endfunction
  function void build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  task do_listen_events();
    uvm_object tmp;
    uvm_reg r;
    fork
      forever begin
        wait(cfg.cov_enable);
        wdg_regacc_e.wait_trigger_data(tmp);
        void'($cast(r, tmp));
        ...
        else if(r.get_name() == "WDOGLOCK") begin
          apb_watchdog_t5_reg_lock_test_mode.sample(rgm.WDOGLOCK.get(), "LOCK");
          apb_watchdog_t5_reg_lock_test_mode.sample(rgm.WDOGLOCK.get(), "UNLOCK");
        end
      end
    join_none
  endtask
endclass
`endif // APB_WATCHDOG_COV_SV

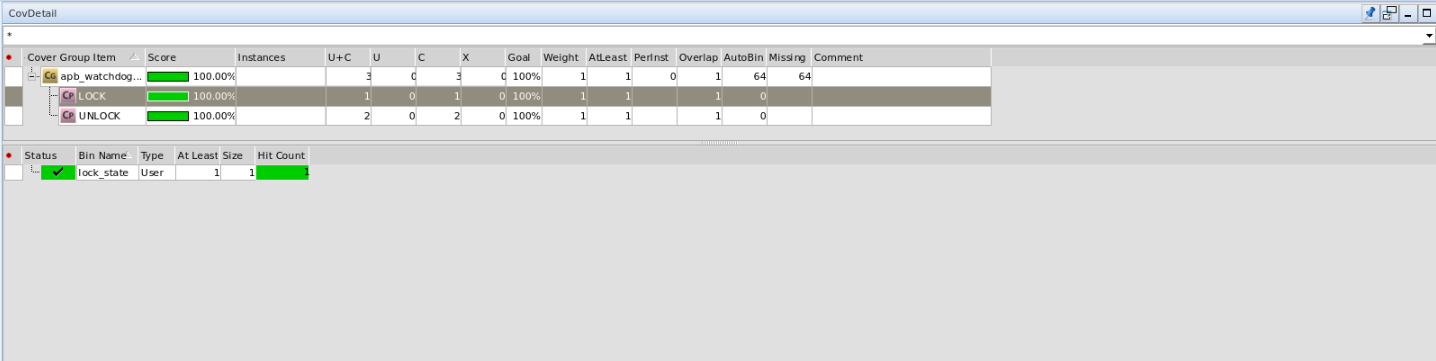

运行寄存器上锁测试，最终覆盖率为100%
