基于xml配置对象容器——xml 标签说明

alias标签

作用:为已配置的bean设置别名

—applicationContext.xml配置文件

  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <beans xmlns="http://www.springframework.org/schema/beans"
  3. xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  4. xsi:schemaLocation="http://www.springframework.org/schema/beans
  5. http://www.springframework.org/schema/beans/spring-beans.xsd">
  6. <bean id="user" class="org.cjw.pojo.User" />
  7. <!--
  8. 标签alias:为已配置的bean设置别名
  9. name属性:必要属性,代表为哪一个bena配置别名
  10. 此属性的值为其他bean标签的id或name属性值
  11. alias属性:必要属性,代表新命名的别名是什么
  12. -->
  13. <alias name="user" alias="user1" />
  14. </beans>

—测试代码

  1. package org.cjw.pojo.test;
  2. import org.cjw.pojo.User;
  3. import org.junit.Test;
  4. import org.springframework.context.support.ClassPathXmlApplicationContext;
  5. public class UserTest {
  6. @Test
  7. public void testAlias() {
  8. ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
  9. // 通过id获取User对象
  10. User user = context.getBean("user", User.class);
  11. System.out.println(user);
  12. System.out.println("-----------------");
  13. // 通过别名获取User对象
  14. User user2 = context.getBean("user1", User.class);
  15. System.out.println(user2);
  16. }
  17. }

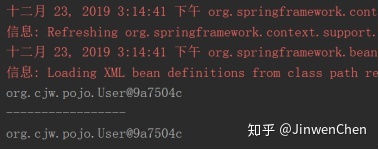

—测试结果

基于xml配置对象容器 - 图1

bean标签的配置

5.2.1. bean标签作用

用于声明一个类,在启动Spring框架的时候根据配置信息创建对象到Spring容器里面。

5.2.2. 属性说明

  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <beans xmlns="http://www.springframework.org/schema/beans"
  3. xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  4. xsi:schemaLocation="http://www.springframework.org/schema/beans
  5. http://www.springframework.org/schema/beans/spring-beans.xsd">
  6. <!--
  7. <bean>标签:用于声明一个类,在启动Spring框架的时候配置信息创建对象到spring容器里面去
  8. name属性:设置对象名(唯一标识符),可以有多个名称,每一个名称用逗号隔开,如name1,name2
  9. id属性:设置对象名(唯一标识符),功能和name一样,但是id只能有一个
  10. class属性:用于指定对象对应的类名,用于反射创建对象
  11. scope属性:用于设置对象的作用范围,可选参数如下:
  12. *singleton:单例(默认)
  13. 对象出生:当程序加载配置文件创建容器时,创建
  14. 对象活着:只要容器还在,一直活着
  15. 对象死亡:应用停止,容器销毁,对象死亡
  16. *propertype:多例(原型对象)
  17. 对象出生:当程序加载配置文件创建容器时,创建
  18. 对象活着:只要对象被使用,一直活着
  19. 对象死亡:对象长时间不用,会被java立即回收机制回收
  20. *request:web项目中,Spring将创建的对象放在request作用域中
  21. *session:web项目中,Spring将创建的对象放在session作用域中
  22. -->
  23. <bean id="customerServiceImpl" class="org.cjw.service.impl.CustomerServiceImpl" scope="singleton" />
  24. </beans>

5.2.3. Bean作用范围

作用范围也可以说生命周期(bean能存活多久)

基于xml配置对象容器 - 图2 在开发中主要使用 scope=”singleton”、 scope=”prototype” 对于MVC中的Action/Controller使用prototype类型,其他使用singleton xml <?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> <!-- <bean id="" class="" scope="作用域"/> scope : 配置当前bean的范围大小 singleton: 单例 ,在Spring IoC容器中仅存在一个Bean实例 (默认的scope) prototype: 多例 ,每次从容器中调用Bean时,都返回一个新的实例,即每次调用getBean()时 ,相当于执行new XxxBean() --> <bean id="customerServiceImpl" class="org.cjw.service.impl.CustomerServiceImpl" scope="prototype" /> </beans> 在Web开发的三层架构中 - Web:一般都是多例 - Service:单例 - DAO:单例 如果使用struct,那么会在表示层使用成员变量来接受前端发送过来的参数,此时如果表示层使用的是单例,那么会造成数据的错乱,所以表示层需要使用多例。 而现在springMVC已经不再使用成员变量来接受前端参数了,而是直接对应方法的参数,所以表示层可以使用单例,因为方法的参数是在程序运行过程中才会被赋值,所以不存在数据错乱的问题,因此可以使用单例。 单例和多例的使用判断准则:是否存在共享数据情况,如果有,使用多例,没有则单例。如果使用了单例还存在共享数据的情况,那么就需要使用锁来保证数据的正确性。 ## 实例化Bean的四种方式 Spring创建对象的四种方式 ### 5.3.1. 构造器实例化(无参数构造器),最标准,使用最多。 java package org.cjw.pojo; public class SomeBean1 { public SomeBean1() { System.out.println("SomeBean.SomeBean1()"); } } —配置文件 xml <!-- ①构造器实例化(无参构造器),最标准、使用最多 --> <bean id="someBean1" class="org.cjw.pojo.SomeBean1"/> ### 5.3.2. 通过静态方法工厂创建(了解) —bean、静态工厂类 java SomeBean2、SomeBean2Factory public class SomeBean2 { public SomeBean2() { System.out.println("SomeBean.SomeBean2()"); } } public class SomeBean2Factory { public static SomeBean2 getSomeBean2() { System.out.println("执行静态工厂方法"); return new SomeBean2(); } } —静态工厂配置 xml <!-- ②.静态工厂方法实例化:解决系统遗留问题 --> <bean id="someBean2" class="org.cjw.factory.SomeBean2Factory" factory-method="getSomeBean2" /> ### 5.3.3. 通过实例工厂创建(了解) —实体工厂 java public class SomeBean3 { public SomeBean3() { System.out.println("SomeBean.SomeBean3()"); } } public class SomeBean3Facotry { //实例工厂方法 public SomeBean3 getSomeBean3() { System.out.println("执行实例工厂方法"); return new SomeBean3(); } } —配置方式 xml <!-- 1.配置工厂bean --> <bean id="someBean3Factory" class="org.cjw.factory.SomeBean3Facotry"></bean> <!-- 2.配置bena factory-bean : 创建bean的工厂对象对应的 id factory-method : 工厂bean中返回 bean对象的方法 --> <bean id="someBean3" factory-bean="someBean3Factory" factory-method="getSomeBean3"/> ### 5.3.4. 实现FactoryBean接口实例化:实例工厂变种(了解) 实现FactoryBean接口,MyBatis和Spring集成就是使用的这种方式。 此种方式,如果没有使用Bean对应的对象,Spring就不会自动创建,只有在使用的时候Spring才会创建对应的对象。 java public class SomeBean4 { public SomeBean4() { System.out.println("SomeBean4.SomeBean4()"); } } public class SomeBean4ObjectFactory implements FactoryBean<SomeBean4> { @Override public SomeBean4 getObject() throws Exception { SomeBean4 bean4 = new SomeBean4(); return bean4; } @Override public Class<?> getObjectType() { return null; } @Override public boolean isSingleton() { return false; } } —配置方式 xml <!-- ④.实现FactoryBean接口实例化:实例工厂变种:集成其他框架使用:LocalSessionFactoryBean --> <bean id="someBean4" class="org.cjw.factory.SomeBean4ObjectFactory" /> ## 初始化和销毁方法 比如DataSource,SessionFactory最终都需要关闭资源:在Bean销毁之前,都要调用close方法. xml <bean id="someBean" class="......" init-method="该类中初始化方法名" destroy-method="该类中销毁方法名"> </bean> init-method:bean生命周期初始化方法,对象创建后就进行调用 destroy-method:容器被销毁的时候,如果bean被容器管理,会调用该方法。 default-init-method:指定默认的初始化方法 分析原理: 如果bean的scope=”prototype”,那么容器只负责创建和初始化,它并不会被spring容器管理。交给用户自己调用。 xml <?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd" default-init-method="init"> <!-- 配置全局初始化方法,如果有100个bean中都有init方法,那么只要Spring容器一启动,bean对象一创建 默认对象中只要有 init方法,都全部会执行:一般不建议使用 --> <!-- init-method : 配置初始化方法名 destroy-method : 配置销毁方法名 --> <bean id="someBean" class="org.cjw.pojo.SomeBean1" init-method="init" destroy-method="destory" /> </beans> # 获得properties文件的值 Spring配置文件支持通过xxx.properties文件的Key获得对应的值。实现该功能是通过${Key}来获得Properties文件指定Key的Value值。 使用Spring读取配置文件必须导入新的命名空间(context)。 导入命名空间方法:将命名空间和约束重新拷贝一份,将对应的全部替换成 context,然后关联context本地schema约束。 xml <?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd"> ## 使用Spring创建阿里巴巴 Druid连接池(读取配置文件) ### 7.1.1. 拷贝Mysql驱动包和druid连接池jar包到项目中 基于xml配置对象容器 - 图3 ### 7.1.2. 创建 db.properites properties jdbc.driverClassName=com.mysql.jdbc.Driver jdbc.url=jdbc:mysql://localhost:3306/users jdbc.username=root jdbc.password=root jdbc.maxActive=10 ### 7.1.3. applicationContext.xml配置 xml <?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd"> <!-- 读取classpath下的db.properties配置文件 --> <context:property-placeholder location="classpath:db.properties" /> <!-- 配置数据源 --> <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource"> <property name="driverClassName" value="${jdbc.driverClassName}" /> <property name="url" value="${jdbc.url}" /> <property name="username" value="${jdbc.username}" /> <property name="password" value="${jdbc.password}" /> <property name="maxActive" value="${jdbc.maxActive}" /> </bean> </beans> ### 7.1.4. 测试代码 java @Test public void testAlias() { try { ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml"); DataSource dataSource = context.getBean("dataSource", DataSource.class); Connection connection = dataSource.getConnection(); System.out.println(connection); } catch (SQLException e) { e.printStackTrace(); } } ### 7.1.5. 效果 基于xml配置对象容器 - 图4 # 综合案例-模拟注册功能 此功能重点在于将每一层对象的创建交给Spring管理,对象之间的依赖关系交给Spring来维护。 ## Dao层接口以及实现代码 java public interface UserDao { public void insert(User user); } public class UserDaoImpl implements UserDao { @Override public void insert(User user) { System.out.println("注册功能Dao层方法执行了"); } } ## Service层接口以及实现代码 java public interface UserService { void insert(User user); } public class UserServiceImpl implements UserService { private UserDao userDao; public void setUserDao(UserDao userDao) { this.userDao = userDao; } @Override public void insert(User user) { System.out.println("注册功能Service层方法执行了"); userDao.insert(user); } } ## Web表现层实现代码 java package org.cjw.controller; import org.cjw.pojo.User; import org.cjw.service.UserService; public class UserController { private UserService userService; public void setUserService(UserService userService) { this.userService = userService; } public void insert() { System.out.println("注册功能Controller层方法执行了"); User user = new User(); userService.insert(user); } } ## applicationContext.xml文件配置代码 (重点),一定要掌握每层的配置,和每层之间对象的依赖关系的维护 ```xml <?xml version=”1.0” encoding=”UTF-8”?>
  1. <bean id="userService" class="org.cjw.service.impl.UserServiceImpl">
  2. <property name="userDao" ref="userDao" />
  3. </bean>
  4. <bean id="userDao" class="org.cjw.dao.impl.UserDaoImpl" />

  1. <a name="4f036ee1"></a>
  2. ## 测试代码
  3. ```java
  4. @Test
  5. public void testAlias() {
  6. ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
  7. UserController userController = context.getBean("userController", UserController.class);
  8. userController.insert();
  9. }

测试结果

基于xml配置对象容器 - 图5

小结

1. 基于xml和ClassPathXmlApplicationContext配置容器

2. Spring读取 .Properteis配置文件

3. 综合案例-模拟注册功能-使用Spring管理对象
