使用场景

当创建逻辑复杂时，使用工厂模式来封装对象的创建过程，将对象的创建和使用分离。
主要有以下的场景：

无法预知对象确切类别以及依赖关系
1. 将创建产品的代码与实际使用产品的代码分离，从而能在不影响其他代码的情况下扩展产品创建部分代码。
复用现有对象来节省系统资源，而不是每次都重新创建对象
1. 将之前创建的对象缓存起来

参考标准：

封装变化：创建逻辑有可能变化，封装成工厂类后，创建逻辑的变更对调用者透明
代码复用：创建代码抽离到独立的工厂类之后可以复用
隔离复杂性：封装复杂的创建逻辑，调用者无需了解如何创建对象
控制复杂度：将创建代码抽离出来，让原本的函数或类职责更单一，代码更简洁

原本丑陋的代码：

const TEACHER_TYPE = {
  CODING: 'coding',
  MUSIC: 'music'
};
class Teacher {
  constructor(type, name, instrument, programmingLanguage) {
    this.name = name;
    if (type === TEACHER_TYPE.CODING) {
      this.programmingLanguage = programmingLanguage;
    } else if (type === TEACHER_TYPE.MUSIC){
      this.instrument = instrument;
    }
  }
}

在工厂模式中，将创建对象的过程单独封装
最大的好处应该是让你的代码具有更强的可扩展性吧。。。

class Teacher {
  constructor(properties) {
    this.name = properties.name;
  }
}
class CodingTeacher extends Teacher {
  constructor(properties) {
    super(properties);
    this.programmingLanguage = properties.programmingLanguage;
  }
}
class MusicTeacher extends Teacher {
  constructor(properties) {
    super(properties);
    this.instrument = properties.instrument;
  }
}
class TeacherFactory {
  static getTeacher(type, properties) {
    switch (type) {
      case TEACHER_TYPE.CODING:
        return new CodingTeacher(properties);
      case TEACHER_TYPE.MUSIC:
        return new MusicTeacher(properties);
      default:
        throw new Error('Wrong teacher type chosen');
    }
  }
}
const codingTeacher = TeacherFactory.getTeacher(TEACHER_TYPE.CODING, {
  programmingLanguage: 'JavaScript',
  name: 'John'
});
const musicTeacher = TeacherFactory.getTeacher(TEACHER_TYPE.MUSIC, {
  instrument: 'Guitar',
  name: 'Andy'
});

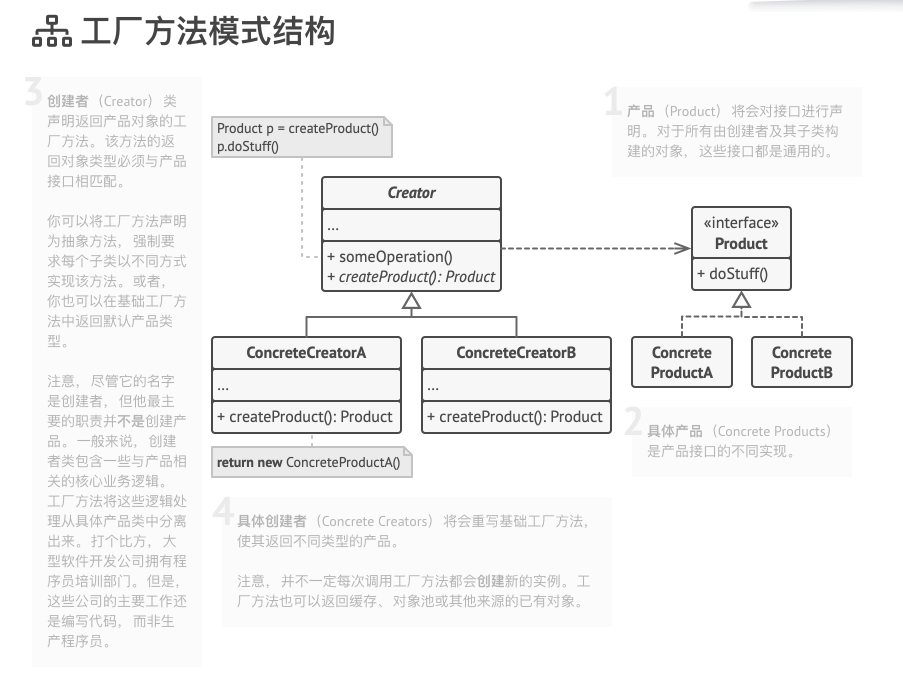

工厂方法


// 创建者类声明的工厂方法必须返回一个产品类的对象。创建者的子类通常会提供
// 该方法的实现。
class Dialog is
    // 创建者还可提供一些工厂方法的默认实现。
    abstract method createButton():Button
    // 请注意，创建者的主要职责并非是创建产品。其中通常会包含一些核心业务
    // 逻辑，这些逻辑依赖于由工厂方法返回的产品对象。子类可通过重写工厂方
    // 法并使其返回不同类型的产品来间接修改业务逻辑。
    method render() is
        // 调用工厂方法创建一个产品对象。
        Button okButton = createButton()
        // 现在使用产品。
        okButton.onClick(closeDialog)
        okButton.render()
// 具体创建者将重写工厂方法以改变其所返回的产品类型。
class WindowsDialog extends Dialog is
    method createButton():Button is
        return new WindowsButton()
class WebDialog extends Dialog is
    method createButton():Button is
        return new HTMLButton()
// 产品接口中将声明所有具体产品都必须实现的操作。
interface Button is
    method render()
    method onClick(f)
// 具体产品需提供产品接口的各种实现。
class WindowsButton implements Button is
    method render(a, b) is
        // 根据 Windows 样式渲染按钮。
    method onClick(f) is
        // 绑定本地操作系统点击事件。
class HTMLButton implements Button is
    method render(a, b) is
        // 返回一个按钮的 HTML 表述。
    method onClick(f) is
        // 绑定网络浏览器的点击事件。
class Application is
    field dialog: Dialog
    // 程序根据当前配置或环境设定选择创建者的类型。
    method initialize() is
        config = readApplicationConfigFile()
        if (config.OS == "Windows") then
            dialog = new WindowsDialog()
        else if (config.OS == "Web") then
            dialog = new WebDialog()
        else
            throw new Exception("错误！未知的操作系统。")
    // 当前客户端代码会与具体创建者的实例进行交互，但是必须通过其基本接口
    // 进行。只要客户端通过基本接口与创建者进行交互，你就可将任何创建者子
    // 类传递给客户端。
    method main() is
        this.initialize()
        dialog.render()

/**
 * The Creator class declares the factory method that is supposed to return an
 * object of a Product class. The Creator's subclasses usually provide the
 * implementation of this method.
 */
abstract class Creator {
    /**
     * Note that the Creator may also provide some default implementation of the
     * factory method.
     */
    public abstract factoryMethod(): Product;
    /**
     * Also note that, despite its name, the Creator's primary responsibility is
     * not creating products. Usually, it contains some core business logic that
     * relies on Product objects, returned by the factory method. Subclasses can
     * indirectly change that business logic by overriding the factory method
     * and returning a different type of product from it.
     */
    public someOperation(): string {
        // Call the factory method to create a Product object.
        const product = this.factoryMethod();
        // Now, use the product.
        return `Creator: The same creator's code has just worked with ${product.operation()}`;
    }
}
/**
 * Concrete Creators override the factory method in order to change the
 * resulting product's type.
 */
class ConcreteCreator1 extends Creator {
    /**
     * Note that the signature of the method still uses the abstract product
     * type, even though the concrete product is actually returned from the
     * method. This way the Creator can stay independent of concrete product
     * classes.
     */
    public factoryMethod(): Product {
        return new ConcreteProduct1();
    }
}
class ConcreteCreator2 extends Creator {
    public factoryMethod(): Product {
        return new ConcreteProduct2();
    }
}
/**
 * The Product interface declares the operations that all concrete products must
 * implement.
 */
interface Product {
    operation(): string;
}
/**
 * Concrete Products provide various implementations of the Product interface.
 */
class ConcreteProduct1 implements Product {
    public operation(): string {
        return '{Result of the ConcreteProduct1}';
    }
}
class ConcreteProduct2 implements Product {
    public operation(): string {
        return '{Result of the ConcreteProduct2}';
    }
}
/**
 * The client code works with an instance of a concrete creator, albeit through
 * its base interface. As long as the client keeps working with the creator via
 * the base interface, you can pass it any creator's subclass.
 */
function clientCode(creator: Creator) {
    // ...
    console.log('Client: I\'m not aware of the creator\'s class, but it still works.');
    console.log(creator.someOperation());
    // ...
}
/**
 * The Application picks a creator's type depending on the configuration or
 * environment.
 */
console.log('App: Launched with the ConcreteCreator1.');
clientCode(new ConcreteCreator1());
console.log('');
console.log('App: Launched with the ConcreteCreator2.');
clientCode(new ConcreteCreator2());

抽象工厂

抽象工厂（抽象类，它不能被用于生成具体实例）：用于声明最终目标产品的共性。在一个系统里，抽象工厂可以有多个，每一个抽象工厂对应的这一类的产品，被称为“产品族”。
具体工厂（用于生成产品族里的一个具体的产品）：继承自抽象工厂、实现了抽象工厂里声明的那些方法，用于创建具体的产品的类。
抽象产品（抽象类，它不能被用于生成具体实例）：上面我们看到，具体工厂里实现的接口，会依赖一些类，这些类对应到各种各样的具体的细粒度产品（比如操作系统、硬件等），这些具体产品类的共性各自抽离，便对应到了各自的抽象产品类。
具体产品（用于生成产品族里的一个具体的产品所依赖的更细粒度的产品）：比如我们上文中具体的一种操作系统、或具体的一种硬件等。 ```typescript // 抽象工厂接口声明了一组能返回不同抽象产品的方法。这些产品属于同一个系列 // 且在高层主题或概念上具有相关性。同系列的产品通常能相互搭配使用。系列产 // 品可有多个变体，但不同变体的产品不能搭配使用。 interface GUIFactory is method createButton():Button method createCheckbox():Checkbox

// 具体工厂可生成属于同一变体的系列产品。工厂会确保其创建的产品能相互搭配 // 使用。具体工厂方法签名会返回一个抽象产品，但在方法内部则会对具体产品进 // 行实例化。 class WinFactory implements GUIFactory is method createButton():Button is return new WinButton() method createCheckbox():Checkbox is return new WinCheckbox()

// 每个具体工厂中都会包含一个相应的产品变体。 class MacFactory implements GUIFactory is method createButton():Button is return new MacButton() method createCheckbox():Checkbox is return new MacCheckbox()

// 系列产品中的特定产品必须有一个基础接口。所有产品变体都必须实现这个接口。 interface Button is method paint()

// 具体产品由相应的具体工厂创建。 class WinButton implements Button is method paint() is // 根据 Windows 样式渲染按钮。

class MacButton implements Button is method paint() is // 根据 macOS 样式渲染按钮

// 这是另一个产品的基础接口。所有产品都可以互动，但是只有相同具体变体的产 // 品之间才能够正确地进行交互。 interface Checkbox is method paint()

class WinCheckbox implements Checkbox is method paint() is // 根据 Windows 样式渲染复选框。

class MacCheckbox implements Checkbox is method paint() is // 根据 macOS 样式渲染复选框。

// 客户端代码仅通过抽象类型（GUIFactory、Button 和 Checkbox）使用工厂 // 和产品。这让你无需修改任何工厂或产品子类就能将其传递给客户端代码。 class Application is private field factory: GUIFactory private field button: Button constructor Application(factory: GUIFactory) is this.factory = factory method createUI() is this.button = factory.createButton() method paint() is button.paint()

// 程序会根据当前配置或环境设定选择工厂类型，并在运行时创建工厂（通常在初 // 始化阶段）。 class ApplicationConfigurator is method main() is config = readApplicationConfigFile()

    if (config.OS == "Windows") then
        factory = new WinFactory()
    else if (config.OS == "Mac") then
        factory = new MacFactory()
    else
        throw new Exception("错误！未知的操作系统。")
    Application app = new Application(factory)

```typescript
/**
 * The Abstract Factory interface declares a set of methods that return
 * different abstract products. These products are called a family and are
 * related by a high-level theme or concept. Products of one family are usually
 * able to collaborate among themselves. A family of products may have several
 * variants, but the products of one variant are incompatible with products of
 * another.
 */
interface AbstractFactory {
    createProductA(): AbstractProductA;
    createProductB(): AbstractProductB;
}
/**
 * Concrete Factories produce a family of products that belong to a single
 * variant. The factory guarantees that resulting products are compatible. Note
 * that signatures of the Concrete Factory's methods return an abstract product,
 * while inside the method a concrete product is instantiated.
 */
class ConcreteFactory1 implements AbstractFactory {
    public createProductA(): AbstractProductA {
        return new ConcreteProductA1();
    }
    public createProductB(): AbstractProductB {
        return new ConcreteProductB1();
    }
}
/**
 * Each Concrete Factory has a corresponding product variant.
 */
class ConcreteFactory2 implements AbstractFactory {
    public createProductA(): AbstractProductA {
        return new ConcreteProductA2();
    }
    public createProductB(): AbstractProductB {
        return new ConcreteProductB2();
    }
}
/**
 * Each distinct product of a product family should have a base interface. All
 * variants of the product must implement this interface.
 */
interface AbstractProductA {
    usefulFunctionA(): string;
}
/**
 * These Concrete Products are created by corresponding Concrete Factories.
 */
class ConcreteProductA1 implements AbstractProductA {
    public usefulFunctionA(): string {
        return 'The result of the product A1.';
    }
}
class ConcreteProductA2 implements AbstractProductA {
    public usefulFunctionA(): string {
        return 'The result of the product A2.';
    }
}
/**
 * Here's the the base interface of another product. All products can interact
 * with each other, but proper interaction is possible only between products of
 * the same concrete variant.
 */
interface AbstractProductB {
    /**
     * Product B is able to do its own thing...
     */
    usefulFunctionB(): string;
    /**
     * ...but it also can collaborate with the ProductA.
     *
     * The Abstract Factory makes sure that all products it creates are of the
     * same variant and thus, compatible.
     */
    anotherUsefulFunctionB(collaborator: AbstractProductA): string;
}
/**
 * These Concrete Products are created by corresponding Concrete Factories.
 */
class ConcreteProductB1 implements AbstractProductB {
    public usefulFunctionB(): string {
        return 'The result of the product B1.';
    }
    /**
     * The variant, Product B1, is only able to work correctly with the variant,
     * Product A1. Nevertheless, it accepts any instance of AbstractProductA as
     * an argument.
     */
    public anotherUsefulFunctionB(collaborator: AbstractProductA): string {
        const result = collaborator.usefulFunctionA();
        return `The result of the B1 collaborating with the (${result})`;
    }
}
class ConcreteProductB2 implements AbstractProductB {
    public usefulFunctionB(): string {
        return 'The result of the product B2.';
    }
    /**
     * The variant, Product B2, is only able to work correctly with the variant,
     * Product A2. Nevertheless, it accepts any instance of AbstractProductA as
     * an argument.
     */
    public anotherUsefulFunctionB(collaborator: AbstractProductA): string {
        const result = collaborator.usefulFunctionA();
        return `The result of the B2 collaborating with the (${result})`;
    }
}
/**
 * The client code works with factories and products only through abstract
 * types: AbstractFactory and AbstractProduct. This lets you pass any factory or
 * product subclass to the client code without breaking it.
 */
function clientCode(factory: AbstractFactory) {
    const productA = factory.createProductA();
    const productB = factory.createProductB();
    console.log(productB.usefulFunctionB());
    console.log(productB.anotherUsefulFunctionB(productA));
}
/**
 * The client code can work with any concrete factory class.
 */
console.log('Client: Testing client code with the first factory type...');
clientCode(new ConcreteFactory1());
console.log('');
console.log('Client: Testing the same client code with the second factory type...');
clientCode(new ConcreteFactory2());
