允许一个对象在其内部状态改变时改变它的行为。就是将“一个大 class + 一堆 if else”替换为“一堆小 class”。

实现

上下文 （Context）保存了对于一个具体状态对象的引用，并会将所有与该状态相关的工作委派给它。上下文通过状态接口与状态对象交互，且会提供一个设置器用于传递新的状态对象。

/**
* The Context defines the interface of interest to clients. It also maintains a
* reference to an instance of a State subclass, which represents the current
* state of the Context.
*/
class Context {
 /**
  * @type {State} A reference to the current state of the Context.
  */
 private state: State;
 constructor(state: State) {
     this.transitionTo(state);
 }
 /**
  * The Context allows changing the State object at runtime.
  */
 public transitionTo(state: State): void {
     console.log(`Context: Transition to ${(<any>state).constructor.name}.`);
     this.state = state;
     this.state.setContext(this);
 }
 /**
  * The Context delegates part of its behavior to the current State object.
  */
 public request1(): void {
     this.state.handle1();
 }
 public request2(): void {
     this.state.handle2();
 }
}

状态（State）接口会声明特定于状态的方法。这些方法应能被其他所有具体状态所理解，因为你不希望某些状态所拥有的方法永远不会被调用。

/**
* The base State class declares methods that all Concrete State should
* implement and also provides a backreference to the Context object, associated
* with the State. This backreference can be used by States to transition the
* Context to another State.
*/
abstract class State {
 protected context: Context;
 public setContext(context: Context) {
     this.context = context;
 }
 public abstract handle1(): void;
 public abstract handle2(): void;
}

具体状态 （Concrete States）会自行实现特定于状态的方法。为了避免多个状态中包含相似代码，你可以提供一个封装有部分通用行为的中间抽象类。状态对象可存储对于上下文对象的反向引用。状态可以通过该引用从上下文处获取所需信息，并且能触发状态转移。 ```typescript /**
- Concrete States implement various behaviors, associated with a state of the
- Context. */ class ConcreteStateA extends State { public handle1(): void { console.log(‘ConcreteStateA handles request1.’); console.log(‘ConcreteStateA wants to change the state of the context.’); this.context.transitionTo(new ConcreteStateB()); }

  public handle2(): void { console.log(‘ConcreteStateA handles request2.’); } }

class ConcreteStateB extends State { public handle1(): void { console.log(‘ConcreteStateB handles request1.’); }

public handle2(): void {
    console.log('ConcreteStateB handles request2.');
    console.log('ConcreteStateB wants to change the state of the context.');
    this.context.transitionTo(new ConcreteStateA());
}

}


4. 上下文和具体状态都可以设置上下文的下个状态， 并可通过替换连接到上下文的状态对象来完成实际的状态转换。
```typescript
/**
 * The client code.
 */
const context = new Context(new ConcreteStateA());
context.request1();
context.request2();

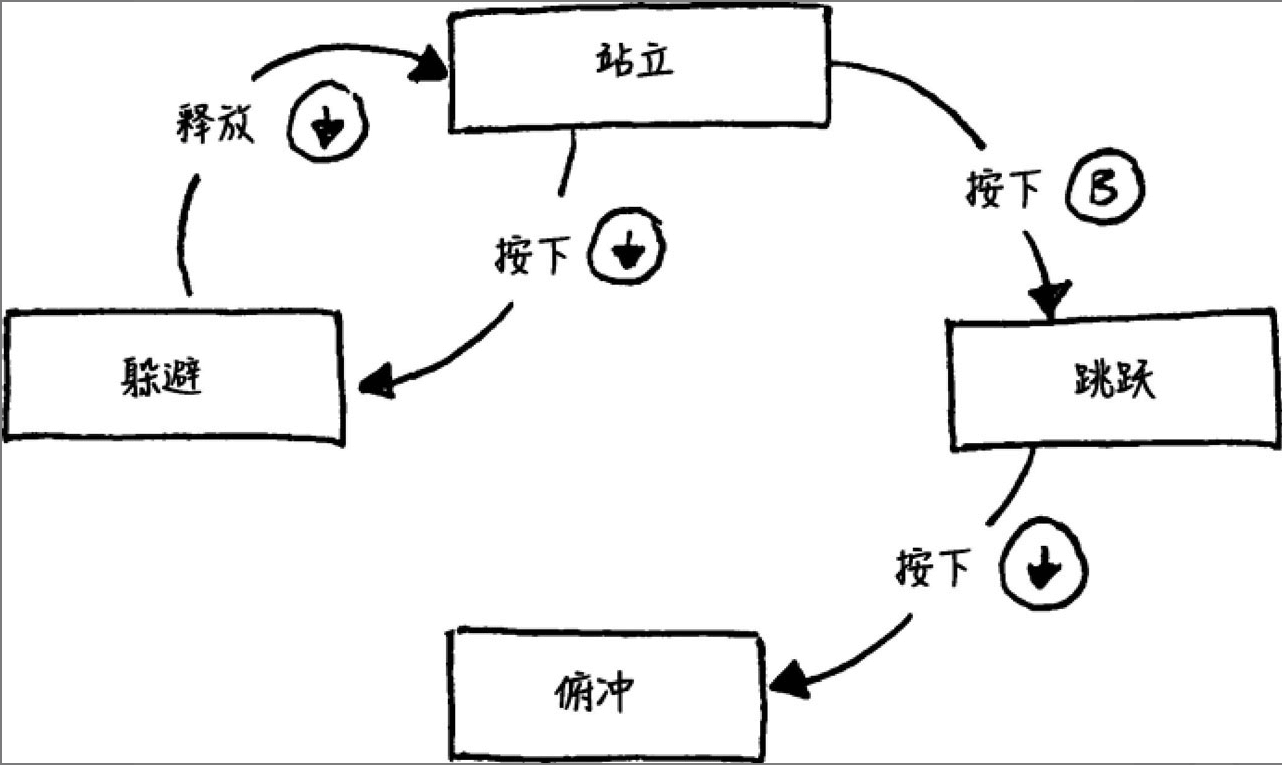

有限状态机（finite state machines, FSM）

你拥有一组状态，并且可以在这组状态之间进行切换
状态机同一时刻只能处于一种状态
状态机会接收一组输入或事件
每一个状态有一组转换，每一个转换都关联着一个输入并指向另一个状态

整个状态机可以分为：状态、输入和转换

实例

namespace Appliances
{
    //
    // EXPORTED TYPES
    //
    export class Toaster implements ToasterOperations {
        private _state: ToasterState = new IdleState()
        constructor() {
            this.logCurrentState()
        }
        public insertBread(): void {
            this._state = this._state.insertBread()
            this.logCurrentState()
        }
        public pullLever(): void {
            this._state = this._state.pullLever()
            this.logCurrentState()
        }
        public ejectBread(): void {
            this._state = this._state.ejectBread()
            this.logCurrentState()
        }
        public removeBread(): void {
            this._state = this._state.removeBread()
            this.logCurrentState()
        }
        private logCurrentState(): void {
            console.log(this._state)
        }
    }
    export interface ToasterOperations {
        insertBread(): void
        pullLever(): void
        ejectBread(): void
        removeBread(): void
    }
    //
    // HIDDEN TYPES
    //
    abstract class ToasterState implements ToasterOperations {
        public insertBread(): ToasterState {
            throw new Error("Invalid operation")
        }
        public pullLever(): ToasterState {
            throw new Error("Invalid operation")
        }
        public ejectBread(): ToasterState {
            throw new Error("Invalid operation")
        }
        public removeBread(): ToasterState {
            throw new Error("Invalid operation")
        }
    }
    class IdleState extends ToasterState {
        public insertBread(): ToasterState {
            return new BreadInsertedState()
        }
    }
    class BreadInsertedState extends ToasterState {
        public pullLever(): ToasterState {
            return new ToastingState()
        }
    }
    class ToastingState extends ToasterState {
        public ejectBread(): ToasterState {
            return new BreadEjectedState()
        }
    }
    class BreadEjectedState extends ToasterState {
        public removeBread(): ToasterState {
            return new IdleState()
        }
    }
}
console.log("testing allowed transitions")
var toaster = new Appliances.Toaster()
toaster.insertBread()
toaster.pullLever()
toaster.ejectBread()
toaster.removeBread()
console.log("testing disallowed transitions")
var toaster2 = new Appliances.Toaster()
toaster2.pullLever()

参考资料

精读《设计模式 - State 状态模式》
状态模式
《游戏编程模式》—-第7章状态模式
从零开始的状态机漫谈（1）——万物之始的语言
The State Pattern Exemplified in TypeScript
