window

window

countWindow

创建全局窗口根据参数决定走哪个窗口

countWindow(long size)

  public WindowedStream<T, KEY, GlobalWindow> countWindow(long size) {
      //  创建一个 countTrigger 来作为触发条件
      return window(GlobalWindows.create()).trigger(PurgingTrigger.of(CountTrigger.of(size)));
  }

可以看到countWindow创建的是全局窗口GlobalWindows，并指定了触发器PurgingTrigger（全局窗口必须指定触发器，默认是永远不触发的）

public class PurgingTrigger<T, W extends Window> extends Trigger<T, W> {
    private static final long serialVersionUID = 1L;
    private Trigger<T, W> nestedTrigger;
    private  PurgingTrigger(Trigger<T, W> nestedTrigger) {
        this.nestedTrigger = nestedTrigger;
    }

包装 CountTrigger 并调用Trigger 的抽象方法

public class CountTrigger<W extends Window> extends Trigger<Object, W> {
    private static final long serialVersionUID = 1L;
    private final long maxCount;
    private final ReducingStateDescriptor<Long> stateDesc =
            new ReducingStateDescriptor<>("count", new Sum(), LongSerializer.INSTANCE);
    private CountTrigger(long maxCount) {
        this.maxCount = maxCount;
    }
    @Override
    public TriggerResult onElement(Object element, long timestamp, W window, TriggerContext ctx) throws Exception {
        ReducingState<Long> count = ctx.getPartitionedState(stateDesc);
        count.add(1L);
        if (count.get() >= maxCount) {
            count.clear();
            return TriggerResult.FIRE;
        }
        return TriggerResult.CONTINUE;
    }
    public static <W extends Window> CountTrigger<W> of(long maxCount) {
        return new CountTrigger<>(maxCount);
    }
    private static class Sum implements ReduceFunction<Long> {
        private static final long serialVersionUID = 1L;
        @Override
        public Long reduce(Long value1, Long value2) throws Exception {
            return value1 + value2;
        }
    }

onElement()方法，用了一个ReducingStateDescriptor状态数据来对窗口中的数据量进行累加，当数据量达到指定的窗口大小时，就会clear清空状态数据并触发窗口函数。

对于onEventTime()和onProcessingTime()都是返回的TriggerResult.CONTINUE，也就是不触发。

countWindow(long size, long slide)

  public WindowedStream<T, KEY, GlobalWindow> countWindow(long size, long slide) {
      return window(GlobalWindows.create())
              .evictor(CountEvictor.of(size))
              .trigger(CountTrigger.of(slide));
  }

count Evict

    private void evict(Iterable<TimestampedValue<Object>> elements, int size, EvictorContext ctx) {
        if (size <= maxCount) {
            return;
        } else {
            int evictedCount = 0;
            for (Iterator<TimestampedValue<Object>> iterator = elements.iterator(); iterator.hasNext();){
                iterator.next();
                evictedCount++;
                if (evictedCount > size - maxCount) {
                    break;
                } else {
                    iterator.remove();
                }
            }
        }
    }

当元素个数 > 窗口长度时则会触发evictor

timewindow

根据时间语义走走对应的时间窗口

timeWindow(Time size,Time slide) ```java public WindowedStream timeWindow(Time size, Time slide) {

  if (environment.getStreamTimeCharacteristic() == TimeCharacteristic.ProcessingTime) {
      return window(SlidingProcessingTimeWindows.of(size, slide));
  } else {
      return window(SlidingEventTimeWindows.of(size, slide));
  }

}

public static TumblingProcessingTimeWindows of(Time size) {
    return new TumblingProcessingTimeWindows(size.toMilliseconds(), 0);
}

public static TumblingEventTimeWindows of(Time size) {
    return new TumblingEventTimeWindows(size.toMilliseconds(), 0);
}


- timeWindow**(**Time size**)**
```java
    public WindowedStream<T, KEY, TimeWindow> timeWindow(Time size) {
        if (environment.getStreamTimeCharacteristic() == TimeCharacteristic.ProcessingTime) {
            return window(TumblingProcessingTimeWindows.of(size));
        } else {
            return window(TumblingEventTimeWindows.of(size));
        }
    }


    public static SlidingProcessingTimeWindows of(Time size, Time slide) {
        return new SlidingProcessingTimeWindows(size.toMilliseconds(), slide.toMilliseconds(), 0);
    }

    public static SlidingEventTimeWindows of(Time size, Time slide) {
        return new SlidingEventTimeWindows(size.toMilliseconds(), slide.toMilliseconds(), 0);
    }

    @PublicEvolving
    public <W extends Window> WindowedStream<T, KEY, W> window(WindowAssigner<? super T, W> assigner) {
        return new WindowedStream<>(this, assigner);
    }

    public WindowedStream(KeyedStream<T, K> input,
            WindowAssigner<? super T, W> windowAssigner) {
        this.input = input;
        this.windowAssigner = windowAssigner;
        this.trigger = windowAssigner.getDefaultTrigger(input.getExecutionEnvironment());
    }

    @Override
    public Trigger<Object, TimeWindow> getDefaultTrigger(StreamExecutionEnvironment env) {
        return ProcessingTimeTrigger.create();
    }

根据时间语义创建对应的窗口
- TumblingProcessingTimeWindows
- TumblingEventTimeWindows
- SlidingProcessingTimeWindows
- SlidingEventTimeWindows
窗口创建成功封装进 WindowedStream 对象中
- 根据env 获取默认Trigger
- 返回 WindowedStream 对象

window

自定义需要使用的 WindowAssigner

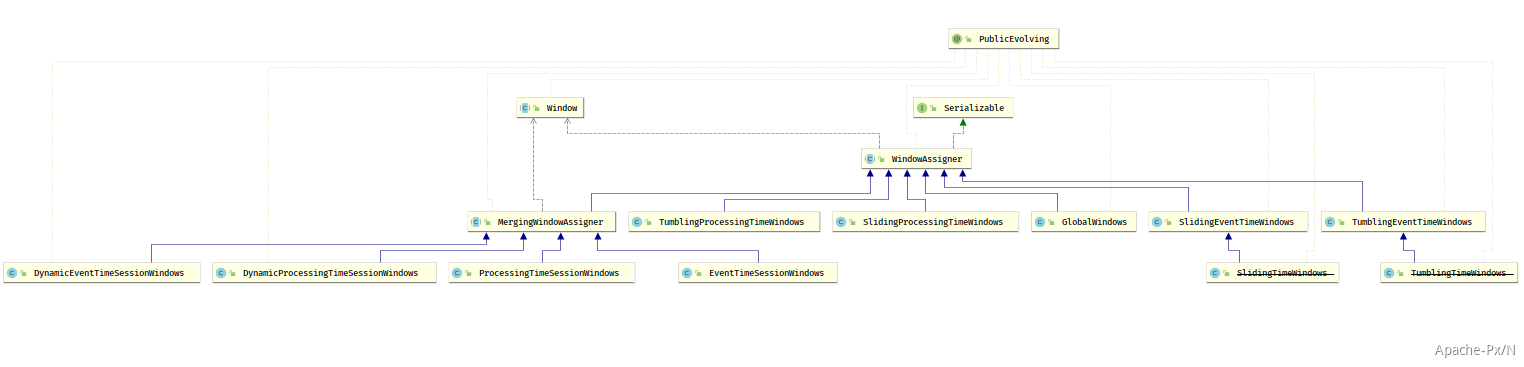

目前支持的有

Flink Source code - 图1

.window(TumblingEventTimeWindows.of(Time.seconds(1), Time.seconds(9)))
.window(TumblingProcessingTimeWindows.of(Time.seconds(1)))
.window(SlidingEventTimeWindows.of(Time.seconds(1), Time.seconds(1)))
.window(SlidingProcessingTimeWindows.of(Time.seconds(1), Time.seconds(1)))
.window(EventTimeSessionWindows.withGap(Time.seconds(1)))
.window(ProcessingTimeSessionWindows.withGap(Time.seconds(1)))
.window(GlobalWindows.create())
.window(DynamicProcessingTimeSessionWindows.withDynamicGap(null))
.window(DynamicEventTimeSessionWindows.withDynamicGap(null))

AllWindow

.windowAll(TumblingProcessingTimeWindows.of(Time.seconds(1)))
.windowAll(TumblingEventTimeWindows.of(Time.seconds(1)))
.windowAll(SlidingProcessingTimeWindows.of(Time.seconds(1),Time.seconds(1)))
.windowAll(SlidingEventTimeWindows.of(Time.seconds(1),Time.seconds(1)))
.windowAll(DynamicProcessingTimeSessionWindows.withDynamicGap(null))
.windowAll(DynamicProcessingTimeSessionWindows.withDynamicGap(null))
.window(GlobalWindows.create())

全局设置 processTime 设置Watermark后走 EventTimeWindows 没有问题
全局设置 processTime 不设置Watermark 走 EventTimeWindows 会报错

全局设置 eventTime 不设置Watermark 走 EventTimeWindows 会报错

全局设置 eventTime 设置Watermark 走 processTime 没有问题(不走Watermark)
