Flink - TwoPhaseCommitSinkFunction

继承

@PublicEvolving
public abstract class TwoPhaseCommitSinkFunction<IN, TXN, CONTEXT> extends RichSinkFunction<IN>
        implements CheckpointedFunction, CheckpointListener { ... }

• 继承 RichSinkFunction
• 实现 CheckpointedFunction
• 实现 CheckpointListener

两阶段提交 2PC

• 在分布式系统中，为了让每个节点都能够感知到其他节点的事务执行状况，需要引入一个中心节点来统一处理所有节点的执行逻辑，这个中心节点叫做协调者（coordinator），被中心节点调度的其他业务节点叫做参与者（participant）。 协调者与参与者

• 接下来正式介绍2PC。顾名思义，2PC将分布式事务分成了两个阶段，两个阶段分别为提交请求（投票）和提交（执行）。协调者根据参与者的响应来决定是否需要真正地执行事务，具体流程如下。

1. 预提交阶段 (Prepare)

• 1. 协调者向所有参与者发送 prepare 请求与内容事件,询问是否可以准备事务提交,并等待参与者的响
• 1. 参与者执行事务种包含的事件,并记录undo日志 和 redo 日志 (回滚/重放) 但不会真正提交
• 1. 参与者执行内容事件返回事务操作结果,执行成功返回 Yes, 失败返回 No

2. 提交阶段 (Commit / rollback )

• 1. 若所有参与者都返回 Yes ,说明可以触发事务提交 Commit
• 1. 协调者向所有参与者发送 commit 请求
• 1. 参与者收到 commit 请求后,将事务真正地提交上去,并释放占用的事务资源,并向协调者返回ack
• 1. 协调者收到所有参与者的ack消息,事务成功完成

• 1. 若有参与者返回 no 或者超时未返回,说明事务中断,需要回滚
• 1. 协调者向所有参与者发送 rollback 请求。
• 1. 参与者收到rollback请求后,根据undo日志回滚到事务执行前的状态,释放占用的事务资源,并向协调者返回ack
• 1. 协调者收到所有参与者的ack消息,事务回滚完成

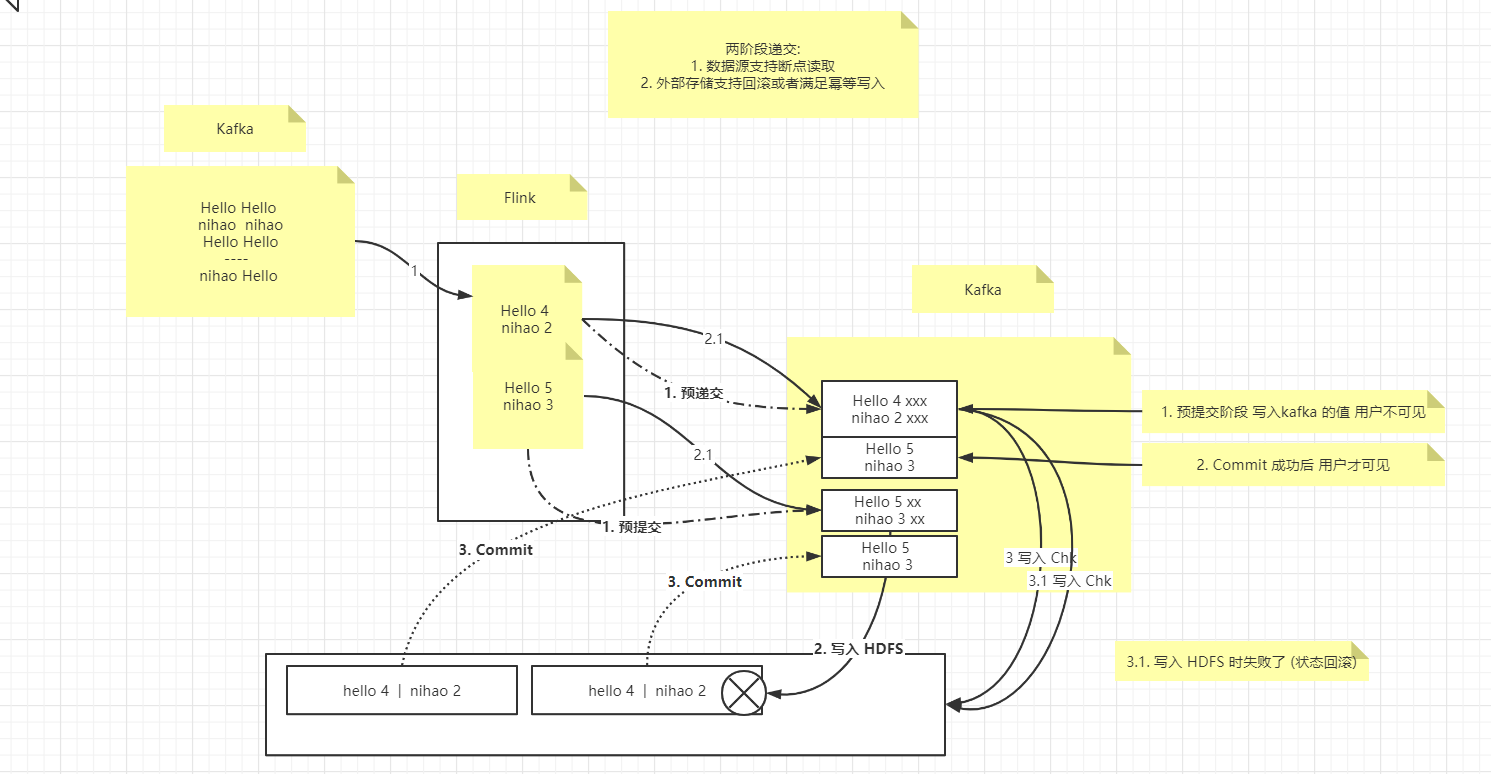

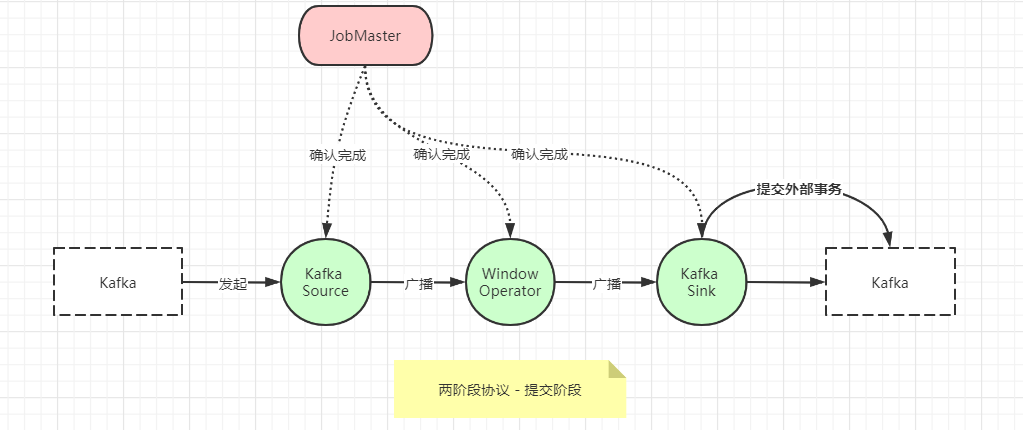

Flink 实现两阶段递交 基于 Kafka

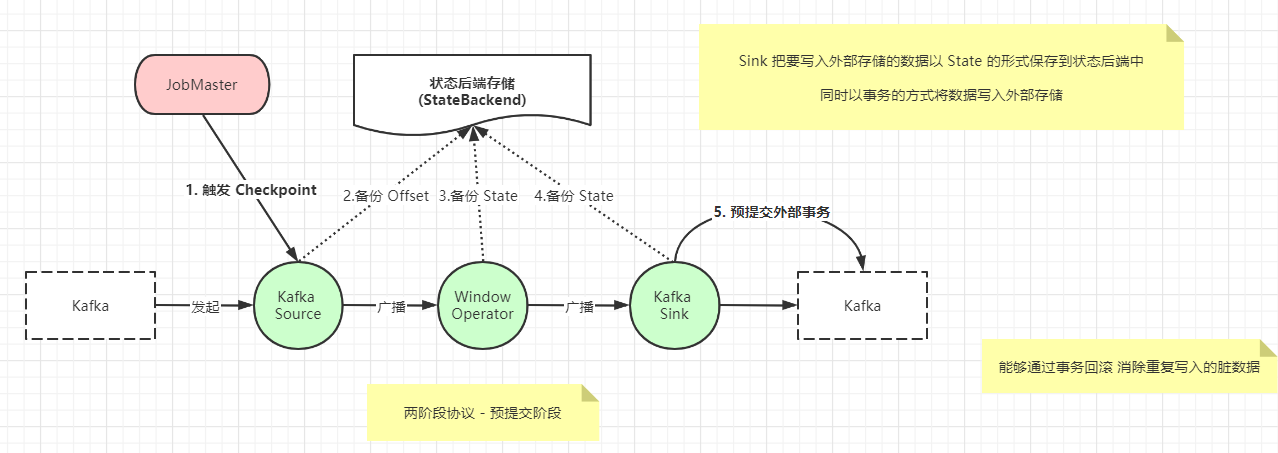

Flink 两阶段协议 - 预提交阶段

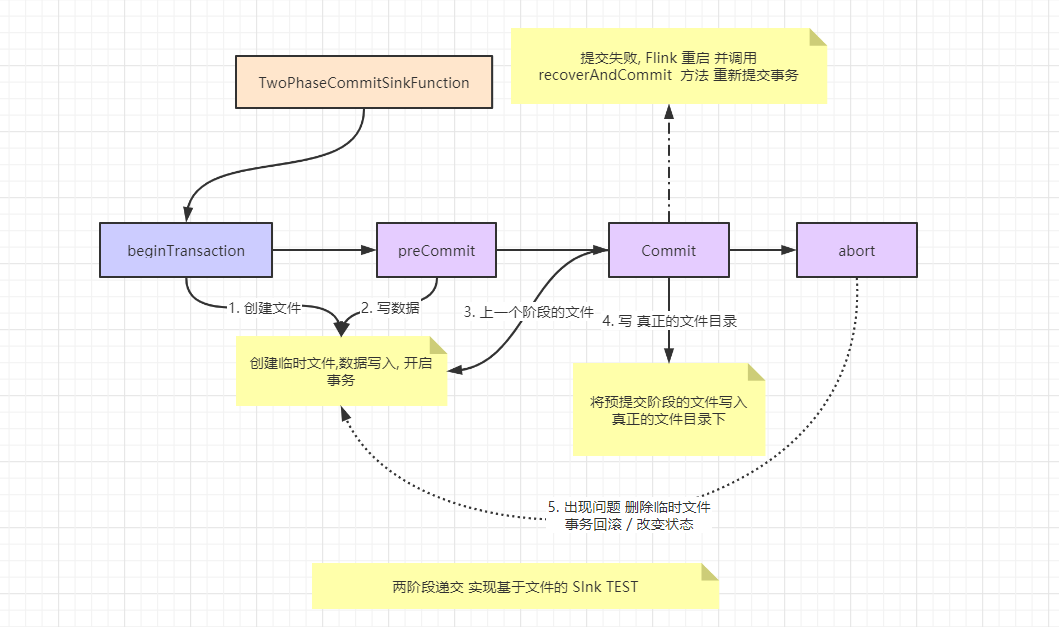

两阶段递交 实现基于文件的 SInk TEST

TwoPhaseCommitSinkFunction

TwoPhaseCommitSinkFunction 抽象方法

   // ------ methods that should be implemented in child class to support two phase commit
    // algorithm ------
    /** Write value within a transaction. */
    protected abstract void invoke(TXN transaction, IN value, Context context) throws Exception;
    /**
     * Method that starts a new transaction.
     *
     * @return newly created transaction.
     */
    protected abstract TXN beginTransaction() throws Exception;
    /**
     * Pre commit previously created transaction. Pre commit must make all of the necessary steps to
     * prepare the transaction for a commit that might happen in the future. After this point the
     * transaction might still be aborted, but underlying implementation must ensure that commit
     * calls on already pre committed transactions will always succeed.
     *
     * <p>Usually implementation involves flushing the data.
     */
    protected abstract void preCommit(TXN transaction) throws Exception;
    /**
     * Commit a pre-committed transaction. If this method fail, Flink application will be restarted
     * and {@link TwoPhaseCommitSinkFunction#recoverAndCommit(Object)} will be called again for the
     * same transaction.
     */
    protected abstract void commit(TXN transaction);
    /**
     * Invoked on recovered transactions after a failure. User implementation must ensure that this
     * call will eventually succeed. If it fails, Flink application will be restarted and it will be
     * invoked again. If it does not succeed eventually, a data loss will occur. Transactions will
     * be recovered in an order in which they were created.
     */
    protected void recoverAndCommit(TXN transaction) {
        commit(transaction);
    }
    /** Abort a transaction. */
    protected abstract void abort(TXN transaction);
    /** Abort a transaction that was rejected by a coordinator after a failure. */
    protected void recoverAndAbort(TXN transaction) {
        abort(transaction);
    }

PreCommit

 // TODO 预提交阶段
    @Override
    public void snapshotState(FunctionSnapshotContext context) throws Exception {
        // this is like the pre-commit of a 2-phase-commit transaction
        // we are ready to commit and remember the transaction
        checkState(
                currentTransactionHolder != null,
                "bug: no transaction object when performing state snapshot");
        long checkpointId = context.getCheckpointId();
        LOG.debug(
                "{} - checkpoint {} triggered, flushing transaction '{}'",
                name(),
                context.getCheckpointId(),
                currentTransactionHolder);
        preCommit(currentTransactionHolder.handle);
        pendingCommitTransactions.put(checkpointId, currentTransactionHolder);
        LOG.debug("{} - stored pending transactions {}", name(), pendingCommitTransactions);
        currentTransactionHolder = beginTransactionInternal();
        LOG.debug("{} - started new transaction '{}'", name(), currentTransactionHolder);
        state.clear();
        state.add(
                new State<>(
                        this.currentTransactionHolder,
                        new ArrayList<>(pendingCommitTransactions.values()),
                        userContext));
    }

Commit

// TODO Commit 方法
    @Override
    public final void notifyCheckpointComplete(long checkpointId) throws Exception {
        Iterator<Map.Entry<Long, TransactionHolder<TXN>>> pendingTransactionIterator =
                pendingCommitTransactions.entrySet().iterator();
        Throwable firstError = null;
        while (pendingTransactionIterator.hasNext()) {
            Map.Entry<Long, TransactionHolder<TXN>> entry = pendingTransactionIterator.next();
            Long pendingTransactionCheckpointId = entry.getKey();
            TransactionHolder<TXN> pendingTransaction = entry.getValue();
            if (pendingTransactionCheckpointId > checkpointId) {
                continue;
            }
            LOG.info(
                    "{} - checkpoint {} complete, committing transaction {} from checkpoint {}",
                    name(),
                    checkpointId,
                    pendingTransaction,
                    pendingTransactionCheckpointId);
            logWarningIfTimeoutAlmostReached(pendingTransaction);
            try {
                commit(pendingTransaction.handle);
            } catch (Throwable t) {
                if (firstError == null) {
                    firstError = t;
                }
            }
            LOG.debug("{} - committed checkpoint transaction {}", name(), pendingTransaction);
            pendingTransactionIterator.remove();
        }
        if (firstError != null) {
            throw new FlinkRuntimeException(
                    "Committing one of transactions failed, logging first encountered failure",
                    firstError);
        }
    }

参考: https://www.jianshu.com/p/02d6d1103746
