RabbiMQ

AMQP协议

AMQP（Advanced Message Queuing Protocol，高级消息队列协议），是进程之间传递异步消息的网络协议。

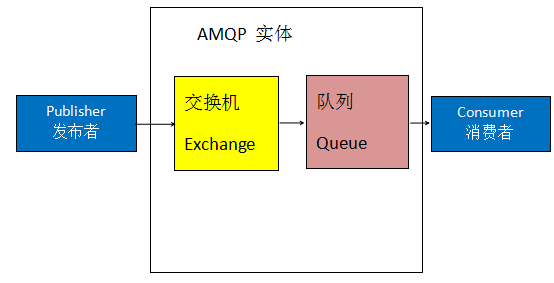

AMQP工作工程

发布者(Publisher)发布消息(Message)，经过交换机(Exchange)，交换机根据路由规则将收到消息分发给交换机绑定的队列(Queue)，最后AMQP代理会将消息投递给订阅了此队列的消费者，或者消费者按照需求自行获取。

RabbiMQ

RabbitMQ是实现了高级消息队列协议（AMQP）的开源消息代理软件（亦称面向消息的中间件）。RabbitMQ服务器是用Erlang语言编写的，而集群和故障转移是构建在开放电信平台框架上的。所有主要的编程语言均有与代理接口通讯的客户端库。而消息中间件作为分布式系统重要组件之一，可以解决应用耦合，异步消息，流量削峰等问题。

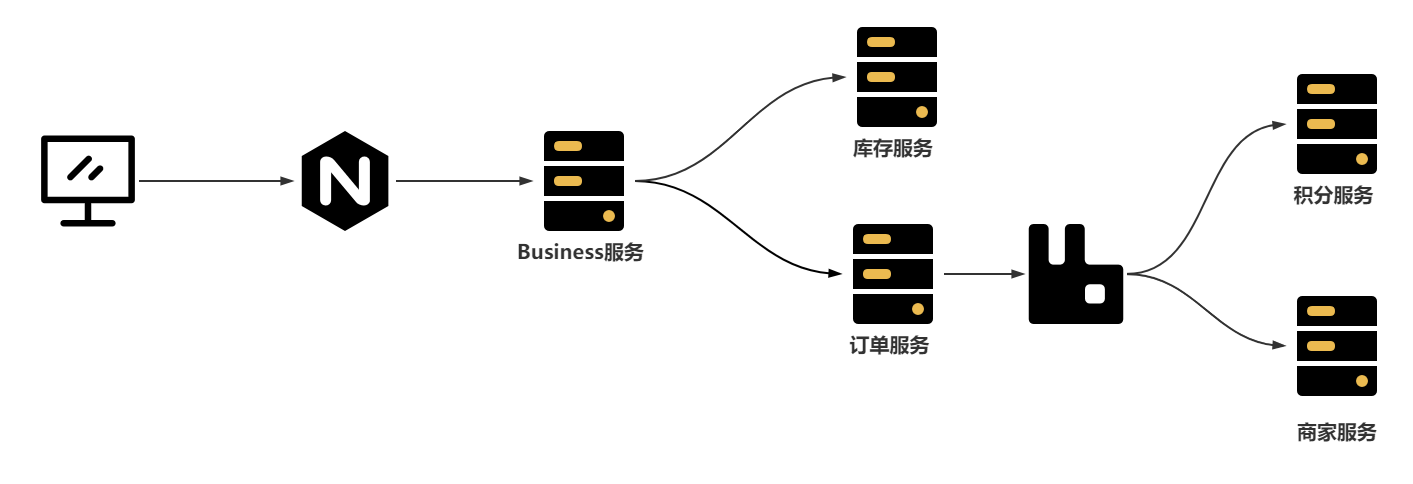

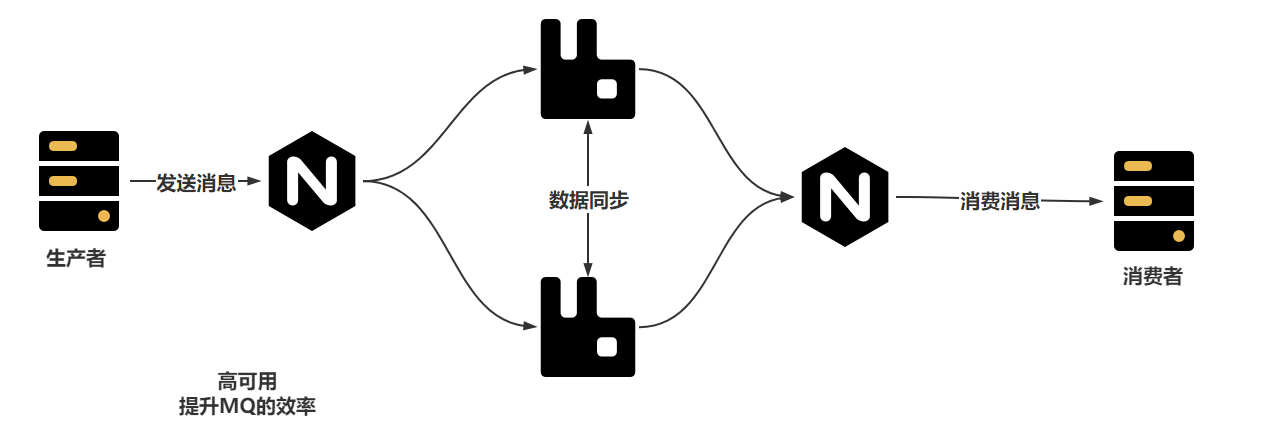

应用耦合

====》

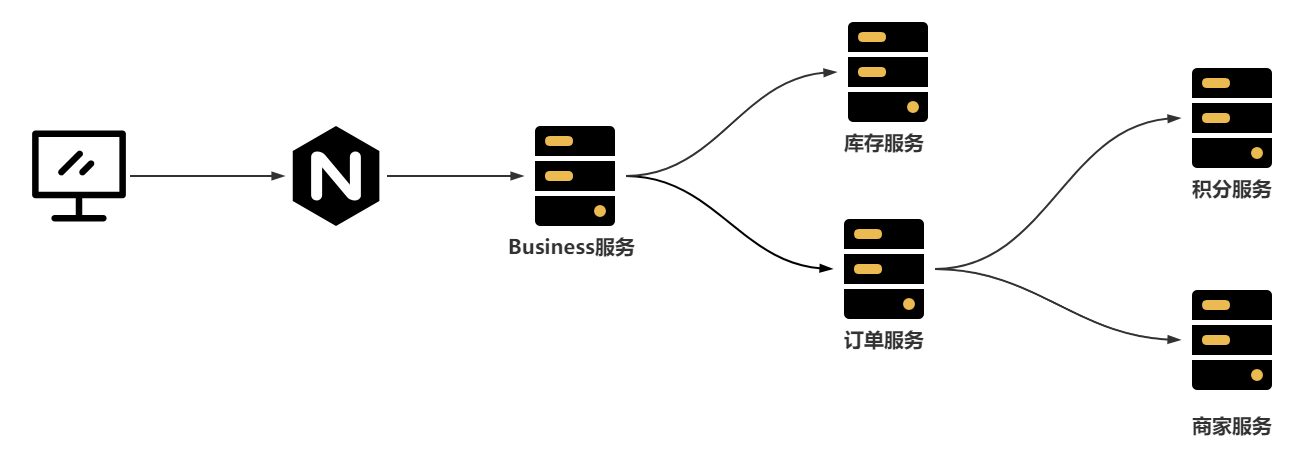

异步消息

===》

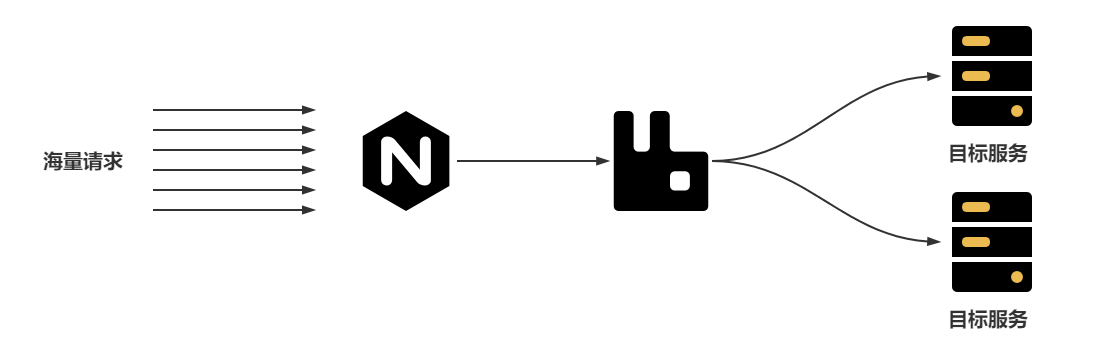

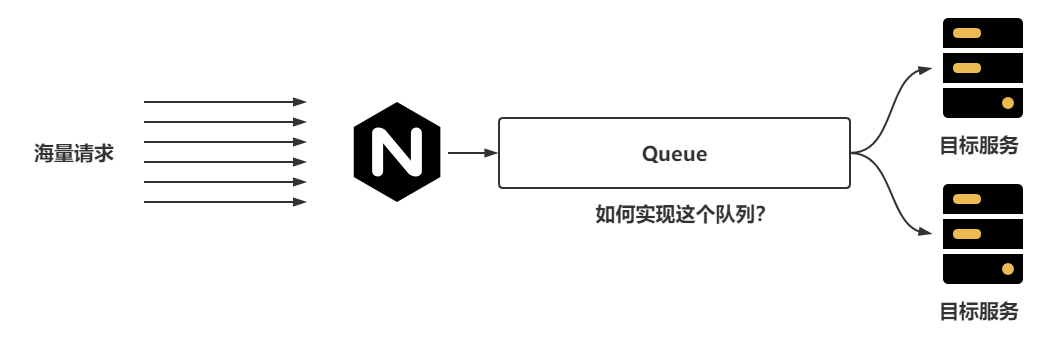

流量削峰

===》

RabbitMQ使用场景：

排队算法 : 使用消息队列特性
秒杀活动 : 使用消息队列特性
消息分发 : 使用消息异步特性
异步处理 : 使用消息异步特性
数据同步 : 使用消息异步特性
处理耗时任务 : 使用消息异步特性
流量销峰
RabbitMQ架构

1.Virtual Host
虚拟主机。表示一批交换器，消息队列和相关对象。虚拟主机是共享相同的身份认证和加密环境的独立服务器域。每个vhost本质上就是一个mini版的RabbitMQ服务器，拥有自己的队列、交换器、绑定和权限机制。vhost是AMQP概念的基础，必须在链接时指定，RabbitMQ默认的vhost是/
2.Connection
链接。指rabbitMQ服务器和服务建立的TCP链接。
3.Channel
信道。1，Channel中文叫做信道，是TCP里面的虚拟链接。例如：电缆相当于TCP，信道是一个独立光纤束，一条TCP连接上创建多条信道是没有问题的。2，TCP一旦打开，就会创建AMQP信道。3，无论是发布消息、接收消息、订阅队列，这些动作都是通过信道完成的。
4.Message
消息。消息是不具名的，它由消息头消息体组成。消息体是不透明的，而消息头则由一系列可选属性组成，这些属性包括：routing-key(路由键)、priority(相对于其他消息的优先权)、delivery-mode(指出消息可能持久性存储)等。
5.Publisher
消息的生产者。也是一个向交换器发布消息的客户端应用程序。
6.Consumer
消息的消费者。表示一个从消息队列中取得消息的客户端应用程序。
7.Exchange
交换器。用来接收生产者发送的消息并将这些消息路由给服务器中的队列。三种常用的交换器类型1. direct(发布与订阅完全匹配)2. fanout(广播)3. topic(主题，规则匹配)
8.Binding
绑定。用于消息队列和交换器之间的关联。一个绑定就是基于路由键将交换器和消息队列连接起来的路由规则，所以可以将交换器理解成一个由绑定构成的路由表。
9.Routing-key
路由键。RabbitMQ决定消息该投递到哪个队列的规则。（也可以理解为队列的名称，路由键是key，队列是value）队列通过路由键绑定到交换器。消息发送到MQ服务器时，消息将拥有一个路由键，即便是空的，RabbitMQ也会将其和绑定使用的路由键进行匹配。如果相匹配，消息将会投递到该队列。如果不匹配，消息将会进入黑洞。
10.Queue
消息队列。用来保存消息直到发送给消费者。它是消息的容器，也是消息的终点。一个消息可投入一个或多个队列。消息一直在队列里面，等待消费者链接到这个队列将其取走。
11.Borker
表示消息队列服务器实体。
12.交换器和队列的关系
交换器是通过路由键和队列绑定在一起的，如果消息拥有的路由键跟队列和交换器的路由键匹配，那么消息就会被路由到该绑定的队列中。也就是说，消息到队列的过程中，消息首先会经过交换器，接下来交换器在通过路由键匹配分发消息到具体的队列中。路由键可以理解为匹配的规则。
13.RabbitMQ为什么需要信道？为什么不是TCP直接通信？
1. TCP的创建和销毁开销特别大。创建需要3次握手，销毁需要4次分手。2. 如果不用信道，那应用程序就会以TCP链接Rabbit，高峰时每秒成千上万条链接会造成资源巨大的浪费，而且操作系统每秒处理TCP链接数也是有限制的，必定造成性能瓶颈。3. 信道的原理是一条线程一条通道，多条线程多条通道同用一条TCP链接。一条TCP链接可以容纳无限的信道，即使每秒成千上万的请求也不会成为性能的瓶颈。

RabbitMQ通信方式

Hello World!：为了入门操
Work queues：一个队列被多个消费者消费
Publish/Subscribe：手动创建Exchange（FANOUT）
Routing：手动创建Exchange（DIRECT）

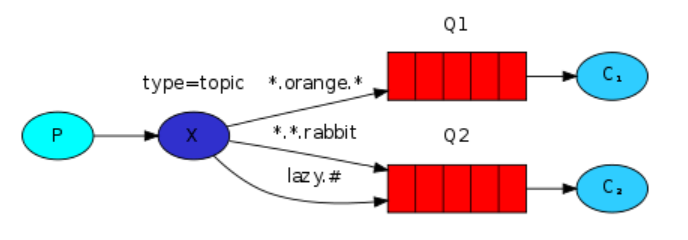

Topics：手动创建Exchange（TOPIC）

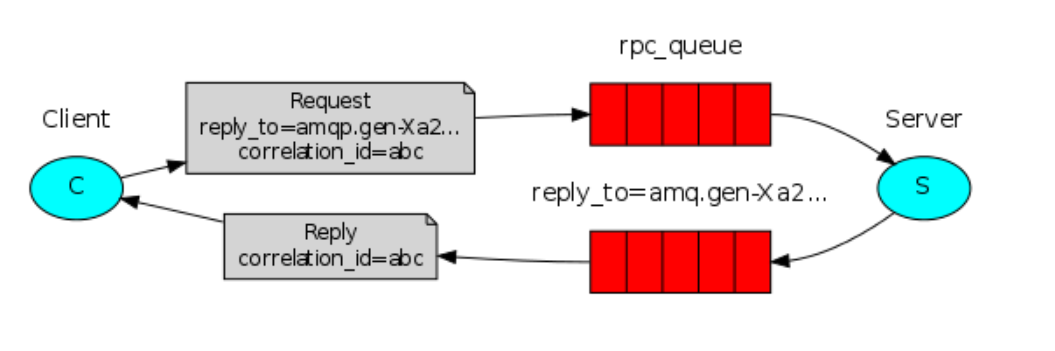

RPC：RPC方式
Publisher Confirms：保证消息可靠性

RabbitMQ 客户端操作

导入依赖

<dependency>
  <groupId>com.rabbitmq</groupId>
  <artifactId>amqp-client</artifactId>
  <version>5.14.2</version>
</dependency>

创建RabbitMQ工具类

public class RabbitMQUtil {

    /**
    * rabbitMQ 服务器ip地址
    */
    private static final String RABBITMQ_HOST = "192.168.126.128";
    /**
    * rabbitMQ 服务器端口
    */
    private static final int RABBITMQ_PORT = 5672;
    /**
    * rabbitMQ 虚拟服务器uri
    */
    private static final String RABBIT_VIRTUAL_HOST = "/";
    /**
    * rabbitMQ 用户名
    */
    private static final String RABBITMQ_USERNAME = "admin";
    /**
    * rabbitMQ 用户密码
    */
    private static final String RABBITMQ_PASSWORD = "admin";

    /**
    * 获取一个connection
    * @return Connection 对象
    * @throws IOException  IO异常
    * @throws TimeoutException 超时异常
    */

    public static Connection getConnection() throws IOException, TimeoutException {

        // 创建ConnectionFactory 工厂
        ConnectionFactory connectionFactory = new ConnectionFactory();
        // 设置rabbitMQ连接信息
        connectionFactory.setHost(RABBITMQ_HOST);
        connectionFactory.setPort(RABBITMQ_PORT);
        connectionFactory.setVirtualHost(RABBIT_VIRTUAL_HOST);
        connectionFactory.setUsername(RABBITMQ_USERNAME);
        connectionFactory.setPassword(RABBITMQ_PASSWORD);
        // 创建一个rabbitMQ 连接Connection 对象返回
        return connectionFactory.newConnection();
    }
}

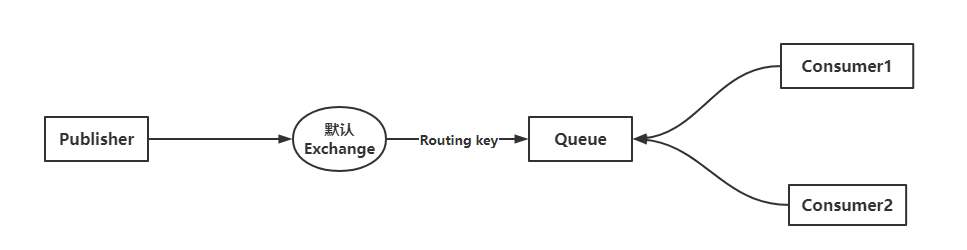

HelloWord通信

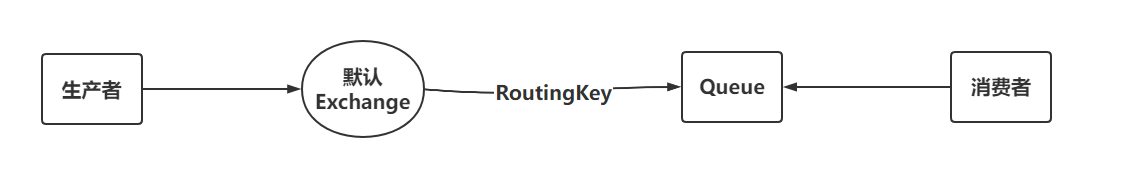

采用默认的交换机Exchange（ direct ）

public class Publisher {

    private static final String QUEUE_NAME = "hello";

    public static void main(String[] args) {
        try {
            // 1. 获取连接 Connection
            Connection connection = RabbitMQUtil.getConnection();

            // 2. 获取信道 Channel
            Channel channel = connection.createChannel();

            //3. 创建队列 Queue
            channel.queueDeclare(QUEUE_NAME, false, false, false, null);

            //4. 发布消息
            String message = "hello world";
            channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
            System.out.println("消息发送成功");

            //5 关闭资源
            channel.close();
            connection.close();
        } catch (IOException | TimeoutException e) {
            e.printStackTrace();
        }
    }
}

public class Consumer {

    private static final String QUEUE_NAME = "hello";
    public static void main(String[] args) {
        try {
            // 1 创建连接 Connection
            Connection connection = RabbitMQUtil.getConnection();
            // 2 构建信道 Channel
            Channel channel = connection.createChannel();
            // 3 构建队列（与Publisher构建的队列一样）。 在这里也声明了队列。因为可能会在Publisher之前启动Consumer，确保在消费消息之前队列是存在的
            channel.queueDeclare(QUEUE_NAME, false, false, false, null);
            //4 消费消息
            channel.basicConsume(QUEUE_NAME, false, new DefaultConsumer(channel) {
                @Override
                public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                    System.out.println("获取到消息：" + new String(body, StandardCharsets.UTF_8));
                }
            });


            //5 关闭资源
            channel.close();
            connection.close();
        } catch (IOException |
                TimeoutException e) {
            e.printStackTrace();
        }
    }
}

WorkQueue

一个队列中的一个消息，只会被一消费者消费
默认情况下，RabbitMQ队列会将消息以轮询的方式交给不同的消费者消费

消费者拿到消息后，需要给RabbitMQ一个ack，这样RabbitMQ就认为消费者拿到消息了

public class Publisher {

  private static final String QUEUE_NAME = "work";

  public static void main(String[] args) {
      try {
          //1 获取连接
          Connection connection = RabbitMQUtil.getConnection();
          //2 构建信道Channel
          Channel channel = connection.createChannel();
          //3 构建队列
          channel.queueDeclare(QUEUE_NAME,false,false,false,null);
          //4 发送消息
          AMQP.BasicProperties prop = new AMQP.BasicProperties();
          for (int i = 1; i <= 10; i++) {
              String message = "work queue—"+i;
              channel.basicPublish("",QUEUE_NAME,prop,message.getBytes());
          }
          System.out.println("发送成功");
          //5 关闭资源
          channel.close();
          connection.close();
      } catch (IOException | TimeoutException e) {
          e.printStackTrace();
      }
  }
}

```java public class Consumer {

private static final String QUEUE_NAME = “work”;

public static void main(String[] args) {

  try {
      //1 获取连接
      Connection connection = RabbitMQUtil.getConnection();
      //2 构建信道Channel
      Channel channel = connection.createChannel();
      //3 构建队列
      channel.queueDeclare(QUEUE_NAME,false,false,false,null);
      //4 消费消息
      //4.1 设置回调函数
      // 设置信道流量。服务器将传递的最大消息数，如果无限制，则为0
      channel.basicQos(1);
      DefaultConsumer callback = new DefaultConsumer(channel){
          @Override
          public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
              System.out.println("1号—获取到消息："+new String(body, StandardCharsets.UTF_8));

              try {
                  Thread.sleep(100);
              } catch (InterruptedException e) {
                  e.printStackTrace();
              }
              // 设置手动Ack
              channel.basicAck(envelope.getDeliveryTag(),false);
          }
      };
      // 消费消息，关闭自动Ack
      channel.basicConsume(QUEUE_NAME,false,callback);
  } catch (IOException | TimeoutException e) {
      e.printStackTrace();
  }

} } //—————————————————————————————————————-

public class Consumer2 {

private static final String QUEUE_NAME = "work";

public static void main(String[] args) {

    try {
        //1 获取连接
        Connection connection = RabbitMQUtil.getConnection();
        //2 构建信道Channel
        Channel channel = connection.createChannel();
        //3 构建队列
        channel.queueDeclare(QUEUE_NAME,false,false,false,null);
        //4 消费消息
        //4.1 设置回调函数
        // 设置信道流量。服务器将传递的最大消息数，如果无限制，则为0
        channel.basicQos(1);
        DefaultConsumer callback1 = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("1号—获取到消息："+new String(body, StandardCharsets.UTF_8));

                try {
                    Thread.sleep(1000);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                // 设置手动Ack

                channel.basicAck(envelope.getDeliveryTag(),false);
            }
        };
        // 消费消息，关闭自动Ack
        channel.basicConsume(QUEUE_NAME,false,callback1);
    } catch (IOException | TimeoutException e) {
        e.printStackTrace();
    }
}

}

<a name="BjOnt"></a>

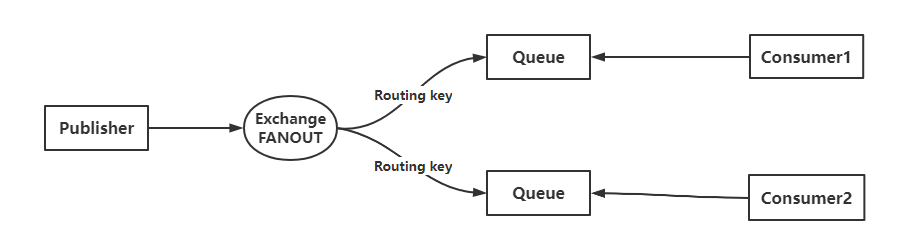

#### Publish/Subscribe
![image.png](https://cdn.nlark.com/yuque/0/2022/png/1636836/1648879067049-7a130783-f2c1-4ec2-806e-6745daa51020.png#clientId=u9b5a057a-f5ab-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=244&id=u0688f073&margin=%5Bobject%20Object%5D&name=image.png&originHeight=244&originWidth=910&originalType=binary&ratio=1&rotation=0&showTitle=false&size=18195&status=done&style=stroke&taskId=u032f668c-263b-4ca1-b76c-d948e2e8f3c&title=&width=910)

- 生产者（Publisher），自行构建FANOUT类型的Exchange，并与队列进行绑定。
```java
public class Publisher {
    private static final String EXCHANGE_NAME = "pubsub";
    private static final String QUEUE_NAME1 = "publish1";
    private static final String QUEUE_NAME2 = "publish2";

    public static void main(String[] args) {
        try {
            //1 构建连接Connection
            Connection connection = RabbitMQUtil.getConnection();
            //2 构建信道Channel
            Channel channel = connection.createChannel();
            //3 构建交换机Exchange,制定交换机类型为fanout
            channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.FANOUT);
            //4 构建队列
            channel.queueDeclare(QUEUE_NAME1, false, false, false, null);
            channel.queueDeclare(QUEUE_NAME2, false, false, false, null);
            //5 绑定交换机和队列,绑定方式为直接绑定（根据queueName和exchangeName绑定，与routingKey无关
            channel.queueBind(QUEUE_NAME1, EXCHANGE_NAME, "publish1");
            channel.queueBind(QUEUE_NAME2, EXCHANGE_NAME, "publish2");
            //6 发送消息
            String message = "Hello publish/subscribe";
            channel.basicPublish(EXCHANGE_NAME, "publish1", null, message.getBytes());
            channel.basicPublish(EXCHANGE_NAME, "publish2", null, message.getBytes());
            //7 关闭资源
            channel.close();
            connection.close();
        } catch (IOException | TimeoutException e) {
            e.printStackTrace();
        }
    }
}

public class Consumer1 {

    private static final String QUEUE_NAME1 = "publish1";


    public static void main(String[] args) {
        try {
            //1 构建连接
            Connection connection = RabbitMQUtil.getConnection();
            //2 构建信道
            Channel channel = connection.createChannel();
            //3 构建队列,保证队列存在
            channel.queueDeclare(QUEUE_NAME1, false, false, false, null);
            //4 获取消息
            DefaultConsumer callback = new DefaultConsumer(channel) {
                @Override
                public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                    System.out.println("获取到消息："+new String(body,StandardCharsets.UTF_8));
                    channel.basicAck(envelope.getDeliveryTag(),false);
                }
            };
            channel.basicConsume(QUEUE_NAME1,false,callback);
        } catch (IOException | TimeoutException e) {
            e.printStackTrace();
        }
    }
}

//----------------------------------------------------------------------------------

public class Consumer2 {
    private static final String QUEUE_NAME2 = "publish2";

    public static void main(String[] args) {
        try {
            //1 构建连接
            Connection connection = RabbitMQUtil.getConnection();
            //2 构建信道
            Channel channel = connection.createChannel();
            //3 构建队列,保证队列存在
            channel.queueDeclare(QUEUE_NAME2, false, false, false, null);
            //4 获取消息
            DefaultConsumer callback = new DefaultConsumer(channel) {
                @Override
                public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                    System.out.println("获取到消息："+new String(body, StandardCharsets.UTF_8));
                    channel.basicAck(envelope.getDeliveryTag(),false);
                }
            };
            channel.basicConsume(QUEUE_NAME2,false,callback);
        } catch (IOException | TimeoutException e) {
            e.printStackTrace();
        }
    }
}

Routing

生产者 Publisher：在绑定Exchange和Queue时，需要指定routingKey，同时在发送消息时，也需要指定routingKey，只有在routingKey一致时，消息才会路由到指定的Queue。交换机类型为DIRECT。

public class Publisher {
  private static final String EXCHANGE_NAME = "routingKey";
  private static final String QUEUE_NAME1 = "routingKey_queue1";
  private static final String QUEUE_NAME2 = "routingKey_queue2";

  public static void main(String[] args) {
      try {
          //1 获取连接
          Connection connection = RabbitMQUtil.getConnection();
          //2 构建信道 Channel
          Channel channel = connection.createChannel();
          //3 构建交换机,指定类型为DIRECT
          channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
          //4 构建队列
          channel.queueDeclare(QUEUE_NAME1, false, false, false, null);
          channel.queueDeclare(QUEUE_NAME2, false, false, false, null);
          //5 绑定Exchange和Queue
          channel.queueBind(QUEUE_NAME1, EXCHANGE_NAME, "red");
          channel.queueBind(QUEUE_NAME2, EXCHANGE_NAME, "black");
          channel.queueBind(QUEUE_NAME2, EXCHANGE_NAME, "white");
          //6 发送信息
          channel.basicPublish(EXCHANGE_NAME, "red", null, "这是Red".getBytes());
          channel.basicPublish(EXCHANGE_NAME, "blue", null, "这是blue".getBytes());
          channel.basicPublish(EXCHANGE_NAME, "black", null, "这是black".getBytes());
          channel.basicPublish(EXCHANGE_NAME, "white", null, "这是white".getBytes());

          //7 关闭资源
          channel.close();
          connection.close();
      } catch (IOException | TimeoutException e) {
          e.printStackTrace();
      }
  }
}

```java public class Consumer1 {

private static final String QUEUE_NAME1 = “routingKey_queue1”;

public static void main(String[] args) {

  try {
      //1 获取连接
      Connection connection = RabbitMQUtil.getConnection();
      //2 构建信道
      Channel channel = connection.createChannel();
      //3 构建队列
      channel.queueDeclare(QUEUE_NAME1, false, false, false, null);
      //4 获取消息
      DefaultConsumer callback = new DefaultConsumer(channel) {
          @Override
          public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
              System.out.println("获取到消息" + new String(body, StandardCharsets.UTF_8));
              channel.basicAck(envelope.getDeliveryTag(), false);
          }
      };
      channel.basicConsume(QUEUE_NAME1, false, callback);
  } catch (IOException | TimeoutException e) {
      e.printStackTrace();
  }

} } //—————————————————————————————————————————- public class Consumer2 { private static final String QUEUE_NAME2 = “routingKey_queue2”;

public static void main(String[] args) {

  try {
      //1 获取连接
      Connection connection = RabbitMQUtil.getConnection();
      //2 构建信道
      Channel channel = connection.createChannel();
      //3 构建队列
      channel.queueDeclare(QUEUE_NAME2, false, false, false, null);
      //4 获取消息
      DefaultConsumer callback = new DefaultConsumer(channel) {
          @Override
          public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
              System.out.println("获取到消息" + new String(body, StandardCharsets.UTF_8));
              channel.basicAck(envelope.getDeliveryTag(), false);
          }
      };
      channel.basicConsume(QUEUE_NAME2, false, callback);
  } catch (IOException | TimeoutException e) {
      e.printStackTrace();
  }

}

<a name="pBZ2Y"></a>
#### Topics
![image.png](https://cdn.nlark.com/yuque/0/2022/png/1636836/1648883004049-79341ded-b422-4eab-8a96-d0df4bf83b32.png#clientId=u9b5a057a-f5ab-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=261&id=u5c96de6a&margin=%5Bobject%20Object%5D&name=image.png&originHeight=240&originWidth=688&originalType=binary&ratio=1&rotation=0&showTitle=false&size=37776&status=done&style=stroke&taskId=u75a6016d-c61d-46a9-acb2-f028635cb66&title=&width=749)<br />Publisher：TOPIC类型可以编写带有特殊意义的routingKey的绑定方式。交换机类型为TOPIC类型。<br />注意：topic类型交换机，在与queue绑定时，routingkey格式为：单词1.单词2.单词3……，其中*表示占位符，#表示通配符
```java
public class Publisher {
    private static final String EXCHANGE_NAME = "topic";
    private static final String QUEUE_NAME1 = "topic-queue1";
    private static final String QUEUE_NAME2 = "topic-queue2";

    public static void main(String[] args) {
        try {
            //1 获取连接Connection
            Connection connection = RabbitMQUtil.getConnection();
            //2 构建信道Channel
            Channel channel = connection.createChannel();
            //3 构建交换机，指定类型为topic
            channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.TOPIC);
            //4 构建队列
            channel.queueDeclare(QUEUE_NAME1,false,false,false,null);
            channel.queueDeclare(QUEUE_NAME2,false,false,false,null);
            //5 绑定交换机和队列
            channel.queueBind(QUEUE_NAME1,EXCHANGE_NAME,"*.red.*");
            channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"big.*.*");
            channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"*.red.#");
            //6 发送消息
            channel.basicPublish(EXCHANGE_NAME,"big.red.dog",null,"big.red.dog".getBytes());
            channel.basicPublish(EXCHANGE_NAME,"small.red.cat",null,"small.red.cat".getBytes());
            channel.basicPublish(EXCHANGE_NAME,"big.blue.dog",null,"big.blue.dog".getBytes());
            channel.basicPublish(EXCHANGE_NAME,"big.red.dog.pig",null,"big.red.dog".getBytes());
            //7 关闭资源
            channel.close();;
            connection.close();
        } catch (IOException | TimeoutException e) {
            e.printStackTrace();
        }
    }
}

public class Consumer1 {
    private static final String QUEUE_NAME1 = "topic-queue1";

    public static void main(String[] args) {
        try {
            //1 获取连接
            Connection connection = RabbitMQUtil.getConnection();
            //2 构建信道 Channel
            Channel channel = connection.createChannel();
            //3 构建队列
            channel.queueDeclare(QUEUE_NAME1, false, false, false, null);
            //4 接收消费信息
            DefaultConsumer callback = new DefaultConsumer(channel) {
                @Override
                public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                    System.out.println("获取到消息：" + new String(body, StandardCharsets.UTF_8));
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            };
            channel.basicConsume(QUEUE_NAME1, false, callback);
        } catch (IOException | TimeoutException e) {
            e.printStackTrace();
        }
    }
}
//------------------------------------------------------------------------------------
public class Consumer2 {
    private static final String QUEUE_NAME2 = "topic-queue2";

    public static void main(String[] args) {
        try {
            //1 获取连接
            Connection connection = RabbitMQUtil.getConnection();
            //2 构建信道 Channel
            Channel channel = connection.createChannel();
            //3 构建队列
            channel.queueDeclare(QUEUE_NAME2, false, false, false, null);
            //4 接收消费信息
            DefaultConsumer callback = new DefaultConsumer(channel) {
                @Override
                public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                    System.out.println("获取到消息：" + new String(body, StandardCharsets.UTF_8));
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            };
            channel.basicConsume(QUEUE_NAME2, false, callback);
        } catch (IOException | TimeoutException e) {
            e.printStackTrace();
        }
    }
}

RPC通信类型（了解）

因为两个服务在交互时，可以尽量做到Client和Server的解耦，通过RabbitMQ进行解耦操作需要让Client发送消息时，携带两个属性：

replyTo：告知Server将相应信息放到哪个队列
correlationId：告知Server发送相应消息时，需要携带位置标示来告知Client响应的信息

public class Client {

    private static final String QUEUE_PUBLISH = "rpc-publish";
    private static final String QUEUE_CONSUMER = "rpc-consumer";

    public static void main(String[] args) {
        try {
            //1 获取连接
            Connection connection = RabbitMQUtil.getConnection();
            //2 获取信道
            Channel channel = connection.createChannel();
            //3 构建队列
            channel.queueDeclare(QUEUE_PUBLISH, false, false, false, null);
            channel.queueDeclare(QUEUE_CONSUMER, false, false, false, null);
            //4 发布消息
            String message = "hello RPC";
            String correlationId = UUID.randomUUID().toString();
            AMQP.BasicProperties prop = new AMQP.BasicProperties()
                    .builder()
                    .replyTo(QUEUE_CONSUMER)
                    .correlationId(correlationId)
                    .build();
            channel.basicPublish("", QUEUE_PUBLISH, prop, message.getBytes());
            System.out.println("消息发送成功");
            channel.basicConsume(QUEUE_CONSUMER, false, new DefaultConsumer(channel) {
                @Override
                public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                    String correlationId1 = properties.getCorrelationId();
                    if (correlationId1 != null && correlationId1.equalsIgnoreCase(correlationId)) {
                        System.out.println("获取到服务：" + new String(body, StandardCharsets.UTF_8));
                    }
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            });
        } catch (IOException | TimeoutException e) {
            e.printStackTrace();
        }
    }
}

public class Server {
    private static final String QUEUE_PUBLISH = "rpc-publish";
    private static final String QUEUE_CONSUMER = "rpc-consumer";
    public static void main(String[] args) {
        try {
            //1 获取连接
            Connection connection = RabbitMQUtil.getConnection();
            //2 获取信道
            Channel channel = connection.createChannel();
            //3 构建队列
            channel.queueDeclare(QUEUE_PUBLISH, false, false, false, null);
            channel.queueDeclare(QUEUE_CONSUMER, false, false, false, null);
            //4 监听消息
            DefaultConsumer callback = new DefaultConsumer(channel){
                @Override
                public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                    System.out.println("获取到消息："+new String(body,StandardCharsets.UTF_8));
                    channel.basicAck(envelope.getDeliveryTag(),false);
                    String response = "这是服务端答复的消息";
                    String correlationId = properties.getCorrelationId();
                    String responseQueue = properties.getReplyTo();
                    AMQP.BasicProperties prop = new AMQP.BasicProperties()
                            .builder().correlationId(correlationId).build();
                    channel.basicPublish("",responseQueue,prop,response.getBytes());
                }
            };

            channel.basicConsume(QUEUE_PUBLISH, false, callback);
        } catch (IOException | TimeoutException e) {
            e.printStackTrace();
        }
    }
}

RabbitMQ交换机类型

direct类型

direct交换器是RabbitMQ默认交换器。默认会进行公平调度，所有接受者依次从消息队列中获取值（一个队列多个消费者，采用类似轮询的方式）。
Publisher给哪个队列发消息，就一定是给哪个队列发送消息（routingkey，绑定交换机和队列）。对交换器绑定的其他队列没有任何影响。

fanout类型
扇形交换器，实际上做的事情就是广播，fanout会把消息发送给所有的绑定在当前交换器上的队列。且每个队列消息中第一个Consumer能收到消息。

topic类型
允许在路由键（RoutingKey）中出现匹配规则。路由键的写法和包写法相同。com.msb.xxxx.xxx格式。
在绑定时可以带有下面特殊符号，中间可以出现:
* : 代表一个单词（两个.之间内容）
# : 0个或多个字符
接收方依然是公平调度，同一个队列中内容轮换获取值。

SpringBoot使用RabbitMQ
```
spring:
rabbitmq:
  host: 192.168.126.128
  port: 5672
  username: admin
  password: admin
  virtual-host: /
```
```java @Configuration public class RabbitMQConfig {

private static final String EXCHANGE_NAME = “springboot-exchange”; private static final String QUEUE_NAME = “spingboot-queue”; private static final String ROUTING_KEY = “*.black.#”;

//获取交换机

@Bean public Exchange bootExchange() {
```
  return ExchangeBuilder.topicExchange(EXCHANGE_NAME).build();
```
}

// 获取队列

@Bean public Queue bootQueue() {
```
  return QueueBuilder.nonDurable(QUEUE_NAME).build();
```
}

//绑定交换机和队列

@Bean public Binding getBinding(Exchange exchange, Queue queue) {
```
  return BindingBuilder.bind(queue).to(exchange).with(ROUTING_KEY).noargs();
```
} }

```java
@Component
public class Publisher {

    private static final String EXCHANGE_NAME = "springboot-exchange";

    private final RabbitTemplate rabbitTemplate;

    @Autowired
    public Publisher(RabbitTemplate rabbitTemplate) {
        this.rabbitTemplate = rabbitTemplate;
    }

    public void publish() {
        rabbitTemplate.convertAndSend(EXCHANGE_NAME, "big.black.dogAndCat", "messageWithProperties", new MessagePostProcessor() {
            @Override
            public Message postProcessMessage(Message message) throws AmqpException {
                System.out.println("发送" + new String(message.getBody(), StandardCharsets.UTF_8));
                message.getMessageProperties().setCorrelationId("test");
                return message;
            }
        });
        System.out.println("消息发送成功");
    }
}

@Component
public class Consumer {
    private static final String QUEUE_NAME = "spingboot-queue";

    @RabbitListener(queues = QUEUE_NAME)
    public void consume(String msg, Channel channel, Message message) throws IOException {
        System.out.println("获取到消息：" + msg);
        System.out.println("获取到消息：" + new String(message.getBody(), StandardCharsets.UTF_8));
        System.out.println("唯一标识：" + message.getMessageProperties().getCorrelationId());
        channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
    }
}

RabbitMQ保证消息的可靠性

保证消息送到Exchange —— Confirm机制

有三种策略：

单独发布消息：显著降低了消息发布速度，因为对消息的确认会阻碍所有后续消息的发布
批量发布消息：必单独发布消息快，但还是降低了消息的发布速度
异步回调

可以通过Confirm效果保证消息一定送达到Exchange，官方提供了三种方式，选择了对于效率影响最低的异步回调的效果

public static void main(String[] args) {
    try {
        //1 构建连接Connection
        Connection connection = RabbitMQUtil.getConnection();
        //2 构建信道Channel
        Channel channel = connection.createChannel();
        //3 构建交换机Exchange,制定交换机类型为fanout
        channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.FANOUT);
        //4 构建队列
        channel.queueDeclare(QUEUE_NAME1, false, false, false, null);
        channel.queueDeclare(QUEUE_NAME2, false, false, false, null);
        //5 绑定交换机和队列,绑定方式为直接绑定（根据queueName和exchangeName绑定，与routingKey无关
        channel.queueBind(QUEUE_NAME1, EXCHANGE_NAME, "publish1");
        channel.queueBind(QUEUE_NAME2, EXCHANGE_NAME, "publish2");

        // 开启confirms
        channel.confirmSelect();
        // 设置异步回调
        channel.addConfirmListener(new ConfirmListener() {
            @Override
            public void handleAck(long deliveryTag, boolean multiple) throws IOException {
                // 消息发送到Exchange了，进行处理
                System.out.println("消息发送成功");
            }
            @Override
            public void handleNack(long deliveryTag, boolean multiple) throws IOException {
                // 消息发送Exchange失败，进行处理；比如重新发送等
                System.out.println("消息发送失败");
            }
        });


        //6 发送消息
        String message = "Hello publish/subscribe";
        channel.basicPublish(EXCHANGE_NAME, "publish1", null, message.getBytes());
        channel.basicPublish(EXCHANGE_NAME, "publish2", null, message.getBytes());
        //7 关闭资源
        channel.close();
        connection.close();
    } catch (IOException | TimeoutException e) {
        e.printStackTrace();
    }
}

保证消息可靠路由到Queue —— Return机制

为了保证Exchange上的消息一定可以送达到Queue，设置Return机制

public static void main(String[] args) {
    try {
        //1 获取连接
        Connection connection = RabbitMQUtil.getConnection();
        //2 构建信道 Channel
        Channel channel = connection.createChannel();
        //3 构建交换机,指定类型为DIRECT
        channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
        //4 构建队列
        channel.queueDeclare(QUEUE_NAME1, false, false, false, null);
        channel.queueDeclare(QUEUE_NAME2, false, false, false, null);
        //5 绑定Exchange和Queue
        channel.queueBind(QUEUE_NAME1, EXCHANGE_NAME, "red");
        channel.queueBind(QUEUE_NAME2, EXCHANGE_NAME, "black");
        channel.queueBind(QUEUE_NAME2, EXCHANGE_NAME, "white");

        // 设置Return回调，没有路由到指定Queue时会执行回调函数
        channel.addReturnListener(new ReturnListener() {
            @Override
            public void handleReturn(int replyCode, String replyText, String exchange, String routingKey, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("消息没有路由到Queue");
            }
        });
        //6 发送信息,将basicPublish方法参数中的mandatory设置为true，即可开启Return机制，当消息没有路由到队列中时，就会执行return回调
        channel.basicPublish(EXCHANGE_NAME, "red", true,null, "这是Red".getBytes());
        channel.basicPublish(EXCHANGE_NAME, "blue", true,null, "这是blue".getBytes());
        channel.basicPublish(EXCHANGE_NAME, "black", true,null, "这是black".getBytes());
        channel.basicPublish(EXCHANGE_NAME, "white", true,null, "这是white".getBytes());

        //7 关闭资源
        channel.close();
        connection.close();
    } catch (IOException | TimeoutException e) {
        e.printStackTrace();
    }
}

保证Queue消息持久化——DeliveryMode设置消息持久化

DeliveryMode设置为2代表持久化，如果设置为1，就代表不会持久化。注意：先设置queue持久化，在设置消息持久化

public static void main(String[] args) {
    try {
        //1 获取连接
        Connection connection = RabbitMQUtil.getConnection();
        //2 构建信道 Channel
        Channel channel = connection.createChannel();
        //3 构建交换机,指定类型为DIRECT
        channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
        //4 构建队列, durable设置true,设置队列持久化
        channel.queueDeclare(QUEUE_NAME1, true, false, false, null);
        channel.queueDeclare(QUEUE_NAME2, true, false, false, null);
        //5 绑定Exchange和Queue
        channel.queueBind(QUEUE_NAME1, EXCHANGE_NAME, "red");
        channel.queueBind(QUEUE_NAME2, EXCHANGE_NAME, "black");
        channel.queueBind(QUEUE_NAME2, EXCHANGE_NAME, "white");
        // 设置Return回调
        channel.addReturnListener(new ReturnListener() {
            @Override
            public void handleReturn(int replyCode, String replyText, String exchange, String routingKey, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("消息没有路由到Queue");
            }
        });
        // deliveryMode(2),设置消息持久化
        AMQP.BasicProperties prop = new AMQP.BasicProperties().builder().deliveryMode(2).build();

        //6 发送信息,将basicPublish方法参数中的mandatory设置为true，即可开启Return机制，当消息没有路由到队列中时，就会执行return回调
        channel.basicPublish(EXCHANGE_NAME, "red", true, prop, "这是Red".getBytes());
        channel.basicPublish(EXCHANGE_NAME, "blue", true, prop, "这是blue".getBytes());
        channel.basicPublish(EXCHANGE_NAME, "black", true, prop, "这是black".getBytes());
        channel.basicPublish(EXCHANGE_NAME, "white", true, prop, "这是white".getBytes());

        //7 关闭资源
        channel.close();
        connection.close();
    } catch (IOException | TimeoutException e) {
        e.printStackTrace();
    }
}

保证消费者可以正常消费消息

设置手动ack

Springboot设置消息可靠性

spring:
  rabbitmq:
    host: 192.168.126.128
    port: 5672
    username: admin
    password: admin
    virtual-host: /
    publisher-confirm-type: CORRELATED  #设置开启confirm回调
    publisher-returns: true # 开启return回调
    listener:
      simple:
        acknowledge-mode: MANUAL #开启手动ack
        prefetch: 1

@Component
public class Publisher {

    private static final String EXCHANGE_NAME = "springboot-exchange";

    private final RabbitTemplate rabbitTemplate;

    @Autowired
    public Publisher(RabbitTemplate rabbitTemplate) {
        this.rabbitTemplate = rabbitTemplate;
    }

    public void publish() {
        // 设置Confirm回调
        rabbitTemplate.setConfirmCallback(new RabbitTemplate.ConfirmCallback() {
            @Override
            public void confirm(CorrelationData correlationData, boolean ack, String cause) {
                if (ack){
                    System.out.println("消息成功发送到交换机");
                }else {
                    System.out.println("消息没有发送到交换机");
                }
            }
        });
        // 设置Return回调
        rabbitTemplate.setReturnsCallback(new RabbitTemplate.ReturnsCallback() {
            @Override
            public void returnedMessage(ReturnedMessage returned) {
                String msg = new String(returned.getMessage().getBody());
                System.out.println("消息：" + msg + "路由队列失败！！做补救操作！！");
            }
        });
        rabbitTemplate.convertAndSend(EXCHANGE_NAME, "big.black.dogAndCat", "messageWithProperties", new MessagePostProcessor() {
            @Override
            public Message postProcessMessage(Message message) throws AmqpException {
                System.out.println("发送" + new String(message.getBody(), StandardCharsets.UTF_8));
                // 设置消息持久化
                message.getMessageProperties().setDeliveryMode(MessageDeliveryMode.PERSISTENT);
                message.getMessageProperties().setCorrelationId("test");
                return message;
            }
        });
        System.out.println("消息发送成功");
    }
}

RabbitMQ死信队列与延迟交换机

产生死信的情况：

消息被消费者拒绝，requeue设置为false，该消息变为死信
给消息设置生存时间
1. 发送消息是设置消息的生存时间，如果该消息的生存时间到了还没有被消费，该消息变为死信
2. 设置某个队列中所有消息的生存时间，如果生存时间到了还没被消费，消息变为死信
队列已达到消息的最大长度，在路由过来的消息变为死信

死信队列的应用：

基于死信队列在消息已满的情况下，消息也不会丢失；

实现延迟消费的效果。比如下订单时，有15Min的付款时间

实现死信队列

基于消费者进行reject或者nack实现死信效果

@Configuration
public class DeadLetterConfig {
  private static final String NORMAL_EXCHANGE = "normal-exchange";
  private static final String NORMAL_QUEUE = "normal-queue";
  private static final String NORMAL_ROUTING_KEY = "normal.#";

  private static final String DEAD_EXCHANGE = "dead-exchange";
  private static final String DEAD_QUEUE = "dead-queue";
  private static final String DEAD_ROUTING_KEY = "dead.#";

  @Bean
  public Exchange normalExchange() {
      return ExchangeBuilder.topicExchange(NORMAL_EXCHANGE).build();
  }

  @Bean
  public Queue normalQueue() {
      return QueueBuilder.durable(NORMAL_QUEUE).deadLetterExchange(DEAD_EXCHANGE).deadLetterRoutingKey("dead.message").build();
  }

  @Bean
  public Binding normalBinding(Exchange normalExchange, Queue normalQueue) {
      return BindingBuilder.bind(normalQueue).to(normalExchange).with(NORMAL_ROUTING_KEY).noargs();
  }

  @Bean
  public Exchange deadExchange() {
      return ExchangeBuilder.topicExchange(DEAD_EXCHANGE).build();
  }

  @Bean
  public Queue deadQueue() {
      return QueueBuilder.durable(DEAD_QUEUE).build();
  }

  @Bean
  public Binding deadBinding(Exchange deadExchange, Queue deadQueue) {
      return BindingBuilder.bind(deadQueue).to(deadExchange).with(DEAD_ROUTING_KEY).noargs();
  }
}

@Component
public class Publisher2 {
  private static final String NORMAL_EXCHANGE = "normal-exchange";
  private static final String DEAD_EXCHANGE = "dead-exchange";

  @Autowired
  private RabbitTemplate rabbitTemplate;

  public void publish() {
      // 设置Confirm回调
      rabbitTemplate.setConfirmCallback(new RabbitTemplate.ConfirmCallback() {
          @Override
          public void confirm(CorrelationData correlationData, boolean ack, String cause) {
              if (!ack) {
                  System.out.println(cause);
                  ReturnedMessage returned = correlationData.getReturned();
                  // 发送到Exchange失败，重新再发一次
                  rabbitTemplate.convertAndSend(returned.getExchange(), returned.getRoutingKey(), returned.getMessage(), message1 -> {
                      // 开启消息持久化
                      message1.getMessageProperties().setDeliveryMode(MessageDeliveryMode.PERSISTENT);
                      return message1;
                  });
              }
          }
      });
      // 设置Return回调
      rabbitTemplate.setReturnsCallback(new RabbitTemplate.ReturnsCallback() {
          @Override
          public void returnedMessage(ReturnedMessage returned) {
              // 路由到queue失败，重新再发一次
              rabbitTemplate.convertAndSend(returned.getExchange(), returned.getRoutingKey(), returned.getMessage(), message1 -> {
                  // 开启消息持久化
                  message1.getMessageProperties().setDeliveryMode(MessageDeliveryMode.PERSISTENT);
                  return message1;
              });
          }
      });

      String message = "这是消息";
      rabbitTemplate.convertAndSend(NORMAL_EXCHANGE, "normal.message", message, message1 -> {
          // 开启消息持久化
          message1.getMessageProperties().setDeliveryMode(MessageDeliveryMode.PERSISTENT);
          return message1;
      });
  }
}

@Component
public class DeadListener {

  private static final String NORMAL_QUEUE = "normal-queue";

  @RabbitListener(queues = NORMAL_QUEUE)
  public void consume(Message message, Channel channel) {
      System.out.println("normal队列中的消息：" + new String(message.getBody(), StandardCharsets.UTF_8));
      try {
          // consumer reject
          channel.basicReject(message.getMessageProperties().getDeliveryTag(), false);
          // consumer nack
         // channel.basicNack(message.getMessageProperties().getDeliveryTag(), false, false);
      } catch (IOException e) {
          e.printStackTrace();
      }
  }
}

给消息设置生存时间

public void publishWithExpireTime() {
      String message = "这是有生存时间的消息";
      rabbitTemplate.convertAndSend(NORMAL_EXCHANGE, "normal.message", message, message1 -> {
          // 开启消息持久化
          message1.getMessageProperties().setDeliveryMode(MessageDeliveryMode.PERSISTENT);
          // 设置setExpiration（毫秒）
          message1.getMessageProperties().setExpiration("5000");
          return message1;
      });
  }

给队列中的消息设置生存时间

@Bean
public Queue normalQueue(){
  return QueueBuilder.durable(NORMAL_QUEUE)
          .deadLetterExchange(DEAD_EXCHANGE)
          .deadLetterRoutingKey("dead.abc")
          .ttl(10000)// 设置ttl（毫秒）
          .build();
}

设置Queue中的消息最大长度

@Bean
public Queue normalQueue(){
  return QueueBuilder.durable(NORMAL_QUEUE)
          .deadLetterExchange(DEAD_EXCHANGE)
          .deadLetterRoutingKey("dead.abc")
          .maxLength(1)// 设置maxLength
          .build();
}

延迟交换机

死信队列实现延迟消费时，如果延迟时间比较复杂，比较多，直接使用死信队列时，需要创建大量的队列还对应不同的时间，可以采用延迟交换机来解决这个问题。

@Configuration
public class DelayedConfig {

  public static final String DELAYED_EXCHANGE = "delayed-exchange";
  public static final String DELAYED_QUEUE = "delayed-queue";
  public static final String DELAYED_ROUTING_KEY = "delayed.#";

  @Bean
  public Exchange delayedExchange(){
      Map<String, Object> arguments = new HashMap<>();
      // 设置延迟交换机为Topic路由规则
      arguments.put("x-delayed-type","topic");
      Exchange exchange = new CustomExchange(DELAYED_EXCHANGE,"x-delayed-message",true,false,arguments);
      return exchange;
  }

  @Bean
  public Queue delayedQueue(){
      return QueueBuilder.durable(DELAYED_QUEUE).build();
  }

  @Bean
  public Binding delayedBinding(Queue delayedQueue,Exchange delayedExchange){
      return BindingBuilder.bind(delayedQueue).to(delayedExchange).with(DELAYED_ROUTING_KEY).noargs();
  }
}

public void publish(){

  rabbitTemplate.convertAndSend(DelayExchangeConfig.DELAYED_EXCHANGE, "delayed.message", "这是消息", new MessagePostProcessor() {
      @Override
      public Message postProcessMessage(Message message) throws AmqpException {
          // 设置延迟时间
          message.getMessageProperties().setDelay(3000);
          return message;
      }
  });
}

AMQP协议

AMQP工作工程

RabbiMQ

RabbitMQ架构

RabbitMQ通信方式

RabbitMQ 客户端操作

HelloWord通信

WorkQueue

Routing

RPC通信类型（了解）

RabbitMQ交换机类型

direct类型

fanout类型

topic类型

SpringBoot使用RabbitMQ

RabbitMQ保证消息的可靠性

保证消息送到Exchange —— Confirm机制

保证消息可靠路由到Queue —— Return机制

保证Queue消息持久化——DeliveryMode设置消息持久化

保证消费者可以正常消费消息

RabbitMQ死信队列与延迟交换机

实现死信队列

基于消费者进行reject或者nack实现死信效果

给消息设置生存时间

给队列中的消息设置生存时间

设置Queue中的消息最大长度

延迟交换机

RabbiMQ集群
