Use Fiddler as a Reverse Proxy

Configure Fiddler as Reverse Proxy

To use this method, the hostname for the request to reroute must be 127.0.0.1:8888, localhost:8888, [::1]:8888, or the machine’s NETBIOS hostname on port 8888.

  1. Click Tools > Fiddler Options. Ensure Allow remote clients to connect is checked.


    14.Use Fiddler as a Reverse Proxy(使用Fiddler的反向代理) - 图1

  2. Close Fiddler.

  3. Start REGEDIT.
  4. Create a new DWORD named ReverseProxyForPort inside HKEY_CURRENT_USER\SOFTWARE\Microsoft\Fiddler2.
  5. Set the DWORD to the local port where Fiddler will re-route inbound traffic (usually port 80 for a standard HTTP server).
  6. Restart Fiddler.

  7. In a browser, go to http://127.0.0.1:8888.

    Write a FiddlerScript Rule

  8. Click Tools > Fiddler Options. Ensure Allow remote clients to connect is checked.

    14.Use Fiddler as a Reverse Proxy(使用Fiddler的反向代理) - 图2

  9. Click Tools > Fiddler Options, and ensure the “Allow remote clients to connect” checkbox is checked.

  10. Restart Fiddler if prompted.
  11. Click Rules > Customize Rules.

  12. Inside the OnBeforeRequest handler*, add a new line of code:

    1. if (oSession.host.toLowerCase() == "webserver:8888") oSession.host = "webserver:80";

  13. Using a browser on the client machine, go to http://webserver:8888.

    Configure Fiddler to Listen to Client Application Target Port

  14. Reconfigure your target server to listen on a different port. For example, if a web server runs on port 80, reconfigure it to run on port 81.

  15. Click Tools > Fiddler Options….
  16. Click Connections.

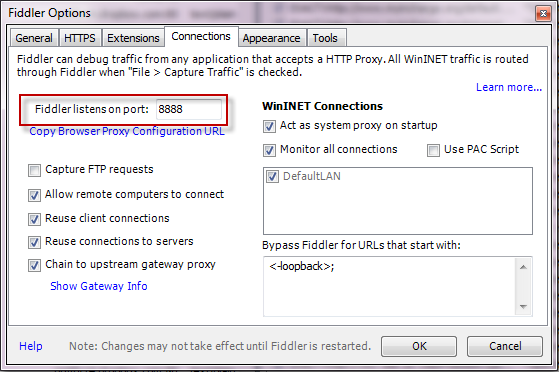

  17. Type the client’s target port number next to Fiddler listens to port:


    14.Use Fiddler as a Reverse Proxy(使用Fiddler的反向代理) - 图3

  18. Configure Fiddler as a reverse proxy or write a FiddlerScript Rule to re-route traffic to the target server’s new port (described above).

谷歌翻译版

使用Fiddler反向代理

将Fiddler配置为反向代理

要使用此方法，重新路由请求的主机名必须为127.0.0.1:8888、localhost:8888、[::1]:8888或端口8888上计算机的NETBIOS主机名。

  1. 单击 Tools > Fiddler Options. 确保勾选上 Allow remote clients to connect .


    14.Use Fiddler as a Reverse Proxy(使用Fiddler的反向代理) - 图4

  2. 关闭Fiddler.

  3. 启动 REGEDIT.
  4. 在HKEY_CURRENT_USER\SOFTWARE\Microsoft\Fiddler2中创建一个名为ReverseProxyForPort的新DWORD**
  5. 将DWORD设置为Fiddler将重新路由入站流量的本地端口（对于标准HTTP服务器，通常为端口80）。
  6. 重新启动Fiddler.

  7. 在浏览器中，输入 http://127.0.0.1:8888.

    在FiddlerScript写入规则

  8. 单击 Tools > Fiddler Options. 确保 Allow remote clients to connect 勾选上.

    14.Use Fiddler as a Reverse Proxy(使用Fiddler的反向代理) - 图5

  9. 单击 Tools > Fiddler Options, 然后确保 “Allow remote clients to connect” 被勾选上.

  10. 如果出现提示，请重新启动Fiddler.
  11. 单击 Rules > Customize Rules.

  12. 在OnBeforeRequest处理程序*中，添加新的代码行:

    1. if (oSession.host.toLowerCase() == "webserver:8888") oSession.host = "webserver:80";

  13. 使用客户端计算机上的浏览器，转到 http://webserver:8888。

    配置Fiddler以监听客户端应用程序目标端口

  14. 重新配置目标服务器以侦听其他端口. 例如, 如果web服务器在端口80上运行, 将其重新配置为在端口81上运行。

  15. 单击 Tools > Fiddler Options….
  16. 单击 Connections.

  17. 在Fiddler监听端口旁边键入客户端的目标端口号:


    14.Use Fiddler as a Reverse Proxy(使用Fiddler的反向代理) - 图6

  18. 将Fiddler配置为反向代理或编写FiddlerScript规则以将流量重新路由到目标服务器的新端口（如上所述）。
