使用方式
源代码
总结

不考虑事务，需要事务的同学出门左转 ⬅️

看此篇之前建议先看前两篇，同志们
SpringBoot的@Enable系列注解
 SpringBoot EnableAutoConfiguration和Configuration
这一篇可以不看 配置的使用方式太乱了
Mybatis多数据源配置
请原谅我也当了一次标题党，这个应该算不上Starter,毕竟还是需要手动填 @Enable 注解的.

使用方式

先看看写完后的使用方式

import top.huzhurong.boot.multi.datasource.export.EnableMultiDatasource;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration;
@SpringBootApplication(exclude = {DataSourceAutoConfiguration.class})
@EnableMultiDatasource//自定义注解
public class WebApplication {
    public static void main(String[] args) {
        SpringApplication.run(WebApplication.class);
    }
}

properties 配置

#first
raycloud.multi.datasource.datasource-properties.first.username=root
raycloud.multi.datasource.datasource-properties.first.password=chenshun
raycloud.multi.datasource.datasource-properties.first.url=jdbc:mysql://127.0.0.1:3306/project_manager?useUnicode=true&amp;characterEncoding=utf-8&amp;autoReconnect=true
raycloud.multi.datasource.datasource-properties.first.base-packages=com.raycloud.test.web.first
raycloud.multi.datasource.datasource-properties.first.location-pattern=classpath*:/mapper/first/*.xml
#second
raycloud.multi.datasource.datasource-properties.second.username=root
raycloud.multi.datasource.datasource-properties.second.password=chenshun
raycloud.multi.datasource.datasource-properties.second.url=jdbc:mysql://127.0.0.1:3306/sentinel?useUnicode=true&amp;characterEncoding=utf-8&amp;autoReconnect=true
raycloud.multi.datasource.datasource-properties.second.base-packages=com.raycloud.test.web.second
raycloud.multi.datasource.datasource-properties.second.location-pattern=classpath*:/mapper/second/*.xml

分别对应了第一个和第二个数据源. 使用方式也及其简单.

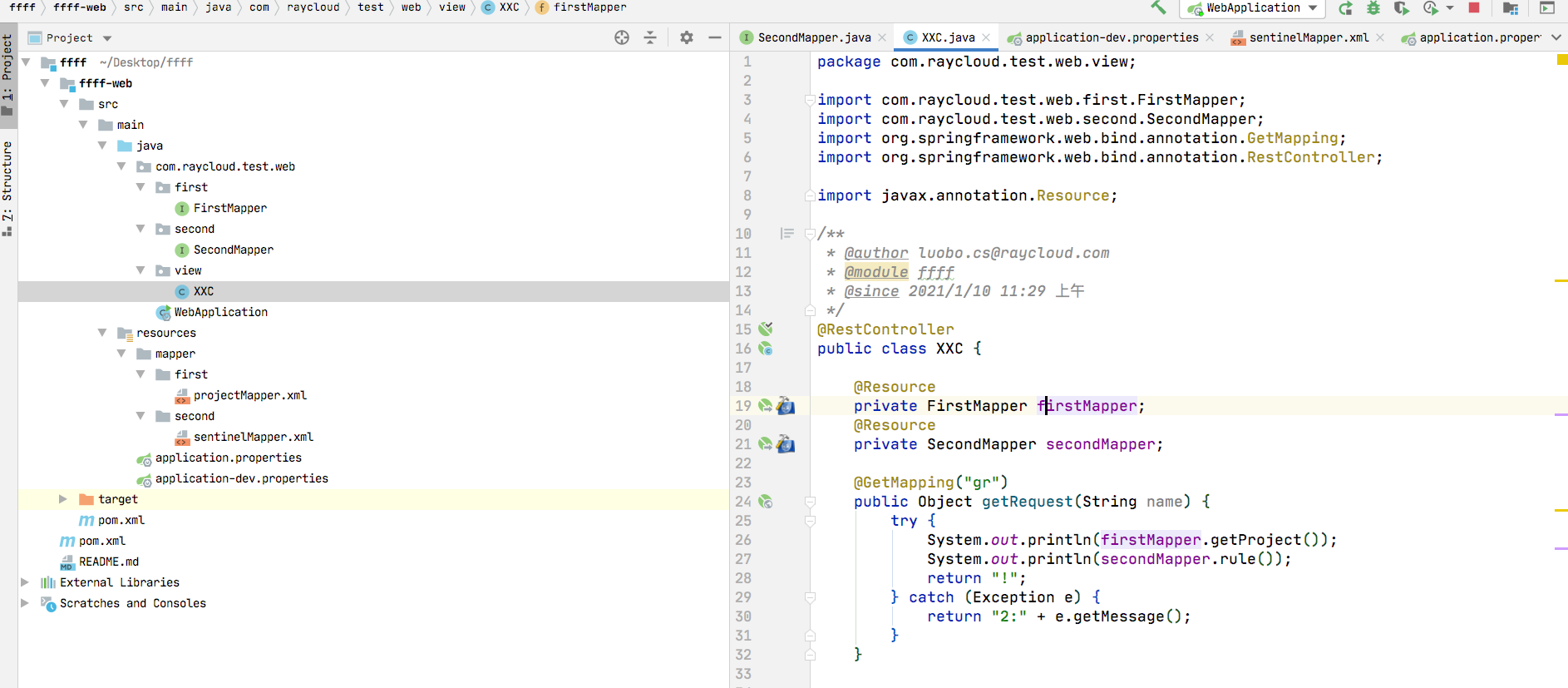

这样就配置完成了。真实的调用如下

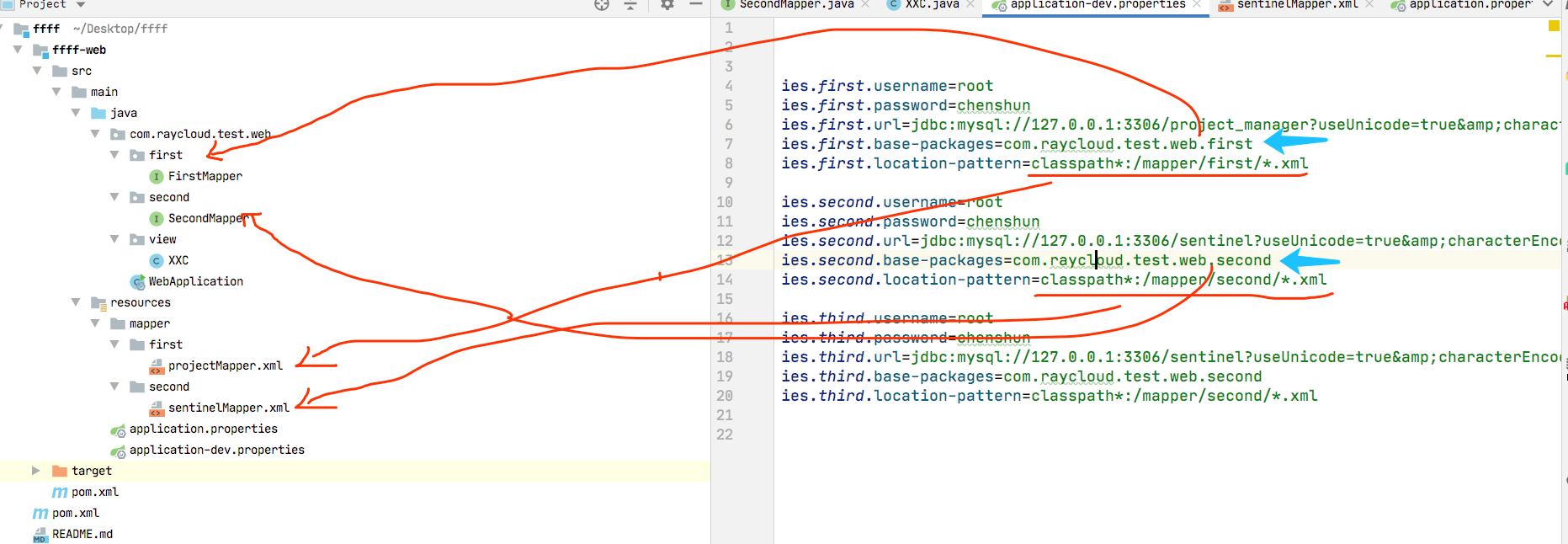

bingo，完美完成，只需要配置一下就可以直接食用了. 前提是需要规划好package和mapper.xml文件的路径. 想必不是什么大问题.

源代码

一开始我是直接使用Starter的方式来做的，等到写完的时候，发现这个方式行不通，Starter的加载比较快，此时properties文件尚未读取完毕，意味着获取不到配置文件，败北
个人水平有限，最后不得不使用 @Enable 注解的方式来进行引用.

导入多数据源注册

@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import({MultiDatasourceRegister.class})
public @interface EnableMultiDatasource {
}

对多数据源进行处理，分别注入

DruidDataSource
SqlSessionFactoryBean
DataSourceTransactionManager
SqlSessionTemplate

MapperScannerConfigurer ```java public class MultiDatasourceRegister implements ImportBeanDefinitionRegistrar, BeanFactoryAware, EnvironmentAware { private static final Logger logger = LoggerFactory.getLogger(MultiDatasourceRegister.class); private DefaultListableBeanFactory defaultListableBeanFactory; private Environment environment;

public MultiDatasourceRegister() { }

public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {

  Assert.notNull(this.defaultListableBeanFactory, "defaultListableBeanFactory 不能为空");
  Assert.notNull(this.environment, "environment 不能为空");
  Map<String, PropertyBean> datasourceProperties = ((DataSourcePropertyBean)Binder.get(this.environment).bindOrCreate("raycloud.multi.datasource", DataSourcePropertyBean.class)).getDatasourceProperties();
  Iterator var4 = datasourceProperties.entrySet().iterator();
  while(var4.hasNext()) {
      Entry<String, PropertyBean> entry = (Entry)var4.next();
      String datasourceName = (String)entry.getKey();
      PropertyBean dataSourceProperty = (PropertyBean)entry.getValue();
      BeanDefinitionBuilder sqlSessionTemplate = BeanDefinitionBuilder.genericBeanDefinition(RayDruidDataSource.class);
      sqlSessionTemplate.setInitMethodName("init");
      sqlSessionTemplate.setDestroyMethodName("close");
      this.defaultListableBeanFactory.registerBeanDefinition(datasourceName, sqlSessionTemplate.getBeanDefinition());
      sqlSessionTemplate = BeanDefinitionBuilder.genericBeanDefinition(SqlSessionFactoryBean.class);
      sqlSessionTemplate.addPropertyReference("dataSource", datasourceName);
      Resource[] resources;
      try {
          resources = (new PathMatchingResourcePatternResolver()).getResources((String)Objects.requireNonNull(dataSourceProperty.getLocationPattern(), "mybatis Mapper.xml扫描路径不能为空"));
      } catch (IOException var14) {
          throw new RuntimeException(var14.getMessage());
      }
      logger.info("[数据源:{} 加载resource文件][个数:{}]", datasourceName, resources.length);
      Resource[] var10 = resources;
      int var11 = resources.length;
      for(int var12 = 0; var12 < var11; ++var12) {
          Resource resource = var10[var12];
          if (logger.isDebugEnabled()) {
              logger.debug("数据源:{} ,加载文件:{}", datasourceName, resource.toString());
          }
      }
      sqlSessionTemplate.addPropertyValue("mapperLocations", resources);
      this.defaultListableBeanFactory.registerBeanDefinition(String.format("%s%s", datasourceName, "SqlSessionFactory"), sqlSessionTemplate.getBeanDefinition());
      sqlSessionTemplate = BeanDefinitionBuilder.genericBeanDefinition(DataSourceTransactionManager.class);
      sqlSessionTemplate.addConstructorArgReference(datasourceName);
      this.defaultListableBeanFactory.registerBeanDefinition(String.format("%s%s", datasourceName, "PlatformTransactionManager"), sqlSessionTemplate.getBeanDefinition());
      sqlSessionTemplate = BeanDefinitionBuilder.genericBeanDefinition(SqlSessionTemplate.class);
      sqlSessionTemplate.addConstructorArgReference(String.format("%s%s", datasourceName, "SqlSessionFactory"));
      this.defaultListableBeanFactory.registerBeanDefinition(String.format("%s%s", datasourceName, "SqlSessionTemplate"), sqlSessionTemplate.getBeanDefinition());
      String basePackages = (String)Objects.requireNonNull(dataSourceProperty.getBasePackages(), "basePackages 不能为空");
      BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(MapperScannerConfigurer.class);
      builder.addPropertyValue("sqlSessionTemplateBeanName", datasourceName + "SqlSessionTemplate");
      builder.addPropertyValue("basePackage", Collections.singletonList(basePackages));
      builder.setLazyInit(false);
      this.defaultListableBeanFactory.registerBeanDefinition(String.format("%s%s", datasourceName, "MapperScannerConfigurer"), builder.getBeanDefinition());
  }

}

public void setBeanFactory(BeanFactory beanFactory) throws BeansException {

  this.defaultListableBeanFactory = (DefaultListableBeanFactory)beanFactory;

}

public void setEnvironment(Environment environment) {

  this.environment = environment;

} }

经历这一步，dataSource是注入进去了，但是这个时候配置文件还是没有注入进去的，我们需要在处理 `BeanPostProcessor` 的过程中，将配置信息注入<br />这里的核心就是2个步骤，因为注入Bean的过程和注入属性的过程不同步，所以必须将
   - 注入Bean
   - 注入属性
这2个过程分离，注入Bean的过程在@Enable中处理，而注入属性的过程则在 `BeanPostProcessor` 中进行处理.
```java
public class MultiDatasourceBeanFactoryPostProcessor implements BeanPostProcessor, EnvironmentAware, BeanFactoryAware {
    public static final Logger logger = LoggerFactory.getLogger(MultiDatasourceBeanFactoryPostProcessor.class);
    private static final String PREFIX = "raycloud.multi.datasource";
    private Map<String, DataSourcePropertyBean.PropertyBean> datasourceProperties;
    private BeanFactory beanFactory;
    @Override
    public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
        if (bean instanceof RayDruidDataSource) {
            RayDruidDataSource druidDataSource = (RayDruidDataSource) bean;
            druidDataSource.setName(beanName);
            final DataSourcePropertyBean.PropertyBean propertyBean = datasourceProperties.get(beanName);
            if (Objects.isNull(propertyBean)) {
                throw new IllegalStateException(String.format("根据【%s】获取datasource失败", beanName));
            }
            druidDataSource.setUsername(propertyBean.getUsername());
            druidDataSource.setUrl(propertyBean.getUrl());
            if (StringUtils.hasText(propertyBean.getXy())) {
                logger.info("加载坐标,datasource:{} ,xy:{}", beanName, propertyBean.getXy());
                final DbInfoRequest dbInfoRequest =
                        this.beanFactory.getBean("dbInfoRequest", DbInfoRequest.class);
                druidDataSource.setDbInfoRequest(dbInfoRequest);
                druidDataSource.setDiamondCoord(propertyBean.getXy());
            } else {
                druidDataSource.setPassword(propertyBean.getPassword());
            }
            druidDataSource.setMinIdle(propertyBean.getMinIdle());
            druidDataSource.setInitialSize(propertyBean.getInitialSize());
            druidDataSource.setMaxActive(propertyBean.getMaxActive());
            druidDataSource.setMaxWait(propertyBean.getMaxActive());
            if (druidDataSource.getMaxWait() > -1) {
                druidDataSource.setUseUnfairLock(true);
            }
            druidDataSource.setPoolPreparedStatements(false);
            druidDataSource.setValidationQuery(propertyBean.getValidationQuery());
            druidDataSource.setTestWhileIdle(propertyBean.getTestWhileIdle());
            druidDataSource.setTestOnBorrow(propertyBean.getTestOnBorrow());
            druidDataSource.setTestOnReturn(propertyBean.getTestOnReturn());
            return druidDataSource;
        }
        return bean;
    }
    @Override
    public void setBeanFactory(BeanFactory beanFactory) throws BeansException {
        this.beanFactory = beanFactory;
    }
    @Override
    public void setEnvironment(Environment environment) {
        datasourceProperties = Binder.get(environment).bindOrCreate(PREFIX,
                DataSourcePropertyBean.class).getDatasourceProperties();
    }
}

到这一步就基本可用了，不过为了提供给使用者在使用上提供一些便利，可以使用 ConfigurationProperties 增加一个提示，效果如下，不过这个是可有可无的，没有这个咋也能用

@ConfigurationProperties(prefix = "raycloud.multi.datasource")
public class DataSourcePropertyBean {
    private final Map<String, PropertyBean> datasourceProperties = new HashMap<>();
    public Map<String, PropertyBean> getDatasourceProperties() {
        return datasourceProperties;
    }
    @Getter
    @Setter
    public static class PropertyBean {
        /**
         * @see DruidDataSource#getUsername()
         */
        private String username;
        /**
         * @see DruidDataSource#getPassword()
         */
        private String password;
        /**
         * @see DruidDataSource#getUrl()
         */
        private String url;
        /**
         * @see RayDruidDataSource#getDiamondCoord()
         */
        private String xy;
        /**
         * @see DruidDataSource#getDriverClassName()
         */
        private String driverClassName = "com.mysql.jdbc.Driver";
        /**
         * @see DruidDataSource#getMinIdle()
         */
        private Integer minIdle = 5;
        /**
         * @see DruidDataSource#getInitialSize()
         */
        private Integer initialSize = 5;
        /**
         * @see DruidDataSource#getMaxActive()
         */
        private Integer maxActive = 10;
        /**
         * @see DruidDataSource#getMaxWait()
         */
        private Integer maxWait = 60000;
        /**
         * @see DruidDataSource#getValidationQuery()
         */
        private String validationQuery = "SELECT 'x'";
        /**
         * @see DruidDataSource#isTestWhileIdle()
         */
        private Boolean testWhileIdle = true;
        /**
         * @see DruidDataSource#isTestOnBorrow()
         */
        private Boolean testOnBorrow = false;
        /**
         * @see DruidDataSource#isTestOnReturn()
         */
        private Boolean testOnReturn = false;
        /**
         * 选择dbInfoRequest的zk地址，默认是不需要的
         */
        private String dbInfoZk;
        /**
         * 选择dbInfoRequest的dubbo版本，默认是 2.0.0_DB
         */
        private String dbInfoRequestVersion = "2.0.0_DB";
        /**
         * mybatis mapper文件扫描路径
         * 例如:classpath*:/mapper/dms/*Mapper.xml
         */
        private String locationPattern;
        /**
         * @see MapperScan#basePackages()
         */
        private String basePackages;
    }
}

到这里到没有啦

总结

介绍了多数据源如何使用，以及如何写这个多数据源的 Starter ，因为注入Bean的过程和注入属性的过程不在一个阶段，所以不得不使用2个阶段来进行分离. 最终达成注入Datasource的结果. 一套下来，后来使用多数据源就舒服了.
