CSED 2016 https://dl.acm.org/doi/10.1145/2896941.2896944

1. 背景

在软件开发过程中，代码可能会被无意中破坏。自动化测试确保了测试的正确性软件正在测试中，可以在以前工作正常的代码块中发现新引入的错误。在持续集成的开发过程中，定期（定期或在每次提交后）执行自动化测试。因此，可以在软件生命周期的早期阶段发现故障，从而节省故障后续成本。

一个重要的问题是这些自动化测试在揭示回归错误方面有多好。衡量测试用例检测到损坏代码的可能性有助于我们更好地分配质量保证（QA）支持。代码覆盖率度量在实践中经常用于判断测试的有效性。

Problem Statement：代码覆盖率仅衡量测试执行了整个代码的哪一部分。它不考虑是否使用适当的断言测试了方法，或者是否在没有任何断言或不完整的断言的情况下执行了方法。目前尚不清楚代码覆盖率是否是一个有效的评价指标，或者它是否具有误导性并提供了一种错误的评价。

Research Objective：持续集成使用自动化测试来检测回归故障。因此，我们需要很好地理解测试用例的故障检测能力。本文目标是通过评估方法级别的代码覆盖率是否是单元测试和系统测试的测试有效性的度量。

2. 方法设计

传统测试方法示例

// 项目实体
public class Calculation {
    private int value;
    public Calculation() {
        this.value = 0;
    }
    public void add(int x) {
        this.value += x;
    }
    public boolean isEven() {
        return this.value % 2 == 0;
    }
}
// 测试类
public class CalculationTest {
    @Test
    public void testCalculation() {
        Calculation calc = new Calculation();
        calc.add(6);
        assertTrue(calc.isEven());
    }
}

上述测试用例将在方法、语句和分支级别实现100%的代码覆盖率。因此，可以假设计算类是经过客观测试的。

然而，情况并非如此。让我们假设程序员忘记实现add方法的逻辑，所以它的主体是空的。尽管测试用例涵盖了该方法，但它不会检测故障，因为0和6都是偶数。因此，执行add方法，但不进行客观测试，因为测试用例不会检测到任何故障。我们称之为伪测试方法（pseudo-tested method）。

2.1 Mutation Testing

突变测试是20世纪70年代首次提出的，是一种成熟、强大的测试套件评估技术。一般原则是通过向程序中引入错误来生成突变体，并检查测试是否能够检测（杀死）这些突变体。

突变测试有两个主要缺点，这解释了为什么它在实践中没有得到广泛应用。

首先，计算成本很高，因为突变测试需要创建大量的突变，并执行所有测试，包括每个突变的突变代码块。
其次，生成的一些变体在语义上与原始代码等价。所谓的等效突变体并不代表注入故障，不能通过测试杀死，因此会扭曲结果。这些突变体的检测通常是不确定的。

2.2 Extreme Mutation Operator

总体思路是将突变测试作为收集数据的手段，用于评估测试的客观性。我们使用了一个极端变异算子，在该算子中，我们从一个方法中消除了整个逻辑，并确定一个方法是否是伪测试方法。因此，我们绕过了突变测试的两个缺点。

首先，我们为一个方法创建了最多两个不同的突变体，使突变体的数量保持可控，并使分析中型软件项目的执行时间保持在几个小时之内。
- 对于 void method , 删除方法体。

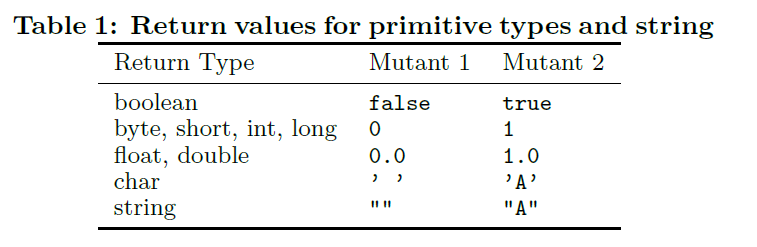

- 对于返回值为基本数据类型或字符串类型的方法，创建下表所示两个突变体取代原方法体。
- 对于返回对象的方法，使用工厂模式生成合适的实例。取代原始代码并返回生成的实例

其次，变异算子从根本上改变了方法，并产生了较少的等价突变。大多数生成的等效突变体可以自动识别。

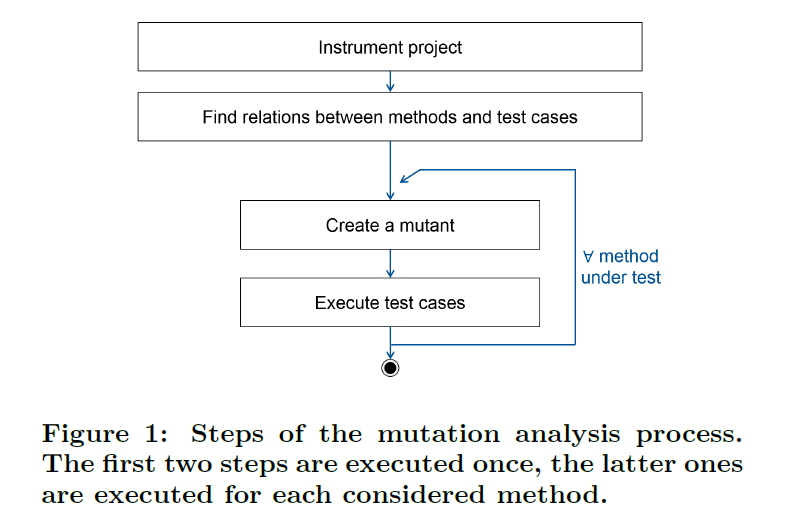

方法总体概述

3. 实验设计

3.1 数据集

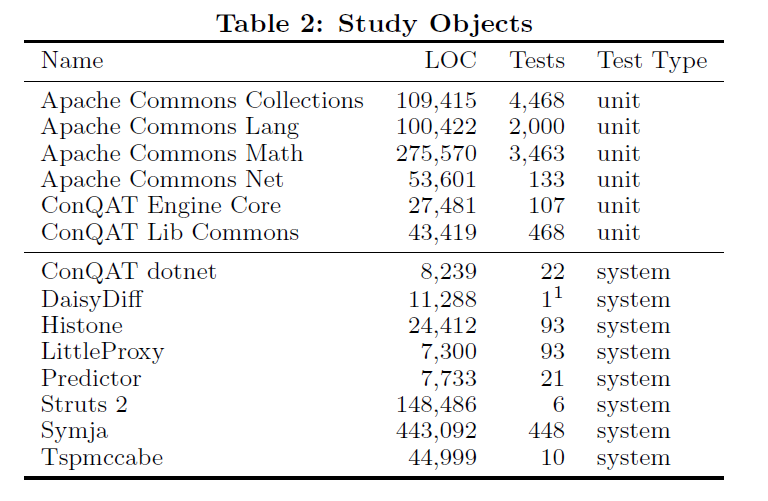

为了进行实验，我们选择了14个开源项目。
这些项目满足以下标准：

它们必须使用Java作为编程语言，因为变异方法是在Java字节码上执行的。
此外，项目必须包含使用JUnit或testNG框架的测试。
选定的项目有不同的规模。最小的一个由大约7000行代码（LOC）组成，最大的项目大约有500000行代码。
这些项目可以通过单元测试分类到库中，也可以通过系统测试分类到系统中。对于系统，我们只考虑系统测试，即使它们也有单元测试。

3.2 研究问题

RQ 1: What is the ratio of pseudo-tested methods?

研究问题1，评估伪测试方法比例。由于伪测试方法有助于提高软件项目的总体代码覆盖率，如果代码覆盖率度量建议的测试执行代码量高于（有效）测试代码量。因此，代码覆盖率可能不是测试有效性的指标。

RQ 2: Does the ratio of pseudo-tested methods depend on the type of test?

研究问题2，调查了测试类型（单元测试与系统测试）对伪测试方法比率的影响。我们期望由系统测试执行的方法更有可能是伪测试的，因为系统测试在一次运行中执行许多方法。因此，我们想确定是否应该对这两种类型的测试分别评估代码覆盖有效性。

RQ 3: How severe are the pseudo-tested methods?

研究问题3分析了伪测试方法的功能目的和严重性。我们想了解这些方法在项目中缺乏测试有效性的严重程度。有些方法可能不值得测试（因为它们太琐碎或不确定）

3.2 实验参数

首先，我们使用Java程序对研究对象进行突变测试分析。然后，我们对获得的数据进行分析，以回答研究问题，对于RQ1，我们定义以下参数进行解答。

我们将伪测试方法的数量表示为 Will My Tests Tell Me If I Break This Code? - 图4 ，并计算伪测试方法的比率，如下所示：

Will My Tests Tell Me If I Break This Code? - 图5 %3D%5Cfrac%7Bnumber%5C%20of%5C%20pseudo-tested%5C%20methods(M%7BPT%7D)%7D%7Bnumber%5C%20of%5C%20mutated%5C%20test-executed%5C%20methods%7D%3C%2Ftitle%3E%0A%3Cdefs%20aria-hidden%3D%22true%22%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-72%22%20d%3D%22M21%20287Q22%20290%2023%20295T28%20317T38%20348T53%20381T73%20411T99%20433T132%20442Q161%20442%20183%20430T214%20408T225%20388Q227%20382%20228%20382T236%20389Q284%20441%20347%20441H350Q398%20441%20422%20400Q430%20381%20430%20363Q430%20333%20417%20315T391%20292T366%20288Q346%20288%20334%20299T322%20328Q322%20376%20378%20392Q356%20405%20342%20405Q286%20405%20239%20331Q229%20315%20224%20298T190%20165Q156%2025%20151%2016Q138%20-11%20108%20-11Q95%20-11%2087%20-5T76%207T74%2017Q74%2030%20114%20189T154%20366Q154%20405%20128%20405Q107%20405%2092%20377T68%20316T57%20280Q55%20278%2041%20278H27Q21%20284%2021%20287Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMAIN-28%22%20d%3D%22M94%20250Q94%20319%20104%20381T127%20488T164%20576T202%20643T244%20695T277%20729T302%20750H315H319Q333%20750%20333%20741Q333%20738%20316%20720T275%20667T226%20581T184%20443T167%20250T184%2058T225%20-81T274%20-167T316%20-220T333%20-241Q333%20-250%20318%20-250H315H302L274%20-226Q180%20-141%20137%20-14T94%20250Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-4D%22%20d%3D%22M289%20629Q289%20635%20232%20637Q208%20637%20201%20638T194%20648Q194%20649%20196%20659Q197%20662%20198%20666T199%20671T201%20676T203%20679T207%20681T212%20683T220%20683T232%20684Q238%20684%20262%20684T307%20683Q386%20683%20398%20683T414%20678Q415%20674%20451%20396L487%20117L510%20154Q534%20190%20574%20254T662%20394Q837%20673%20839%20675Q840%20676%20842%20678T846%20681L852%20683H948Q965%20683%20988%20683T1017%20684Q1051%20684%201051%20673Q1051%20668%201048%20656T1045%20643Q1041%20637%201008%20637Q968%20636%20957%20634T939%20623Q936%20618%20867%20340T797%2059Q797%2055%20798%2054T805%2050T822%2048T855%2046H886Q892%2037%20892%2035Q892%2019%20885%205Q880%200%20869%200Q864%200%20828%201T736%202Q675%202%20644%202T609%201Q592%201%20592%2011Q592%2013%20594%2025Q598%2041%20602%2043T625%2046Q652%2046%20685%2049Q699%2052%20704%2061Q706%2065%20742%20207T813%20490T848%20631L654%20322Q458%2010%20453%205Q451%204%20449%203Q444%200%20433%200Q418%200%20415%207Q413%2011%20374%20317L335%20624L267%20354Q200%2088%20200%2079Q206%2046%20272%2046H282Q288%2041%20289%2037T286%2019Q282%203%20278%201Q274%200%20267%200Q265%200%20255%200T221%201T157%202Q127%202%2095%201T58%200Q43%200%2039%202T35%2011Q35%2013%2038%2025T43%2040Q45%2046%2065%2046Q135%2046%20154%2086Q158%2092%20223%20354T289%20629Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-50%22%20d%3D%22M287%20628Q287%20635%20230%20637Q206%20637%20199%20638T192%20648Q192%20649%20194%20659Q200%20679%20203%20681T397%20683Q587%20682%20600%20680Q664%20669%20707%20631T751%20530Q751%20453%20685%20389Q616%20321%20507%20303Q500%20302%20402%20301H307L277%20182Q247%2066%20247%2059Q247%2055%20248%2054T255%2050T272%2048T305%2046H336Q342%2037%20342%2035Q342%2019%20335%205Q330%200%20319%200Q316%200%20282%201T182%202Q120%202%2087%202T51%201Q33%201%2033%2011Q33%2013%2036%2025Q40%2041%2044%2043T67%2046Q94%2046%20127%2049Q141%2052%20146%2061Q149%2065%20218%20339T287%20628ZM645%20554Q645%20567%20643%20575T634%20597T609%20619T560%20635Q553%20636%20480%20637Q463%20637%20445%20637T416%20636T404%20636Q391%20635%20386%20627Q384%20621%20367%20550T332%20412T314%20344Q314%20342%20395%20342H407H430Q542%20342%20590%20392Q617%20419%20631%20471T645%20554Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-54%22%20d%3D%22M40%20437Q21%20437%2021%20445Q21%20450%2037%20501T71%20602L88%20651Q93%20669%20101%20677H569H659Q691%20677%20697%20676T704%20667Q704%20661%20687%20553T668%20444Q668%20437%20649%20437Q640%20437%20637%20437T631%20442L629%20445Q629%20451%20635%20490T641%20551Q641%20586%20628%20604T573%20629Q568%20630%20515%20631Q469%20631%20457%20630T439%20622Q438%20621%20368%20343T298%2060Q298%2048%20386%2046Q418%2046%20427%2045T436%2036Q436%2031%20433%2022Q429%204%20424%201L422%200Q419%200%20415%200Q410%200%20363%201T228%202Q99%202%2064%200H49Q43%206%2043%209T45%2027Q49%2040%2055%2046H83H94Q174%2046%20189%2055Q190%2056%20191%2056Q196%2059%20201%2076T241%20233Q258%20301%20269%20344Q339%20619%20339%20625Q339%20630%20310%20630H279Q212%20630%20191%20624Q146%20614%20121%20583T67%20467Q60%20445%2057%20441T43%20437H40Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMAIN-29%22%20d%3D%22M60%20749L64%20750Q69%20750%2074%20750H86L114%20726Q208%20641%20251%20514T294%20250Q294%20182%20284%20119T261%2012T224%20-76T186%20-143T145%20-194T113%20-227T90%20-246Q87%20-249%2086%20-250H74Q66%20-250%2063%20-250T58%20-247T55%20-238Q56%20-237%2066%20-225Q221%20-64%20221%20250T66%20725Q56%20737%2055%20738Q55%20746%2060%20749Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMAIN-3D%22%20d%3D%22M56%20347Q56%20360%2070%20367H707Q722%20359%20722%20347Q722%20336%20708%20328L390%20327H72Q56%20332%2056%20347ZM56%20153Q56%20168%2072%20173H708Q722%20163%20722%20153Q722%20140%20707%20133H70Q56%20140%2056%20153Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-6E%22%20d%3D%22M21%20287Q22%20293%2024%20303T36%20341T56%20388T89%20425T135%20442Q171%20442%20195%20424T225%20390T231%20369Q231%20367%20232%20367L243%20378Q304%20442%20382%20442Q436%20442%20469%20415T503%20336T465%20179T427%2052Q427%2026%20444%2026Q450%2026%20453%2027Q482%2032%20505%2065T540%20145Q542%20153%20560%20153Q580%20153%20580%20145Q580%20144%20576%20130Q568%20101%20554%2073T508%2017T439%20-10Q392%20-10%20371%2017T350%2073Q350%2092%20386%20193T423%20345Q423%20404%20379%20404H374Q288%20404%20229%20303L222%20291L189%20157Q156%2026%20151%2016Q138%20-11%20108%20-11Q95%20-11%2087%20-5T76%207T74%2017Q74%2030%20112%20180T152%20343Q153%20348%20153%20366Q153%20405%20129%20405Q91%20405%2066%20305Q60%20285%2060%20284Q58%20278%2041%20278H27Q21%20284%2021%20287Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-75%22%20d%3D%22M21%20287Q21%20295%2030%20318T55%20370T99%20420T158%20442Q204%20442%20227%20417T250%20358Q250%20340%20216%20246T182%20105Q182%2062%20196%2045T238%2027T291%2044T328%2078L339%2095Q341%2099%20377%20247Q407%20367%20413%20387T427%20416Q444%20431%20463%20431Q480%20431%20488%20421T496%20402L420%2084Q419%2079%20419%2068Q419%2043%20426%2035T447%2026Q469%2029%20482%2057T512%20145Q514%20153%20532%20153Q551%20153%20551%20144Q550%20139%20549%20130T540%2098T523%2055T498%2017T462%20-8Q454%20-10%20438%20-10Q372%20-10%20347%2046Q345%2045%20336%2036T318%2021T296%206T267%20-6T233%20-11Q189%20-11%20155%207Q103%2038%20103%20113Q103%20170%20138%20262T173%20379Q173%20380%20173%20381Q173%20390%20173%20393T169%20400T158%20404H154Q131%20404%20112%20385T82%20344T65%20302T57%20280Q55%20278%2041%20278H27Q21%20284%2021%20287Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-6D%22%20d%3D%22M21%20287Q22%20293%2024%20303T36%20341T56%20388T88%20425T132%20442T175%20435T205%20417T221%20395T229%20376L231%20369Q231%20367%20232%20367L243%20378Q303%20442%20384%20442Q401%20442%20415%20440T441%20433T460%20423T475%20411T485%20398T493%20385T497%20373T500%20364T502%20357L510%20367Q573%20442%20659%20442Q713%20442%20746%20415T780%20336Q780%20285%20742%20178T704%2050Q705%2036%20709%2031T724%2026Q752%2026%20776%2056T815%20138Q818%20149%20821%20151T837%20153Q857%20153%20857%20145Q857%20144%20853%20130Q845%20101%20831%2073T785%2017T716%20-10Q669%20-10%20648%2017T627%2073Q627%2092%20663%20193T700%20345Q700%20404%20656%20404H651Q565%20404%20506%20303L499%20291L466%20157Q433%2026%20428%2016Q415%20-11%20385%20-11Q372%20-11%20364%20-4T353%208T350%2018Q350%2029%20384%20161L420%20307Q423%20322%20423%20345Q423%20404%20379%20404H374Q288%20404%20229%20303L222%20291L189%20157Q156%2026%20151%2016Q138%20-11%20108%20-11Q95%20-11%2087%20-5T76%207T74%2017Q74%2030%20112%20181Q151%20335%20151%20342Q154%20357%20154%20369Q154%20405%20129%20405Q107%20405%2092%20377T69%20316T57%20280Q55%20278%2041%20278H27Q21%20284%2021%20287Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-62%22%20d%3D%22M73%20647Q73%20657%2077%20670T89%20683Q90%20683%20161%20688T234%20694Q246%20694%20246%20685T212%20542Q204%20508%20195%20472T180%20418L176%20399Q176%20396%20182%20402Q231%20442%20283%20442Q345%20442%20383%20396T422%20280Q422%20169%20343%2079T173%20-11Q123%20-11%2082%2027T40%20150V159Q40%20180%2048%20217T97%20414Q147%20611%20147%20623T109%20637Q104%20637%20101%20637H96Q86%20637%2083%20637T76%20640T73%20647ZM336%20325V331Q336%20405%20275%20405Q258%20405%20240%20397T207%20376T181%20352T163%20330L157%20322L136%20236Q114%20150%20114%20114Q114%2066%20138%2042Q154%2026%20178%2026Q211%2026%20245%2058Q270%2081%20285%20114T318%20219Q336%20291%20336%20325Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-65%22%20d%3D%22M39%20168Q39%20225%2058%20272T107%20350T174%20402T244%20433T307%20442H310Q355%20442%20388%20420T421%20355Q421%20265%20310%20237Q261%20224%20176%20223Q139%20223%20138%20221Q138%20219%20132%20186T125%20128Q125%2081%20146%2054T209%2026T302%2045T394%20111Q403%20121%20406%20121Q410%20121%20419%20112T429%2098T420%2082T390%2055T344%2024T281%20-1T205%20-11Q126%20-11%2083%2042T39%20168ZM373%20353Q367%20405%20305%20405Q272%20405%20244%20391T199%20357T170%20316T154%20280T149%20261Q149%20260%20169%20260Q282%20260%20327%20284T373%20353Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-6F%22%20d%3D%22M201%20-11Q126%20-11%2080%2038T34%20156Q34%20221%2064%20279T146%20380Q222%20441%20301%20441Q333%20441%20341%20440Q354%20437%20367%20433T402%20417T438%20387T464%20338T476%20268Q476%20161%20390%2075T201%20-11ZM121%20120Q121%2070%20147%2048T206%2026Q250%2026%20289%2058T351%20142Q360%20163%20374%20216T388%20308Q388%20352%20370%20375Q346%20405%20306%20405Q243%20405%20195%20347Q158%20303%20140%20230T121%20120Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-66%22%20d%3D%22M118%20-162Q120%20-162%20124%20-164T135%20-167T147%20-168Q160%20-168%20171%20-155T187%20-126Q197%20-99%20221%2027T267%20267T289%20382V385H242Q195%20385%20192%20387Q188%20390%20188%20397L195%20425Q197%20430%20203%20430T250%20431Q298%20431%20298%20432Q298%20434%20307%20482T319%20540Q356%20705%20465%20705Q502%20703%20526%20683T550%20630Q550%20594%20529%20578T487%20561Q443%20561%20443%20603Q443%20622%20454%20636T478%20657L487%20662Q471%20668%20457%20668Q445%20668%20434%20658T419%20630Q412%20601%20403%20552T387%20469T380%20433Q380%20431%20435%20431Q480%20431%20487%20430T498%20424Q499%20420%20496%20407T491%20391Q489%20386%20482%20386T428%20385H372L349%20263Q301%2015%20282%20-47Q255%20-132%20212%20-173Q175%20-205%20139%20-205Q107%20-205%2081%20-186T55%20-132Q55%20-95%2076%20-78T118%20-61Q162%20-61%20162%20-103Q162%20-122%20151%20-136T127%20-157L118%20-162Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-70%22%20d%3D%22M23%20287Q24%20290%2025%20295T30%20317T40%20348T55%20381T75%20411T101%20433T134%20442Q209%20442%20230%20378L240%20387Q302%20442%20358%20442Q423%20442%20460%20395T497%20281Q497%20173%20421%2082T249%20-10Q227%20-10%20210%20-4Q199%201%20187%2011T168%2028L161%2036Q160%2035%20139%20-51T118%20-138Q118%20-144%20126%20-145T163%20-148H188Q194%20-155%20194%20-157T191%20-175Q188%20-187%20185%20-190T172%20-194Q170%20-194%20161%20-194T127%20-193T65%20-192Q-5%20-192%20-24%20-194H-32Q-39%20-187%20-39%20-183Q-37%20-156%20-26%20-148H-6Q28%20-147%2033%20-136Q36%20-130%2094%20103T155%20350Q156%20355%20156%20364Q156%20405%20131%20405Q109%20405%2094%20377T71%20316T59%20280Q57%20278%2043%20278H29Q23%20284%2023%20287ZM178%20102Q200%2026%20252%2026Q282%2026%20310%2049T356%20107Q374%20141%20392%20215T411%20325V331Q411%20405%20350%20405Q339%20405%20328%20402T306%20393T286%20380T269%20365T254%20350T243%20336T235%20326L232%20322Q232%20321%20229%20308T218%20264T204%20212Q178%20106%20178%20102Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-73%22%20d%3D%22M131%20289Q131%20321%20147%20354T203%20415T300%20442Q362%20442%20390%20415T419%20355Q419%20323%20402%20308T364%20292Q351%20292%20340%20300T328%20326Q328%20342%20337%20354T354%20372T367%20378Q368%20378%20368%20379Q368%20382%20361%20388T336%20399T297%20405Q249%20405%20227%20379T204%20326Q204%20301%20223%20291T278%20274T330%20259Q396%20230%20396%20163Q396%20135%20385%20107T352%2051T289%207T195%20-10Q118%20-10%2086%2019T53%2087Q53%20126%2074%20143T118%20160Q133%20160%20146%20151T160%20120Q160%2094%20142%2076T111%2058Q109%2057%20108%2057T107%2055Q108%2052%20115%2047T146%2034T201%2027Q237%2027%20263%2038T301%2066T318%2097T323%20122Q323%20150%20302%20164T254%20181T195%20196T148%20231Q131%20256%20131%20289Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-64%22%20d%3D%22M366%20683Q367%20683%20438%20688T511%20694Q523%20694%20523%20686Q523%20679%20450%20384T375%2083T374%2068Q374%2026%20402%2026Q411%2027%20422%2035Q443%2055%20463%20131Q469%20151%20473%20152Q475%20153%20483%20153H487H491Q506%20153%20506%20145Q506%20140%20503%20129Q490%2079%20473%2048T445%208T417%20-8Q409%20-10%20393%20-10Q359%20-10%20336%205T306%2036L300%2051Q299%2052%20296%2050Q294%2048%20292%2046Q233%20-10%20172%20-10Q117%20-10%2075%2030T33%20157Q33%20205%2053%20255T101%20341Q148%20398%20195%20420T280%20442Q336%20442%20364%20400Q369%20394%20369%20396Q370%20400%20396%20505T424%20616Q424%20629%20417%20632T378%20637H357Q351%20643%20351%20645T353%20664Q358%20683%20366%20683ZM352%20326Q329%20405%20277%20405Q242%20405%20210%20374T160%20293Q131%20214%20119%20129Q119%20126%20119%20118T118%20106Q118%2061%20136%2044T179%2026Q233%2026%20290%2098L298%20109L352%20326Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMAIN-2212%22%20d%3D%22M84%20237T84%20250T98%20270H679Q694%20262%20694%20250T679%20230H98Q84%20237%2084%20250Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-74%22%20d%3D%22M26%20385Q19%20392%2019%20395Q19%20399%2022%20411T27%20425Q29%20430%2036%20430T87%20431H140L159%20511Q162%20522%20166%20540T173%20566T179%20586T187%20603T197%20615T211%20624T229%20626Q247%20625%20254%20615T261%20596Q261%20589%20252%20549T232%20470L222%20433Q222%20431%20272%20431H323Q330%20424%20330%20420Q330%20398%20317%20385H210L174%20240Q135%2080%20135%2068Q135%2026%20162%2026Q197%2026%20230%2060T283%20144Q285%20150%20288%20151T303%20153H307Q322%20153%20322%20145Q322%20142%20319%20133Q314%20117%20301%2095T267%2048T216%206T155%20-11Q125%20-11%2098%204T59%2056Q57%2064%2057%2083V101L92%20241Q127%20382%20128%20383Q128%20385%2077%20385H26Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-68%22%20d%3D%22M137%20683Q138%20683%20209%20688T282%20694Q294%20694%20294%20685Q294%20674%20258%20534Q220%20386%20220%20383Q220%20381%20227%20388Q288%20442%20357%20442Q411%20442%20444%20415T478%20336Q478%20285%20440%20178T402%2050Q403%2036%20407%2031T422%2026Q450%2026%20474%2056T513%20138Q516%20149%20519%20151T535%20153Q555%20153%20555%20145Q555%20144%20551%20130Q535%2071%20500%2033Q466%20-10%20419%20-10H414Q367%20-10%20346%2017T325%2074Q325%2090%20361%20192T398%20345Q398%20404%20354%20404H349Q266%20404%20205%20306L198%20293L164%20158Q132%2028%20127%2016Q114%20-11%2083%20-11Q69%20-11%2059%20-2T48%2016Q48%2030%20121%20320L195%20616Q195%20629%20188%20632T149%20637H128Q122%20643%20122%20645T124%20664Q129%20683%20137%20683Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-61%22%20d%3D%22M33%20157Q33%20258%20109%20349T280%20441Q331%20441%20370%20392Q386%20422%20416%20422Q429%20422%20439%20414T449%20394Q449%20381%20412%20234T374%2068Q374%2043%20381%2035T402%2026Q411%2027%20422%2035Q443%2055%20463%20131Q469%20151%20473%20152Q475%20153%20483%20153H487Q506%20153%20506%20144Q506%20138%20501%20117T481%2063T449%2013Q436%200%20417%20-8Q409%20-10%20393%20-10Q359%20-10%20336%205T306%2036L300%2051Q299%2052%20296%2050Q294%2048%20292%2046Q233%20-10%20172%20-10Q117%20-10%2075%2030T33%20157ZM351%20328Q351%20334%20346%20350T323%20385T277%20405Q242%20405%20210%20374T160%20293Q131%20214%20119%20129Q119%20126%20119%20118T118%20106Q118%2061%20136%2044T179%2026Q217%2026%20254%2059T298%20110Q300%20114%20325%20217T351%20328Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-78%22%20d%3D%22M52%20289Q59%20331%20106%20386T222%20442Q257%20442%20286%20424T329%20379Q371%20442%20430%20442Q467%20442%20494%20420T522%20361Q522%20332%20508%20314T481%20292T458%20288Q439%20288%20427%20299T415%20328Q415%20374%20465%20391Q454%20404%20425%20404Q412%20404%20406%20402Q368%20386%20350%20336Q290%20115%20290%2078Q290%2050%20306%2038T341%2026Q378%2026%20414%2059T463%20140Q466%20150%20469%20151T485%20153H489Q504%20153%20504%20145Q504%20144%20502%20134Q486%2077%20440%2033T333%20-11Q263%20-11%20227%2052Q186%20-10%20133%20-10H127Q78%20-10%2057%2016T35%2071Q35%20103%2054%20123T99%20143Q142%20143%20142%20101Q142%2081%20130%2066T107%2046T94%2041L91%2040Q91%2039%2097%2036T113%2029T132%2026Q168%2026%20194%2071Q203%2087%20217%20139T245%20247T261%20313Q266%20340%20266%20352Q266%20380%20251%20392T217%20404Q177%20404%20142%20372T93%20290Q91%20281%2088%20280T72%20278H58Q52%20284%2052%20289Z%22%3E%3C%2Fpath%3E%0A%3Cpath%20stroke-width%3D%221%22%20id%3D%22E1-MJMATHI-63%22%20d%3D%22M34%20159Q34%20268%20120%20355T306%20442Q362%20442%20394%20418T427%20355Q427%20326%20408%20306T360%20285Q341%20285%20330%20295T319%20325T330%20359T352%20380T366%20386H367Q367%20388%20361%20392T340%20400T306%20404Q276%20404%20249%20390Q228%20381%20206%20359Q162%20315%20142%20235T121%20119Q121%2073%20147%2050Q169%2026%20205%2026H209Q321%2026%20394%20111Q403%20121%20406%20121Q410%20121%20419%20112T429%2098T420%2083T391%2055T346%2025T282%200T202%20-11Q127%20-11%2081%2037T34%20159Z%22%3E%3C%2Fpath%3E%0A%3C%2Fdefs%3E%0A%3Cg%20stroke%3D%22currentColor%22%20fill%3D%22currentColor%22%20stroke-width%3D%220%22%20transform%3D%22matrix(1%200%200%20-1%200%200)%22%20aria-hidden%3D%22true%22%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-72%22%20x%3D%220%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMAIN-28%22%20x%3D%22451%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%3Cg%20transform%3D%22translate(841%2C0)%22%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-4D%22%20x%3D%220%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%3Cg%20transform%3D%22translate(970%2C-150)%22%3E%0A%20%3Cuse%20transform%3D%22scale(0.707)%22%20xlink%3Ahref%3D%22%23E1-MJMATHI-50%22%20x%3D%220%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20transform%3D%22scale(0.707)%22%20xlink%3Ahref%3D%22%23E1-MJMATHI-54%22%20x%3D%22751%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%3C%2Fg%3E%0A%3C%2Fg%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMAIN-29%22%20x%3D%222941%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMAIN-3D%22%20x%3D%223608%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%3Cg%20transform%3D%22translate(4386%2C0)%22%3E%0A%3Cg%20transform%3D%22translate(397%2C0)%22%3E%0A%3Crect%20stroke%3D%22none%22%20width%3D%2219754%22%20height%3D%2260%22%20x%3D%220%22%20y%3D%22220%22%3E%3C%2Frect%3E%0A%3Cg%20transform%3D%22translate(518%2C770)%22%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6E%22%20x%3D%220%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-75%22%20x%3D%22600%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6D%22%20x%3D%221173%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-62%22%20x%3D%222051%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%222481%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-72%22%20x%3D%222947%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6F%22%20x%3D%223649%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-66%22%20x%3D%224134%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-70%22%20x%3D%224935%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-73%22%20x%3D%225438%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%225908%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-75%22%20x%3D%226374%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-64%22%20x%3D%226947%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6F%22%20x%3D%227470%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMAIN-2212%22%20x%3D%228178%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-74%22%20x%3D%229178%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%229540%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-73%22%20x%3D%2210006%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-74%22%20x%3D%2210476%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%2210837%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-64%22%20x%3D%2211304%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6D%22%20x%3D%2212077%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%2212956%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-74%22%20x%3D%2213422%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-68%22%20x%3D%2213784%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6F%22%20x%3D%2214360%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-64%22%20x%3D%2214846%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-73%22%20x%3D%2215369%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMAIN-28%22%20x%3D%2215839%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%3Cg%20transform%3D%22translate(16228%2C0)%22%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-4D%22%20x%3D%220%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%3Cg%20transform%3D%22translate(970%2C-150)%22%3E%0A%20%3Cuse%20transform%3D%22scale(0.707)%22%20xlink%3Ahref%3D%22%23E1-MJMATHI-50%22%20x%3D%220%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20transform%3D%22scale(0.707)%22%20xlink%3Ahref%3D%22%23E1-MJMATHI-54%22%20x%3D%22751%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%3C%2Fg%3E%0A%3C%2Fg%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMAIN-29%22%20x%3D%2218328%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%3C%2Fg%3E%0A%3Cg%20transform%3D%22translate(60%2C-726)%22%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6E%22%20x%3D%220%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-75%22%20x%3D%22600%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6D%22%20x%3D%221173%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-62%22%20x%3D%222051%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%222481%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-72%22%20x%3D%222947%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6F%22%20x%3D%223649%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-66%22%20x%3D%224134%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6D%22%20x%3D%224935%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-75%22%20x%3D%225813%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-74%22%20x%3D%226386%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-61%22%20x%3D%226747%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-74%22%20x%3D%227277%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%227638%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-64%22%20x%3D%228105%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-74%22%20x%3D%228878%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%229240%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-73%22%20x%3D%229706%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-74%22%20x%3D%2210176%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMAIN-2212%22%20x%3D%2210759%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%2211760%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-78%22%20x%3D%2212226%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%2212799%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-63%22%20x%3D%2213265%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-75%22%20x%3D%2213699%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-74%22%20x%3D%2214271%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%2214633%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-64%22%20x%3D%2215099%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6D%22%20x%3D%2215873%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-65%22%20x%3D%2216751%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-74%22%20x%3D%2217218%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-68%22%20x%3D%2217579%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-6F%22%20x%3D%2218156%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-64%22%20x%3D%2218641%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%20%3Cuse%20xlink%3Ahref%3D%22%23E1-MJMATHI-73%22%20x%3D%2219165%22%20y%3D%220%22%3E%3C%2Fuse%3E%0A%3C%2Fg%3E%0A%3C%2Fg%3E%0A%3C%2Fg%3E%0A%3C%2Fg%3E%0A%3C%2Fsvg%3E#card=math&code=r%28M%7BPT%7D%29%3D%5Cfrac%7Bnumber%5C%20of%5C%20pseudo-tested%5C%20methods%28M_%7BPT%7D%29%7D%7Bnumber%5C%20of%5C%20mutated%5C%20test-executed%5C%20methods%7D&id=MWnXN)

mutated test-executed 的方法包括在突变分析期间（通过至少一个没有超时的测试用例）创建和测试突变的所有方法。因此，试验方法的比率为：

Will My Tests Tell Me If I Break This Code? - 图6

我们还介绍了研究对象的方法覆盖率（CC），并计算了测试方法与所有现有方法的总比率：

Will My Tests Tell Me If I Break This Code? - 图7

对于RQ2，为了回答这个问题，我们分别检查了单元测试和系统测试的伪测试方法的比率。然后，我们比较每种测试类型的伪测试方法的平均比率，计算标准偏差，并使用箱线图比较数据。

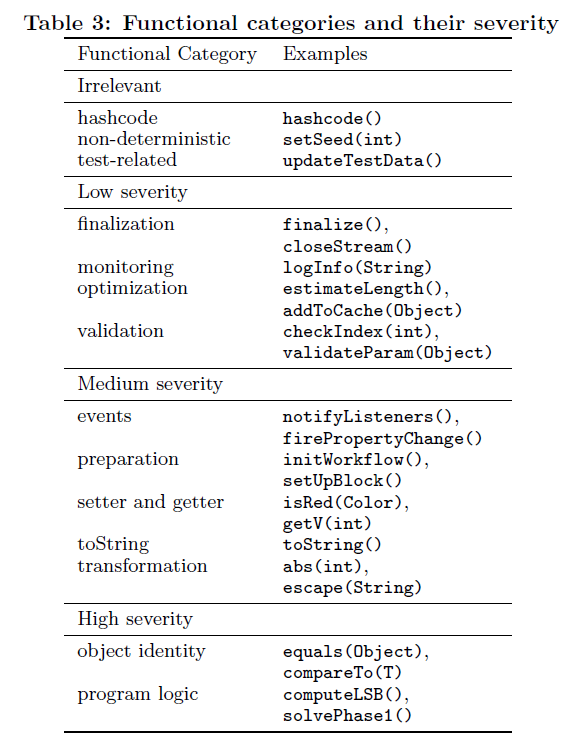

对于RQ3，我们研究所有的伪测试方法，并将每个方法分配到一个功能类别。映射是通过基于方法名称的手动检查完成的。然后，我们为每个功能类别分配了严重性。表3列出了这些类别及其严重程度。严重性定义如下

4. 结果与讨论

RQ 1: What is the ratio of pseudo-tested methods?

大多数研究对象的伪测试方法比率差异很大，介于6%和53%之间。根据结果，Apache Commons Lang方法大多经过了客观测试，因为方法级别的代码覆盖率为93%，测试执行方法中只有不到2%被归类为伪测试。其他研究对象表现出更高的伪测试方法比率，包括Predictor、Struts 2和LittleProxy项目，其中一半以上的测试执行方法是伪测试的。

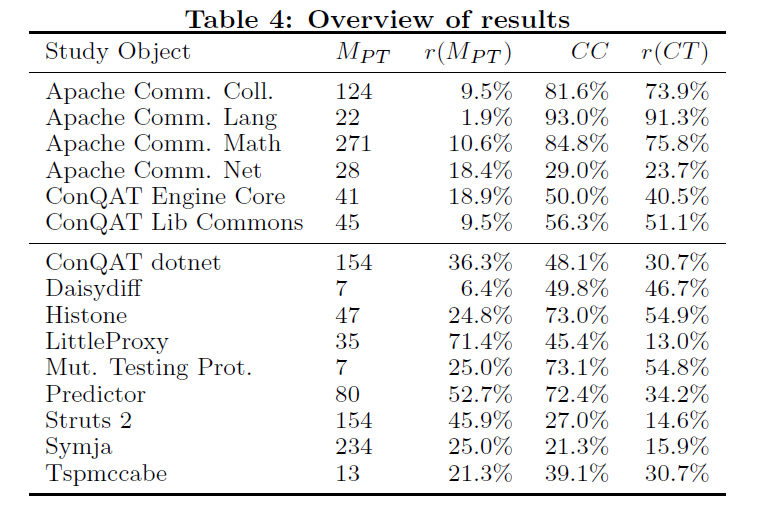

表4列出了伪测试方法的MPT数量和比率r（MPT）、方法覆盖率CC以及每个研究对象的测试方法r（CT）的总比率。

RQ 2: Does the ratio of pseudo-tested methods depend on the type of test?

单元测试的平均比率为11.41%，系统测试的平均比率为35.48%。

引人注目的是，单元测试的比率在一个小范围内，但在系统测试中却有很大的偏差。伪测试方法比率的标准偏差（单元测试为6.42%，系统测试为20.60%）符合这一观察结果。

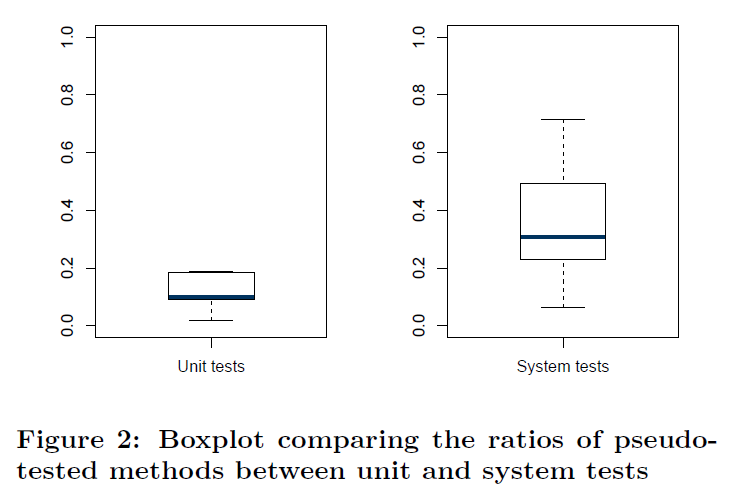

图2中描述了关键参数以及单元测试和系统测试之间的偏差。结果表明，测试类型影响伪测试方法的比率。

RQ 3: How severe are the pseudo-tested methods?

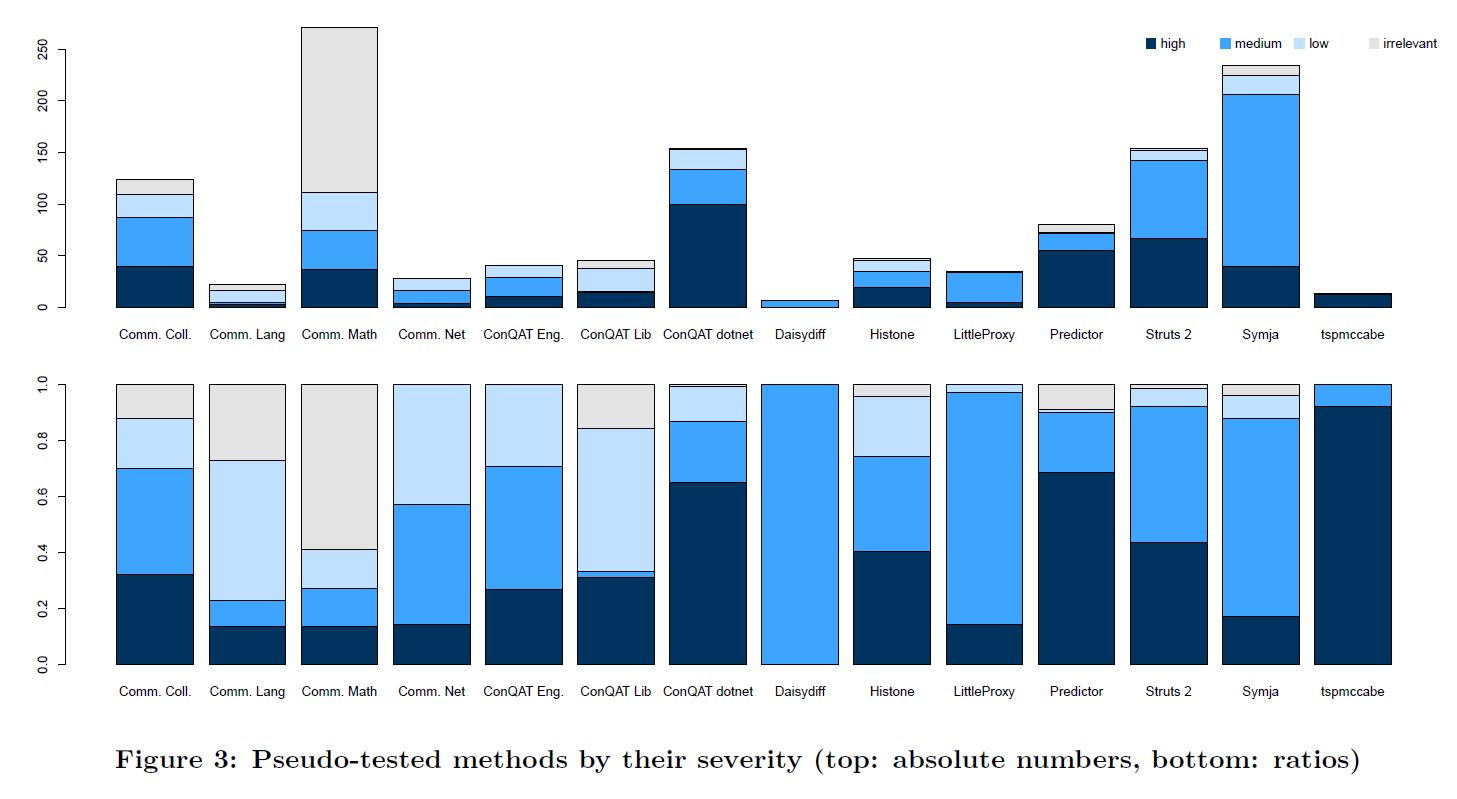

图3显示了伪测试方法的绝对和相对数量，按严重程度分组。对于11个研究对象，超过一半的伪测试方法属于中度或高度严重性。

其中，Apache Commons Math 包含大量不相关的伪测试方法（一些测试实用程序方法在分析中发生了变异）；apachecommons Lang以及ConQAT Lib Commons具有一些低重要性的方法。

结果证实了伪测试方法的相关性，并表明缺乏测试有效性是软件项目的一个问题。
