如何排查防火墙不通的故障

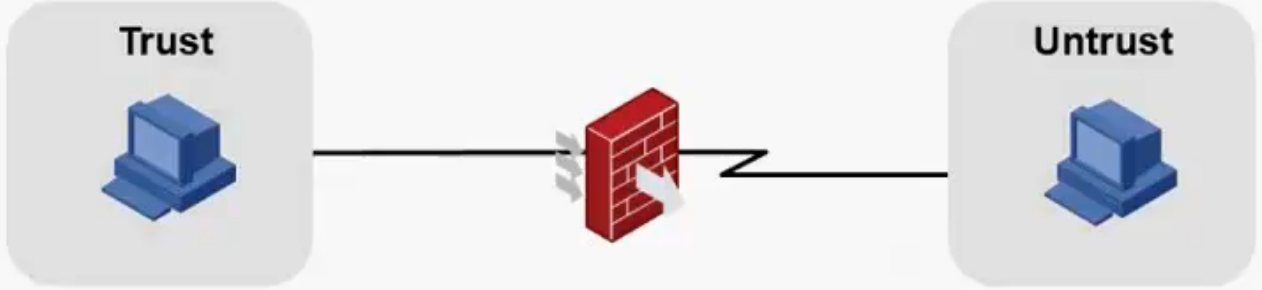

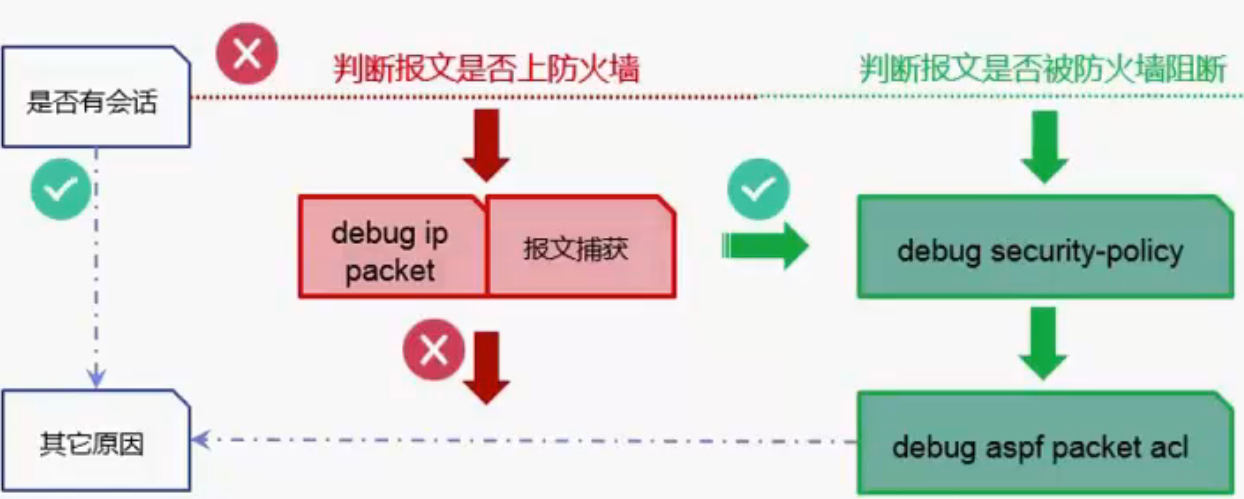

排查思路

报文是否上到防火墙?
报文是否被防火墙阻断?
报文被防火墙阻断不会有会话表

步骤一: 是否有会话表

• 查看会话时要写明源目的地址，另外要加verbose才能显示更多信息
• 有会话说明报文上到了防火墙

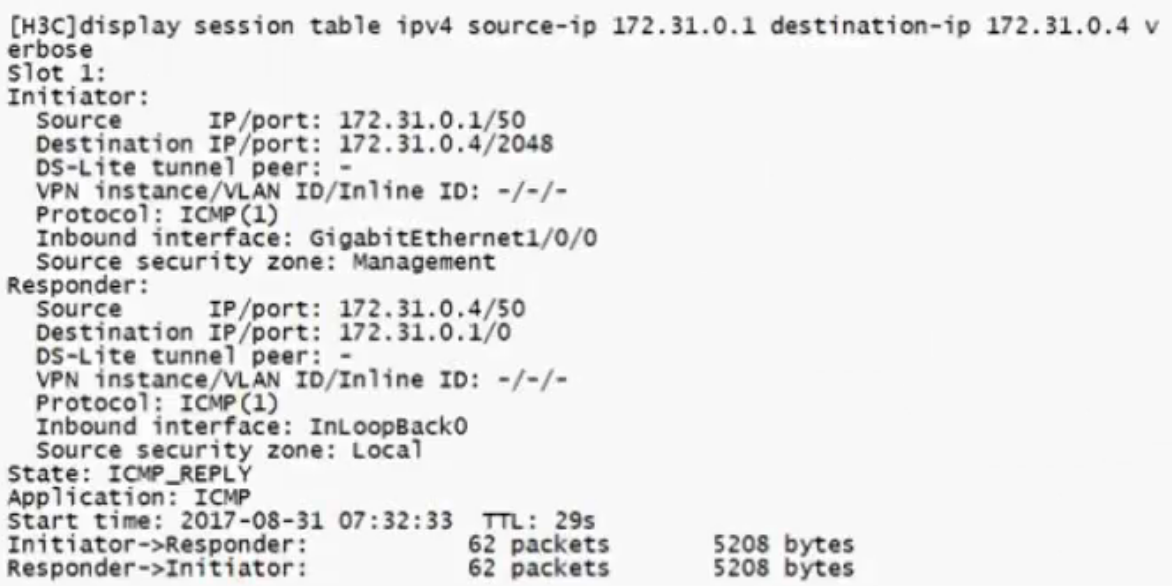

display session table ipv4 source-ip 172.31.0.1 destination-ip 172.31.0.4 ver

步骤二:查看报文是否到防火墙

debug ip packet acl
➢debug报文很多 ，一般要求后面写明细ACL匹配报文(写明源目的地址和协议)

acl advanced 3000
rule 0 permit icmp source 172.31.0.1 0 destination 172.31.0.4 0
<H3C> debugging ip packet acl 3000
This command is CPU intensive and might affect ongoing services. Are you sure you want to continue? [Y/N]:Y
<H3C> terminal monitor
The current terminal is enabled to display logs.
<H3C> terminal debugging

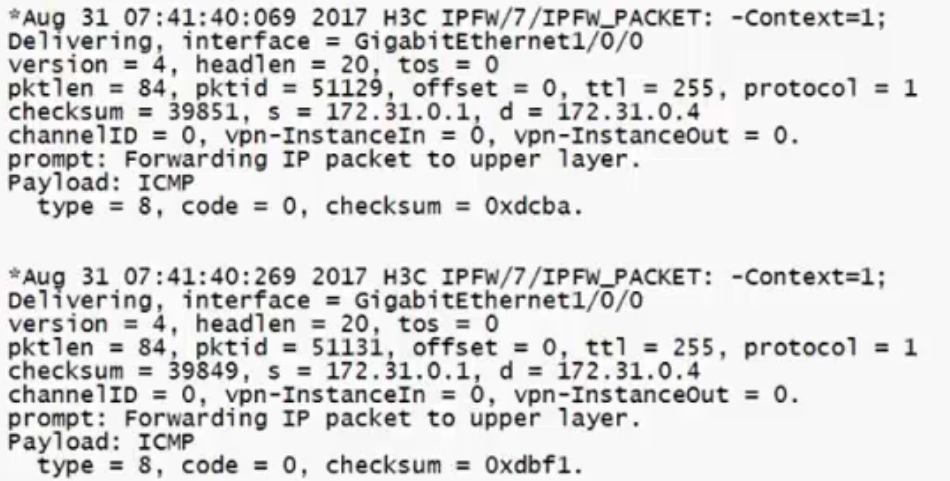

有匹配ACL的debug信息说明报文到达了防火墙。否则报文没到防火墙,需排查路由等其它网络因素。

步骤三:抓包

在Web管理平台中 ,在[系统] - [维护] - [报文捕获]下点击(开始报文捕获]配置报文捕获过滤条件,选择接口,流量较大的时候建议匹配ACL。

报文是否被防火墙阻断

步骤一 : 检查安全策略是否放通报文

debugging security-policy packet ip acl
Debug报文很多 ，一般要求后面写明细ACL匹配报文(写明源目的地址和协议)

acl advanced 3000
    rule 5 permit icmp source 192. 168.10.2 0 destination 192.168.10.1 0
<H3C> debugging security-policy packet ip acl 3000
This command is CPU intensive and might affect ongoing services. Are you sure you want to continue? [Y/N]:Y
<H3C> terminal monitor
The current terminal is enabled to display logs.
<H3C> terminal debugging

正常debug(The packet is permitted)

<H3C> *Aug 31 08:24:11:380 2017 F1020 FILTER/7/PACKET: -Context=1; The packet is permitted. Src-Zone=Trust, Dst-Zone=Local;lf-In=GigabitEthernet1/0/5(6), |f-Out=InLoopBack0(132); Packet Info:Src-IP=192.168.10.2, Dst-lP=192. 168.10.1, VPN-Instance=, Src-Port=8, Dst-Port=0, Protocol=ICMP(1), Application=ICMP(22742),SecurityPolicy=1, Rule-lD=0.

阻断debug(The packet is denied SecurityPolicy=4, Rule-lD=3)

<H3C> *Aug 31 08:26:31:988 2017 H3C FILTER/7/PACKET: -Context=1; The packet is denied. Src-Zone=Trust, Dst-Zone=Local;lf-In=GigabitEthernet1/0/5(6), |f-Out=InL oopBack0(132); Packet Info:Src-IP=192. 168.10.2, Dst-lP=192. 168.10.1, VPN-Instance=, Src-Port=8, Dst-Port=0, Protocol=ICMP(1), Application=|CMP(22742),SecurityPolicy=4, Rule-lD=3

防火墙配置deny的安全策略会打印上面的信息，显示被哪条规则deny

步骤二: debugging aspf packet {acl}检查ASPF策略是否阻断报文

第一种情况

The packet was dropped by ASPF for nonexistent zone pair.(说明接口没有加入安全域，检查安全域配置)
<H3C>debugging aspf packet
This command is CPU intensive and might affect ongoing services. Are you sure you
want to continue? [Y/N]:y
<H3C> *Aug 31 08:21:38:114 2017 F1020 ASPF/7/PACKET: -Context=1; The packet was
dropped by ASPF for nonexistent zone pair. Src-Zone=-, Dst-Zone=L ocal;lf-
In=GigabitEthernet1/0/5(6), lf-Out=InL oopBack0(132); Packet Info:Src-lP=192.168.10.2,
Dst-IP=192.168.10.1, VPN-Instance=none Src-Port=1533, Dst-Port= 2048.
Protocol=lCMP(1).

步骤二: 检查ASPF策略是否阻断报文

debugging aspf packet {ac|}
第二种情况

The first packet was dropped by packet filter or object-policy.(说明报文被安全策略阻断,检查是否有相应permit的安全策略)
<H3C>debugging aspf packet
This command is CPU intensive and might affect ongoing services. Are you sure you
want to continue? [Y/N]:y
<H3C> *Aug 31 08:26:31:988 2017 H3C ASPF/7/PACKET: -Context=1; The first packet was dropped by packet filter or object-policy. Src-Zone=Trust, Dst Zone=Local;lf-In=GigabitEthernet1/0/5(6), lIf-Out=InLoopBack0(132); Packet Info:Src-lP=192.168.10.2,
Dst-IP=192.168.10.1, VPN-Instance=none,Src-Port=1535, Dst-Port 2048.
Protocol=lCMP(1).

总结
判断报文是否.上防火墙
➢display session table ipv4
➢debug ip packet acl
判断报文是否被防火墙阻断
➢debugging security-policy packet ip acl
➢debugging aspf packet acl

注意事项
debug的注意事项
➢首先通过命令查看设备是否开启 了debug开关

<H3C>display debugging
Security-policy packet ip acl 3000 debugging switch is on

➢debug完成后关闭debug开启 ，可以通过命令行或者快捷键

<H3C>undo terminal debugging
The current terminal is disabled to display debugging logs.
<H3C>u t d
The current terminal is disabled to display debugging logs.

快捷键：CTR+C回到<用户模式>，CTR+O关闭debug信息

debug的FAQ

没有debug信息怎么办

• debug ip packet没有信息说明报文没有上到防火墙

• 有vpn-instance的需要在ACL里加vpn-instance

  debug信息太多怎么办

• 尽量写明ACL

• 关闭安全策略日志的显示
  • info-center source
  • FILTER monitor deny
