1 channel原理
1. Flutter提供了三种Channel
用作Flutter与原生的数据传递
FlutterBasicMessageChannel：用作字符串和半结构换的数据传递
结构化的数据：包含预定义的数据类型、格式和结构的数据，eg:关系型数据库中数据表里的数据 半结构化数据：具有可识别的模式并可以解析的文本数据文件，eg:xml数据文件 非结构化数据：没有固定结构的数据，通常保存为不同类型的文件，eg:文本文档，图片，视频等
FlutterMethodChannel：用来调用方法（method invocation），包括从Flutter向原生平台发起方法调用，也支持从原生平台向Flutter发起方法调用。
- FlutterEventChannel： 用来支持数据流（streams）通信。”
2. 三种Channel都有以下三个成员变量
1. name：Channel名称
作为每个Channel的唯一标志。
在我们的Flutter应用中，通常会存在多个Platform Channel。那么这些Channel之间就是通过唯一标志name来区分。例如，使用FlutterMethodChannel发起方法调用时，就需要我们为MethodChannel指定对应的标示name。
2. messenger：消息信使（BinaryMessenger）
用作消息的发送和接收的工具，主要负责Flutter与原生之间的相互通讯。
通俗来讲，messenger就是咱们现在的外卖小哥。messenger负责把数据从Flutter送到iOS平台，或者从iOS传输数据到Flutter。尽管Flutter中存在三种不同用途的Channel，但是对应的沟通工具都是BinaryMessenger。
在创建一个Channel后，不论是通过设置代理（Delegate），还是通过setXXXXHandler:来进行消息处理。最终会为该Channel绑定一个FlutterBinaryMessageHandler。并以Channel的name作为key，保存在一个Map结构中。当接受到发送消息后，会根据消息中携带的Channel名称取出对应FlutterBinaryMessageHandler，并交由BinaryMessenger处理。
注意：在iOS平台BinaryMessenger是一个名为FlutterBinaryMessenger的协议。
以FlutterMethodChannel的addMethodCallDelegate:channel:为例：
该方法的底层代码，位于engine/src/flutter/shell/platform/darwin/ios/framework/Source/FlutterEngine.mm：
- (void)addMethodCallDelegate:(NSObject<FlutterPlugin>*)delegatechannel:(FlutterMethodChannel*)channel {// 实际上也是通过setMethodCallHandler:实现的[channel setMethodCallHandler:^(FlutterMethodCall* call, FlutterResult result) {[delegate handleMethodCall:call result:result];}];}
然后来看setMethodCallHandler:，代码位于engine/src/flutter/shell/platform/darwin/common/framework/Source/FlutterChannels.mm：
- (void)setMethodCallHandler:(FlutterMethodCallHandler)handler {// 可以看到底层最终调用的都是同一个方法，此时的_messenger代表的是FlutterViewControllerif (!handler) {[_messenger setMessageHandlerOnChannel:_name binaryMessageHandler:nil];return;}
[_messenger setMessageHandlerOnChannel:_name binaryMessageHandler:messageHandler];
接下来来看FlutterViewController里的setMessageHandlerOnChannel:binaryMessageHandler:，代码位于engine/src/flutter/shell/platform/darwin/ios/framework/Source/FlutterViewController.mm：
- (void)setMessageHandlerOnChannel:(NSString*)channelbinaryMessageHandler:(FlutterBinaryMessageHandler)handler {NSAssert(channel, @"The channel must not be null");// 调到FlutterEngine里面的setMessageHandlerOnChannel[_engine.get().binaryMessenger setMessageHandlerOnChannel:channel binaryMessageHandler:handler];}
进入到FlutterEngine的setMessageHandlerOnChannel:binaryMessageHandler:，代码位于engine/src/flutter/shell/platform/darwin/ios/framework/Source/FlutterEngine.mm：

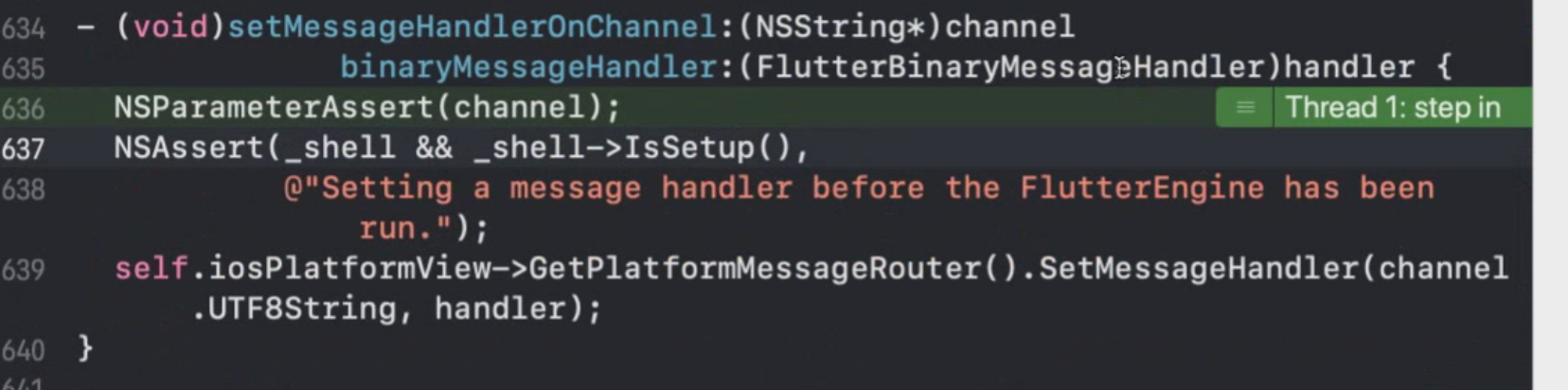

- (void)setMessageHandlerOnChannel:(NSString*)channelbinaryMessageHandler:(FlutterBinaryMessageHandler)handler {NSParameterAssert(channel);NSAssert(_shell && _shell->IsSetup(),@"Setting a message handler before the FlutterEngine has been run.");// 通过flutter::PlatformViewIOS获取PlatformMessageRouterself.iosPlatformView->GetPlatformMessageRouter().SetMessageHandler(channel.UTF8String, handler);}
PlatformMessageRouter，代码位于engine/src/flutter/shell/platform/darwin/ios/framework/Source/platform_message_router.h
// map结构std::unordered_map<std::string, fml::ScopedBlock<FlutterBinaryMessageHandler>>message_handlers_;
void PlatformMessageRouter::SetMessageHandler(const std::string& channel,FlutterBinaryMessageHandler handler) {message_handlers_.erase(channel);if (handler) {// key-value形式message_handlers_[channel] =fml::ScopedBlock<FlutterBinaryMessageHandler>{handler, fml::OwnershipPolicy::Retain};}}
3. Codec(编解码器)
在Channel中，messenger携带的数据需要在Dart层，Native（iOS/Android平台）层中传输，所以就需要一种与平台无关的数据协议。既能支持图片，又能支持文件等资源。因此官方最终采用了二进制字节流作为数据传输协议。
二进制字节流：发送方需要把数据编码成二进制数据，接收方再把数据解码成原始数据。而负责编解码操作的就是Codec。
FlutterMethodCodec：对FlutterMethodCall编解码
FlutterMethodCodec用于二进制数据与方法调用（FlutterMethodCall）和返回结果之间的编解码。主要用在FlutterMethodChannel和FlutterEventChannel中。
创建channel

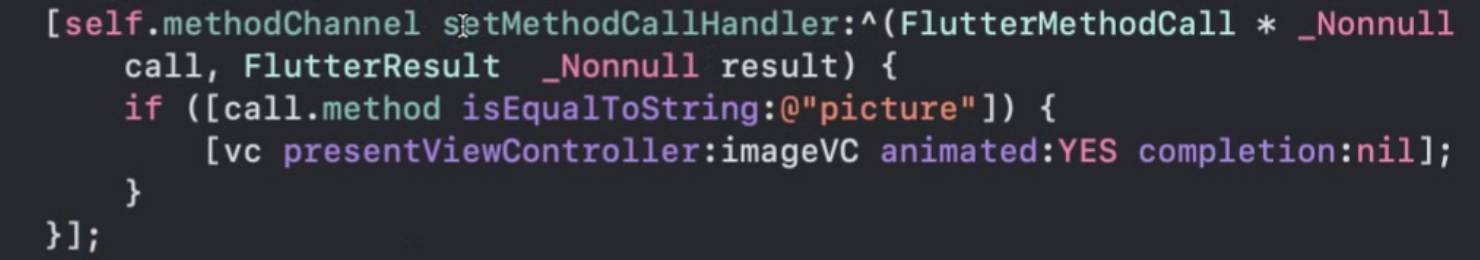

监听channel
FlutterBinaryMessager协议定义
FlutterBinaryMessager协议实现未找到，项目调试
3 项目调试引擎
- 新建项目

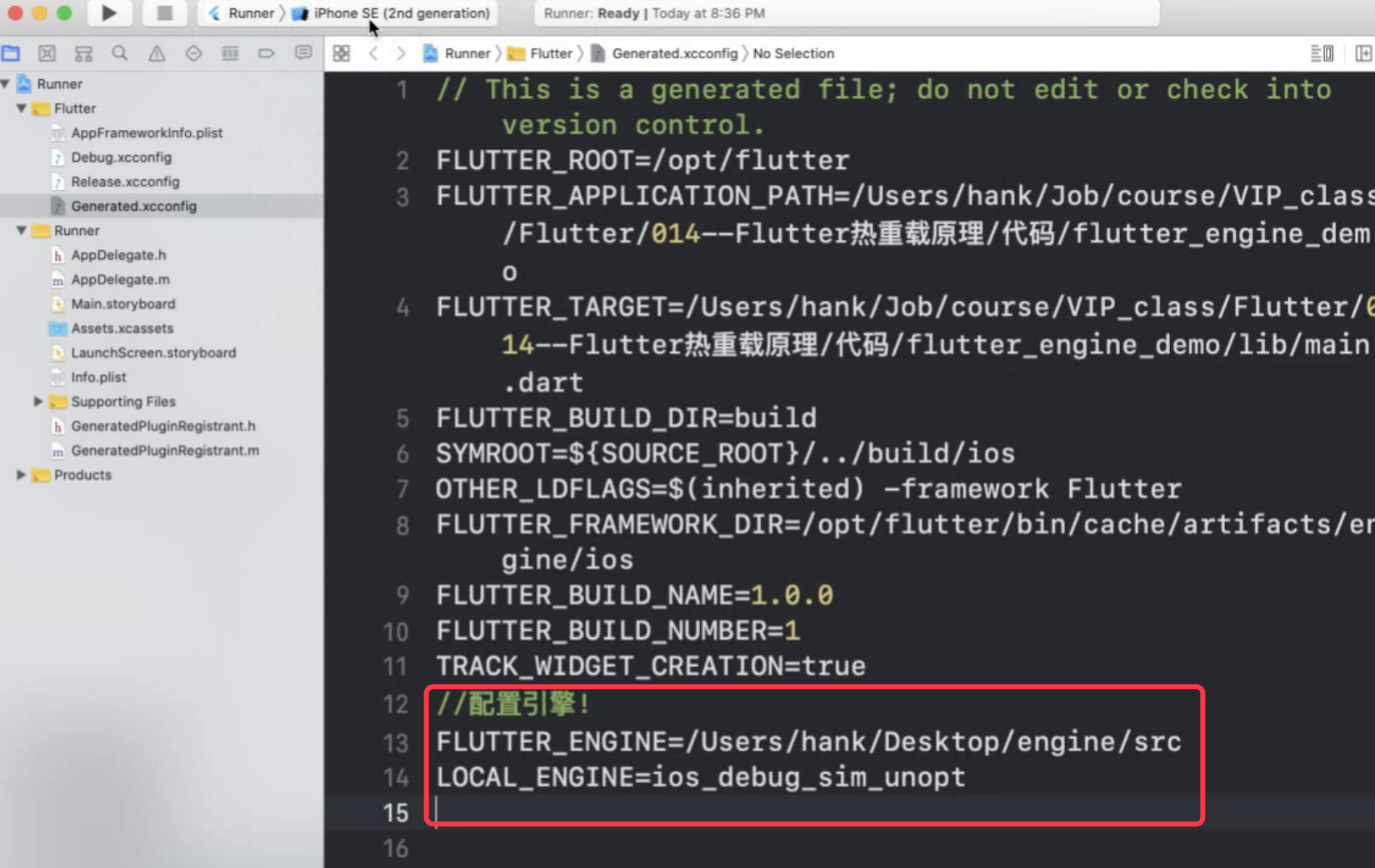

- 配置引擎

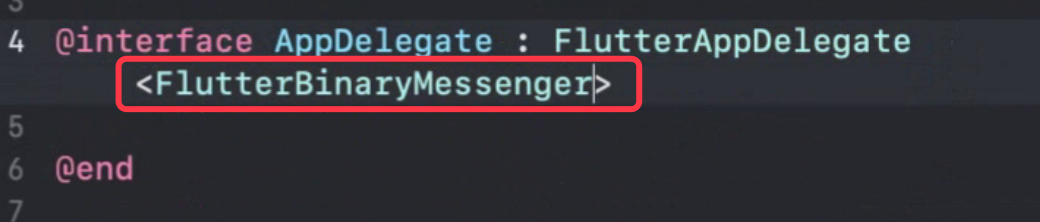

- 遵循协议FlutterBinaryMessager

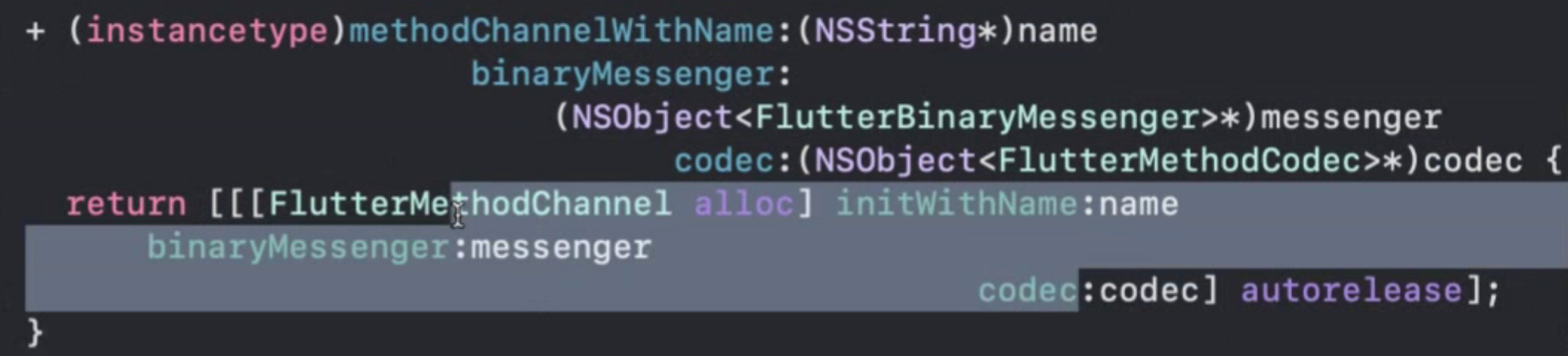

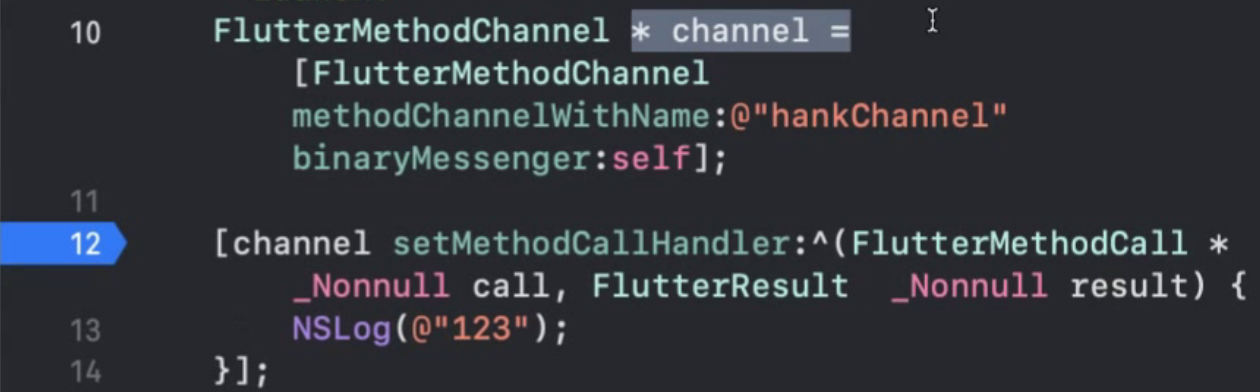

- 创建channel

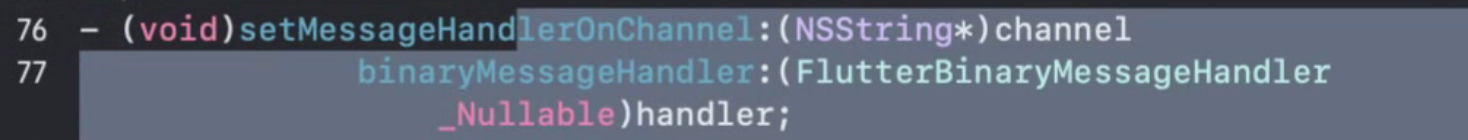

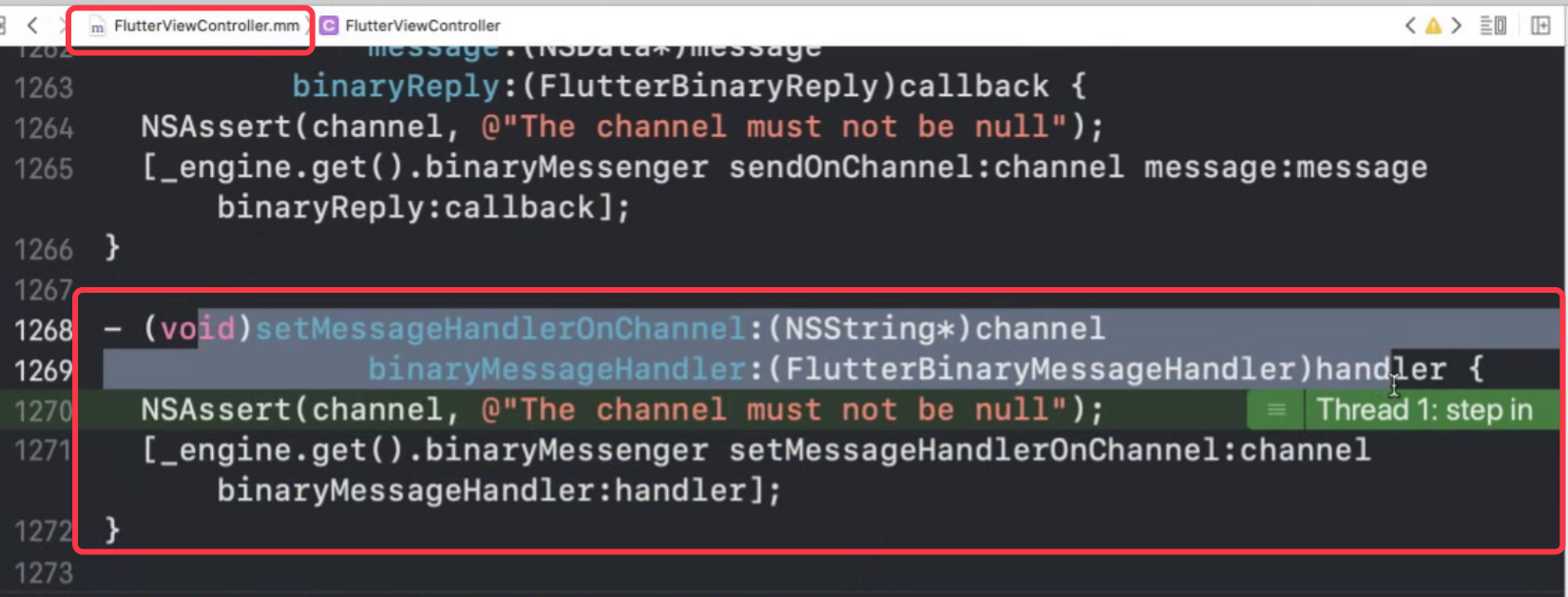

- 断点调试进入函数体，找到-setMessageHandlerOnChannel:binaryMessageHandler:的实现
_engine.get().binaryMessager 是消息信使,创建channel时传递的binaryMessager
channel是创建channel时的name
handle是内部包含了外部handler的回调call
- 进入_engine.get().binaryMessager的-setMessageHandlerOnChannel:binaryMessageHandler:中

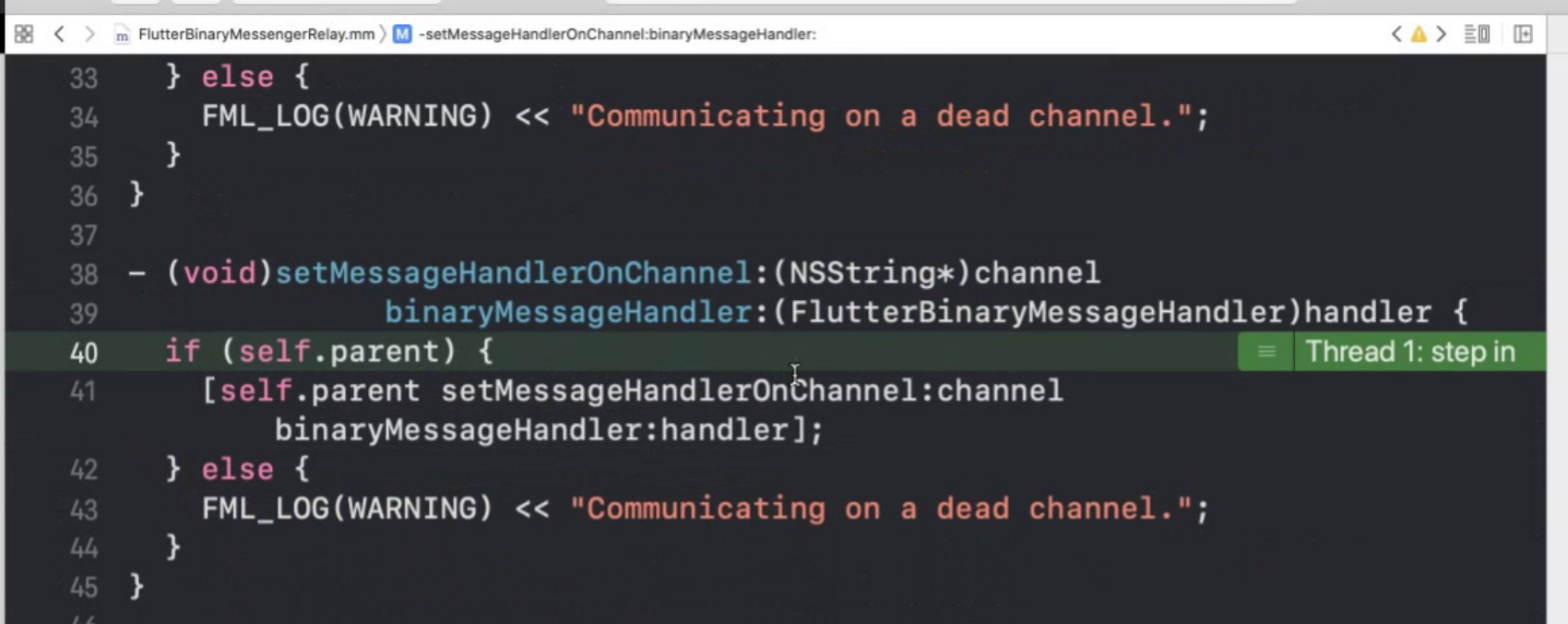

- 进入self.parent的-setMessageHandlerOnChannel:binaryMessageHandler:中

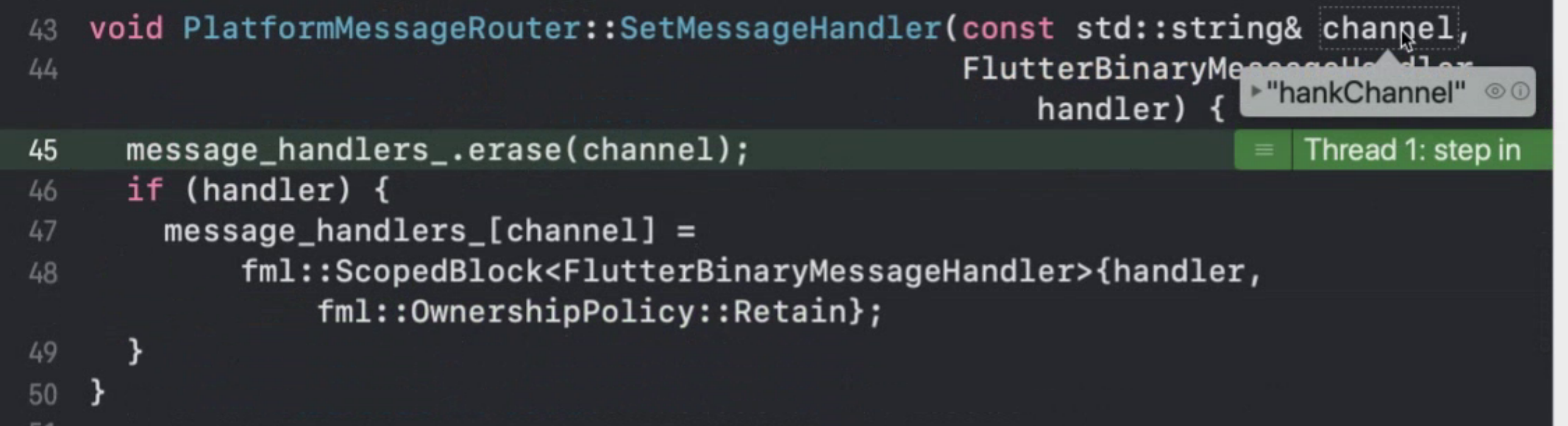

将channel作为key，handler作为value存储起来
2 codec编解器
在Flutter中有两种Codec:FlutterMessageCodec和FlutterMethodCodec
MessageCodec对message进行编解码
FlutterMessageCodec
用于二进制数据与基础数据之间的编解码，其中FlutterBasicMessageChannel中采用的就是该Codec。
// 用于实现二进制数据NSData和不同类型数据之间的转换@protocol FlutterMessageCodec/*** Returns a shared instance of this `FlutterMessageCodec`.*/+ (instancetype)sharedInstance;// 将指定的类型message编码为二进制数据- (NSData* _Nullable)encode:(id _Nullable)message;// 将二进制数据NSData解码成指定类型- (id _Nullable)decode:(NSData* _Nullable)message;@end
四种FlutterMessageCodec：
- FlutterJSONMessageCodec:用于数据类型与二进制数据之间的编解码,支持基础数据类型（bool、char、double、float、int、long、short、String、Array、Dictionary）。在iOS端使用NSJSONSerialization作为序列化的工具。
- FlutterBinaryCodec 二进制数据之间的编解码
- FlutterStringCodec 字符串与二进制数据之间的编解码,对于字符串采用UTF-8编码格式。

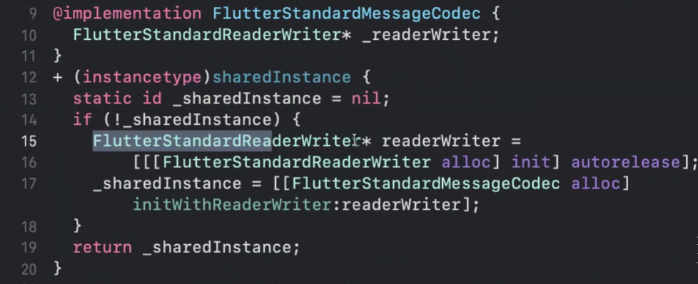

- FlutterStandardMessageCodec 默认编解码器，任意类型和二进制数据之间的编解码，原理是使用FlutterStandardReaderWriter实现的。用于数据类型和二进制数据之间的编解码。支持基础数据类型包（bool、char、double、float、int、long、short、String、Array、Dictionary）以及二进制数据。
FlutterBinaryCodec：用于二进制数据和二进制数据之间的编解码，在实现上只是原封不动的将接收到的二进制数据返回。
在FlutterStandardMethodCodec中最重要的两个方法是writeValue:和readValueOfType:。前者用于将value值写入到NSData中，后者从NSData中读取value值。在iOS中，将当前手机电量传递给Flutter的过程中。假设电量值为100。那么该值转换成二进制数据流程为：
首先向NSData中写入表示int32类型的标志值FlutterStandardFieldInt32。
因为int32占4个byte。将value值继续写入到NSData中。
当Flutter接受到该二进制数据后：
先读取第一个byte值。根据此值得知后面需要读取一个int32类型的数据。
随后读取后面4个byte。并将其转为dart类型中int类型。

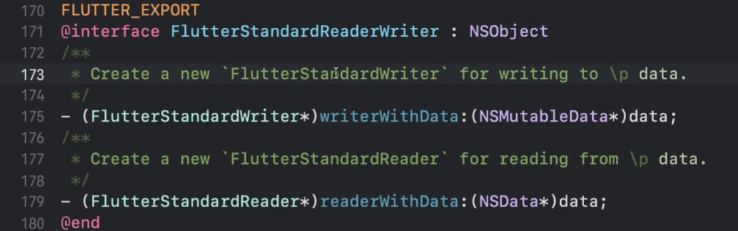

FlutterStandardReaderWriter
读写数据：
@implementation FlutterStandardWriter {NSMutableData* _data;}.......- (void)writeAlignment:(UInt8)alignment {UInt8 mod = _data.length % alignment;if (mod) {for (int i = 0; i < (alignment - mod); i++) {[self writeByte:0];}}}“......./**下面14个枚举值用来标志不同类型的数据，比如0表示NULL，3表示Int32类型。在向NSData写入指定类型的数据时，需要首先写入类型标志。然后紧跟着写入具体的值。在从NSData读取数据时，首先读取类型标志，然后读取具体的数值。*/typedef NS_ENUM(NSInteger, FlutterStandardField) {FlutterStandardFieldNil,FlutterStandardFieldTrue,FlutterStandardFieldFalse,FlutterStandardFieldInt32,FlutterStandardFieldInt64,FlutterStandardFieldIntHex,FlutterStandardFieldFloat64,FlutterStandardFieldString,// The following must match the corresponding order from `FlutterStandardDataType`.FlutterStandardFieldUInt8Data,FlutterStandardFieldInt32Data,FlutterStandardFieldInt64Data,FlutterStandardFieldFloat64Data,FlutterStandardFieldList,FlutterStandardFieldMap,};// 根据数据类型，先向data中写入类型标志值- (void)writeValue:(id)value {if (value == nil || value == [NSNull null]) {[self writeByte:FlutterStandardFieldNil];} else if ([value isKindOfClass:[NSNumber class]]) {CFNumberRef number = (CFNumberRef)value;BOOL success = NO;if (CFGetTypeID(number) == CFBooleanGetTypeID()) {BOOL b = CFBooleanGetValue((CFBooleanRef)number);[self writeByte:(b ? FlutterStandardFieldTrue : FlutterStandardFieldFalse)];success = YES;} else if (CFNumberIsFloatType(number)) {Float64 f;success = CFNumberGetValue(number, kCFNumberFloat64Type, &f);if (success) {// 1. 写入类型标志值[self writeByte:FlutterStandardFieldFloat64];// 2. 指定对齐方式，用0补足[self writeAlignment:8];// 3. f转为byte，写入到NSData中[self writeBytes:(UInt8*)&f length:8];}} else if (CFNumberGetByteSize(number) <= 4) {SInt32 n;success = CFNumberGetValue(number, kCFNumberSInt32Type, &n);if (success) {[self writeByte:FlutterStandardFieldInt32];[self writeBytes:(UInt8*)&n length:4];}} else if (CFNumberGetByteSize(number) <= 8) {SInt64 n;success = CFNumberGetValue(number, kCFNumberSInt64Type, &n);if (success) {[self writeByte:FlutterStandardFieldInt64];[self writeBytes:(UInt8*)&n length:8];}}if (!success) {NSLog(@"Unsupported value: %@ of number type %ld", value, CFNumberGetType(number));NSAssert(NO, @"Unsupported value for standard codec");}} else if ([value isKindOfClass:[NSString class]]) {NSString* string = value;[self writeByte:FlutterStandardFieldString];[self writeUTF8:string];} else if ([value isKindOfClass:[FlutterStandardTypedData class]]) {FlutterStandardTypedData* typedData = value;[self writeByte:FlutterStandardFieldForDataType(typedData.type)];[self writeSize:typedData.elementCount];[self writeAlignment:typedData.elementSize];[self writeData:typedData.data];} else if ([value isKindOfClass:[NSData class]]) {[self writeValue:[FlutterStandardTypedData typedDataWithBytes:value]];} else if ([value isKindOfClass:[NSArray class]]) {NSArray* array = value;[self writeByte:FlutterStandardFieldList];[self writeSize:array.count];for (id object in array) {[self writeValue:object];}} else if ([value isKindOfClass:[NSDictionary class]]) {NSDictionary* dict = value;[self writeByte:FlutterStandardFieldMap];[self writeSize:dict.count];for (id key in dict) {[self writeValue:key];[self writeValue:[dict objectForKey:key]];}} else {NSLog(@"Unsupported value: %@ of type %@", value, [value class]);NSAssert(NO, @"Unsupported value for standard codec");}}@end@implementation FlutterStandardReader {NSData* _data;NSRange _range;}- (instancetype)initWithData:(NSData*)data {self = [super init];NSAssert(self, @"Super init cannot be nil");_data = [data retain];_range = NSMakeRange(0, 0);return self;}- (void)dealloc {[_data release];[super dealloc];}.......// `writeValue:`方法反向过程，原理一致- (nullable id)readValueOfType:(UInt8)type {// 根据标志位，取出数据类型FlutterStandardField field = (FlutterStandardField)type;switch (field) {case FlutterStandardFieldNil:return nil;case FlutterStandardFieldTrue:return @YES;case FlutterStandardFieldFalse:return @NO;case FlutterStandardFieldInt32: {SInt32 value;// 根据数据类型和长度，从NSData中读出数据，包装成NSNumber[self readBytes:&value length:4];return @(value);}case FlutterStandardFieldInt64: {SInt64 value;[self readBytes:&value length:8];return @(value);}case FlutterStandardFieldFloat64: {Float64 value;[self readAlignment:8];[self readBytes:&value length:8];return [NSNumber numberWithDouble:value];}case FlutterStandardFieldIntHex:case FlutterStandardFieldString:return [self readUTF8];case FlutterStandardFieldUInt8Data:case FlutterStandardFieldInt32Data:case FlutterStandardFieldInt64Data:case FlutterStandardFieldFloat64Data:return [self readTypedDataOfType:FlutterStandardDataTypeForField(field)];case FlutterStandardFieldList: {UInt32 length = [self readSize];NSMutableArray* array = [NSMutableArray arrayWithCapacity:length];for (UInt32 i = 0; i < length; i++) {id value = [self readValue];[array addObject:(value == nil ? [NSNull null] : value)];}return array;}case FlutterStandardFieldMap: {UInt32 size = [self readSize];NSMutableDictionary* dict = [NSMutableDictionary dictionaryWithCapacity:size];for (UInt32 i = 0; i < size; i++) {id key = [self readValue];id val = [self readValue];[dict setObject:(val == nil ? [NSNull null] : val)forKey:(key == nil ? [NSNull null] : key)];}return dict;}default:NSAssert(NO, @"Corrupted standard message");}}@end@implementation FlutterStandardReaderWriter- (FlutterStandardWriter*)writerWithData:(NSMutableData*)data {return [[[FlutterStandardWriter alloc] initWithData:data] autorelease];}- (FlutterStandardReader*)readerWithData:(NSData*)data {return [[[FlutterStandardReader alloc] initWithData:data] autorelease];}@end
FlutterMethodCodec

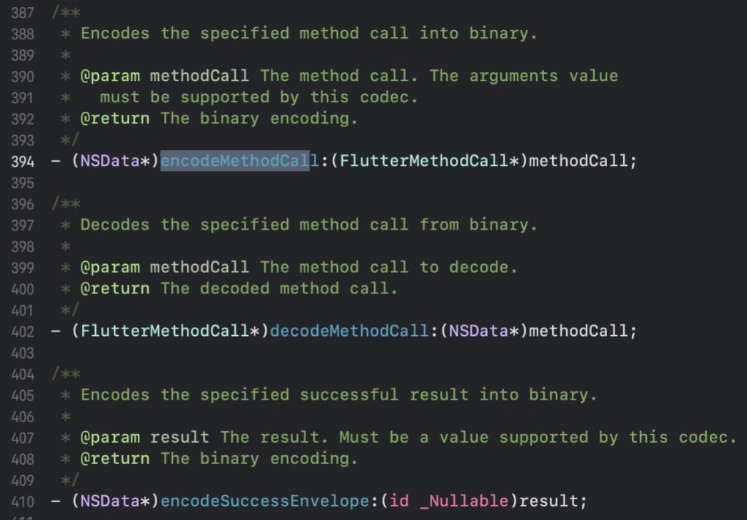

FLUTTER_EXPORT@protocol FlutterMethodCodec/*** Provides access to a shared instance this codec.** @return The shared instance.*/+ (instancetype)sharedInstance;// 将FlutterMethodCall编码为二进制NSData- (NSData*)encodeMethodCall:(FlutterMethodCall*)methodCall;// 将二进制NSData methodCall解码为FlutterMethodCall- (FlutterMethodCall*)decodeMethodCall:(NSData*)methodCall;// 将正常响应结果result编码为二进制- (NSData*)encodeSuccessEnvelope:(id _Nullable)result;// 将错误响应提示编码为二进制NSData- (NSData*)encodeErrorEnvelope:(FlutterError*)error;// 将二进制数据NSData解码，失败返回`FlutterError`- (id _Nullable)decodeEnvelope:(NSData*)envelope;@end
两种FlutterMethodCodec：
- FlutterStandardMethodCodec 原理同FlutterStandardMessageCodec一样，是使用FlutterStandardReaderWriter实现的 ```objectivec @implementation FlutterStandardMethodCodec { FlutterStandardReaderWriter* _readerWriter; }
- (instancetype)sharedInstance {
static id _sharedInstance = nil;
if (!_sharedInstance) {
//初始化readerWriter，用来编码和解码
FlutterStandardReaderWriter* readerWriter =
_sharedInstance = [[FlutterStandardMethodCodec alloc] initWithReaderWriter:readerWriter]; } return _sharedInstance; }[[[FlutterStandardReaderWriter alloc] init] autorelease];
(NSData)encodeMethodCall:(FlutterMethodCall)call { …….. // 将call写入二进制字节流中 FlutterStandardWriter* writer = [_readerWriter writerWithData:data]; [writer writeValue:call.method]; [writer writeValue:call.arguments]; …….. }
(NSData)encodeSuccessEnvelope:(id)result { …….. FlutterStandardWriter writer = [_readerWriter writerWithData:data]; [writer writeByte:0]; [writer writeValue:result]; …….. }
(NSData)encodeErrorEnvelope:(FlutterError)error { …….. FlutterStandardWriter* writer = [_readerWriter writerWithData:data]; [writer writeByte:1]; [writer writeValue:error.code]; [writer writeValue:error.message]; [writer writeValue:error.details]; …….. }
(FlutterMethodCall)decodeMethodCall:(NSData)message { // 从二进制字节流message中读取数据，转成FlutterMethodCall FlutterStandardReader* reader = [_readerWriter readerWithData:message]; …….. }
(id)decodeEnvelope:(NSData)envelope { FlutterStandardReader reader = [_readerWriter readerWithData:envelope]; …….. }
@end

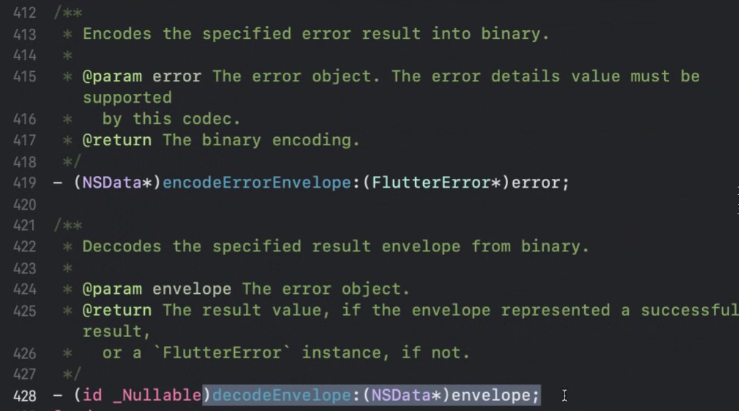

- FlutterJSONMethodCodec<br /><a name="xCXbB"></a>#### FlutterMethodCall代表从Flutter端发起的方法调用。方法调用包括：方法名、方法参数以及方法返回结果。因此和FlutterMessageCodec相比，FlutterMethodCodec中多了两个处理调用结果的方法:<br />方法调用成功：使用encodeSuccessEnvelope:编码result。<br />方法调用失败：使用encodeErrorEnvelope:()编码FlutterError。<br />decodeEnvelope:方法则用于解码iOS平台代码调用Dart中方法的结。比如通过FlutterMethodChannel调用Flutter中的方法，且获得其返回结果。当前在FlutterMethodCodec有两种实现:FlutterJSONMethodCodec：FlutterJSONMethodCodec编解码器依赖于FlutterJSONMethodCodec。在将FlutterMethodCall对象进行编码时，会首先将该对象转成JSON对象：```objectivec{"method":method,"args":args}
代码位于engine/src/flutter/shell/platform/darwin/common/framework/Source/FlutterCodecs.mm：
- (NSData*)encodeMethodCall:(FlutterMethodCall*)call { return [[FlutterJSONMessageCodec sharedInstance] encode:@{@"method" : call.method,@"args" : [self wrapNil:call.arguments],}];}
其在编码调用结果时，会将其转化为一个数组，调用成功为[result]，调用失败为[code, message, details]。
- (NSData*)encodeSuccessEnvelope:(id)result {// 数组return [[FlutterJSONMessageCodec sharedInstance] encode:@[ [self wrapNil:result] ]];}- (NSData*)encodeErrorEnvelope:(FlutterError*)error {// 数组return [[FlutterJSONMessageCodec sharedInstance] encode:@[error.code,[self wrapNil:error.message],[self wrapNil:error.details],]];}
当前想要调用某个Channel的setVolum(12)。其对应的MethodCall被被转成:
{"method":"setVolum","args":{"volum":5}}
接下来使用FlutterJSONMessageCodec将其编码为二进制数据。
FlutterStandardMethodCodec：它是FlutterMethodCodec的默认实现。当其编码在将FlutterMethodCall对象进行编码时，会将method和args依次使用FlutterStandardReaderWriter进行编码，然后写成二进制数据。
注意：Flutter新版本的StandardMethodCodec不再依赖StandardMessageCodec对method和args进行编码。而是使用公共类FlutterStandardReaderWriter进行编码。
3 Handler消息处理
Flutter中定义了一套Handler用于处理经过Codec解码后消息。在使用Channel时，需要为其设置对应的Handler。本质上就是为其注册一个对应FlutterBinaryMessageHandler，二进制数据被FlutterBinaryMessageHandler进行处理。首先使用Codec进行解码操作，然后再分发给具体Handler进行处理。与三种Platform Channel相对应，Flutter中也定义了三种Handler:
FlutterMessageHandler
用于处理字符串或者半结构化消息，定义在FlutterBasicMessageChannel中。
// 处理来自Flutter中的消息，有两个参数：id类型的消息以及用于异步返回的FlutterReply
typedef void (^FlutterMessageHandler)(id _Nullable message, FlutterReply callback);
FlutterMethodCallHandler
用于处理方法调用，定义在MethodChannel中。
代码位于engine/src/flutter/shell/platform/darwin/common/framework/Source/FlutterChannels.mm：
// result用来异步提交调用结果。typedef void (^FlutterMethodCallHandler)(FlutterMethodCall* call, FlutterResult result)- (void)setMethodCallHandler:(FlutterMethodCallHandler)handler {if (!handler) {[_messenger setMessageHandlerOnChannel:_name binaryMessageHandler:nil];return;}// Make sure the block captures the codec, not self.NSObject<FlutterMethodCodec>* codec = _codec;FlutterBinaryMessageHandler messageHandler = ^(NSData* message, FlutterBinaryReply callback) {FlutterMethodCall* call = [codec decodeMethodCall:message];handler(call, ^(id result) {// 如果返回的是FlutterMethodNotImplemented表明此次调用未找到方法。if (result == FlutterMethodNotImplemented)callback(nil);// 如果返回的是FlutterError表明调用失败。else if ([result isKindOfClass:[FlutterError class]])callback([codec encodeErrorEnvelope:(FlutterError*)result]);elsecallback([codec encodeSuccessEnvelope:result]);});};[_messenger setMessageHandlerOnChannel:_name binaryMessageHandler:messageHandler];}
FlutterStreamHandler
用于事件流（Stream）通信，定义在EventChannel中。StreamHandler用于事件流的通信，通常是用于平台主动向Flutter发送事件通知。在iOS中是一个FlutterStreamHandler协议。
@protocol FlutterStreamHandler- (FlutterError* _Nullable)onListenWithArguments:(id _Nullable)argumentseventSink:(FlutterEventSink)events;- (FlutterError* _Nullable)onCancelWithArguments:(id _Nullable)arguments;@end
在FlutterStreamHandler存在两个方法:
代码位于：
static void SetStreamHandlerMessageHandlerOnChannel(NSObject<FlutterStreamHandler>* handler,NSString* name,NSObject<FlutterBinaryMessenger>* messenger,NSObject<FlutterMethodCodec>* codec) {__block FlutterEventSink currentSink = nil;FlutterBinaryMessageHandler messageHandler = ^(NSData* message, FlutterBinaryReply callback) {FlutterMethodCall* call = [codec decodeMethodCall:message];if ([call.method isEqual:@"listen"]) {......FlutterError* error = [handler onListenWithArguments:call.arguments eventSink:currentSink];......} else if ([call.method isEqual:@"cancel"]) {......FlutterError* error = [handler onCancelWithArguments:call.arguments];......}[messenger setMessageHandlerOnChannel:name binaryMessageHandler:messageHandler];}
onListenWithArguments:。当Flutter端开始监听平台事件时，会向平台发起一次MethodCall，其中方法名为listen，也就是最终会调用FlutterStreamHandler中的onListenWithArguments:方法。该方法中接受两个参数，其中eventSink的参数可用于向Flutter发送事件(实际上还是通过BinaryMessager)。
onCancelWithArguments:。当Flutter开始停止监听平台事件时，会再向平台发起一次MethodCall，其中方法名为cancel，最终会调用[…]
