38.OkHttp的同步与异步请求 - 《Android Studio3》

总体压缩包
一、什么是OkHttp？
- https://square.github.io/okhttp/">https://square.github.io/okhttp/
- 由Square公司贡献的一个处理网络请求的开源项目，是目前Android使用最广泛的网络框架。从Android4.4开始HttpURLConnection的底层实现采用的是OkHttp。
implementation(“com.squareup.okhttp3.okhttp:4.9.0”)
https://www.httpbin.org/">测试URL:https://www.httpbin.org/
二、OkHttp基本用法
四、get同步请求的实现步骤
五、get同步请求的整体代码
- activity_main.xml文件">1.布局activity_main.xml文件
- 2.MainActivity
- 3.效果图：
六、get异步请求的实现步骤
- get异步实现的压缩包
- 1.如上同get同步请求的前三个方法一致，调用enqueue实现异步请求
七、get异步请求的整体代码
- 1.MainActivity文件代码
- 2.效果图：
八、post同步请求与异步请求的实现步骤
- 1.post同步请求的实现
- 2.post异步请求的实现
九、整体代码

总体压缩包

NetworkDemo.zip

一、什么是OkHttp？

https://square.github.io/okhttp/

由Square公司贡献的一个处理网络请求的开源项目，是目前Android使用最广泛的网络框架。从Android4.4开始HttpURLConnection的底层实现采用的是OkHttp。

1.支持HTTP/2并允许对同一主机的所有请求共享一个套接字；

2.如果非HTTP/2，则通过连接池减少了请求延迟；

3.默认请求GZip压缩数据；

4.响应缓存，避免了重复请求的网络；

implementation(“com.squareup.okhttp3.okhttp:4.9.0”)

测试URL:https://www.httpbin.org/

二、OkHttp基本用法

OkHttpClient okHttpClient=new OkHttpClient ();

同步请求：

异步请求：

四、get同步请求的实现步骤

get同步实现的压缩包

[NetworkDemo.zip](https://www.yuque.com/attachments/yuque/0/2021/zip/1574587/1624804724094-2216425d-d763-479a-b064-584bef2e29eb.zip?_lake_card=%7B%22src%22%3A%22https%3A%2F%2Fwww.yuque.com%2Fattachments%2Fyuque%2F0%2F2021%2Fzip%2F1574587%2F1624804724094-2216425d-d763-479a-b064-584bef2e29eb.zip%22%2C%22name%22%3A%22NetworkDemo.zip%22%2C%22size%22%3A18085795%2C%22type%22%3A%22application%2Fx-zip-compressed%22%2C%22ext%22%3A%22zip%22%2C%22status%22%3A%22done%22%2C%22taskId%22%3A%22u72b7c640-af7a-4c48-8fee-dedfe03b23a%22%2C%22taskType%22%3A%22upload%22%2C%22id%22%3A%22ub4354da2%22%2C%22card%22%3A%22file%22%7D)

1.添加依赖

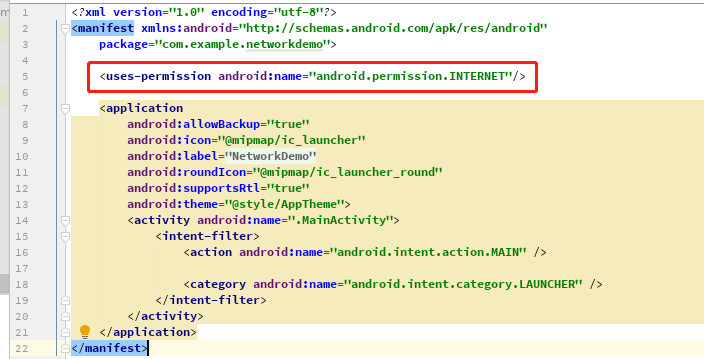

2.在清单文件中添加权限

3.在布局中添加请求的按钮

4.实现按钮的方法

五、get同步请求的整体代码

1.布局activity_main.xml文件

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">
    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:onClick="getSync"
        android:text="get同步请求"
        android:textSize="30sp" />
    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:onClick="getASync"
        android:text="get异步请求"
        android:textSize="30sp" />
    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:onClick="postSync"
        android:text="post同步请求"
        android:textSize="30sp" />
    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:onClick="postASync"
        android:text="post异步请求"
        android:textSize="30sp" />
</LinearLayout>

2.MainActivity

package com.example.networkdemo;
import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import java.io.IOException;
import okhttp3.Call;
import okhttp3.OkHttpClient;
import okhttp3.Request;
import okhttp3.Response;
public class MainActivity extends AppCompatActivity {
    // 第一步，构建请求器
    private OkHttpClient okHttpClient;
    private static final String TAG="MainActivity";
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        okHttpClient = new OkHttpClient();
    }
    //get 同步请求
    public void getSync(View view) {
       // 第五步，创建一个子线程
        new Thread(){
            @Override
            public void run() {
  // 第二步，创建请求对象
  Request request = new Request.Builder().url("https://www.httpbin.org/get?a=1&b=2").build();
                // 第三步，准备好请求的Call对象
                Call call = okHttpClient.newCall(request);
                try {
                    // 第四步，请求得到的响应
                    Response response = call.execute();
                    Log.i(TAG,"getSync:"+response.body().string());
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }.start();
    }
    public void getASync(View view) {
    }
    public void postSync(View view) {
    }
    public void postASync(View view) {
    }
}

3.效果图：

六、get异步请求的实现步骤

get异步实现的压缩包

[NetworkDemo.zip](https://www.yuque.com/attachments/yuque/0/2021/zip/1574587/1624805661894-51e34b1e-3579-4261-9204-89fdf2a90917.zip?_lake_card=%7B%22src%22%3A%22https%3A%2F%2Fwww.yuque.com%2Fattachments%2Fyuque%2F0%2F2021%2Fzip%2F1574587%2F1624805661894-51e34b1e-3579-4261-9204-89fdf2a90917.zip%22%2C%22name%22%3A%22NetworkDemo.zip%22%2C%22size%22%3A18105975%2C%22type%22%3A%22application%2Fx-zip-compressed%22%2C%22ext%22%3A%22zip%22%2C%22status%22%3A%22done%22%2C%22taskId%22%3A%22u76831c50-bb07-43ab-a562-aaf145d2c0b%22%2C%22taskType%22%3A%22upload%22%2C%22id%22%3A%22uc3d1afd5%22%2C%22card%22%3A%22file%22%7D)

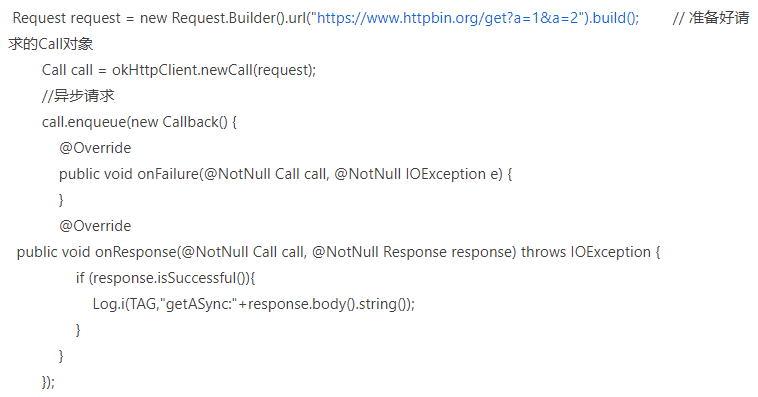

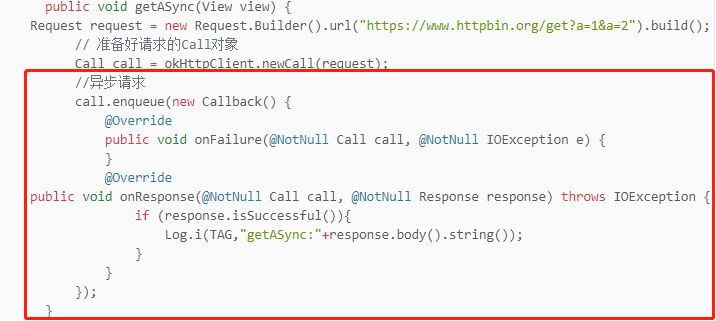

1.如上同get同步请求的前三个方法一致，调用enqueue实现异步请求

七、get异步请求的整体代码

1.MainActivity文件代码

package com.example.networkdemo;
import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import org.jetbrains.annotations.NotNull;
import java.io.IOException;
import okhttp3.Call;
import okhttp3.Callback;
import okhttp3.OkHttpClient;
import okhttp3.Request;
import okhttp3.Response;
public class MainActivity extends AppCompatActivity {
    // 请求器
    private OkHttpClient okHttpClient;
    private static final String TAG="MainActivity";
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        okHttpClient = new OkHttpClient();
    }
    public void getSync(View view) {
        new Thread(){
            @Override
            public void run() {
                // 请求对象
                Request request = new Request.Builder().url("https://www.httpbin.org/get?a=1&b=2").build();
                // 准备好请求的Call对象
                Call call = okHttpClient.newCall(request);
                try {
                    // 请求得到的响应
                    Response response = call.execute();
                    Log.i(TAG,"getSync:"+response.body().string());
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }.start();
    }
    public void getASync(View view) {
  Request request = new Request.Builder().url("https://www.httpbin.org/get?a=1&a=2").build();
        // 准备好请求的Call对象
        Call call = okHttpClient.newCall(request);
        //异步请求
        call.enqueue(new Callback() {
            @Override
            public void onFailure(@NotNull Call call, @NotNull IOException e) {
            }
            @Override
  public void onResponse(@NotNull Call call, @NotNull Response response) throws IOException {
                if (response.isSuccessful()){
                    Log.i(TAG,"getASync:"+response.body().string());
                }
            }
        });
    }
    public void postSync(View view) {
    }
    public void postASync(View view) {
    }
}

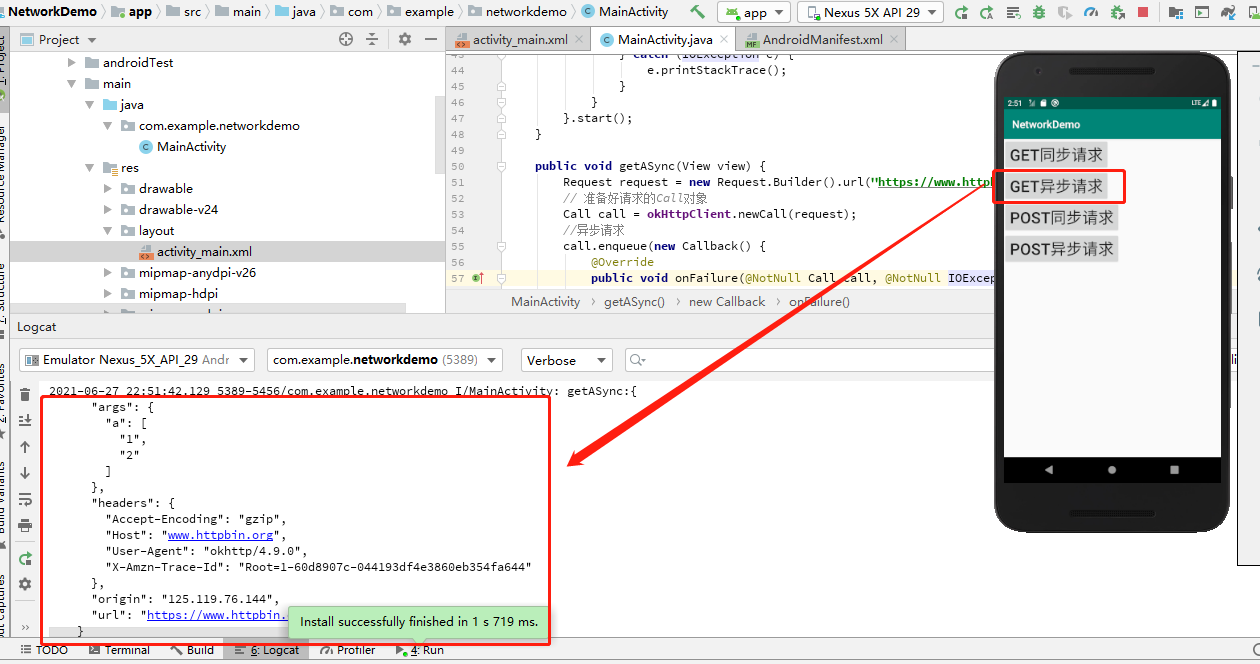

2.效果图：

八、post同步请求与异步请求的实现步骤

1.post同步请求的实现

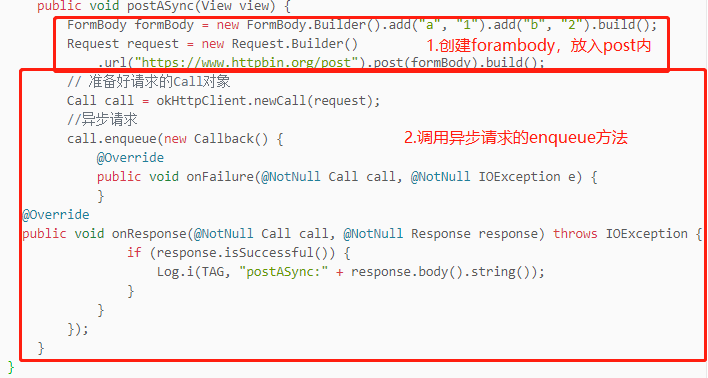

2.post异步请求的实现

九、整体代码

1.MainActivity文件整体代码

package com.example.networkdemo;
import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import org.jetbrains.annotations.NotNull;
import java.io.IOException;
import okhttp3.Call;
import okhttp3.Callback;
import okhttp3.FormBody;
import okhttp3.OkHttpClient;
import okhttp3.Request;
import okhttp3.Response;
public class MainActivity extends AppCompatActivity {
    // 请求器
    private OkHttpClient okHttpClient;
    private static final String TAG="MainActivity";
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        okHttpClient = new OkHttpClient();
    }
    public void getSync(View view) {
        new Thread(){
            @Override
            public void run() {
                // 请求对象
  Request request = new Request.Builder().url("https://www.httpbin.org/get?a=1&b=2").build();
                // 准备好请求的Call对象
                Call call = okHttpClient.newCall(request);
                try {
                    // 请求得到的响应
                    Response response = call.execute();
                    Log.i(TAG,"getSync:"+response.body().string());
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }.start();
    }
    public void getASync(View view) {
  Request request = new Request.Builder().url("https://www.httpbin.org/get?a=1&a=2").build();
        // 准备好请求的Call对象
        Call call = okHttpClient.newCall(request);
        //异步请求
        call.enqueue(new Callback() {
            @Override
            public void onFailure(@NotNull Call call, @NotNull IOException e) {
            }
  @Override
  public void onResponse(@NotNull Call call, @NotNull Response response) throws IOException {
                if (response.isSuccessful()){
                    Log.i(TAG,"getASync:"+response.body().string());
                }
            }
        });
    }
    public void postSync(View view) {
        new Thread(){
            @Override
            public void run() {
              FormBody formBody = new FormBody.Builder().add("a", "1").add("b", "2").build();
              Request request = new Request.Builder()
                                 .url("https://www.httpbin.org/post").post(formBody).build();
                // 准备好请求的Call对象
                Call call = okHttpClient.newCall(request);
                try {
                    // 请求得到的响应
                    Response response = call.execute();
                    Log.i(TAG,"postSync:"+response.body().string());
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }.start();
    }
    public void postASync(View view) {
        FormBody formBody = new FormBody.Builder().add("a", "1").add("b", "2").build();
        Request request = new Request.Builder()
            .url("https://www.httpbin.org/post").post(formBody).build();
        // 准备好请求的Call对象
        Call call = okHttpClient.newCall(request);
        //异步请求
        call.enqueue(new Callback() {
            @Override
            public void onFailure(@NotNull Call call, @NotNull IOException e) {
            }
  @Override
  public void onResponse(@NotNull Call call, @NotNull Response response) throws IOException {
                if (response.isSuccessful()) {
                    Log.i(TAG, "postASync:" + response.body().string());
                }
            }
        });
    }
}

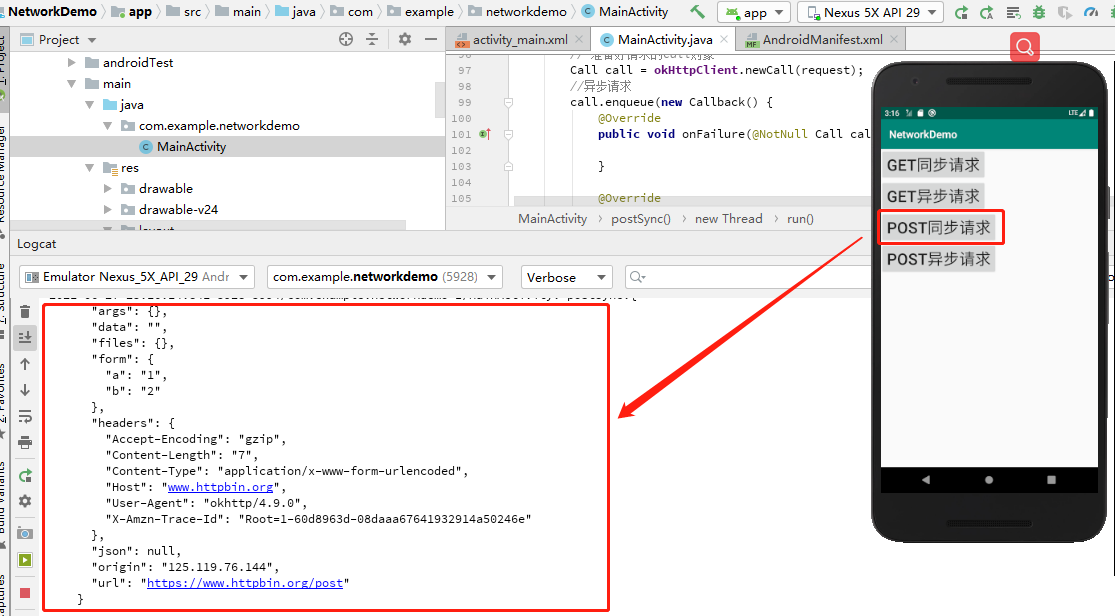

2.post同步请求效果图：

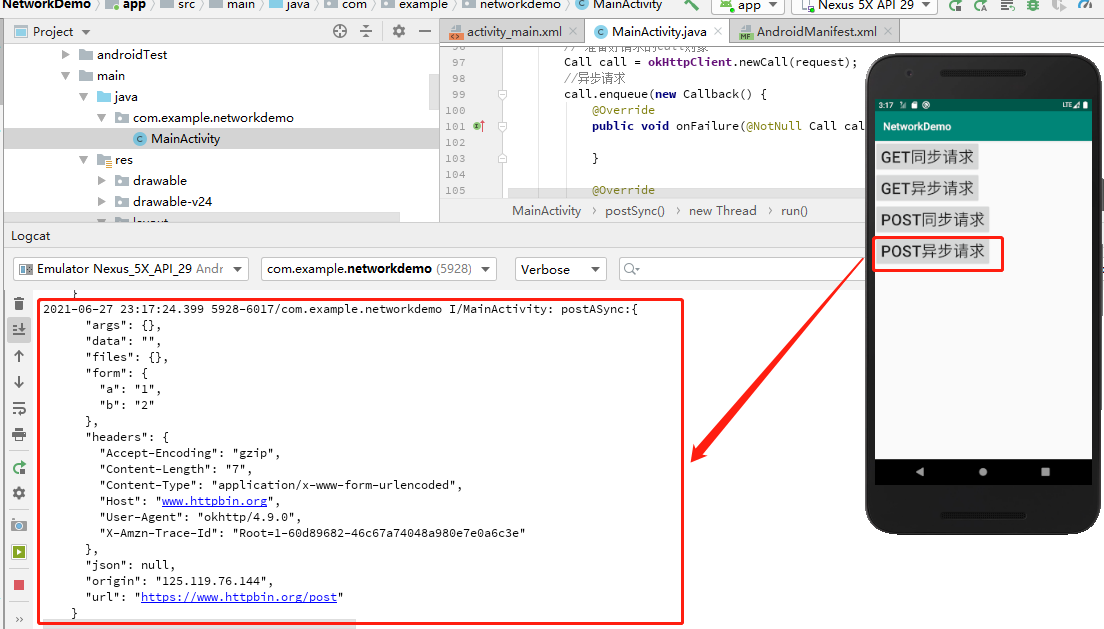

3.post异步请求效果图：
