• Step 1: Detect edges.
• Step 2: Use the edges in the image to find the contour (outline) representing the piece of paper being scanned.
• Step 3: Apply a perspective transform to obtain the top-down view of the document.

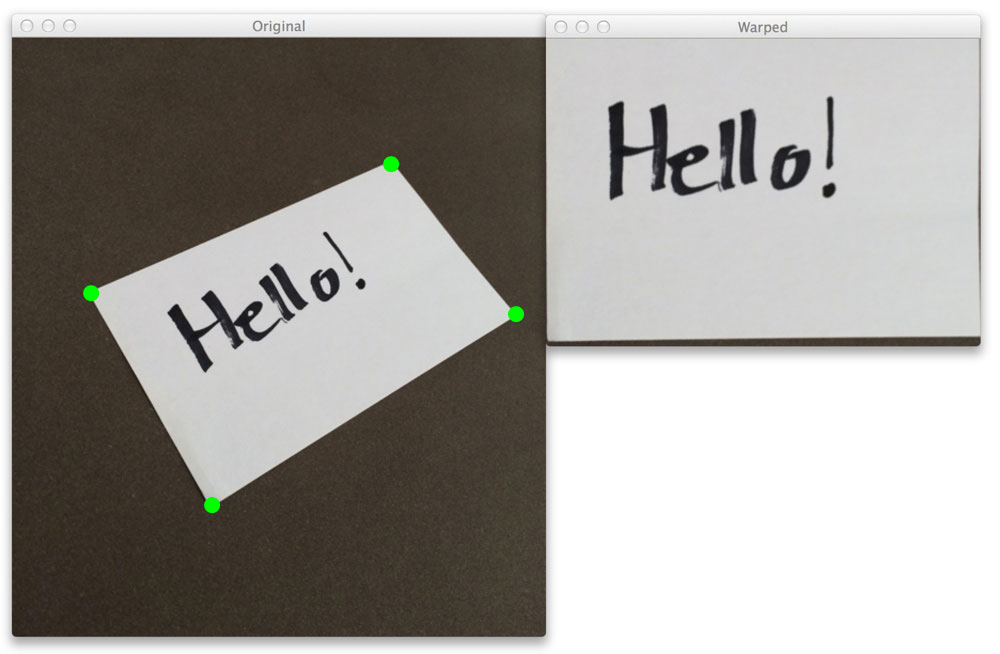

Perspective Transform

Edge Detection

Finding Contours

Perspective Transform & Threshold

# import the necessary packages
from transform import four_point_transform
from skimage.filters import threshold_local
import numpy as np
import argparse
import cv2
import imutils
# construct the argument parser and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("-i", "--image", required = False, default='test.jpg', help = "Path to the image to be scanned")
args = vars(ap.parse_args())
# load the image and compute the ratio of the old height
# to the new height, clone it, and resize it
image = cv2.imread(args["image"])
ratio = image.shape[0] / 1024.0
orig = image.copy()
image = imutils.resize(image, height = 1024)
# convert the image to grayscale, blur it, and find edges
# in the image
gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
gray = cv2.GaussianBlur(gray, (5, 5), 0)
edged = cv2.Canny(gray, 75, 200)
# show the original image and the edge detected image
print("STEP 1: Edge Detection")
cv2.imshow("Image", image)
cv2.waitKey(0)
cv2.imshow("Edged", edged)
cv2.waitKey(0)
#cv2.destroyAllWindows()
# find the contours in the edged image, keeping only the
# largest ones, and initialize the screen contour
cnts = cv2.findContours(edged.copy(), cv2.RETR_LIST, cv2.CHAIN_APPROX_SIMPLE)
cnts = imutils.grab_contours(cnts)
cnts = sorted(cnts, key = cv2.contourArea, reverse = True)[:5]
# loop over the contours
for c in cnts:
    # approximate the contour
    peri = cv2.arcLength(c, True)
    approx = cv2.approxPolyDP(c, 0.02 * peri, True)
    # if our approximated contour has four points, then we
    # can assume that we have found our screen
    if len(approx) == 4:
        screenCnt = approx
        break
    pass
# show the contour (outline) of the piece of paper
print("STEP 2: Find contours of paper")
cv2.drawContours(image, [screenCnt], -1, (0, 255, 0), 2)
cv2.imshow("Outline", image)
cv2.waitKey(0)
# apply the four point transform to obtain a top-down
# view of the original image
warped = four_point_transform(orig, screenCnt.reshape(4, 2) * ratio)
# convert the warped image to grayscale, then threshold it
# to give it that 'black and white' paper effect
warped = cv2.cvtColor(warped, cv2.COLOR_BGR2GRAY)
T = threshold_local(warped, 11, offset = 10, method = "gaussian")
warped = (warped > T).astype("uint8") * 255
# show the original and scanned images
print("STEP 3: Apply perspective transform")
cv2.imshow("Original", imutils.resize(orig, height = 1024))
cv2.waitKey(0)
cv2.imshow("Scanned", imutils.resize(warped, width = 360))
cv2.waitKey(0)
cv2.destroyAllWindows()
