1 Seata 源码搭建

1.1 环境准备

JDK 1.8
Maven 3.2+

1.2 源码构建

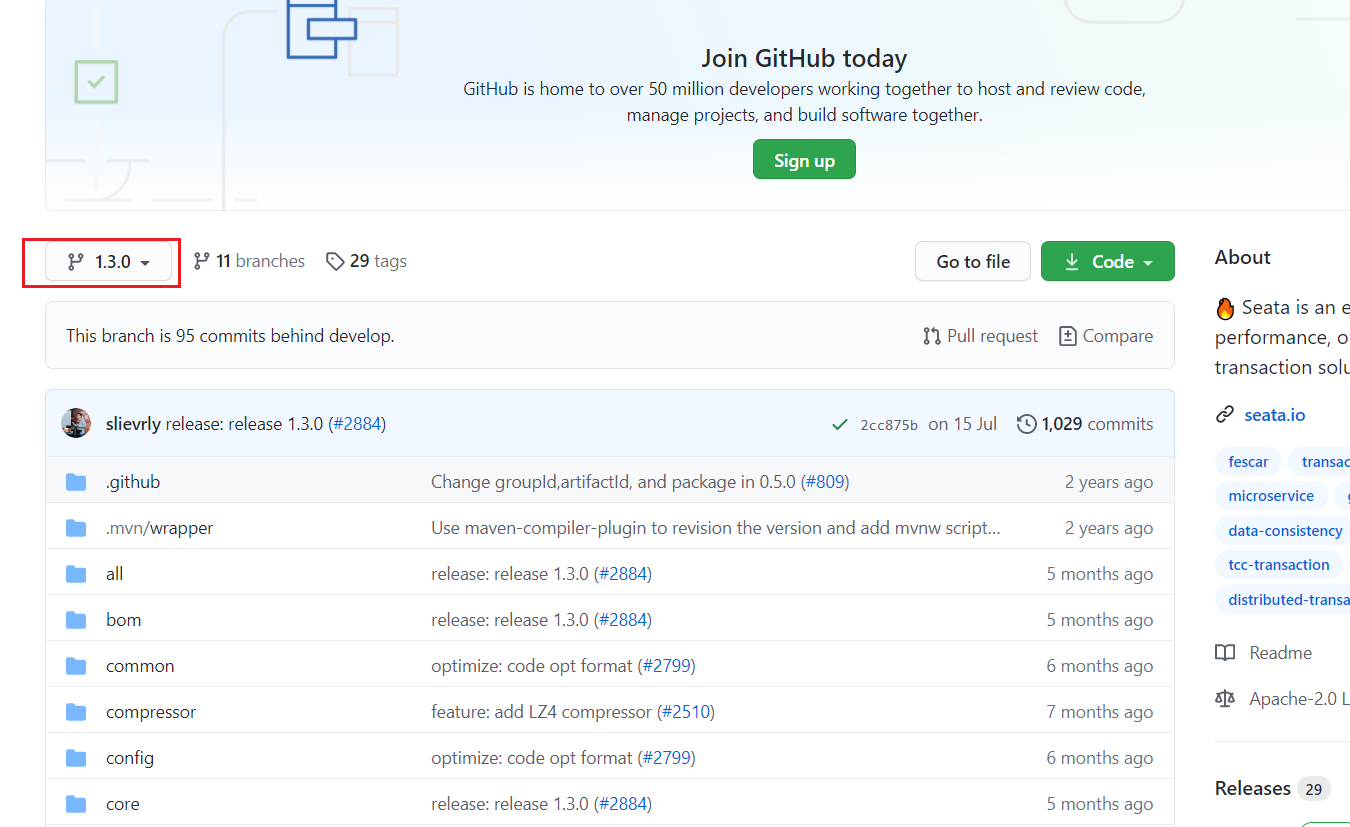

从github上，下载seata的源码到本地,版本选择1.3.0 https://github.com/seata/seata/tree/1.3.0

1.3 导⼊idea⼯程

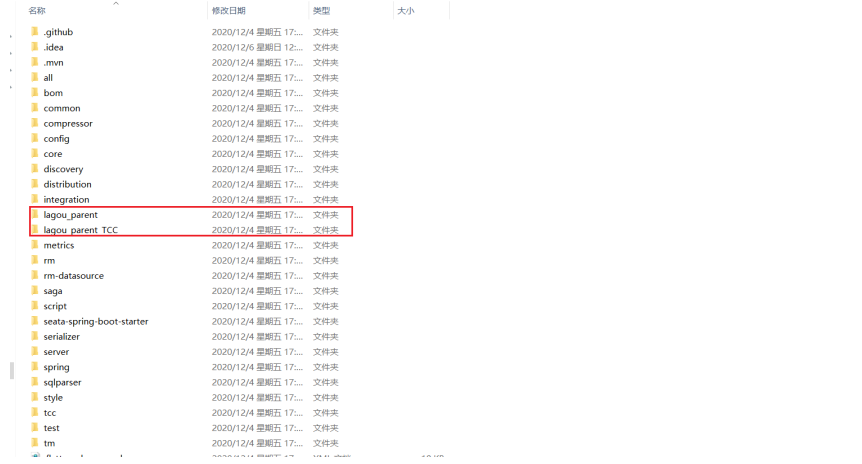

  1. 将lagou-parent⼯程放⼊seata源码中导⼊idea

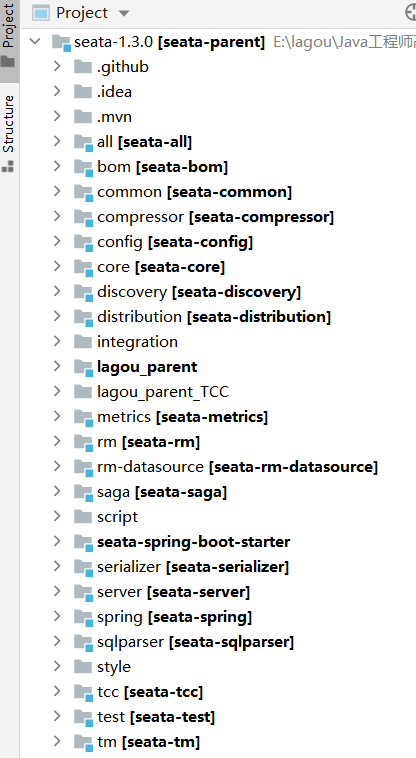

    2. idea⼯程⽬录
    3. registry.conf ⽂件替换之前已搭建好的nacos注册中⼼和配置中⼼的⽂件 ```java registry {

    file 、nacos 、eureka、redis、zk、consul、etcd3、sofa

    type = “nacos” loadBalance = “RandomLoadBalance” loadBalanceVirtualNodes = 10

    nacos { application = “seata-server” serverAddr = “106.75.226.220:8848” group = “SEATA_GROUP” namespace = “” cluster = “default” username = “nacos” password = “nacos” } eureka { serviceUrl = “http://localhost:8761/eureka“ application = “default” weight = “1” } redis { serverAddr = “localhost:6379” db = 0 password = “” cluster = “default” timeout = 0 } zk { cluster = “default” serverAddr = “127.0.0.1:2181” sessionTimeout = 6000 connectTimeout = 2000 username = “” password = “” } consul { cluster = “default” serverAddr = “127.0.0.1:8500” } etcd3 { cluster = “default” serverAddr = “http://localhost:2379“ } sofa { serverAddr = “127.0.0.1:9603” application = “default” region = “DEFAULT_ZONE” datacenter = “DefaultDataCenter” cluster = “default” group = “SEATA_GROUP” addressWaitTime = “3000” } file { name = “file.conf” } }

config {

file、nacos 、apollo、zk、consul、etcd3

type = “nacos”

nacos { serverAddr = “106.75.226.220:8848” namespace = “” group = “SEATA_GROUP” username = “nacos” password = “nacos” } consul { serverAddr = “127.0.0.1:8500” } apollo { appId = “seata-server” apolloMeta = “http://192.168.1.204:8801“ namespace = “application” apolloAccesskeySecret = “” } zk { serverAddr = “127.0.0.1:2181” sessionTimeout = 6000 connectTimeout = 2000 username = “” password = “” } etcd3 { serverAddr = “http://localhost:2379“ } file { name = “file.conf” } }

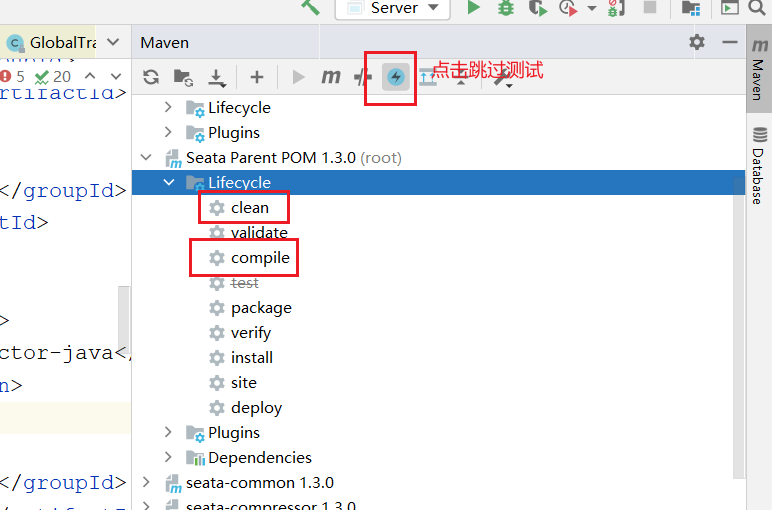

  1. 4. 编译⼯程clean-->compile<br />![image.png](https://cdn.nlark.com/yuque/0/2021/png/12497888/1619166768454-0d72eaf2-b467-4950-a5a2-3ca3a7e97993.png#clientId=u3a7ce6bc-3a28-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=510&id=u60825a3d&margin=%5Bobject%20Object%5D&name=image.png&originHeight=510&originWidth=772&originalType=binary&ratio=1&rotation=0&showTitle=false&size=47319&status=done&style=none&taskId=uf0f655ba-d21b-4408-b654-4d62703a474&title=&width=772)<br />![image.png](https://cdn.nlark.com/yuque/0/2021/png/12497888/1619166775369-759a60c9-ed15-45fc-b8ae-0c8184b105aa.png#clientId=u3a7ce6bc-3a28-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=607&id=u8613d5dc&margin=%5Bobject%20Object%5D&name=image.png&originHeight=607&originWidth=1648&originalType=binary&ratio=1&rotation=0&showTitle=false&size=104542&status=done&style=none&taskId=u6dc81e89-9a28-4229-9fb3-5271bb1b353&title=&width=1648)<br />查看nacos是否注册上<br />![image.png](https://cdn.nlark.com/yuque/0/2021/png/12497888/1619166787687-cd6da1e7-c822-43b8-be66-ab2500d65a2c.png#clientId=u3a7ce6bc-3a28-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=360&id=u8fb8155c&margin=%5Bobject%20Object%5D&name=image.png&originHeight=360&originWidth=1854&originalType=binary&ratio=1&rotation=0&showTitle=false&size=42899&status=done&style=none&taskId=u4cf80f56-7d7f-48b9-8cf7-ee9d7d56a7a&title=&width=1854)
  2. <a name="O98Q1"></a>
  3. ## 1.4 seata⼯程结构<br /><br />

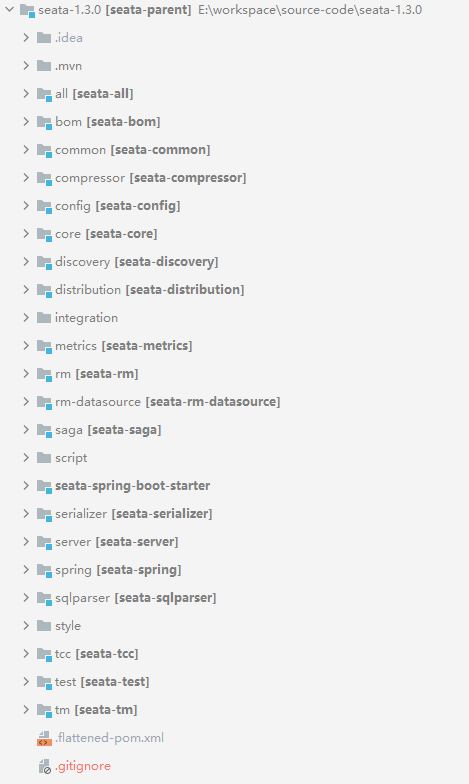

  4. 先来看下整体seata 的⼯程结构<br />![image.png](https://cdn.nlark.com/yuque/0/2021/png/12497888/1619166863001-527fb5f8-68de-4992-ae2b-b8a53cbdb0f3.png#clientId=u3a7ce6bc-3a28-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=758&id=u60274927&margin=%5Bobject%20Object%5D&name=image.png&originHeight=758&originWidth=416&originalType=binary&ratio=1&rotation=0&showTitle=false&size=44534&status=done&style=none&taskId=u74934b33-0a74-4b00-b316-ca592ee072e&title=&width=416)
  6. - **seata-common 模块:** seata-common 项⽬，提供 Seata 封装的⼯具类、异常类等
  7. - **seata-core 模块:** seata-core 项⽬，提供 Seata 封装的 RPC、数据模型、通信消息格式等
  8. - **seata-config 模块**:从配置中⼼读取配置。
  9. - **seata-discovery模块:**⽤于 Seata TC 注册到注册中⼼。⽤于 Seata TM 从注册中⼼发现 Seata TC。
  10. - **seata-rm模块:** seata-rm 项⽬，Seata 对 RM 的核⼼实现
  11. - **seata-rm-datasource 模块:**seata-rm-datasource 项⽬，Seata 通过对 JDBC 拓展，从⽽实现对MySQL 等的透明接⼊ Seata RM 的实现
  12. - **seata-server 模块:**seata-server 项⽬，Seata 对 TC 的核⼼实现，提供了事务协调、锁、事务状态、事务会话等功能
  13. - **seata-tm模块:**seata-tm 项⽬，Seata 对 TM 的实现，提供了全局事务管理，例如说事务的发起，提交，回滚等
  14. - **seata-tcc 模块:**seata-tcc 项⽬，Seata 对 TCC 事务模式的实现
  15. - **seata-spring 模块:** seata-spring 项⽬，Spring 对 Seata 集成的实现。例如说，使⽤@GlobalTransactional 注解，⾃动创建全局事务，就是通过 seata-spring 项⽬来实现的。
  17. <a name="Yq8aw"></a>
  18. # 2 AT源码<br /><br />
  19. <a name="HaXaB"></a>
  20. ## 2.1 TC 启动流程

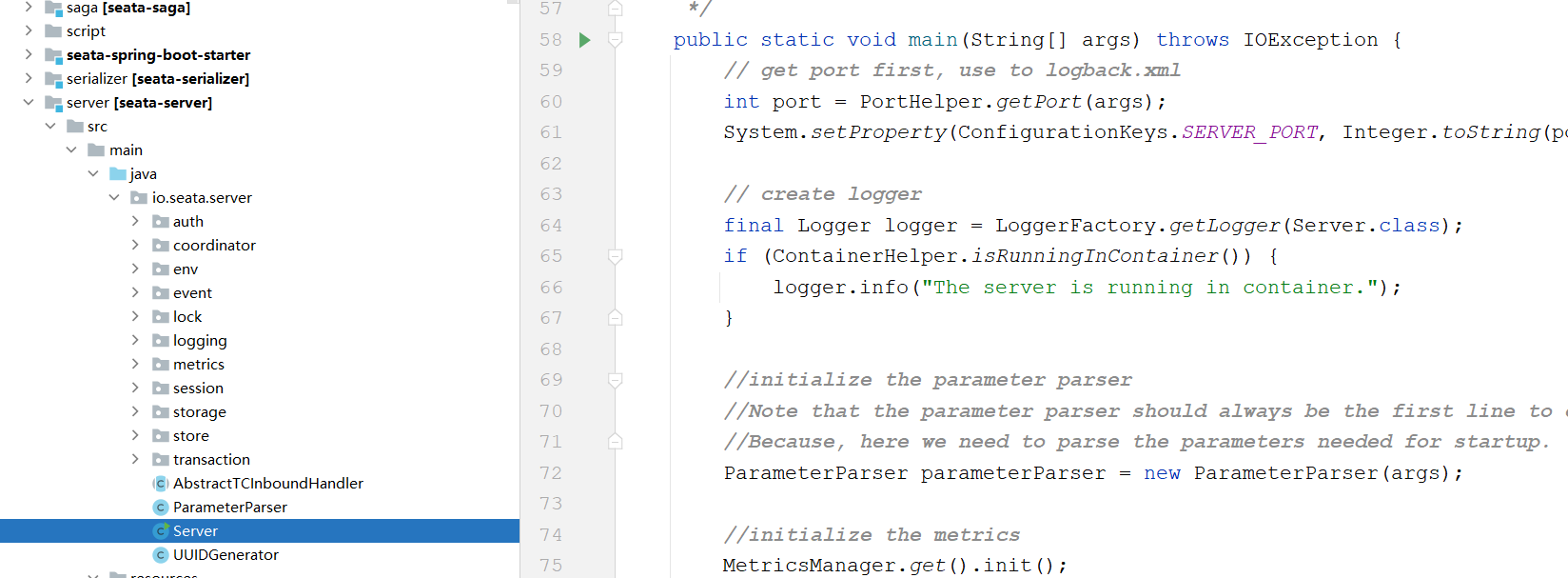

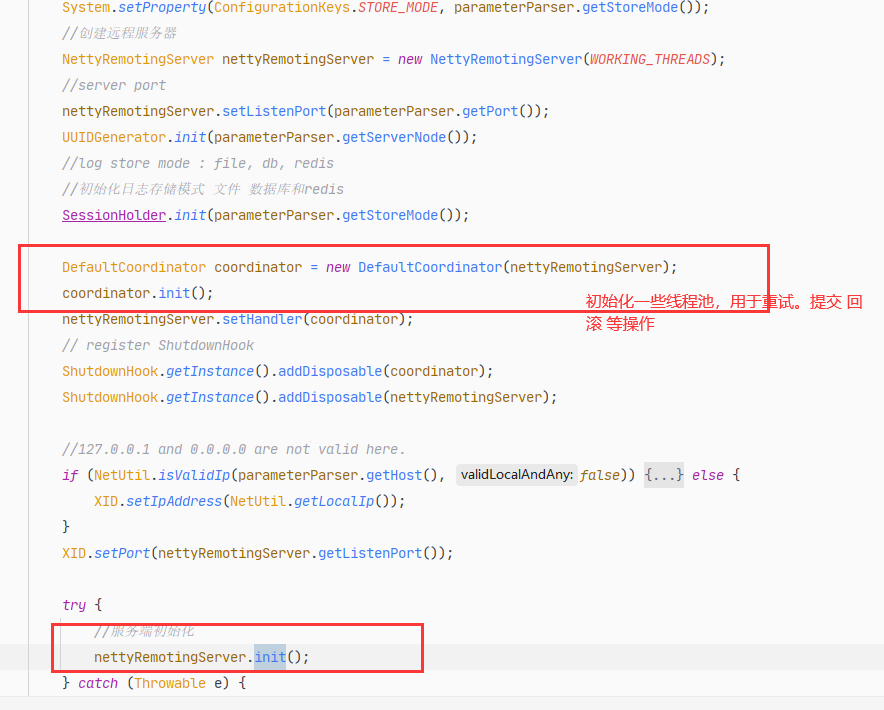

  21. ****TCserver启动执行main方法：**
  23. **首先设置日志存储模式**<br />**其次初始化一些线程池 定期检查服务注册 心跳 事务提交 回滚等操作**<br />![image.png](https://cdn.nlark.com/yuque/0/2021/png/12497888/1619320158720-8b60a86e-0465-4875-8c48-7b468e362b0c.png#clientId=u671ca88b-9f99-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=710&id=u73b43ee0&margin=%5Bobject%20Object%5D&name=image.png&originHeight=710&originWidth=884&originalType=binary&ratio=1&rotation=0&showTitle=false&size=126055&status=done&style=none&taskId=u98d710b9-41b3-43d0-a231-fa718d679c6&title=&width=884)<br />最后执行服务端初始化
  25. 1、coordinator.init();
  26. ```java
  27.     /**
  28.      * Init.
  29.      */
  30.     public void init() {
  31.         //重试回滚线程池 每秒钟执行一次
  32.         retryRollbacking.scheduleAtFixedRate(() -> {
  33.             try {
  34.                 handleRetryRollbacking();
  35.             } catch (Exception e) {
  36.                 LOGGER.info("Exception retry rollbacking ... ", e);
  37.             }
  38.         }, 0, ROLLBACKING_RETRY_PERIOD, TimeUnit.MILLISECONDS);
  39.         //重试提交线程池 每秒钟执行一次
  40.         retryCommitting.scheduleAtFixedRate(() -> {
  41.             try {
  42.                 handleRetryCommitting();
  43.             } catch (Exception e) {
  44.                 LOGGER.info("Exception retry committing ... ", e);
  45.             }
  46.         }, 0, COMMITTING_RETRY_PERIOD, TimeUnit.MILLISECONDS);
  47.         //每秒钟执行一次
  48.         asyncCommitting.scheduleAtFixedRate(() -> {
  49.             try {
  50.                 //异步事务提交
  51.                 handleAsyncCommitting();
  52.             } catch (Exception e) {
  53.                 LOGGER.info("Exception async committing ... ", e);
  54.             }
  55.         }, 0, ASYNC_COMMITTING_RETRY_PERIOD, TimeUnit.MILLISECONDS);
  57.         timeoutCheck.scheduleAtFixedRate(() -> {
  58.             try {
  59.                 timeoutCheck();
  60.             } catch (Exception e) {
  61.                 LOGGER.info("Exception timeout checking ... ", e);
  62.             }
  63.         }, 0, TIMEOUT_RETRY_PERIOD, TimeUnit.MILLISECONDS);
  64.         //undoLogDelte删除
  65.         undoLogDelete.scheduleAtFixedRate(() -> {
  66.             try {
  67.                 undoLogDelete();
  68.             } catch (Exception e) {
  69.                 LOGGER.info("Exception undoLog deleting ... ", e);
  70.             }
  71.         }, UNDO_LOG_DELAY_DELETE_PERIOD, UNDO_LOG_DELETE_PERIOD, TimeUnit.MILLISECONDS);
  72.     }

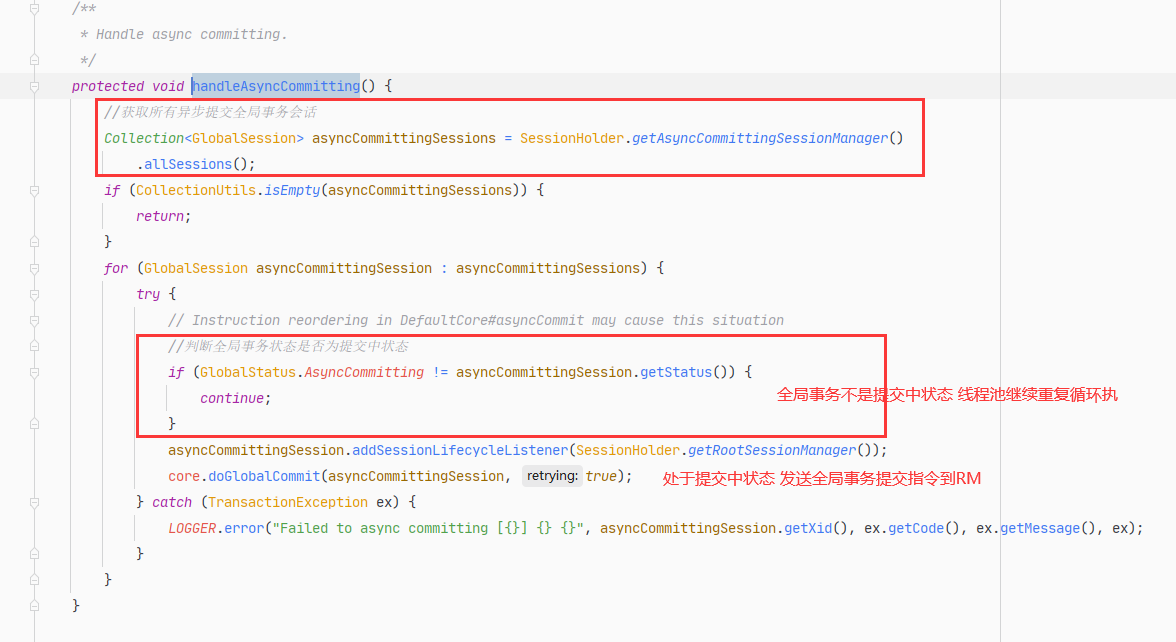

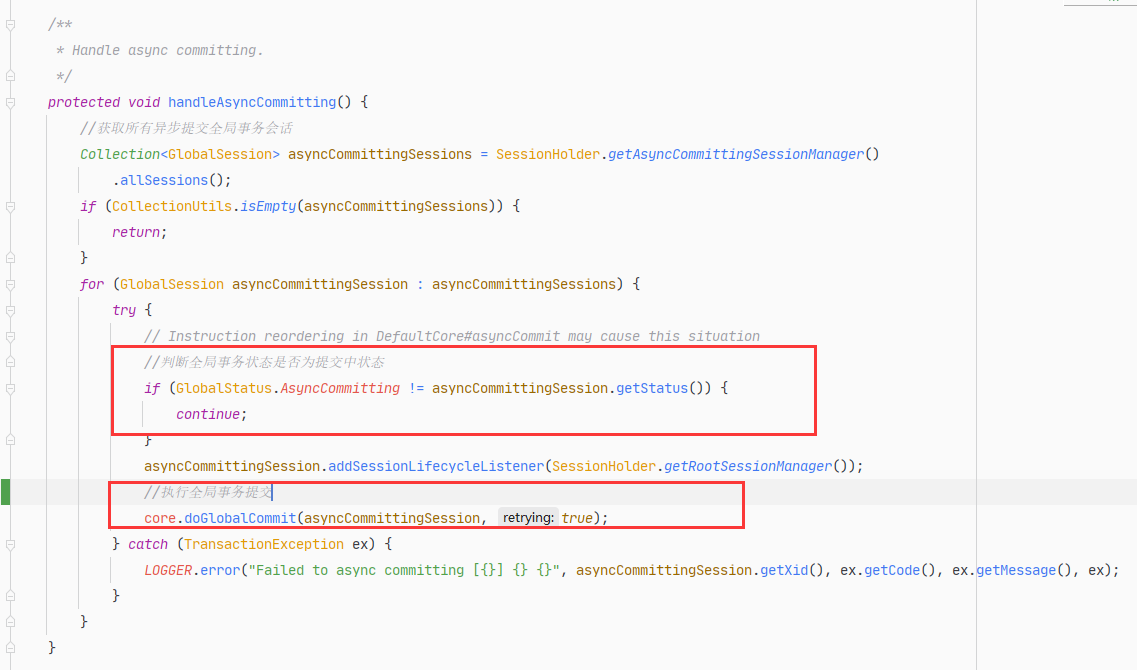

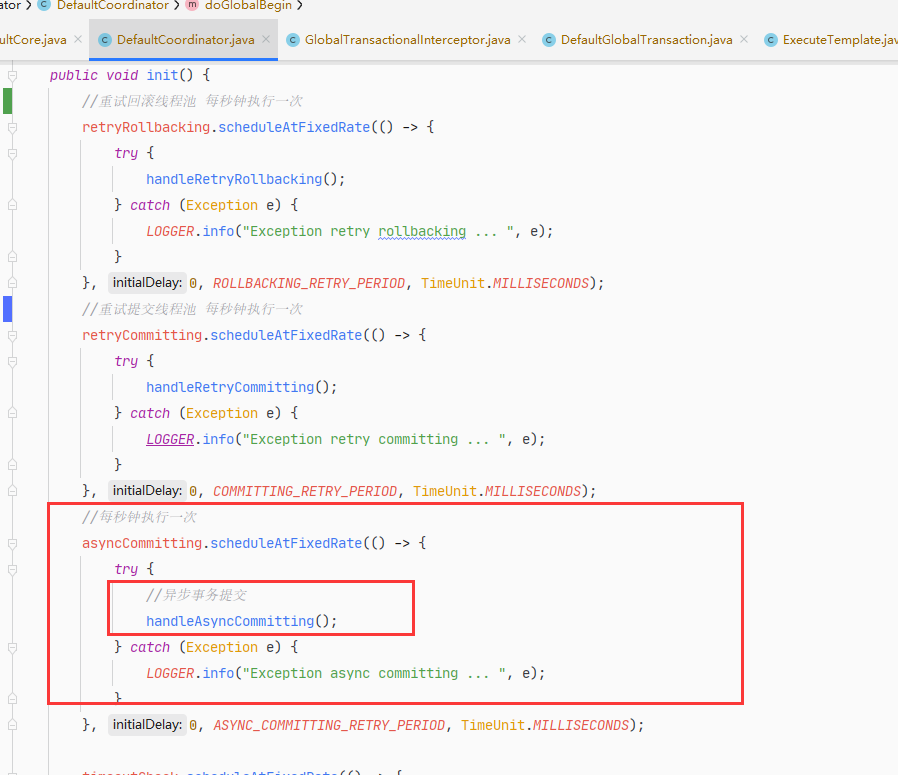

查看一下 handleAsyncCommitting() 异步事务提交

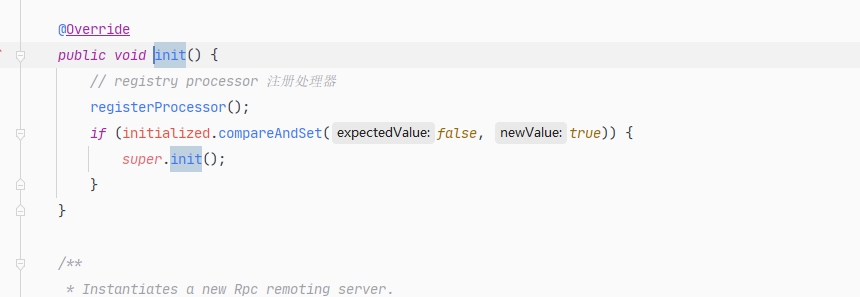

  1. io.seata.core.rpc.netty.NettyRemotingServer#init()方法： 服务端初始化

registerProcessor方法:
super.init()

2.2 TM / RM 初始化与服务注册TC

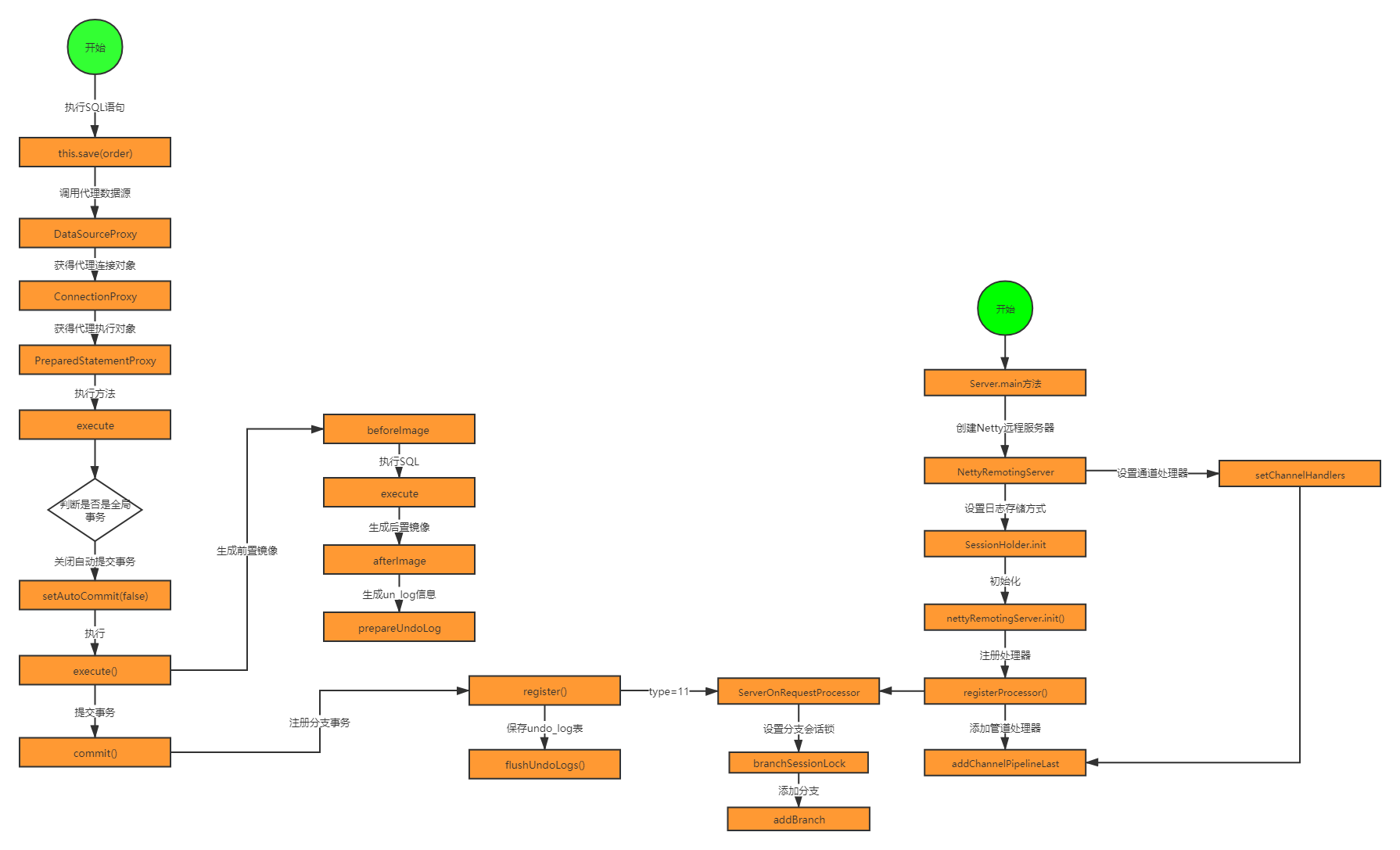

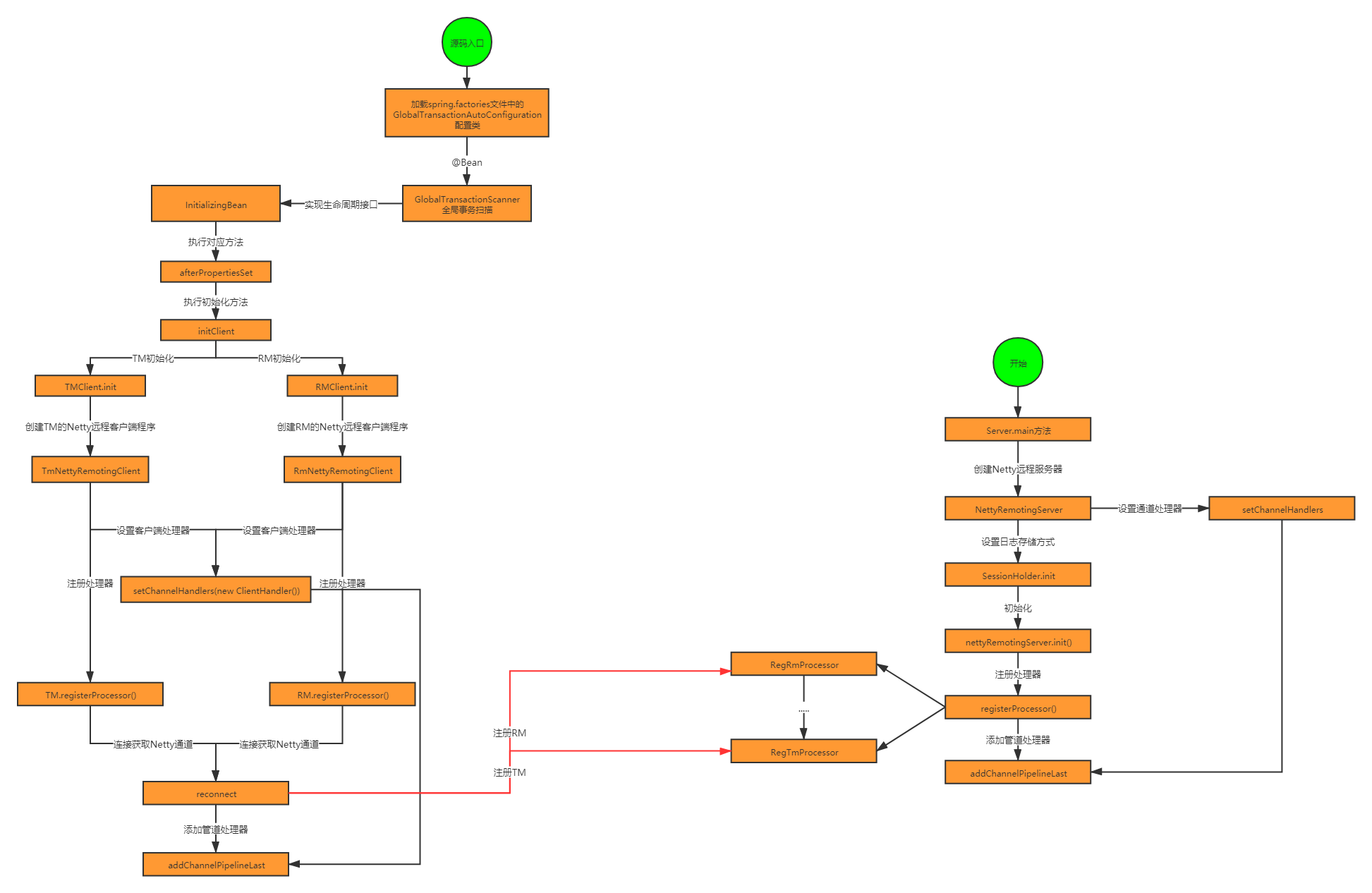

2.2.1 流程分析


2.2.2 注册主要源码跟踪

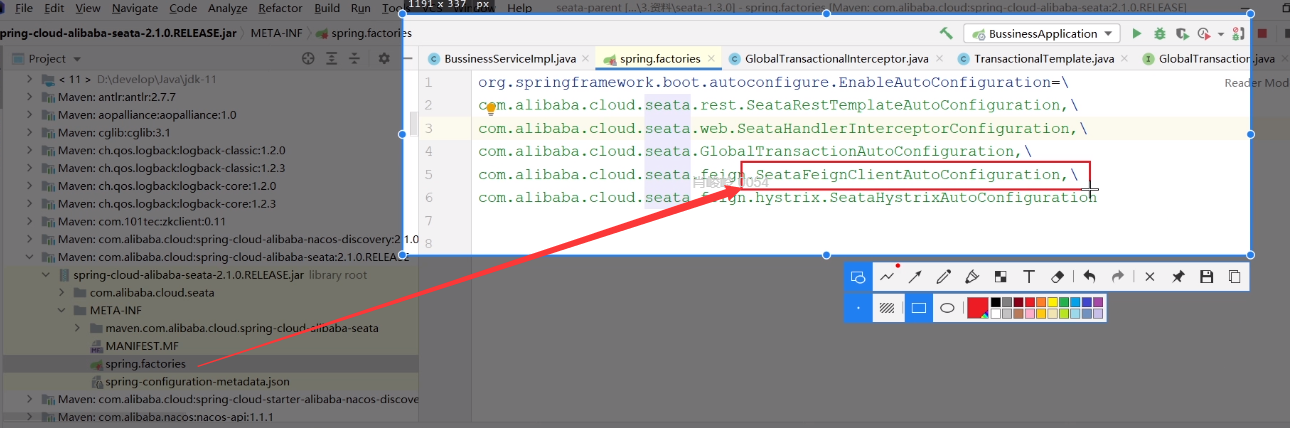

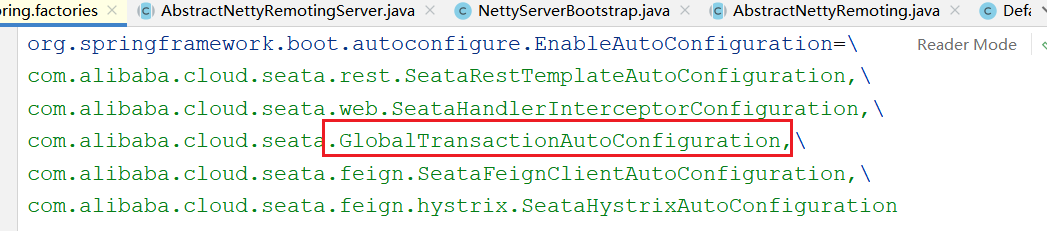

  1. 导⼊seata的起步依赖后,会加载spring-cloud-alibaba-seata-2.1.0.RELEASE.jar下⾯的

spring.factories⽂件,在⽂件中加载GlobalTransactionAutoConfiguration类,针对seata的⾃动配置类

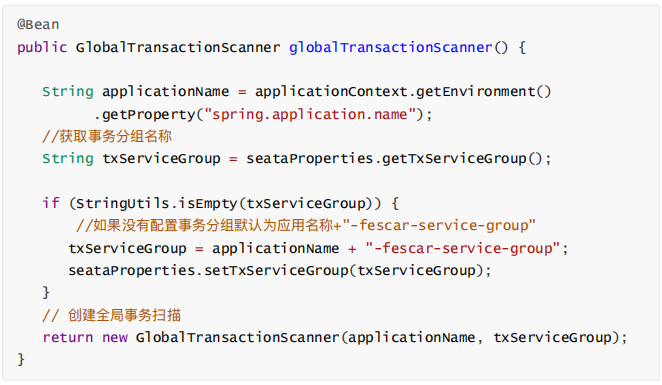

2. 声明GlobalTransactionScanner全局事务扫描Bean

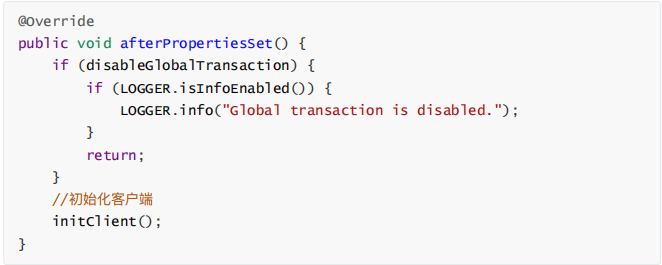

3. GlobalTransactionScanner实现了spring bean⽣命周期接⼝InitializingBean,会执⾏afterPropertiesSet⽅法

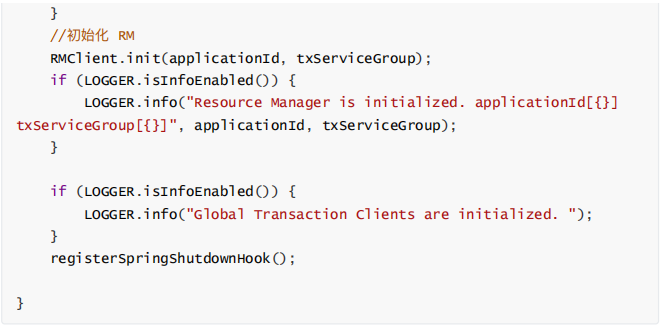

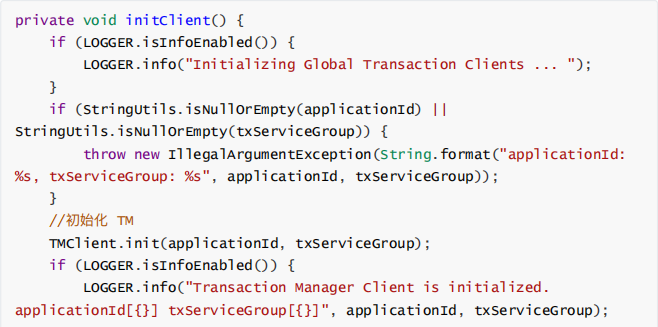

4. initClient⽅法

  1. TMClient.init⽅法

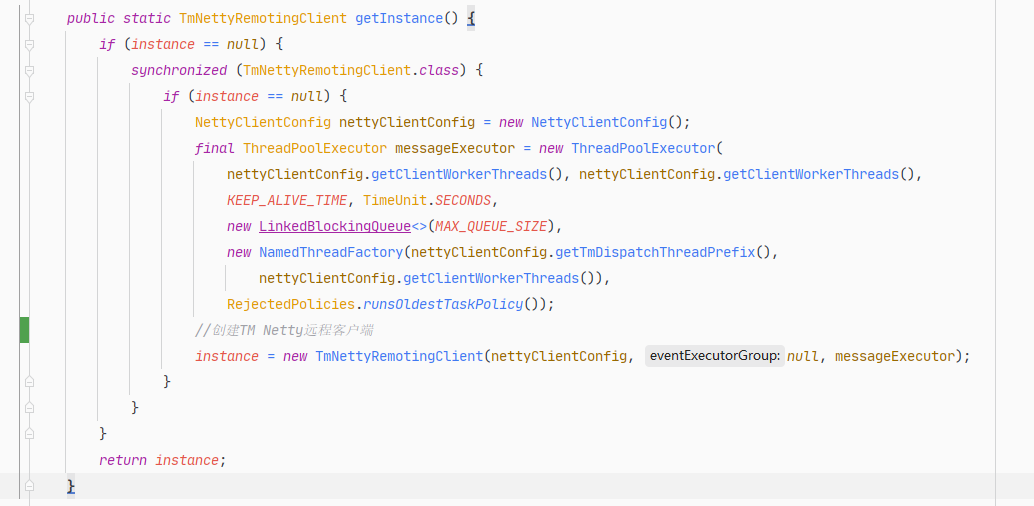

    getInstance⽅法获取实例
    TmNettyRemotingClient构造⽅法

    2.  public AbstractNettyRemotingClient(NettyClientConfig nettyClientConfig, EventExecutorGroup eventExecutorGroup,
    3.                                     ThreadPoolExecutor messageExecutor, NettyPoolKey.TransactionRole transactionRole) {
    4.      super(messageExecutor);
    5.      this.transactionRole = transactionRole;
    6.      //创建Netty客户端引导类
    7.      clientBootstrap = new NettyClientBootstrap(nettyClientConfig, eventExecutorGroup, transactionRole);
    8.      //设置通道处理程序
    9.      clientBootstrap.setChannelHandlers(new ClientHandler());
    10.      //创建Netty客户端通道管理器
    11.      clientChannelManager = new NettyClientChannelManager(
    12.          new NettyPoolableFactory(this, clientBootstrap), getPoolKeyFunction(), nettyClientConfig);
    13.  }

    ClientHandler客户端处理类

    1.  /**
    2.   * The type ClientHandler.
    3.   */
    4.  @Sharable
    5.  class ClientHandler extends ChannelDuplexHandler {
    6.      //读取通道消息
    7.      @Override
    8.      public void channelRead(final ChannelHandlerContext ctx, Object msg) throws Exception {
    9.          if (!(msg instanceof RpcMessage)) {
    10.              return;
    11.          }
    12.          //处理消息
    13.          processMessage(ctx, (RpcMessage) msg);
    14.      }
    16.      ........
    18.  }
  2. init()⽅法
    1.  @Override
    2.  public void init() {
    3.      //创建一个延时线程 在60秒后执行
    4.      timerExecutor.scheduleAtFixedRate(new Runnable() {
    5.          @Override
    6.          public void run() {
    7.              //连接netty服务端
    8.              clientChannelManager.reconnect(getTransactionServiceGroup());
    9.          }
    10.      }, SCHEDULE_DELAY_MILLS, SCHEDULE_INTERVAL_MILLS, TimeUnit.MILLISECONDS);
    11.      if (NettyClientConfig.isEnableClientBatchSendRequest()) {
    12.          mergeSendExecutorService = new ThreadPoolExecutor(MAX_MERGE_SEND_THREAD,
    13.              MAX_MERGE_SEND_THREAD,
    14.              KEEP_ALIVE_TIME, TimeUnit.MILLISECONDS,
    15.              new LinkedBlockingQueue<>(),
    16.              new NamedThreadFactory(getThreadPrefix(), MAX_MERGE_SEND_THREAD));
    17.          mergeSendExecutorService.submit(new MergedSendRunnable());
    18.      }
    19.      super.init();
    20.      //启动客户端引导类
    21.      clientBootstrap.start();
    22.  }

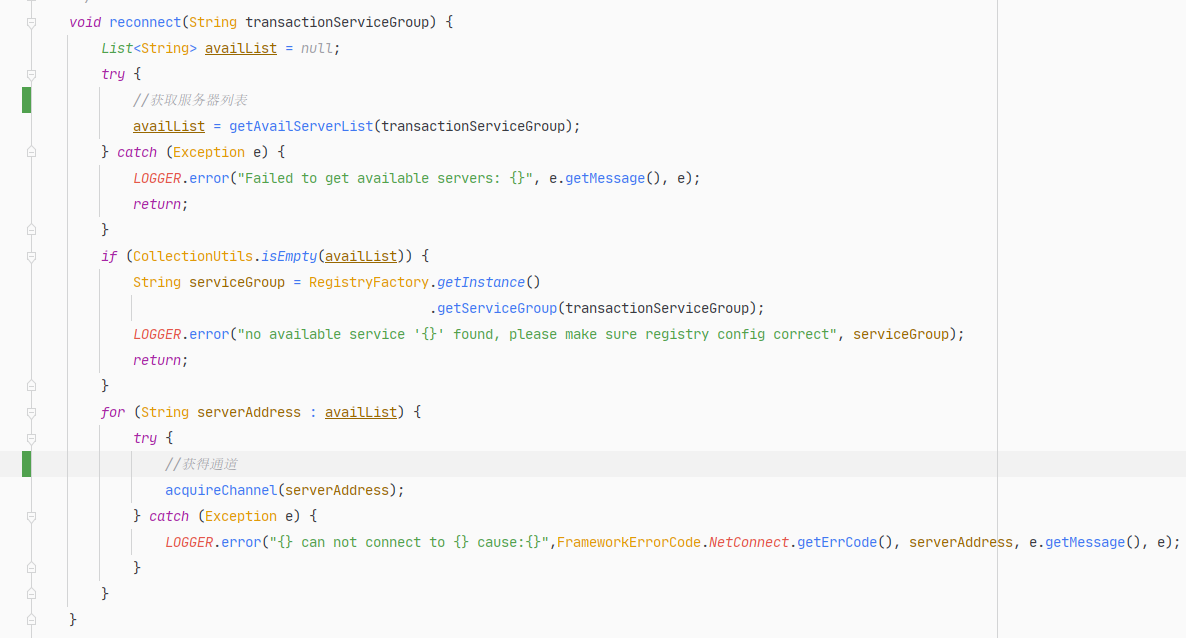

  3. reconnect⽅法

  4. seata-server 的 RegTmProcessor处理TM注册 ```java /*

    • Copyright 1999-2019 Seata.io Group. *
    • Licensed under the Apache License, Version 2.0 (the “License”);
    • you may not use this file except in compliance with the License.
    • You may obtain a copy of the License at *
    • http://www.apache.org/licenses/LICENSE-2.0 *
    • Unless required by applicable law or agreed to in writing, software
    • distributed under the License is distributed on an “AS IS” BASIS,
    • WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    • See the License for the specific language governing permissions and
    • limitations under the License. */ package io.seata.core.rpc.processor.server;

import io.netty.channel.ChannelHandlerContext; import io.seata.common.loader.EnhancedServiceLoader; import io.seata.common.util.NetUtil; import io.seata.core.protocol.RegisterTMRequest; import io.seata.core.protocol.RegisterTMResponse; import io.seata.core.protocol.RpcMessage; import io.seata.core.protocol.Version; import io.seata.core.rpc.netty.ChannelManager; import io.seata.core.rpc.RemotingServer; import io.seata.core.rpc.RegisterCheckAuthHandler; import io.seata.core.rpc.processor.RemotingProcessor; import org.apache.commons.lang.StringUtils; import org.slf4j.Logger; import org.slf4j.LoggerFactory;

/**

  • process TM client registry message.

  • process message type:
  • {@link RegisterTMRequest} *
  • @author zhangchenghui.dev@gmail.com

  • @since 1.3.0 */ public class RegTmProcessor implements RemotingProcessor {

    private static final Logger LOGGER = LoggerFactory.getLogger(RegTmProcessor.class);

    private RemotingServer remotingServer;

    private RegisterCheckAuthHandler checkAuthHandler;

    public RegTmProcessor(RemotingServer remotingServer) {

    1.  this.remotingServer = remotingServer;
    2.  this.checkAuthHandler = EnhancedServiceLoader.load(RegisterCheckAuthHandler.class);

    }

    @Override public void process(ChannelHandlerContext ctx, RpcMessage rpcMessage) throws Exception {

    1.  onRegTmMessage(ctx, rpcMessage);

    }

    private void onRegTmMessage(ChannelHandlerContext ctx, RpcMessage rpcMessage) {

    1.  RegisterTMRequest message = (RegisterTMRequest) rpcMessage.getBody();
    2.  String ipAndPort = NetUtil.toStringAddress(ctx.channel().remoteAddress());
    3.  Version.putChannelVersion(ctx.channel(), message.getVersion());
    4.  boolean isSuccess = false;
    5.  String errorInfo = StringUtils.EMPTY;
    6.  try {
    7.      if (null == checkAuthHandler || checkAuthHandler.regTransactionManagerCheckAuth(message)) {
    8.          ChannelManager.registerTMChannel(message, ctx.channel());
    9.          Version.putChannelVersion(ctx.channel(), message.getVersion());
    10.          isSuccess = true;
    11.          if (LOGGER.isDebugEnabled()) {
    12.              LOGGER.debug("checkAuth for client:{},vgroup:{},applicationId:{}",
    13.                  ipAndPort, message.getTransactionServiceGroup(), message.getApplicationId());
    14.          }
    15.      }
    16.  } catch (Exception exx) {
    17.      isSuccess = false;
    18.      errorInfo = exx.getMessage();
    19.      LOGGER.error("TM register fail, error message:{}", errorInfo);
    20.  }
    21.  RegisterTMResponse response = new RegisterTMResponse(isSuccess);
    22.  if (StringUtils.isNotEmpty(errorInfo)) {
    23.      response.setMsg(errorInfo);
    24.  }
    25.  remotingServer.sendAsyncResponse(rpcMessage, ctx.channel(), response);
    26.  if (LOGGER.isInfoEnabled()) {
    27.      LOGGER.info("TM register success,message:{},channel:{},client version:{}", message, ctx.channel(),
    28.          message.getVersion());
    29.  }

    }

}

  1. <a name="L4UWv"></a>

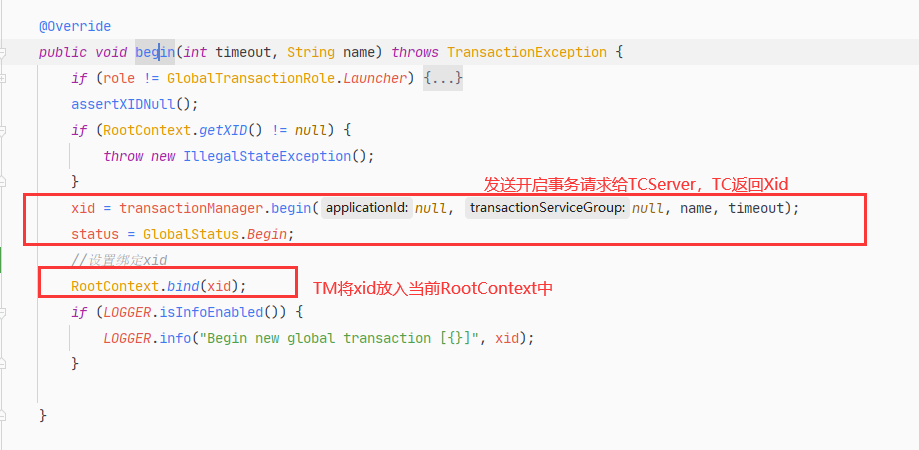

  2. ## 2.4 TM开启全局事务<br /><br />
  3. <a name="GDKVx"></a>

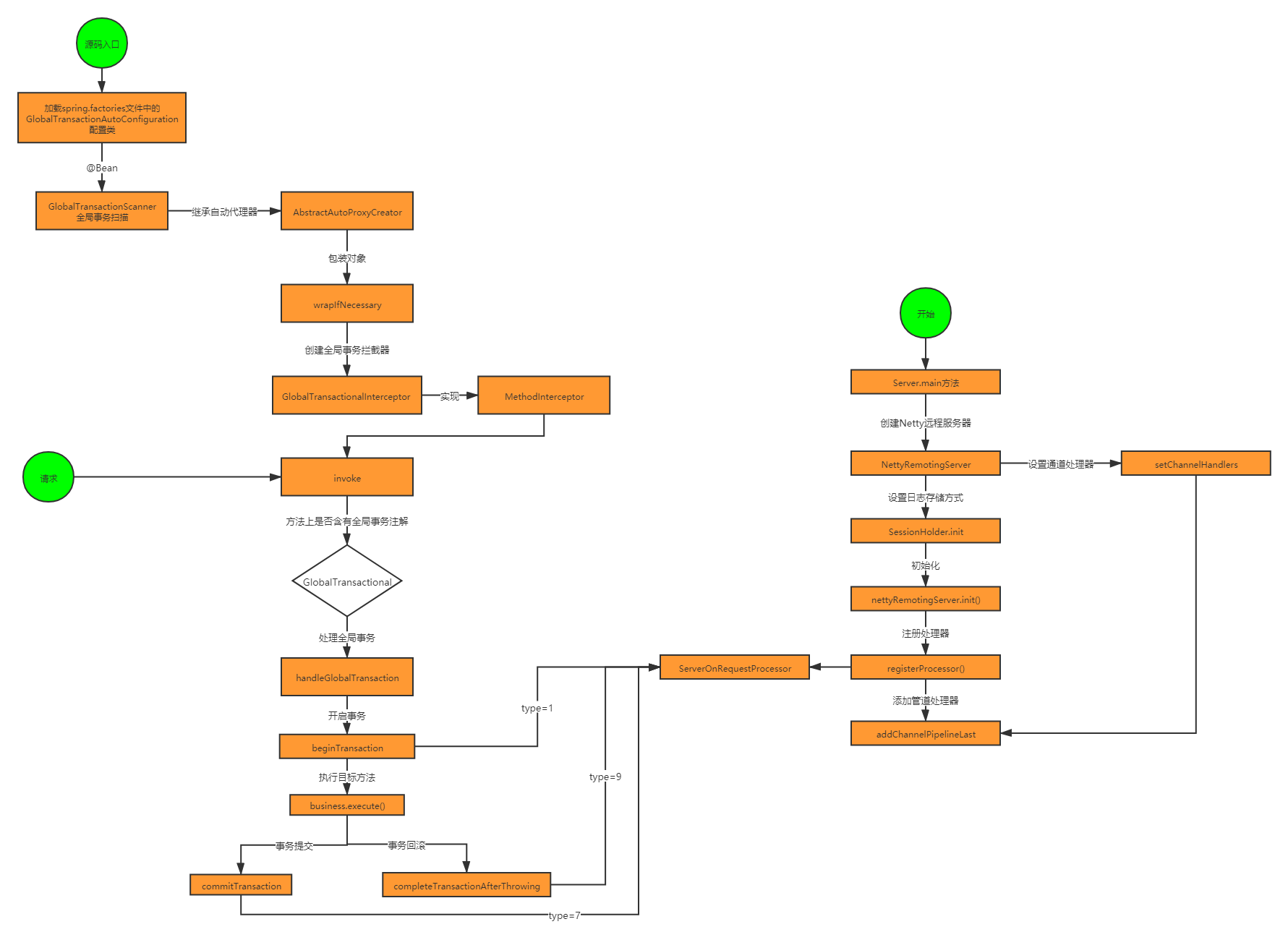

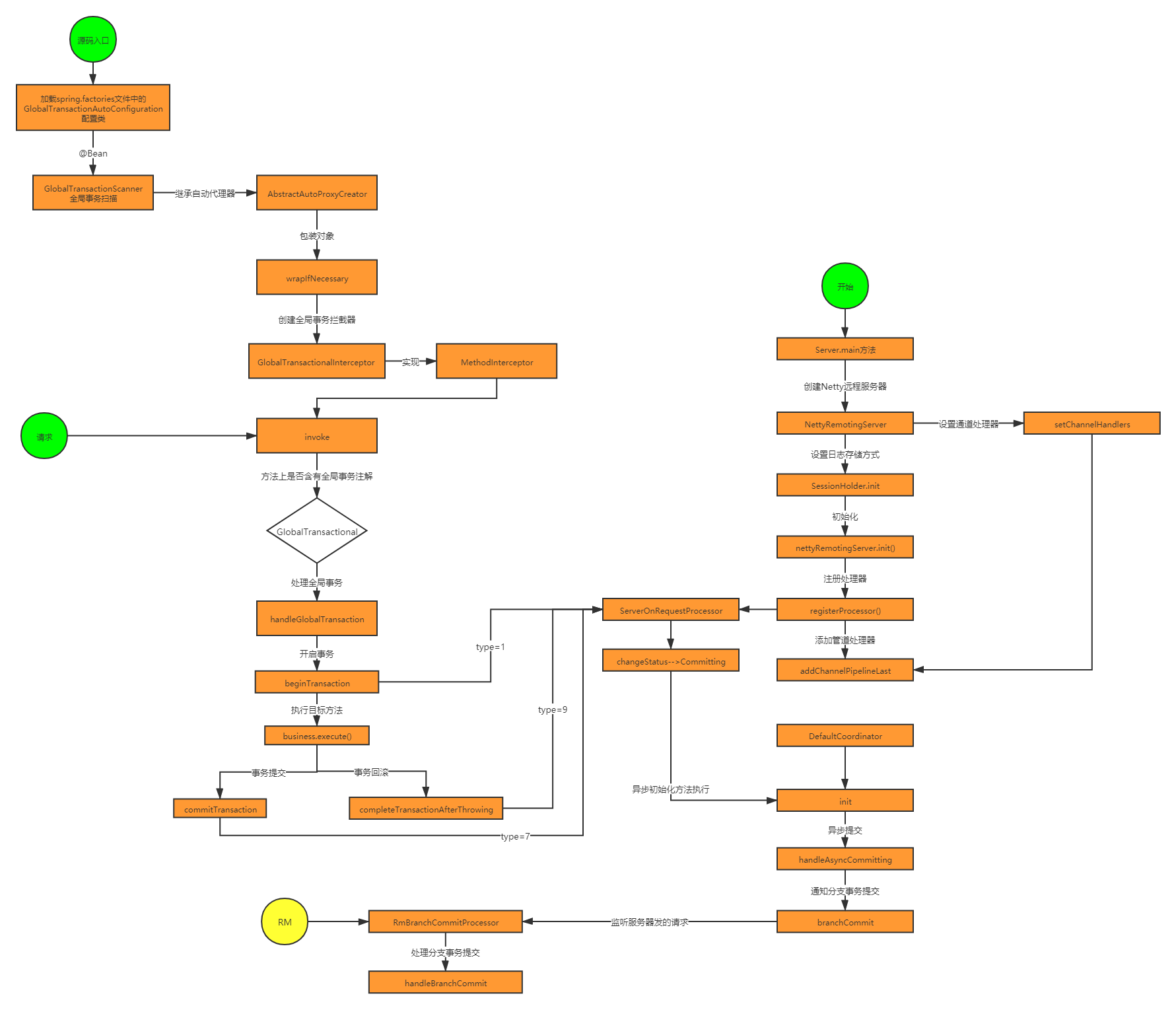

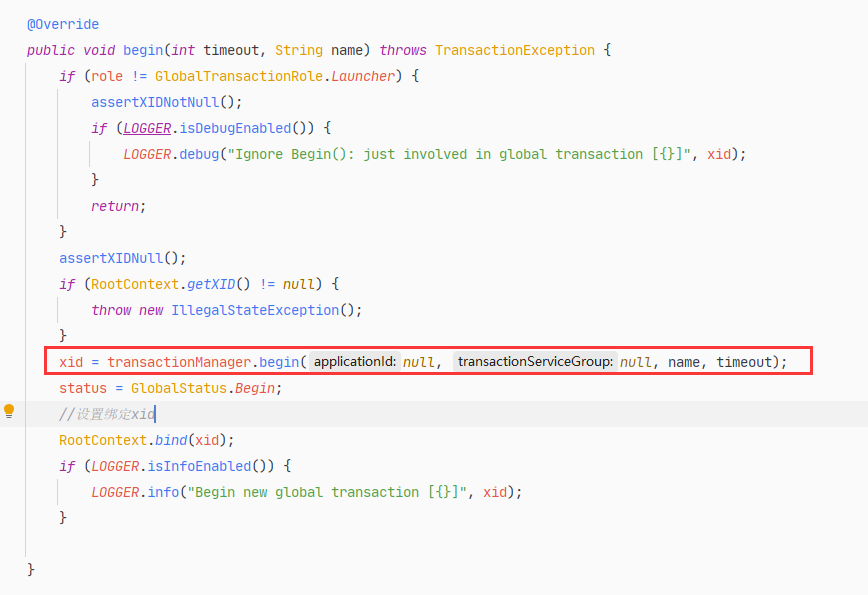

  4. ### 2.4.1 TM开启全局事务流程分析
  5. ![image.png](https://cdn.nlark.com/yuque/0/2021/png/12497888/1619321942693-0f9180f0-914c-44ac-a978-3dc2eae4408b.png#clientId=u671ca88b-9f99-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=1289&id=u7514882c&margin=%5Bobject%20Object%5D&name=image.png&originHeight=1289&originWidth=1781&originalType=binary&ratio=1&rotation=0&showTitle=false&size=121126&status=done&style=none&taskId=u9c23afe0-de92-4a41-8362-8231dfec6d6&title=&width=1781)
  6. <a name="nekaH"></a>
  7. ### 2.3.1 主要源码跟踪<br /><br />

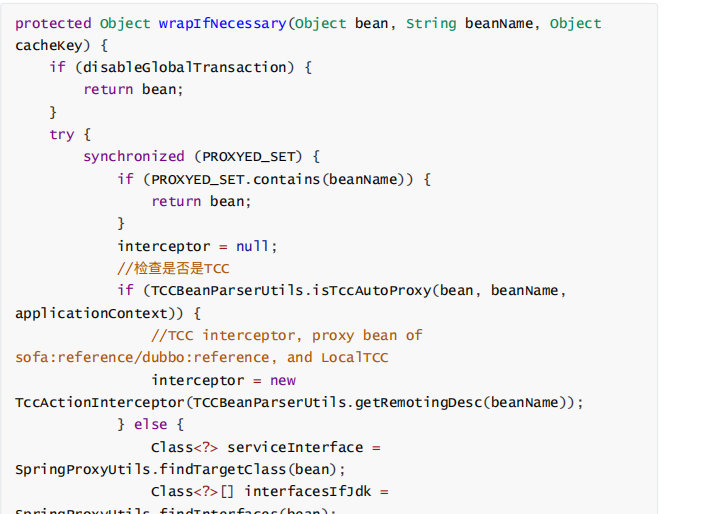

  8. 1. wrapIfNecessary⽅法
  9. ```java
  10.   //容器创建bean的时候 调用此方法检查是否有全局事务
  11.     @Override
  12.     protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
  13.         //判断是否有配置全局事务开启
  14.         if (disableGlobalTransaction) {
  15.             return bean;
  16.         }
  17.         try {
  18.             synchronized (PROXYED_SET) {
  19.                 if (PROXYED_SET.contains(beanName)) {
  20.                     return bean;
  21.                 }
  22.                 interceptor = null;
  23.                 //检查是否为TCC代理
  24.                 if (TCCBeanParserUtils.isTccAutoProxy(bean, beanName, applicationContext)) {
  25.                     //TCC interceptor, proxy bean of sofa:reference/dubbo:reference, and LocalTCC
  26.                     interceptor = new TccActionInterceptor(TCCBeanParserUtils.getRemotingDesc(beanName));
  27.                 } else {
  28.                     Class<?> serviceInterface = SpringProxyUtils.findTargetClass(bean);
  29.                     Class<?>[] interfacesIfJdk = SpringProxyUtils.findInterfaces(bean);
  30.                     //检查是否有GlobalTransactional注解
  31.                     if (!existsAnnotation(new Class[]{serviceInterface})
  32.                         && !existsAnnotation(interfacesIfJdk)) {
  33.                         return bean;
  34.                     }
  36.                     if (interceptor == null) {
  37.                         if (globalTransactionalInterceptor == null) {
  38.                             //创建全局事务拦截器
  39.                             globalTransactionalInterceptor = new GlobalTransactionalInterceptor(failureHandlerHook);
  40.                             ConfigurationCache.addConfigListener(
  41.                                 ConfigurationKeys.DISABLE_GLOBAL_TRANSACTION,
  42.                                 (ConfigurationChangeListener)globalTransactionalInterceptor);
  43.                         }
  44.                         interceptor = globalTransactionalInterceptor;
  45.                     }
  46.                 }
  48.                 LOGGER.info("Bean[{}] with name [{}] would use interceptor [{}]", bean.getClass().getName(), beanName, interceptor.getClass().getName());
  49.                 if (!AopUtils.isAopProxy(bean)) {
  50.                     bean = super.wrapIfNecessary(bean, beanName, cacheKey);
  51.                 } else {
  52.                     AdvisedSupport advised = SpringProxyUtils.getAdvisedSupport(bean);
  53.                     Advisor[] advisor = buildAdvisors(beanName, getAdvicesAndAdvisorsForBean(null, null, null));
  54.                     for (Advisor avr : advisor) {
  55.                         advised.addAdvisor(0, avr);
  56.                     }
  57.                 }
  58.                 PROXYED_SET.add(beanName);
  59.                 return bean;
  60.             }
  61.         } catch (Exception exx) {
  62.             throw new RuntimeException(exx);
  63.         }
  64.     }
  1. GlobalTransactionalInterceptor的invoke⽅法 ```java @Override public Object invoke(final MethodInvocation methodInvocation) throws Throwable {
    1.  Class<?> targetClass =
    2.      methodInvocation.getThis() != null ? AopUtils.getTargetClass(methodInvocation.getThis()) : null;
    3.  Method specificMethod = ClassUtils.getMostSpecificMethod(methodInvocation.getMethod(), targetClass);
    4.  if (specificMethod != null && !specificMethod.getDeclaringClass().equals(Object.class)) {
    5.      final Method method = BridgeMethodResolver.findBridgedMethod(specificMethod);
    6.      //获取方法上GlobalTransactional注解信息
    7.      final GlobalTransactional globalTransactionalAnnotation =  getAnnotation(method, targetClass, GlobalTransactional.class);
    8.      final GlobalLock globalLockAnnotation = getAnnotation(method, targetClass, GlobalLock.class);
    9.      boolean localDisable = disable || (degradeCheck && degradeNum >= degradeCheckAllowTimes);
    10.      if (!localDisable) {
    11.          //判断注解是否为空
    12.          if (globalTransactionalAnnotation != null) {
    13.              //处理全局事务
    14.              return handleGlobalTransaction(methodInvocation, globalTransactionalAnnotation);
    15.          } else if (globalLockAnnotation != null) {
    16.              return handleGlobalLock(methodInvocation);
    17.          }
    18.      }
    19.  }
    20.  return methodInvocation.proceed();
    }
  1. 3. handleGlobalTransaction的execute⽅法
  2. ```java
  3.     /**
  4.      * Execute object.
  5.      *
  6.      * @param business the business
  7.      * @return the object
  8.      * @throws TransactionalExecutor.ExecutionException the execution exception
  9.      */
  10.     public Object execute(TransactionalExecutor business) throws Throwable {
  11.         // 1 get transactionInfo
  12.         //获取事务信息
  13.         TransactionInfo txInfo = business.getTransactionInfo();
  14.         if (txInfo == null) {
  15.             throw new ShouldNeverHappenException("transactionInfo does not exist");
  16.         }
  17.         // 1.1 获取或创建一个全局事务
  18.         GlobalTransaction tx = GlobalTransactionContext.getCurrentOrCreate();
  20.         // 1.2 处理事务传播
  21.         Propagation propagation = txInfo.getPropagation();
  22.         SuspendedResourcesHolder suspendedResourcesHolder = null;
  23.         try {
  24.             switch (propagation) {
  25.                 case NOT_SUPPORTED:
  26.                     suspendedResourcesHolder = tx.suspend(true);
  27.                     return business.execute();
  28.                 case REQUIRES_NEW:
  29.                     suspendedResourcesHolder = tx.suspend(true);
  30.                     break;
  31.                 case SUPPORTS:
  32.                     if (!existingTransaction()) {
  33.                         return business.execute();
  34.                     }
  35.                     break;
  36.                 case REQUIRED:
  37.                     break;
  38.                 case NEVER:
  39.                     if (existingTransaction()) {
  40.                         throw new TransactionException(
  41.                                 String.format("Existing transaction found for transaction marked with propagation 'never',xid = %s"
  42.                                         ,RootContext.getXID()));
  43.                     } else {
  44.                         return business.execute();
  45.                     }
  46.                 case MANDATORY:
  47.                     if (!existingTransaction()) {
  48.                         throw new TransactionException("No existing transaction found for transaction marked with propagation 'mandatory'");
  49.                     }
  50.                     break;
  51.                 default:
  52.                     throw new TransactionException("Not Supported Propagation:" + propagation);
  53.             }
  56.             try {
  58.                 // 2. 开启事务
  59.                 beginTransaction(txInfo, tx);
  61.                 Object rs = null;
  62.                 try {
  64.                     //执行目标方法
  65.                     rs = business.execute();
  67.                 } catch (Throwable ex) {
  69.                     // 3.回滚业务异常所需
  70.                     completeTransactionAfterThrowing(txInfo, tx, ex);
  71.                     throw ex;
  72.                 }
  74.                 // 4. everything is fine, commit.
  75.                 commitTransaction(tx);
  77.                 return rs;
  78.             } finally {
  79.                 //5. clear
  80.                 triggerAfterCompletion();
  81.                 cleanUp();
  82.             }
  83.         } finally {
  84.             tx.resume(suspendedResourcesHolder);
  85.         }
  87.     }
  1. beginTransaction⽅法最终会发送seata server 也就是TC
    =>io.seata.tm.DefaultTransactionManager#begin TM事务管理器开启事务
    1.  @Override
    2.  public String begin(String applicationId, String transactionServiceGroup, String name, int timeout)
    3.      throws TransactionException {
    4.      //创建全局开启事务请求
    5.      GlobalBeginRequest request = new GlobalBeginRequest();
    6.      request.setTransactionName(name);
    7.      request.setTimeout(timeout);
    8.      //同步调用开启事务
    9.      GlobalBeginResponse response = (GlobalBeginResponse) syncCall(request);
    10.      if (response.getResultCode() == ResultCode.Failed) {
    11.          throw new TmTransactionException(TransactionExceptionCode.BeginFailed, response.getMsg());
    12.      }
    13.      return response.getXid();
    14.  }

  2. seata-server 的ServerOnRequestProcessor处理请求
    =》io.seata.core.rpc.processor.server.ServerOnRequestProcessor#onRequestMessage

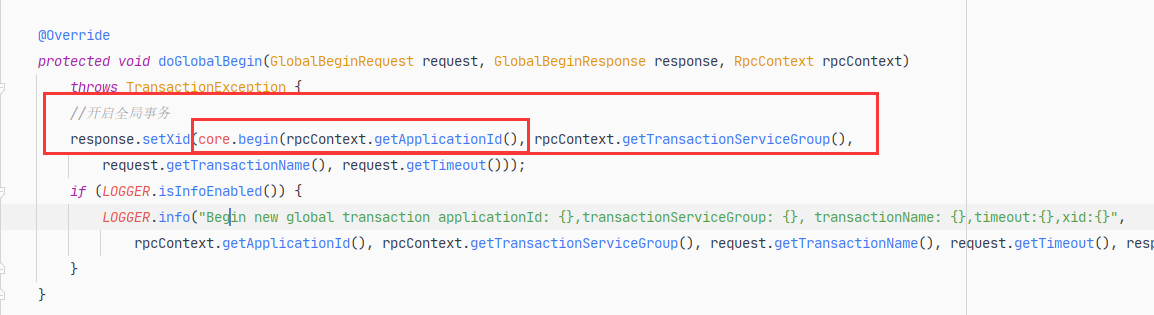

    6. onRequest的⽅法最终DefaultCoordinator的doGlobalBegin⽅法
    core.begin开启

    1.  @Override
    2.  public String begin(String applicationId, String transactionServiceGroup, String name, int timeout)
    3.      throws TransactionException {
    4.      //创建全局会话
    5.      GlobalSession session = GlobalSession.createGlobalSession(applicationId, transactionServiceGroup, name,
    6.          timeout);
    7.      //添加监听器
    8.      session.addSessionLifecycleListener(SessionHolder.getRootSessionManager());
    9.      //开启事务会话
    10.      session.begin();
    12.      // transaction start event
    13.      eventBus.post(new GlobalTransactionEvent(session.getTransactionId(), GlobalTransactionEvent.ROLE_TC,
    14.          session.getTransactionName(), session.getBeginTime(), null, session.getStatus()));
    15.      //返回全局事务XId
    16.      return session.getXid();
    17.  }

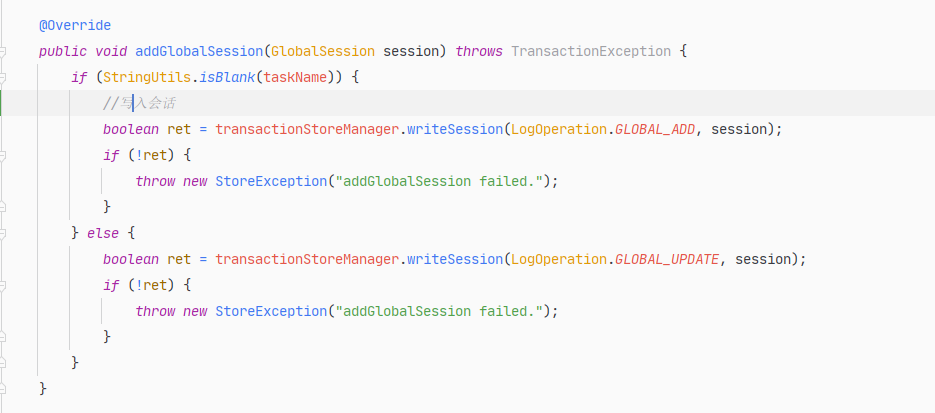

    session.begin()—>DataBaseSessionManager的addGlobalSession

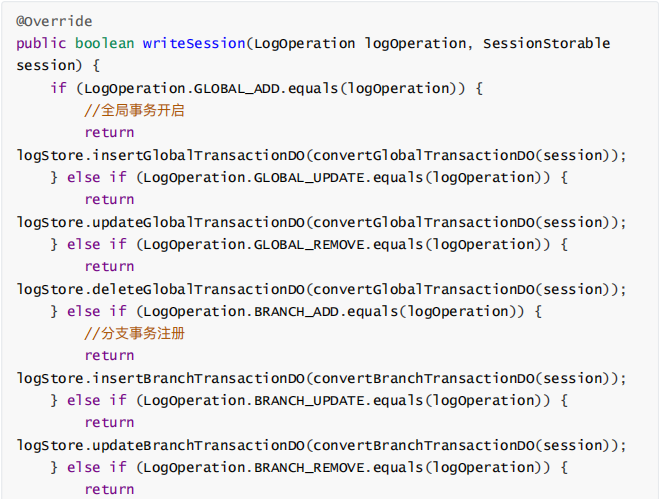

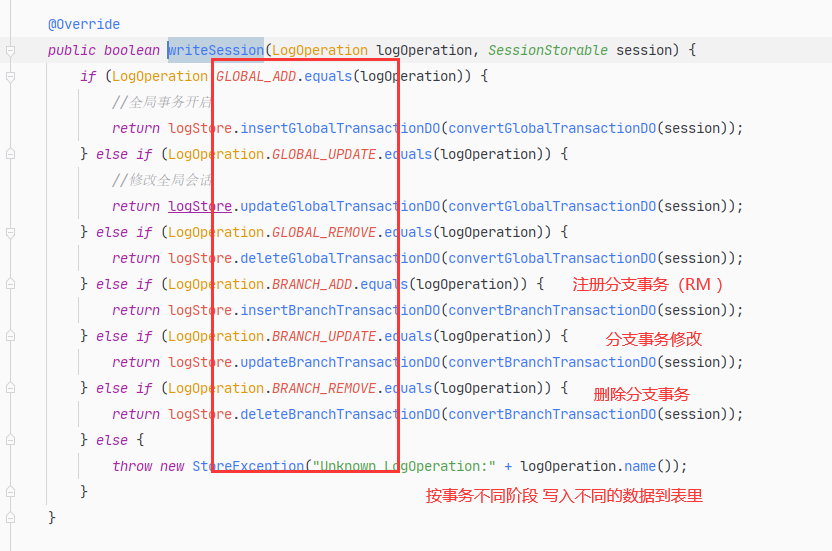

writeSession⽅法

2.5 RM分⽀事务注册

2.5.1 RM分⽀事务注册流程分析


2.5.2 全局事务xid传输分析

注册流程中分支事务通过全局事务Xid来判断当前数据源执行是否是全局事务，Xid由TC生成传给TM，TM和RM为不同的模块，那么TM在feign调用远程微服务(RM)时,RM如何获取Xid来判断是否有全局事务？
在上小节TM开启全局事务时，同步发消息给TC由TC生成全局事务Xid返回给TM
io.seata.tm.api.DefaultGlobalTransaction#begin(int, java.lang.String)
将全局事务xid绑定到seata上下文对象中。

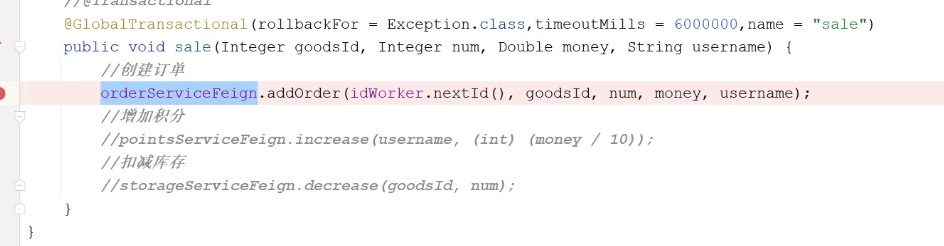

TM调用方式：

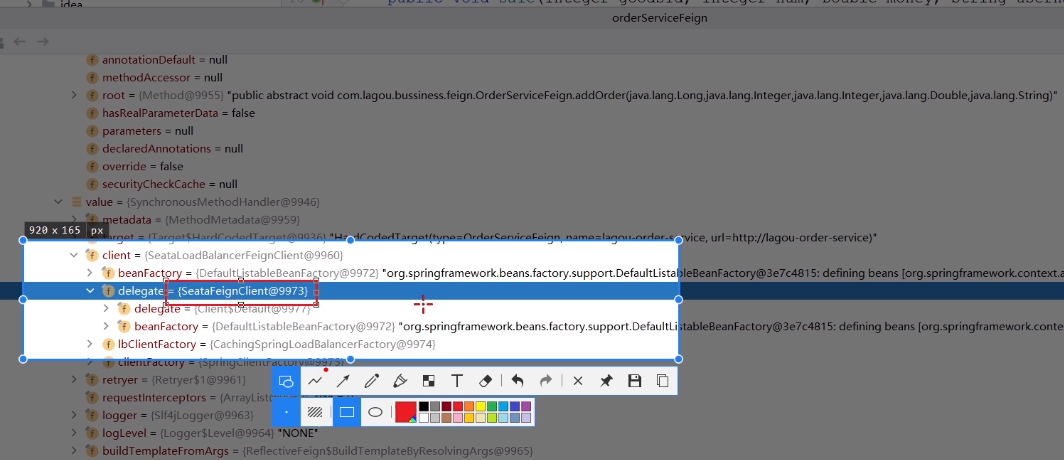

通过追踪可以知道orderServiceFeign 使用的是SeataFeignClient 进行远程调用

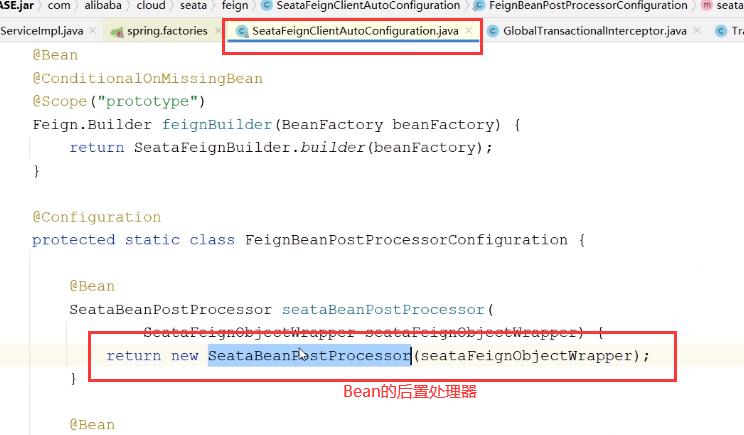

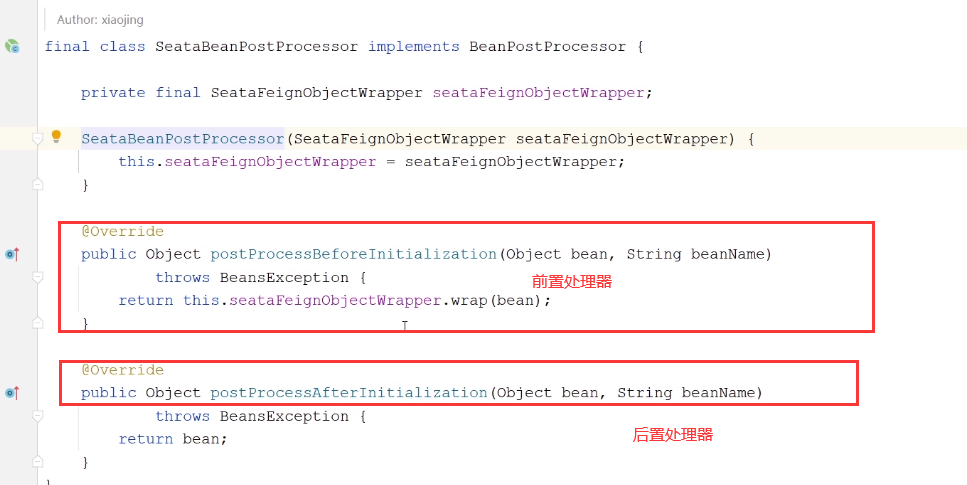

seataFeign自动配置类：

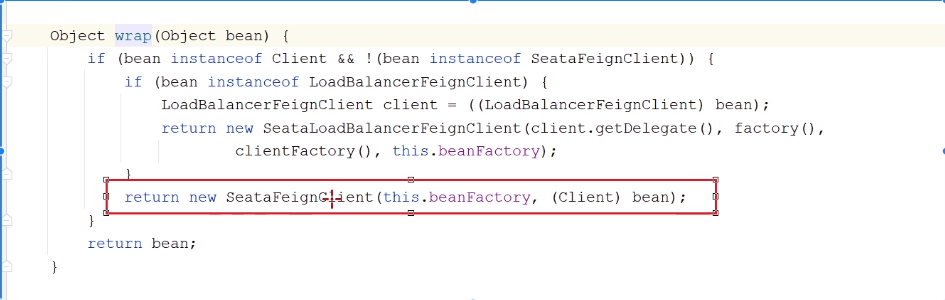

=》warp(bean) 判断为feignClient时 将bean封装成SeataFeign 也就是说将FeignClient对象bean 替换成了SeataFeignClient

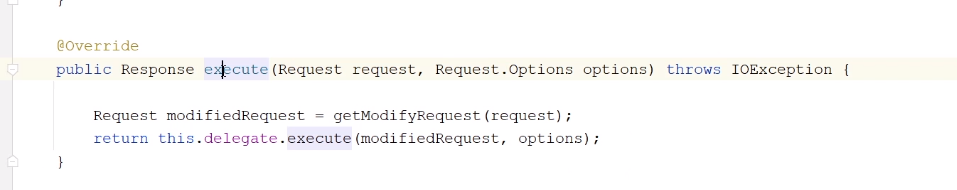

=>SeataFeignClient#execute()发送feign远程调用

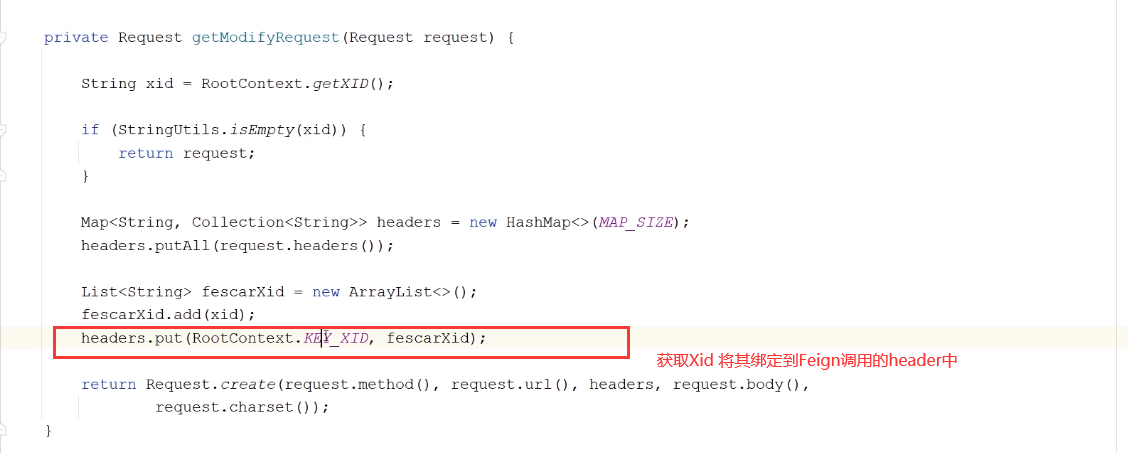

=> getModifyRequest()
由此 xid传递到下一个RM中

2.5.3 RM分支事务注册源码分析

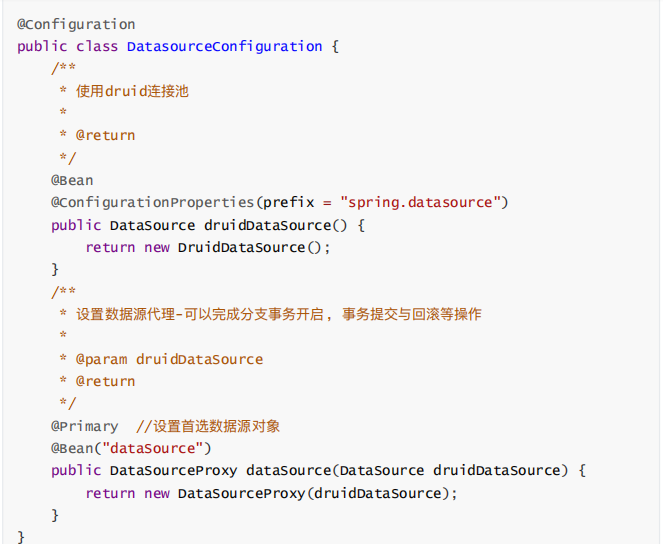

  1. 代理数据源创建
    ConnectionProxy代理连接对象创建

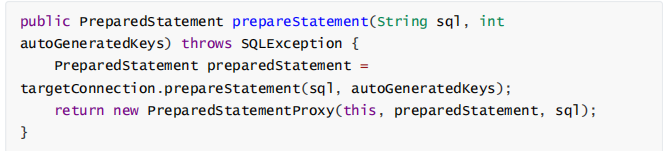

    PreparedStatementProxy代理执⾏对象创建

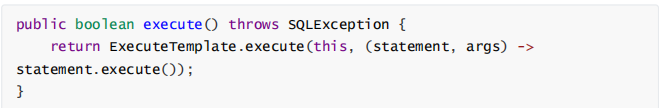

  2. 当发起数据库操作的时候最终会调⽤PreparedStatementProxy.execute⽅法

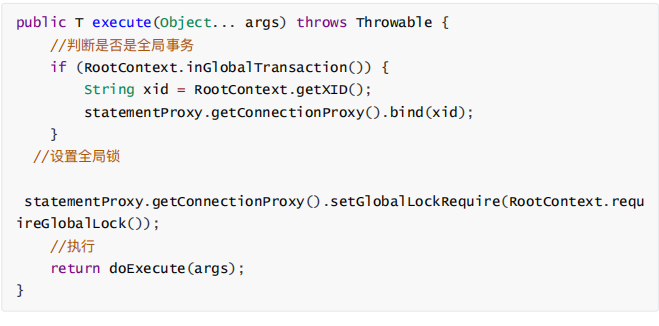

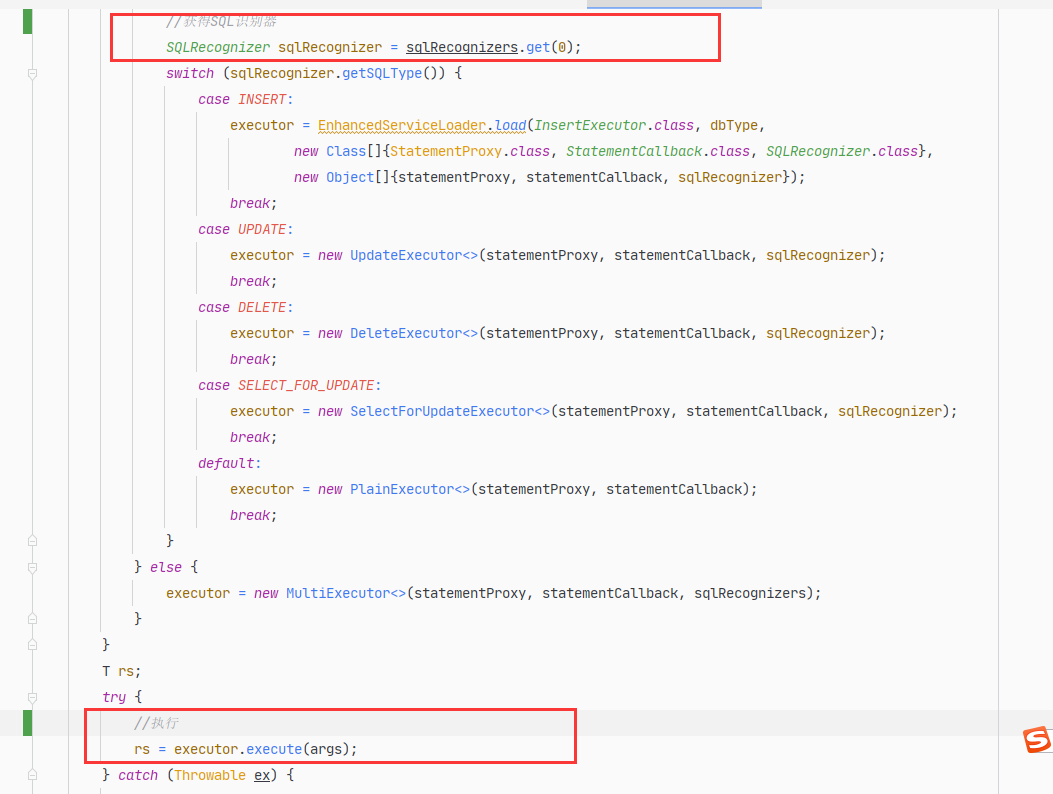

    ExecuteTemplate.execute()

  3. executor.execute⽅法

  4. doExecute—>executeAutoCommitTrue(args)

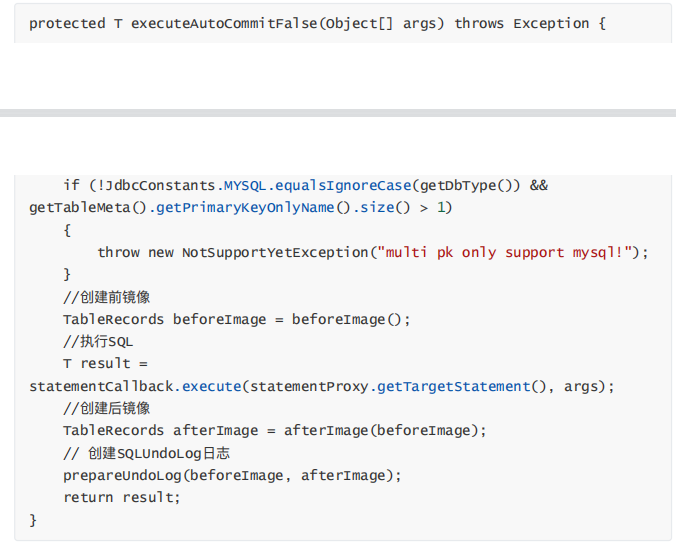

  5. executeAutoCommitFalse(args)⽅法
    6. connectionProxy.commit();提交事务⽅法

  6. server端处理分⽀事务注册BranchRegisterRequest类的handle⽅法


2.6 TM/RM 事务提交

2.6.1 TM/RM 事务提交流程分析


2.6.2 主要流程源码分析

  1. DefaultCore的commit⽅法 ```java @Override public GlobalStatus commit(String xid) throws TransactionException {
    1.  //从数据库中查询全局事务会话 且设置分支事务与全局事务的关系
    2.  GlobalSession globalSession = SessionHolder.findGlobalSession(xid);
    3.  if (globalSession == null) {
    4.      return GlobalStatus.Finished;
    5.  }
    6.  globalSession.addSessionLifecycleListener(SessionHolder.getRootSessionManager());
    7.  // just lock changeStatus
    8.  boolean shouldCommit = SessionHolder.lockAndExecute(globalSession, () -> {
    9.      // the lock should release after branch commit
    10.      // Highlight: Firstly, close the session, then no more branch can be registered.
    11.      globalSession.closeAndClean();
    12.      if (globalSession.getStatus() == GlobalStatus.Begin) {
    13.          //修改全局事务会话状态为Committing
    14.          globalSession.changeStatus(GlobalStatus.Committing);
    15.          return true;
    16.      }
    17.      return false;
    18.  });
    19.  if (!shouldCommit) {
    20.      return globalSession.getStatus();
    21.  }
    22.  //判断是异步提交还是同步提交 TCC和XA模式 需要同步
    23.  if (globalSession.canBeCommittedAsync()) {
    24.      globalSession.asyncCommit();
    25.      return GlobalStatus.Committed;
    26.  } else {
    27.      doGlobalCommit(globalSession, false);
    28.  }
    29.  return globalSession.getStatus();
    }

```

  1. DefaultCoordinator的init⽅法 线程池调用提交方法
    handleAsyncCommitting⽅法
    doGlobalCommit⽅法

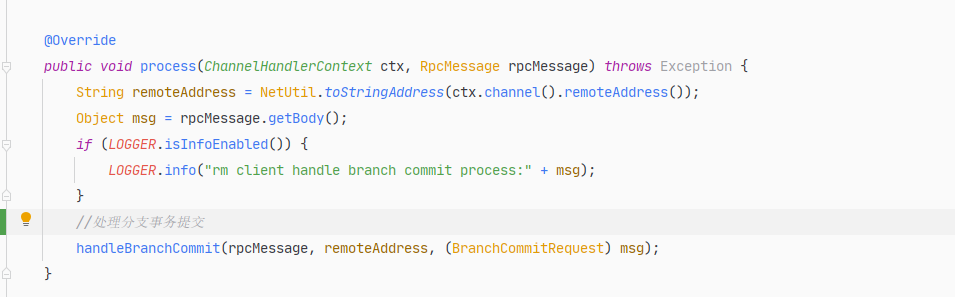

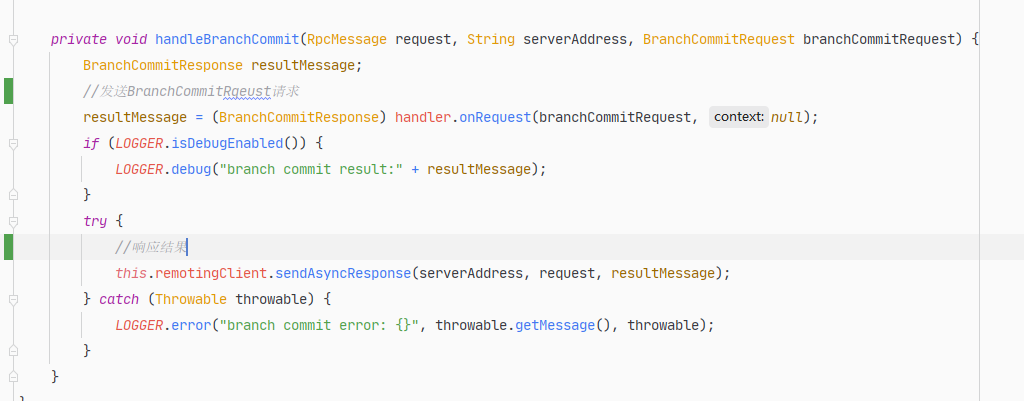

  2. RmBranchCommitProcessor⽅法

3 TCC源码

3.1 TCC源码分⽀事务注册流程分析

1. GlobalTransactionScanner的wrapIfNecessary⽅法

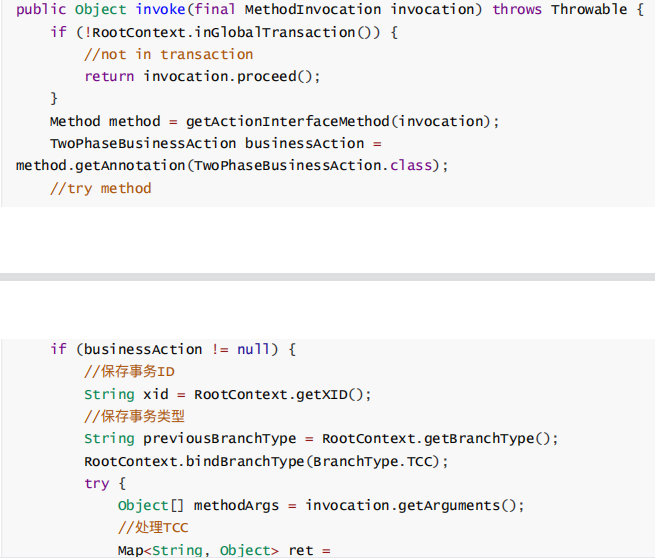

2. TccActionInterceptor的invoke⽅法

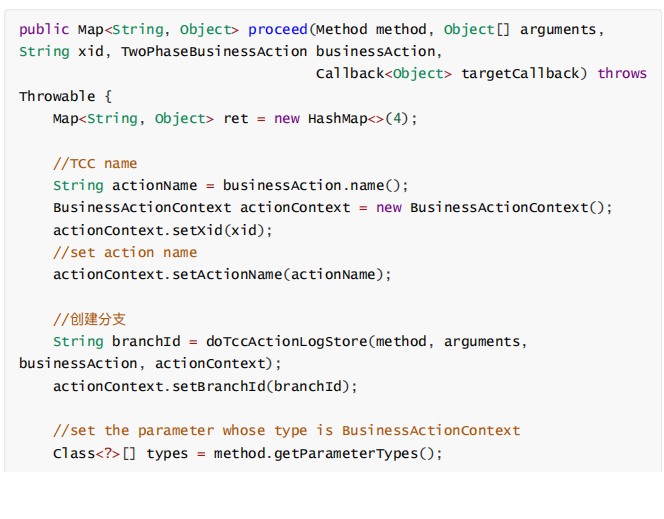

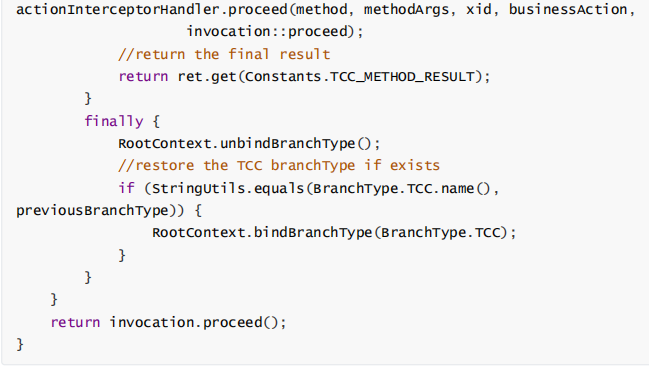

actionInterceptorHandler.proceed⽅法

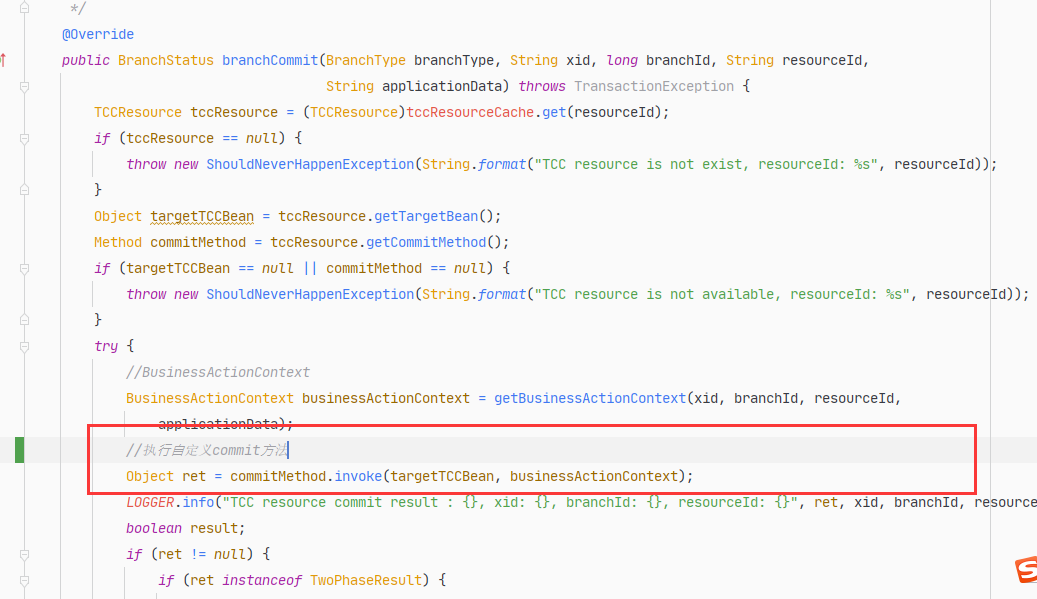

3. TM在发起全局事务提交后,RM端会根据事务类型选择TCCResourceManager的branchCommit⽅ 法
