报错信息

  1. org.apache.ibatis.binding.BindingException: Invalid bound statement (not found): cn.xx.idata.develop.dal.dao.job.DevJobInfoMyDao.selectJobInfoExecuteDetail
  2.     at org.apache.ibatis.binding.MapperMethod$SqlCommand.<init>(MapperMethod.java:235)
  3.     at org.apache.ibatis.binding.MapperMethod.<init>(MapperMethod.java:53)
  4.     at org.apache.ibatis.binding.MapperProxy.lambda$cachedInvoker$0(MapperProxy.java:107)
  5.     at java.base/java.util.concurrent.ConcurrentHashMap.computeIfAbsent(ConcurrentHashMap.java:1705)
  6.     at org.apache.ibatis.binding.MapperProxy.cachedInvoker(MapperProxy.java:94)
  7.     at org.apache.ibatis.binding.MapperProxy.invoke(MapperProxy.java:85)
  8.     at com.sun.proxy.$Proxy149.selectJobInfoExecuteDetail(Unknown Source)
  9.     at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  10.     at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
  11.     at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
  12.     at java.base/java.lang.reflect.Method.invoke(Method.java:566)
  13.     at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:344)
  14.     at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:198)
  15.     at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
  16.     at org.springframework.dao.support.PersistenceExceptionTranslationInterceptor.invoke(PersistenceExceptionTranslationInterceptor.java:139)
  17.     at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
  18.     at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:212)
  19.     at com.sun.proxy.$Proxy150.selectJobInfoExecuteDetail(Unknown Source)
  20.     at cn.zhengcaiyun.idata.develop.service.job.impl.JobInfoServiceImpl.getJobInfoExecuteDetail(JobInfoServiceImpl.java:365)
  21.     at cn.zhengcaiyun.idata.develop.service.job.impl.JobInfoServiceImpl$$FastClassBySpringCGLIB$$676509e8.invoke(<generated>)
  22.     at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
  23.     at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:687)
  24.     at cn.zhengcaiyun.idata.develop.service.job.impl.JobInfoServiceImpl$$EnhancerBySpringCGLIB$$d97bd4f2.getJobInfoExecuteDetail(<generated>)
  25.     at cn.zhengcaiyun.idata.portal.controller.dev.job.JobInfoController.getJobInfoDetail(JobInfoController.java:166)
  26.     at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  27.     at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
  28.     at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
  29.     at java.base/java.lang.reflect.Method.invoke(Method.java:566)
  30.     at org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:190)
  31.     at org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:138)
  32.     at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:105)
  33.     at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:878)
  34.     at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:792)
  35.     at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87)
  36.     at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1040)
  37.     at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:943)
  38.     at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006)
  39.     at org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:898)
  40.     at javax.servlet.http.HttpServlet.service(HttpServlet.java:626)
  41.     at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883)
  42.     at javax.servlet.http.HttpServlet.service(HttpServlet.java:733)
  43.     at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
  44.     at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
  45.     at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:53)
  46.     at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
  47.     at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
  48.     at cn.zhengcaiyun.idata.portal.config.WebAuthFilter.doFilter(WebAuthFilter.java:161)
  49.     at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
  50.     at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
  51.     at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:100)
  52.     at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
  53.     at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
  54.     at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
  55.     at org.springframework.web.filter.FormContentFilter.doFilterInternal(FormContentFilter.java:93)
  56.     at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
  57.     at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
  58.     at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
  59.     at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201)
  60.     at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
  61.     at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
  62.     at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
  63.     at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:202)
  64.     at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:97)
  65.     at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:542)
  66.     at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:143)
  67.     at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:92)
  68.     at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:78)
  69.     at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:343)
  70.     at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:374)
  71.     at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65)
  72.     at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:888)
  73.     at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1597)
  74.     at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
  75.     at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
  76.     at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
  77.     at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
  78.     at java.base/java.lang.Thread.run(Thread.java:834)

解决办法总结

  1. 检查target目录下是否存在.xml文件
  2. 检查xml的mapper``namespace指向的全量限定符是否正确（和对应的Dao的class全量限定符是否一样）
  3. 检查对应的Dao文件是否定义了此方法
  4. 检查application.yaml，mybatis.mapper-locations的配置是否正确，是否能匹配到xml文件
  5. 如果是多模块配置xml文件，检查mybatis.mapper-locations是否是classpath*而不是classpath

我的排查过程

按网上搜索到的解决办法，除了第5点，前4点都试过了都不行，于是根据报错信息栈跟源码，从最后一步开始debug。

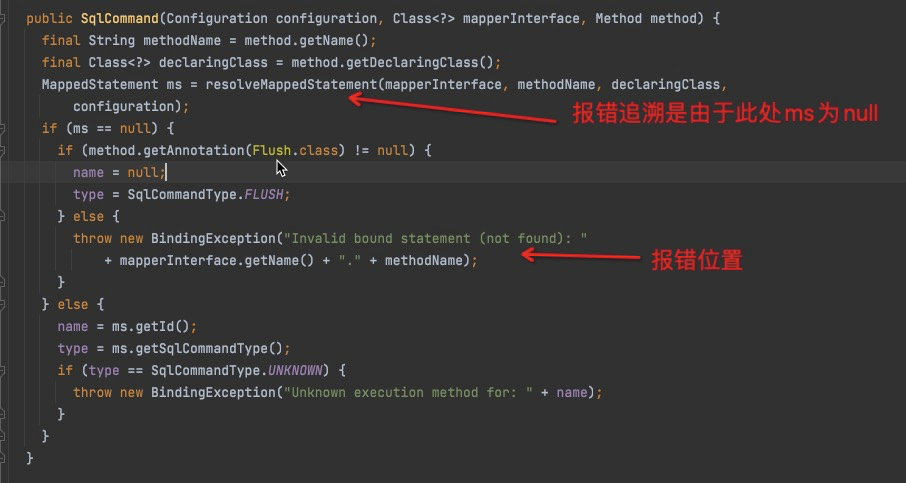

MapperMethod#SqlCommand

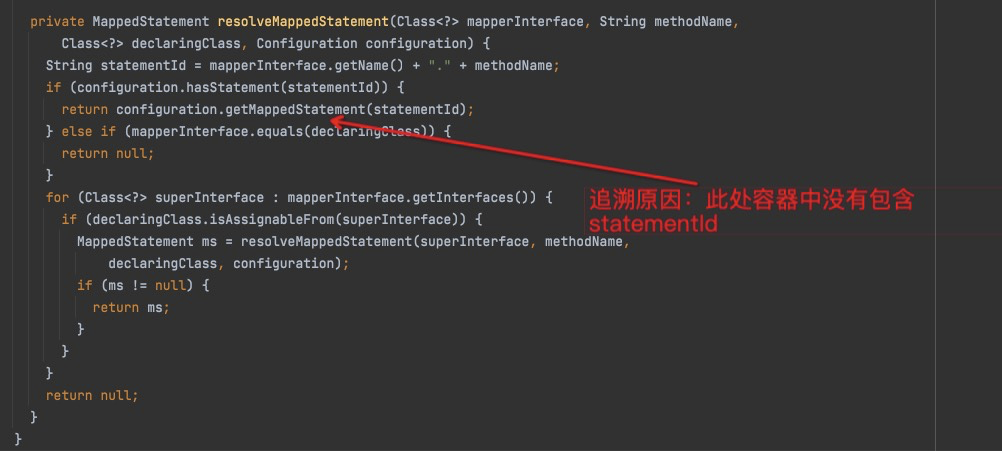

�MapperMethod#resolveMappedStatement

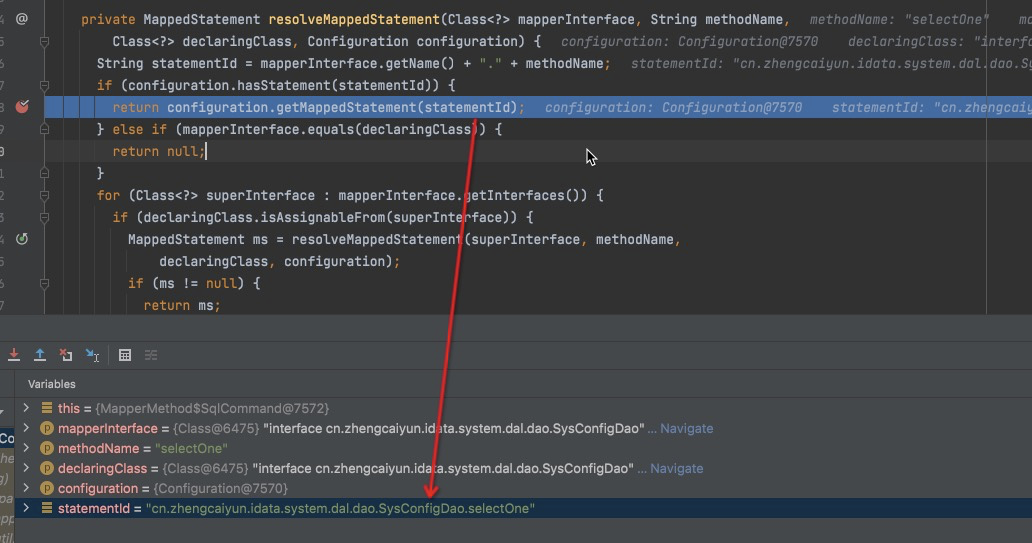

Debug看下数据信息，MappedStatement中未包含statementId
再往上找MappedStatement的数据装载代码，该类是sqlSession.getConfiguration().mappedStatements

最后找到：

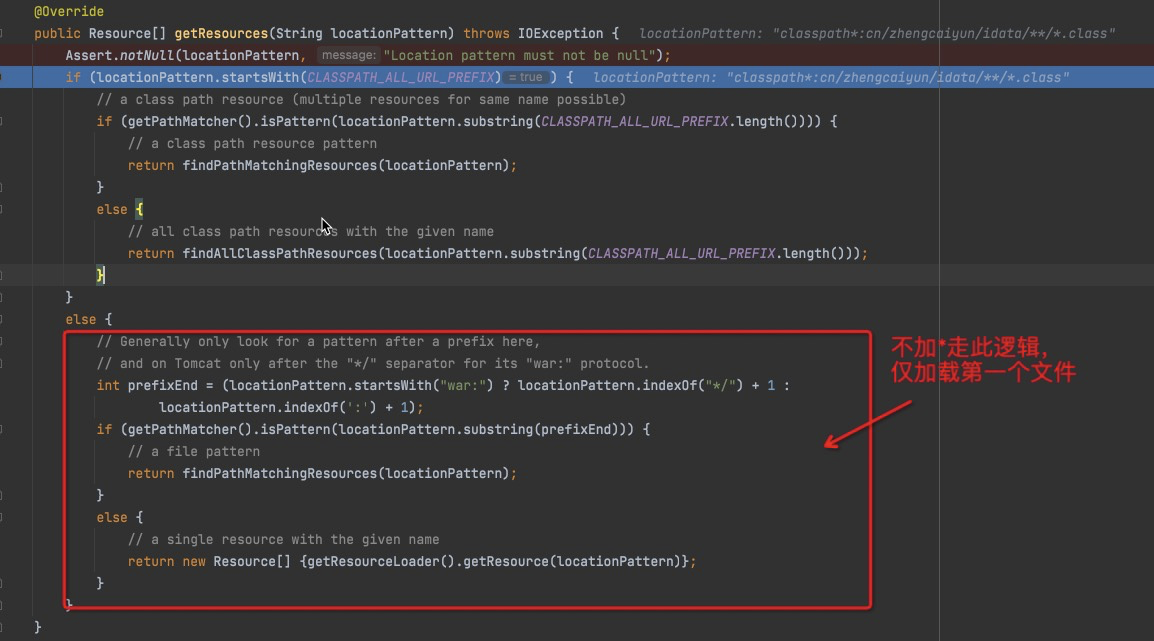

PathMatchingResourcePatternResolver#getResources
� image.png
