SQL Client：https://nightlies.apache.org/flink/flink-docs-release-1.14/zh/docs/dev/table/sqlclient/

环境设置

Config参数大全： https://nightlies.apache.org/flink/flink-docs-release-1.14/docs/deployment/config/

设置Job名字

java 代码设置方式： EnvironmentSettings Settings = EnvironmentSettings.newInstance()
.useBlinkPlanner()
.inStreamingMode()
.build();
StreamTableEnvironment tableEnv = StreamTableEnvironment.create(_env, Settings); // 设置 jobName
tableEnv.getConfig().getConfiguration().setString(“pipeline.name”, “table_sql_job”)_;

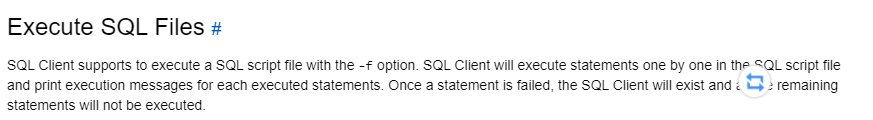

# https://nightlies.apache.org/flink/flink-docs-release-1.14/zh/docs/dev/table/sqlclient/#execute-sql-files
# https://nightlies.apache.org/flink/flink-docs-release-1.14/zh/docs/dev/table/sqlclient/#define-a-custom-job-name
SET 'pipeline.name' = 'SqlJob';

开启checkpoint

## Flink SQL  每隔3秒做一次 checkpoint
Flink SQL> SET execution.checkpointing.interval = 3s;
[INFO] Session property has been set.

设置checkpoint 保存模式

如果开启了 checkpoint ，开启方式 SET execution.checkpointing.interval = 3s; 默认： 一旦Flink处理程序被cancel后，会删除Checkpoint数据，只有job执行失败的时候才会保存checkpoint

# https://nightlies.apache.org/flink/flink-docs-release-1.14/docs/ops/state/checkpoints/#retained-checkpoints
# ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION:表示一旦Flink处理程序被cancel后，会保留Checkpoint数据，以便根据实际需要恢复到指定的Checkpoint
# ExternalizedCheckpointCleanup.DELETE_ON_CANCELLATION: 表示一旦Flink处理程序被cancel后，会删除Checkpoint数据，只有job执行失败的时候才会保存checkpoint
SET 'execution.checkpointing.externalized-checkpoint-retention' = 'RETAIN_ON_CANCELLATION';

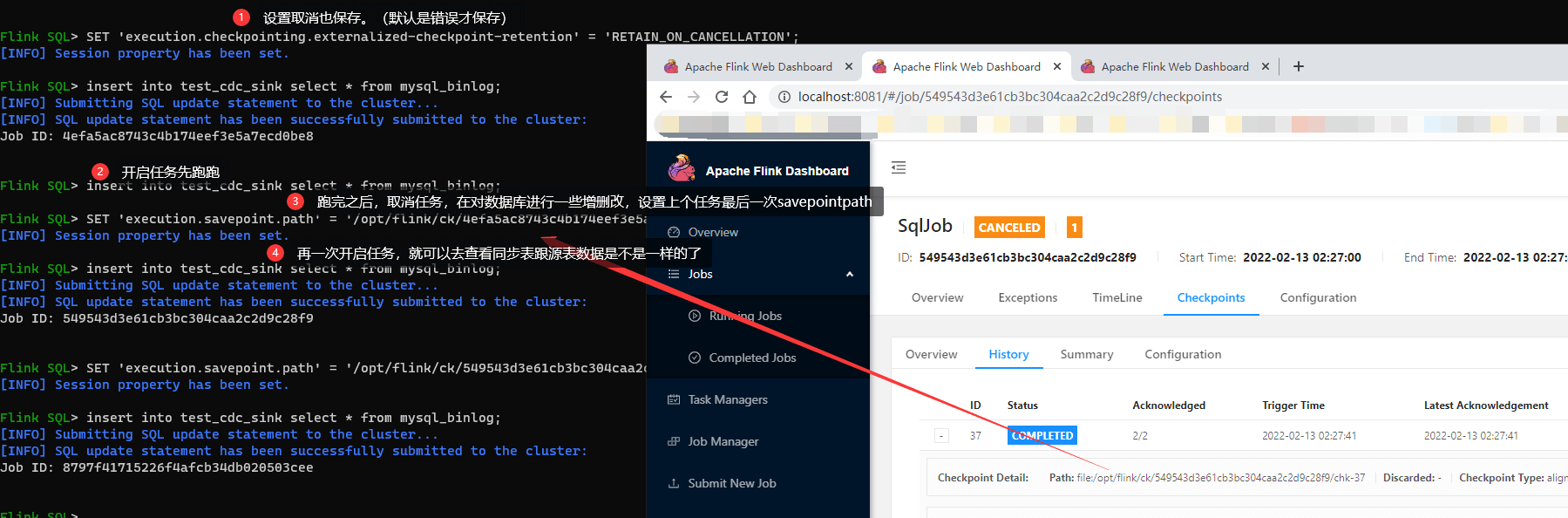

根据 checkpoint 断点续传（根据上一次的结束点进行下一次的启动点）

1. 必须开启checkpoint
2. 如果 不好模拟任务失败，那就设置成取消保存checkpoint数据吧
   1. SET 'execution.checkpointing.externalized-checkpoint-retention' = 'RETAIN_ON_CANCELLATION';
3. 必须配置了 state.checkpoints.dir
   1. Flink CheckPoint 使用

# 第一步 设置 checkpoint 时间
SET execution.checkpointing.interval = 3s;
# 第二步  默认 DELETE_ON_CANCELLATION
# https://nightlies.apache.org/flink/flink-docs-release-1.14/docs/ops/state/checkpoints/#retained-checkpoints
# ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION:表示一旦Flink处理程序被cancel后，会保留Checkpoint数据，以便根据实际需要恢复到指定的Checkpoint
# ExternalizedCheckpointCleanup.DELETE_ON_CANCELLATION: 表示一旦Flink处理程序被cancel后，会删除Checkpoint数据，只有job执行失败的时候才会保存checkpoint
SET 'execution.checkpointing.externalized-checkpoint-retention' = 'RETAIN_ON_CANCELLATION';
# 第三步 根据保存的checkpoint恢复任务
SET 'execution.savepoint.path' = '/opt/flink/ck/549543d3e61cb3bc304caa2c2d9c28f9/chk-37';

设置

https://nightlies.apache.org/flink/flink-docs-release-1.14/zh/docs/dev/table/sqlclient/#initialize-session-using-sql-files

SET 'parallelism.default' = '1'; -- optional: Flink's parallelism (1 by default)
SET 'pipeline.max-parallelism' = '10'; -- optional: Flink's maximum parallelism

SQL File的使用

https://nightlies.apache.org/flink/flink-docs-release-1.14/docs/dev/table/sqlclient/#initialize-session-using-sql-files

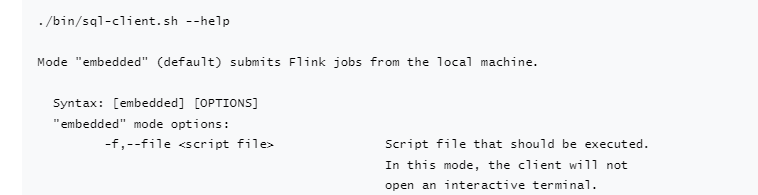

命令

// sqlfile 为 flink能读到的目录
./bin/sql-client.sh -f sqlfile/a.sql

1. flink docker compose

   version: "2.2"
   services:
   jobmanager:
    image: tannnn/flink:1.13.5-scala_2.12
    # 给容器取个名字
    container_name: jobflink
    ports:
      - "8081:8081"
    command: jobmanager
    volumes:
      - D:/docker/flink/job/artifacts:/opt/flink/usrlib   # job jar 上传你自己写的工作包
      # - D:/docker/flink/lib:/opt/flink/lib                # 环境jar, 工作中需要依赖的jar,将lib映射出来方便我随时添加新的公共依赖
      - D:/docker/flink/ck:/opt/flink/ck                # chinkPoint 保存的路径挂载出去
      - D:/docker/flink/target:/opt/flink/target                # 防止flink 重启 submit的jar包丢失
      - D:/docker/flink/sqlfile:/opt/flink/sqlfile
    environment:
      - |
        FLINK_PROPERTIES=
        jobmanager.rpc.address: jobmanager
        parallelism.default: 2
        state.backend: hashmap # chinkPoint FsStateBackend (taskmanager不用配置)
        state.checkpoints.dir: file:////opt/flink/ck # chinkPoint FsStateBackend  注意当前用在对这个目录是否有操作权限
        web.upload.dir: /opt/flink/target # 防止flink 重启 submit的jar包丢失(taskmanager不用配置)
   taskmanager:
    image: tannnn/flink:1.13.5-scala_2.12
    # 给容器取个名字
    container_name: task1flink
    depends_on:
      - jobmanager
    command: taskmanager
    volumes:
      - D:/docker/flink/job/artifacts:/opt/flink/usrlib
      # - D:/docker/flink/lib:/opt/flink/lib
      - D:/docker/flink/sqlfile:/opt/flink/sqlfile
    environment:
      - |
        FLINK_PROPERTIES=
        jobmanager.rpc.address: jobmanager
        taskmanager.numberOfTaskSlots: 16   # 1.13.5 默认只有一个
        parallelism.default: 8

MySQL数据库同步MySQL数据库

预备的SQL

源数据

CREATE DATABASE  IF NOT EXISTS  `flink_source`  DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci ;
CREATE TABLE `flink_test` (
  `id` bigint NOT NULL AUTO_INCREMENT COMMENT 'id',
  `t_name` varchar(100) NOT NULL COMMENT '名称',
  `logo_url` varchar(200) DEFAULT NULL COMMENT '图片路径',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=14 DEFAULT CHARSET=utf8mb3 ROW_FORMAT=DYNAMIC COMMENT='test';

目标数据

CREATE DATABASE  IF NOT EXISTS  `flink_sink`  DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci ;
CREATE TABLE `flink_test` (
  `id` bigint NOT NULL AUTO_INCREMENT COMMENT 'id',
  `t_name` varchar(100) NOT NULL COMMENT '名称',
  `logo_url` varchar(200) DEFAULT NULL COMMENT '图片路径',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=14 DEFAULT CHARSET=utf8mb3 ROW_FORMAT=DYNAMIC COMMENT='test';

SQL Client File

文件格式：txt， yaml，sql （我试过都可以） 执行： ./bin/sql-client.sh -f sqlfile/a.sql 如果需要有注释：-- 这是注释

SET execution.checkpointing.interval = 3s;
CREATE TABLE mysql_binlog (
 id INT NOT NULL,
 t_name STRING,
 logo_url STRING,
 primary key (id) not enforced
) WITH (
 'connector' = 'mysql-cdc',
 'hostname' = '192.168.0.99',
 'port' = '3306',
 'username' = 'root',
 'password' = 'root',
 'database-name' = 'flink_source',
 'table-name' = 'flink_test'
);
CREATE TABLE test_cdc_sink (
 id INT,
 t_name STRING,
 logo_url STRING,
 primary key (id) not enforced
) WITH (
 'connector' = 'jdbc',
 'driver' = 'com.mysql.cj.jdbc.Driver',
 'url' = 'jdbc:mysql://192.168.0.51:3316/flink_sink?serverTimezone=Asia/Shanghai&useSSL=false',
 'username' = 'root',
 'password' = 'root',
 'table-name' = 'flink_test'
);
-- 环境参数参考https://nightlies.apache.org/flink/flink-docs-release-1.14/docs/dev/table/sqlclient/#initialize-session-using-sql-files
SET 'pipeline.name' = 'test_sql_file';
insert into test_cdc_sink select * from mysql_binlog;
