git地址 钉钉 参考地址 参考地址2 邮件
❤https://blog.csdn.net/weixin_44953658/article/details/112520122 ❤https://www.cnblogs.com/xuwujing/p/14065740.html

成功案例 邮件

本次实验环境 windows alertmanager-0.21.0.windows-amd64.tar.gz
地址：127.0.0.1:9093

  • 下载解压配置 Alertmanager
    • Alertmanager.yaml ```yaml global: resolve_timeout: 5m smtp_from: ‘1445763190@qq.com’ smtp_smarthost: ‘smtp.qq.com:465’ smtp_auth_username: ‘1445763190@qq.com’ smtp_auth_password: ‘2342342342342’ smtp_require_tls: false route: group_by: [‘instance’] group_wait: 30s group_interval: 5m repeat_interval: 3h receiver: email routes:
      • match: severity: critical receiver: pager
      • match_re: severity: ^(warning|critical)$ receiver: support_team

receivers:

  • name: ‘email’ email_configs:
    • to: ‘1445763190@qq.com’
  • name: ‘support_team’ email_configs:
    • to: ‘1445763190@qq.com’
  • name: ‘pager’ email_configs:
    • to: ‘1445763190@qq.com’
  2. - 配置  prometheus
  3.    - prometheus.yaml
  4. ```yaml
  5. # my global config
  6. global:
  7.   scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  8.   evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  9.   # scrape_timeout is set to the global default (10s).
  11. # Alertmanager configuration
  12. alerting:
  13.   alertmanagers:
  14.   - static_configs:
  15.     - targets:
  16.       - '192.168.0.51:9093'
  17.     # Alertmanager  的地址
  19. # Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
  20. rule_files:
  21.   - "first_rules.yml"
  22.   # - "second_rules.yml"
  24. # A scrape configuration containing exactly one endpoint to scrape:
  25. # Here it's Prometheus itself.
  26. scrape_configs:
  27.   # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  28.   - job_name: 'prometheus'
  30.     # metrics_path defaults to '/metrics'
  31.     # scheme defaults to 'http'.
  33.     static_configs:
  34.     - targets: ['localhost:9090']
  36.   - job_name: 'appointment'
  37.     scrape_interval: 10s
  38.     metrics_path: '/appointment/actuator/prometheus'
  39.     static_configs:
  40.     - targets: ['localhost:9002']
  41.       labels:
  42.         instance: smartAppointment
  • first_rules.yml


  1. groups:
  2. - name: node
  3.   rules:
  4.   - alert: server_status
  5.     expr: up{job="appointment"} == 0
  6.     for: 15s
  7.     annotations:
  8.       summary: "机器{{ $labels.instance }} 挂了"
  9.       description: "报告.请立即查看!"

测试中钉钉

alertmanager-0.21.0.linux-amd64.tar.gz CentOS Linux release 7.6.1810 (Core)

  • Architecture: x86_64
  • Intel(R) Xeon(R)
  • 下载解压配置 Alertmanager
  • 钉钉Alertmanager.yaml ```yaml global: resolve_timeout: 5m route: receiver: webhook group_wait: 30s group_interval: 5m repeat_interval: 4h group_by: [alertname] routes:
    • receiver: webhook group_wait: 10s match: team: node receivers:
  • name: webhook webhook_configs:
  2. - 配置  prometheus同上邮箱的配置
  3. - [设置自启](https://www.cnblogs.com/Wshile/p/12938377.html)参考
  4. ```shell
  5. vi /usr/lib/systemd/system/alertmanager.service
  6. # 添加数据
  7. [Unit]
  8. Description=alertmanager
  9. Documentation=https://prometheus.io/
  10. After=network.target
  12. [Service]
  13. Type=simple
  14. User=prometheus
  15. # alertmanager地址
  16. ExecStart=/opt/alertmanager/alertmanager  --config.file=/opt/alertmanager/alertmanager.yml
  17. Restart=on-failure
  19. [Install]
  20. WantedBy=multi-user.target
  23. chown -R prometheus.prometheus /usr/lib/systemd/system/alertmanager.service
  24. # 启动
  25. systemctl start alertmanager
  26. # 重启
  27. systemctl restart alertmanager
  28. #查看端口
  29. netstat -anpt | grep 9093

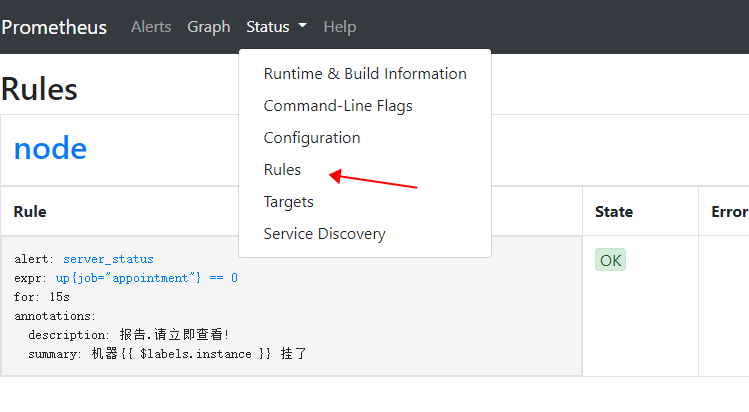

  • 查看prometheus
  • image.png

  • 钉钉配置

    • 命令记录

      1. # 下载
      2. wget https://github.com/timonwong/prometheus-webhook-dingtalk/releases/download/v1.4.0/prometheus-webhook-dingtalk-1.4.0.linux-amd64.tar.gz
      3. # 解压
      4. tar -xvf prometheus-webhook-dingtalk-1.4.0.linux-amd64.tar.gz
      5. # 重命名
      6. mv prometheus-webhook-dingtalk-1.4.0.linux-amd64 prometheus-webhook-dingtalk

    • 配置文件 ```yaml

      Request timeout

      timeout: 5s

Customizable templates path

templates:

  • /config/example.tmpl

targets: webhook1: &target_base url: https://oapi.dingtalk.com/robot/send?access_token=xxxx message: title: ‘{{ template “example.title” . }}’ text: ‘{{ template “example.content” . }}’

webhook2: <<: *target_base mention:

  1.   # 此处必须声明 Mention 的号码...
  2.   mobiles: ["我的电话号码"]
  3. message:
  4.   text: |
  5.     @我的电话号码
  7.     {{ template "example.content" . }}

```

注意

  • prometheus.yaml 配置 alertmanagers节点时最好些写ip+prot
  • 邮件配置参考报警邮箱配置
